adapter_vk.c File Reference

#include "wined3d_private.h"
#include "wined3d_vk.h"

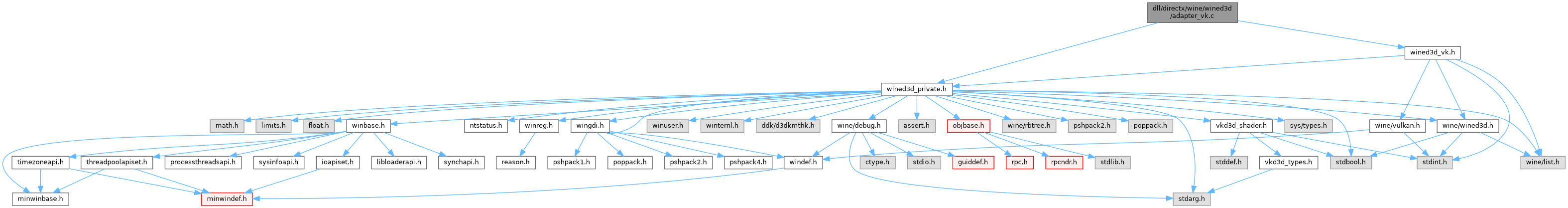

Include dependency graph for adapter_vk.c:

Go to the source code of this file.

Classes
struct	wined3d_physical_device_info
struct	wined3d_view_vk_destroy_ctx

Macros
#define	VK_DEVICE_PFN(name)
#define	VK_DEVICE_EXT_PFN(name)    device_vk->vk_info.vk_ops.name = (void *)VK_CALL(vkGetDeviceProcAddr(vk_device, #name));
#define	LOAD_INSTANCE_PFN(name)
#define	LOAD_INSTANCE_OPT_PFN(name)    vk_ops->name = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #name));
#define	VK_INSTANCE_PFN   LOAD_INSTANCE_PFN
#define	VK_INSTANCE_EXT_PFN   LOAD_INSTANCE_OPT_PFN
#define	VK_DEVICE_PFN   LOAD_INSTANCE_PFN
#define	VK_DEVICE_EXT_PFN   LOAD_INSTANCE_OPT_PFN
#define	MAP_INSTANCE_FUNCTION(core_pfn, ext_pfn)

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (d3d)
static const struct wined3d_adapter_vk *	wined3d_adapter_vk_const (const struct wined3d_adapter *adapter)
static const char *	debug_vk_version (uint32_t version)
static HRESULT	hresult_from_vk_result (VkResult vr)
static BOOL	wined3d_load_vulkan (struct wined3d_vk_info *vk_info)
static void	wined3d_unload_vulkan (struct wined3d_vk_info *vk_info)
static void	adapter_vk_destroy (struct wined3d_adapter *adapter)
static HRESULT	wined3d_select_vulkan_queue_family (const struct wined3d_adapter_vk *adapter_vk, uint32_t *queue_family_index, uint32_t *timestamp_bits)
static void	wined3d_disable_vulkan_features (struct wined3d_physical_device_info *info)
static struct wined3d_allocator_chunk *	wined3d_allocator_vk_create_chunk (struct wined3d_allocator *allocator, struct wined3d_context *context, unsigned int memory_type, size_t chunk_size)
static void	wined3d_allocator_vk_destroy_chunk (struct wined3d_allocator_chunk *chunk)
static void	add_structure (VkPhysicalDeviceFeatures2 *features2, void *s)
static void	get_physical_device_info (const struct wined3d_adapter_vk *adapter_vk, struct wined3d_physical_device_info *info)
static HRESULT	adapter_vk_create_device (struct wined3d *wined3d, const struct wined3d_adapter *adapter, enum wined3d_device_type device_type, HWND focus_window, unsigned int flags, BYTE surface_alignment, const enum wined3d_feature_level *levels, unsigned int level_count, struct wined3d_device_parent *device_parent, struct wined3d_device **device)
static void	adapter_vk_destroy_device (struct wined3d_device *device)
static struct wined3d_context *	adapter_vk_acquire_context (struct wined3d_device *device, struct wined3d_texture *texture, unsigned int sub_resource_idx)
static void	adapter_vk_release_context (struct wined3d_context *context)
static void	adapter_vk_get_wined3d_caps (const struct wined3d_adapter *adapter, struct wined3d_caps *caps)
static BOOL	adapter_vk_check_format (const struct wined3d_adapter *adapter, const struct wined3d_format *adapter_format, const struct wined3d_format *rt_format, const struct wined3d_format *ds_format)
static HRESULT	adapter_vk_init_3d (struct wined3d_device *device)
static void	adapter_vk_uninit_3d_cs (void *object)
static void	adapter_vk_uninit_3d (struct wined3d_device *device)
static void *	wined3d_bo_vk_map (struct wined3d_bo_vk *bo, struct wined3d_context_vk *context_vk)
static void	wined3d_bo_vk_unmap (struct wined3d_bo_vk *bo, struct wined3d_context_vk *context_vk)
static void	wined3d_bo_slab_vk_lock (struct wined3d_bo_slab_vk *slab_vk, struct wined3d_context_vk *context_vk)
static void	wined3d_bo_slab_vk_unlock (struct wined3d_bo_slab_vk *slab_vk, struct wined3d_context_vk *context_vk)
void *	wined3d_bo_slab_vk_map (struct wined3d_bo_slab_vk *slab_vk, struct wined3d_context_vk *context_vk)
void	wined3d_bo_slab_vk_unmap (struct wined3d_bo_slab_vk *slab_vk, struct wined3d_context_vk *context_vk)
VkAccessFlags	vk_access_mask_from_buffer_usage (VkBufferUsageFlags usage)
VkPipelineStageFlags	vk_pipeline_stage_mask_from_buffer_usage (VkBufferUsageFlags usage)
static void *	adapter_vk_map_bo_address (struct wined3d_context *context, const struct wined3d_bo_address *data, size_t size, uint32_t map_flags)
static void	flush_bo_range (struct wined3d_context_vk *context_vk, struct wined3d_bo_vk *bo, unsigned int offset, unsigned int size)
static void	adapter_vk_unmap_bo_address (struct wined3d_context *context, const struct wined3d_bo_address *data, unsigned int range_count, const struct wined3d_range *ranges)
void	adapter_vk_copy_bo_address (struct wined3d_context *context, const struct wined3d_bo_address *dst, const struct wined3d_bo_address *src, unsigned int range_count, const struct wined3d_range *ranges, uint32_t map_flags)
static void	adapter_vk_flush_bo_address (struct wined3d_context *context, const struct wined3d_const_bo_address *data, size_t size)
static bool	adapter_vk_alloc_bo (struct wined3d_device *device, struct wined3d_resource *resource, unsigned int sub_resource_idx, struct wined3d_bo_address *addr)
static void	adapter_vk_destroy_bo (struct wined3d_context *context, struct wined3d_bo *bo)
static HRESULT	adapter_vk_create_swapchain (struct wined3d_device *device, const struct wined3d_swapchain_desc *desc, struct wined3d_swapchain_state_parent *state_parent, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_swapchain **swapchain)
static void	adapter_vk_destroy_swapchain (struct wined3d_swapchain *swapchain)
unsigned int	wined3d_adapter_vk_get_memory_type_index (const struct wined3d_adapter_vk *adapter_vk, uint32_t memory_type_mask, VkMemoryPropertyFlags flags)
static HRESULT	adapter_vk_create_buffer (struct wined3d_device *device, const struct wined3d_buffer_desc *desc, const struct wined3d_sub_resource_data *data, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_buffer **buffer)
static void	adapter_vk_destroy_buffer (struct wined3d_buffer *buffer)
static HRESULT	adapter_vk_create_texture (struct wined3d_device *device, const struct wined3d_resource_desc *desc, unsigned int layer_count, unsigned int level_count, uint32_t flags, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_texture **texture)
static void	adapter_vk_destroy_texture (struct wined3d_texture *texture)
static HRESULT	adapter_vk_create_rendertarget_view (const struct wined3d_view_desc *desc, struct wined3d_resource *resource, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_rendertarget_view **view)
static void	wined3d_view_vk_destroy_object (void *object)
static void	wined3d_view_vk_destroy (struct wined3d_device *device, VkBufferView *vk_buffer_view, VkImageView *vk_image_view, struct wined3d_bo_user *bo_user, struct wined3d_bo_vk *vk_counter_bo, VkBufferView *vk_counter_view, uint64_t *command_buffer_id, void *view_vk)
static void	adapter_vk_destroy_rendertarget_view (struct wined3d_rendertarget_view *view)
static HRESULT	adapter_vk_create_shader_resource_view (const struct wined3d_view_desc *desc, struct wined3d_resource *resource, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_shader_resource_view **view)
static void	adapter_vk_destroy_shader_resource_view (struct wined3d_shader_resource_view *view)
static HRESULT	adapter_vk_create_unordered_access_view (const struct wined3d_view_desc *desc, struct wined3d_resource *resource, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_unordered_access_view **view)
static void	adapter_vk_destroy_unordered_access_view (struct wined3d_unordered_access_view *view)
static HRESULT	adapter_vk_create_sampler (struct wined3d_device *device, const struct wined3d_sampler_desc *desc, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_sampler **sampler)
static void	wined3d_sampler_vk_destroy_object (void *object)
static void	adapter_vk_destroy_sampler (struct wined3d_sampler *sampler)
static HRESULT	adapter_vk_create_query (struct wined3d_device *device, enum wined3d_query_type type, void *parent, const struct wined3d_parent_ops *parent_ops, struct wined3d_query **query)
static void	wined3d_query_vk_destroy_object (void *object)
static void	adapter_vk_destroy_query (struct wined3d_query *query)
static void	adapter_vk_flush_context (struct wined3d_context *context)
static void	adapter_vk_draw_primitive (struct wined3d_device *device, const struct wined3d_state *state, const struct wined3d_draw_parameters *parameters)
static void	adapter_vk_dispatch_compute (struct wined3d_device *device, const struct wined3d_state *state, const struct wined3d_dispatch_parameters *parameters)
static void	adapter_vk_clear_uav (struct wined3d_context *context, struct wined3d_unordered_access_view *view, const struct wined3d_uvec4 *clear_value, bool fp)
static void	adapter_vk_generate_mipmap (struct wined3d_context *context, struct wined3d_shader_resource_view *view)
static unsigned int	wined3d_get_wine_vk_version (void)
static BOOL	enable_vulkan_instance_extensions (uint32_t *extension_count, const char *enabled_extensions[], const struct wined3d_vk_info *vk_info)
static BOOL	wined3d_init_vulkan (struct wined3d_vk_info *vk_info)
static VkPhysicalDevice	get_vulkan_physical_device (struct wined3d_vk_info *vk_info)
static enum wined3d_display_driver	guess_display_driver (enum wined3d_pci_vendor vendor)
static bool	adapter_vk_init_driver_info (struct wined3d_adapter_vk *adapter_vk, const VkPhysicalDeviceProperties *properties)
static bool	feature_level_9_2_supported (const struct wined3d_physical_device_info *info)
static bool	feature_level_9_3_supported (const struct wined3d_physical_device_info *info, unsigned int shader_model)
static bool	feature_level_10_supported (const struct wined3d_physical_device_info *info, unsigned int shader_model)
static bool	feature_level_10_1_supported (const struct wined3d_physical_device_info *info, unsigned int shader_model)
static bool	feature_level_11_supported (const struct wined3d_physical_device_info *info, unsigned int shader_model)
static bool	feature_level_11_1_supported (const struct wined3d_physical_device_info *info)
static enum wined3d_feature_level	feature_level_from_caps (const struct wined3d_physical_device_info *info, const struct shader_caps *shader_caps)
static void	wined3d_adapter_vk_init_d3d_info (struct wined3d_adapter_vk *adapter_vk, uint32_t wined3d_creation_flags)
static bool	wined3d_adapter_vk_init_device_extensions (struct wined3d_adapter_vk *adapter_vk)
static BOOL	wined3d_adapter_vk_init (struct wined3d_adapter_vk *adapter_vk, unsigned int ordinal, unsigned int wined3d_creation_flags)
struct wined3d_adapter *	wined3d_adapter_vk_create (unsigned int ordinal, unsigned int wined3d_creation_flags)

Variables
static const struct wined3d_state_entry_template	misc_state_template_vk []
static const struct wined3d_allocator_ops	wined3d_allocator_vk_ops
static const struct wined3d_adapter_ops	wined3d_adapter_vk_ops
struct {
const char *   name
unsigned int   core_since_version
BOOL   required
}	vulkan_instance_extensions []

Macro Definition Documentation

LOAD_INSTANCE_OPT_PFN

#define LOAD_INSTANCE_OPT_PFN

(

name

)

vk_ops->name = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #name));

LOAD_INSTANCE_PFN

#define LOAD_INSTANCE_PFN

(

name

)

Value:

    if (!(vk_ops->name = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #name)))) \
    { \
        WARN("Could not get instance proc addr for '" #name "'.\n"); \
        goto fail; \
    }

MAP_INSTANCE_FUNCTION

#define MAP_INSTANCE_FUNCTION	(		core_pfn,
			ext_pfn
	)

Value:

    if (!vk_ops->core_pfn) \
        vk_ops->core_pfn = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #ext_pfn));

VK_DEVICE_EXT_PFN [1/2]

#define VK_DEVICE_EXT_PFN

(

name

)

device_vk->vk_info.vk_ops.name = (void *)VK_CALL(vkGetDeviceProcAddr(vk_device, #name));

VK_DEVICE_EXT_PFN [2/2]

#define VK_DEVICE_EXT_PFN   LOAD_INSTANCE_OPT_PFN

VK_DEVICE_PFN [1/2]

#define VK_DEVICE_PFN

(

name

)

Value:

    if (!(device_vk->vk_info.vk_ops.name = (void *)VK_CALL(vkGetDeviceProcAddr(vk_device, #name)))) \
    { \
        WARN("Could not get device proc addr for '" #name "'.\n"); \
        hr = E_FAIL; \
        goto fail; \
    }

VK_DEVICE_PFN [2/2]

#define VK_DEVICE_PFN   LOAD_INSTANCE_PFN

VK_INSTANCE_EXT_PFN

#define VK_INSTANCE_EXT_PFN   LOAD_INSTANCE_OPT_PFN

VK_INSTANCE_PFN

#define VK_INSTANCE_PFN   LOAD_INSTANCE_PFN

Function Documentation

adapter_vk_acquire_context()

static struct wined3d_context * adapter_vk_acquire_context ( struct wined3d_device *  device, struct wined3d_texture *  texture, unsigned int  sub_resource_idx  )

static

Definition at line 472 of file adapter_vk.c.

{
    TRACE("device %p, texture %p, sub_resource_idx %u.\n", device, texture, sub_resource_idx);

    wined3d_from_cs(device->cs);

    if (!device->context_count)
        return NULL;

    return &wined3d_device_vk(device)->context_vk.c;
}

adapter_vk_alloc_bo()

static bool adapter_vk_alloc_bo ( struct wined3d_device *  device, struct wined3d_resource *  resource, unsigned int  sub_resource_idx, struct wined3d_bo_address *  addr  )

static

Definition at line 1170 of file adapter_vk.c.

{
    struct wined3d_device_vk *device_vk = wined3d_device_vk(device);
    struct wined3d_context_vk *context_vk = &device_vk->context_vk;
    VkMemoryPropertyFlags memory_type;
    VkBufferUsageFlags buffer_usage;
    struct wined3d_bo_vk *bo_vk;
    VkDeviceSize size;

    wined3d_not_from_cs(device->cs);
    assert(device->context_count);

    if (resource->type == WINED3D_RTYPE_BUFFER)
    {
        buffer_usage = vk_buffer_usage_from_bind_flags(resource->bind_flags);
        memory_type = vk_memory_type_from_access_flags(resource->access, resource->usage);
        size = resource->size;
    }
    else
    {
        struct wined3d_texture *texture = texture_from_resource(resource);

        buffer_usage = VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_TRANSFER_SRC_BIT;
        memory_type = VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT;
        size = texture->sub_resources[sub_resource_idx].size;
    }

    if (!(bo_vk = malloc(sizeof(*bo_vk))))
        return false;

    if (!(wined3d_context_vk_create_bo(context_vk, size, buffer_usage, memory_type, bo_vk)))
    {
        WARN("Failed to create Vulkan buffer.\n");
        free(bo_vk);
        return false;
    }

    if (!bo_vk->b.map_ptr)
    {
        if (!wined3d_bo_vk_map(bo_vk, context_vk))
            ERR("Failed to map bo.\n");
    }

    addr->buffer_object = &bo_vk->b;
    addr->addr = NULL;
    return true;
}

adapter_vk_check_format()

static BOOL adapter_vk_check_format ( const struct wined3d_adapter *  adapter, const struct wined3d_format *  adapter_format, const struct wined3d_format *  rt_format, const struct wined3d_format *  ds_format  )

static

Definition at line 595 of file adapter_vk.c.

{
    return TRUE;
}

adapter_vk_clear_uav()

static void adapter_vk_clear_uav ( struct wined3d_context *  context, struct wined3d_unordered_access_view *  view, const struct wined3d_uvec4 *  clear_value, bool  fp  )

static

Definition at line 1802 of file adapter_vk.c.

{
    TRACE("context %p, view %p, clear_value %s.\n", context, view, debug_uvec4(clear_value));

    wined3d_unordered_access_view_vk_clear(wined3d_unordered_access_view_vk(view),
            clear_value, wined3d_context_vk(context), fp);
}

adapter_vk_copy_bo_address()

void adapter_vk_copy_bo_address	(	struct wined3d_context *	context,
		const struct wined3d_bo_address *	dst,
		const struct wined3d_bo_address *	src,
		unsigned int	range_count,
		const struct wined3d_range *	ranges,
		uint32_t	map_flags
	)

Definition at line 1020 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk = wined3d_context_vk(context);
    const struct wined3d_vk_info *vk_info = context_vk->vk_info;
    struct wined3d_bo_vk staging_bo, *src_bo, *dst_bo;
    VkAccessFlags src_access_mask, dst_access_mask;
    VkBufferMemoryBarrier vk_barrier[2];
    const struct wined3d_range *range;
    struct wined3d_bo_address staging;
    VkCommandBuffer vk_command_buffer;
    uint8_t *dst_ptr, *src_ptr;
    VkBufferCopy region;
    size_t size = 0;
    unsigned int i;

    src_bo = src->buffer_object ? wined3d_bo_vk(src->buffer_object) : NULL;
    dst_bo = dst->buffer_object ? wined3d_bo_vk(dst->buffer_object) : NULL;

    if (src_bo && dst_bo)
    {
        if (!(vk_command_buffer = wined3d_context_vk_get_command_buffer(context_vk)))
        {
            ERR("Failed to get command buffer.\n");
            return;
        }

        wined3d_context_vk_end_current_render_pass(context_vk);

        src_access_mask = vk_access_mask_from_buffer_usage(src_bo->usage);
        dst_access_mask = vk_access_mask_from_buffer_usage(dst_bo->usage);

        vk_barrier[0].sType = VK_STRUCTURE_TYPE_BUFFER_MEMORY_BARRIER;
        vk_barrier[0].pNext = NULL;
        vk_barrier[0].srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
        vk_barrier[0].dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
        vk_barrier[0].buffer = src_bo->vk_buffer;

        vk_barrier[1].sType = VK_STRUCTURE_TYPE_BUFFER_MEMORY_BARRIER;
        vk_barrier[1].pNext = NULL;
        vk_barrier[1].srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
        vk_barrier[1].dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
        vk_barrier[1].buffer = dst_bo->vk_buffer;

        for (i = 0; i < range_count; ++i)
        {
            range = &ranges[i];

            region.srcOffset = src_bo->b.buffer_offset + (uintptr_t)src->addr + range->offset;
            region.dstOffset = dst_bo->b.buffer_offset + (uintptr_t)dst->addr + range->offset;
            region.size = range->size;

            vk_barrier[0].offset = region.srcOffset;
            vk_barrier[0].size = region.size;

            vk_barrier[1].offset = region.dstOffset;
            vk_barrier[1].size = region.size;

            vk_barrier[0].srcAccessMask = src_access_mask;
            vk_barrier[0].dstAccessMask = VK_ACCESS_TRANSFER_READ_BIT;

            vk_barrier[1].srcAccessMask = dst_access_mask;
            vk_barrier[1].dstAccessMask = VK_ACCESS_TRANSFER_WRITE_BIT;

            VK_CALL(vkCmdPipelineBarrier(vk_command_buffer, VK_PIPELINE_STAGE_ALL_COMMANDS_BIT,
                    VK_PIPELINE_STAGE_TRANSFER_BIT, 0, 0, NULL, 2, vk_barrier, 0, NULL));

            VK_CALL(vkCmdCopyBuffer(vk_command_buffer, src_bo->vk_buffer, dst_bo->vk_buffer, 1, &region));

            vk_barrier[0].srcAccessMask = VK_ACCESS_TRANSFER_READ_BIT;
            vk_barrier[0].dstAccessMask = src_access_mask;

            vk_barrier[1].srcAccessMask = VK_ACCESS_TRANSFER_WRITE_BIT;
            vk_barrier[1].dstAccessMask = dst_access_mask;

            VK_CALL(vkCmdPipelineBarrier(vk_command_buffer, VK_PIPELINE_STAGE_TRANSFER_BIT,
                    VK_PIPELINE_STAGE_ALL_COMMANDS_BIT, 0, 0, NULL, 2, vk_barrier, 0, NULL));
        }

        wined3d_context_vk_reference_bo(context_vk, src_bo);
        wined3d_context_vk_reference_bo(context_vk, dst_bo);

        return;
    }

    for (i = 0; i < range_count; ++i)
        size = max(size, ranges[i].offset + ranges[i].size);

    if (src_bo && !(src_bo->memory_type & VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT))
    {
        if (!(wined3d_context_vk_create_bo(context_vk, size, VK_BUFFER_USAGE_TRANSFER_DST_BIT,
                VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT, &staging_bo)))
        {
            ERR("Failed to create staging bo.\n");
            return;
        }

        staging.buffer_object = &staging_bo.b;
        staging.addr = NULL;
        adapter_vk_copy_bo_address(context, &staging, src, range_count, ranges, WINED3D_MAP_WRITE);
        adapter_vk_copy_bo_address(context, dst, &staging, range_count, ranges, WINED3D_MAP_WRITE);

        wined3d_context_vk_destroy_bo(context_vk, &staging_bo);

        return;
    }

    if (dst_bo && (!(dst_bo->memory_type & VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT) || (!(map_flags & WINED3D_MAP_DISCARD)
            && dst_bo->command_buffer_id > context_vk->completed_command_buffer_id)))
    {
        if (!(wined3d_context_vk_create_bo(context_vk, size, VK_BUFFER_USAGE_TRANSFER_SRC_BIT,
                VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT, &staging_bo)))
        {
            ERR("Failed to create staging bo.\n");
            return;
        }

        staging.buffer_object = &staging_bo.b;
        staging.addr = NULL;
        adapter_vk_copy_bo_address(context, &staging, src, range_count, ranges, WINED3D_MAP_WRITE);
        adapter_vk_copy_bo_address(context, dst, &staging, range_count, ranges, WINED3D_MAP_WRITE);

        wined3d_context_vk_destroy_bo(context_vk, &staging_bo);

        return;
    }

    src_ptr = adapter_vk_map_bo_address(context, src, size, WINED3D_MAP_READ);
    dst_ptr = adapter_vk_map_bo_address(context, dst, size, map_flags);

    for (i = 0; i < range_count; ++i)
        memcpy(dst_ptr + ranges[i].offset, src_ptr + ranges[i].offset, ranges[i].size);

    adapter_vk_unmap_bo_address(context, dst, range_count, ranges);
    adapter_vk_unmap_bo_address(context, src, 0, NULL);
}

Referenced by adapter_vk_copy_bo_address(), and wined3d_unordered_access_view_vk_clear().

adapter_vk_create_buffer()

static HRESULT adapter_vk_create_buffer ( struct wined3d_device *  device, const struct wined3d_buffer_desc *  desc, const struct wined3d_sub_resource_data *  data, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_buffer **  buffer  )

static

Definition at line 1276 of file adapter_vk.c.

{
    struct wined3d_buffer_vk *buffer_vk;
    HRESULT hr;

    TRACE("device %p, desc %p, data %p, parent %p, parent_ops %p, buffer %p.\n",
            device, desc, data, parent, parent_ops, buffer);

    if (!(buffer_vk = calloc(1, sizeof(*buffer_vk))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_buffer_vk_init(buffer_vk, device, desc, data, parent, parent_ops)))
    {
        WARN("Failed to initialise buffer, hr %#lx.\n", hr);
        free(buffer_vk);
        return hr;
    }

    TRACE("Created buffer %p.\n", buffer_vk);
    *buffer = &buffer_vk->b;

    return hr;
}

adapter_vk_create_device()

static HRESULT adapter_vk_create_device ( struct wined3d *  wined3d, const struct wined3d_adapter *  adapter, enum wined3d_device_type  device_type, HWND  focus_window, unsigned int  flags, BYTE  surface_alignment, const enum wined3d_feature_level *  levels, unsigned int  level_count, struct wined3d_device_parent *  device_parent, struct wined3d_device **  device  )

static

Definition at line 355 of file adapter_vk.c.

{
    const struct wined3d_adapter_vk *adapter_vk = wined3d_adapter_vk_const(adapter);
    const struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;
    struct wined3d_physical_device_info physical_device_info;
    static const float priorities[] = {1.0f};
    struct wined3d_device_vk *device_vk;
    VkDevice vk_device = VK_NULL_HANDLE;
    VkDeviceQueueCreateInfo queue_info;
    VkPhysicalDevice physical_device;
    VkDeviceCreateInfo device_info;
    uint32_t queue_family_index;
    uint32_t timestamp_bits;
    VkResult vr;
    HRESULT hr;

    if (!(device_vk = calloc(1, sizeof(*device_vk))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_select_vulkan_queue_family(adapter_vk, &queue_family_index, &timestamp_bits)))
        goto fail;

    physical_device = adapter_vk->physical_device;

    get_physical_device_info(adapter_vk, &physical_device_info);
    wined3d_disable_vulkan_features(&physical_device_info);

    queue_info.sType = VK_STRUCTURE_TYPE_DEVICE_QUEUE_CREATE_INFO;
    queue_info.pNext = NULL;
    queue_info.flags = 0;
    queue_info.queueFamilyIndex = queue_family_index;
    queue_info.queueCount = ARRAY_SIZE(priorities);
    queue_info.pQueuePriorities = priorities;

    device_info.sType = VK_STRUCTURE_TYPE_DEVICE_CREATE_INFO;
    device_info.pNext = physical_device_info.features2.pNext;
    device_info.flags = 0;
    device_info.queueCreateInfoCount = 1;
    device_info.pQueueCreateInfos = &queue_info;
    device_info.enabledLayerCount = 0;
    device_info.ppEnabledLayerNames = NULL;
    device_info.enabledExtensionCount = adapter_vk->device_extension_count;
    device_info.ppEnabledExtensionNames = adapter_vk->device_extensions;
    device_info.pEnabledFeatures = &physical_device_info.features2.features;

    if ((vr = VK_CALL(vkCreateDevice(physical_device, &device_info, NULL, &vk_device))) < 0)
    {
        WARN("Failed to create Vulkan device, vr %s.\n", wined3d_debug_vkresult(vr));
        vk_device = VK_NULL_HANDLE;
        hr = hresult_from_vk_result(vr);
        goto fail;
    }

    device_vk->vk_device = vk_device;
    VK_CALL(vkGetDeviceQueue(vk_device, queue_family_index, 0, &device_vk->vk_queue));
    device_vk->vk_queue_family_index = queue_family_index;
    device_vk->timestamp_bits = timestamp_bits;

    device_vk->vk_info = *vk_info;
#define VK_DEVICE_PFN(name) \
    if (!(device_vk->vk_info.vk_ops.name = (void *)VK_CALL(vkGetDeviceProcAddr(vk_device, #name)))) \
    { \
        WARN("Could not get device proc addr for '" #name "'.\n"); \
        hr = E_FAIL; \
        goto fail; \
    }
#define VK_DEVICE_EXT_PFN(name) \
    device_vk->vk_info.vk_ops.name = (void *)VK_CALL(vkGetDeviceProcAddr(vk_device, #name));
    VK_DEVICE_FUNCS()
#undef VK_DEVICE_EXT_PFN
#undef VK_DEVICE_PFN

    if (!wined3d_allocator_init(&device_vk->allocator,
            adapter_vk->memory_properties.memoryTypeCount, &wined3d_allocator_vk_ops))
    {
        WARN("Failed to initialise allocator.\n");
        hr = E_FAIL;
        goto fail;
    }

    if (FAILED(hr = wined3d_device_init(&device_vk->d, wined3d, adapter->ordinal, device_type, focus_window,
            flags, surface_alignment, levels, level_count, vk_info->supported, device_parent)))
    {
        WARN("Failed to initialize device, hr %#lx.\n", hr);
        wined3d_allocator_cleanup(&device_vk->allocator);
        goto fail;
    }

    wined3d_lock_init(&device_vk->allocator_cs, "wined3d_device_vk.allocator_cs");

    *device = &device_vk->d;

    return WINED3D_OK;

fail:
    VK_CALL(vkDestroyDevice(vk_device, NULL));
    free(device_vk);
    return hr;
}

adapter_vk_create_query()

static HRESULT adapter_vk_create_query ( struct wined3d_device *  device, enum wined3d_query_type  type, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_query **  query  )

static

Definition at line 1645 of file adapter_vk.c.

{
    TRACE("device %p, type %#x, parent %p, parent_ops %p, query %p.\n",
            device, type, parent, parent_ops, query);

    return wined3d_query_vk_create(device, type, parent, parent_ops, query);
}

adapter_vk_create_rendertarget_view()

static HRESULT adapter_vk_create_rendertarget_view ( const struct wined3d_view_desc *  desc, struct wined3d_resource *  resource, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_rendertarget_view **  view  )

static

Definition at line 1374 of file adapter_vk.c.

{
    struct wined3d_rendertarget_view_vk *view_vk;
    HRESULT hr;

    TRACE("desc %s, resource %p, parent %p, parent_ops %p, view %p.\n",
            wined3d_debug_view_desc(desc, resource), resource, parent, parent_ops, view);

    if (!(view_vk = calloc(1, sizeof(*view_vk))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_rendertarget_view_vk_init(view_vk, desc, resource, parent, parent_ops)))
    {
        WARN("Failed to initialise view, hr %#lx.\n", hr);
        free(view_vk);
        return hr;
    }

    TRACE("Created render target view %p.\n", view_vk);
    *view = &view_vk->v;

    return hr;
}

adapter_vk_create_sampler()

static HRESULT adapter_vk_create_sampler ( struct wined3d_device *  device, const struct wined3d_sampler_desc *  desc, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_sampler **  sampler  )

static

Definition at line 1602 of file adapter_vk.c.

{
    struct wined3d_sampler_vk *sampler_vk;

    TRACE("device %p, desc %p, parent %p, parent_ops %p, sampler %p.\n",
            device, desc, parent, parent_ops, sampler);

    if (!(sampler_vk = calloc(1, sizeof(*sampler_vk))))
        return E_OUTOFMEMORY;

    wined3d_sampler_vk_init(sampler_vk, device, desc, parent, parent_ops);

    TRACE("Created sampler %p.\n", sampler_vk);
    *sampler = &sampler_vk->s;

    return WINED3D_OK;
}

adapter_vk_create_shader_resource_view()

static HRESULT adapter_vk_create_shader_resource_view ( const struct wined3d_view_desc *  desc, struct wined3d_resource *  resource, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_shader_resource_view **  view  )

static

Definition at line 1512 of file adapter_vk.c.

{
    struct wined3d_shader_resource_view_vk *view_vk;
    HRESULT hr;

    TRACE("desc %s, resource %p, parent %p, parent_ops %p, view %p.\n",
            wined3d_debug_view_desc(desc, resource), resource, parent, parent_ops, view);

    if (!(view_vk = calloc(1, sizeof(*view_vk))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_shader_resource_view_vk_init(view_vk, desc, resource, parent, parent_ops)))
    {
        WARN("Failed to initialise view, hr %#lx.\n", hr);
        free(view_vk);
        return hr;
    }

    TRACE("Created shader resource view %p.\n", view_vk);
    *view = &view_vk->v;

    return hr;
}

adapter_vk_create_swapchain()

static HRESULT adapter_vk_create_swapchain ( struct wined3d_device *  device, const struct wined3d_swapchain_desc *  desc, struct wined3d_swapchain_state_parent *  state_parent, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_swapchain **  swapchain  )

static

Definition at line 1224 of file adapter_vk.c.

{
    struct wined3d_swapchain_vk *swapchain_vk;
    HRESULT hr;

    TRACE("device %p, desc %p, state_parent %p, parent %p, parent_ops %p, swapchain %p.\n",
            device, desc, state_parent, parent, parent_ops, swapchain);

    if (!(swapchain_vk = calloc(1, sizeof(*swapchain_vk))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_swapchain_vk_init(swapchain_vk, device, desc, state_parent, parent,
            parent_ops)))
    {
        WARN("Failed to initialise swapchain, hr %#lx.\n", hr);
        free(swapchain_vk);
        return hr;
    }

    TRACE("Created swapchain %p.\n", swapchain_vk);
    *swapchain = &swapchain_vk->s;

    return hr;
}

adapter_vk_create_texture()

static HRESULT adapter_vk_create_texture ( struct wined3d_device *  device, const struct wined3d_resource_desc *  desc, unsigned int  layer_count, unsigned int  level_count, uint32_t  flags, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_texture **  texture  )

static

Definition at line 1322 of file adapter_vk.c.

{
    struct wined3d_texture_vk *texture_vk;
    HRESULT hr;

    TRACE("device %p, desc %p, layer_count %u, level_count %u, flags %#x, parent %p, parent_ops %p, texture %p.\n",
            device, desc, layer_count, level_count, flags, parent, parent_ops, texture);

    if (!(texture_vk = wined3d_texture_allocate_object_memory(sizeof(*texture_vk), level_count, layer_count)))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_texture_vk_init(texture_vk, device, desc,
            layer_count, level_count, flags, parent, parent_ops)))
    {
        WARN("Failed to initialise texture, hr %#lx.\n", hr);
        free(texture_vk);
        return hr;
    }

    TRACE("Created texture %p.\n", texture_vk);
    *texture = &texture_vk->t;

    return hr;
}

adapter_vk_create_unordered_access_view()

static HRESULT adapter_vk_create_unordered_access_view ( const struct wined3d_view_desc *  desc, struct wined3d_resource *  resource, void *  parent, const struct wined3d_parent_ops *  parent_ops, struct wined3d_unordered_access_view **  view  )

static

Definition at line 1557 of file adapter_vk.c.

{
    struct wined3d_unordered_access_view_vk *view_vk;
    HRESULT hr;

    TRACE("desc %s, resource %p, parent %p, parent_ops %p, view %p.\n",
            wined3d_debug_view_desc(desc, resource), resource, parent, parent_ops, view);

    if (!(view_vk = calloc(1, sizeof(*view_vk))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = wined3d_unordered_access_view_vk_init(view_vk, desc, resource, parent, parent_ops)))
    {
        WARN("Failed to initialise view, hr %#lx.\n", hr);
        free(view_vk);
        return hr;
    }

    TRACE("Created unordered access view %p.\n", view_vk);
    *view = &view_vk->v;

    return hr;
}

adapter_vk_destroy()

static void adapter_vk_destroy ( struct wined3d_adapter *  adapter )

static

Definition at line 127 of file adapter_vk.c.

{
    struct wined3d_adapter_vk *adapter_vk = wined3d_adapter_vk(adapter);
    struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;

    VK_CALL(vkDestroyInstance(vk_info->instance, NULL));
    wined3d_unload_vulkan(vk_info);
    wined3d_adapter_cleanup(&adapter_vk->a);
    free(adapter_vk->device_extensions);
    free(adapter_vk);
}

adapter_vk_destroy_bo()

static void adapter_vk_destroy_bo ( struct wined3d_context *  context, struct wined3d_bo *  bo  )

static

Definition at line 1219 of file adapter_vk.c.

{
    wined3d_context_vk_destroy_bo(wined3d_context_vk(context), wined3d_bo_vk(bo));
}

adapter_vk_destroy_buffer()

static void adapter_vk_destroy_buffer ( struct wined3d_buffer *  buffer )

static

Definition at line 1302 of file adapter_vk.c.

{
    struct wined3d_buffer_vk *buffer_vk = wined3d_buffer_vk(buffer);
    struct wined3d_device *device = buffer_vk->b.resource.device;
    unsigned int swapchain_count = device->swapchain_count;

    TRACE("buffer_vk %p.\n", buffer_vk);

    /* Take a reference to the device, in case releasing the buffer would
     * cause the device to be destroyed. However, swapchain resources don't
     * take a reference to the device, and we wouldn't want to increment the
     * refcount on a device that's in the process of being destroyed. */
    if (swapchain_count)
        wined3d_device_incref(device);
    wined3d_buffer_cleanup(&buffer_vk->b);
    wined3d_cs_destroy_object(device->cs, free, buffer_vk);
    if (swapchain_count)
        wined3d_device_decref(device);
}

adapter_vk_destroy_device()

static void adapter_vk_destroy_device ( struct wined3d_device *  device )

static

Definition at line 458 of file adapter_vk.c.

{
    struct wined3d_device_vk *device_vk = wined3d_device_vk(device);
    const struct wined3d_vk_info *vk_info = &device_vk->vk_info;

    wined3d_device_cleanup(&device_vk->d);
    wined3d_allocator_cleanup(&device_vk->allocator);

    wined3d_lock_cleanup(&device_vk->allocator_cs);

    VK_CALL(vkDestroyDevice(device_vk->vk_device, NULL));
    free(device_vk);
}

adapter_vk_destroy_query()

static void adapter_vk_destroy_query ( struct wined3d_query *  query )

static

Definition at line 1663 of file adapter_vk.c.

{
    struct wined3d_query_vk *query_vk = wined3d_query_vk(query);

    TRACE("query_vk %p.\n", query_vk);

    wined3d_cs_destroy_object(query->device->cs, wined3d_query_vk_destroy_object, query_vk);
}

adapter_vk_destroy_rendertarget_view()

static void adapter_vk_destroy_rendertarget_view ( struct wined3d_rendertarget_view *  view )

static

Definition at line 1500 of file adapter_vk.c.

{
    struct wined3d_rendertarget_view_vk *view_vk = wined3d_rendertarget_view_vk(view);
    struct wined3d_resource *resource = view_vk->v.resource;

    TRACE("view_vk %p.\n", view_vk);

    wined3d_rendertarget_view_cleanup(&view_vk->v);
    wined3d_view_vk_destroy(resource->device, NULL, &view_vk->vk_image_view,
            NULL, NULL, NULL, &view_vk->command_buffer_id, view_vk);
}

adapter_vk_destroy_sampler()

static void adapter_vk_destroy_sampler ( struct wined3d_sampler *  sampler )

static

Definition at line 1636 of file adapter_vk.c.

{
    struct wined3d_sampler_vk *sampler_vk = wined3d_sampler_vk(sampler);

    TRACE("sampler_vk %p.\n", sampler_vk);

    wined3d_cs_destroy_object(sampler->device->cs, wined3d_sampler_vk_destroy_object, sampler_vk);
}

adapter_vk_destroy_shader_resource_view()

static void adapter_vk_destroy_shader_resource_view ( struct wined3d_shader_resource_view *  view )

static

Definition at line 1538 of file adapter_vk.c.

{
    struct wined3d_shader_resource_view_vk *srv_vk = wined3d_shader_resource_view_vk(view);
    struct wined3d_resource *resource = srv_vk->v.resource;
    struct wined3d_view_vk *view_vk = &srv_vk->view_vk;
    VkBufferView *vk_buffer_view = NULL;
    VkImageView *vk_image_view = NULL;

    TRACE("srv_vk %p.\n", srv_vk);

    if (resource->type == WINED3D_RTYPE_BUFFER)
        vk_buffer_view = &view_vk->u.vk_buffer_view;
    else
        vk_image_view = &view_vk->u.vk_image_info.imageView;
    wined3d_shader_resource_view_cleanup(&srv_vk->v);
    wined3d_view_vk_destroy(resource->device, vk_buffer_view, vk_image_view,
            &view_vk->bo_user, NULL, NULL, &view_vk->command_buffer_id, srv_vk);
}

adapter_vk_destroy_swapchain()

static void adapter_vk_destroy_swapchain ( struct wined3d_swapchain *  swapchain )

static

Definition at line 1251 of file adapter_vk.c.

{
    struct wined3d_swapchain_vk *swapchain_vk = wined3d_swapchain_vk(swapchain);

    wined3d_swapchain_vk_cleanup(swapchain_vk);
    free(swapchain_vk);
}

adapter_vk_destroy_texture()

static void adapter_vk_destroy_texture ( struct wined3d_texture *  texture )

static

Definition at line 1349 of file adapter_vk.c.

{
    struct wined3d_texture_vk *texture_vk = wined3d_texture_vk(texture);
    struct wined3d_device *device = texture_vk->t.resource.device;
    unsigned int swapchain_count = device->swapchain_count;

    TRACE("texture_vk %p.\n", texture_vk);

    /* Take a reference to the device, in case releasing the texture would
     * cause the device to be destroyed. However, swapchain resources don't
     * take a reference to the device, and we wouldn't want to increment the
     * refcount on a device that's in the process of being destroyed. */
    if (swapchain_count)
        wined3d_device_incref(device);

    wined3d_texture_sub_resources_destroyed(texture);
    texture->resource.parent_ops->wined3d_object_destroyed(texture->resource.parent);

    wined3d_texture_cleanup(&texture_vk->t);
    wined3d_cs_destroy_object(device->cs, free, texture_vk);

    if (swapchain_count)
        wined3d_device_decref(device);
}

adapter_vk_destroy_unordered_access_view()

static void adapter_vk_destroy_unordered_access_view ( struct wined3d_unordered_access_view *  view )

static

Definition at line 1583 of file adapter_vk.c.

{
    struct wined3d_unordered_access_view_vk *uav_vk = wined3d_unordered_access_view_vk(view);
    struct wined3d_resource *resource = uav_vk->v.resource;
    struct wined3d_view_vk *view_vk = &uav_vk->view_vk;
    VkBufferView *vk_buffer_view = NULL;
    VkImageView *vk_image_view = NULL;

    TRACE("uav_vk %p.\n", uav_vk);

    if (resource->type == WINED3D_RTYPE_BUFFER)
        vk_buffer_view = &view_vk->u.vk_buffer_view;
    else
        vk_image_view = &view_vk->u.vk_image_info.imageView;
    wined3d_unordered_access_view_cleanup(&uav_vk->v);
    wined3d_view_vk_destroy(resource->device, vk_buffer_view, vk_image_view, &view_vk->bo_user,
            &uav_vk->counter_bo, &uav_vk->vk_counter_view, &view_vk->command_buffer_id, uav_vk);
}

adapter_vk_dispatch_compute()

static void adapter_vk_dispatch_compute ( struct wined3d_device *  device, const struct wined3d_state *  state, const struct wined3d_dispatch_parameters *  parameters  )

static

Definition at line 1756 of file adapter_vk.c.

{
    struct wined3d_buffer_vk *indirect_vk = NULL;
    const struct wined3d_vk_info *vk_info;
    struct wined3d_context_vk *context_vk;
    VkCommandBuffer vk_command_buffer;

    TRACE("device %p, state %p, parameters %p.\n", device, state, parameters);

    context_vk = wined3d_context_vk(context_acquire(device, NULL, 0));
    vk_info = context_vk->vk_info;

    if (parameters->indirect)
        indirect_vk = wined3d_buffer_vk(parameters->u.indirect.buffer);

    if (!(vk_command_buffer = wined3d_context_vk_apply_compute_state(context_vk, state, indirect_vk)))
    {
        ERR("Failed to apply compute state.\n");
        context_release(&context_vk->c);
        return;
    }

    if (parameters->indirect)
    {
        struct wined3d_bo_vk *bo = wined3d_bo_vk(indirect_vk->b.buffer_object);

        wined3d_context_vk_reference_bo(context_vk, bo);
        VK_CALL(vkCmdDispatchIndirect(vk_command_buffer, bo->vk_buffer,
                bo->b.buffer_offset + parameters->u.indirect.offset));
    }
    else
    {
        const struct wined3d_direct_dispatch_parameters *direct = &parameters->u.direct;

        VK_CALL(vkCmdDispatch(vk_command_buffer, direct->group_count_x, direct->group_count_y, direct->group_count_z));
    }

    VK_CALL(vkCmdPipelineBarrier(vk_command_buffer, VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT,
            VK_PIPELINE_STAGE_ALL_GRAPHICS_BIT, 0, 0, NULL, 0, NULL, 0, NULL));

    ++context_vk->command_buffer_work_count;

    context_release(&context_vk->c);
}

adapter_vk_draw_primitive()

static void adapter_vk_draw_primitive ( struct wined3d_device *  device, const struct wined3d_state *  state, const struct wined3d_draw_parameters *  parameters  )

static

Definition at line 1681 of file adapter_vk.c.

{
    struct wined3d_buffer_vk *indirect_vk = NULL;
    const struct wined3d_vk_info *vk_info;
    struct wined3d_context_vk *context_vk;
    VkCommandBuffer vk_command_buffer;
    uint32_t instance_count;

    TRACE("device %p, state %p, parameters %p.\n", device, state, parameters);

    context_vk = wined3d_context_vk(context_acquire(device, NULL, 0));
    vk_info = context_vk->vk_info;

    if (parameters->indirect)
        indirect_vk = wined3d_buffer_vk(parameters->u.indirect.buffer);

    if (!(vk_command_buffer = wined3d_context_vk_apply_draw_state(context_vk,
            state, indirect_vk, parameters->indexed)))
    {
        ERR("Failed to apply draw state.\n");
        context_release(&context_vk->c);
        return;
    }

    if (context_vk->c.transform_feedback_active)
    {
        wined3d_context_vk_reference_bo(context_vk, &context_vk->vk_so_counter_bo);
        if (context_vk->c.transform_feedback_paused)
            VK_CALL(vkCmdBeginTransformFeedbackEXT(vk_command_buffer, 0, ARRAY_SIZE(context_vk->vk_so_counters),
                    context_vk->vk_so_counters, context_vk->vk_so_offsets));
        else
            VK_CALL(vkCmdBeginTransformFeedbackEXT(vk_command_buffer, 0, 0, NULL, NULL));
    }

    if (parameters->indirect)
    {
        struct wined3d_bo_vk *bo = wined3d_bo_vk(indirect_vk->b.buffer_object);

        wined3d_context_vk_reference_bo(context_vk, bo);
        if (parameters->indexed)
            VK_CALL(vkCmdDrawIndexedIndirect(vk_command_buffer, bo->vk_buffer,
                    bo->b.buffer_offset + parameters->u.indirect.offset, 1, sizeof(VkDrawIndexedIndirectCommand)));
        else
            VK_CALL(vkCmdDrawIndirect(vk_command_buffer, bo->vk_buffer,
                    bo->b.buffer_offset + parameters->u.indirect.offset, 1, sizeof(VkDrawIndirectCommand)));
    }
    else
    {
        instance_count = parameters->u.direct.instance_count;
        if (!instance_count)
            instance_count = 1;

        if (parameters->indexed)
            VK_CALL(vkCmdDrawIndexed(vk_command_buffer, parameters->u.direct.index_count,
                    instance_count, parameters->u.direct.start_idx, parameters->u.direct.base_vertex_idx,
                    parameters->u.direct.start_instance));
        else
            VK_CALL(vkCmdDraw(vk_command_buffer, parameters->u.direct.index_count, instance_count,
                    parameters->u.direct.start_idx, parameters->u.direct.start_instance));
    }

    if (context_vk->c.transform_feedback_active)
    {
        VK_CALL(vkCmdEndTransformFeedbackEXT(vk_command_buffer, 0, ARRAY_SIZE(context_vk->vk_so_counters),
                context_vk->vk_so_counters, context_vk->vk_so_offsets));
        context_vk->c.transform_feedback_paused = 1;
        context_vk->c.transform_feedback_active = 0;
    }

    ++context_vk->command_buffer_work_count;

    context_release(&context_vk->c);
}

adapter_vk_flush_bo_address()

static void adapter_vk_flush_bo_address ( struct wined3d_context *  context, const struct wined3d_const_bo_address *  data, size_t  size  )

static

Definition at line 1158 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk = wined3d_context_vk(context);
    struct wined3d_bo *bo;

    if (!(bo = data->buffer_object))
        return;

    flush_bo_range(context_vk, wined3d_bo_vk(bo), (uintptr_t)data->addr, size);
}

adapter_vk_flush_context()

static void adapter_vk_flush_context ( struct wined3d_context *  context )

static

Definition at line 1672 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk = wined3d_context_vk(context);

    TRACE("context_vk %p.\n", context_vk);

    wined3d_context_vk_submit_command_buffer(context_vk, 0, NULL, NULL, 0, NULL);
}

adapter_vk_generate_mipmap()

static void adapter_vk_generate_mipmap ( struct wined3d_context *  context, struct wined3d_shader_resource_view *  view  )

static

Definition at line 1811 of file adapter_vk.c.

{
    TRACE("context %p, view %p.\n", context, view);

    wined3d_shader_resource_view_vk_generate_mipmap(wined3d_shader_resource_view_vk(view),
            wined3d_context_vk(context));
}

adapter_vk_get_wined3d_caps()

static void adapter_vk_get_wined3d_caps ( const struct wined3d_adapter *  adapter, struct wined3d_caps *  caps  )

static

Definition at line 490 of file adapter_vk.c.

{
    const struct wined3d_adapter_vk *adapter_vk = wined3d_adapter_vk_const(adapter);
    const VkPhysicalDeviceLimits *limits = &adapter_vk->device_limits;
    bool sampler_anisotropy = limits->maxSamplerAnisotropy > 1.0f;
    const struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;

    caps->ddraw_caps.dds_caps |= WINEDDSCAPS_BACKBUFFER
            | WINEDDSCAPS_COMPLEX
            | WINEDDSCAPS_FRONTBUFFER
            | WINEDDSCAPS_3DDEVICE
            | WINEDDSCAPS_VIDEOMEMORY
            | WINEDDSCAPS_OWNDC
            | WINEDDSCAPS_LOCALVIDMEM
            | WINEDDSCAPS_NONLOCALVIDMEM;
    caps->ddraw_caps.caps |= WINEDDCAPS_3D;

    caps->Caps2 |= WINED3DCAPS2_CANGENMIPMAP;

    caps->PrimitiveMiscCaps |= WINED3DPMISCCAPS_BLENDOP
            | WINED3DPMISCCAPS_INDEPENDENTWRITEMASKS
            | WINED3DPMISCCAPS_MRTINDEPENDENTBITDEPTHS
            | WINED3DPMISCCAPS_POSTBLENDSRGBCONVERT
            | WINED3DPMISCCAPS_SEPARATEALPHABLEND;

    caps->RasterCaps |= WINED3DPRASTERCAPS_MIPMAPLODBIAS;

    if (sampler_anisotropy)
    {
        caps->RasterCaps |= WINED3DPRASTERCAPS_ANISOTROPY;

        caps->TextureFilterCaps |= WINED3DPTFILTERCAPS_MAGFANISOTROPIC
                | WINED3DPTFILTERCAPS_MINFANISOTROPIC;

        caps->MaxAnisotropy = limits->maxSamplerAnisotropy;
    }

    caps->SrcBlendCaps |= WINED3DPBLENDCAPS_BLENDFACTOR;
    caps->DestBlendCaps |= WINED3DPBLENDCAPS_BLENDFACTOR
            | WINED3DPBLENDCAPS_SRCALPHASAT;

    caps->TextureCaps |= WINED3DPTEXTURECAPS_VOLUMEMAP
            | WINED3DPTEXTURECAPS_MIPVOLUMEMAP
            | WINED3DPTEXTURECAPS_VOLUMEMAP_POW2;
    caps->VolumeTextureFilterCaps |= WINED3DPTFILTERCAPS_MAGFLINEAR
            | WINED3DPTFILTERCAPS_MAGFPOINT
            | WINED3DPTFILTERCAPS_MINFLINEAR
            | WINED3DPTFILTERCAPS_MINFPOINT
            | WINED3DPTFILTERCAPS_MIPFLINEAR
            | WINED3DPTFILTERCAPS_MIPFPOINT
            | WINED3DPTFILTERCAPS_LINEAR
            | WINED3DPTFILTERCAPS_LINEARMIPLINEAR
            | WINED3DPTFILTERCAPS_LINEARMIPNEAREST
            | WINED3DPTFILTERCAPS_MIPLINEAR
            | WINED3DPTFILTERCAPS_MIPNEAREST
            | WINED3DPTFILTERCAPS_NEAREST;
    caps->VolumeTextureAddressCaps |= WINED3DPTADDRESSCAPS_INDEPENDENTUV
            | WINED3DPTADDRESSCAPS_CLAMP
            | WINED3DPTADDRESSCAPS_WRAP;
    caps->VolumeTextureAddressCaps |= WINED3DPTADDRESSCAPS_BORDER
            | WINED3DPTADDRESSCAPS_MIRROR;
    if (vk_info->supported[WINED3D_VK_KHR_SAMPLER_MIRROR_CLAMP_TO_EDGE])
        caps->VolumeTextureAddressCaps |= WINED3DPTADDRESSCAPS_MIRRORONCE;

    caps->MaxVolumeExtent = limits->maxImageDimension3D;

    caps->TextureCaps |= WINED3DPTEXTURECAPS_CUBEMAP
            | WINED3DPTEXTURECAPS_MIPCUBEMAP
            | WINED3DPTEXTURECAPS_CUBEMAP_POW2;
    caps->CubeTextureFilterCaps |= WINED3DPTFILTERCAPS_MAGFLINEAR
            | WINED3DPTFILTERCAPS_MAGFPOINT
            | WINED3DPTFILTERCAPS_MINFLINEAR
            | WINED3DPTFILTERCAPS_MINFPOINT
            | WINED3DPTFILTERCAPS_MIPFLINEAR
            | WINED3DPTFILTERCAPS_MIPFPOINT
            | WINED3DPTFILTERCAPS_LINEAR
            | WINED3DPTFILTERCAPS_LINEARMIPLINEAR
            | WINED3DPTFILTERCAPS_LINEARMIPNEAREST
            | WINED3DPTFILTERCAPS_MIPLINEAR
            | WINED3DPTFILTERCAPS_MIPNEAREST
            | WINED3DPTFILTERCAPS_NEAREST;

    if (sampler_anisotropy)
    {
        caps->CubeTextureFilterCaps |= WINED3DPTFILTERCAPS_MAGFANISOTROPIC
                | WINED3DPTFILTERCAPS_MINFANISOTROPIC;
    }

    caps->TextureAddressCaps |= WINED3DPTADDRESSCAPS_BORDER
            | WINED3DPTADDRESSCAPS_MIRROR;
    if (vk_info->supported[WINED3D_VK_KHR_SAMPLER_MIRROR_CLAMP_TO_EDGE])
        caps->TextureAddressCaps |= WINED3DPTADDRESSCAPS_MIRRORONCE;

    caps->StencilCaps |= WINED3DSTENCILCAPS_DECR
            | WINED3DSTENCILCAPS_INCR
            | WINED3DSTENCILCAPS_TWOSIDED;

    caps->DeclTypes |= WINED3DDTCAPS_FLOAT16_2 | WINED3DDTCAPS_FLOAT16_4;

    caps->MaxPixelShader30InstructionSlots = WINED3DMAX30SHADERINSTRUCTIONS;
    caps->MaxVertexShader30InstructionSlots = WINED3DMAX30SHADERINSTRUCTIONS;
    caps->PS20Caps.temp_count = WINED3DPS20_MAX_NUMTEMPS;
    caps->VS20Caps.temp_count = WINED3DVS20_MAX_NUMTEMPS;
}

adapter_vk_init_3d()

static HRESULT adapter_vk_init_3d ( struct wined3d_device *  device )

static

Definition at line 602 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk;
    struct wined3d_device_vk *device_vk;
    HRESULT hr;

    TRACE("device %p.\n", device);

    device_vk = wined3d_device_vk(device);
    context_vk = &device_vk->context_vk;
    if (FAILED(hr = wined3d_context_vk_init(context_vk, device->swapchains[0])))
    {
        WARN("Failed to initialise context.\n");
        return hr;
    }

    if (FAILED(hr = device->shader_backend->shader_alloc_private(device,
            device->adapter->vertex_pipe, device->adapter->fragment_pipe)))
    {
        ERR("Failed to allocate shader private data, hr %#lx.\n", hr);
        wined3d_context_vk_cleanup(context_vk);
        return hr;
    }

    if (!device_context_add(device, &context_vk->c))
    {
        ERR("Failed to add the newly created context to the context list.\n");
        device->shader_backend->shader_free_private(device, NULL);
        wined3d_context_vk_cleanup(context_vk);
        return E_FAIL;
    }

    TRACE("Initialised context %p.\n", context_vk);

    if (!(device_vk->d.blitter = wined3d_cpu_blitter_create()))
    {
        ERR("Failed to create CPU blitter.\n");
        device_context_remove(device, &context_vk->c);
        device->shader_backend->shader_free_private(device, NULL);
        wined3d_context_vk_cleanup(context_vk);
        return E_FAIL;
    }
    wined3d_vk_blitter_create(&device_vk->d.blitter);

    wined3d_device_create_default_samplers(device, &context_vk->c);
    wined3d_device_vk_create_null_resources(device_vk, context_vk);
    wined3d_device_vk_create_null_views(device_vk, context_vk);
    if (device->adapter->d3d_info.feature_level >= WINED3D_FEATURE_LEVEL_11)
        wined3d_device_vk_uav_clear_state_init(device_vk);

    return WINED3D_OK;
}

adapter_vk_init_driver_info()

static bool adapter_vk_init_driver_info ( struct wined3d_adapter_vk *  adapter_vk, const VkPhysicalDeviceProperties *  properties  )

static

Definition at line 2103 of file adapter_vk.c.

{
    const VkPhysicalDeviceMemoryProperties *memory_properties = &adapter_vk->memory_properties;
    const struct wined3d_gpu_description *gpu_description;
    struct wined3d_gpu_description description;
    UINT64 vram_bytes, sysmem_bytes;
    const VkMemoryType *type;
    const VkMemoryHeap *heap;
    unsigned int i;

    TRACE("Device name: %s.\n", debugstr_a(properties->deviceName));
    TRACE("Vendor ID: 0x%04x, Device ID: 0x%04x.\n", properties->vendorID, properties->deviceID);
    TRACE("Driver version: %#x.\n", properties->driverVersion);
    TRACE("API version: %s.\n", debug_vk_version(properties->apiVersion));

    for (i = 0, vram_bytes = 0, sysmem_bytes = 0; i < memory_properties->memoryHeapCount; ++i)
    {
        heap = &memory_properties->memoryHeaps[i];
        TRACE("Memory heap [%u]: flags %#x, size 0x%s.\n",
                i, heap->flags, wine_dbgstr_longlong(heap->size));
        if (heap->flags & VK_MEMORY_HEAP_DEVICE_LOCAL_BIT)
            vram_bytes += heap->size;
        else
            sysmem_bytes += heap->size;
    }
    TRACE("Total device memory: 0x%s.\n", wine_dbgstr_longlong(vram_bytes));
    TRACE("Total shared system memory: 0x%s.\n", wine_dbgstr_longlong(sysmem_bytes));

    for (i = 0; i < memory_properties->memoryTypeCount; ++i)
    {
        type = &memory_properties->memoryTypes[i];
        TRACE("Memory type [%u]: flags %#x, heap %u.\n", i, type->propertyFlags, type->heapIndex);
    }

    if (!(gpu_description = wined3d_get_user_override_gpu_description(properties->vendorID, properties->deviceID)))
        gpu_description = wined3d_get_gpu_description(properties->vendorID, properties->deviceID);

    if (!gpu_description)
    {
        FIXME("Failed to retrieve GPU description for device %s %04x:%04x.\n",
                debugstr_a(properties->deviceName), properties->vendorID, properties->deviceID);

        description.vendor = properties->vendorID;
        description.device = properties->deviceID;
        description.description = properties->deviceName;
        description.driver = guess_display_driver(properties->vendorID);
        description.vidmem = vram_bytes;

        gpu_description = &description;
    }

    return wined3d_driver_info_init(&adapter_vk->a.driver_info, gpu_description,
            adapter_vk->a.d3d_info.feature_level, vram_bytes, sysmem_bytes);
}

Referenced by wined3d_adapter_vk_init().

adapter_vk_map_bo_address()

static void * adapter_vk_map_bo_address ( struct wined3d_context *  context, const struct wined3d_bo_address *  data, size_t  size, uint32_t  map_flags  )

static

Definition at line 887 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk = wined3d_context_vk(context);
    const struct wined3d_vk_info *vk_info;
    struct wined3d_device_vk *device_vk;
    VkCommandBuffer vk_command_buffer;
    VkBufferMemoryBarrier vk_barrier;
    struct wined3d_bo_user *bo_user;
    struct wined3d_bo_vk *bo, tmp;
    VkMappedMemoryRange range;
    void *map_ptr;

    if (!data->buffer_object)
        return data->addr;
    bo = wined3d_bo_vk(data->buffer_object);

    vk_info = context_vk->vk_info;
    device_vk = wined3d_device_vk(context->device);

    if (map_flags & WINED3D_MAP_NOOVERWRITE)
        goto map;

    if ((map_flags & WINED3D_MAP_DISCARD) && bo->command_buffer_id > context_vk->completed_command_buffer_id)
    {
        if (wined3d_context_vk_create_bo(context_vk, bo->size, bo->usage, bo->memory_type, &tmp))
        {
            bool host_synced = bo->host_synced;

            LIST_FOR_EACH_ENTRY(bo_user, &bo->b.users, struct wined3d_bo_user, entry)
                bo_user->valid = false;
            list_init(&bo->b.users);

            wined3d_context_vk_destroy_bo(context_vk, bo);
            *bo = tmp;
            bo->host_synced = host_synced;
            list_init(&bo->b.users);

            goto map;
        }

        ERR("Failed to create new buffer object.\n");
    }

    if (map_flags & WINED3D_MAP_READ)
    {
        if (!bo->host_synced)
        {
            if (!(vk_command_buffer = wined3d_context_vk_get_command_buffer(context_vk)))
            {
                ERR("Failed to get command buffer.\n");
                return NULL;
            }

            wined3d_context_vk_end_current_render_pass(context_vk);

            vk_barrier.sType = VK_STRUCTURE_TYPE_BUFFER_MEMORY_BARRIER;
            vk_barrier.pNext = NULL;
            vk_barrier.srcAccessMask = vk_access_mask_from_buffer_usage(bo->usage);
            vk_barrier.dstAccessMask = VK_ACCESS_HOST_READ_BIT;
            vk_barrier.srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
            vk_barrier.dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
            vk_barrier.buffer = bo->vk_buffer;
            vk_barrier.offset = bo->b.buffer_offset + (uintptr_t)data->addr;
            vk_barrier.size = size;
            VK_CALL(vkCmdPipelineBarrier(vk_command_buffer, VK_PIPELINE_STAGE_ALL_COMMANDS_BIT,
                    VK_PIPELINE_STAGE_HOST_BIT, 0, 0, NULL, 1, &vk_barrier, 0, NULL));

            wined3d_context_vk_reference_bo(context_vk, bo);
        }

        if (!bo->b.coherent)
        {
            range.sType = VK_STRUCTURE_TYPE_MAPPED_MEMORY_RANGE;
            range.pNext = NULL;
            range.memory = bo->vk_memory;
            range.offset = bo->b.memory_offset + (uintptr_t)data->addr;
            range.size = size;
            VK_CALL(vkInvalidateMappedMemoryRanges(device_vk->vk_device, 1, &range));
        }
    }

    if (bo->command_buffer_id == context_vk->current_command_buffer.id)
        wined3d_context_vk_submit_command_buffer(context_vk, 0, NULL, NULL, 0, NULL);
    wined3d_context_vk_wait_command_buffer(context_vk, bo->command_buffer_id);

map:
    if (!(map_ptr = wined3d_bo_vk_map(bo, context_vk)))
    {
        ERR("Failed to map bo.\n");
        return NULL;
    }

    return (uint8_t *)map_ptr + bo->b.memory_offset + (uintptr_t)data->addr;
}

Referenced by adapter_vk_copy_bo_address().

adapter_vk_release_context()

static void adapter_vk_release_context ( struct wined3d_context *  context )

static

Definition at line 485 of file adapter_vk.c.

{
    TRACE("context %p.\n", context);
}

adapter_vk_uninit_3d()

static void adapter_vk_uninit_3d ( struct wined3d_device *  device )

static

Definition at line 680 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk;
    struct wined3d_device_vk *device_vk;

    TRACE("device %p.\n", device);

    device_vk = wined3d_device_vk(device);
    context_vk = &device_vk->context_vk;

    wined3d_device_destroy_default_samplers(device);
    wined3d_cs_destroy_object(device->cs, adapter_vk_uninit_3d_cs, device_vk);
    wined3d_cs_finish(device->cs, WINED3D_CS_QUEUE_DEFAULT);

    device_context_remove(device, &context_vk->c);
    wined3d_context_vk_cleanup(context_vk);
}

adapter_vk_uninit_3d_cs()

static void adapter_vk_uninit_3d_cs ( void *  object )

static

Definition at line 655 of file adapter_vk.c.

{
    struct wined3d_device_vk *device_vk = object;
    struct wined3d_context_vk *context_vk;
    struct wined3d_device *device;
    struct wined3d_shader *shader;

    TRACE("device_vk %p.\n", device_vk);

    context_vk = &device_vk->context_vk;
    device = &device_vk->d;

    LIST_FOR_EACH_ENTRY(shader, &device->shaders, struct wined3d_shader, shader_list_entry)
    {
        device->shader_backend->shader_destroy(shader);
    }

    if (device->adapter->d3d_info.feature_level >= WINED3D_FEATURE_LEVEL_11)
        wined3d_device_vk_uav_clear_state_cleanup(device_vk);
    device->blitter->ops->blitter_destroy(device->blitter, NULL);
    device->shader_backend->shader_free_private(device, &context_vk->c);
    wined3d_device_vk_destroy_null_views(device_vk, context_vk);
    wined3d_device_vk_destroy_null_resources(device_vk, context_vk);
}

Referenced by adapter_vk_uninit_3d().

adapter_vk_unmap_bo_address()

static void adapter_vk_unmap_bo_address ( struct wined3d_context *  context, const struct wined3d_bo_address *  data, unsigned int  range_count, const struct wined3d_range *  ranges  )

static

Definition at line 998 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk = wined3d_context_vk(context);
    struct wined3d_bo_vk *bo;
    unsigned int i;

    if (!data->buffer_object)
        return;
    bo = wined3d_bo_vk(data->buffer_object);

    assert(bo->b.map_ptr);

    if (!bo->b.coherent)
    {
        for (i = 0; i < range_count; ++i)
            flush_bo_range(context_vk, bo, ranges[i].offset, ranges[i].size);
    }

    wined3d_bo_vk_unmap(bo, context_vk);
}

Referenced by adapter_vk_copy_bo_address().

add_structure()

static void add_structure ( VkPhysicalDeviceFeatures2 *  features2, void *  s  )

static

Definition at line 294 of file adapter_vk.c.

{
    VkBaseOutStructure *base = s;

    base->pNext = features2->pNext;
    features2->pNext = base;
}

Referenced by get_physical_device_info().

debug_vk_version()

static const char * debug_vk_version ( uint32_t  version )

static

Definition at line 67 of file adapter_vk.c.

{
    return wine_dbg_sprintf("%u.%u.%u",
            VK_VERSION_MAJOR(version), VK_VERSION_MINOR(version), VK_VERSION_PATCH(version));
}

Referenced by adapter_vk_init_driver_info(), and wined3d_init_vulkan().

enable_vulkan_instance_extensions()

static BOOL enable_vulkan_instance_extensions ( uint32_t *  extension_count, const char *  enabled_extensions[], const struct wined3d_vk_info *  vk_info  )

static

Definition at line 1895 of file adapter_vk.c.

{
    PFN_vkEnumerateInstanceExtensionProperties pfn_vkEnumerateInstanceExtensionProperties;
    VkExtensionProperties *extensions = NULL;
    BOOL success = FALSE, found;
    unsigned int i, j, count;
    VkResult vr;

    *extension_count = 0;

    if (!(pfn_vkEnumerateInstanceExtensionProperties
            = (void *)VK_CALL(vkGetInstanceProcAddr(NULL, "vkEnumerateInstanceExtensionProperties"))))
    {
        WARN("Failed to get 'vkEnumerateInstanceExtensionProperties'.\n");
        goto done;
    }

    if ((vr = pfn_vkEnumerateInstanceExtensionProperties(NULL, &count, NULL)) < 0)
    {
        WARN("Failed to count instance extensions, vr %s.\n", wined3d_debug_vkresult(vr));
        goto done;
    }
    if (!(extensions = calloc(count, sizeof(*extensions))))
    {
        WARN("Out of memory.\n");
        goto done;
    }
    if ((vr = pfn_vkEnumerateInstanceExtensionProperties(NULL, &count, extensions)) < 0)
    {
        WARN("Failed to enumerate extensions, vr %s.\n", wined3d_debug_vkresult(vr));
        goto done;
    }

    TRACE("Vulkan instance extensions reported:\n");
    for (i = 0; i < count; ++i)
    {
        TRACE("    - %s.\n", debugstr_a(extensions[i].extensionName));
    }

    for (i = 0; i < ARRAY_SIZE(vulkan_instance_extensions); ++i)
    {
        if (vulkan_instance_extensions[i].core_since_version <= vk_info->api_version)
            continue;

        for (j = 0, found = FALSE; j < count; ++j)
        {
            if (!strcmp(extensions[j].extensionName, vulkan_instance_extensions[i].name))
            {
                found = TRUE;
                break;
            }
        }
        if (found)
        {
            TRACE("Enabling instance extension '%s'.\n", vulkan_instance_extensions[i].name);
            enabled_extensions[(*extension_count)++] = vulkan_instance_extensions[i].name;
        }
        else if (!found && vulkan_instance_extensions[i].required)
        {
            WARN("Required extension '%s' is not available.\n", vulkan_instance_extensions[i].name);
            goto done;
        }
    }
    success = TRUE;

done:
    free(extensions);
    return success;
}

Referenced by wined3d_init_vulkan().

feature_level_10_1_supported()

static bool feature_level_10_1_supported ( const struct wined3d_physical_device_info *  info, unsigned int  shader_model  )

static

Definition at line 2185 of file adapter_vk.c.

{
    return info->features2.features.imageCubeArray;
}

Referenced by feature_level_from_caps().

feature_level_10_supported()

static bool feature_level_10_supported ( const struct wined3d_physical_device_info *  info, unsigned int  shader_model  )

static

Definition at line 2170 of file adapter_vk.c.

{
    return shader_model >= 4
            && info->features2.features.multiViewport
            && info->features2.features.geometryShader
            && info->features2.features.depthClamp
            && info->features2.features.depthBiasClamp
            && info->features2.features.pipelineStatisticsQuery
            && info->features2.features.shaderClipDistance
            && info->features2.features.shaderCullDistance
            && info->draw_parameters_features.shaderDrawParameters
            && info->vertex_divisor_features.vertexAttributeInstanceRateDivisor
            && info->vertex_divisor_features.vertexAttributeInstanceRateZeroDivisor;
}

Referenced by feature_level_from_caps().

feature_level_11_1_supported()

static bool feature_level_11_1_supported ( const struct wined3d_physical_device_info *  info )

static

Definition at line 2200 of file adapter_vk.c.

{
    return info->features2.features.vertexPipelineStoresAndAtomics;
}

Referenced by feature_level_from_caps().

feature_level_11_supported()

static bool feature_level_11_supported ( const struct wined3d_physical_device_info *  info, unsigned int  shader_model  )

static

Definition at line 2190 of file adapter_vk.c.

{
    return shader_model >= 5
            && info->features2.features.multiDrawIndirect
            && info->features2.features.drawIndirectFirstInstance
            && info->features2.features.fragmentStoresAndAtomics
            && info->features2.features.shaderImageGatherExtended
            && info->features2.features.tessellationShader;
}

Referenced by feature_level_from_caps().

feature_level_9_2_supported()

static bool feature_level_9_2_supported ( const struct wined3d_physical_device_info *  info )

static

Definition at line 2159 of file adapter_vk.c.

{
    return info->features2.features.occlusionQueryPrecise;
}

Referenced by feature_level_from_caps().

feature_level_9_3_supported()

static bool feature_level_9_3_supported ( const struct wined3d_physical_device_info *  info, unsigned int  shader_model  )

static

Definition at line 2164 of file adapter_vk.c.

{
    return shader_model >= 3
            && info->features2.features.independentBlend;
}

Referenced by feature_level_from_caps().

feature_level_from_caps()

static enum wined3d_feature_level feature_level_from_caps ( const struct wined3d_physical_device_info *  info, const struct shader_caps *  shader_caps  )

static

Definition at line 2205 of file adapter_vk.c.

{
    unsigned int shader_model;

    shader_model = min(shader_caps->vs_version, shader_caps->ps_version);
    shader_model = min(shader_model, max(shader_caps->gs_version, 3));
    shader_model = min(shader_model, max(shader_caps->hs_version, 4));
    shader_model = min(shader_model, max(shader_caps->ds_version, 4));

    if (!shader_model)
        return WINED3D_FEATURE_LEVEL_7;

    if (shader_model <= 1)
        return WINED3D_FEATURE_LEVEL_8;

    if (!feature_level_9_2_supported(info))
        return WINED3D_FEATURE_LEVEL_9_1;

    if (!feature_level_9_3_supported(info, shader_model))
        return WINED3D_FEATURE_LEVEL_9_2;

    if (!feature_level_10_supported(info, shader_model))
        return WINED3D_FEATURE_LEVEL_9_3;

    if (!feature_level_10_1_supported(info, shader_model))
        return WINED3D_FEATURE_LEVEL_10;

    if (!feature_level_11_supported(info, shader_model))
        return WINED3D_FEATURE_LEVEL_10_1;

    if (!feature_level_11_1_supported(info))
        return WINED3D_FEATURE_LEVEL_11;

    return WINED3D_FEATURE_LEVEL_11_1;
}

Referenced by wined3d_adapter_vk_init_d3d_info().

flush_bo_range()

static void flush_bo_range ( struct wined3d_context_vk *  context_vk, struct wined3d_bo_vk *  bo, unsigned int  offset, unsigned int  size  )

static

Definition at line 983 of file adapter_vk.c.

{
    struct wined3d_device_vk *device_vk = wined3d_device_vk(context_vk->c.device);
    const struct wined3d_vk_info *vk_info = context_vk->vk_info;
    VkMappedMemoryRange range;

    range.sType = VK_STRUCTURE_TYPE_MAPPED_MEMORY_RANGE;
    range.pNext = NULL;
    range.memory = bo->vk_memory;
    range.offset = bo->b.memory_offset + offset;
    range.size = size;
    VK_CALL(vkFlushMappedMemoryRanges(device_vk->vk_device, 1, &range));
}

Referenced by adapter_vk_flush_bo_address(), and adapter_vk_unmap_bo_address().

get_physical_device_info()

static void get_physical_device_info ( const struct wined3d_adapter_vk *  adapter_vk, struct wined3d_physical_device_info *  info  )

static

Definition at line 302 of file adapter_vk.c.

{
    VkPhysicalDeviceVertexAttributeDivisorFeaturesEXT *vertex_divisor_features = &info->vertex_divisor_features;
    VkPhysicalDeviceExtendedDynamicState3FeaturesEXT *dynamic_state3_features = &info->dynamic_state3_features;
    VkPhysicalDeviceExtendedDynamicState2FeaturesEXT *dynamic_state2_features = &info->dynamic_state2_features;
    VkPhysicalDeviceShaderDrawParametersFeatures *draw_parameters_features = &info->draw_parameters_features;
    VkPhysicalDeviceExtendedDynamicStateFeaturesEXT *dynamic_state_features = &info->dynamic_state_features;
    VkPhysicalDeviceHostQueryResetFeatures *host_query_reset_features = &info->host_query_reset_features;
    VkPhysicalDeviceTransformFeedbackFeaturesEXT *xfb_features = &info->xfb_features;
    VkPhysicalDevice physical_device = adapter_vk->physical_device;
    const struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;
    VkPhysicalDeviceFeatures2 *features2 = &info->features2;

    memset(info, 0, sizeof(*info));

    draw_parameters_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_SHADER_DRAW_PARAMETERS_FEATURES;
    if (vk_info->api_version >= VK_API_VERSION_1_1)
        add_structure(features2, draw_parameters_features);
    else
        draw_parameters_features->shaderDrawParameters = vk_info->supported[WINED3D_VK_KHR_SHADER_DRAW_PARAMETERS];

    xfb_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_TRANSFORM_FEEDBACK_FEATURES_EXT;
    if (vk_info->supported[WINED3D_VK_EXT_TRANSFORM_FEEDBACK])
        add_structure(features2, xfb_features);

    vertex_divisor_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_VERTEX_ATTRIBUTE_DIVISOR_FEATURES_EXT;
    if (vk_info->supported[WINED3D_VK_EXT_VERTEX_ATTRIBUTE_DIVISOR])
        add_structure(features2, vertex_divisor_features);

    host_query_reset_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_HOST_QUERY_RESET_FEATURES;
    if (vk_info->supported[WINED3D_VK_EXT_HOST_QUERY_RESET])
        add_structure(features2, host_query_reset_features);

    dynamic_state3_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_EXTENDED_DYNAMIC_STATE_3_FEATURES_EXT;
    if (vk_info->supported[WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE3])
        add_structure(features2, dynamic_state3_features);

    dynamic_state2_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_EXTENDED_DYNAMIC_STATE_2_FEATURES_EXT;
    if (vk_info->supported[WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE2])
        add_structure(features2, dynamic_state2_features);

    dynamic_state_features->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_EXTENDED_DYNAMIC_STATE_FEATURES_EXT;
    if (vk_info->supported[WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE])
        add_structure(features2, dynamic_state_features);

    features2->sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_FEATURES_2;

    if (vk_info->vk_ops.vkGetPhysicalDeviceFeatures2)
        VK_CALL(vkGetPhysicalDeviceFeatures2(physical_device, features2));
    else
        VK_CALL(vkGetPhysicalDeviceFeatures(physical_device, &features2->features));
}

Referenced by adapter_vk_create_device(), and wined3d_adapter_vk_init_d3d_info().

get_vulkan_physical_device()

static VkPhysicalDevice get_vulkan_physical_device ( struct wined3d_vk_info *  vk_info )

static

Definition at line 2060 of file adapter_vk.c.

{
    VkPhysicalDevice physical_devices[1];
    uint32_t count;
    VkResult vr;

    if ((vr = VK_CALL(vkEnumeratePhysicalDevices(vk_info->instance, &count, NULL))) < 0)
    {
        WARN("Failed to enumerate physical devices, vr %s.\n", wined3d_debug_vkresult(vr));
        return VK_NULL_HANDLE;
    }
    if (!count)
    {
        WARN("No physical device.\n");
        return VK_NULL_HANDLE;
    }
    if (count > 1)
    {
        /* TODO: Create wined3d_adapter for each device. */
        FIXME("Multiple physical devices available.\n");
        count = 1;
    }

    if ((vr = VK_CALL(vkEnumeratePhysicalDevices(vk_info->instance, &count, physical_devices))) < 0)
    {
        WARN("Failed to get physical devices, vr %s.\n", wined3d_debug_vkresult(vr));
        return VK_NULL_HANDLE;
    }

    return physical_devices[0];
}

Referenced by wined3d_adapter_vk_init().

guess_display_driver()

static enum wined3d_display_driver guess_display_driver ( enum wined3d_pci_vendor  vendor )

static

Definition at line 2092 of file adapter_vk.c.

{
    switch (vendor)
    {
        case HW_VENDOR_AMD:    return DRIVER_AMD_RX;
        case HW_VENDOR_INTEL:  return DRIVER_INTEL_HD4000;
        case HW_VENDOR_NVIDIA: return DRIVER_NVIDIA_GEFORCE8;
        default:               return DRIVER_WINE;
    }
}

Referenced by adapter_vk_init_driver_info().

hresult_from_vk_result()

static HRESULT hresult_from_vk_result ( VkResult  vr )

static

Definition at line 73 of file adapter_vk.c.

{
    switch (vr)
    {
        case VK_SUCCESS:
            return S_OK;
        case VK_ERROR_OUT_OF_HOST_MEMORY:
            WARN("Out of host memory.\n");
            return E_OUTOFMEMORY;
        case VK_ERROR_OUT_OF_DEVICE_MEMORY:
            WARN("Out of device memory.\n");
            return E_OUTOFMEMORY;
        case VK_ERROR_DEVICE_LOST:
            WARN("Device lost.\n");
            return E_FAIL;
        case VK_ERROR_EXTENSION_NOT_PRESENT:
            WARN("Extension not present.\n");
            return E_FAIL;
        default:
            FIXME("Unhandled VkResult %d.\n", vr);
            return E_FAIL;
    }
}

Referenced by adapter_vk_create_device().

vk_access_mask_from_buffer_usage()

VkAccessFlags vk_access_mask_from_buffer_usage

(

VkBufferUsageFlags

usage

)

Definition at line 835 of file adapter_vk.c.

{
    VkAccessFlags flags = 0;

    if (usage & VK_BUFFER_USAGE_VERTEX_BUFFER_BIT)
        flags |= VK_ACCESS_VERTEX_ATTRIBUTE_READ_BIT;
    if (usage & VK_BUFFER_USAGE_INDEX_BUFFER_BIT)
        flags |= VK_ACCESS_INDEX_READ_BIT;
    if (usage & VK_BUFFER_USAGE_UNIFORM_BUFFER_BIT)
        flags |= VK_ACCESS_UNIFORM_READ_BIT;
    if (usage & VK_BUFFER_USAGE_UNIFORM_TEXEL_BUFFER_BIT)
        flags |= VK_ACCESS_SHADER_READ_BIT;
    if (usage & VK_BUFFER_USAGE_STORAGE_TEXEL_BUFFER_BIT)
        flags |= VK_ACCESS_SHADER_READ_BIT | VK_ACCESS_SHADER_WRITE_BIT;
    if (usage & VK_BUFFER_USAGE_INDIRECT_BUFFER_BIT)
        flags |= VK_ACCESS_INDIRECT_COMMAND_READ_BIT;
    if (usage & VK_BUFFER_USAGE_TRANSFORM_FEEDBACK_BUFFER_BIT_EXT)
        flags |= VK_ACCESS_TRANSFORM_FEEDBACK_WRITE_BIT_EXT;
    if (usage & VK_BUFFER_USAGE_TRANSFORM_FEEDBACK_COUNTER_BUFFER_BIT_EXT)
        flags |= VK_ACCESS_TRANSFORM_FEEDBACK_COUNTER_READ_BIT_EXT
                | VK_ACCESS_TRANSFORM_FEEDBACK_COUNTER_WRITE_BIT_EXT;
    if (usage & VK_BUFFER_USAGE_TRANSFER_SRC_BIT)
        flags |= VK_ACCESS_TRANSFER_READ_BIT;
    if (usage & VK_BUFFER_USAGE_TRANSFER_DST_BIT)
        flags |= VK_ACCESS_TRANSFER_WRITE_BIT;

    return flags;
}

Referenced by adapter_vk_copy_bo_address(), adapter_vk_map_bo_address(), wined3d_texture_vk_download_data(), and wined3d_texture_vk_upload_data().

vk_pipeline_stage_mask_from_buffer_usage()

VkPipelineStageFlags vk_pipeline_stage_mask_from_buffer_usage

(

VkBufferUsageFlags

usage

)

Definition at line 864 of file adapter_vk.c.

{
    VkPipelineStageFlags flags = 0;

    if (usage & (VK_BUFFER_USAGE_VERTEX_BUFFER_BIT | VK_BUFFER_USAGE_INDEX_BUFFER_BIT))
        flags |= VK_PIPELINE_STAGE_VERTEX_INPUT_BIT;
    if (usage & (VK_BUFFER_USAGE_UNIFORM_BUFFER_BIT | VK_BUFFER_USAGE_UNIFORM_TEXEL_BUFFER_BIT
            | VK_BUFFER_USAGE_STORAGE_TEXEL_BUFFER_BIT))
        flags |= VK_PIPELINE_STAGE_VERTEX_SHADER_BIT | VK_PIPELINE_STAGE_FRAGMENT_SHADER_BIT
                | VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT | VK_PIPELINE_STAGE_GEOMETRY_SHADER_BIT
                | VK_PIPELINE_STAGE_TESSELLATION_EVALUATION_SHADER_BIT
                | VK_PIPELINE_STAGE_TESSELLATION_CONTROL_SHADER_BIT;
    if (usage & VK_BUFFER_USAGE_INDIRECT_BUFFER_BIT)
        flags |= VK_PIPELINE_STAGE_DRAW_INDIRECT_BIT;
    if (usage & (VK_BUFFER_USAGE_TRANSFORM_FEEDBACK_BUFFER_BIT_EXT
            | VK_BUFFER_USAGE_TRANSFORM_FEEDBACK_COUNTER_BUFFER_BIT_EXT))
        flags |= VK_PIPELINE_STAGE_TRANSFORM_FEEDBACK_BIT_EXT;
    if (usage & (VK_BUFFER_USAGE_TRANSFER_SRC_BIT | VK_BUFFER_USAGE_TRANSFER_DST_BIT))
        flags |= VK_PIPELINE_STAGE_TRANSFER_BIT;

    return flags;
}

Referenced by wined3d_texture_vk_download_data(), and wined3d_texture_vk_upload_data().

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

d3d

)

wined3d_adapter_vk_const()

static const struct wined3d_adapter_vk * wined3d_adapter_vk_const ( const struct wined3d_adapter *  adapter )

inlinestatic

Definition at line 62 of file adapter_vk.c.

{
    return CONTAINING_RECORD(adapter, struct wined3d_adapter_vk, a);
}

Referenced by adapter_vk_create_device(), and adapter_vk_get_wined3d_caps().

wined3d_adapter_vk_create()

struct wined3d_adapter * wined3d_adapter_vk_create	(	unsigned int	ordinal,
		unsigned int	wined3d_creation_flags
	)

Definition at line 2555 of file adapter_vk.c.

{
    struct wined3d_adapter_vk *adapter_vk;

    if (!(adapter_vk = calloc(1, sizeof(*adapter_vk))))
        return NULL;

    if (!wined3d_adapter_vk_init(adapter_vk, ordinal, wined3d_creation_flags))
    {
        free(adapter_vk);
        return NULL;
    }

    TRACE("Created adapter %p.\n", adapter_vk);

    return &adapter_vk->a;
}

Referenced by wined3d_adapter_create().

wined3d_adapter_vk_get_memory_type_index()

unsigned int wined3d_adapter_vk_get_memory_type_index	(	const struct wined3d_adapter_vk *	adapter_vk,
		uint32_t	memory_type_mask,
		VkMemoryPropertyFlags	flags
	)

Definition at line 1259 of file adapter_vk.c.

{
    const VkPhysicalDeviceMemoryProperties *memory_info = &adapter_vk->memory_properties;
    unsigned int i;

    for (i = 0; i < memory_info->memoryTypeCount; ++i)
    {
        if (!(memory_type_mask & (1u << i)))
            continue;
        if ((memory_info->memoryTypes[i].propertyFlags & flags) == flags)
            return i;
    }

    return ~0u;
}

Referenced by wined3d_context_vk_create_bo(), and wined3d_context_vk_create_image().

wined3d_adapter_vk_init()

static BOOL wined3d_adapter_vk_init ( struct wined3d_adapter_vk *  adapter_vk, unsigned int  ordinal, unsigned int  wined3d_creation_flags  )

static

Definition at line 2476 of file adapter_vk.c.

{
    struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;
    struct wined3d_adapter *adapter = &adapter_vk->a;
    VkPhysicalDeviceIDProperties id_properties;
    VkPhysicalDeviceProperties2 properties2;
    LUID primary_luid, *luid = NULL;

    TRACE("adapter_vk %p, ordinal %u, wined3d_creation_flags %#x.\n",
            adapter_vk, ordinal, wined3d_creation_flags);

    if (!wined3d_init_vulkan(vk_info))
    {
        WARN("Failed to initialize Vulkan.\n");
        return FALSE;
    }

    if (!(adapter_vk->physical_device = get_vulkan_physical_device(vk_info)))
        goto fail_vulkan;

    if (!wined3d_adapter_vk_init_device_extensions(adapter_vk))
        goto fail_vulkan;

    memset(&id_properties, 0, sizeof(id_properties));
    id_properties.sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_ID_PROPERTIES;
    properties2.sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_PROPERTIES_2;
    properties2.pNext = &id_properties;

    if (vk_info->vk_ops.vkGetPhysicalDeviceProperties2)
        VK_CALL(vkGetPhysicalDeviceProperties2(adapter_vk->physical_device, &properties2));
    else
        VK_CALL(vkGetPhysicalDeviceProperties(adapter_vk->physical_device, &properties2.properties));
    adapter_vk->device_limits = properties2.properties.limits;

    VK_CALL(vkGetPhysicalDeviceMemoryProperties(adapter_vk->physical_device, &adapter_vk->memory_properties));

    if (id_properties.deviceLUIDValid)
        luid = (LUID *)id_properties.deviceLUID;
    else if (ordinal == 0 && wined3d_get_primary_adapter_luid(&primary_luid))
        luid = &primary_luid;

    if (!wined3d_adapter_init(adapter, ordinal, luid, &wined3d_adapter_vk_ops))
    {
        free(adapter_vk->device_extensions);
        goto fail_vulkan;
    }

    adapter->vertex_pipe = wined3d_spirv_vertex_pipe_init_vk();
    adapter->fragment_pipe = wined3d_spirv_fragment_pipe_init_vk();
    adapter->misc_state_template = misc_state_template_vk;
    adapter->shader_backend = wined3d_spirv_shader_backend_init_vk();

    wined3d_adapter_vk_init_d3d_info(adapter_vk, wined3d_creation_flags);

    if (!adapter_vk_init_driver_info(adapter_vk, &properties2.properties))
        goto fail;
    TRACE("Reporting (fake) driver version 0x%08x-0x%08x.\n",
            adapter_vk->a.driver_info.version_high, adapter_vk->a.driver_info.version_low);
    adapter->vram_bytes_used = 0;
    TRACE("Emulating 0x%s bytes of video ram.\n", wine_dbgstr_longlong(adapter->driver_info.vram_bytes));

    memcpy(&adapter->driver_uuid, id_properties.driverUUID, sizeof(adapter->driver_uuid));
    memcpy(&adapter->device_uuid, id_properties.deviceUUID, sizeof(adapter->device_uuid));

    if (!wined3d_adapter_vk_init_format_info(adapter_vk, vk_info))
        goto fail;

    return TRUE;

fail:
    wined3d_adapter_cleanup(adapter);
    free(adapter_vk->device_extensions);
fail_vulkan:
    VK_CALL(vkDestroyInstance(vk_info->instance, NULL));
    wined3d_unload_vulkan(vk_info);
    return FALSE;
}

Referenced by wined3d_adapter_vk_create().

wined3d_adapter_vk_init_d3d_info()

static void wined3d_adapter_vk_init_d3d_info ( struct wined3d_adapter_vk *  adapter_vk, uint32_t  wined3d_creation_flags  )

static

Definition at line 2242 of file adapter_vk.c.

{
    const struct VkPhysicalDeviceExtendedDynamicState3FeaturesEXT *dynamic_state3;
    struct wined3d_d3d_info *d3d_info = &adapter_vk->a.d3d_info;
    struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;
    struct wined3d_physical_device_info device_info;
    struct wined3d_vertex_caps vertex_caps;
    unsigned int sample_counts_mask;
    struct shader_caps shader_caps;

    get_physical_device_info(adapter_vk, &device_info);

    if (!device_info.dynamic_state_features.extendedDynamicState)
        adapter_vk->vk_info.supported[WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE] = FALSE;

    if (!device_info.host_query_reset_features.hostQueryReset)
        adapter_vk->vk_info.supported[WINED3D_VK_EXT_HOST_QUERY_RESET] = FALSE;

    if (!device_info.xfb_features.transformFeedback)
        adapter_vk->vk_info.supported[WINED3D_VK_EXT_TRANSFORM_FEEDBACK] = FALSE;

    adapter_vk->a.shader_backend->shader_get_caps(&adapter_vk->a, &shader_caps);
    adapter_vk->a.vertex_pipe->vp_get_caps(&adapter_vk->a, &vertex_caps);
    adapter_vk->a.fragment_pipe->get_caps(&adapter_vk->a, &d3d_info->ffp_fragment_caps);

    d3d_info->limits.vs_version = shader_caps.vs_version;
    d3d_info->limits.hs_version = shader_caps.hs_version;
    d3d_info->limits.ds_version = shader_caps.ds_version;
    d3d_info->limits.gs_version = shader_caps.gs_version;
    d3d_info->limits.ps_version = shader_caps.ps_version;
    d3d_info->limits.cs_version = shader_caps.cs_version;
    d3d_info->limits.vs_uniform_count = shader_caps.vs_uniform_count;
    d3d_info->limits.ps_uniform_count = shader_caps.ps_uniform_count;
    d3d_info->limits.varying_count = shader_caps.varying_count;
    d3d_info->limits.ffp_vertex_blend_matrices = vertex_caps.max_vertex_blend_matrices;
    d3d_info->limits.active_light_count = vertex_caps.max_active_lights;

    d3d_info->limits.max_rt_count = WINED3D_MAX_RENDER_TARGETS;
    d3d_info->limits.max_clip_distances = WINED3D_MAX_CLIP_DISTANCES;
    d3d_info->limits.texture_size = adapter_vk->device_limits.maxImageDimension2D;
    d3d_info->limits.pointsize_max = adapter_vk->device_limits.pointSizeRange[1];
    sample_counts_mask = adapter_vk->device_limits.framebufferColorSampleCounts
            | adapter_vk->device_limits.framebufferDepthSampleCounts
            | adapter_vk->device_limits.framebufferStencilSampleCounts
            | adapter_vk->device_limits.framebufferNoAttachmentsSampleCounts;
    d3d_info->limits.sample_count = (1u << wined3d_log2i(sample_counts_mask));

    d3d_info->wined3d_creation_flags = wined3d_creation_flags;

    d3d_info->emulated_flatshading = vertex_caps.emulated_flatshading;
    d3d_info->ffp_alpha_test = false;
    d3d_info->shader_double_precision = !!(shader_caps.wined3d_caps & WINED3D_SHADER_CAP_DOUBLE_PRECISION);
    d3d_info->shader_output_interpolation = !!(shader_caps.wined3d_caps & WINED3D_SHADER_CAP_OUTPUT_INTERPOLATION);
    d3d_info->viewport_array_index_any_shader = false; /* VK_EXT_shader_viewport_index_layer */
    d3d_info->stencil_export = vk_info->supported[WINED3D_VK_EXT_SHADER_STENCIL_EXPORT];
    d3d_info->unconditional_npot = true;
    d3d_info->draw_base_vertex_offset = true;
    d3d_info->vertex_bgra = true;
    d3d_info->texture_swizzle = true;
    d3d_info->srgb_read_control = false;
    d3d_info->srgb_write_control = false;
    d3d_info->clip_control = true;
    d3d_info->full_ffp_varyings = !!(shader_caps.wined3d_caps & WINED3D_SHADER_CAP_FULL_FFP_VARYINGS);
    d3d_info->scaled_resolve = false;
    d3d_info->pbo = true;
    d3d_info->feature_level = feature_level_from_caps(&device_info, &shader_caps);
    d3d_info->subpixel_viewport = true;
    d3d_info->fences = true;
    d3d_info->persistent_map = true;
    d3d_info->gpu_push_constants = true;
    d3d_info->ffp_hlsl = true;

    /* Like GL, Vulkan doesn't explicitly specify a filling convention and only mandates that a
     * shared edge of two adjacent triangles generate a fragment for exactly one of the triangles.
     *
     * However, every Vulkan implementation we have seen so far uses a top-left rule. Hardware
     * that differs either predates Vulkan (d3d9 class HW, GeForce 9xxx) or behaves the way we
     * want in Vulkan (MacOS Radeon driver through MoltenVK). */
    d3d_info->filling_convention_offset = 0.0f;

    d3d_info->multisample_draw_location = WINED3D_LOCATION_TEXTURE_RGB;

    vk_info->multiple_viewports = device_info.features2.features.multiViewport;
    vk_info->dynamic_state2 = device_info.dynamic_state2_features.extendedDynamicState2;
    vk_info->dynamic_patch_vertex_count = device_info.dynamic_state2_features.extendedDynamicState2PatchControlPoints;

    dynamic_state3 = &device_info.dynamic_state3_features;
    vk_info->dynamic_multisample_state = dynamic_state3->extendedDynamicState3RasterizationSamples
            && dynamic_state3->extendedDynamicState3AlphaToCoverageEnable
            && dynamic_state3->extendedDynamicState3SampleMask;
    vk_info->dynamic_blend_state = dynamic_state3->extendedDynamicState3ColorBlendEnable
            && dynamic_state3->extendedDynamicState3ColorBlendEquation
            && dynamic_state3->extendedDynamicState3ColorWriteMask;
    /* Rasterizer state needs EDS2, for rasterizer discard, and EDS1, for cull mode and front face. */
    vk_info->dynamic_rasterizer_state = dynamic_state3->extendedDynamicState3DepthClampEnable
            && vk_info->dynamic_state2
            && adapter_vk->vk_info.supported[WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE];
}

Referenced by wined3d_adapter_vk_init().

wined3d_adapter_vk_init_device_extensions()

static bool wined3d_adapter_vk_init_device_extensions ( struct wined3d_adapter_vk *  adapter_vk )

static

Definition at line 2341 of file adapter_vk.c.

{
    VkPhysicalDevice physical_device = adapter_vk->physical_device;
    struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;
    unsigned int count, enable_count, i, j;
    const char **enabled_extensions = NULL;
    VkExtensionProperties *extensions;
    bool found, success = false;
    SIZE_T enable_size = 0;
    VkResult vr;

    static const struct
    {
        const char *name;
        unsigned int core_since_version;
        bool required;
    }
    info[] =
    {
        {VK_EXT_EXTENDED_DYNAMIC_STATE_EXTENSION_NAME,      VK_API_VERSION_1_3},
        {VK_EXT_EXTENDED_DYNAMIC_STATE_2_EXTENSION_NAME,    VK_API_VERSION_1_3},
        {VK_EXT_EXTENDED_DYNAMIC_STATE_3_EXTENSION_NAME,    ~0u},
        {VK_EXT_HOST_QUERY_RESET_EXTENSION_NAME,            VK_API_VERSION_1_2},
        {VK_EXT_SHADER_STENCIL_EXPORT_EXTENSION_NAME,       ~0u},
        {VK_EXT_TRANSFORM_FEEDBACK_EXTENSION_NAME,          ~0u},
        {VK_EXT_VERTEX_ATTRIBUTE_DIVISOR_EXTENSION_NAME,    ~0u},
        {VK_KHR_MAINTENANCE1_EXTENSION_NAME,                VK_API_VERSION_1_1, true},
        {VK_KHR_MAINTENANCE2_EXTENSION_NAME,                VK_API_VERSION_1_1},
        {VK_KHR_SAMPLER_MIRROR_CLAMP_TO_EDGE_EXTENSION_NAME,VK_API_VERSION_1_2},
        {VK_KHR_SHADER_DRAW_PARAMETERS_EXTENSION_NAME,      VK_API_VERSION_1_1},
        {VK_KHR_SWAPCHAIN_EXTENSION_NAME,                   ~0u,                true},
    };

    static const struct
    {
        const char *name;
        enum wined3d_vk_extension extension;
    }
    map[] =
    {
        {VK_EXT_EXTENDED_DYNAMIC_STATE_EXTENSION_NAME,       WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE},
        {VK_EXT_EXTENDED_DYNAMIC_STATE_2_EXTENSION_NAME,     WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE2},
        {VK_EXT_EXTENDED_DYNAMIC_STATE_3_EXTENSION_NAME,     WINED3D_VK_EXT_EXTENDED_DYNAMIC_STATE3},
        {VK_EXT_HOST_QUERY_RESET_EXTENSION_NAME,             WINED3D_VK_EXT_HOST_QUERY_RESET},
        {VK_EXT_SHADER_STENCIL_EXPORT_EXTENSION_NAME,        WINED3D_VK_EXT_SHADER_STENCIL_EXPORT},
        {VK_EXT_TRANSFORM_FEEDBACK_EXTENSION_NAME,           WINED3D_VK_EXT_TRANSFORM_FEEDBACK},
        {VK_EXT_VERTEX_ATTRIBUTE_DIVISOR_EXTENSION_NAME,     WINED3D_VK_EXT_VERTEX_ATTRIBUTE_DIVISOR},
        {VK_KHR_MAINTENANCE2_EXTENSION_NAME,                 WINED3D_VK_KHR_MAINTENANCE2},
        {VK_KHR_SAMPLER_MIRROR_CLAMP_TO_EDGE_EXTENSION_NAME, WINED3D_VK_KHR_SAMPLER_MIRROR_CLAMP_TO_EDGE},
        {VK_KHR_SHADER_DRAW_PARAMETERS_EXTENSION_NAME,       WINED3D_VK_KHR_SHADER_DRAW_PARAMETERS},
    };

    if ((vr = VK_CALL(vkEnumerateDeviceExtensionProperties(physical_device, NULL, &count, NULL))) < 0)
    {
        ERR("Failed to enumerate device extensions, vr %s.\n", wined3d_debug_vkresult(vr));
        return false;
    }

    if (!(extensions = calloc(count, sizeof(*extensions))))
    {
        ERR("Failed to allocate extension properties array.\n");
        return false;
    }

    if ((vr = VK_CALL(vkEnumerateDeviceExtensionProperties(physical_device, NULL, &count, extensions))) < 0)
    {
        ERR("Failed to enumerate device extensions, vr %s.\n", wined3d_debug_vkresult(vr));
        goto done;
    }

    TRACE("Vulkan device extensions reported:\n");
    for (i = 0; i < count; ++i)
    {
        TRACE("    - %s.\n", debugstr_a(extensions[i].extensionName));
    }

    for (i = 0, enable_count = 0; i < ARRAY_SIZE(info); ++i)
    {
        if (info[i].core_since_version <= vk_info->api_version)
            continue;

        for (j = 0, found = false; j < count; ++j)
        {
            if (!strcmp(extensions[j].extensionName, info[i].name))
            {
                found = true;
                break;
            }
        }

        if (!found)
        {
            if (!info[i].required)
                continue;
            WARN("Required extension '%s' is not available.\n", info[i].name);
            goto done;
        }

        TRACE("Enabling device extension '%s'.\n", info[i].name);
        if (!wined3d_array_reserve((void **)&enabled_extensions, &enable_size,
                enable_count + 1, sizeof(*enabled_extensions)))
        {
            ERR("Failed to allocate enabled extensions array.\n");
            goto done;
        }
        enabled_extensions[enable_count++] = info[i].name;
    }
    success = true;

    for (i = 0; i < ARRAY_SIZE(map); ++i)
    {
        for (j = 0; j < enable_count; ++j)
        {
            if (!strcmp(enabled_extensions[j], map[i].name))
            {
                vk_info->supported[map[i].extension] = TRUE;
                break;
            }
        }
    }

done:
    if (success)
    {
        adapter_vk->device_extension_count = enable_count;
        adapter_vk->device_extensions = enabled_extensions;
    }
    else
    {
        free(enabled_extensions);
    }
    free(extensions);
    return success;
}

Referenced by wined3d_adapter_vk_init().

wined3d_allocator_vk_create_chunk()

static struct wined3d_allocator_chunk * wined3d_allocator_vk_create_chunk ( struct wined3d_allocator *  allocator, struct wined3d_context *  context, unsigned int  memory_type, size_t  chunk_size  )

static

Definition at line 240 of file adapter_vk.c.

{
    struct wined3d_context_vk *context_vk = wined3d_context_vk(context);
    struct wined3d_allocator_chunk_vk *chunk_vk;

    if (!(chunk_vk = malloc(sizeof(*chunk_vk))))
        return NULL;

    if (!wined3d_allocator_chunk_init(&chunk_vk->c, allocator))
    {
        free(chunk_vk);
        return NULL;
    }

    if (!(chunk_vk->vk_memory = wined3d_context_vk_allocate_vram_chunk_memory(context_vk, memory_type, chunk_size)))
    {
        wined3d_allocator_chunk_cleanup(&chunk_vk->c);
        free(chunk_vk);
        return NULL;
    }
    list_add_head(&allocator->pools[memory_type].chunks, &chunk_vk->c.entry);

    return &chunk_vk->c;
}

wined3d_allocator_vk_destroy_chunk()

static void wined3d_allocator_vk_destroy_chunk ( struct wined3d_allocator_chunk *  chunk )

static

Definition at line 266 of file adapter_vk.c.

{
    struct wined3d_allocator_chunk_vk *chunk_vk = wined3d_allocator_chunk_vk(chunk);
    const struct wined3d_vk_info *vk_info;
    struct wined3d_device_vk *device_vk;

    TRACE("chunk %p.\n", chunk);

    device_vk = wined3d_device_vk_from_allocator(chunk_vk->c.allocator);
    vk_info = &device_vk->vk_info;

    if (chunk_vk->c.map_ptr)
    {
        VK_CALL(vkUnmapMemory(device_vk->vk_device, chunk_vk->vk_memory));
        adapter_adjust_mapped_memory(device_vk->d.adapter, -WINED3D_ALLOCATOR_CHUNK_SIZE);
    }
    VK_CALL(vkFreeMemory(device_vk->vk_device, chunk_vk->vk_memory, NULL));
    TRACE("Freed memory 0x%s.\n", wine_dbgstr_longlong(chunk_vk->vk_memory));
    wined3d_allocator_chunk_cleanup(&chunk_vk->c);
    free(chunk_vk);
}

wined3d_bo_slab_vk_lock()

static void wined3d_bo_slab_vk_lock ( struct wined3d_bo_slab_vk *  slab_vk, struct wined3d_context_vk *  context_vk  )

static

Definition at line 786 of file adapter_vk.c.

{
    wined3d_device_vk_allocator_lock(wined3d_device_vk(context_vk->c.device));
}

Referenced by wined3d_bo_slab_vk_map(), and wined3d_bo_slab_vk_unmap().

wined3d_bo_slab_vk_map()

void * wined3d_bo_slab_vk_map	(	struct wined3d_bo_slab_vk *	slab_vk,
		struct wined3d_context_vk *	context_vk
	)

Definition at line 796 of file adapter_vk.c.

{
    void *map_ptr;

    TRACE("slab_vk %p, context_vk %p.\n", slab_vk, context_vk);

    wined3d_bo_slab_vk_lock(slab_vk, context_vk);

    if (!slab_vk->map_ptr && !(slab_vk->map_ptr = wined3d_bo_vk_map(&slab_vk->bo, context_vk)))
    {
        wined3d_bo_slab_vk_unlock(slab_vk, context_vk);
        ERR("Failed to map slab.\n");
        return NULL;
    }

    ++slab_vk->map_count;
    map_ptr = slab_vk->map_ptr;

    wined3d_bo_slab_vk_unlock(slab_vk, context_vk);

    return map_ptr;
}

Referenced by wined3d_bo_vk_map().

wined3d_bo_slab_vk_unlock()

static void wined3d_bo_slab_vk_unlock ( struct wined3d_bo_slab_vk *  slab_vk, struct wined3d_context_vk *  context_vk  )

static

Definition at line 791 of file adapter_vk.c.

{
    wined3d_device_vk_allocator_unlock(wined3d_device_vk(context_vk->c.device));
}

Referenced by wined3d_bo_slab_vk_map(), and wined3d_bo_slab_vk_unmap().

wined3d_bo_slab_vk_unmap()

void wined3d_bo_slab_vk_unmap	(	struct wined3d_bo_slab_vk *	slab_vk,
		struct wined3d_context_vk *	context_vk
	)

Definition at line 819 of file adapter_vk.c.

{
    wined3d_bo_slab_vk_lock(slab_vk, context_vk);

    if (--slab_vk->map_count)
    {
        wined3d_bo_slab_vk_unlock(slab_vk, context_vk);
        return;
    }

    wined3d_bo_vk_unmap(&slab_vk->bo, context_vk);
    slab_vk->map_ptr = NULL;

    wined3d_bo_slab_vk_unlock(slab_vk, context_vk);
}

Referenced by wined3d_bo_vk_unmap(), and wined3d_context_vk_destroy_bo().

wined3d_bo_vk_map()

static void * wined3d_bo_vk_map ( struct wined3d_bo_vk *  bo, struct wined3d_context_vk *  context_vk  )

static

Definition at line 698 of file adapter_vk.c.

{
    const struct wined3d_vk_info *vk_info;
    struct wined3d_device_vk *device_vk;
    struct wined3d_bo_slab_vk *slab;
    VkResult vr;

    if (bo->b.map_ptr)
        return bo->b.map_ptr;

    vk_info = context_vk->vk_info;
    device_vk = wined3d_device_vk(context_vk->c.device);

    if ((slab = bo->slab))
    {
        if (!(bo->b.map_ptr = wined3d_bo_slab_vk_map(slab, context_vk)))
        {
            ERR("Failed to map slab.\n");
            return NULL;
        }
    }
    else if (bo->memory)
    {
        struct wined3d_allocator_chunk_vk *chunk_vk = wined3d_allocator_chunk_vk(bo->memory->chunk);

        if (!(bo->b.map_ptr = wined3d_allocator_chunk_vk_map(chunk_vk, context_vk)))
        {
            ERR("Failed to map chunk.\n");
            return NULL;
        }
    }
    else
    {
        if ((vr = VK_CALL(vkMapMemory(device_vk->vk_device, bo->vk_memory, 0, VK_WHOLE_SIZE, 0, &bo->b.map_ptr))) < 0)
        {
            ERR("Failed to map memory, vr %s.\n", wined3d_debug_vkresult(vr));
            return NULL;
        }

        adapter_adjust_mapped_memory(device_vk->d.adapter, bo->size);
    }

    return bo->b.map_ptr;
}

Referenced by adapter_vk_alloc_bo(), adapter_vk_map_bo_address(), and wined3d_bo_slab_vk_map().

wined3d_bo_vk_unmap()

static void wined3d_bo_vk_unmap ( struct wined3d_bo_vk *  bo, struct wined3d_context_vk *  context_vk  )

static

Definition at line 743 of file adapter_vk.c.

{
    struct wined3d_device_vk *device_vk = wined3d_device_vk(context_vk->c.device);
    const struct wined3d_vk_info *vk_info;
    struct wined3d_bo_slab_vk *slab;

    /* This may race with the client thread, but it's not a hard limit anyway. */
    if (device_vk->d.adapter->mapped_size <= MAX_PERSISTENT_MAPPED_BYTES)
    {
        TRACE("Not unmapping BO %p.\n", bo);
        return;
    }

    wined3d_device_bo_map_lock(context_vk->c.device);
    /* The mapping is still in use by the client (viz. for an accelerated
     * NOOVERWRITE map). The client will trigger another unmap request when the
     * d3d application requests to unmap the BO. */
    if (bo->b.client_map_count)
    {
        wined3d_device_bo_map_unlock(context_vk->c.device);
        TRACE("BO %p is still in use by a client thread; not unmapping.\n", bo);
        return;
    }
    bo->b.map_ptr = NULL;
    wined3d_device_bo_map_unlock(context_vk->c.device);

    if ((slab = bo->slab))
    {
        wined3d_bo_slab_vk_unmap(slab, context_vk);
        return;
    }

    if (bo->memory)
    {
        wined3d_allocator_chunk_vk_unmap(wined3d_allocator_chunk_vk(bo->memory->chunk), context_vk);
        return;
    }

    vk_info = context_vk->vk_info;
    VK_CALL(vkUnmapMemory(device_vk->vk_device, bo->vk_memory));
    adapter_adjust_mapped_memory(device_vk->d.adapter, -bo->size);
}

Referenced by adapter_vk_unmap_bo_address(), and wined3d_bo_slab_vk_unmap().

wined3d_disable_vulkan_features()

static void wined3d_disable_vulkan_features ( struct wined3d_physical_device_info *  info )

static

Definition at line 183 of file adapter_vk.c.

{
    VkPhysicalDeviceExtendedDynamicState3FeaturesEXT *dynamic_state3 = &info->dynamic_state3_features;
    VkPhysicalDeviceFeatures *features = &info->features2.features;

    features->depthBounds = VK_FALSE;
    features->wideLines = VK_FALSE;
    features->alphaToOne = VK_FALSE;
    features->textureCompressionETC2 = VK_FALSE;
    features->textureCompressionASTC_LDR = VK_FALSE;
    features->shaderStorageImageMultisample = VK_FALSE;
    features->shaderUniformBufferArrayDynamicIndexing = VK_FALSE;
    features->shaderSampledImageArrayDynamicIndexing = VK_FALSE;
    features->shaderStorageBufferArrayDynamicIndexing = VK_FALSE;
    features->shaderStorageImageArrayDynamicIndexing = VK_FALSE;
    features->shaderInt64 = VK_FALSE;
    features->shaderInt16 = VK_FALSE;
    features->shaderResourceResidency = VK_FALSE;
    features->shaderResourceMinLod = VK_FALSE;
    features->shaderTessellationAndGeometryPointSize = VK_FALSE;
    features->sparseBinding = VK_FALSE;
    features->sparseResidencyBuffer = VK_FALSE;
    features->sparseResidencyImage2D = VK_FALSE;
    features->sparseResidencyImage3D = VK_FALSE;
    features->sparseResidency2Samples = VK_FALSE;
    features->sparseResidency4Samples = VK_FALSE;
    features->sparseResidency8Samples = VK_FALSE;
    features->sparseResidency16Samples = VK_FALSE;
    features->sparseResidencyAliased = VK_FALSE;
    features->inheritedQueries = VK_FALSE;

    dynamic_state3->extendedDynamicState3AlphaToOneEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3ColorBlendAdvanced = VK_FALSE;
    dynamic_state3->extendedDynamicState3ConservativeRasterizationMode = VK_FALSE;
    dynamic_state3->extendedDynamicState3CoverageModulationMode = VK_FALSE;
    dynamic_state3->extendedDynamicState3CoverageModulationTable = VK_FALSE;
    dynamic_state3->extendedDynamicState3CoverageModulationTableEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3CoverageReductionMode = VK_FALSE;
    dynamic_state3->extendedDynamicState3CoverageToColorEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3CoverageToColorLocation = VK_FALSE;
    dynamic_state3->extendedDynamicState3DepthClipEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3DepthClipNegativeOneToOne = VK_FALSE;
    dynamic_state3->extendedDynamicState3ExtraPrimitiveOverestimationSize = VK_FALSE;
    dynamic_state3->extendedDynamicState3LineRasterizationMode = VK_FALSE;
    dynamic_state3->extendedDynamicState3LineStippleEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3LogicOpEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3PolygonMode = VK_FALSE;
    dynamic_state3->extendedDynamicState3ProvokingVertexMode = VK_FALSE;
    dynamic_state3->extendedDynamicState3RasterizationStream = VK_FALSE;
    dynamic_state3->extendedDynamicState3RepresentativeFragmentTestEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3SampleLocationsEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3ShadingRateImageEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3TessellationDomainOrigin = VK_FALSE;
    dynamic_state3->extendedDynamicState3ViewportWScalingEnable = VK_FALSE;
    dynamic_state3->extendedDynamicState3ViewportSwizzle = VK_FALSE;
}

Referenced by adapter_vk_create_device().

wined3d_get_wine_vk_version()

static unsigned int wined3d_get_wine_vk_version ( void  )

static

Definition at line 1859 of file adapter_vk.c.

{
    const char * (CDECL *wine_get_version)(void) = (void *)GetProcAddress( GetModuleHandleW(L"ntdll.dll"),
                                                                           "wine_get_version" );
    const char *ptr;
    int major, minor;

    if (!wine_get_version) return VK_MAKE_VERSION(1, 0, 0);

    ptr = wine_get_version();
    major = atoi(ptr);

    while (isdigit(*ptr))
        ++ptr;
    if (*ptr == '.')
        ++ptr;

    minor = atoi(ptr);

    return VK_MAKE_VERSION(major, minor, 0);
}

Referenced by wined3d_init_vulkan().

wined3d_init_vulkan()

static BOOL wined3d_init_vulkan ( struct wined3d_vk_info *  vk_info )

static

Definition at line 1966 of file adapter_vk.c.

{
    const char *enabled_instance_extensions[ARRAY_SIZE(vulkan_instance_extensions)];
    PFN_vkEnumerateInstanceVersion pfn_vkEnumerateInstanceVersion;
    struct vulkan_ops *vk_ops = &vk_info->vk_ops;
    VkInstance instance = VK_NULL_HANDLE;
    VkInstanceCreateInfo instance_info;
    VkApplicationInfo app_info;
    uint32_t api_version = 0;
    char app_name[MAX_PATH];
    VkResult vr;

    if (!wined3d_load_vulkan(vk_info))
        return FALSE;

    if (!(vk_ops->vkCreateInstance = (void *)VK_CALL(vkGetInstanceProcAddr(NULL, "vkCreateInstance"))))
    {
        ERR("Failed to get 'vkCreateInstance'.\n");
        goto fail;
    }

    vk_info->api_version = VK_API_VERSION_1_0;
    if ((pfn_vkEnumerateInstanceVersion = (void *)VK_CALL(vkGetInstanceProcAddr(NULL, "vkEnumerateInstanceVersion")))
            && pfn_vkEnumerateInstanceVersion(&api_version) == VK_SUCCESS)
    {
        TRACE("Vulkan instance API version %s.\n", debug_vk_version(api_version));

        if (api_version >= VK_API_VERSION_1_1)
            vk_info->api_version = VK_API_VERSION_1_1;
    }

    memset(&app_info, 0, sizeof(app_info));
    app_info.sType = VK_STRUCTURE_TYPE_APPLICATION_INFO;
    if (wined3d_get_app_name(app_name, ARRAY_SIZE(app_name)))
        app_info.pApplicationName = app_name;
    app_info.pEngineName = "Damavand";
    app_info.engineVersion = wined3d_get_wine_vk_version();
    app_info.apiVersion = vk_info->api_version;

    memset(&instance_info, 0, sizeof(instance_info));
    instance_info.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO;
    instance_info.pApplicationInfo = &app_info;
    instance_info.ppEnabledExtensionNames = enabled_instance_extensions;
    if (!enable_vulkan_instance_extensions(&instance_info.enabledExtensionCount, enabled_instance_extensions, vk_info))
        goto fail;

    memset(vk_info->supported, 0, sizeof(vk_info->supported));
    vk_info->supported[WINED3D_VK_EXT_NONE] = TRUE;

    if ((vr = VK_CALL(vkCreateInstance(&instance_info, NULL, &instance))) < 0)
    {
        WARN("Failed to create Vulkan instance, vr %s.\n", wined3d_debug_vkresult(vr));
        goto fail;
    }

    TRACE("Created Vulkan instance %p.\n", instance);

#define LOAD_INSTANCE_PFN(name) \
    if (!(vk_ops->name = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #name)))) \
    { \
        WARN("Could not get instance proc addr for '" #name "'.\n"); \
        goto fail; \
    }
#define LOAD_INSTANCE_OPT_PFN(name) \
    vk_ops->name = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #name));
#define VK_INSTANCE_PFN     LOAD_INSTANCE_PFN
#define VK_INSTANCE_EXT_PFN LOAD_INSTANCE_OPT_PFN
#define VK_DEVICE_PFN       LOAD_INSTANCE_PFN
#define VK_DEVICE_EXT_PFN   LOAD_INSTANCE_OPT_PFN
    VK_INSTANCE_FUNCS()
    VK_DEVICE_FUNCS()
#undef VK_INSTANCE_PFN
#undef VK_INSTANCE_EXT_PFN
#undef VK_DEVICE_PFN
#undef VK_DEVICE_EXT_PFN

#define MAP_INSTANCE_FUNCTION(core_pfn, ext_pfn) \
    if (!vk_ops->core_pfn) \
        vk_ops->core_pfn = (void *)VK_CALL(vkGetInstanceProcAddr(instance, #ext_pfn));
    MAP_INSTANCE_FUNCTION(vkGetPhysicalDeviceProperties2, vkGetPhysicalDeviceProperties2KHR)
    MAP_INSTANCE_FUNCTION(vkGetPhysicalDeviceFeatures2, vkGetPhysicalDeviceFeatures2KHR)
#undef MAP_INSTANCE_FUNCTION

    vk_info->instance = instance;

    return TRUE;

fail:
    if (vk_ops->vkDestroyInstance)
        VK_CALL(vkDestroyInstance(instance, NULL));
    wined3d_unload_vulkan(vk_info);
    return FALSE;
}

Referenced by wined3d_adapter_vk_init().

wined3d_load_vulkan()

static BOOL wined3d_load_vulkan ( struct wined3d_vk_info *  vk_info )

static

Definition at line 97 of file adapter_vk.c.

{
    struct vulkan_ops *vk_ops = &vk_info->vk_ops;

    if (!(vk_info->vulkan_lib = LoadLibraryA("winevulkan.dll"))
            && !(vk_info->vulkan_lib = LoadLibraryA("vulkan-1.dll")))
    {
        WARN("Failed to load vulkan-1.dll.\n");
        return FALSE;
    }

    vk_ops->vkGetInstanceProcAddr = (void *)GetProcAddress(vk_info->vulkan_lib, "vkGetInstanceProcAddr");
    if (!vk_ops->vkGetInstanceProcAddr)
    {
        FreeLibrary(vk_info->vulkan_lib);
        return FALSE;
    }

    return TRUE;
}

Referenced by wined3d_init_vulkan().

wined3d_query_vk_destroy_object()

static void wined3d_query_vk_destroy_object ( void *  object )

static

Definition at line 1654 of file adapter_vk.c.

{
    struct wined3d_query_vk *query_vk = object;

    TRACE("query_vk %p.\n", query_vk);

    query_vk->q.query_ops->query_destroy(&query_vk->q);
}

Referenced by adapter_vk_destroy_query().

wined3d_sampler_vk_destroy_object()

static void wined3d_sampler_vk_destroy_object ( void *  object )

static

Definition at line 1621 of file adapter_vk.c.

{
    struct wined3d_sampler_vk *sampler_vk = object;
    struct wined3d_context_vk *context_vk;

    TRACE("sampler_vk %p.\n", sampler_vk);

    context_vk = wined3d_context_vk(context_acquire(sampler_vk->s.device, NULL, 0));

    wined3d_context_vk_destroy_vk_sampler(context_vk, sampler_vk->vk_image_info.sampler, sampler_vk->command_buffer_id);
    free(sampler_vk);

    context_release(&context_vk->c);
}

Referenced by adapter_vk_destroy_sampler().

wined3d_select_vulkan_queue_family()

static HRESULT wined3d_select_vulkan_queue_family ( const struct wined3d_adapter_vk *  adapter_vk, uint32_t *  queue_family_index, uint32_t *  timestamp_bits  )

static

Definition at line 139 of file adapter_vk.c.

{
    VkPhysicalDevice physical_device = adapter_vk->physical_device;
    const struct wined3d_vk_info *vk_info = &adapter_vk->vk_info;
    VkQueueFamilyProperties *queue_properties;
    uint32_t count, i;

    VK_CALL(vkGetPhysicalDeviceQueueFamilyProperties(physical_device, &count, NULL));

    if (!(queue_properties = calloc(count, sizeof(*queue_properties))))
        return E_OUTOFMEMORY;

    VK_CALL(vkGetPhysicalDeviceQueueFamilyProperties(physical_device, &count, queue_properties));

    for (i = 0; i < count; ++i)
    {
        if (queue_properties[i].queueFlags & VK_QUEUE_GRAPHICS_BIT)
        {
            *queue_family_index = i;
            *timestamp_bits = queue_properties[i].timestampValidBits;
            free(queue_properties);
            return WINED3D_OK;
        }
    }
    free(queue_properties);

    WARN("Failed to find graphics queue.\n");
    return E_FAIL;
}

Referenced by adapter_vk_create_device().

wined3d_unload_vulkan()

static void wined3d_unload_vulkan ( struct wined3d_vk_info *  vk_info )

static

Definition at line 118 of file adapter_vk.c.

{
    if (vk_info->vulkan_lib)
    {
        FreeLibrary(vk_info->vulkan_lib);
        vk_info->vulkan_lib = NULL;
    }
}

Referenced by adapter_vk_destroy(), wined3d_adapter_vk_init(), and wined3d_init_vulkan().

wined3d_view_vk_destroy()

static void wined3d_view_vk_destroy ( struct wined3d_device *  device, VkBufferView *  vk_buffer_view, VkImageView *  vk_image_view, struct wined3d_bo_user *  bo_user, struct wined3d_bo_vk *  vk_counter_bo, VkBufferView *  vk_counter_view, uint64_t *  command_buffer_id, void *  view_vk  )

static

Definition at line 1477 of file adapter_vk.c.

{
    struct wined3d_view_vk_destroy_ctx *ctx, c;

    if (!(ctx = malloc(sizeof(*ctx))))
        ctx = &c;
    ctx->device_vk = wined3d_device_vk(device);
    ctx->vk_buffer_view = vk_buffer_view;
    ctx->vk_image_view = vk_image_view;
    ctx->bo_user = bo_user;
    ctx->vk_counter_bo = vk_counter_bo;
    ctx->vk_counter_view = vk_counter_view;
    ctx->command_buffer_id = command_buffer_id;
    ctx->object = view_vk;
    ctx->free = ctx != &c ? ctx : NULL;

    wined3d_cs_destroy_object(device->cs, wined3d_view_vk_destroy_object, ctx);
    if (ctx == &c)
        wined3d_cs_finish(device->cs, WINED3D_CS_QUEUE_DEFAULT);
}

Referenced by adapter_vk_destroy_rendertarget_view(), adapter_vk_destroy_shader_resource_view(), and adapter_vk_destroy_unordered_access_view().

wined3d_view_vk_destroy_object()

static void wined3d_view_vk_destroy_object ( void *  object )

static

Definition at line 1413 of file adapter_vk.c.

{
    struct wined3d_view_vk_destroy_ctx *ctx = object;
    const struct wined3d_vk_info *vk_info;
    struct wined3d_device_vk *device_vk;
    struct wined3d_context *context;

    TRACE("ctx %p.\n", ctx);

    device_vk = ctx->device_vk;
    vk_info = &wined3d_adapter_vk(device_vk->d.adapter)->vk_info;
    context = context_acquire(&device_vk->d, NULL, 0);

    if (ctx->vk_buffer_view)
    {
        if (context)
        {
            wined3d_context_vk_destroy_vk_buffer_view(wined3d_context_vk(context),
                    *ctx->vk_buffer_view, *ctx->command_buffer_id);
        }
        else
        {
            VK_CALL(vkDestroyBufferView(device_vk->vk_device, *ctx->vk_buffer_view, NULL));
            TRACE("Destroyed buffer view 0x%s.\n", wine_dbgstr_longlong(*ctx->vk_buffer_view));
        }
    }
    if (ctx->vk_image_view)
    {
        if (context)
        {
            wined3d_context_vk_destroy_vk_image_view(wined3d_context_vk(context),
                    *ctx->vk_image_view, *ctx->command_buffer_id);
        }
        else
        {
            VK_CALL(vkDestroyImageView(device_vk->vk_device, *ctx->vk_image_view, NULL));
            TRACE("Destroyed image view 0x%s.\n", wine_dbgstr_longlong(*ctx->vk_image_view));
        }
    }
    if (ctx->bo_user && ctx->bo_user->valid)
        list_remove(&ctx->bo_user->entry);
    if (ctx->vk_counter_bo && ctx->vk_counter_bo->vk_buffer)
        wined3d_context_vk_destroy_bo(wined3d_context_vk(context), ctx->vk_counter_bo);
    if (ctx->vk_counter_view)
    {
        if (context)
        {
            wined3d_context_vk_destroy_vk_buffer_view(wined3d_context_vk(context),
                    *ctx->vk_counter_view, *ctx->command_buffer_id);
        }
        else
        {
            VK_CALL(vkDestroyBufferView(device_vk->vk_device, *ctx->vk_counter_view, NULL));
            TRACE("Destroyed counter buffer view 0x%s.\n", wine_dbgstr_longlong(*ctx->vk_counter_view));
        }
    }

    if (context)
        context_release(context);

    free(ctx->object);
    free(ctx->free);
}

Referenced by wined3d_view_vk_destroy().

Variable Documentation

core_since_version

unsigned int core_since_version

Definition at line 1884 of file adapter_vk.c.

Referenced by wined3d_adapter_vk_init_device_extensions().

misc_state_template_vk

const struct wined3d_state_entry_template misc_state_template_vk[]

static

Definition at line 24 of file adapter_vk.c.

Referenced by wined3d_adapter_vk_init().

name

const char* name

Definition at line 1883 of file adapter_vk.c.

Referenced by wined3d_adapter_vk_init_device_extensions().

required

BOOL required

Definition at line 1885 of file adapter_vk.c.

Referenced by ACTION_CostFinalize(), enable_vulkan_instance_extensions(), encode_compare_base64_W(), encodeAndCompareBase64_A(), fill_inf_info(), FTPFILE_QueryOption(), GdipGetRegionData(), get_field_string(), GetLineText(), glyphrunanalysis_CreateAlphaTexture(), PdhLookupPerfNameByIndexA(), PdhLookupPerfNameByIndexW(), registry_callback(), SetupGetBinaryField(), SetupGetFileCompressionInfoA(), SetupGetFileCompressionInfoExA(), SetupGetFileCompressionInfoExW(), SetupGetFileCompressionInfoW(), SetupGetIntField(), SetupGetLineTextA(), SetupGetLineTextW(), SetupGetMultiSzFieldA(), SetupGetMultiSzFieldW(), SetupGetSourceFileLocationA(), SetupGetSourceInfoA(), SetupGetStringFieldA(), SetupGetStringFieldW(), SetupGetTargetPathA(), SetupQueueCopySectionW(), test_SetupGetSourceFileLocation(), test_SetupGetSourceInfo(), test_SetupGetTargetPath(), type_runtimeclass_define(), validate_buffer(), wined3d_adapter_vk_init_device_extensions(), and WinHttpCreateUrl().

const struct { ... } vulkan_instance_extensions[]

Initial value:

=
{
    {VK_KHR_GET_PHYSICAL_DEVICE_PROPERTIES_2_EXTENSION_NAME, VK_API_VERSION_1_1, FALSE},
    {VK_KHR_EXTERNAL_MEMORY_EXTENSION_NAME,                  VK_API_VERSION_1_1, FALSE},
    {VK_KHR_SURFACE_EXTENSION_NAME,                          ~0u,                TRUE},
    {VK_KHR_WIN32_SURFACE_EXTENSION_NAME,                    ~0u,                TRUE},
}

Referenced by enable_vulkan_instance_extensions(), and wined3d_init_vulkan().

wined3d_adapter_vk_ops

const struct wined3d_adapter_ops wined3d_adapter_vk_ops

static

Definition at line 1819 of file adapter_vk.c.

Referenced by wined3d_adapter_vk_init().

wined3d_allocator_vk_ops

const struct wined3d_allocator_ops wined3d_allocator_vk_ops

static

Initial value:

=
{
    .allocator_create_chunk = wined3d_allocator_vk_create_chunk,
    .allocator_destroy_chunk = wined3d_allocator_vk_destroy_chunk,
}

Definition at line 288 of file adapter_vk.c.

Referenced by adapter_vk_create_device().
