factory.c File Reference

#include "d2d1_private.h"
#include "xmllite.h"
#include "wine/list.h"

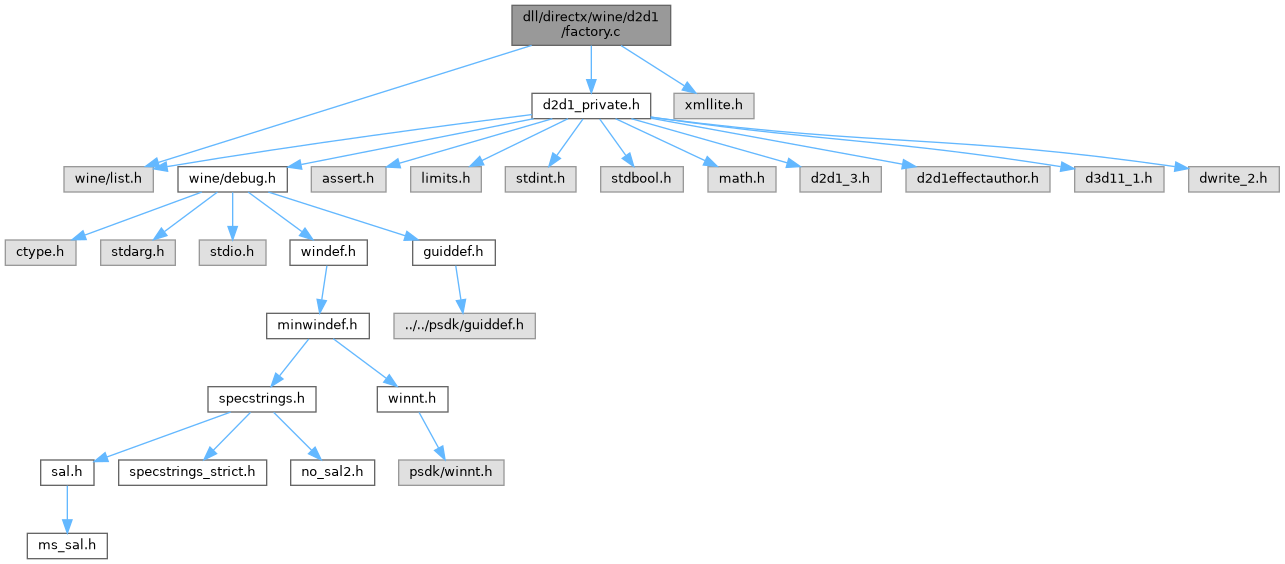

Include dependency graph for factory.c:

Go to the source code of this file.

Macros
#define	D2D1_INIT_GUID

Functions
	WINE_DECLARE_DEBUG_CHANNEL (winediag)
	WINE_DEFAULT_DEBUG_CHANNEL (d2d)
static void	d2d_effect_registration_cleanup (struct d2d_effect_registration *reg)
static struct d2d_factory *	impl_from_ID2D1Factory7 (ID2D1Factory7 *iface)
static struct d2d_factory *	impl_from_ID2D1Multithread (ID2D1Multithread *iface)
static BOOL WINAPI	d2d_factory_builtins_initonce (INIT_ONCE *once, void *param, void **context)
static void	d2d_factory_init_builtin_effects (struct d2d_factory *factory)
void	d2d_factory_register_effect (struct d2d_factory *factory, struct d2d_effect_registration *effect)
struct d2d_effect_registration *	d2d_factory_get_registered_effect (ID2D1Factory *iface, const GUID *id)
static HRESULT	d2d_factory_reload_sysmetrics (struct d2d_factory *factory)
static HRESULT STDMETHODCALLTYPE	d2d_factory_QueryInterface (ID2D1Factory7 *iface, REFIID iid, void **out)
static ULONG STDMETHODCALLTYPE	d2d_factory_AddRef (ID2D1Factory7 *iface)
static ULONG STDMETHODCALLTYPE	d2d_factory_Release (ID2D1Factory7 *iface)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ReloadSystemMetrics (ID2D1Factory7 *iface)
static void STDMETHODCALLTYPE	d2d_factory_GetDesktopDpi (ID2D1Factory7 *iface, float *dpi_x, float *dpi_y)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateRectangleGeometry (ID2D1Factory7 *iface, const D2D1_RECT_F *rect, ID2D1RectangleGeometry **geometry)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateRoundedRectangleGeometry (ID2D1Factory7 *iface, const D2D1_ROUNDED_RECT *rounded_rect, ID2D1RoundedRectangleGeometry **geometry)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateEllipseGeometry (ID2D1Factory7 *iface, const D2D1_ELLIPSE *ellipse, ID2D1EllipseGeometry **geometry)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateGeometryGroup (ID2D1Factory7 *iface, D2D1_FILL_MODE fill_mode, ID2D1Geometry **geometries, UINT32 geometry_count, ID2D1GeometryGroup **group)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateTransformedGeometry (ID2D1Factory7 *iface, ID2D1Geometry *src_geometry, const D2D1_MATRIX_3X2_F *transform, ID2D1TransformedGeometry **transformed_geometry)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreatePathGeometry (ID2D1Factory7 *iface, ID2D1PathGeometry **geometry)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateStrokeStyle (ID2D1Factory7 *iface, const D2D1_STROKE_STYLE_PROPERTIES *desc, const float *dashes, UINT32 dash_count, ID2D1StrokeStyle **stroke_style)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateDrawingStateBlock (ID2D1Factory7 *iface, const D2D1_DRAWING_STATE_DESCRIPTION *desc, IDWriteRenderingParams *text_rendering_params, ID2D1DrawingStateBlock **state_block)
static HRESULT	d2d_factory_get_device (struct d2d_factory *factory, ID3D10Device1 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateWicBitmapRenderTarget (ID2D1Factory7 *iface, IWICBitmap *target, const D2D1_RENDER_TARGET_PROPERTIES *desc, ID2D1RenderTarget **render_target)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateHwndRenderTarget (ID2D1Factory7 *iface, const D2D1_RENDER_TARGET_PROPERTIES *desc, const D2D1_HWND_RENDER_TARGET_PROPERTIES *hwnd_rt_desc, ID2D1HwndRenderTarget **render_target)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateDxgiSurfaceRenderTarget (ID2D1Factory7 *iface, IDXGISurface *surface, const D2D1_RENDER_TARGET_PROPERTIES *desc, ID2D1RenderTarget **render_target)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateDCRenderTarget (ID2D1Factory7 *iface, const D2D1_RENDER_TARGET_PROPERTIES *desc, ID2D1DCRenderTarget **render_target)
HRESULT	d2d_factory_create_device (ID2D1Factory1 *factory, IDXGIDevice *dxgi_device, bool allow_get_dxgi_device, REFIID iid, void **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateStrokeStyle1 (ID2D1Factory7 *iface, const D2D1_STROKE_STYLE_PROPERTIES1 *desc, const float *dashes, UINT32 dash_count, ID2D1StrokeStyle1 **stroke_style)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreatePathGeometry1 (ID2D1Factory7 *iface, ID2D1PathGeometry1 **geometry)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateDrawingStateBlock1 (ID2D1Factory7 *iface, const D2D1_DRAWING_STATE_DESCRIPTION1 *desc, IDWriteRenderingParams *text_rendering_params, ID2D1DrawingStateBlock1 **state_block)
static HRESULT STDMETHODCALLTYPE	d2d_factory_CreateGdiMetafile (ID2D1Factory7 *iface, IStream *stream, ID2D1GdiMetafile **metafile)
static HRESULT	parse_effect_get_next_xml_node (IXmlReader *reader, XmlNodeType expected_type, const WCHAR *expected_name, unsigned int *depth)
static HRESULT	parse_effect_skip_element (IXmlReader *reader, unsigned int element_depth)
static HRESULT	parse_effect_get_attribute (IXmlReader *reader, const WCHAR *name, WCHAR **ret)
static HRESULT	parse_effect_get_property_type (IXmlReader *reader, D2D1_PROPERTY_TYPE *type)
static struct d2d_effect_property *	parse_effect_get_property (const struct d2d_effect_registration *effect, const WCHAR *name)
static UINT32	parse_effect_get_property_index (struct d2d_effect_properties *props, const WCHAR *name)
static HRESULT	parse_effect_property (IXmlReader *reader, struct d2d_effect_registration *effect)
static HRESULT	parse_effect_inputs (IXmlReader *reader, struct d2d_effect_registration *effect)
static HRESULT	parse_effect_xml (IXmlReader *reader, struct d2d_effect_registration *effect)
static HRESULT	d2d_factory_register_effect_from_stream (struct d2d_factory *factory, REFCLSID effect_id, IStream *property_xml, const D2D1_PROPERTY_BINDING *bindings, UINT32 binding_count, PD2D1_EFFECT_FACTORY effect_factory, BOOL builtin)
static HRESULT STDMETHODCALLTYPE	d2d_factory_RegisterEffectFromStream (ID2D1Factory7 *iface, REFCLSID effect_id, IStream *property_xml, const D2D1_PROPERTY_BINDING *bindings, UINT32 binding_count, PD2D1_EFFECT_FACTORY effect_factory)
static HRESULT	d2d_factory_register_effect_from_string (struct d2d_factory *factory, REFCLSID effect_id, const WCHAR *property_xml, const D2D1_PROPERTY_BINDING *bindings, UINT32 binding_count, PD2D1_EFFECT_FACTORY effect_factory, BOOL builtin)
HRESULT	d2d_factory_register_builtin_effect (struct d2d_factory *factory, REFCLSID effect_id, const WCHAR *property_xml, const D2D1_PROPERTY_BINDING *bindings, UINT32 binding_count, PD2D1_EFFECT_FACTORY effect_factory)
static HRESULT STDMETHODCALLTYPE	d2d_factory_RegisterEffectFromString (ID2D1Factory7 *iface, REFCLSID effect_id, const WCHAR *property_xml, const D2D1_PROPERTY_BINDING *bindings, UINT32 binding_count, PD2D1_EFFECT_FACTORY effect_factory)
static HRESULT STDMETHODCALLTYPE	d2d_factory_UnregisterEffect (ID2D1Factory7 *iface, REFCLSID effect_id)
static HRESULT STDMETHODCALLTYPE	d2d_factory_GetRegisteredEffects (ID2D1Factory7 *iface, CLSID *effects, UINT32 effect_count, UINT32 *returned, UINT32 *registered)
static HRESULT STDMETHODCALLTYPE	d2d_factory_GetEffectProperties (ID2D1Factory7 *iface, REFCLSID effect_id, ID2D1Properties **props)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ID2D1Factory2_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device1 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ID2D1Factory3_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device2 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ID2D1Factory4_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device3 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ID2D1Factory5_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device4 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ID2D1Factory6_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device5 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_ID2D1Factory7_CreateDevice (ID2D1Factory7 *iface, IDXGIDevice *dxgi_device, ID2D1Device6 **device)
static HRESULT STDMETHODCALLTYPE	d2d_factory_mt_QueryInterface (ID2D1Multithread *iface, REFIID iid, void **out)
static ULONG STDMETHODCALLTYPE	d2d_factory_mt_AddRef (ID2D1Multithread *iface)
static ULONG STDMETHODCALLTYPE	d2d_factory_mt_Release (ID2D1Multithread *iface)
static BOOL STDMETHODCALLTYPE	d2d_factory_mt_GetMultithreadProtected (ID2D1Multithread *iface)
static void STDMETHODCALLTYPE	d2d_factory_mt_Enter (ID2D1Multithread *iface)
static void STDMETHODCALLTYPE	d2d_factory_mt_Leave (ID2D1Multithread *iface)
static BOOL STDMETHODCALLTYPE	d2d_factory_st_GetMultithreadProtected (ID2D1Multithread *iface)
static void STDMETHODCALLTYPE	d2d_factory_st_Enter (ID2D1Multithread *iface)
static void STDMETHODCALLTYPE	d2d_factory_st_Leave (ID2D1Multithread *iface)
static void	d2d_factory_init (struct d2d_factory *factory, D2D1_FACTORY_TYPE factory_type, const D2D1_FACTORY_OPTIONS *factory_options)
HRESULT WINAPI	D2D1CreateFactory (D2D1_FACTORY_TYPE factory_type, REFIID iid, const D2D1_FACTORY_OPTIONS *factory_options, void **factory)
void WINAPI	D2D1MakeRotateMatrix (float angle, D2D1_POINT_2F center, D2D1_MATRIX_3X2_F *matrix)
void WINAPI	D2D1MakeSkewMatrix (float angle_x, float angle_y, D2D1_POINT_2F center, D2D1_MATRIX_3X2_F *matrix)
BOOL WINAPI	D2D1IsMatrixInvertible (const D2D1_MATRIX_3X2_F *matrix)
BOOL WINAPI	D2D1InvertMatrix (D2D1_MATRIX_3X2_F *matrix)
HRESULT WINAPI	D2D1CreateDevice (IDXGIDevice *dxgi_device, const D2D1_CREATION_PROPERTIES *properties, ID2D1Device **device)
void WINAPI	D2D1SinCos (float angle, float *s, float *c)
float WINAPI	D2D1Tan (float angle)
float WINAPI	D2D1Vec3Length (float x, float y, float z)
static float	srgb_transfer_function (float x)
static float	srgb_inverse_transfer_function (float x)
D2D1_COLOR_F WINAPI	D2D1ConvertColorSpace (D2D1_COLOR_SPACE src_colour_space, D2D1_COLOR_SPACE dst_colour_space, const D2D1_COLOR_F *colour)
static bool	get_config_key_u32 (HKEY default_key, HKEY application_key, const char *name, uint32_t *value)
static void	d2d_settings_init (void)
BOOL WINAPI	DllMain (HINSTANCE inst, DWORD reason, void *reserved)

Variables
struct d2d_settings	d2d_settings
static const struct ID2D1Factory7Vtbl	d2d_factory_vtbl
static const struct ID2D1MultithreadVtbl	d2d_factory_multithread_vtbl
static const struct ID2D1MultithreadVtbl	d2d_factory_multithread_noop_vtbl

Macro Definition Documentation

D2D1_INIT_GUID

#define D2D1_INIT_GUID

Definition at line 19 of file factory.c.

Function Documentation

D2D1ConvertColorSpace()

D2D1_COLOR_F WINAPI D2D1ConvertColorSpace	(	D2D1_COLOR_SPACE	src_colour_space,
		D2D1_COLOR_SPACE	dst_colour_space,
		const D2D1_COLOR_F *	colour
	)

Definition at line 1536 of file factory.c.

{
    D2D1_COLOR_F ret;

    TRACE("src_colour_space %#x, dst_colour_space %#x, colour %s.\n",
            src_colour_space, dst_colour_space, debug_d2d_color_f(colour));

    if (src_colour_space == D2D1_COLOR_SPACE_CUSTOM || dst_colour_space == D2D1_COLOR_SPACE_CUSTOM)
    {
        ret.r = 0.0f;
        ret.g = 0.0f;
        ret.b = 0.0f;
        ret.a = 0.0f;

        return ret;
    }

    if (src_colour_space == dst_colour_space)
        return *colour;

    if (src_colour_space == D2D1_COLOR_SPACE_SRGB && dst_colour_space == D2D1_COLOR_SPACE_SCRGB)
    {
        ret.r = srgb_inverse_transfer_function(colour->r);
        ret.g = srgb_inverse_transfer_function(colour->g);
        ret.b = srgb_inverse_transfer_function(colour->b);
        ret.a = colour->a;

        return ret;
    }

    if (src_colour_space == D2D1_COLOR_SPACE_SCRGB && dst_colour_space == D2D1_COLOR_SPACE_SRGB)
    {
        ret.r = srgb_transfer_function(colour->r);
        ret.g = srgb_transfer_function(colour->g);
        ret.b = srgb_transfer_function(colour->b);
        ret.a = colour->a;

        return ret;
    }

    FIXME("Unhandled conversion from source colour space %#x to destination colour space %#x.\n",
            src_colour_space, dst_colour_space);
    ret.r = 0.0f;
    ret.g = 0.0f;
    ret.b = 0.0f;
    ret.a = 0.0f;

    return ret;
}

D2D1CreateDevice()

HRESULT WINAPI D2D1CreateDevice	(	IDXGIDevice *	dxgi_device,
		const D2D1_CREATION_PROPERTIES *	properties,
		ID2D1Device **	device
	)

Definition at line 1444 of file factory.c.

{
    D2D1_CREATION_PROPERTIES default_properties = {0};
    D2D1_FACTORY_OPTIONS factory_options;
    D2D1_FACTORY_TYPE factory_type;
    ID3D11Device *d3d_device;
    ID2D1Factory1 *factory;
    HRESULT hr;

    TRACE("dxgi_device %p, properties %p, device %p.\n", dxgi_device, properties, device);

    if (!properties)
    {
        if (SUCCEEDED(IDXGIDevice_QueryInterface(dxgi_device, &IID_ID3D11Device, (void **)&d3d_device)))
        {
            if (!(ID3D11Device_GetCreationFlags(d3d_device) & D3D11_CREATE_DEVICE_SINGLETHREADED))
                default_properties.threadingMode = D2D1_THREADING_MODE_MULTI_THREADED;
            ID3D11Device_Release(d3d_device);
        }
        properties = &default_properties;
    }

    switch (properties->threadingMode)
    {
    case D2D1_THREADING_MODE_SINGLE_THREADED:
        factory_type = D2D1_FACTORY_TYPE_SINGLE_THREADED;
        break;
    case D2D1_THREADING_MODE_MULTI_THREADED:
        factory_type = D2D1_FACTORY_TYPE_MULTI_THREADED;
        break;
    default:
        return E_INVALIDARG;
    }

    factory_options.debugLevel = properties->debugLevel;
    if (FAILED(hr = D2D1CreateFactory(factory_type, &IID_ID2D1Factory1, &factory_options, (void **)&factory)))
        return hr;

    hr = ID2D1Factory1_CreateDevice(factory, dxgi_device, device);
    ID2D1Factory1_Release(factory);
    return hr;
}

D2D1CreateFactory()

HRESULT WINAPI D2D1CreateFactory	(	D2D1_FACTORY_TYPE	factory_type,
		REFIID	iid,
		const D2D1_FACTORY_OPTIONS *	factory_options,
		void **	factory
	)

Definition at line 1363 of file factory.c.

{
    struct d2d_factory *object;
    HRESULT hr;

    TRACE("factory_type %#x, iid %s, factory_options %p, factory %p.\n",
            factory_type, debugstr_guid(iid), factory_options, factory);

    if (factory_type != D2D1_FACTORY_TYPE_SINGLE_THREADED &&
            factory_type != D2D1_FACTORY_TYPE_MULTI_THREADED)
    {
        return E_INVALIDARG;
    }

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    d2d_factory_init(object, factory_type, factory_options);

    TRACE("Created factory %p.\n", object);

    hr = ID2D1Factory7_QueryInterface(&object->ID2D1Factory7_iface, iid, factory);
    ID2D1Factory7_Release(&object->ID2D1Factory7_iface);

    return hr;
}

Referenced by D2D1CreateDevice().

D2D1InvertMatrix()

BOOL WINAPI D2D1InvertMatrix

(

D2D1_MATRIX_3X2_F *

matrix

)

Definition at line 1435 of file factory.c.

{
    D2D1_MATRIX_3X2_F m = *matrix;

    TRACE("matrix %p.\n", matrix);

    return d2d_matrix_invert(matrix, &m);
}

D2D1IsMatrixInvertible()

BOOL WINAPI D2D1IsMatrixInvertible

(

const D2D1_MATRIX_3X2_F *

matrix

)

Definition at line 1428 of file factory.c.

{
    TRACE("matrix %p.\n", matrix);

    return (matrix->_11 * matrix->_22 - matrix->_21 * matrix->_12) != 0.0f;
}

D2D1MakeRotateMatrix()

void WINAPI D2D1MakeRotateMatrix	(	float	angle,
		D2D1_POINT_2F	center,
		D2D1_MATRIX_3X2_F *	matrix
	)

Definition at line 1391 of file factory.c.

{
    float theta, sin_theta, cos_theta;

    TRACE("angle %.8e, center %s, matrix %p.\n", angle, debug_d2d_point_2f(&center), matrix);

    theta = angle * (M_PI / 180.0f);
    sin_theta = sinf(theta);
    cos_theta = cosf(theta);

    /* translate(center) * rotate(theta) * translate(-center) */
    matrix->_11 = cos_theta;
    matrix->_12 = sin_theta;
    matrix->_21 = -sin_theta;
    matrix->_22 = cos_theta;
    matrix->_31 = center.x - center.x * cos_theta + center.y * sin_theta;
    matrix->_32 = center.y - center.x * sin_theta - center.y * cos_theta;
}

D2D1MakeSkewMatrix()

void WINAPI D2D1MakeSkewMatrix	(	float	angle_x,
		float	angle_y,
		D2D1_POINT_2F	center,
		D2D1_MATRIX_3X2_F *	matrix
	)

Definition at line 1410 of file factory.c.

{
    float tan_x, tan_y;

    TRACE("angle_x %.8e, angle_y %.8e, center %s, matrix %p.\n", angle_x, angle_y, debug_d2d_point_2f(&center), matrix);

    tan_x = tan(angle_x * (M_PI / 180.0f));
    tan_y = tan(angle_y * (M_PI / 180.0f));

    /* translate(-center) * skew() * translate(center) */
    matrix->_11 = 1.0f;
    matrix->_12 = tan_y;
    matrix->_21 = tan_x;
    matrix->_22 = 1.0f;
    matrix->_31 = -tan_x * center.y;
    matrix->_32 = -tan_y * center.x;
}

D2D1SinCos()

void WINAPI D2D1SinCos	(	float	angle,
		float *	s,
		float *	c
	)

Definition at line 1488 of file factory.c.

{
    TRACE("angle %.8e, s %p, c %p.\n", angle, s, c);

    *s = sinf(angle);
    *c = cosf(angle);
}

D2D1Tan()

float WINAPI D2D1Tan

(

float

angle

)

Definition at line 1496 of file factory.c.

{
    TRACE("angle %.8e.\n", angle);

    return tanf(angle);
}

D2D1Vec3Length()

float WINAPI D2D1Vec3Length	(	float	x,
		float	y,
		float	z
	)

Definition at line 1503 of file factory.c.

{
    TRACE("x %.8e, y %.8e, z %.8e.\n", x, y, z);

    return sqrtf(x * x + y * y + z * z);
}

d2d_effect_registration_cleanup()

static void d2d_effect_registration_cleanup ( struct d2d_effect_registration *  reg )

static

Definition at line 33 of file factory.c.

{
    ID2D1Properties_Release(&reg->properties->ID2D1Properties_iface);
    free(reg);
}

Referenced by d2d_factory_register_effect_from_stream(), d2d_factory_Release(), and d2d_factory_UnregisterEffect().

d2d_factory_AddRef()

static ULONG STDMETHODCALLTYPE d2d_factory_AddRef ( ID2D1Factory7 *  iface )

static

Definition at line 133 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    ULONG refcount = InterlockedIncrement(&factory->refcount);

    TRACE("%p increasing refcount to %lu.\n", iface, refcount);

    return refcount;
}

Referenced by d2d_factory_mt_AddRef().

d2d_factory_builtins_initonce()

static BOOL WINAPI d2d_factory_builtins_initonce ( INIT_ONCE *  once, void *  param, void **  context  )

static

Definition at line 49 of file factory.c.

{
    d2d_effects_init_builtins(param);

    return TRUE;
}

Referenced by d2d_factory_init_builtin_effects().

d2d_factory_create_device()

HRESULT d2d_factory_create_device	(	ID2D1Factory1 *	factory,
		IDXGIDevice *	dxgi_device,
		bool	allow_get_dxgi_device,
		REFIID	iid,
		void **	device
	)

Definition at line 516 of file factory.c.

{
    struct d2d_device *object;
    HRESULT hr;

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    d2d_device_init(object, factory, dxgi_device, allow_get_dxgi_device);

    TRACE("Create device %p.\n", object);

    hr = ID2D1Device6_QueryInterface(&object->ID2D1Device6_iface, iid, device);
    ID2D1Device6_Release(&object->ID2D1Device6_iface);

    return hr;
}

Referenced by d2d_dc_render_target_init(), d2d_factory_CreateDevice(), d2d_factory_ID2D1Factory2_CreateDevice(), d2d_factory_ID2D1Factory3_CreateDevice(), d2d_factory_ID2D1Factory4_CreateDevice(), d2d_factory_ID2D1Factory5_CreateDevice(), d2d_factory_ID2D1Factory6_CreateDevice(), d2d_factory_ID2D1Factory7_CreateDevice(), d2d_hwnd_render_target_init(), and d2d_wic_render_target_init().

d2d_factory_CreateDCRenderTarget()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateDCRenderTarget ( ID2D1Factory7 *  iface, const D2D1_RENDER_TARGET_PROPERTIES *  desc, ID2D1DCRenderTarget **  render_target  )

static

Definition at line 487 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    struct d2d_dc_render_target *object;
    ID3D10Device1 *device;
    HRESULT hr;

    TRACE("iface %p, desc %p, render_target %p.\n", iface, desc, render_target);

    if (FAILED(hr = d2d_factory_get_device(factory, &device)))
        return hr;

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_dc_render_target_init(object, (ID2D1Factory1 *)iface, device, desc)))
    {
        WARN("Failed to initialise render target, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created render target %p.\n", object);
    *render_target = &object->ID2D1DCRenderTarget_iface;

    return S_OK;
}

d2d_factory_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device **  device  )

static

Definition at line 535 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device, (void **)device);
}

d2d_factory_CreateDrawingStateBlock()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateDrawingStateBlock ( ID2D1Factory7 *  iface, const D2D1_DRAWING_STATE_DESCRIPTION *  desc, IDWriteRenderingParams *  text_rendering_params, ID2D1DrawingStateBlock **  state_block  )

static

Definition at line 356 of file factory.c.

{
    D2D1_DRAWING_STATE_DESCRIPTION1 state_desc;
    struct d2d_state_block *object;

    TRACE("iface %p, desc %p, text_rendering_params %p, state_block %p.\n",
            iface, desc, text_rendering_params, state_block);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (desc)
    {
        memcpy(&state_desc, desc, sizeof(*desc));
        state_desc.primitiveBlend = D2D1_PRIMITIVE_BLEND_SOURCE_OVER;
        state_desc.unitMode = D2D1_UNIT_MODE_DIPS;
    }

    d2d_state_block_init(object, (ID2D1Factory *)iface, desc ? &state_desc : NULL, text_rendering_params);

    TRACE("Created state block %p.\n", object);
    *state_block = (ID2D1DrawingStateBlock *)&object->ID2D1DrawingStateBlock1_iface;

    return S_OK;
}

d2d_factory_CreateDrawingStateBlock1()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateDrawingStateBlock1 ( ID2D1Factory7 *  iface, const D2D1_DRAWING_STATE_DESCRIPTION1 *  desc, IDWriteRenderingParams *  text_rendering_params, ID2D1DrawingStateBlock1 **  state_block  )

static

Definition at line 588 of file factory.c.

{
    struct d2d_state_block *object;

    TRACE("iface %p, desc %p, text_rendering_params %p, state_block %p.\n",
            iface, desc, text_rendering_params, state_block);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    d2d_state_block_init(object, (ID2D1Factory *)iface, desc, text_rendering_params);

    TRACE("Created state block %p.\n", object);
    *state_block = &object->ID2D1DrawingStateBlock1_iface;

    return S_OK;
}

d2d_factory_CreateDxgiSurfaceRenderTarget()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateDxgiSurfaceRenderTarget ( ID2D1Factory7 *  iface, IDXGISurface *  surface, const D2D1_RENDER_TARGET_PROPERTIES *  desc, ID2D1RenderTarget **  render_target  )

static

Definition at line 458 of file factory.c.

{
    IDXGIDevice *dxgi_device;
    ID2D1Device *device;
    HRESULT hr;

    TRACE("iface %p, surface %p, desc %p, render_target %p.\n", iface, surface, desc, render_target);

    if (FAILED(hr = IDXGISurface_GetDevice(surface, &IID_IDXGIDevice, (void **)&dxgi_device)))
    {
        WARN("Failed to get DXGI device, hr %#lx.\n", hr);
        return hr;
    }

    hr = ID2D1Factory1_CreateDevice((ID2D1Factory1 *)iface, dxgi_device, &device);
    IDXGIDevice_Release(dxgi_device);
    if (FAILED(hr))
    {
        WARN("Failed to create D2D device, hr %#lx.\n", hr);
        return hr;
    }

    hr = d2d_d3d_create_render_target(unsafe_impl_from_ID2D1Device((ID2D1Device1 *)device), surface,
            NULL, NULL, desc, (void **)render_target);
    ID2D1Device_Release(device);
    return hr;
}

d2d_factory_CreateEllipseGeometry()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateEllipseGeometry ( ID2D1Factory7 *  iface, const D2D1_ELLIPSE *  ellipse, ID2D1EllipseGeometry **  geometry  )

static

Definition at line 233 of file factory.c.

{
    struct d2d_geometry *object;
    HRESULT hr;

    TRACE("iface %p, ellipse %s, geometry %p.\n", iface, debug_d2d_ellipse(ellipse), geometry);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_ellipse_geometry_init(object, (ID2D1Factory *)iface, ellipse)))
    {
        WARN("Failed to initialise ellipse geometry, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created ellipse geometry %p.\n", object);
    *geometry = (ID2D1EllipseGeometry *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreateGdiMetafile()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateGdiMetafile ( ID2D1Factory7 *  iface, IStream *  stream, ID2D1GdiMetafile **  metafile  )

static

Definition at line 608 of file factory.c.

{
    FIXME("iface %p, stream %p, metafile %p stub!\n", iface, stream, metafile);

    return E_NOTIMPL;
}

d2d_factory_CreateGeometryGroup()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateGeometryGroup ( ID2D1Factory7 *  iface, D2D1_FILL_MODE  fill_mode, ID2D1Geometry **  geometries, UINT32  geometry_count, ID2D1GeometryGroup **  group  )

static

Definition at line 257 of file factory.c.

{
    struct d2d_geometry *object;
    HRESULT hr;

    TRACE("iface %p, fill_mode %#x, geometries %p, geometry_count %u, group %p.\n",
            iface, fill_mode, geometries, geometry_count, group);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_geometry_group_init(object, (ID2D1Factory *)iface, fill_mode, geometries, geometry_count)))
    {
        WARN("Failed to initialise geometry group, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created geometry group %p.\n", object);
    *group = (ID2D1GeometryGroup *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreateHwndRenderTarget()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateHwndRenderTarget ( ID2D1Factory7 *  iface, const D2D1_RENDER_TARGET_PROPERTIES *  desc, const D2D1_HWND_RENDER_TARGET_PROPERTIES *  hwnd_rt_desc, ID2D1HwndRenderTarget **  render_target  )

static

Definition at line 428 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    struct d2d_hwnd_render_target *object;
    ID3D10Device1 *device;
    HRESULT hr;

    TRACE("iface %p, desc %p, hwnd_rt_desc %p, render_target %p.\n", iface, desc, hwnd_rt_desc, render_target);

    if (FAILED(hr = d2d_factory_get_device(factory, &device)))
        return hr;

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_hwnd_render_target_init(object, (ID2D1Factory1 *)iface, device, desc, hwnd_rt_desc)))
    {
        WARN("Failed to initialise render target, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created render target %p.\n", object);
    *render_target = &object->ID2D1HwndRenderTarget_iface;

    return S_OK;
}

d2d_factory_CreatePathGeometry()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreatePathGeometry ( ID2D1Factory7 *  iface, ID2D1PathGeometry **  geometry  )

static

Definition at line 302 of file factory.c.

{
    struct d2d_geometry *object;

    TRACE("iface %p, geometry %p.\n", iface, geometry);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    d2d_path_geometry_init(object, (ID2D1Factory *)iface);

    TRACE("Created path geometry %p.\n", object);
    *geometry = (ID2D1PathGeometry *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreatePathGeometry1()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreatePathGeometry1 ( ID2D1Factory7 *  iface, ID2D1PathGeometry1 **  geometry  )

static

Definition at line 570 of file factory.c.

{
    struct d2d_geometry *object;

    TRACE("iface %p, geometry %p.\n", iface, geometry);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    d2d_path_geometry_init(object, (ID2D1Factory *)iface);

    TRACE("Created path geometry %p.\n", object);
    *geometry = (ID2D1PathGeometry1 *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreateRectangleGeometry()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateRectangleGeometry ( ID2D1Factory7 *  iface, const D2D1_RECT_F *  rect, ID2D1RectangleGeometry **  geometry  )

static

Definition at line 185 of file factory.c.

{
    struct d2d_geometry *object;
    HRESULT hr;

    TRACE("iface %p, rect %s, geometry %p.\n", iface, debug_d2d_rect_f(rect), geometry);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_rectangle_geometry_init(object, (ID2D1Factory *)iface, rect)))
    {
        WARN("Failed to initialise rectangle geometry, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created rectangle geometry %p.\n", object);
    *geometry = (ID2D1RectangleGeometry *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreateRoundedRectangleGeometry()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateRoundedRectangleGeometry ( ID2D1Factory7 *  iface, const D2D1_ROUNDED_RECT *  rounded_rect, ID2D1RoundedRectangleGeometry **  geometry  )

static

Definition at line 209 of file factory.c.

{
    struct d2d_geometry *object;
    HRESULT hr;

    TRACE("iface %p, rounded_rect %s, geometry %p.\n", iface, debug_d2d_rounded_rect(rounded_rect), geometry);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_rounded_rectangle_geometry_init(object, (ID2D1Factory *)iface, rounded_rect)))
    {
        WARN("Failed to initialise rounded rectangle geometry, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created rounded rectangle geometry %p.\n", object);
    *geometry = (ID2D1RoundedRectangleGeometry *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreateStrokeStyle()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateStrokeStyle ( ID2D1Factory7 *  iface, const D2D1_STROKE_STYLE_PROPERTIES *  desc, const float *  dashes, UINT32  dash_count, ID2D1StrokeStyle **  stroke_style  )

static

Definition at line 320 of file factory.c.

{
    struct d2d_stroke_style *object;
    D2D1_STROKE_STYLE_PROPERTIES1 desc1;
    HRESULT hr;

    TRACE("iface %p, desc %p, dashes %p, dash_count %u, stroke_style %p.\n",
            iface, desc, dashes, dash_count, stroke_style);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    desc1.startCap = desc->startCap;
    desc1.endCap = desc->endCap;
    desc1.dashCap = desc->dashCap;
    desc1.lineJoin = desc->lineJoin;
    desc1.miterLimit = desc->miterLimit;
    desc1.dashStyle = desc->dashStyle;
    desc1.dashOffset = desc->dashOffset;
    desc1.transformType = D2D1_STROKE_TRANSFORM_TYPE_NORMAL;

    if (FAILED(hr = d2d_stroke_style_init(object, (ID2D1Factory *)iface, &desc1, dashes, dash_count)))
    {
        WARN("Failed to initialise stroke style, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created stroke style %p.\n", object);
    *stroke_style = (ID2D1StrokeStyle *)&object->ID2D1StrokeStyle1_iface;

    return S_OK;
}

d2d_factory_CreateStrokeStyle1()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateStrokeStyle1 ( ID2D1Factory7 *  iface, const D2D1_STROKE_STYLE_PROPERTIES1 *  desc, const float *  dashes, UINT32  dash_count, ID2D1StrokeStyle1 **  stroke_style  )

static

Definition at line 543 of file factory.c.

{
    struct d2d_stroke_style *object;
    HRESULT hr;

    TRACE("iface %p, desc %p, dashes %p, dash_count %u, stroke_style %p.\n",
            iface, desc, dashes, dash_count, stroke_style);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_stroke_style_init(object, (ID2D1Factory *)iface,
            desc, dashes, dash_count)))
    {
        WARN("Failed to initialise stroke style, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created stroke style %p.\n", object);
    *stroke_style = &object->ID2D1StrokeStyle1_iface;

    return S_OK;
}

d2d_factory_CreateTransformedGeometry()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateTransformedGeometry ( ID2D1Factory7 *  iface, ID2D1Geometry *  src_geometry, const D2D1_MATRIX_3X2_F *  transform, ID2D1TransformedGeometry **  transformed_geometry  )

static

Definition at line 282 of file factory.c.

{
    struct d2d_geometry *object;

    TRACE("iface %p, src_geometry %p, transform %p, transformed_geometry %p.\n",
            iface, src_geometry, transform, transformed_geometry);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    d2d_transformed_geometry_init(object, (ID2D1Factory *)iface, src_geometry, transform);

    TRACE("Created transformed geometry %p.\n", object);
    *transformed_geometry = (ID2D1TransformedGeometry *)&object->ID2D1Geometry_iface;

    return S_OK;
}

d2d_factory_CreateWicBitmapRenderTarget()

static HRESULT STDMETHODCALLTYPE d2d_factory_CreateWicBitmapRenderTarget ( ID2D1Factory7 *  iface, IWICBitmap *  target, const D2D1_RENDER_TARGET_PROPERTIES *  desc, ID2D1RenderTarget **  render_target  )

static

Definition at line 396 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    struct d2d_wic_render_target *object;
    ID3D10Device1 *device;
    HRESULT hr;

    TRACE("iface %p, target %p, desc %p, render_target %p.\n", iface, target, desc, render_target);

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = d2d_factory_get_device(factory, &device)))
    {
        free(object);
        return hr;
    }

    if (FAILED(hr = d2d_wic_render_target_init(object, (ID2D1Factory1 *)iface, device, target, desc)))
    {
        WARN("Failed to initialise render target, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created render target %p.\n", object);
    *render_target = object->dxgi_target;

    return S_OK;
}

d2d_factory_get_device()

static HRESULT d2d_factory_get_device ( struct d2d_factory *  factory, ID3D10Device1 **  device  )

static

Definition at line 384 of file factory.c.

{
    HRESULT hr = S_OK;

    if (!factory->device && FAILED(hr = D3D10CreateDevice1(NULL, D3D10_DRIVER_TYPE_HARDWARE, NULL, D3D10_CREATE_DEVICE_BGRA_SUPPORT,
            D3D10_FEATURE_LEVEL_10_0, D3D10_1_SDK_VERSION, &factory->device)))
        WARN("Failed to create device, hr %#lx.\n", hr);

    *device = factory->device;
    return hr;
}

Referenced by d2d_factory_CreateDCRenderTarget(), d2d_factory_CreateHwndRenderTarget(), and d2d_factory_CreateWicBitmapRenderTarget().

d2d_factory_get_registered_effect()

struct d2d_effect_registration * d2d_factory_get_registered_effect	(	ID2D1Factory *	iface,
		const GUID *	id
	)

Definition at line 66 of file factory.c.

{
    struct d2d_factory *factory = unsafe_impl_from_ID2D1Factory(iface);
    struct d2d_effect_registration *reg;

    d2d_factory_init_builtin_effects(factory);

    LIST_FOR_EACH_ENTRY(reg, &factory->effects, struct d2d_effect_registration, entry)
    {
        if (IsEqualGUID(id, &reg->id)) return reg;
    }

    return NULL;
}

Referenced by d2d_effect_create(), and d2d_factory_GetEffectProperties().

d2d_factory_GetDesktopDpi()

static void STDMETHODCALLTYPE d2d_factory_GetDesktopDpi ( ID2D1Factory7 *  iface, float *  dpi_x, float *  dpi_y  )

static

Definition at line 175 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);

    TRACE("iface %p, dpi_x %p, dpi_y %p.\n", iface, dpi_x, dpi_y);

    *dpi_x = factory->dpi_x;
    *dpi_y = factory->dpi_y;
}

d2d_factory_GetEffectProperties()

static HRESULT STDMETHODCALLTYPE d2d_factory_GetEffectProperties ( ID2D1Factory7 *  iface, REFCLSID  effect_id, ID2D1Properties **  props  )

static

Definition at line 1165 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    const struct d2d_effect_registration *reg;

    TRACE("iface %p, effect_id %s, props %p.\n", iface, debugstr_guid(effect_id), props);

    d2d_factory_init_builtin_effects(factory);

    if (!(reg = d2d_factory_get_registered_effect((ID2D1Factory *)iface, effect_id)))
    {
        WARN("Effect id %s not found.\n", wine_dbgstr_guid(effect_id));
        return HRESULT_FROM_WIN32(ERROR_NOT_FOUND);
    }

    *props = &reg->properties->ID2D1Properties_iface;
    ID2D1Properties_AddRef(*props);

    return S_OK;
}

d2d_factory_GetRegisteredEffects()

static HRESULT STDMETHODCALLTYPE d2d_factory_GetRegisteredEffects ( ID2D1Factory7 *  iface, CLSID *  effects, UINT32  effect_count, UINT32 *  returned, UINT32 *  registered  )

static

Definition at line 1130 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    struct d2d_effect_registration *effect;
    UINT32 ret, reg;

    TRACE("iface %p, effects %p, effect_count %u, returned %p, registered %p.\n",
            iface, effects, effect_count, returned, registered);

    if (!returned) returned = &ret;
    if (!registered) registered = ®

    *registered = 0;
    *returned = 0;

    d2d_factory_init_builtin_effects(factory);

    LIST_FOR_EACH_ENTRY(effect, &factory->effects, struct d2d_effect_registration, entry)
    {
        if (effects && effect_count)
        {
            *effects = effect->id;
            effects++;
            effect_count--;
            *returned += 1;
        }

        *registered += 1;
    }

    if (!effects) return S_OK;
    return *returned == *registered ? S_OK : D2DERR_INSUFFICIENT_BUFFER;
}

d2d_factory_ID2D1Factory2_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_ID2D1Factory2_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device1 **  device  )

static

Definition at line 1187 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device1, (void **)device);
}

d2d_factory_ID2D1Factory3_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_ID2D1Factory3_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device2 **  device  )

static

Definition at line 1195 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device2, (void **)device);
}

d2d_factory_ID2D1Factory4_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_ID2D1Factory4_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device3 **  device  )

static

Definition at line 1203 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device3, (void **)device);
}

d2d_factory_ID2D1Factory5_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_ID2D1Factory5_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device4 **  device  )

static

Definition at line 1211 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device4, (void **)device);
}

d2d_factory_ID2D1Factory6_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_ID2D1Factory6_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device5 **  device  )

static

Definition at line 1219 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device5, (void **)device);
}

d2d_factory_ID2D1Factory7_CreateDevice()

static HRESULT STDMETHODCALLTYPE d2d_factory_ID2D1Factory7_CreateDevice ( ID2D1Factory7 *  iface, IDXGIDevice *  dxgi_device, ID2D1Device6 **  device  )

static

Definition at line 1227 of file factory.c.

{
    TRACE("iface %p, dxgi_device %p, device %p.\n", iface, dxgi_device, device);

    return d2d_factory_create_device((ID2D1Factory1 *)iface, dxgi_device, true, &IID_ID2D1Device6, (void **)device);
}

d2d_factory_init()

static void d2d_factory_init ( struct d2d_factory *  factory, D2D1_FACTORY_TYPE  factory_type, const D2D1_FACTORY_OPTIONS *  factory_options  )

static

Definition at line 1346 of file factory.c.

{
    if (factory_options && factory_options->debugLevel != D2D1_DEBUG_LEVEL_NONE)
        WARN("Ignoring debug level %#x.\n", factory_options->debugLevel);

    factory->ID2D1Factory7_iface.lpVtbl = &d2d_factory_vtbl;
    factory->ID2D1Multithread_iface.lpVtbl = factory_type == D2D1_FACTORY_TYPE_SINGLE_THREADED ?
            &d2d_factory_multithread_noop_vtbl : &d2d_factory_multithread_vtbl;
    factory->factory_type = factory_type;
    factory->refcount = 1;
    d2d_factory_reload_sysmetrics(factory);
    list_init(&factory->effects);
    InitializeCriticalSection(&factory->cs);
    InitOnceInitialize(&factory->init_builtins);
}

Referenced by D2D1CreateFactory().

d2d_factory_init_builtin_effects()

static void d2d_factory_init_builtin_effects ( struct d2d_factory *  factory )

static

Definition at line 56 of file factory.c.

{
    InitOnceExecuteOnce(&factory->init_builtins, d2d_factory_builtins_initonce, factory, NULL);
}

Referenced by d2d_factory_get_registered_effect(), d2d_factory_GetEffectProperties(), d2d_factory_GetRegisteredEffects(), d2d_factory_RegisterEffectFromStream(), d2d_factory_RegisterEffectFromString(), and d2d_factory_UnregisterEffect().

d2d_factory_mt_AddRef()

static ULONG STDMETHODCALLTYPE d2d_factory_mt_AddRef ( ID2D1Multithread *  iface )

static

Definition at line 1278 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Multithread(iface);
    return d2d_factory_AddRef(&factory->ID2D1Factory7_iface);
}

d2d_factory_mt_Enter()

static void STDMETHODCALLTYPE d2d_factory_mt_Enter ( ID2D1Multithread *  iface )

static

Definition at line 1295 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Multithread(iface);

    TRACE("%p.\n", iface);

    EnterCriticalSection(&factory->cs);
}

d2d_factory_mt_GetMultithreadProtected()

static BOOL STDMETHODCALLTYPE d2d_factory_mt_GetMultithreadProtected ( ID2D1Multithread *  iface )

static

Definition at line 1290 of file factory.c.

{
    return TRUE;
}

d2d_factory_mt_Leave()

static void STDMETHODCALLTYPE d2d_factory_mt_Leave ( ID2D1Multithread *  iface )

static

Definition at line 1304 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Multithread(iface);

    TRACE("%p.\n", iface);

    LeaveCriticalSection(&factory->cs);
}

d2d_factory_mt_QueryInterface()

static HRESULT STDMETHODCALLTYPE d2d_factory_mt_QueryInterface ( ID2D1Multithread *  iface, REFIID  iid, void **  out  )

static

Definition at line 1272 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Multithread(iface);
    return d2d_factory_QueryInterface(&factory->ID2D1Factory7_iface, iid, out);
}

d2d_factory_mt_Release()

static ULONG STDMETHODCALLTYPE d2d_factory_mt_Release ( ID2D1Multithread *  iface )

static

Definition at line 1284 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Multithread(iface);
    return d2d_factory_Release(&factory->ID2D1Factory7_iface);
}

d2d_factory_QueryInterface()

static HRESULT STDMETHODCALLTYPE d2d_factory_QueryInterface ( ID2D1Factory7 *  iface, REFIID  iid, void **  out  )

static

Definition at line 100 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);

    TRACE("iface %p, iid %s, out %p.\n", iface, debugstr_guid(iid), out);

    if ((IsEqualGUID(iid, &IID_ID2D1Factory7) && d2d_settings.max_version_factory >= 7)
            || (IsEqualGUID(iid, &IID_ID2D1Factory6) && d2d_settings.max_version_factory >= 6)
            || (IsEqualGUID(iid, &IID_ID2D1Factory5) && d2d_settings.max_version_factory >= 5)
            || (IsEqualGUID(iid, &IID_ID2D1Factory4) && d2d_settings.max_version_factory >= 4)
            || (IsEqualGUID(iid, &IID_ID2D1Factory3) && d2d_settings.max_version_factory >= 3)
            || (IsEqualGUID(iid, &IID_ID2D1Factory2) && d2d_settings.max_version_factory >= 2)
            || (IsEqualGUID(iid, &IID_ID2D1Factory1) && d2d_settings.max_version_factory >= 1)
            || IsEqualGUID(iid, &IID_ID2D1Factory)
            || IsEqualGUID(iid, &IID_IUnknown))
    {
        ID2D1Factory7_AddRef(iface);
        *out = iface;
        return S_OK;
    }
    else if (IsEqualGUID(iid, &IID_ID2D1Multithread))
    {
        ID2D1Factory7_AddRef(iface);
        *out = &factory->ID2D1Multithread_iface;
        return S_OK;
    }

    WARN("%s not implemented, returning E_NOINTERFACE.\n", debugstr_guid(iid));

    *out = NULL;
    return E_NOINTERFACE;
}

Referenced by d2d_factory_mt_QueryInterface().

d2d_factory_register_builtin_effect()

HRESULT d2d_factory_register_builtin_effect	(	struct d2d_factory *	factory,
		REFCLSID	effect_id,
		const WCHAR *	property_xml,
		const D2D1_PROPERTY_BINDING *	bindings,
		UINT32	binding_count,
		PD2D1_EFFECT_FACTORY	effect_factory
	)

Definition at line 1081 of file factory.c.

{
    return d2d_factory_register_effect_from_string(factory, effect_id, property_xml, bindings,
            binding_count, effect_factory, TRUE);
}

Referenced by d2d_effects_init_builtins().

d2d_factory_register_effect()

void d2d_factory_register_effect	(	struct d2d_factory *	factory,
		struct d2d_effect_registration *	effect
	)

Definition at line 61 of file factory.c.

{
    list_add_tail(&factory->effects, &effect->entry);
}

Referenced by d2d_factory_register_effect_from_stream().

d2d_factory_register_effect_from_stream()

static HRESULT d2d_factory_register_effect_from_stream ( struct d2d_factory *  factory, REFCLSID  effect_id, IStream *  property_xml, const D2D1_PROPERTY_BINDING *  bindings, UINT32  binding_count, PD2D1_EFFECT_FACTORY  effect_factory, BOOL  builtin  )

static

Definition at line 954 of file factory.c.

{
    struct d2d_effect_registration *effect;
    IXmlReader *reader;
    unsigned int i;
    HRESULT hr;

    LIST_FOR_EACH_ENTRY_REV(effect, &factory->effects, struct d2d_effect_registration, entry)
    {
        if (IsEqualGUID(effect_id, &effect->id))
        {
            if (effect->builtin) return E_INVALIDARG;
            ++effect->registration_count;
            return S_OK;
        }
    }

    if (FAILED(hr = CreateXmlReader(&IID_IXmlReader, (void **)&reader, NULL)))
        return hr;

    if (FAILED(hr = IXmlReader_SetInput(reader, (IUnknown *)property_xml)))
    {
        IXmlReader_Release(reader);
        return hr;
    }

    if (!(effect = calloc(1, sizeof(*effect))))
    {
        IXmlReader_Release(reader);
        return E_OUTOFMEMORY;
    }
    if (!(effect->properties = calloc(1, sizeof(*effect->properties))))
    {
        IXmlReader_Release(reader);
        free(effect);
        return E_OUTOFMEMORY;
    }
    d2d_effect_init_properties(NULL, effect->properties);
    effect->builtin = builtin;

    hr = parse_effect_xml(reader, effect);
    IXmlReader_Release(reader);
    if (FAILED(hr))
    {
        WARN("Failed to parse effect xml, hr %#lx.\n", hr);
        d2d_effect_registration_cleanup(effect);
        return hr;
    }

    /* Check required properties. */
    if (!parse_effect_get_property(effect, L"DisplayName")
            || !parse_effect_get_property(effect, L"Author")
            || !parse_effect_get_property(effect, L"Category")
            || !parse_effect_get_property(effect, L"Description")
            || !parse_effect_get_property(effect, L"Inputs"))
    {
        WARN("Missing required properties.\n");
        d2d_effect_registration_cleanup(effect);
        return E_INVALIDARG;
    }

    /* Bind getter and setter. */
    for (i = 0; i < binding_count; ++i)
    {
        struct d2d_effect_property *property;

        if (!(property = parse_effect_get_property(effect, bindings[i].propertyName)))
        {
            WARN("Failed to bind to missing property.\n");
            d2d_effect_registration_cleanup(effect);
            return D2DERR_INVALID_PROPERTY;
        }

        property->get_function = bindings[i].getFunction;
        property->set_function = bindings[i].setFunction;
    }

    effect->registration_count = 1;
    effect->id = *effect_id;
    effect->factory = effect_factory;

    d2d_factory_register_effect(factory, effect);

    return S_OK;
}

Referenced by d2d_factory_register_effect_from_string(), and d2d_factory_RegisterEffectFromStream().

d2d_factory_register_effect_from_string()

static HRESULT d2d_factory_register_effect_from_string ( struct d2d_factory *  factory, REFCLSID  effect_id, const WCHAR *  property_xml, const D2D1_PROPERTY_BINDING *  bindings, UINT32  binding_count, PD2D1_EFFECT_FACTORY  effect_factory, BOOL  builtin  )

static

Definition at line 1057 of file factory.c.

{
    static const LARGE_INTEGER zero;
    IStream *stream;
    ULONG size;
    HRESULT hr;

    if (FAILED(hr = CreateStreamOnHGlobal(NULL, TRUE, &stream)))
        return hr;

    size = sizeof(*property_xml) * (wcslen(property_xml) + 1);
    if (SUCCEEDED(hr = IStream_Write(stream, property_xml, size, NULL)))
        hr = IStream_Seek(stream, zero, STREAM_SEEK_SET, NULL);

    if (SUCCEEDED(hr))
        hr = d2d_factory_register_effect_from_stream(factory, effect_id, stream, bindings,
                binding_count, effect_factory, builtin);

    IStream_Release(stream);
    return hr;
}

Referenced by d2d_factory_register_builtin_effect(), and d2d_factory_RegisterEffectFromString().

d2d_factory_RegisterEffectFromStream()

static HRESULT STDMETHODCALLTYPE d2d_factory_RegisterEffectFromStream ( ID2D1Factory7 *  iface, REFCLSID  effect_id, IStream *  property_xml, const D2D1_PROPERTY_BINDING *  bindings, UINT32  binding_count, PD2D1_EFFECT_FACTORY  effect_factory  )

static

Definition at line 1042 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);

    TRACE("iface %p, effect_id %s, property_xml %p, bindings %p, binding_count %u, effect_factory %p.\n",
            iface, debugstr_guid(effect_id), property_xml, bindings, binding_count, effect_factory);

    d2d_factory_init_builtin_effects(factory);

    return d2d_factory_register_effect_from_stream(factory, effect_id, property_xml, bindings,
            binding_count, effect_factory, FALSE);
}

d2d_factory_RegisterEffectFromString()

static HRESULT STDMETHODCALLTYPE d2d_factory_RegisterEffectFromString ( ID2D1Factory7 *  iface, REFCLSID  effect_id, const WCHAR *  property_xml, const D2D1_PROPERTY_BINDING *  bindings, UINT32  binding_count, PD2D1_EFFECT_FACTORY  effect_factory  )

static

Definition at line 1089 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);

    TRACE("iface %p, effect_id %s, property_xml %s, bindings %p, binding_count %u, effect_factory %p.\n",
          iface, debugstr_guid(effect_id), debugstr_w(property_xml), bindings, binding_count, effect_factory);

    d2d_factory_init_builtin_effects(factory);

    return d2d_factory_register_effect_from_string(factory, effect_id, property_xml, bindings,
            binding_count, effect_factory, FALSE);
}

d2d_factory_Release()

static ULONG STDMETHODCALLTYPE d2d_factory_Release ( ID2D1Factory7 *  iface )

static

Definition at line 143 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    ULONG refcount = InterlockedDecrement(&factory->refcount);
    struct d2d_effect_registration *reg, *reg2;

    TRACE("%p decreasing refcount to %lu.\n", iface, refcount);

    if (!refcount)
    {
        if (factory->device)
            ID3D10Device1_Release(factory->device);
        LIST_FOR_EACH_ENTRY_SAFE(reg, reg2, &factory->effects, struct d2d_effect_registration, entry)
        {
            d2d_effect_registration_cleanup(reg);
        }
        DeleteCriticalSection(&factory->cs);
        free(factory);
    }

    return refcount;
}

Referenced by d2d_factory_mt_Release().

d2d_factory_reload_sysmetrics()

static HRESULT d2d_factory_reload_sysmetrics ( struct d2d_factory *  factory )

static

Definition at line 82 of file factory.c.

{
    HDC hdc;

    if (!(hdc = GetDC(NULL)))
    {
        factory->dpi_x = factory->dpi_y = 96.0f;
        return E_FAIL;
    }

    factory->dpi_x = GetDeviceCaps(hdc, LOGPIXELSX);
    factory->dpi_y = GetDeviceCaps(hdc, LOGPIXELSY);

    ReleaseDC(NULL, hdc);

    return S_OK;
}

Referenced by d2d_factory_init(), and d2d_factory_ReloadSystemMetrics().

d2d_factory_ReloadSystemMetrics()

static HRESULT STDMETHODCALLTYPE d2d_factory_ReloadSystemMetrics ( ID2D1Factory7 *  iface )

static

Definition at line 166 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);

    TRACE("iface %p.\n", iface);

    return d2d_factory_reload_sysmetrics(factory);
}

d2d_factory_st_Enter()

static void STDMETHODCALLTYPE d2d_factory_st_Enter ( ID2D1Multithread *  iface )

static

Definition at line 1318 of file factory.c.

{
}

d2d_factory_st_GetMultithreadProtected()

static BOOL STDMETHODCALLTYPE d2d_factory_st_GetMultithreadProtected ( ID2D1Multithread *  iface )

static

Definition at line 1313 of file factory.c.

{
    return FALSE;
}

d2d_factory_st_Leave()

static void STDMETHODCALLTYPE d2d_factory_st_Leave ( ID2D1Multithread *  iface )

static

Definition at line 1322 of file factory.c.

{
}

d2d_factory_UnregisterEffect()

static HRESULT STDMETHODCALLTYPE d2d_factory_UnregisterEffect ( ID2D1Factory7 *  iface, REFCLSID  effect_id  )

static

Definition at line 1104 of file factory.c.

{
    struct d2d_factory *factory = impl_from_ID2D1Factory7(iface);
    struct d2d_effect_registration *effect;

    TRACE("iface %p, effect_id %s.\n", iface, debugstr_guid(effect_id));

    d2d_factory_init_builtin_effects(factory);

    LIST_FOR_EACH_ENTRY_REV(effect, &factory->effects, struct d2d_effect_registration, entry)
    {
        if (IsEqualGUID(effect_id, &effect->id))
        {
            if (effect->builtin) break;
            if (!--effect->registration_count)
            {
                list_remove(&effect->entry);
                d2d_effect_registration_cleanup(effect);
            }
            return S_OK;
        }
    }

    return D2DERR_EFFECT_IS_NOT_REGISTERED;
}

d2d_settings_init()

static void d2d_settings_init ( void  )

static

Definition at line 1609 of file factory.c.

{
    HKEY default_key, tmp_key, application_key = NULL;
    char buffer[MAX_PATH + 10];
    DWORD len;

    if (RegOpenKeyA(HKEY_CURRENT_USER, "Software\\Wine\\Direct2D", &default_key))
        default_key = NULL;

    len = GetModuleFileNameA(0, buffer, MAX_PATH);
    if (len && len < MAX_PATH)
    {
        char *p, *appname = buffer;

        if ((p = strrchr(appname, '/')))
            appname = p + 1;
        if ((p = strrchr(appname, '\\')))
            appname = p + 1;
        strcat(appname, "\\Direct2D");

        if (!RegOpenKeyA(HKEY_CURRENT_USER, "Software\\Wine\\AppDefaults", &tmp_key))
        {
            if (RegOpenKeyA(tmp_key, appname, &application_key))
                application_key = NULL;
            RegCloseKey(tmp_key);
        }
    }

    if (!default_key && !application_key)
        return;

    if (get_config_key_u32(default_key, application_key, "max_version_factory", &d2d_settings.max_version_factory))
        ERR_(winediag)("Limiting maximum Direct2D factory version to %#x.\n", d2d_settings.max_version_factory);

    if (application_key)
        RegCloseKey(application_key);
    if (default_key)
        RegCloseKey(default_key);
}

Referenced by DllMain().

DllMain()

BOOL WINAPI DllMain	(	HINSTANCE	inst,
		DWORD	reason,
		void *	reserved
	)

Definition at line 1649 of file factory.c.

{
    if (reason == DLL_PROCESS_ATTACH)
        d2d_settings_init();
    return TRUE;
}

get_config_key_u32()

static bool get_config_key_u32 ( HKEY  default_key, HKEY  application_key, const char *  name, uint32_t *  value  )

static

Definition at line 1587 of file factory.c.

{
    DWORD type, size;
    uint32_t data;

    size = sizeof(data);
    if (application_key && !RegQueryValueExA(application_key,
            name, 0, &type, (BYTE *)&data, &size) && type == REG_DWORD)
        goto success;

    size = sizeof(data);
    if (default_key && !RegQueryValueExA(default_key,
            name, 0, &type, (BYTE *)&data, &size) && type == REG_DWORD)
        goto success;

    return false;

success:
    *value = data;
    return true;
}

Referenced by d2d_settings_init().

impl_from_ID2D1Factory7()

static struct d2d_factory * impl_from_ID2D1Factory7 ( ID2D1Factory7 *  iface )

inlinestatic

Definition at line 39 of file factory.c.

{
    return CONTAINING_RECORD(iface, struct d2d_factory, ID2D1Factory7_iface);
}

Referenced by d2d_factory_AddRef(), d2d_factory_CreateDCRenderTarget(), d2d_factory_CreateHwndRenderTarget(), d2d_factory_CreateWicBitmapRenderTarget(), d2d_factory_GetDesktopDpi(), d2d_factory_GetEffectProperties(), d2d_factory_GetRegisteredEffects(), d2d_factory_QueryInterface(), d2d_factory_RegisterEffectFromStream(), d2d_factory_RegisterEffectFromString(), d2d_factory_Release(), d2d_factory_ReloadSystemMetrics(), and d2d_factory_UnregisterEffect().

impl_from_ID2D1Multithread()

static struct d2d_factory * impl_from_ID2D1Multithread ( ID2D1Multithread *  iface )

inlinestatic

Definition at line 44 of file factory.c.

{
    return CONTAINING_RECORD(iface, struct d2d_factory, ID2D1Multithread_iface);
}

Referenced by d2d_factory_mt_AddRef(), d2d_factory_mt_Enter(), d2d_factory_mt_Leave(), d2d_factory_mt_QueryInterface(), and d2d_factory_mt_Release().

parse_effect_get_attribute()

static HRESULT parse_effect_get_attribute ( IXmlReader *  reader, const WCHAR *  name, WCHAR **  ret  )

static

Definition at line 670 of file factory.c.

{
    const WCHAR *value;

    *ret = NULL;

    if (IXmlReader_MoveToAttributeByName(reader, name, NULL) != S_OK)
        return E_INVALIDARG;
    if (IXmlReader_GetValue(reader, &value, NULL) != S_OK)
        return E_INVALIDARG;
    if (!(*ret = wcsdup(value)))
        return E_OUTOFMEMORY;

    return S_OK;
}

Referenced by parse_effect_get_property_type(), parse_effect_inputs(), and parse_effect_property().

parse_effect_get_next_xml_node()

static HRESULT parse_effect_get_next_xml_node ( IXmlReader *  reader, XmlNodeType  expected_type, const WCHAR *  expected_name, unsigned int *  depth  )

static

Definition at line 616 of file factory.c.

{
    const WCHAR *node_name;
    XmlNodeType node_type;
    HRESULT hr;

    assert(expected_type != XmlNodeType_Whitespace);

    while ((hr = IXmlReader_Read(reader, &node_type)) == S_OK)
    {
        if (node_type == XmlNodeType_Whitespace)
            continue;

        if (expected_type != XmlNodeType_None && node_type != expected_type)
            return HRESULT_FROM_WIN32(ERROR_NOT_FOUND);

        if (expected_name)
        {
            if (FAILED(hr = IXmlReader_GetLocalName(reader, &node_name, NULL)))
                return hr;

            if (wcscmp(node_name, expected_name))
                return HRESULT_FROM_WIN32(ERROR_NOT_FOUND);
        }

        if (depth)
            IXmlReader_GetDepth(reader, depth);
        return S_OK;
    }

    return hr;
}

Referenced by parse_effect_inputs(), and parse_effect_xml().

parse_effect_get_property()

static struct d2d_effect_property * parse_effect_get_property ( const struct d2d_effect_registration *  effect, const WCHAR *  name  )

static

Definition at line 732 of file factory.c.

{
    unsigned int i;

    for (i = 0; i < effect->properties->count; ++i)
    {
        if (!wcscmp(name, effect->properties->properties[i].name))
            return &effect->properties->properties[i];
    }

    return NULL;
}

Referenced by d2d_factory_register_effect_from_stream(), and parse_effect_property().

parse_effect_get_property_index()

static UINT32 parse_effect_get_property_index ( struct d2d_effect_properties *  props, const WCHAR *  name  )

static

Definition at line 746 of file factory.c.

{
    if (!wcscmp(name, L"DisplayName")) return D2D1_PROPERTY_DISPLAYNAME;
    if (!wcscmp(name, L"Author")) return D2D1_PROPERTY_AUTHOR;
    if (!wcscmp(name, L"Category")) return D2D1_PROPERTY_CATEGORY;
    if (!wcscmp(name, L"Description")) return D2D1_PROPERTY_DESCRIPTION;
    return props->custom_count;
}

Referenced by parse_effect_property().

parse_effect_get_property_type()

static HRESULT parse_effect_get_property_type ( IXmlReader *  reader, D2D1_PROPERTY_TYPE *  type  )

static

Definition at line 686 of file factory.c.

{
    static const WCHAR *types[] =
    {
        [D2D1_PROPERTY_TYPE_UNKNOWN]       = L"",
        [D2D1_PROPERTY_TYPE_STRING]        = L"string",
        [D2D1_PROPERTY_TYPE_BOOL]          = L"bool",
        [D2D1_PROPERTY_TYPE_UINT32]        = L"uint32",
        [D2D1_PROPERTY_TYPE_INT32]         = L"int32",
        [D2D1_PROPERTY_TYPE_FLOAT]         = L"float",
        [D2D1_PROPERTY_TYPE_VECTOR2]       = L"vector2",
        [D2D1_PROPERTY_TYPE_VECTOR3]       = L"vector3",
        [D2D1_PROPERTY_TYPE_VECTOR4]       = L"vector4",
        [D2D1_PROPERTY_TYPE_BLOB]          = L"blob",
        [D2D1_PROPERTY_TYPE_IUNKNOWN]      = L"iunknown",
        [D2D1_PROPERTY_TYPE_ENUM]          = L"enum",
        [D2D1_PROPERTY_TYPE_ARRAY]         = L"array",
        [D2D1_PROPERTY_TYPE_CLSID]         = L"clsid",
        [D2D1_PROPERTY_TYPE_MATRIX_3X2]    = L"matrix3x2",
        [D2D1_PROPERTY_TYPE_MATRIX_4X3]    = L"matrix4x3",
        [D2D1_PROPERTY_TYPE_MATRIX_4X4]    = L"matrix4x4",
        [D2D1_PROPERTY_TYPE_MATRIX_5X4]    = L"matrix5x4",
        [D2D1_PROPERTY_TYPE_COLOR_CONTEXT] = L"colorcontext",
    };
    unsigned int i;
    WCHAR *value;
    HRESULT hr;

    if (FAILED(hr = parse_effect_get_attribute(reader, L"type", &value))) return hr;

    *type = D2D1_PROPERTY_TYPE_UNKNOWN;

    for (i = 0; i < ARRAY_SIZE(types); ++i)
    {
        if (!wcscmp(value, types[i]))
        {
            *type = i;
            break;
        }
    }

    free(value);

    return *type == D2D1_PROPERTY_TYPE_UNKNOWN ? E_INVALIDARG : S_OK;
}

Referenced by parse_effect_property().

parse_effect_inputs()

static HRESULT parse_effect_inputs ( IXmlReader *  reader, struct d2d_effect_registration *  effect  )

static

Definition at line 799 of file factory.c.

{
    struct d2d_effect_property *inputs, *min_inputs, *max_inputs;
    struct d2d_effect_properties *subproperties;
    UINT32 min_inputs_value, max_inputs_value;
    unsigned int depth, input_count = 0;
    XmlNodeType node_type;
    WCHAR *name, *value;
    WCHAR buffW[16];
    HRESULT hr;

    if (FAILED(hr = d2d_effect_properties_add(effect->properties, L"Inputs",
            D2D1_PROPERTY_INPUTS, D2D1_PROPERTY_TYPE_ARRAY, NULL)))
        return hr;

    if (!(inputs = d2d_effect_properties_get_property_by_name(effect->properties, L"Inputs")))
        return E_FAIL;
    if (!(inputs->subproperties = calloc(1, sizeof(*inputs->subproperties))))
        return E_OUTOFMEMORY;
    d2d_effect_init_properties(NULL, inputs->subproperties);
    subproperties = inputs->subproperties;

    d2d_effect_subproperties_add(subproperties, L"IsReadOnly", D2D1_SUBPROPERTY_ISREADONLY,
            D2D1_PROPERTY_TYPE_BOOL, L"true");
    d2d_effect_subproperties_add(subproperties, L"DisplayName", D2D1_SUBPROPERTY_DISPLAYNAME,
            D2D1_PROPERTY_TYPE_STRING, L"Inputs");

    if (SUCCEEDED(parse_effect_get_attribute(reader, L"minimum", &value)))
    {
        hr = d2d_effect_properties_add(effect->properties, L"MinInputs", D2D1_PROPERTY_MIN_INPUTS,
                D2D1_PROPERTY_TYPE_UINT32, value);
        free(value);
        if (FAILED(hr)) return hr;
    }
    if (SUCCEEDED(parse_effect_get_attribute(reader, L"maximum", &value)))
    {
        hr = d2d_effect_properties_add(effect->properties, L"MaxInputs", D2D1_PROPERTY_MAX_INPUTS,
                D2D1_PROPERTY_TYPE_UINT32, value);
        free(value);
        if (FAILED(hr)) return hr;
    }

    min_inputs = d2d_effect_properties_get_property_by_name(effect->properties, L"MinInputs");
    max_inputs = d2d_effect_properties_get_property_by_name(effect->properties, L"MaxInputs");

    if (!IXmlReader_IsEmptyElement(reader))
    {
        while (parse_effect_get_next_xml_node(reader, XmlNodeType_None, L"Input", &depth) == S_OK)
        {
            if (FAILED(hr = IXmlReader_GetNodeType(reader, &node_type))) return hr;
            if (node_type == XmlNodeType_EndElement) continue;
            if (node_type != XmlNodeType_Element) return HRESULT_FROM_WIN32(ERROR_NOT_FOUND);

            if (FAILED(hr = parse_effect_get_attribute(reader, L"name", &name))) return hr;

            swprintf(buffW, ARRAY_SIZE(buffW), L"%lu", input_count);
            d2d_effect_subproperties_add(subproperties, buffW, input_count, D2D1_PROPERTY_TYPE_STRING, name);
            input_count++;

            free(name);
        }
        *(UINT32 *)(effect->properties->data.ptr + inputs->data.offset) = input_count;

        if (FAILED(hr = IXmlReader_GetNodeType(reader, &node_type))) return hr;
        if (node_type != XmlNodeType_EndElement) return HRESULT_FROM_WIN32(ERROR_NOT_FOUND);
    }

    if (min_inputs)
        d2d_effect_property_get_uint32_value(effect->properties, min_inputs, &min_inputs_value);
    if (max_inputs)
        d2d_effect_property_get_uint32_value(effect->properties, max_inputs, &max_inputs_value);

    /* Validate the range */
    if (min_inputs && max_inputs)
    {
        if (min_inputs_value > max_inputs_value)
        {
            WARN("Invalid input count range %u - %u.\n", min_inputs_value, max_inputs_value);
            return E_INVALIDARG;
        }
    }

    /* Validate actual input count with specified range. */
    if (min_inputs && min_inputs_value > input_count)
    {
        WARN("Too few inputs were declared, expected at least %u.\n", min_inputs_value);
        return E_INVALIDARG;
    }

    if (max_inputs && max_inputs_value < input_count)
    {
        WARN("Too many inputs were declared, expected at most %u.\n", max_inputs_value);
        return E_INVALIDARG;
    }

    /* Apply default value to a missing property. If both properties are missing, add them. */
    if (min_inputs != max_inputs)
    {
        swprintf(buffW, ARRAY_SIZE(buffW), L"%lu", min_inputs ? min_inputs_value : max_inputs_value);
        if (min_inputs)
            hr = d2d_effect_properties_add(effect->properties, L"MaxInputs", D2D1_PROPERTY_MAX_INPUTS, D2D1_PROPERTY_TYPE_UINT32, buffW);
        else
            hr = d2d_effect_properties_add(effect->properties, L"MinInputs", D2D1_PROPERTY_MIN_INPUTS, D2D1_PROPERTY_TYPE_UINT32, buffW);
    }
    else if (!min_inputs)
    {
        swprintf(buffW, ARRAY_SIZE(buffW), L"%lu", input_count);
        hr = d2d_effect_properties_add(effect->properties, L"MinInputs", D2D1_PROPERTY_MIN_INPUTS, D2D1_PROPERTY_TYPE_UINT32, buffW);
        if (SUCCEEDED(hr))
            hr = d2d_effect_properties_add(effect->properties, L"MaxInputs", D2D1_PROPERTY_MAX_INPUTS, D2D1_PROPERTY_TYPE_UINT32, buffW);
    }

    return hr;
}

Referenced by parse_effect_xml().

parse_effect_property()

static HRESULT parse_effect_property ( IXmlReader *  reader, struct d2d_effect_registration *  effect  )

static

Definition at line 756 of file factory.c.

{
    WCHAR *name = NULL, *value = NULL;
    D2D1_PROPERTY_TYPE type;
    unsigned int depth;
    UINT32 index;
    HRESULT hr;

    if (FAILED(hr = parse_effect_get_attribute(reader, L"name", &name)))
        return hr;

    if (FAILED(hr = parse_effect_get_property_type(reader, &type)))
    {
        free(name);
        return hr;
    }

    /* Check for duplicates. */
    if (parse_effect_get_property(effect, name))
        hr = E_INVALIDARG;

    parse_effect_get_attribute(reader, L"value", &value);

    if (SUCCEEDED(hr))
    {
        /* FIXME: sub properties are ignored */
        IXmlReader_MoveToElement(reader);
        IXmlReader_GetDepth(reader, &depth);
        hr = parse_effect_skip_element(reader, depth);
    }

    if (SUCCEEDED(hr))
    {
        index = parse_effect_get_property_index(effect->properties, name);
        hr = d2d_effect_properties_add(effect->properties, name, index, type, value);
    }

    free(value);
    free(name);

    return hr;
}

Referenced by parse_effect_xml().

parse_effect_skip_element()

static HRESULT parse_effect_skip_element ( IXmlReader *  reader, unsigned int  element_depth  )

static

Definition at line 650 of file factory.c.

{
    XmlNodeType node_type;
    unsigned int depth;
    HRESULT hr;

    if (IXmlReader_IsEmptyElement(reader)) return S_OK;

    while ((hr = IXmlReader_Read(reader, &node_type)) == S_OK)
    {
        IXmlReader_GetDepth(reader, &depth);
        if (node_type == XmlNodeType_EndElement && depth == element_depth + 1)
        {
            return S_OK;
        }
    }

    return hr;
}

Referenced by parse_effect_property(), and parse_effect_xml().

parse_effect_xml()

static HRESULT parse_effect_xml ( IXmlReader *  reader, struct d2d_effect_registration *  effect  )

static

Definition at line 914 of file factory.c.

{
    const WCHAR *node_name;
    XmlNodeType node_type;
    unsigned int depth;
    HRESULT hr;

    /* Xml declaration node is mandatory. */
    if ((hr = parse_effect_get_next_xml_node(reader, XmlNodeType_XmlDeclaration, L"xml", NULL)) != S_OK)
        return hr;

    /* Top level "Effect" element. */
    if ((hr = parse_effect_get_next_xml_node(reader, XmlNodeType_Element, L"Effect", NULL)) != S_OK)
        return hr;

    /* Loop inside effect node */
    while ((hr = parse_effect_get_next_xml_node(reader, XmlNodeType_None, NULL, &depth)) == S_OK)
    {
        if (FAILED(hr = IXmlReader_GetNodeType(reader, &node_type))) return hr;
        if (node_type != XmlNodeType_Element && node_type != XmlNodeType_EndElement) continue;
        if (FAILED(hr = IXmlReader_GetLocalName(reader, &node_name, NULL))) return hr;
        if (node_type == XmlNodeType_EndElement) break;

        if (!wcscmp(node_name, L"Property"))
            hr = parse_effect_property(reader, effect);
        else if (!wcscmp(node_name, L"Inputs"))
            hr = parse_effect_inputs(reader, effect);
        else
        {
            WARN("Unexpected element %s.\n", debugstr_w(node_name));
            hr = parse_effect_skip_element(reader, depth);
        }

        if (FAILED(hr))
            return hr;
    }

    return hr;
}

Referenced by d2d_factory_register_effect_from_stream().

srgb_inverse_transfer_function()

static float srgb_inverse_transfer_function ( float  x )

static

Definition at line 1524 of file factory.c.

{
    if (x <= 0.0f)
        return 0.0f;
    else if (x >= 1.0f)
        return 1.0f;
    else if (x <= 0.04045f)
        return x / 12.92f;
    else
        return powf((x + 0.055f) / 1.055f, 2.4f);
}

Referenced by D2D1ConvertColorSpace().

srgb_transfer_function()

static float srgb_transfer_function ( float  x )

static

Definition at line 1512 of file factory.c.

{
    if (x <= 0.0f)
        return 0.0f;
    else if (x >= 1.0f)
        return 1.0f;
    else if (x <= 0.0031308f)
        return 12.92f * x;
    else
        return 1.055f * powf(x, 1.0f / 2.4f) - 0.055f;
}

Referenced by D2D1ConvertColorSpace().

WINE_DECLARE_DEBUG_CHANNEL()

WINE_DECLARE_DEBUG_CHANNEL

(

winediag

)

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

d2d

)

Variable Documentation

d2d_factory_multithread_noop_vtbl

const struct ID2D1MultithreadVtbl d2d_factory_multithread_noop_vtbl

static

Initial value:

=
{
    d2d_factory_mt_QueryInterface,
    d2d_factory_mt_AddRef,
    d2d_factory_mt_Release,
    d2d_factory_st_GetMultithreadProtected,
    d2d_factory_st_Enter,
    d2d_factory_st_Leave,
}

Definition at line 1336 of file factory.c.

Referenced by d2d_factory_init().

d2d_factory_multithread_vtbl

const struct ID2D1MultithreadVtbl d2d_factory_multithread_vtbl

static

Initial value:

=
{
    d2d_factory_mt_QueryInterface,
    d2d_factory_mt_AddRef,
    d2d_factory_mt_Release,
    d2d_factory_mt_GetMultithreadProtected,
    d2d_factory_mt_Enter,
    d2d_factory_mt_Leave,
}

Definition at line 1326 of file factory.c.

Referenced by d2d_factory_init().

d2d_factory_vtbl

const struct ID2D1Factory7Vtbl d2d_factory_vtbl

static

Definition at line 1235 of file factory.c.

Referenced by d2d_factory_init().

d2d_settings

struct d2d_settings d2d_settings

Initial value:

=
{
    ~0u,
}

Definition at line 28 of file factory.c.
