d3d10_1_main.c File Reference

#include "wine/debug.h"
#include "d3d10_1.h"

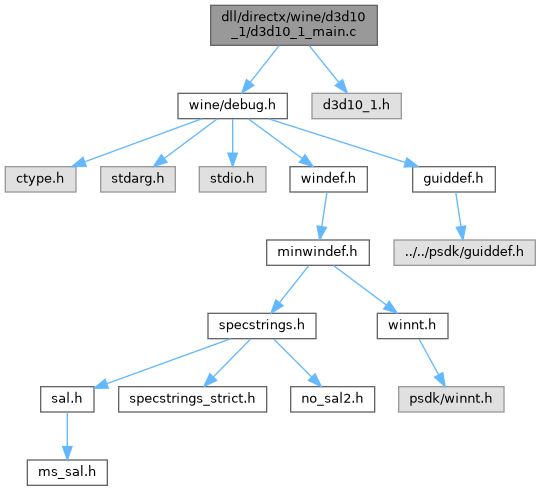

Include dependency graph for d3d10_1_main.c:

Go to the source code of this file.

Macros
#define	COBJMACROS
#define	WINE_D3D10_TO_STR(x)   case x: return #x

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (d3d10)
HRESULT WINAPI	D3D10CoreCreateDevice (IDXGIFactory *factory, IDXGIAdapter *adapter, unsigned int flags, D3D_FEATURE_LEVEL feature_level, ID3D10Device **device)
static const char *	debug_d3d10_driver_type (D3D10_DRIVER_TYPE driver_type)
static const char *	debug_d3d10_feature_level (D3D10_FEATURE_LEVEL1 feature_level)
static D3D_FEATURE_LEVEL	d3d_feature_level_from_d3d10_1 (D3D10_FEATURE_LEVEL1 level)
static HRESULT	d3d10_create_device1 (IDXGIAdapter *adapter, D3D10_DRIVER_TYPE driver_type, HMODULE swrast, UINT flags, D3D10_FEATURE_LEVEL1 hw_level, UINT sdk_version, ID3D10Device1 **device)
HRESULT WINAPI	D3D10CreateDevice1 (IDXGIAdapter *adapter, D3D10_DRIVER_TYPE driver_type, HMODULE swrast, UINT flags, D3D10_FEATURE_LEVEL1 hw_level, UINT sdk_version, ID3D10Device1 **device)
HRESULT WINAPI	D3D10CreateDeviceAndSwapChain1 (IDXGIAdapter *adapter, D3D10_DRIVER_TYPE driver_type, HMODULE swrast, UINT flags, D3D10_FEATURE_LEVEL1 feature_level, UINT sdk_version, DXGI_SWAP_CHAIN_DESC *swapchain_desc, IDXGISwapChain **swapchain, ID3D10Device1 **device)

Macro Definition Documentation

COBJMACROS

#define COBJMACROS

Definition at line 22 of file d3d10_1_main.c.

WINE_D3D10_TO_STR

#define WINE_D3D10_TO_STR

(

x

)

case x: return #x

Definition at line 30 of file d3d10_1_main.c.

Function Documentation

d3d10_create_device1()

static HRESULT d3d10_create_device1 ( IDXGIAdapter *  adapter, D3D10_DRIVER_TYPE  driver_type, HMODULE  swrast, UINT  flags, D3D10_FEATURE_LEVEL1  hw_level, UINT  sdk_version, ID3D10Device1 **  device  )

static

Definition at line 69 of file d3d10_1_main.c.

{
    IDXGIFactory *factory;
    HRESULT hr;

    TRACE("adapter %p, driver_type %s, swrast %p, flags %#x, hw_level %s, sdk_version %d, device %p.\n",
            adapter, debug_d3d10_driver_type(driver_type), swrast, flags,
            debug_d3d10_feature_level(hw_level), sdk_version, device);

    if (!device)
        return E_INVALIDARG;

    *device = NULL;

    if (!hw_level)
        return E_INVALIDARG;

    if (adapter)
    {
        IDXGIAdapter_AddRef(adapter);
        if (FAILED(hr = IDXGIAdapter_GetParent(adapter, &IID_IDXGIFactory, (void **)&factory)))
        {
            WARN("Failed to get dxgi factory, hr %#lx.\n", hr);
            return hr;
        }
    }
    else
    {
        if (FAILED(hr = CreateDXGIFactory(&IID_IDXGIFactory, (void **)&factory)))
        {
            WARN("Failed to create dxgi factory, hr %#lx.\n", hr);
            return hr;
        }

        switch (driver_type)
        {
            case D3D10_DRIVER_TYPE_WARP:
                FIXME("WARP driver not implemented, falling back to hardware.\n");
            case D3D10_DRIVER_TYPE_HARDWARE:
            {
                if (FAILED(hr = IDXGIFactory_EnumAdapters(factory, 0, &adapter)))
                {
                    WARN("No adapters found, hr %#lx.\n", hr);
                    IDXGIFactory_Release(factory);
                    return hr;
                }
                break;
            }

            case D3D10_DRIVER_TYPE_NULL:
                FIXME("NULL device not implemented, falling back to refrast.\n");
                /* Fall through, for now. */
            case D3D10_DRIVER_TYPE_REFERENCE:
            {
                HMODULE refrast;

                if (!(refrast = LoadLibraryA("d3d10ref.dll")))
                {
                    WARN("Failed to load refrast, returning E_FAIL.\n");
                    IDXGIFactory_Release(factory);
                    return E_FAIL;
                }
                hr = IDXGIFactory_CreateSoftwareAdapter(factory, refrast, &adapter);
                FreeLibrary(refrast);
                if (FAILED(hr))
                {
                    WARN("Failed to create a software adapter, hr %#lx.\n", hr);
                    IDXGIFactory_Release(factory);
                    return hr;
                }
                break;
            }

            case D3D10_DRIVER_TYPE_SOFTWARE:
            {
                if (!swrast)
                {
                    WARN("Software device requested, but NULL swrast passed, returning E_FAIL.\n");
                    IDXGIFactory_Release(factory);
                    return E_FAIL;
                }
                if (FAILED(hr = IDXGIFactory_CreateSoftwareAdapter(factory, swrast, &adapter)))
                {
                    WARN("Failed to create a software adapter, hr %#lx.\n", hr);
                    IDXGIFactory_Release(factory);
                    return hr;
                }
                break;
            }

            default:
                FIXME("Unhandled driver type %#x.\n", driver_type);
                IDXGIFactory_Release(factory);
                return E_FAIL;
        }
    }

    hr = D3D10CoreCreateDevice(factory, adapter, flags,
            d3d_feature_level_from_d3d10_1(hw_level), (ID3D10Device **)device);
    IDXGIAdapter_Release(adapter);
    IDXGIFactory_Release(factory);
    if (FAILED(hr))
    {
        WARN("Failed to create a device, hr %#lx.\n", hr);
        return hr;
    }

    TRACE("Created device %p.\n", *device);

    return hr;
}

Referenced by D3D10CreateDevice1(), and D3D10CreateDeviceAndSwapChain1().

D3D10CoreCreateDevice()

HRESULT WINAPI D3D10CoreCreateDevice	(	IDXGIFactory *	factory,
		IDXGIAdapter *	adapter,
		unsigned int	flags,
		D3D_FEATURE_LEVEL	feature_level,
		ID3D10Device **	device
	)

Definition at line 39 of file d3d10core_main.c.

{
    IUnknown *dxgi_device;
    HMODULE d3d11;
    HRESULT hr;

    TRACE("factory %p, adapter %p, flags %#x, feature_level %#x, device %p.\n",
            factory, adapter, flags, feature_level, device);

    d3d11 = LoadLibraryA("d3d11.dll");
    hr = DXGID3D10CreateDevice(d3d11, factory, adapter, flags, &feature_level, 1, (void **)&dxgi_device);
    FreeLibrary(d3d11);
    if (FAILED(hr))
    {
        WARN("Failed to create device, hr %#lx.\n", hr);
        return hr;
    }

    hr = IUnknown_QueryInterface(dxgi_device, &IID_ID3D10Device, (void **)device);
    IUnknown_Release(dxgi_device);
    if (FAILED(hr))
    {
        ERR("Failed to query ID3D10Device interface, returning E_FAIL.\n");
        return E_FAIL;
    }

    return S_OK;
}

Referenced by d3d10_create_device1().

D3D10CreateDevice1()

HRESULT WINAPI D3D10CreateDevice1	(	IDXGIAdapter *	adapter,
		D3D10_DRIVER_TYPE	driver_type,
		HMODULE	swrast,
		UINT	flags,
		D3D10_FEATURE_LEVEL1	hw_level,
		UINT	sdk_version,
		ID3D10Device1 **	device
	)

Definition at line 182 of file d3d10_1_main.c.

{
    return d3d10_create_device1(adapter, driver_type, swrast, flags, hw_level, sdk_version, device);
}

Referenced by d2d_factory_get_device(), and D3DX10CreateDevice().

D3D10CreateDeviceAndSwapChain1()

HRESULT WINAPI D3D10CreateDeviceAndSwapChain1	(	IDXGIAdapter *	adapter,
		D3D10_DRIVER_TYPE	driver_type,
		HMODULE	swrast,
		UINT	flags,
		D3D10_FEATURE_LEVEL1	feature_level,
		UINT	sdk_version,
		DXGI_SWAP_CHAIN_DESC *	swapchain_desc,
		IDXGISwapChain **	swapchain,
		ID3D10Device1 **	device
	)

Definition at line 188 of file d3d10_1_main.c.

{
    IDXGIDevice *dxgi_device;
    IDXGIFactory *factory;
    HRESULT hr;

    TRACE("adapter %p, driver_type %s, swrast %p, flags %#x, "
            "feature_level %s, sdk_version %d, swapchain_desc %p, swapchain %p, device %p.\n",
            adapter, debug_d3d10_driver_type(driver_type), swrast, flags,
            debug_d3d10_feature_level(feature_level), sdk_version, swapchain_desc, swapchain, device);

    if (swapchain)
        *swapchain = NULL;

    if (!device)
        return E_INVALIDARG;

    /* Avoid forwarding to D3D10CreateDevice1(), since it breaks applications
     * hooking these entry-points. */
    if (FAILED(hr = d3d10_create_device1(adapter, driver_type, swrast, flags, feature_level, sdk_version, device)))
    {
        WARN("Failed to create a device, returning %#lx.\n", hr);
        *device = NULL;
        return hr;
    }

    if (swapchain)
    {
        if (FAILED(hr = ID3D10Device1_QueryInterface(*device, &IID_IDXGIDevice, (void **)&dxgi_device)))
        {
            ERR("Failed to get a dxgi device from the d3d10 device, returning %#lx.\n", hr);
            goto cleanup;
        }

        hr = IDXGIDevice_GetAdapter(dxgi_device, &adapter);
        IDXGIDevice_Release(dxgi_device);
        if (FAILED(hr))
        {
            ERR("Failed to get the device adapter, returning %#lx.\n", hr);
            goto cleanup;
        }

        hr = IDXGIAdapter_GetParent(adapter, &IID_IDXGIFactory, (void **)&factory);
        IDXGIAdapter_Release(adapter);
        if (FAILED(hr))
        {
            ERR("Failed to get the adapter factory, returning %#lx.\n", hr);
            goto cleanup;
        }

        hr = IDXGIFactory_CreateSwapChain(factory, (IUnknown *)*device, swapchain_desc, swapchain);
        IDXGIFactory_Release(factory);
        if (FAILED(hr))
        {
            WARN("Failed to create a swapchain, returning %#lx.\n", hr);
            goto cleanup;
        }

        TRACE("Created IDXGISwapChain %p.\n", *swapchain);
    }

    return S_OK;

cleanup:
    ID3D10Device1_Release(*device);
    *device = NULL;
    return hr;
}

Referenced by D3DX10CreateDeviceAndSwapChain().

d3d_feature_level_from_d3d10_1()

static D3D_FEATURE_LEVEL d3d_feature_level_from_d3d10_1 ( D3D10_FEATURE_LEVEL1  level )

static

Definition at line 64 of file d3d10_1_main.c.

{
    return (D3D_FEATURE_LEVEL)level;
}

Referenced by d3d10_create_device1().

debug_d3d10_driver_type()

static const char * debug_d3d10_driver_type ( D3D10_DRIVER_TYPE  driver_type )

static

Definition at line 32 of file d3d10_1_main.c.

{
    switch (driver_type)
    {
        WINE_D3D10_TO_STR(D3D10_DRIVER_TYPE_HARDWARE);
        WINE_D3D10_TO_STR(D3D10_DRIVER_TYPE_REFERENCE);
        WINE_D3D10_TO_STR(D3D10_DRIVER_TYPE_NULL);
        WINE_D3D10_TO_STR(D3D10_DRIVER_TYPE_SOFTWARE);
        WINE_D3D10_TO_STR(D3D10_DRIVER_TYPE_WARP);
        default:
            FIXME("Unrecognized D3D10_DRIVER_TYPE %#x.\n", driver_type);
            return "unrecognized";
    }
}

Referenced by d3d10_create_device1(), and D3D10CreateDeviceAndSwapChain1().

debug_d3d10_feature_level()

static const char * debug_d3d10_feature_level ( D3D10_FEATURE_LEVEL1  feature_level )

static

Definition at line 47 of file d3d10_1_main.c.

{
    switch (feature_level)
    {
        WINE_D3D10_TO_STR(D3D10_FEATURE_LEVEL_10_0);
        WINE_D3D10_TO_STR(D3D10_FEATURE_LEVEL_10_1);
        WINE_D3D10_TO_STR(D3D10_FEATURE_LEVEL_9_1);
        WINE_D3D10_TO_STR(D3D10_FEATURE_LEVEL_9_2);
        WINE_D3D10_TO_STR(D3D10_FEATURE_LEVEL_9_3);
        default:
            FIXME("Unrecognized D3D10_FEATURE_LEVEL1 %#x.\n", feature_level);
            return "unrecognized";
    }
}

Referenced by d3d10_create_device1(), and D3D10CreateDeviceAndSwapChain1().

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

d3d10

)
