ID2D1Geometry Interface Reference

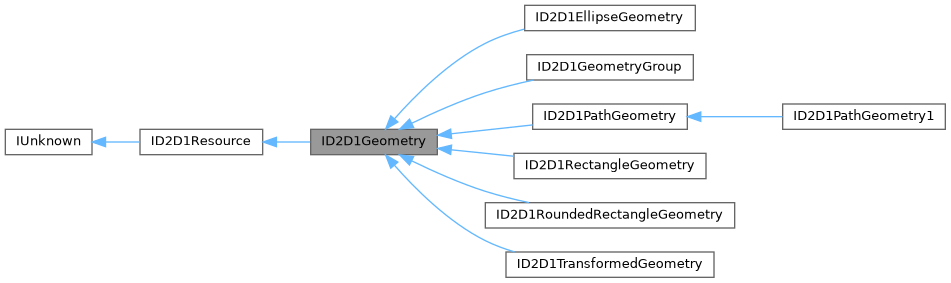

Inheritance diagram for ID2D1Geometry:

Collaboration diagram for ID2D1Geometry:

Public Member Functions
HRESULT	GetBounds ([in] const D2D1_MATRIX_3X2_F *transform, [out] D2D1_RECT_F *bounds)
HRESULT	GetWidenedBounds ([in] float stroke_width, [in] ID2D1StrokeStyle *stroke_style, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] D2D1_RECT_F *bounds)
HRESULT	StrokeContainsPoint ([in] D2D1_POINT_2F point, [in] float stroke_width, [in] ID2D1StrokeStyle *stroke_style, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] BOOL *contains)
HRESULT	FillContainsPoint ([in] D2D1_POINT_2F point, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] BOOL *contains)
HRESULT	CompareWithGeometry ([in] ID2D1Geometry *geometry, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] D2D1_GEOMETRY_RELATION *relation)
HRESULT	Simplify ([in] D2D1_GEOMETRY_SIMPLIFICATION_OPTION option, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [in] ID2D1SimplifiedGeometrySink *sink)
HRESULT	Tessellate ([in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [in] ID2D1TessellationSink *sink)
HRESULT	CombineWithGeometry ([in] ID2D1Geometry *geometry, [in] D2D1_COMBINE_MODE combine_mode, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [in] ID2D1SimplifiedGeometrySink *sink)
HRESULT	Outline ([in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [in] ID2D1SimplifiedGeometrySink *sink)
HRESULT	ComputeArea ([in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] float *area)
HRESULT	ComputeLength ([in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] float *length)
HRESULT	ComputePointAtLength ([in] float length, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [out] D2D1_POINT_2F *point, [out] D2D1_POINT_2F *tangent)
HRESULT	Widen ([in] float stroke_width, [in] ID2D1StrokeStyle *stroke_style, [in] const D2D1_MATRIX_3X2_F *transform, [in] float tolerance, [in] ID2D1SimplifiedGeometrySink *sink)
Public Member Functions inherited from ID2D1Resource
void	GetFactory ([out] ID2D1Factory **factory)
Public Member Functions inherited from IUnknown
HRESULT	QueryInterface ([in] REFIID riid, [out, iid_is(riid)] void **ppvObject)
ULONG	AddRef ()
ULONG	Release ()

Additional Inherited Members
Public Types inherited from IUnknown
typedef IUnknown *	LPUNKNOWN

Detailed Description

Definition at line 501 of file d2d1.idl.

Member Function Documentation

CombineWithGeometry()

HRESULT ID2D1Geometry::CombineWithGeometry	(	[in] ID2D1Geometry *	geometry,
		[in] D2D1_COMBINE_MODE	combine_mode,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[in] ID2D1SimplifiedGeometrySink *	sink
	)

CompareWithGeometry()

HRESULT ID2D1Geometry::CompareWithGeometry	(	[in] ID2D1Geometry *	geometry,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] D2D1_GEOMETRY_RELATION *	relation
	)

ComputeArea()

HRESULT ID2D1Geometry::ComputeArea	(	[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] float *	area
	)

ComputeLength()

HRESULT ID2D1Geometry::ComputeLength	(	[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] float *	length
	)

ComputePointAtLength()

HRESULT ID2D1Geometry::ComputePointAtLength	(	[in] float	length,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] D2D1_POINT_2F *	point,
		[out] D2D1_POINT_2F *	tangent
	)

FillContainsPoint()

HRESULT ID2D1Geometry::FillContainsPoint	(	[in] D2D1_POINT_2F	point,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] BOOL *	contains
	)

GetBounds()

HRESULT ID2D1Geometry::GetBounds	(	[in] const D2D1_MATRIX_3X2_F *	transform,
		[out] D2D1_RECT_F *	bounds
	)

GetWidenedBounds()

HRESULT ID2D1Geometry::GetWidenedBounds	(	[in] float	stroke_width,
		[in] ID2D1StrokeStyle *	stroke_style,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] D2D1_RECT_F *	bounds
	)

Outline()

HRESULT ID2D1Geometry::Outline	(	[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[in] ID2D1SimplifiedGeometrySink *	sink
	)

Simplify()

HRESULT ID2D1Geometry::Simplify	(	[in] D2D1_GEOMETRY_SIMPLIFICATION_OPTION	option,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[in] ID2D1SimplifiedGeometrySink *	sink
	)

StrokeContainsPoint()

HRESULT ID2D1Geometry::StrokeContainsPoint	(	[in] D2D1_POINT_2F	point,
		[in] float	stroke_width,
		[in] ID2D1StrokeStyle *	stroke_style,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[out] BOOL *	contains
	)

Tessellate()

HRESULT ID2D1Geometry::Tessellate	(	[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[in] ID2D1TessellationSink *	sink
	)

Widen()

HRESULT ID2D1Geometry::Widen	(	[in] float	stroke_width,
		[in] ID2D1StrokeStyle *	stroke_style,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[in] float	tolerance,
		[in] ID2D1SimplifiedGeometrySink *	sink
	)

---

The documentation for this interface was generated from the following file:

• sdk/include/psdk/d2d1.idl
