ID2D1Factory Interface Reference

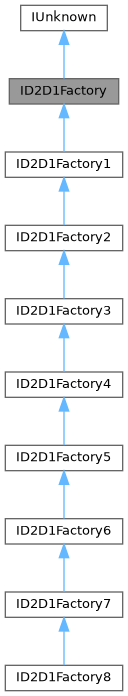

Inheritance diagram for ID2D1Factory:

Collaboration diagram for ID2D1Factory:

Public Member Functions
HRESULT	ReloadSystemMetrics ()
void	GetDesktopDpi ([out] float *dpi_x, [out] float *dpi_y)
HRESULT	CreateRectangleGeometry ([in] const D2D1_RECT_F *rect, [out] ID2D1RectangleGeometry **geometry)
HRESULT	CreateRoundedRectangleGeometry ([in] const D2D1_ROUNDED_RECT *rect, [out] ID2D1RoundedRectangleGeometry **geometry)
HRESULT	CreateEllipseGeometry ([in] const D2D1_ELLIPSE *ellipse, [out] ID2D1EllipseGeometry **geometry)
HRESULT	CreateGeometryGroup ([in] D2D1_FILL_MODE fill_mode, [in, size_is(geometry_count)] ID2D1Geometry **geometries, [in] UINT32 geometry_count, [out] ID2D1GeometryGroup **group)
HRESULT	CreateTransformedGeometry ([in] ID2D1Geometry *src_geometry, [in] const D2D1_MATRIX_3X2_F *transform, [out] ID2D1TransformedGeometry **transformed_geometry)
HRESULT	CreatePathGeometry ([out] ID2D1PathGeometry **geometry)
HRESULT	CreateStrokeStyle ([in] const D2D1_STROKE_STYLE_PROPERTIES *desc, [in, size_is(dash_count)] const float *dashes, [in] UINT32 dash_count, [out] ID2D1StrokeStyle **stroke_style)
HRESULT	CreateDrawingStateBlock ([in] const D2D1_DRAWING_STATE_DESCRIPTION *desc, [in] IDWriteRenderingParams *text_rendering_params, [out] ID2D1DrawingStateBlock **state_block)
HRESULT	CreateWicBitmapRenderTarget ([in] IWICBitmap *target, [in] const D2D1_RENDER_TARGET_PROPERTIES *desc, [out] ID2D1RenderTarget **render_target)
HRESULT	CreateHwndRenderTarget ([in] const D2D1_RENDER_TARGET_PROPERTIES *desc, [in] const D2D1_HWND_RENDER_TARGET_PROPERTIES *hwnd_rt_desc, [out] ID2D1HwndRenderTarget **render_target)
HRESULT	CreateDxgiSurfaceRenderTarget ([in] IDXGISurface *surface, [in] const D2D1_RENDER_TARGET_PROPERTIES *desc, [out] ID2D1RenderTarget **render_target)
HRESULT	CreateDCRenderTarget ([in] const D2D1_RENDER_TARGET_PROPERTIES *desc, [out] ID2D1DCRenderTarget **render_target)
Public Member Functions inherited from IUnknown
HRESULT	QueryInterface ([in] REFIID riid, [out, iid_is(riid)] void **ppvObject)
ULONG	AddRef ()
ULONG	Release ()

Additional Inherited Members
Public Types inherited from IUnknown
typedef IUnknown *	LPUNKNOWN

Detailed Description

Definition at line 1190 of file d2d1.idl.

Member Function Documentation

CreateDCRenderTarget()

HRESULT ID2D1Factory::CreateDCRenderTarget	(	[in] const D2D1_RENDER_TARGET_PROPERTIES *	desc,
		[out] ID2D1DCRenderTarget **	render_target
	)

CreateDrawingStateBlock()

HRESULT ID2D1Factory::CreateDrawingStateBlock	(	[in] const D2D1_DRAWING_STATE_DESCRIPTION *	desc,
		[in] IDWriteRenderingParams *	text_rendering_params,
		[out] ID2D1DrawingStateBlock **	state_block
	)

CreateDxgiSurfaceRenderTarget()

HRESULT ID2D1Factory::CreateDxgiSurfaceRenderTarget	(	[in] IDXGISurface *	surface,
		[in] const D2D1_RENDER_TARGET_PROPERTIES *	desc,
		[out] ID2D1RenderTarget **	render_target
	)

CreateEllipseGeometry()

HRESULT ID2D1Factory::CreateEllipseGeometry	(	[in] const D2D1_ELLIPSE *	ellipse,
		[out] ID2D1EllipseGeometry **	geometry
	)

CreateGeometryGroup()

HRESULT ID2D1Factory::CreateGeometryGroup	(	[in] D2D1_FILL_MODE	fill_mode,
		[in, size_is(geometry_count)] ID2D1Geometry **	geometries,
		[in] UINT32	geometry_count,
		[out] ID2D1GeometryGroup **	group
	)

CreateHwndRenderTarget()

HRESULT ID2D1Factory::CreateHwndRenderTarget	(	[in] const D2D1_RENDER_TARGET_PROPERTIES *	desc,
		[in] const D2D1_HWND_RENDER_TARGET_PROPERTIES *	hwnd_rt_desc,
		[out] ID2D1HwndRenderTarget **	render_target
	)

CreatePathGeometry()

HRESULT ID2D1Factory::CreatePathGeometry

(

[out] ID2D1PathGeometry **

geometry

)

CreateRectangleGeometry()

HRESULT ID2D1Factory::CreateRectangleGeometry	(	[in] const D2D1_RECT_F *	rect,
		[out] ID2D1RectangleGeometry **	geometry
	)

CreateRoundedRectangleGeometry()

HRESULT ID2D1Factory::CreateRoundedRectangleGeometry	(	[in] const D2D1_ROUNDED_RECT *	rect,
		[out] ID2D1RoundedRectangleGeometry **	geometry
	)

CreateStrokeStyle()

HRESULT ID2D1Factory::CreateStrokeStyle	(	[in] const D2D1_STROKE_STYLE_PROPERTIES *	desc,
		[in, size_is(dash_count)] const float *	dashes,
		[in] UINT32	dash_count,
		[out] ID2D1StrokeStyle **	stroke_style
	)

CreateTransformedGeometry()

HRESULT ID2D1Factory::CreateTransformedGeometry	(	[in] ID2D1Geometry *	src_geometry,
		[in] const D2D1_MATRIX_3X2_F *	transform,
		[out] ID2D1TransformedGeometry **	transformed_geometry
	)

CreateWicBitmapRenderTarget()

HRESULT ID2D1Factory::CreateWicBitmapRenderTarget	(	[in] IWICBitmap *	target,
		[in] const D2D1_RENDER_TARGET_PROPERTIES *	desc,
		[out] ID2D1RenderTarget **	render_target
	)

GetDesktopDpi()

void ID2D1Factory::GetDesktopDpi	(	[out] float *	dpi_x,
		[out] float *	dpi_y
	)

ReloadSystemMetrics()

HRESULT ID2D1Factory::ReloadSystemMetrics

(

)

---

The documentation for this interface was generated from the following file:

• sdk/include/psdk/d2d1.idl
