#include "wine/debug.h"
#include <assert.h>
#include "winbase.h"
#include "wingdi.h"
#include "winuser.h"
#include "objbase.h"
#include "winnls.h"
#include "dxgi1_6.h"
#include "d3d10_1.h"
#include "d3d12.h"
#include "wine/wined3d.h"
#include "wine/winedxgi.h"

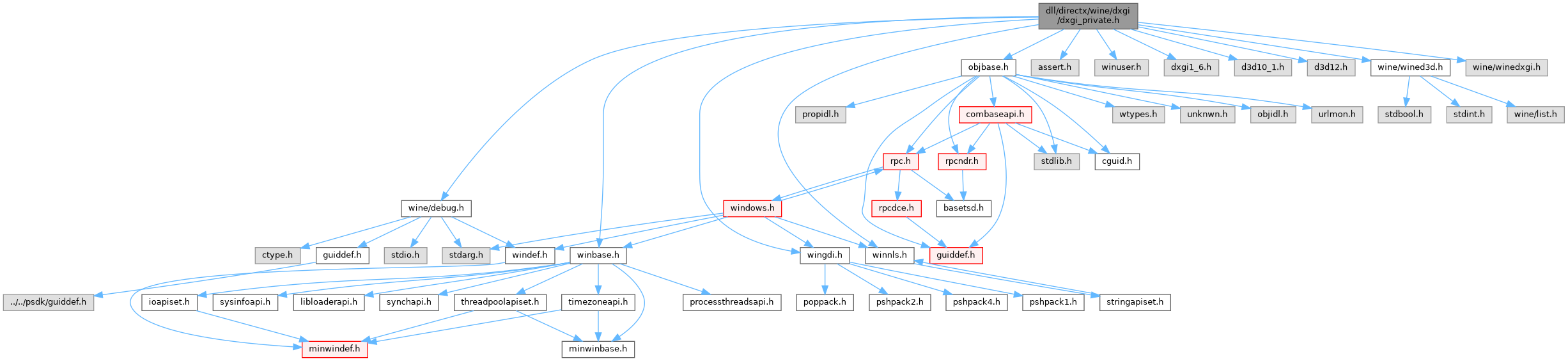

Include dependency graph for dxgi_private.h:

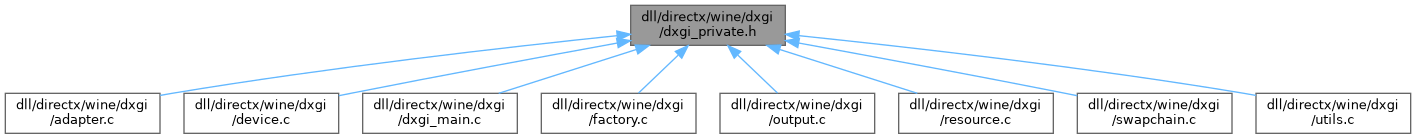

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	layer_get_size_args

struct	dxgi_device_layer

struct	dxgi_factory

struct	dxgi_device

struct	dxgi_output

struct	dxgi_adapter

struct	d3d11_swapchain

struct	dxgi_resource

Macros
#define	COBJMACROS

Enumerations
enum	dxgi_frame_latency { DXGI_FRAME_LATENCY_MAX = 16 }

enum	dxgi_device_layer_id { DXGI_DEVICE_LAYER_DEBUG1 = 0x8 , DXGI_DEVICE_LAYER_THREAD_SAFE = 0x10 , DXGI_DEVICE_LAYER_DEBUG2 = 0x20 , DXGI_DEVICE_LAYER_SWITCH_TO_REF = 0x30 , DXGI_DEVICE_LAYER_D3D10_DEVICE = 0xffffffff , DXGI_DEVICE_LAYER_DEBUG1 = 0x8 , DXGI_DEVICE_LAYER_THREAD_SAFE = 0x10 , DXGI_DEVICE_LAYER_DEBUG2 = 0x20 , DXGI_DEVICE_LAYER_SWITCH_TO_REF = 0x30 , DXGI_DEVICE_LAYER_D3D10_DEVICE = 0xffffffff }

Functions
const char *	debug_dxgi_format (DXGI_FORMAT format)

const char *	debug_dxgi_mode (const DXGI_MODE_DESC *desc)

const char *	debug_dxgi_mode1 (const DXGI_MODE_DESC1 *desc)

void	dump_feature_levels (const D3D_FEATURE_LEVEL *feature_levels, unsigned int level_count)

DXGI_FORMAT	dxgi_format_from_wined3dformat (enum wined3d_format_id format)

enum wined3d_format_id	wined3dformat_from_dxgi_format (DXGI_FORMAT format)

void	dxgi_sample_desc_from_wined3d (DXGI_SAMPLE_DESC *desc, enum wined3d_multisample_type wined3d_type, unsigned int wined3d_quality)

void	wined3d_sample_desc_from_dxgi (enum wined3d_multisample_type wined3d_type, unsigned int wined3d_quality, const DXGI_SAMPLE_DESC *dxgi_desc)

void	wined3d_display_mode_from_dxgi (struct wined3d_display_mode wined3d_mode, const DXGI_MODE_DESC mode)

void	wined3d_display_mode_from_dxgi1 (struct wined3d_display_mode wined3d_mode, const DXGI_MODE_DESC1 mode)

DXGI_USAGE	dxgi_usage_from_wined3d_bind_flags (unsigned int wined3d_bind_flags)

unsigned int	wined3d_bind_flags_from_dxgi_usage (DXGI_USAGE usage)

unsigned int	dxgi_swapchain_flags_from_wined3d (unsigned int wined3d_flags)

HRESULT	dxgi_get_output_from_window (IWineDXGIFactory factory, HWND window, IDXGIOutput *dxgi_output)

HRESULT	wined3d_swapchain_desc_from_dxgi (struct wined3d_swapchain_desc wined3d_desc, IDXGIOutput dxgi_containing_output, HWND window, const DXGI_SWAP_CHAIN_DESC1 dxgi_desc, const DXGI_SWAP_CHAIN_FULLSCREEN_DESC dxgi_fullscreen_desc)

HRESULT	dxgi_get_private_data (struct wined3d_private_store store, REFGUID guid, UINT data_size, void *data)

HRESULT	dxgi_set_private_data (struct wined3d_private_store store, REFGUID guid, UINT data_size, const void data)

HRESULT	dxgi_set_private_data_interface (struct wined3d_private_store store, REFGUID guid, const IUnknown object)

HRESULT	dxgi_factory_create (REFIID riid, void **factory, BOOL extended)

HWND	dxgi_factory_get_device_window (struct dxgi_factory *factory)

struct dxgi_factory *	unsafe_impl_from_IDXGIFactory (IDXGIFactory *iface)

HRESULT	dxgi_device_init (struct dxgi_device device, struct dxgi_device_layer layer, IDXGIFactory factory, IDXGIAdapter adapter, const D3D_FEATURE_LEVEL *feature_levels, unsigned int level_count)

HRESULT	dxgi_output_create (struct dxgi_adapter adapter, unsigned int output_idx, struct dxgi_output *output)

struct dxgi_output *	unsafe_impl_from_IDXGIOutput (IDXGIOutput *iface)

HRESULT	dxgi_adapter_create (struct dxgi_factory factory, UINT ordinal, struct dxgi_adapter *adapter)

struct dxgi_adapter *	unsafe_impl_from_IDXGIAdapter (IDXGIAdapter *iface)

HRESULT	d3d11_swapchain_init (struct d3d11_swapchain swapchain, struct dxgi_device device, struct wined3d_swapchain_desc *desc)

HRESULT	d3d12_swapchain_create (IWineDXGIFactory factory, ID3D12CommandQueue queue, HWND window, const DXGI_SWAP_CHAIN_DESC1 swapchain_desc, const DXGI_SWAP_CHAIN_FULLSCREEN_DESC fullscreen_desc, IDXGISwapChain1 **swapchain)

BOOL	dxgi_validate_swapchain_desc (const DXGI_SWAP_CHAIN_DESC1 *desc)

HRESULT	dxgi_resource_init (struct dxgi_resource resource, IDXGIDevice device, IUnknown outer, BOOL needs_surface, struct wined3d_resource wined3d_resource)

Macro Definition Documentation

◆ COBJMACROS

#define COBJMACROS

Definition at line 26 of file dxgi_private.h.

Enumeration Type Documentation

◆ dxgi_device_layer_id

enum dxgi_device_layer_id

Enumerator
DXGI_DEVICE_LAYER_DEBUG1
DXGI_DEVICE_LAYER_THREAD_SAFE
DXGI_DEVICE_LAYER_DEBUG2
DXGI_DEVICE_LAYER_SWITCH_TO_REF
DXGI_DEVICE_LAYER_D3D10_DEVICE
DXGI_DEVICE_LAYER_DEBUG1
DXGI_DEVICE_LAYER_THREAD_SAFE
DXGI_DEVICE_LAYER_DEBUG2
DXGI_DEVICE_LAYER_SWITCH_TO_REF
DXGI_DEVICE_LAYER_D3D10_DEVICE

Definition at line 48 of file dxgi_private.h.

{
    DXGI_DEVICE_LAYER_DEBUG1        = 0x8,
    DXGI_DEVICE_LAYER_THREAD_SAFE   = 0x10,
    DXGI_DEVICE_LAYER_DEBUG2        = 0x20,
    DXGI_DEVICE_LAYER_SWITCH_TO_REF = 0x30,
    DXGI_DEVICE_LAYER_D3D10_DEVICE  = 0xffffffff,
};

◆ dxgi_frame_latency

enum dxgi_frame_latency

Enumerator
DXGI_FRAME_LATENCY_MAX

Definition at line 42 of file dxgi_private.h.

{
    DXGI_FRAME_LATENCY_MAX     = 16,
};

Function Documentation

◆ d3d11_swapchain_init()

HRESULT d3d11_swapchain_init	(	struct d3d11_swapchain *	swapchain,
		struct dxgi_device *	device,
		struct wined3d_swapchain_desc *	desc
	)

Definition at line 991 of file swapchain.c.

{
    struct wined3d_swapchain_state *state;
    BOOL fullscreen;
    HRESULT hr;

    if (desc->backbuffer_format == WINED3DFMT_UNKNOWN)
        return E_INVALIDARG;

    if (FAILED(hr = IWineDXGIAdapter_GetParent(device->adapter,
            &IID_IWineDXGIFactory, (void **)&swapchain->factory)))
    {
        WARN("Failed to get adapter parent, hr %#lx.\n", hr);
        return hr;
    }
    IWineDXGIDevice_AddRef(swapchain->device = &device->IWineDXGIDevice_iface);

    swapchain->IDXGISwapChain4_iface.lpVtbl = &d3d11_swapchain_vtbl;
    swapchain->state_parent.ops = &d3d11_swapchain_state_parent_ops;
    swapchain->refcount = 1;
    wined3d_mutex_lock();
    wined3d_private_store_init(&swapchain->private_store);

    if (!desc->windowed && (!desc->backbuffer_width || !desc->backbuffer_height))
        FIXME("Fullscreen swapchain with back buffer width/height equal to 0 not supported properly.\n");

    fullscreen = !desc->windowed;
    desc->windowed = TRUE;
    if (FAILED(hr = wined3d_swapchain_create(device->wined3d_device, desc, &swapchain->state_parent,
            swapchain, &d3d11_swapchain_wined3d_parent_ops, &swapchain->wined3d_swapchain)))
    {
        WARN("Failed to create wined3d swapchain, hr %#lx.\n", hr);
        if (hr == WINED3DERR_INVALIDCALL)
            hr = E_INVALIDARG;
        goto cleanup;
    }

    state = wined3d_swapchain_get_state(swapchain->wined3d_swapchain);
    wined3d_swapchain_state_get_size(state, &desc->backbuffer_width, &desc->backbuffer_height);

    if (FAILED(hr = d3d11_swapchain_create_d3d11_textures(swapchain, &device->IWineDXGIDevice_iface, desc)))
    {
        ERR("Failed to create d3d11 textures, hr %#lx.\n", hr);
        goto cleanup;
    }

    swapchain->target = NULL;
    if (fullscreen)
    {
        desc->windowed = FALSE;

        if (FAILED(hr = IDXGISwapChain4_GetContainingOutput(&swapchain->IDXGISwapChain4_iface,
                &swapchain->target)))
        {
            WARN("Failed to get target output for fullscreen swapchain, hr %#lx.\n", hr);
            wined3d_swapchain_decref(swapchain->wined3d_swapchain);
            goto cleanup;
        }

        if (FAILED(hr = wined3d_swapchain_state_set_fullscreen(state, desc, NULL)))
        {
            WARN("Failed to set fullscreen state, hr %#lx.\n", hr);
            IDXGIOutput_Release(swapchain->target);
            wined3d_swapchain_decref(swapchain->wined3d_swapchain);
            goto cleanup;
        }

    }
    wined3d_mutex_unlock();

    return S_OK;

cleanup:
    wined3d_private_store_cleanup(&swapchain->private_store);
    wined3d_mutex_unlock();
    IWineDXGIFactory_Release(swapchain->factory);
    IWineDXGIDevice_Release(swapchain->device);
    return hr;
}

Referenced by dxgi_swapchain_factory_create_swapchain().

◆ d3d12_swapchain_create()

HRESULT d3d12_swapchain_create	(	IWineDXGIFactory *	factory,
		ID3D12CommandQueue *	queue,
		HWND	window,
		const DXGI_SWAP_CHAIN_DESC1 *	swapchain_desc,
		const DXGI_SWAP_CHAIN_FULLSCREEN_DESC *	fullscreen_desc,
		IDXGISwapChain1 **	swapchain
	)

Definition at line 3399 of file swapchain.c.

{
    DXGI_SWAP_CHAIN_FULLSCREEN_DESC default_fullscreen_desc;
    struct D3D12_COMMAND_QUEUE_DESC queue_desc;
    struct d3d12_swapchain *object;
    ID3D12Device *device;
    HRESULT hr;

    if (swapchain_desc->Format == DXGI_FORMAT_UNKNOWN)
        return DXGI_ERROR_INVALID_CALL;

    queue_desc = ID3D12CommandQueue_GetDesc(queue);
    if (queue_desc.Type != D3D12_COMMAND_LIST_TYPE_DIRECT)
        return DXGI_ERROR_INVALID_CALL;

    if (!fullscreen_desc)
    {
        memset(&default_fullscreen_desc, 0, sizeof(default_fullscreen_desc));
        default_fullscreen_desc.Windowed = TRUE;
        fullscreen_desc = &default_fullscreen_desc;
    }

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = ID3D12CommandQueue_GetDevice(queue, &IID_ID3D12Device, (void **)&device)))
    {
        ERR("Failed to get d3d12 device, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    hr = d3d12_swapchain_init(object, factory, device, queue, window, swapchain_desc, fullscreen_desc);
    ID3D12Device_Release(device);
    if (FAILED(hr))
    {
        free(object);
        return hr;
    }

    TRACE("Created swapchain %p.\n", object);

    *swapchain = (IDXGISwapChain1 *)&object->IDXGISwapChain4_iface;

    return S_OK;
}

Referenced by dxgi_factory_CreateSwapChainForHwnd().

◆ debug_dxgi_format()

const char * debug_dxgi_format ( DXGI_FORMAT format )

Definition at line 46 of file utils.c.

{
    switch(format)
    {
        WINE_D3D_TO_STR(DXGI_FORMAT_UNKNOWN);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32A32_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32A32_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32A32_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32A32_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32B32_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16B16A16_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16B16A16_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16B16A16_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16B16A16_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16B16A16_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16B16A16_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G32_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32G8X24_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_D32_FLOAT_S8X24_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32_FLOAT_X8X24_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_X32_TYPELESS_G8X24_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R10G10B10A2_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R10G10B10A2_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R10G10B10A2_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R11G11B10_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8B8A8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8B8A8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8B8A8_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8B8A8_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8B8A8_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8B8A8_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16G16_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_D32_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R32_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R24G8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_D24_UNORM_S8_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R24_UNORM_X8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_X24_TYPELESS_G8_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16_FLOAT);
        WINE_D3D_TO_STR(DXGI_FORMAT_D16_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R16_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8_UINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8_SINT);
        WINE_D3D_TO_STR(DXGI_FORMAT_A8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R1_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R9G9B9E5_SHAREDEXP);
        WINE_D3D_TO_STR(DXGI_FORMAT_R8G8_B8G8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_G8R8_G8B8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC1_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC1_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC1_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC2_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC2_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC2_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC3_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC3_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC3_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC4_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC4_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC4_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC5_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC5_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC5_SNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_B5G6R5_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_B5G5R5A1_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_B8G8R8A8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_B8G8R8X8_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_R10G10B10_XR_BIAS_A2_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_B8G8R8A8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_B8G8R8A8_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_B8G8R8X8_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_B8G8R8X8_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC6H_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC6H_UF16);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC6H_SF16);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC7_TYPELESS);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC7_UNORM);
        WINE_D3D_TO_STR(DXGI_FORMAT_BC7_UNORM_SRGB);
        WINE_D3D_TO_STR(DXGI_FORMAT_NV12);
        WINE_D3D_TO_STR(DXGI_FORMAT_YUY2);
        WINE_D3D_TO_STR(DXGI_FORMAT_B4G4R4A4_UNORM);
        default:
            FIXME("Unrecognized DXGI_FORMAT %#x.\n", format);
            return "unrecognized";
    }
}

Referenced by debug_dxgi_mode(), and debug_dxgi_mode1().

◆ debug_dxgi_mode()

const char * debug_dxgi_mode ( const DXGI_MODE_DESC * desc )

Definition at line 388 of file utils.c.

{
    if (!desc)
        return "(null)";

    return wine_dbg_sprintf("resolution %ux%u, refresh rate %u / %u, "
            "format %s, scanline ordering %#x, scaling %#x",
            desc->Width, desc->Height, desc->RefreshRate.Numerator, desc->RefreshRate.Denominator,
            debug_dxgi_format(desc->Format), desc->ScanlineOrdering, desc->Scaling);
}

Referenced by dxgi_output_FindClosestMatchingMode(), and dxgi_swapchain_resize_target().

◆ debug_dxgi_mode1()

const char * debug_dxgi_mode1 ( const DXGI_MODE_DESC1 * desc )

Definition at line 399 of file utils.c.

{
    if (!desc)
        return "(null)";

    return wine_dbg_sprintf("resolution %ux%u, refresh rate %u / %u, "
            "format %s, scanline ordering %#x, scaling %#x, stereo %#x",
            desc->Width, desc->Height, desc->RefreshRate.Numerator, desc->RefreshRate.Denominator,
            debug_dxgi_format(desc->Format), desc->ScanlineOrdering, desc->Scaling, desc->Stereo);
}

Referenced by dxgi_output_FindClosestMatchingMode1().

◆ dump_feature_levels()

void dump_feature_levels	(	const D3D_FEATURE_LEVEL *	feature_levels,
		unsigned int	level_count
	)

Definition at line 410 of file utils.c.

{
    unsigned int i;

    if (!feature_levels || !level_count)
    {
        TRACE("Feature levels: (null).\n");
        return;
    }

    TRACE("Feature levels (count = %u):\n", level_count);
    for (i = 0; i < level_count; ++i)
        TRACE("    [%u] = %s.\n", i, debug_feature_level(feature_levels[i]));
}

Referenced by DXGID3D10CreateDevice().

◆ dxgi_adapter_create()

HRESULT dxgi_adapter_create	(	struct dxgi_factory *	factory,
		UINT	ordinal,
		struct dxgi_adapter **	adapter
	)

Definition at line 448 of file adapter.c.

{
    if (!(*adapter = malloc(sizeof(**adapter))))
        return E_OUTOFMEMORY;

    dxgi_adapter_init(*adapter, factory, ordinal);
    return S_OK;
}

Referenced by dxgi_factory_EnumAdapters1().

◆ dxgi_device_init()

HRESULT dxgi_device_init	(	struct dxgi_device *	device,
		struct dxgi_device_layer *	layer,
		IDXGIFactory *	factory,
		IDXGIAdapter *	adapter,
		const D3D_FEATURE_LEVEL *	feature_levels,
		unsigned int	level_count
	)

Definition at line 486 of file device.c.

{
    struct wined3d_device_parent *wined3d_device_parent;
    struct wined3d_swapchain_desc swapchain_desc;
    IWineDXGIDeviceParent *dxgi_device_parent;
    struct dxgi_adapter *dxgi_adapter;
    struct dxgi_factory *dxgi_factory;
    struct dxgi_output *dxgi_output;
    struct IDXGIOutput *output;
    void *layer_base;
    HWND window;
    HRESULT hr;

    if (!(dxgi_factory = unsafe_impl_from_IDXGIFactory(factory)))
    {
        WARN("This is not the factory we're looking for.\n");
        return E_FAIL;
    }

    if (!(dxgi_adapter = unsafe_impl_from_IDXGIAdapter(adapter)))
    {
        WARN("This is not the adapter we're looking for.\n");
        return E_FAIL;
    }

    device->IWineDXGIDevice_iface.lpVtbl = &dxgi_device_vtbl;
    device->IWineDXGISwapChainFactory_iface.lpVtbl = &dxgi_swapchain_factory_vtbl;
    device->refcount = 1;
    wined3d_mutex_lock();
    wined3d_private_store_init(&device->private_store);

    layer_base = device + 1;

    if (FAILED(hr = layer->create(layer->id, &layer_base, 0,
            device, &IID_IUnknown, (void **)&device->child_layer)))
    {
        WARN("Failed to create device, returning %#lx.\n", hr);
        wined3d_private_store_cleanup(&device->private_store);
        wined3d_mutex_unlock();
        return hr;
    }

    if (FAILED(hr = IWineDXGIDevice_QueryInterface(&device->IWineDXGIDevice_iface,
            &IID_IWineDXGIDeviceParent, (void **)&dxgi_device_parent)))
    {
        ERR("DXGI device should implement IWineDXGIDeviceParent.\n");
        IUnknown_Release(device->child_layer);
        wined3d_private_store_cleanup(&device->private_store);
        wined3d_mutex_unlock();
        return hr;
    }
    wined3d_device_parent = IWineDXGIDeviceParent_get_wined3d_device_parent(dxgi_device_parent);
    IWineDXGIDeviceParent_Release(dxgi_device_parent);

    if (FAILED(hr = wined3d_device_create(dxgi_factory->wined3d,
            dxgi_adapter->wined3d_adapter, WINED3D_DEVICE_TYPE_HAL, NULL, 0, 4,
            (const enum wined3d_feature_level *)feature_levels, level_count,
            wined3d_device_parent, &device->wined3d_device)))
    {
        WARN("Failed to create a wined3d device, returning %#lx.\n", hr);
        IUnknown_Release(device->child_layer);
        wined3d_private_store_cleanup(&device->private_store);
        wined3d_mutex_unlock();
        return hr;
    }

    window = dxgi_factory_get_device_window(dxgi_factory);
    if (FAILED(hr = dxgi_get_output_from_window(&dxgi_factory->IWineDXGIFactory_iface, window, &output)))
    {
        ERR("Failed to get output from window %p.\n", window);
        wined3d_device_decref(device->wined3d_device);
        IUnknown_Release(device->child_layer);
        wined3d_private_store_cleanup(&device->private_store);
        wined3d_mutex_unlock();
        return hr;
    }
    dxgi_output = unsafe_impl_from_IDXGIOutput(output);

    memset(&swapchain_desc, 0, sizeof(swapchain_desc));
    swapchain_desc.swap_effect = WINED3D_SWAP_EFFECT_DISCARD;
    swapchain_desc.device_window = window;
    swapchain_desc.windowed = TRUE;
    swapchain_desc.flags = WINED3D_SWAPCHAIN_IMPLICIT;
    swapchain_desc.output = dxgi_output->wined3d_output;
    IDXGIOutput_Release(output);

    if (FAILED(hr = wined3d_swapchain_create(device->wined3d_device, &swapchain_desc,
            NULL, NULL, &dxgi_null_wined3d_parent_ops, &device->implicit_swapchain)))
    {
        ERR("Failed to create implicit swapchain, hr %#lx.\n", hr);
        wined3d_device_decref(device->wined3d_device);
        IUnknown_Release(device->child_layer);
        wined3d_private_store_cleanup(&device->private_store);
        wined3d_mutex_unlock();
        return E_OUTOFMEMORY;
    }

    wined3d_mutex_unlock();

    device->adapter = &dxgi_adapter->IWineDXGIAdapter_iface;
    IWineDXGIAdapter_AddRef(device->adapter);

    return S_OK;
}

Referenced by DXGID3D10CreateDevice().

◆ dxgi_factory_create()

HRESULT dxgi_factory_create	(	REFIID	riid,
		void **	factory,
		BOOL	extended
	)

Definition at line 585 of file factory.c.

{
    struct dxgi_factory *object;
    HRESULT hr;

    if (!(object = calloc(1, sizeof(*object))))
        return E_OUTOFMEMORY;

    if (FAILED(hr = dxgi_factory_init(object, extended)))
    {
        WARN("Failed to initialize factory, hr %#lx.\n", hr);
        free(object);
        return hr;
    }

    TRACE("Created factory %p.\n", object);

    hr = IWineDXGIFactory_QueryInterface(&object->IWineDXGIFactory_iface, riid, factory);
    IWineDXGIFactory_Release(&object->IWineDXGIFactory_iface);
    return hr;
}

Referenced by CreateDXGIFactory(), CreateDXGIFactory1(), and CreateDXGIFactory2().

◆ dxgi_factory_get_device_window()

HWND dxgi_factory_get_device_window ( struct dxgi_factory * factory )

Definition at line 607 of file factory.c.

{
    wined3d_mutex_lock();

    if (!factory->device_window)
    {
        if (!(factory->device_window = CreateWindowA("static", "DXGI device window",
                WS_DISABLED, 0, 0, 0, 0, NULL, NULL, NULL, NULL)))
        {
            wined3d_mutex_unlock();
            ERR("Failed to create a window.\n");
            return NULL;
        }
        TRACE("Created device window %p for factory %p.\n", factory->device_window, factory);
    }

    wined3d_mutex_unlock();

    return factory->device_window;
}

Referenced by dxgi_device_init().

◆ dxgi_format_from_wined3dformat()

DXGI_FORMAT dxgi_format_from_wined3dformat ( enum wined3d_format_id format )

Definition at line 210 of file utils.c.

{
    switch(format)
    {
        case WINED3DFMT_UNKNOWN: return DXGI_FORMAT_UNKNOWN;
        case WINED3DFMT_R32G32B32A32_TYPELESS: return DXGI_FORMAT_R32G32B32A32_TYPELESS;
        case WINED3DFMT_R32G32B32A32_FLOAT: return DXGI_FORMAT_R32G32B32A32_FLOAT;
        case WINED3DFMT_R32G32B32A32_UINT: return DXGI_FORMAT_R32G32B32A32_UINT;
        case WINED3DFMT_R32G32B32A32_SINT: return DXGI_FORMAT_R32G32B32A32_SINT;
        case WINED3DFMT_R32G32B32_TYPELESS: return DXGI_FORMAT_R32G32B32_TYPELESS;
        case WINED3DFMT_R32G32B32_FLOAT: return DXGI_FORMAT_R32G32B32_FLOAT;
        case WINED3DFMT_R32G32B32_UINT: return DXGI_FORMAT_R32G32B32_UINT;
        case WINED3DFMT_R32G32B32_SINT: return DXGI_FORMAT_R32G32B32_SINT;
        case WINED3DFMT_R16G16B16A16_TYPELESS: return DXGI_FORMAT_R16G16B16A16_TYPELESS;
        case WINED3DFMT_R16G16B16A16_FLOAT: return DXGI_FORMAT_R16G16B16A16_FLOAT;
        case WINED3DFMT_R16G16B16A16_UNORM: return DXGI_FORMAT_R16G16B16A16_UNORM;
        case WINED3DFMT_R16G16B16A16_UINT: return DXGI_FORMAT_R16G16B16A16_UINT;
        case WINED3DFMT_R16G16B16A16_SNORM: return DXGI_FORMAT_R16G16B16A16_SNORM;
        case WINED3DFMT_R16G16B16A16_SINT: return DXGI_FORMAT_R16G16B16A16_SINT;
        case WINED3DFMT_R32G32_TYPELESS: return DXGI_FORMAT_R32G32_TYPELESS;
        case WINED3DFMT_R32G32_FLOAT: return DXGI_FORMAT_R32G32_FLOAT;
        case WINED3DFMT_R32G32_UINT: return DXGI_FORMAT_R32G32_UINT;
        case WINED3DFMT_R32G32_SINT: return DXGI_FORMAT_R32G32_SINT;
        case WINED3DFMT_R32G8X24_TYPELESS: return DXGI_FORMAT_R32G8X24_TYPELESS;
        case WINED3DFMT_D32_FLOAT_S8X24_UINT: return DXGI_FORMAT_D32_FLOAT_S8X24_UINT;
        case WINED3DFMT_R32_FLOAT_X8X24_TYPELESS: return DXGI_FORMAT_R32_FLOAT_X8X24_TYPELESS;
        case WINED3DFMT_X32_TYPELESS_G8X24_UINT: return DXGI_FORMAT_X32_TYPELESS_G8X24_UINT;
        case WINED3DFMT_R10G10B10A2_TYPELESS: return DXGI_FORMAT_R10G10B10A2_TYPELESS;
        case WINED3DFMT_R10G10B10A2_UNORM: return DXGI_FORMAT_R10G10B10A2_UNORM;
        case WINED3DFMT_R10G10B10A2_UINT: return DXGI_FORMAT_R10G10B10A2_UINT;
        case WINED3DFMT_R11G11B10_FLOAT: return DXGI_FORMAT_R11G11B10_FLOAT;
        case WINED3DFMT_R8G8B8A8_TYPELESS: return DXGI_FORMAT_R8G8B8A8_TYPELESS;
        case WINED3DFMT_R8G8B8A8_UNORM: return DXGI_FORMAT_R8G8B8A8_UNORM;
        case WINED3DFMT_R8G8B8A8_UNORM_SRGB: return DXGI_FORMAT_R8G8B8A8_UNORM_SRGB;
        case WINED3DFMT_R8G8B8A8_UINT: return DXGI_FORMAT_R8G8B8A8_UINT;
        case WINED3DFMT_R8G8B8A8_SNORM: return DXGI_FORMAT_R8G8B8A8_SNORM;
        case WINED3DFMT_R8G8B8A8_SINT: return DXGI_FORMAT_R8G8B8A8_SINT;
        case WINED3DFMT_R16G16_TYPELESS: return DXGI_FORMAT_R16G16_TYPELESS;
        case WINED3DFMT_R16G16_FLOAT: return DXGI_FORMAT_R16G16_FLOAT;
        case WINED3DFMT_R16G16_UNORM: return DXGI_FORMAT_R16G16_UNORM;
        case WINED3DFMT_R16G16_UINT: return DXGI_FORMAT_R16G16_UINT;
        case WINED3DFMT_R16G16_SNORM: return DXGI_FORMAT_R16G16_SNORM;
        case WINED3DFMT_R16G16_SINT: return DXGI_FORMAT_R16G16_SINT;
        case WINED3DFMT_R32_TYPELESS: return DXGI_FORMAT_R32_TYPELESS;
        case WINED3DFMT_D32_FLOAT: return DXGI_FORMAT_D32_FLOAT;
        case WINED3DFMT_R32_FLOAT: return DXGI_FORMAT_R32_FLOAT;
        case WINED3DFMT_R32_UINT: return DXGI_FORMAT_R32_UINT;
        case WINED3DFMT_R32_SINT: return DXGI_FORMAT_R32_SINT;
        case WINED3DFMT_R24G8_TYPELESS: return DXGI_FORMAT_R24G8_TYPELESS;
        case WINED3DFMT_D24_UNORM_S8_UINT: return DXGI_FORMAT_D24_UNORM_S8_UINT;
        case WINED3DFMT_R24_UNORM_X8_TYPELESS: return DXGI_FORMAT_R24_UNORM_X8_TYPELESS;
        case WINED3DFMT_X24_TYPELESS_G8_UINT: return DXGI_FORMAT_X24_TYPELESS_G8_UINT;
        case WINED3DFMT_R8G8_TYPELESS: return DXGI_FORMAT_R8G8_TYPELESS;
        case WINED3DFMT_R8G8_UNORM: return DXGI_FORMAT_R8G8_UNORM;
        case WINED3DFMT_R8G8_UINT: return DXGI_FORMAT_R8G8_UINT;
        case WINED3DFMT_R8G8_SNORM: return DXGI_FORMAT_R8G8_SNORM;
        case WINED3DFMT_R8G8_SINT: return DXGI_FORMAT_R8G8_SINT;
        case WINED3DFMT_R16_TYPELESS: return DXGI_FORMAT_R16_TYPELESS;
        case WINED3DFMT_R16_FLOAT: return DXGI_FORMAT_R16_FLOAT;
        case WINED3DFMT_D16_UNORM: return DXGI_FORMAT_D16_UNORM;
        case WINED3DFMT_R16_UNORM: return DXGI_FORMAT_R16_UNORM;
        case WINED3DFMT_R16_UINT: return DXGI_FORMAT_R16_UINT;
        case WINED3DFMT_R16_SNORM: return DXGI_FORMAT_R16_SNORM;
        case WINED3DFMT_R16_SINT: return DXGI_FORMAT_R16_SINT;
        case WINED3DFMT_R8_TYPELESS: return DXGI_FORMAT_R8_TYPELESS;
        case WINED3DFMT_R8_UNORM: return DXGI_FORMAT_R8_UNORM;
        case WINED3DFMT_R8_UINT: return DXGI_FORMAT_R8_UINT;
        case WINED3DFMT_R8_SNORM: return DXGI_FORMAT_R8_SNORM;
        case WINED3DFMT_R8_SINT: return DXGI_FORMAT_R8_SINT;
        case WINED3DFMT_A8_UNORM: return DXGI_FORMAT_A8_UNORM;
        case WINED3DFMT_R1_UNORM: return DXGI_FORMAT_R1_UNORM;
        case WINED3DFMT_R9G9B9E5_SHAREDEXP: return DXGI_FORMAT_R9G9B9E5_SHAREDEXP;
        case WINED3DFMT_R8G8_B8G8_UNORM: return DXGI_FORMAT_R8G8_B8G8_UNORM;
        case WINED3DFMT_G8R8_G8B8_UNORM: return DXGI_FORMAT_G8R8_G8B8_UNORM;
        case WINED3DFMT_BC1_TYPELESS: return DXGI_FORMAT_BC1_TYPELESS;
        case WINED3DFMT_BC1_UNORM: return DXGI_FORMAT_BC1_UNORM;
        case WINED3DFMT_BC1_UNORM_SRGB: return DXGI_FORMAT_BC1_UNORM_SRGB;
        case WINED3DFMT_BC2_TYPELESS: return DXGI_FORMAT_BC2_TYPELESS;
        case WINED3DFMT_BC2_UNORM: return DXGI_FORMAT_BC2_UNORM;
        case WINED3DFMT_BC2_UNORM_SRGB: return DXGI_FORMAT_BC2_UNORM_SRGB;
        case WINED3DFMT_BC3_TYPELESS: return DXGI_FORMAT_BC3_TYPELESS;
        case WINED3DFMT_BC3_UNORM: return DXGI_FORMAT_BC3_UNORM;
        case WINED3DFMT_BC3_UNORM_SRGB: return DXGI_FORMAT_BC3_UNORM_SRGB;
        case WINED3DFMT_BC4_TYPELESS: return DXGI_FORMAT_BC4_TYPELESS;
        case WINED3DFMT_BC4_UNORM: return DXGI_FORMAT_BC4_UNORM;
        case WINED3DFMT_BC4_SNORM: return DXGI_FORMAT_BC4_SNORM;
        case WINED3DFMT_BC5_TYPELESS: return DXGI_FORMAT_BC5_TYPELESS;
        case WINED3DFMT_BC5_UNORM: return DXGI_FORMAT_BC5_UNORM;
        case WINED3DFMT_BC5_SNORM: return DXGI_FORMAT_BC5_SNORM;
        case WINED3DFMT_B5G6R5_UNORM: return DXGI_FORMAT_B5G6R5_UNORM;
        case WINED3DFMT_B5G5R5A1_UNORM: return DXGI_FORMAT_B5G5R5A1_UNORM;
        case WINED3DFMT_B8G8R8A8_UNORM: return DXGI_FORMAT_B8G8R8A8_UNORM;
        case WINED3DFMT_B8G8R8X8_UNORM: return DXGI_FORMAT_B8G8R8X8_UNORM;
        case WINED3DFMT_R10G10B10_XR_BIAS_A2_UNORM: return DXGI_FORMAT_R10G10B10_XR_BIAS_A2_UNORM;
        case WINED3DFMT_B8G8R8A8_TYPELESS: return DXGI_FORMAT_B8G8R8A8_TYPELESS;
        case WINED3DFMT_B8G8R8A8_UNORM_SRGB: return DXGI_FORMAT_B8G8R8A8_UNORM_SRGB;
        case WINED3DFMT_B8G8R8X8_TYPELESS: return DXGI_FORMAT_B8G8R8X8_TYPELESS;
        case WINED3DFMT_B8G8R8X8_UNORM_SRGB: return DXGI_FORMAT_B8G8R8X8_UNORM_SRGB;
        case WINED3DFMT_BC6H_TYPELESS: return DXGI_FORMAT_BC6H_TYPELESS;
        case WINED3DFMT_BC6H_UF16: return DXGI_FORMAT_BC6H_UF16;
        case WINED3DFMT_BC6H_SF16: return DXGI_FORMAT_BC6H_SF16;
        case WINED3DFMT_BC7_TYPELESS: return DXGI_FORMAT_BC7_TYPELESS;
        case WINED3DFMT_BC7_UNORM: return DXGI_FORMAT_BC7_UNORM;
        case WINED3DFMT_BC7_UNORM_SRGB: return DXGI_FORMAT_BC7_UNORM_SRGB;
        case WINED3DFMT_NV12: return DXGI_FORMAT_NV12;
        case WINED3DFMT_YUY2: return DXGI_FORMAT_YUY2;
        case WINED3DFMT_B4G4R4A4_UNORM: return DXGI_FORMAT_B4G4R4A4_UNORM;
        default:
            FIXME("Unhandled wined3d format %#x.\n", format);
            return DXGI_FORMAT_UNKNOWN;
    }
}

◆ dxgi_get_output_from_window()

HRESULT dxgi_get_output_from_window	(	IWineDXGIFactory *	factory,
		HWND	window,
		IDXGIOutput **	dxgi_output
	)

Definition at line 103 of file swapchain.c.

{
    unsigned int adapter_idx, output_idx;
    DXGI_OUTPUT_DESC desc;
    IDXGIAdapter *adapter;
    IDXGIOutput *output;
    HMONITOR monitor;
    HRESULT hr;

    if (!(monitor = MonitorFromWindow(window, MONITOR_DEFAULTTONEAREST)))
    {
        WARN("Failed to get monitor from window.\n");
        return DXGI_ERROR_INVALID_CALL;
    }

    for (adapter_idx = 0; SUCCEEDED(hr = IWineDXGIFactory_EnumAdapters(factory, adapter_idx, &adapter));
            ++adapter_idx)
    {
        for (output_idx = 0; SUCCEEDED(hr = IDXGIAdapter_EnumOutputs(adapter, output_idx,
                &output)); ++output_idx)
        {
            if (FAILED(hr = IDXGIOutput_GetDesc(output, &desc)))
            {
                WARN("Adapter %u output %u: Failed to get output desc, hr %#lx.\n", adapter_idx,
                        output_idx, hr);
                IDXGIOutput_Release(output);
                continue;
            }

            if (desc.Monitor == monitor)
            {
                *dxgi_output = output;
                IDXGIAdapter_Release(adapter);
                return S_OK;
            }

            IDXGIOutput_Release(output);
        }
        IDXGIAdapter_Release(adapter);
    }

    if (hr != DXGI_ERROR_NOT_FOUND)
        WARN("Failed to enumerate outputs, hr %#lx.\n", hr);

    WARN("Output could not be found.\n");
    return DXGI_ERROR_NOT_FOUND;
}

Referenced by d3d11_swapchain_GetContainingOutput(), d3d12_swapchain_GetContainingOutput(), d3d12_swapchain_init(), dxgi_device_init(), and dxgi_swapchain_factory_create_swapchain().

◆ dxgi_get_private_data()

HRESULT dxgi_get_private_data	(	struct wined3d_private_store *	store,
		REFGUID	guid,
		UINT *	data_size,
		void *	data
	)

Definition at line 624 of file utils.c.

{
    const struct wined3d_private_data *stored_data;
    DWORD size_in;
    HRESULT hr;

    if (!data_size)
        return E_INVALIDARG;

    wined3d_mutex_lock();
    if (!(stored_data = wined3d_private_store_get_private_data(store, guid)))
    {
        hr = DXGI_ERROR_NOT_FOUND;
        *data_size = 0;
        goto done;
    }

    size_in = *data_size;
    *data_size = stored_data->size;
    if (!data)
    {
        hr = S_OK;
        goto done;
    }
    if (size_in < stored_data->size)
    {
        hr = DXGI_ERROR_MORE_DATA;
        goto done;
    }

    if (stored_data->flags & WINED3DSPD_IUNKNOWN)
        IUnknown_AddRef(stored_data->content.object);
    memcpy(data, stored_data->content.data, stored_data->size);
    hr = S_OK;

done:
    wined3d_mutex_unlock();

    return hr;
}

Referenced by d3d11_swapchain_GetPrivateData(), d3d12_swapchain_GetPrivateData(), dxgi_adapter_GetPrivateData(), dxgi_device_GetPrivateData(), dxgi_factory_GetPrivateData(), dxgi_output_GetPrivateData(), and dxgi_resource_GetPrivateData().

◆ dxgi_output_create()

HRESULT dxgi_output_create	(	struct dxgi_adapter *	adapter,
		unsigned int	output_idx,
		struct dxgi_output **	output
	)

Definition at line 725 of file output.c.

{
    if (!(*output = calloc(1, sizeof(**output))))
        return E_OUTOFMEMORY;

    dxgi_output_init(*output, output_idx, adapter);
    return S_OK;
}

Referenced by dxgi_adapter_EnumOutputs().

◆ dxgi_resource_init()

HRESULT dxgi_resource_init	(	struct dxgi_resource *	resource,
		IDXGIDevice *	device,
		IUnknown *	outer,
		BOOL	needs_surface,
		struct wined3d_resource *	wined3d_resource
	)

Definition at line 426 of file resource.c.

{
    struct wined3d_resource_desc desc;

    wined3d_resource_get_desc(wined3d_resource, &desc);
    if ((desc.resource_type == WINED3D_RTYPE_TEXTURE_1D || desc.resource_type == WINED3D_RTYPE_TEXTURE_2D)
            && needs_surface)
    {
        resource->IDXGISurface1_iface.lpVtbl = &dxgi_surface_vtbl;
    }
    else
        resource->IDXGISurface1_iface.lpVtbl = NULL;
    resource->IDXGIResource_iface.lpVtbl = &dxgi_resource_vtbl;
    resource->IUnknown_iface.lpVtbl = &dxgi_resource_inner_unknown_vtbl;
    resource->refcount = 1;
    wined3d_private_store_init(&resource->private_store);
    resource->outer_unknown = outer ? outer : &resource->IUnknown_iface;
    resource->device = device;
    resource->wined3d_resource = wined3d_resource;
    resource->dc = NULL;

    return S_OK;
}

Referenced by dxgi_device_create_resource().

◆ dxgi_sample_desc_from_wined3d()

void dxgi_sample_desc_from_wined3d	(	DXGI_SAMPLE_DESC *	desc,
		enum wined3d_multisample_type	wined3d_type,
		unsigned int	wined3d_quality
	)

Definition at line 447 of file utils.c.

{
    desc->Count = wined3d_type == WINED3D_MULTISAMPLE_NONE ? 1 : wined3d_type;
    desc->Quality = wined3d_quality;
}

Referenced by d3d11_swapchain_GetDesc(), d3d11_swapchain_GetDesc1(), and dxgi_surface_GetDesc().

◆ dxgi_set_private_data()

HRESULT dxgi_set_private_data	(	struct wined3d_private_store *	store,
		REFGUID	guid,
		UINT	data_size,
		const void *	data
	)

Definition at line 666 of file utils.c.

{
    struct wined3d_private_data *entry;
    HRESULT hr;

    if (!data)
    {
        wined3d_mutex_lock();
        if (!(entry = wined3d_private_store_get_private_data(store, guid)))
        {
            wined3d_mutex_unlock();
            return S_FALSE;
        }

        wined3d_private_store_free_private_data(store, entry);
        wined3d_mutex_unlock();

        return S_OK;
    }

    wined3d_mutex_lock();
    hr = wined3d_private_store_set_private_data(store, guid, data, data_size, 0);
    wined3d_mutex_unlock();

    return hr;
}

Referenced by d3d11_swapchain_SetPrivateData(), d3d12_swapchain_SetPrivateData(), dxgi_adapter_SetPrivateData(), dxgi_device_SetPrivateData(), dxgi_factory_SetPrivateData(), dxgi_output_SetPrivateData(), dxgi_resource_SetPrivateData(), and dxgi_set_private_data_interface().

◆ dxgi_set_private_data_interface()

HRESULT dxgi_set_private_data_interface	(	struct wined3d_private_store *	store,
		REFGUID	guid,
		const IUnknown *	object
	)

Definition at line 694 of file utils.c.

{
    HRESULT hr;

    if (!object)
        return dxgi_set_private_data(store, guid, sizeof(object), &object);

    wined3d_mutex_lock();
    hr = wined3d_private_store_set_private_data(store,
            guid, object, sizeof(object), WINED3DSPD_IUNKNOWN);
    wined3d_mutex_unlock();

    return hr;
}

Referenced by d3d11_swapchain_SetPrivateDataInterface(), d3d12_swapchain_SetPrivateDataInterface(), dxgi_adapter_SetPrivateDataInterface(), dxgi_device_SetPrivateDataInterface(), dxgi_factory_SetPrivateDataInterface(), dxgi_output_SetPrivateDataInterface(), and dxgi_resource_SetPrivateDataInterface().

◆ dxgi_swapchain_flags_from_wined3d()

unsigned int dxgi_swapchain_flags_from_wined3d ( unsigned int wined3d_flags )

Definition at line 525 of file utils.c.

{
    unsigned int flags = 0;

    wined3d_flags &= ~DXGI_WINED3D_SWAPCHAIN_FLAGS;

    if (wined3d_flags & WINED3D_SWAPCHAIN_ALLOW_MODE_SWITCH)
    {
        wined3d_flags &= ~WINED3D_SWAPCHAIN_ALLOW_MODE_SWITCH;
        flags |= DXGI_SWAP_CHAIN_FLAG_ALLOW_MODE_SWITCH;
    }

    if (wined3d_flags & WINED3D_SWAPCHAIN_GDI_COMPATIBLE)
    {
        wined3d_flags &= ~WINED3D_SWAPCHAIN_GDI_COMPATIBLE;
        flags |= DXGI_SWAP_CHAIN_FLAG_GDI_COMPATIBLE;
    }

    if (wined3d_flags)
        FIXME("Unhandled flags %#x.\n", flags);

    return flags;
}

Referenced by d3d11_swapchain_GetDesc(), and d3d11_swapchain_GetDesc1().

◆ dxgi_usage_from_wined3d_bind_flags()

DXGI_USAGE dxgi_usage_from_wined3d_bind_flags ( unsigned int wined3d_bind_flags )

Definition at line 490 of file utils.c.

{
    DXGI_USAGE dxgi_usage = 0;

    if (wined3d_bind_flags & WINED3D_BIND_SHADER_RESOURCE)
        dxgi_usage |= DXGI_USAGE_SHADER_INPUT;
    if (wined3d_bind_flags & WINED3D_BIND_RENDER_TARGET)
        dxgi_usage |= DXGI_USAGE_RENDER_TARGET_OUTPUT;
    if (wined3d_bind_flags & WINED3D_BIND_UNORDERED_ACCESS)
        dxgi_usage |= DXGI_USAGE_UNORDERED_ACCESS;

    return dxgi_usage;
}

Referenced by d3d11_swapchain_GetDesc(), d3d11_swapchain_GetDesc1(), and dxgi_resource_GetUsage().

◆ dxgi_validate_swapchain_desc()

BOOL dxgi_validate_swapchain_desc ( const DXGI_SWAP_CHAIN_DESC1 * desc )

Definition at line 63 of file swapchain.c.

{
    unsigned int min_buffer_count;

    switch (desc->SwapEffect)
    {
        case DXGI_SWAP_EFFECT_DISCARD:
        case DXGI_SWAP_EFFECT_SEQUENTIAL:
            min_buffer_count = 1;
            break;

        case DXGI_SWAP_EFFECT_FLIP_DISCARD:
        case DXGI_SWAP_EFFECT_FLIP_SEQUENTIAL:
            min_buffer_count = 2;

            if (desc->Format && !dxgi_validate_flip_swap_effect_format(desc->Format))
                return FALSE;

            if (desc->SampleDesc.Count != 1 || desc->SampleDesc.Quality)
            {
                WARN("Invalid sample desc %u, %u for swap effect %#x.\n",
                        desc->SampleDesc.Count, desc->SampleDesc.Quality, desc->SwapEffect);
                return FALSE;
            }
            break;

        default:
            WARN("Invalid swap effect %u used.\n", desc->SwapEffect);
            return FALSE;
    }

    if (desc->BufferCount < min_buffer_count || desc->BufferCount > DXGI_MAX_SWAP_CHAIN_BUFFERS)
    {
        WARN("BufferCount is %u.\n", desc->BufferCount);
        return FALSE;
    }

    return TRUE;
}

Referenced by d3d12_swapchain_resize_buffers(), and dxgi_factory_CreateSwapChainForHwnd().

◆ unsafe_impl_from_IDXGIAdapter()

struct dxgi_adapter * unsafe_impl_from_IDXGIAdapter ( IDXGIAdapter * iface )

Definition at line 418 of file adapter.c.

{
    IWineDXGIAdapter *wine_adapter;
    struct dxgi_adapter *adapter;
    HRESULT hr;

    if (!iface)
        return NULL;
    if (FAILED(hr = IDXGIAdapter_QueryInterface(iface, &IID_IWineDXGIAdapter, (void **)&wine_adapter)))
    {
        ERR("Failed to get IWineDXGIAdapter interface, hr %#lx.\n", hr);
        return NULL;
    }
    assert(wine_adapter->lpVtbl == &dxgi_adapter_vtbl);
    adapter = CONTAINING_RECORD(wine_adapter, struct dxgi_adapter, IWineDXGIAdapter_iface);
    IWineDXGIAdapter_Release(wine_adapter);
    return adapter;
}

Referenced by dxgi_device_init().

◆ unsafe_impl_from_IDXGIFactory()

struct dxgi_factory * unsafe_impl_from_IDXGIFactory ( IDXGIFactory * iface )

Definition at line 546 of file factory.c.

{
    IWineDXGIFactory *wine_factory;
    struct dxgi_factory *factory;
    HRESULT hr;

    if (!iface)
        return NULL;
    if (FAILED(hr = IDXGIFactory_QueryInterface(iface, &IID_IWineDXGIFactory, (void **)&wine_factory)))
    {
        ERR("Failed to get IWineDXGIFactory interface, hr %#lx.\n", hr);
        return NULL;
    }
    assert(wine_factory->lpVtbl == &dxgi_factory_vtbl);
    factory = CONTAINING_RECORD(wine_factory, struct dxgi_factory, IWineDXGIFactory_iface);
    IWineDXGIFactory_Release(wine_factory);
    return factory;
}

Referenced by d3d12_swapchain_init(), dxgi_device_init(), and dxgi_swapchain_factory_create_swapchain().

◆ unsafe_impl_from_IDXGIOutput()

struct dxgi_output * unsafe_impl_from_IDXGIOutput ( IDXGIOutput * iface )

Definition at line 706 of file output.c.

{
    if (!iface)
        return NULL;
    assert(iface->lpVtbl == (IDXGIOutputVtbl *)&dxgi_output_vtbl);
    return CONTAINING_RECORD(iface, struct dxgi_output, IDXGIOutput6_iface);
}

Referenced by d3d11_swapchain_SetFullscreenState(), dxgi_device_init(), and wined3d_swapchain_desc_from_dxgi().

◆ wined3d_bind_flags_from_dxgi_usage()

unsigned int wined3d_bind_flags_from_dxgi_usage ( DXGI_USAGE usage )

Definition at line 504 of file utils.c.

{
    unsigned int wined3d_bind_flags = 0;

    if (dxgi_usage & DXGI_USAGE_SHADER_INPUT)
        wined3d_bind_flags |= WINED3D_BIND_SHADER_RESOURCE;
    if (dxgi_usage & DXGI_USAGE_RENDER_TARGET_OUTPUT)
        wined3d_bind_flags |= WINED3D_BIND_RENDER_TARGET;
    if (dxgi_usage & DXGI_USAGE_UNORDERED_ACCESS)
        wined3d_bind_flags |= WINED3D_BIND_UNORDERED_ACCESS;

    dxgi_usage &= ~(DXGI_USAGE_SHADER_INPUT | DXGI_USAGE_RENDER_TARGET_OUTPUT | DXGI_USAGE_UNORDERED_ACCESS);
    if (dxgi_usage)
        FIXME("Unhandled DXGI usage %#x.\n", dxgi_usage);
    return wined3d_bind_flags;
}

Referenced by dxgi_device_CreateSurface(), and wined3d_swapchain_desc_from_dxgi().

◆ wined3d_display_mode_from_dxgi()

void wined3d_display_mode_from_dxgi	(	struct wined3d_display_mode *	wined3d_mode,
		const DXGI_MODE_DESC *	mode
	)

Definition at line 469 of file utils.c.

{
    wined3d_mode->width = mode->Width;
    wined3d_mode->height = mode->Height;
    wined3d_mode->refresh_rate = dxgi_rational_to_uint(&mode->RefreshRate);
    wined3d_mode->format_id = wined3dformat_from_dxgi_format(mode->Format);
    wined3d_mode->scanline_ordering = wined3d_scanline_ordering_from_dxgi(mode->ScanlineOrdering);
}
