#include "dxgi_private.h"

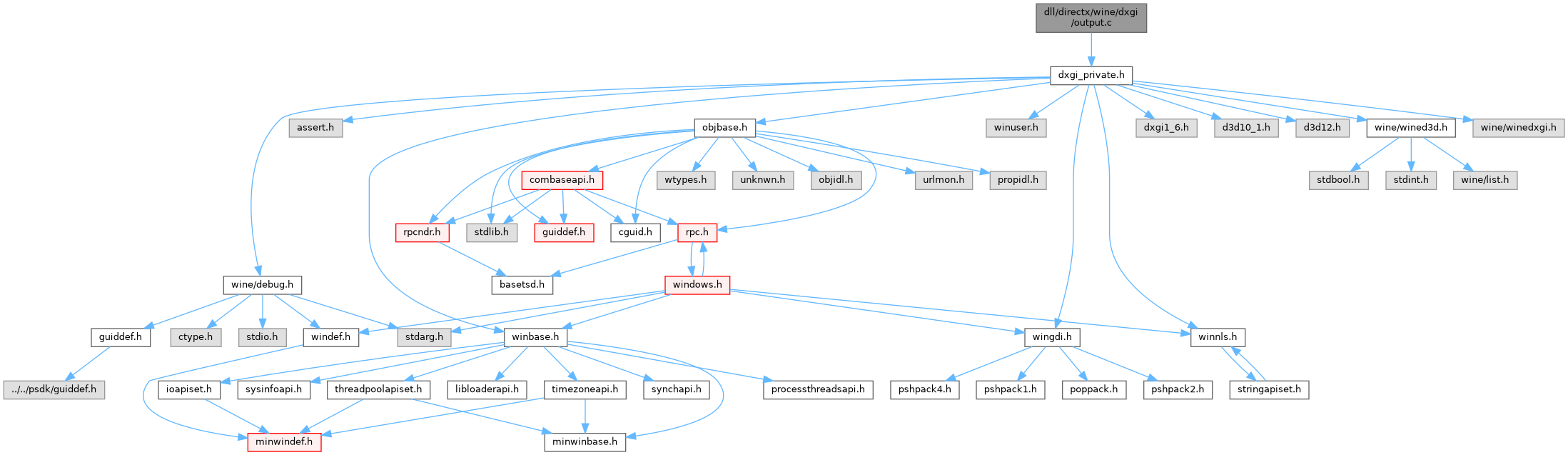

Include dependency graph for output.c:

Enumerations
enum	dxgi_mode_struct_version { DXGI_MODE_STRUCT_VERSION_0 , DXGI_MODE_STRUCT_VERSION_1 }

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (dxgi)

static DXGI_MODE_SCANLINE_ORDER	dxgi_mode_scanline_order_from_wined3d (enum wined3d_scanline_ordering ordering)

static DXGI_MODE_ROTATION	dxgi_mode_rotation_from_wined3d (enum wined3d_display_rotation rotation)

static void	dxgi_mode_from_wined3d (DXGI_MODE_DESC mode, const struct wined3d_display_mode wined3d_mode)

static void	dxgi_mode1_from_wined3d (DXGI_MODE_DESC1 mode, const struct wined3d_display_mode wined3d_mode)

static HRESULT	dxgi_output_find_closest_matching_mode (struct dxgi_output output, struct wined3d_display_mode mode, IUnknown *device)

static int	dxgi_mode_desc_compare (const void l, const void r)

static HRESULT	dxgi_output_get_display_mode_list (struct dxgi_output output, DXGI_FORMAT format, unsigned int mode_count, void *modes, enum dxgi_mode_struct_version struct_version)

static struct dxgi_output *	impl_from_IDXGIOutput6 (IDXGIOutput6 *iface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_QueryInterface (IDXGIOutput6 iface, REFIID iid, void *object)

static ULONG STDMETHODCALLTYPE	dxgi_output_AddRef (IDXGIOutput6 *iface)

static ULONG STDMETHODCALLTYPE	dxgi_output_Release (IDXGIOutput6 *iface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_SetPrivateData (IDXGIOutput6 iface, REFGUID guid, UINT data_size, const void data)

static HRESULT STDMETHODCALLTYPE	dxgi_output_SetPrivateDataInterface (IDXGIOutput6 iface, REFGUID guid, const IUnknown object)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetPrivateData (IDXGIOutput6 iface, REFGUID guid, UINT data_size, void *data)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetParent (IDXGIOutput6 iface, REFIID riid, void *parent)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetDesc (IDXGIOutput6 iface, DXGI_OUTPUT_DESC desc)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetDisplayModeList (IDXGIOutput6 iface, DXGI_FORMAT format, UINT flags, UINT mode_count, DXGI_MODE_DESC *modes)

static HRESULT STDMETHODCALLTYPE	dxgi_output_FindClosestMatchingMode (IDXGIOutput6 iface, const DXGI_MODE_DESC mode, DXGI_MODE_DESC closest_match, IUnknown device)

static HRESULT STDMETHODCALLTYPE	dxgi_output_WaitForVBlank (IDXGIOutput6 *iface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_TakeOwnership (IDXGIOutput6 iface, IUnknown device, BOOL exclusive)

static void STDMETHODCALLTYPE	dxgi_output_ReleaseOwnership (IDXGIOutput6 *iface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetGammaControlCapabilities (IDXGIOutput6 iface, DXGI_GAMMA_CONTROL_CAPABILITIES gamma_caps)

static WORD	uint16_from_float (float f)

static HRESULT STDMETHODCALLTYPE	dxgi_output_SetGammaControl (IDXGIOutput6 iface, const DXGI_GAMMA_CONTROL gamma_control)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetGammaControl (IDXGIOutput6 iface, DXGI_GAMMA_CONTROL gamma_control)

static HRESULT STDMETHODCALLTYPE	dxgi_output_SetDisplaySurface (IDXGIOutput6 iface, IDXGISurface surface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetDisplaySurfaceData (IDXGIOutput6 iface, IDXGISurface surface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetFrameStatistics (IDXGIOutput6 iface, DXGI_FRAME_STATISTICS stats)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetDisplayModeList1 (IDXGIOutput6 iface, DXGI_FORMAT format, UINT flags, UINT mode_count, DXGI_MODE_DESC1 *modes)

static HRESULT STDMETHODCALLTYPE	dxgi_output_FindClosestMatchingMode1 (IDXGIOutput6 iface, const DXGI_MODE_DESC1 mode, DXGI_MODE_DESC1 closest_match, IUnknown device)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetDisplaySurfaceData1 (IDXGIOutput6 iface, IDXGIResource resource)

static HRESULT STDMETHODCALLTYPE	dxgi_output_DuplicateOutput (IDXGIOutput6 iface, IUnknown device, IDXGIOutputDuplication **output_duplication)

static BOOL STDMETHODCALLTYPE	dxgi_output_SupportsOverlays (IDXGIOutput6 *iface)

static HRESULT STDMETHODCALLTYPE	dxgi_output_CheckOverlaySupport (IDXGIOutput6 iface, DXGI_FORMAT format, IUnknown device, UINT *flags)

static HRESULT STDMETHODCALLTYPE	dxgi_output_CheckOverlayColorSpaceSupport (IDXGIOutput6 iface, DXGI_FORMAT format, DXGI_COLOR_SPACE_TYPE color_space, IUnknown device, UINT *flags)

static HRESULT STDMETHODCALLTYPE	dxgi_output_DuplicateOutput1 (IDXGIOutput6 iface, IUnknown device, UINT flags, UINT format_count, const DXGI_FORMAT formats, IDXGIOutputDuplication *output_duplication)

static HRESULT STDMETHODCALLTYPE	dxgi_output_GetDesc1 (IDXGIOutput6 iface, DXGI_OUTPUT_DESC1 desc)

static HRESULT STDMETHODCALLTYPE	dxgi_output_CheckHardwareCompositionSupport (IDXGIOutput6 iface, UINT flags)

struct dxgi_output *	unsafe_impl_from_IDXGIOutput (IDXGIOutput *iface)

static void	dxgi_output_init (struct dxgi_output output, unsigned int output_idx, struct dxgi_adapter adapter)

HRESULT	dxgi_output_create (struct dxgi_adapter adapter, unsigned int output_idx, struct dxgi_output *output)

Variables
static const struct IDXGIOutput6Vtbl	dxgi_output_vtbl

Enumeration Type Documentation

◆ dxgi_mode_struct_version

enum dxgi_mode_struct_version

Enumerator
DXGI_MODE_STRUCT_VERSION_0
DXGI_MODE_STRUCT_VERSION_1

Definition at line 99 of file output.c.

{
    DXGI_MODE_STRUCT_VERSION_0,
    DXGI_MODE_STRUCT_VERSION_1,
};

Function Documentation

◆ dxgi_mode1_from_wined3d()

static void dxgi_mode1_from_wined3d	(	DXGI_MODE_DESC1 *	mode,
		const struct wined3d_display_mode *	wined3d_mode
	)

static

Definition at line 44 of file output.c.

{
    mode->Width = wined3d_mode->width;
    mode->Height = wined3d_mode->height;
    mode->RefreshRate.Numerator = wined3d_mode->refresh_rate;
    mode->RefreshRate.Denominator = 1;
    mode->Format = dxgi_format_from_wined3dformat(wined3d_mode->format_id);
    mode->ScanlineOrdering = dxgi_mode_scanline_order_from_wined3d(wined3d_mode->scanline_ordering);
    mode->Scaling = DXGI_MODE_SCALING_UNSPECIFIED; /* FIXME */
    mode->Stereo = FALSE; /* FIXME */
}

Referenced by dxgi_output_FindClosestMatchingMode1(), and dxgi_output_get_display_mode_list().

◆ dxgi_mode_desc_compare()

static int dxgi_mode_desc_compare	(	const void *	l,
		const void *	r
	)

static

Definition at line 80 of file output.c.

{
    const DXGI_MODE_DESC *left = l, *right = r;
    int a, b;

    if (left->Width != right->Width)
        return left->Width - right->Width;

    if (left->Height != right->Height)
        return left->Height - right->Height;

    a = left->RefreshRate.Numerator * right->RefreshRate.Denominator;
    b = right->RefreshRate.Numerator * left->RefreshRate.Denominator;
    if (a != b)
        return a - b;

    return 0;
}

Referenced by dxgi_output_get_display_mode_list().

◆ dxgi_mode_from_wined3d()

static void dxgi_mode_from_wined3d	(	DXGI_MODE_DESC *	mode,
		const struct wined3d_display_mode *	wined3d_mode
	)

static

Definition at line 33 of file output.c.

{
    mode->Width = wined3d_mode->width;
    mode->Height = wined3d_mode->height;
    mode->RefreshRate.Numerator = wined3d_mode->refresh_rate;
    mode->RefreshRate.Denominator = 1;
    mode->Format = dxgi_format_from_wined3dformat(wined3d_mode->format_id);
    mode->ScanlineOrdering = dxgi_mode_scanline_order_from_wined3d(wined3d_mode->scanline_ordering);
    mode->Scaling = DXGI_MODE_SCALING_UNSPECIFIED; /* FIXME */
}

Referenced by dxgi_output_FindClosestMatchingMode(), and dxgi_output_get_display_mode_list().

◆ dxgi_mode_rotation_from_wined3d()

static DXGI_MODE_ROTATION dxgi_mode_rotation_from_wined3d ( enum wined3d_display_rotation rotation )

inlinestatic

Definition at line 28 of file output.c.

{
    return (DXGI_MODE_ROTATION)rotation;
}

Referenced by dxgi_output_GetDesc(), and dxgi_output_GetDesc1().

◆ dxgi_mode_scanline_order_from_wined3d()

static DXGI_MODE_SCANLINE_ORDER dxgi_mode_scanline_order_from_wined3d ( enum wined3d_scanline_ordering ordering )

inlinestatic

Definition at line 23 of file output.c.

{
    return (DXGI_MODE_SCANLINE_ORDER)ordering;
}

Referenced by dxgi_mode1_from_wined3d(), and dxgi_mode_from_wined3d().

◆ dxgi_output_AddRef()

static ULONG STDMETHODCALLTYPE dxgi_output_AddRef ( IDXGIOutput6 * iface )

static

Definition at line 218 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    ULONG refcount = InterlockedIncrement(&output->refcount);

    TRACE("%p increasing refcount to %lu.\n", output, refcount);

    return refcount;
}

◆ dxgi_output_CheckHardwareCompositionSupport()

static HRESULT STDMETHODCALLTYPE dxgi_output_CheckHardwareCompositionSupport	(	IDXGIOutput6 *	iface,
		UINT *	flags
	)

static

Definition at line 657 of file output.c.

{
    FIXME("iface %p, flags %p stub!\n", iface, flags);

    return E_NOTIMPL;
}

◆ dxgi_output_CheckOverlayColorSpaceSupport()

static HRESULT STDMETHODCALLTYPE dxgi_output_CheckOverlayColorSpaceSupport	(	IDXGIOutput6 *	iface,
		DXGI_FORMAT	format,
		DXGI_COLOR_SPACE_TYPE	color_space,
		IUnknown *	device,
		UINT *	flags
	)

static

Definition at line 571 of file output.c.

{
    FIXME("iface %p, format %#x, color_space %#x, device %p, flags %p stub!\n",
            iface, format, color_space, device, flags);

    return E_NOTIMPL;
}

◆ dxgi_output_CheckOverlaySupport()

static HRESULT STDMETHODCALLTYPE dxgi_output_CheckOverlaySupport	(	IDXGIOutput6 *	iface,
		DXGI_FORMAT	format,
		IUnknown *	device,
		UINT *	flags
	)

static

Definition at line 561 of file output.c.

{
    FIXME("iface %p, format %#x, device %p, flags %p stub!\n", iface, format, device, flags);

    return E_NOTIMPL;
}

◆ dxgi_output_create()

HRESULT dxgi_output_create	(	struct dxgi_adapter *	adapter,
		unsigned int	output_idx,
		struct dxgi_output **	output
	)

Definition at line 725 of file output.c.

{
    if (!(*output = calloc(1, sizeof(**output))))
        return E_OUTOFMEMORY;

    dxgi_output_init(*output, output_idx, adapter);
    return S_OK;
}

Referenced by dxgi_adapter_EnumOutputs().

◆ dxgi_output_DuplicateOutput()

static HRESULT STDMETHODCALLTYPE dxgi_output_DuplicateOutput	(	IDXGIOutput6 *	iface,
		IUnknown *	device,
		IDXGIOutputDuplication **	output_duplication
	)

static

Definition at line 542 of file output.c.

{
    FIXME("iface %p, device %p, output_duplication %p stub!\n", iface, device, output_duplication);

    return E_NOTIMPL;
}

◆ dxgi_output_DuplicateOutput1()

static HRESULT STDMETHODCALLTYPE dxgi_output_DuplicateOutput1	(	IDXGIOutput6 *	iface,
		IUnknown *	device,
		UINT	flags,
		UINT	format_count,
		const DXGI_FORMAT *	formats,
		IDXGIOutputDuplication **	output_duplication
	)

static

Definition at line 582 of file output.c.

{
    FIXME("iface %p, device %p, flags %#x, format_count %u, formats %p, "
            "output_duplication %p stub!\n", iface, device, flags, format_count,
            formats, output_duplication);

    return E_NOTIMPL;
}

◆ dxgi_output_find_closest_matching_mode()

static HRESULT dxgi_output_find_closest_matching_mode	(	struct dxgi_output *	output,
		struct wined3d_display_mode *	mode,
		IUnknown *	device
	)

static

Definition at line 56 of file output.c.

{
    HRESULT hr;

    if (!mode->width != !mode->height)
        return DXGI_ERROR_INVALID_CALL;

    if (mode->format_id == WINED3DFMT_UNKNOWN && !device)
        return DXGI_ERROR_INVALID_CALL;

    if (mode->format_id == WINED3DFMT_UNKNOWN)
    {
        FIXME("Matching formats to device not implemented.\n");
        return E_NOTIMPL;
    }

    wined3d_mutex_lock();
    hr = wined3d_output_find_closest_matching_mode(output->wined3d_output, mode);
    wined3d_mutex_unlock();

    return hr;
}

Referenced by dxgi_output_FindClosestMatchingMode(), and dxgi_output_FindClosestMatchingMode1().

◆ dxgi_output_FindClosestMatchingMode()

static HRESULT STDMETHODCALLTYPE dxgi_output_FindClosestMatchingMode	(	IDXGIOutput6 *	iface,
		const DXGI_MODE_DESC *	mode,
		DXGI_MODE_DESC *	closest_match,
		IUnknown *	device
	)

static

Definition at line 341 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    struct wined3d_display_mode wined3d_mode;
    HRESULT hr;

    TRACE("iface %p, mode %p, closest_match %p, device %p.\n",
            iface, mode, closest_match, device);

    TRACE("Mode: %s.\n", debug_dxgi_mode(mode));

    wined3d_display_mode_from_dxgi(&wined3d_mode, mode);
    hr = dxgi_output_find_closest_matching_mode(output, &wined3d_mode, device);
    if (SUCCEEDED(hr))
    {
        dxgi_mode_from_wined3d(closest_match, &wined3d_mode);
        TRACE("Returning %s.\n", debug_dxgi_mode(closest_match));
    }

    return hr;
}

◆ dxgi_output_FindClosestMatchingMode1()

static HRESULT STDMETHODCALLTYPE dxgi_output_FindClosestMatchingMode1	(	IDXGIOutput6 *	iface,
		const DXGI_MODE_DESC1 *	mode,
		DXGI_MODE_DESC1 *	closest_match,
		IUnknown *	device
	)

static

Definition at line 511 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    struct wined3d_display_mode wined3d_mode;
    HRESULT hr;

    TRACE("iface %p, mode %p, closest_match %p, device %p.\n",
            iface, mode, closest_match, device);

    TRACE("Mode: %s.\n", debug_dxgi_mode1(mode));

    wined3d_display_mode_from_dxgi1(&wined3d_mode, mode);
    hr = dxgi_output_find_closest_matching_mode(output, &wined3d_mode, device);
    if (SUCCEEDED(hr))
    {
        dxgi_mode1_from_wined3d(closest_match, &wined3d_mode);
        TRACE("Returning %s.\n", debug_dxgi_mode1(closest_match));
    }

    return hr;
}

◆ dxgi_output_get_display_mode_list()

static HRESULT dxgi_output_get_display_mode_list	(	struct dxgi_output *	output,
		DXGI_FORMAT	format,
		unsigned int *	mode_count,
		void *	modes,
		enum dxgi_mode_struct_version	struct_version
	)

static

Definition at line 105 of file output.c.

{
    enum wined3d_format_id wined3d_format;
    struct wined3d_display_mode mode;
    unsigned int i, max_count;
    HRESULT hr;

    if (!mode_count)
        return DXGI_ERROR_INVALID_CALL;

    if (format == DXGI_FORMAT_UNKNOWN)
    {
        *mode_count = 0;
        return S_OK;
    }

    wined3d_format = wined3dformat_from_dxgi_format(format);

    wined3d_mutex_lock();
    max_count = wined3d_output_get_mode_count(output->wined3d_output,
            wined3d_format, WINED3D_SCANLINE_ORDERING_UNKNOWN, false);

    if (!modes)
    {
        wined3d_mutex_unlock();
        *mode_count = max_count;
        return S_OK;
    }

    if (max_count > *mode_count)
    {
        wined3d_mutex_unlock();
        return DXGI_ERROR_MORE_DATA;
    }

    *mode_count = max_count;

    for (i = 0; i < *mode_count; ++i)
    {
        if (FAILED(hr = wined3d_output_get_mode(output->wined3d_output, wined3d_format,
                WINED3D_SCANLINE_ORDERING_UNKNOWN, i, &mode, true)))
        {
            WARN("Failed to get output mode %u, hr %#lx.\n", i, hr);
            wined3d_mutex_unlock();
            return hr;
        }

        switch (struct_version)
        {
            case DXGI_MODE_STRUCT_VERSION_0:
            {
                DXGI_MODE_DESC *desc = modes;
                dxgi_mode_from_wined3d(&desc[i], &mode);
                break;
            }

            case DXGI_MODE_STRUCT_VERSION_1:
            {
                DXGI_MODE_DESC1 *desc = modes;
                dxgi_mode1_from_wined3d(&desc[i], &mode);
                break;
            }
        }
    }
    wined3d_mutex_unlock();

    switch (struct_version)
    {
        case DXGI_MODE_STRUCT_VERSION_0:
            qsort(modes, *mode_count, sizeof(DXGI_MODE_DESC), dxgi_mode_desc_compare);
            break;
        case DXGI_MODE_STRUCT_VERSION_1:
            qsort(modes, *mode_count, sizeof(DXGI_MODE_DESC1), dxgi_mode_desc_compare);
            break;
    }

    return S_OK;
}

Referenced by dxgi_output_GetDisplayModeList(), and dxgi_output_GetDisplayModeList1().

◆ dxgi_output_GetDesc()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetDesc	(	IDXGIOutput6 *	iface,
		DXGI_OUTPUT_DESC *	desc
	)

static

Definition at line 289 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    struct wined3d_output_desc wined3d_desc;
    enum wined3d_display_rotation rotation;
    struct wined3d_display_mode mode;
    HRESULT hr;

    TRACE("iface %p, desc %p.\n", iface, desc);

    if (!desc)
        return E_INVALIDARG;

    wined3d_mutex_lock();
    hr = wined3d_output_get_desc(output->wined3d_output, &wined3d_desc);
    if (FAILED(hr))
    {
        WARN("Failed to get output desc, hr %#lx.\n", hr);
        wined3d_mutex_unlock();
        return hr;
    }

    hr = wined3d_output_get_display_mode(output->wined3d_output, &mode, &rotation);
    if (FAILED(hr))
    {
        WARN("Failed to get output display mode, hr %#lx.\n", hr);
        wined3d_mutex_unlock();
        return hr;
    }
    wined3d_mutex_unlock();

    memcpy(desc->DeviceName, wined3d_desc.device_name, sizeof(desc->DeviceName));
    desc->DesktopCoordinates = wined3d_desc.desktop_rect;
    desc->AttachedToDesktop = wined3d_desc.attached_to_desktop;
    desc->Rotation = dxgi_mode_rotation_from_wined3d(rotation);
    desc->Monitor = wined3d_desc.monitor;

    return S_OK;
}

◆ dxgi_output_GetDesc1()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetDesc1	(	IDXGIOutput6 *	iface,
		DXGI_OUTPUT_DESC1 *	desc
	)

static

Definition at line 595 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    struct wined3d_output_desc wined3d_desc;
    enum wined3d_display_rotation rotation;
    struct wined3d_display_mode mode;
    HRESULT hr;

    FIXME("iface %p, desc %p semi-stub!\n", iface, desc);

    if (!desc)
        return E_INVALIDARG;

    wined3d_mutex_lock();
    hr = wined3d_output_get_desc(output->wined3d_output, &wined3d_desc);
    if (FAILED(hr))
    {
        WARN("Failed to get output desc, hr %#lx.\n", hr);
        wined3d_mutex_unlock();
        return hr;
    }

    hr = wined3d_output_get_display_mode(output->wined3d_output, &mode, &rotation);
    if (FAILED(hr))
    {
        WARN("Failed to get output display mode, hr %#lx.\n", hr);
        wined3d_mutex_unlock();
        return hr;
    }
    wined3d_mutex_unlock();

    if (FAILED(hr))
    {
        WARN("Failed to get output desc, hr %#lx.\n", hr);
        return hr;
    }

    memcpy(desc->DeviceName, wined3d_desc.device_name, sizeof(desc->DeviceName));
    desc->DesktopCoordinates = wined3d_desc.desktop_rect;
    desc->AttachedToDesktop = wined3d_desc.attached_to_desktop;
    desc->Rotation = dxgi_mode_rotation_from_wined3d(rotation);
    desc->Monitor = wined3d_desc.monitor;

    /* FIXME: fill this from monitor EDID */
    desc->BitsPerColor = 0;
    desc->ColorSpace = DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709;
    desc->RedPrimary[0] = 0.f;
    desc->RedPrimary[1] = 0.f;
    desc->GreenPrimary[0] = 0.f;
    desc->GreenPrimary[1] = 0.f;
    desc->BluePrimary[0] = 0.f;
    desc->BluePrimary[1] = 0.f;
    desc->WhitePoint[0] = 0.f;
    desc->WhitePoint[1] = 0.f;
    desc->MinLuminance = 0.f;
    desc->MaxLuminance = 0.f;
    desc->MaxFullFrameLuminance = 0.f;

    return S_OK;
}

◆ dxgi_output_GetDisplayModeList()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetDisplayModeList	(	IDXGIOutput6 *	iface,
		DXGI_FORMAT	format,
		UINT	flags,
		UINT *	mode_count,
		DXGI_MODE_DESC *	modes
	)

static

Definition at line 329 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    FIXME("iface %p, format %s, flags %#x, mode_count %p, modes %p partial stub!\n",
            iface, debug_dxgi_format(format), flags, mode_count, modes);

    return dxgi_output_get_display_mode_list(output,
            format, mode_count, modes, DXGI_MODE_STRUCT_VERSION_0);
}

◆ dxgi_output_GetDisplayModeList1()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetDisplayModeList1	(	IDXGIOutput6 *	iface,
		DXGI_FORMAT	format,
		UINT	flags,
		UINT *	mode_count,
		DXGI_MODE_DESC1 *	modes
	)

static

Definition at line 499 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    FIXME("iface %p, format %s, flags %#x, mode_count %p, modes %p partial stub!\n",
            iface, debug_dxgi_format(format), flags, mode_count, modes);

    return dxgi_output_get_display_mode_list(output,
            format, mode_count, modes, DXGI_MODE_STRUCT_VERSION_1);
}

◆ dxgi_output_GetDisplaySurfaceData()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetDisplaySurfaceData	(	IDXGIOutput6 *	iface,
		IDXGISurface *	surface
	)

static

Definition at line 483 of file output.c.

{
    FIXME("iface %p, surface %p stub!\n", iface, surface);

    return E_NOTIMPL;
}

◆ dxgi_output_GetDisplaySurfaceData1()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetDisplaySurfaceData1	(	IDXGIOutput6 *	iface,
		IDXGIResource *	resource
	)

static

Definition at line 534 of file output.c.

{
    FIXME("iface %p, resource %p stub!\n", iface, resource);

    return E_NOTIMPL;
}

◆ dxgi_output_GetFrameStatistics()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetFrameStatistics	(	IDXGIOutput6 *	iface,
		DXGI_FRAME_STATISTICS *	stats
	)

static

Definition at line 490 of file output.c.

{
    FIXME("iface %p, stats %p stub!\n", iface, stats);

    return E_NOTIMPL;
}

◆ dxgi_output_GetGammaControl()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetGammaControl	(	IDXGIOutput6 *	iface,
		DXGI_GAMMA_CONTROL *	gamma_control
	)

static

Definition at line 468 of file output.c.

{
    FIXME("iface %p, gamma_control %p stub!\n", iface, gamma_control);

    return E_NOTIMPL;
}

◆ dxgi_output_GetGammaControlCapabilities()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetGammaControlCapabilities	(	IDXGIOutput6 *	iface,
		DXGI_GAMMA_CONTROL_CAPABILITIES *	gamma_caps
	)

static

Definition at line 404 of file output.c.

{
    unsigned int i;

    TRACE("iface %p, gamma_caps %p.\n", iface, gamma_caps);

    if (!gamma_caps)
        return E_INVALIDARG;

    gamma_caps->ScaleAndOffsetSupported = FALSE;
    gamma_caps->MaxConvertedValue = 1.0f;
    gamma_caps->MinConvertedValue = 0.0f;
    gamma_caps->NumGammaControlPoints = 256;

    for (i = 0; i < gamma_caps->NumGammaControlPoints; ++i)
        gamma_caps->ControlPointPositions[i] = i / 255.0f;

    return S_OK;
}

◆ dxgi_output_GetParent()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetParent	(	IDXGIOutput6 *	iface,
		REFIID	riid,
		void **	parent
	)

static

Definition at line 277 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    TRACE("iface %p, riid %s, parent %p.\n", iface, debugstr_guid(riid), parent);

    return IWineDXGIAdapter_QueryInterface(&output->adapter->IWineDXGIAdapter_iface, riid, parent);
}

◆ dxgi_output_GetPrivateData()

static HRESULT STDMETHODCALLTYPE dxgi_output_GetPrivateData	(	IDXGIOutput6 *	iface,
		REFGUID	guid,
		UINT *	data_size,
		void *	data
	)

static

Definition at line 267 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    TRACE("iface %p, guid %s, data_size %p, data %p.\n", iface, debugstr_guid(guid), data_size, data);

    return dxgi_get_private_data(&output->private_store, guid, data_size, data);
}

◆ dxgi_output_init()

static void dxgi_output_init	(	struct dxgi_output *	output,
		unsigned int	output_idx,
		struct dxgi_adapter *	adapter
	)

static

Definition at line 714 of file output.c.

{
    output->IDXGIOutput6_iface.lpVtbl = &dxgi_output_vtbl;
    output->refcount = 1;
    output->wined3d_output = wined3d_adapter_get_output(adapter->wined3d_adapter, output_idx);
    wined3d_private_store_init(&output->private_store);
    output->adapter = adapter;
    IWineDXGIAdapter_AddRef(&output->adapter->IWineDXGIAdapter_iface);
}

Referenced by dxgi_output_create().

◆ dxgi_output_QueryInterface()

static HRESULT STDMETHODCALLTYPE dxgi_output_QueryInterface	(	IDXGIOutput6 *	iface,
		REFIID	iid,
		void **	object
	)

static

Definition at line 193 of file output.c.

{
    TRACE("iface %p, iid %s, object %p.\n", iface, debugstr_guid(iid), object);

    if (IsEqualGUID(iid, &IID_IDXGIOutput6)
            || IsEqualGUID(iid, &IID_IDXGIOutput5)
            || IsEqualGUID(iid, &IID_IDXGIOutput4)
            || IsEqualGUID(iid, &IID_IDXGIOutput3)
            || IsEqualGUID(iid, &IID_IDXGIOutput2)
            || IsEqualGUID(iid, &IID_IDXGIOutput1)
            || IsEqualGUID(iid, &IID_IDXGIOutput)
            || IsEqualGUID(iid, &IID_IDXGIObject)
            || IsEqualGUID(iid, &IID_IUnknown))
    {
        IUnknown_AddRef(iface);
        *object = iface;
        return S_OK;
    }

    WARN("%s not implemented, returning E_NOINTERFACE.\n", debugstr_guid(iid));

    *object = NULL;
    return E_NOINTERFACE;
}

◆ dxgi_output_Release()

static ULONG STDMETHODCALLTYPE dxgi_output_Release ( IDXGIOutput6 * iface )

static

Definition at line 228 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    ULONG refcount = InterlockedDecrement(&output->refcount);

    TRACE("%p decreasing refcount to %lu.\n", output, refcount);

    if (!refcount)
    {
        wined3d_private_store_cleanup(&output->private_store);
        IWineDXGIAdapter_Release(&output->adapter->IWineDXGIAdapter_iface);
        free(output);
    }

    return refcount;
}

◆ dxgi_output_ReleaseOwnership()

static void STDMETHODCALLTYPE dxgi_output_ReleaseOwnership ( IDXGIOutput6 * iface )

static

Definition at line 393 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    TRACE("iface %p.\n", iface);

    wined3d_mutex_lock();
    wined3d_output_release_ownership(output->wined3d_output);
    wined3d_mutex_unlock();
}

◆ dxgi_output_SetDisplaySurface()

static HRESULT STDMETHODCALLTYPE dxgi_output_SetDisplaySurface	(	IDXGIOutput6 *	iface,
		IDXGISurface *	surface
	)

static

Definition at line 476 of file output.c.

{
    FIXME("iface %p, surface %p stub!\n", iface, surface);

    return E_NOTIMPL;
}

◆ dxgi_output_SetGammaControl()

static HRESULT STDMETHODCALLTYPE dxgi_output_SetGammaControl	(	IDXGIOutput6 *	iface,
		const DXGI_GAMMA_CONTROL *	gamma_control
	)

static

Definition at line 436 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    struct wined3d_gamma_ramp ramp;
    const DXGI_RGB *p;
    unsigned int i;

    TRACE("iface %p, gamma_control %p.\n", iface, gamma_control);

    if (gamma_control->Scale.Red != 1.0f || gamma_control->Scale.Green != 1.0f || gamma_control->Scale.Blue != 1.0f)
        FIXME("Ignoring unhandled scale {%.8e, %.8e, %.8e}.\n", gamma_control->Scale.Red,
                gamma_control->Scale.Green, gamma_control->Scale.Blue);
    if (gamma_control->Offset.Red != 0.0f || gamma_control->Offset.Green != 0.0f || gamma_control->Offset.Blue != 0.0f)
        FIXME("Ignoring unhandled offset {%.8e, %.8e, %.8e}.\n", gamma_control->Offset.Red,
                gamma_control->Offset.Green, gamma_control->Offset.Blue);

    for (i = 0; i < 256; ++i)
    {
        p = &gamma_control->GammaCurve[i];
        ramp.red[i] = uint16_from_float(p->Red);
        ramp.green[i] = uint16_from_float(p->Green);
        ramp.blue[i] = uint16_from_float(p->Blue);
    }

    wined3d_mutex_lock();
    wined3d_output_set_gamma_ramp(output->wined3d_output, &ramp);
    wined3d_mutex_unlock();

    return S_OK;
}

◆ dxgi_output_SetPrivateData()

static HRESULT STDMETHODCALLTYPE dxgi_output_SetPrivateData	(	IDXGIOutput6 *	iface,
		REFGUID	guid,
		UINT	data_size,
		const void *	data
	)

static

Definition at line 247 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    TRACE("iface %p, guid %s, data_size %u, data %p.\n", iface, debugstr_guid(guid), data_size, data);

    return dxgi_set_private_data(&output->private_store, guid, data_size, data);
}

◆ dxgi_output_SetPrivateDataInterface()

static HRESULT STDMETHODCALLTYPE dxgi_output_SetPrivateDataInterface	(	IDXGIOutput6 *	iface,
		REFGUID	guid,
		const IUnknown *	object
	)

static

Definition at line 257 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);

    TRACE("iface %p, guid %s, object %p.\n", iface, debugstr_guid(guid), object);

    return dxgi_set_private_data_interface(&output->private_store, guid, object);
}

◆ dxgi_output_SupportsOverlays()

static BOOL STDMETHODCALLTYPE dxgi_output_SupportsOverlays ( IDXGIOutput6 * iface )

static

Definition at line 552 of file output.c.

{
    FIXME("iface %p stub!\n", iface);

    return FALSE;
}

◆ dxgi_output_TakeOwnership()

static HRESULT STDMETHODCALLTYPE dxgi_output_TakeOwnership	(	IDXGIOutput6 *	iface,
		IUnknown *	device,
		BOOL	exclusive
	)

static

Definition at line 376 of file output.c.

{
    struct dxgi_output *output = impl_from_IDXGIOutput6(iface);
    HRESULT hr;

    TRACE("iface %p, device %p, exclusive %d.\n", iface, device, exclusive);

    if (!device)
        return DXGI_ERROR_INVALID_CALL;

    wined3d_mutex_lock();
    hr = wined3d_output_take_ownership(output->wined3d_output, exclusive);
    wined3d_mutex_unlock();

    return hr;
}

◆ dxgi_output_WaitForVBlank()

static HRESULT STDMETHODCALLTYPE dxgi_output_WaitForVBlank ( IDXGIOutput6 * iface )

static

Definition at line 364 of file output.c.

{
    static BOOL once = FALSE;

    if (!once++)
        FIXME("iface %p stub!\n", iface);
    else
        TRACE("iface %p stub!\n", iface);

    return E_NOTIMPL;
}

◆ impl_from_IDXGIOutput6()

static struct dxgi_output * impl_from_IDXGIOutput6 ( IDXGIOutput6 * iface )

inlinestatic

Definition at line 186 of file output.c.

{
    return CONTAINING_RECORD(iface, struct dxgi_output, IDXGIOutput6_iface);
}

Referenced by dxgi_output_AddRef(), dxgi_output_FindClosestMatchingMode(), dxgi_output_FindClosestMatchingMode1(), dxgi_output_GetDesc(), dxgi_output_GetDesc1(), dxgi_output_GetDisplayModeList(), dxgi_output_GetDisplayModeList1(), dxgi_output_GetParent(), dxgi_output_GetPrivateData(), dxgi_output_Release(), dxgi_output_ReleaseOwnership(), dxgi_output_SetGammaControl(), dxgi_output_SetPrivateData(), dxgi_output_SetPrivateDataInterface(), and dxgi_output_TakeOwnership().

◆ uint16_from_float()

static WORD uint16_from_float ( float f )

static

Definition at line 425 of file output.c.

{
    f *= 65535.0f;
    if (f < 0.0f)
        f = 0.0f;
    else if (f > 65535.0f)
        f = 65535.0f;

    return f + 0.5f;
}

Referenced by dxgi_output_SetGammaControl().

◆ unsafe_impl_from_IDXGIOutput()

struct dxgi_output * unsafe_impl_from_IDXGIOutput ( IDXGIOutput * iface )

Definition at line 706 of file output.c.

{
    if (!iface)
        return NULL;
    assert(iface->lpVtbl == (IDXGIOutputVtbl *)&dxgi_output_vtbl);
    return CONTAINING_RECORD(iface, struct dxgi_output, IDXGIOutput6_iface);
}

Referenced by d3d11_swapchain_SetFullscreenState(), dxgi_device_init(), and wined3d_swapchain_desc_from_dxgi().

◆ WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL ( dxgi )

Variable Documentation

◆ dxgi_output_vtbl

const struct IDXGIOutput6Vtbl dxgi_output_vtbl

static

Definition at line 665 of file output.c.

Referenced by dxgi_output_init(), and unsafe_impl_from_IDXGIOutput().

Enumerations

Functions

Variables

Enumeration Type Documentation

◆ dxgi_mode_struct_version

Function Documentation

◆ dxgi_mode1_from_wined3d()

◆ dxgi_mode_desc_compare()

◆ dxgi_mode_from_wined3d()

◆ dxgi_mode_rotation_from_wined3d()

◆ dxgi_mode_scanline_order_from_wined3d()

◆ dxgi_output_AddRef()

◆ dxgi_output_CheckHardwareCompositionSupport()

◆ dxgi_output_CheckOverlayColorSpaceSupport()

◆ dxgi_output_CheckOverlaySupport()

◆ dxgi_output_create()

◆ dxgi_output_DuplicateOutput()

◆ dxgi_output_DuplicateOutput1()

◆ dxgi_output_find_closest_matching_mode()

◆ dxgi_output_FindClosestMatchingMode()

◆ dxgi_output_FindClosestMatchingMode1()

◆ dxgi_output_get_display_mode_list()

◆ dxgi_output_GetDesc()

◆ dxgi_output_GetDesc1()

◆ dxgi_output_GetDisplayModeList()

◆ dxgi_output_GetDisplayModeList1()

◆ dxgi_output_GetDisplaySurfaceData()

◆ dxgi_output_GetDisplaySurfaceData1()

◆ dxgi_output_GetFrameStatistics()

◆ dxgi_output_GetGammaControl()

◆ dxgi_output_GetGammaControlCapabilities()

◆ dxgi_output_GetParent()

◆ dxgi_output_GetPrivateData()

◆ dxgi_output_init()

◆ dxgi_output_QueryInterface()

◆ dxgi_output_Release()

◆ dxgi_output_ReleaseOwnership()

◆ dxgi_output_SetDisplaySurface()

◆ dxgi_output_SetGammaControl()

◆ dxgi_output_SetPrivateData()

◆ dxgi_output_SetPrivateDataInterface()

◆ dxgi_output_SupportsOverlays()

◆ dxgi_output_TakeOwnership()

◆ dxgi_output_WaitForVBlank()

◆ impl_from_IDXGIOutput6()

◆ uint16_from_float()

◆ unsafe_impl_from_IDXGIOutput()

◆ WINE_DEFAULT_DEBUG_CHANNEL()

Variable Documentation

◆ dxgi_output_vtbl
