compiler.c File Reference

#include <stdarg.h>
#include <time.h>
#include "wine/debug.h"
#include "d3dcompiler_private.h"

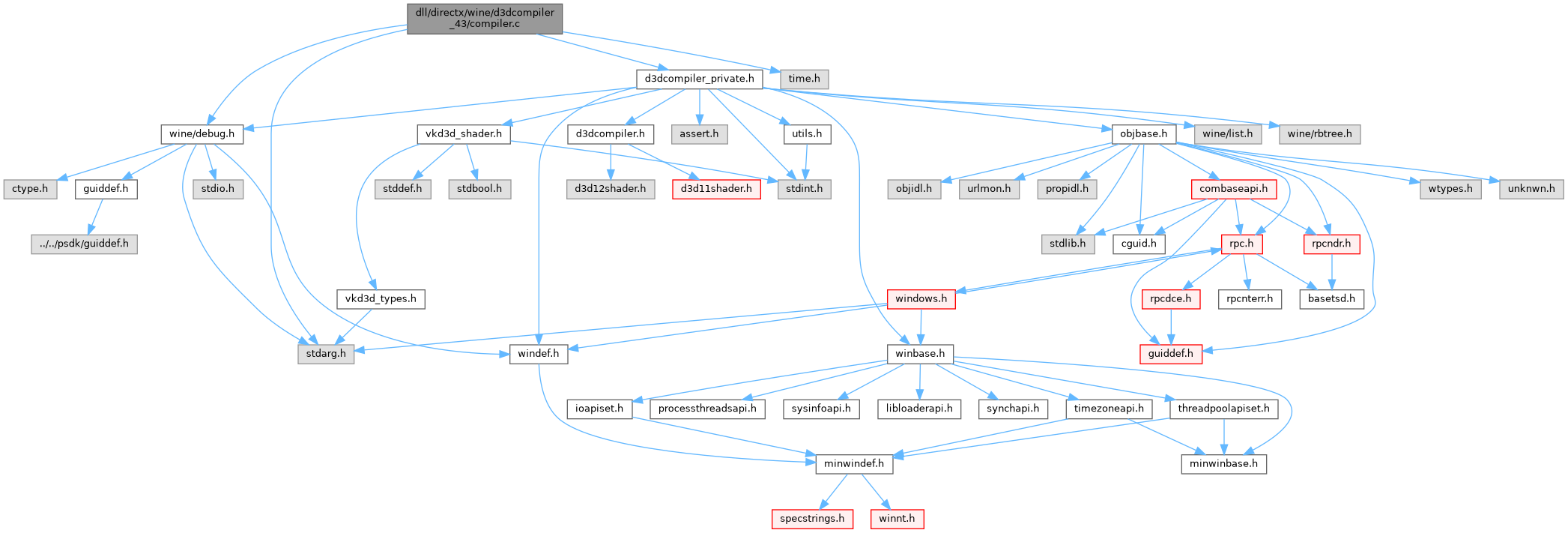

Include dependency graph for compiler.c:

Go to the source code of this file.

Classes
struct	d3dcompiler_include_from_file

Macros
#define	COBJMACROS
#define	D3DXERR_INVALIDDATA   0x88760b59

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (d3dcompiler)
static HRESULT	hresult_from_vkd3d_result (int vkd3d_result)
static struct d3dcompiler_include_from_file *	impl_from_ID3DInclude (ID3DInclude *iface)
static HRESULT WINAPI	d3dcompiler_include_from_file_open (ID3DInclude *iface, D3D_INCLUDE_TYPE include_type, const char *filename, const void *parent_data, const void **data, UINT *bytes)
static HRESULT WINAPI	d3dcompiler_include_from_file_close (ID3DInclude *iface, const void *data)
static int	open_include (const char *filename, bool local, const char *parent_data, void *context, struct vkd3d_shader_code *code)
static void	close_include (const struct vkd3d_shader_code *code, void *context)
static const char *	get_line (const char **ptr)
static HRESULT	preprocess_shader (const void *data, SIZE_T data_size, const char *filename, const D3D_SHADER_MACRO *defines, ID3DInclude *include, ID3DBlob **shader_blob, ID3DBlob **messages_blob)
static HRESULT	assemble_shader (const char *preproc_shader, ID3DBlob **shader_blob, ID3DBlob **error_messages)
HRESULT WINAPI	D3DAssemble (const void *data, SIZE_T datasize, const char *filename, const D3D_SHADER_MACRO *defines, ID3DInclude *include, UINT flags, ID3DBlob **shader, ID3DBlob **error_messages)
static enum vkd3d_shader_target_type	get_target_for_profile (const char *profile)
HRESULT WINAPI	D3DCompile2 (const void *data, SIZE_T data_size, const char *filename, const D3D_SHADER_MACRO *macros, ID3DInclude *include, const char *entry_point, const char *profile, UINT flags, UINT effect_flags, UINT secondary_flags, const void *secondary_data, SIZE_T secondary_data_size, ID3DBlob **shader_blob, ID3DBlob **messages_blob)
HRESULT WINAPI	D3DCompile (const void *data, SIZE_T data_size, const char *filename, const D3D_SHADER_MACRO *defines, ID3DInclude *include, const char *entrypoint, const char *target, UINT sflags, UINT eflags, ID3DBlob **shader, ID3DBlob **error_messages)
HRESULT WINAPI	D3DPreprocess (const void *data, SIZE_T size, const char *filename, const D3D_SHADER_MACRO *defines, ID3DInclude *include, ID3DBlob **shader, ID3DBlob **error_messages)
HRESULT WINAPI	D3DDisassemble (const void *data, SIZE_T size, UINT flags, const char *comments, ID3DBlob **disassembly)
HRESULT WINAPI	D3DCompileFromFile (const WCHAR *filename, const D3D_SHADER_MACRO *defines, ID3DInclude *include, const char *entrypoint, const char *target, UINT flags1, UINT flags2, ID3DBlob **code, ID3DBlob **errors)
HRESULT WINAPI	D3DCreateLinker (ID3D11Linker **linker)
HRESULT WINAPI	D3DLoadModule (const void *data, SIZE_T size, ID3D11Module **module)

Variables
static CRITICAL_SECTION	wpp_mutex = { &wpp_mutex_debug, -1, 0, 0, 0, 0 }
static CRITICAL_SECTION_DEBUG	wpp_mutex_debug
const struct ID3DIncludeVtbl	d3dcompiler_include_from_file_vtbl

Macro Definition Documentation

COBJMACROS

#define COBJMACROS

Definition at line 21 of file compiler.c.

D3DXERR_INVALIDDATA

#define D3DXERR_INVALIDDATA   0x88760b59

Definition at line 53 of file compiler.c.

Function Documentation

assemble_shader()

static HRESULT assemble_shader ( const char *  preproc_shader, ID3DBlob **  shader_blob, ID3DBlob **  error_messages  )

static

Definition at line 285 of file compiler.c.

{
    struct bwriter_shader *shader;
    char *messages = NULL;
    uint32_t *res, size;
    ID3DBlob *buffer;
    HRESULT hr;
    char *pos;

    shader = SlAssembleShader(preproc_shader, &messages);

    if (messages)
    {
        TRACE("Assembler messages:\n");
        TRACE("%s\n", debugstr_a(messages));

        TRACE("Shader source:\n");
        TRACE("%s\n", debugstr_a(preproc_shader));

        if (error_messages)
        {
            const char *preproc_messages = *error_messages ? ID3D10Blob_GetBufferPointer(*error_messages) : NULL;

            size = strlen(messages) + (preproc_messages ? strlen(preproc_messages) : 0) + 1;
            hr = D3DCreateBlob(size, &buffer);
            if (FAILED(hr))
            {
                free(messages);
                if (shader) SlDeleteShader(shader);
                return hr;
            }
            pos = ID3D10Blob_GetBufferPointer(buffer);
            if (preproc_messages)
            {
                CopyMemory(pos, preproc_messages, strlen(preproc_messages) + 1);
                pos += strlen(preproc_messages);
            }
            CopyMemory(pos, messages, strlen(messages) + 1);

            if (*error_messages) ID3D10Blob_Release(*error_messages);
            *error_messages = buffer;
        }
        free(messages);
    }

    if (shader == NULL)
    {
        ERR("Asm reading failed\n");
        return D3DXERR_INVALIDDATA;
    }

    hr = shader_write_bytecode(shader, &res, &size);
    SlDeleteShader(shader);
    if (FAILED(hr))
    {
        ERR("Failed to write bytecode, hr %#lx.\n", hr);
        return D3DXERR_INVALIDDATA;
    }

    if (shader_blob)
    {
        hr = D3DCreateBlob(size, &buffer);
        if (FAILED(hr))
        {
            free(res);
            return hr;
        }
        CopyMemory(ID3D10Blob_GetBufferPointer(buffer), res, size);
        *shader_blob = buffer;
    }

    free(res);

    return S_OK;
}

Referenced by D3DAssemble().

close_include()

static void close_include ( const struct vkd3d_shader_code *  code, void *  context  )

static

Definition at line 167 of file compiler.c.

{
    ID3DInclude *iface = context;

    ID3DInclude_Close(iface, code->code);
}

Referenced by D3DCompile2(), and preprocess_shader().

D3DAssemble()

HRESULT WINAPI D3DAssemble	(	const void *	data,
		SIZE_T	datasize,
		const char *	filename,
		const D3D_SHADER_MACRO *	defines,
		ID3DInclude *	include,
		UINT	flags,
		ID3DBlob **	shader,
		ID3DBlob **	error_messages
	)

Definition at line 361 of file compiler.c.

{
    unsigned int preproc_size;
    ID3DBlob *preproc_shader;
    char *preproc_terminated;
    HRESULT hr;

    TRACE("data %p, datasize %Iu, filename %s, defines %p, include %p, sflags %#x, "
            "shader %p, error_messages %p.\n",
            data, datasize, debugstr_a(filename), defines, include, flags, shader, error_messages);

    EnterCriticalSection(&wpp_mutex);

    /* TODO: flags */
    if (flags) FIXME("flags %x\n", flags);

    if (shader) *shader = NULL;
    if (error_messages) *error_messages = NULL;

    hr = preprocess_shader(data, datasize, filename, defines, include, &preproc_shader, error_messages);
    if (SUCCEEDED(hr))
    {
        preproc_size = ID3D10Blob_GetBufferSize(preproc_shader);
        if ((preproc_terminated = malloc(preproc_size + 1)))
        {
            memcpy(preproc_terminated, ID3D10Blob_GetBufferPointer(preproc_shader), preproc_size);
            ID3D10Blob_Release(preproc_shader);
            preproc_terminated[preproc_size] = 0;

            hr = assemble_shader(preproc_terminated, shader, error_messages);
            free(preproc_terminated);
        }
    }
    LeaveCriticalSection(&wpp_mutex);
    return hr;
}

D3DCompile()

HRESULT WINAPI D3DCompile	(	const void *	data,
		SIZE_T	data_size,
		const char *	filename,
		const D3D_SHADER_MACRO *	defines,
		ID3DInclude *	include,
		const char *	entrypoint,
		const char *	target,
		UINT	sflags,
		UINT	eflags,
		ID3DBlob **	shader,
		ID3DBlob **	error_messages
	)

Definition at line 639 of file compiler.c.

{
    TRACE("data %p, data_size %Iu, filename %s, defines %p, include %p, entrypoint %s, "
            "target %s, sflags %#x, eflags %#x, shader %p, error_messages %p.\n",
            data, data_size, debugstr_a(filename), defines, include, debugstr_a(entrypoint),
            debugstr_a(target), sflags, eflags, shader, error_messages);

    return D3DCompile2(data, data_size, filename, defines, include, entrypoint, target, sflags,
            eflags, 0, NULL, 0, shader, error_messages);
}

Referenced by call_D3DCompile(), compile_shader_(), create_effect(), d2d_device_context_init(), D3DCompileFromFile(), D3DX10CompileFromMemory(), D3DX11CompileFromMemory(), d3dx9_effect_init(), D3DXCompileShader(), D3DXCompileShaderFromFileW(), test_fail(), test_hlsl_double(), test_include(), and test_no_output_blob().

D3DCompile2()

HRESULT WINAPI D3DCompile2	(	const void *	data,
		SIZE_T	data_size,
		const char *	filename,
		const D3D_SHADER_MACRO *	macros,
		ID3DInclude *	include,
		const char *	entry_point,
		const char *	profile,
		UINT	flags,
		UINT	effect_flags,
		UINT	secondary_flags,
		const void *	secondary_data,
		SIZE_T	secondary_data_size,
		ID3DBlob **	shader_blob,
		ID3DBlob **	messages_blob
	)

Definition at line 451 of file compiler.c.

{
    struct d3dcompiler_include_from_file include_from_file;
    struct vkd3d_shader_preprocess_info preprocess_info;
    struct vkd3d_shader_hlsl_source_info hlsl_info;
    struct vkd3d_shader_compile_option options[6];
    struct vkd3d_shader_compile_info compile_info;
    struct vkd3d_shader_compile_option *option;
    struct vkd3d_shader_code byte_code;
    const D3D_SHADER_MACRO *macro;
    char *messages;
    HRESULT hr;
    int ret;

    TRACE("data %p, data_size %Iu, filename %s, macros %p, include %p, entry_point %s, "
            "profile %s, flags %#x, effect_flags %#x, secondary_flags %#x, secondary_data %p, "
            "secondary_data_size %Iu, shader_blob %p, messages_blob %p.\n",
            data, data_size, debugstr_a(filename), macros, include, debugstr_a(entry_point),
            debugstr_a(profile), flags, effect_flags, secondary_flags, secondary_data,
            secondary_data_size, shader_blob, messages_blob);

    if (include == D3D_COMPILE_STANDARD_FILE_INCLUDE)
    {
        include_from_file.ID3DInclude_iface.lpVtbl = &d3dcompiler_include_from_file_vtbl;
        include_from_file.initial_filename = filename ? filename : "";
        include = &include_from_file.ID3DInclude_iface;
    }

    if (flags & ~(D3DCOMPILE_DEBUG | D3DCOMPILE_PACK_MATRIX_ROW_MAJOR | D3DCOMPILE_PACK_MATRIX_COLUMN_MAJOR
            | D3DCOMPILE_ENABLE_BACKWARDS_COMPATIBILITY))
    {
        FIXME("Ignoring flags %#x.\n", flags);
    }
    if (effect_flags & ~D3DCOMPILE_EFFECT_CHILD_EFFECT)
        FIXME("Ignoring effect flags %#x.\n", effect_flags & ~D3DCOMPILE_EFFECT_CHILD_EFFECT);
    if (secondary_flags)
        FIXME("Ignoring secondary flags %#x.\n", secondary_flags);

    if (shader_blob)
        *shader_blob = NULL;
    if (messages_blob)
        *messages_blob = NULL;

    option = &options[0];
    option->name = VKD3D_SHADER_COMPILE_OPTION_API_VERSION;
    option->value = VKD3D_SHADER_API_VERSION_1_3;

    compile_info.type = VKD3D_SHADER_STRUCTURE_TYPE_COMPILE_INFO;
    compile_info.next = &preprocess_info;
    compile_info.source.code = data;
    compile_info.source.size = data_size;
    compile_info.source_type = VKD3D_SHADER_SOURCE_HLSL;
    compile_info.target_type = get_target_for_profile(profile);
    compile_info.options = options;
    compile_info.option_count = 1;
    compile_info.log_level = VKD3D_SHADER_LOG_INFO;
    compile_info.source_name = filename;

    preprocess_info.type = VKD3D_SHADER_STRUCTURE_TYPE_PREPROCESS_INFO;
    preprocess_info.next = &hlsl_info;
    preprocess_info.macros = (const struct vkd3d_shader_macro *)macros;
    preprocess_info.macro_count = 0;
    if (macros)
    {
        for (macro = macros; macro->Name; ++macro)
            ++preprocess_info.macro_count;
    }
    preprocess_info.pfn_open_include = open_include;
    preprocess_info.pfn_close_include = close_include;
    preprocess_info.include_context = include;

    hlsl_info.type = VKD3D_SHADER_STRUCTURE_TYPE_HLSL_SOURCE_INFO;
    hlsl_info.next = NULL;
    hlsl_info.profile = profile;
    hlsl_info.entry_point = entry_point;
    hlsl_info.secondary_code.code = secondary_data;
    hlsl_info.secondary_code.size = secondary_data_size;

    if (!(flags & D3DCOMPILE_DEBUG))
    {
        option = &options[compile_info.option_count++];
        option->name = VKD3D_SHADER_COMPILE_OPTION_STRIP_DEBUG;
        option->value = true;
    }

    if (flags & D3DCOMPILE_PACK_MATRIX_ROW_MAJOR)
    {
        option = &options[compile_info.option_count++];
        option->name = VKD3D_SHADER_COMPILE_OPTION_PACK_MATRIX_ORDER;
        option->value = VKD3D_SHADER_COMPILE_OPTION_PACK_MATRIX_ROW_MAJOR;
    }
    else if (flags & D3DCOMPILE_PACK_MATRIX_COLUMN_MAJOR)
    {
        option = &options[compile_info.option_count++];
        option->name = VKD3D_SHADER_COMPILE_OPTION_PACK_MATRIX_ORDER;
        option->value = VKD3D_SHADER_COMPILE_OPTION_PACK_MATRIX_COLUMN_MAJOR;
    }

    if (flags & D3DCOMPILE_ENABLE_BACKWARDS_COMPATIBILITY)
    {
        option = &options[compile_info.option_count++];
        option->name = VKD3D_SHADER_COMPILE_OPTION_BACKWARD_COMPATIBILITY;
        option->value = VKD3D_SHADER_COMPILE_OPTION_BACKCOMPAT_MAP_SEMANTIC_NAMES;
    }

    if (effect_flags & D3DCOMPILE_EFFECT_CHILD_EFFECT)
    {
        option = &options[compile_info.option_count++];
        option->name = VKD3D_SHADER_COMPILE_OPTION_CHILD_EFFECT;
        option->value = true;
    }

#if D3D_COMPILER_VERSION <= 39
    option = &options[compile_info.option_count++];
    option->name = VKD3D_SHADER_COMPILE_OPTION_INCLUDE_EMPTY_BUFFERS_IN_EFFECTS;
    option->value = true;
#endif

    ret = vkd3d_shader_compile(&compile_info, &byte_code, &messages);

    if (ret)
        ERR("Failed to compile shader, vkd3d result %d.\n", ret);

    if (messages)
    {
        if (*messages && ERR_ON(d3dcompiler))
        {
            const char *ptr = messages;
            const char *line;

            ERR("Shader log:\n");
            while ((line = get_line(&ptr)))
            {
                ERR("    %.*s", (int)(ptr - line), line);
            }
            ERR("\n");
        }

        if (messages_blob)
        {
            size_t size = strlen(messages);
            if (FAILED(hr = D3DCreateBlob(size, messages_blob)))
            {
                vkd3d_shader_free_messages(messages);
                vkd3d_shader_free_shader_code(&byte_code);
                return hr;
            }
            memcpy(ID3D10Blob_GetBufferPointer(*messages_blob), messages, size);
        }

        vkd3d_shader_free_messages(messages);
    }

    if (ret)
        return hresult_from_vkd3d_result(ret);

    if (!shader_blob)
    {
        vkd3d_shader_free_shader_code(&byte_code);
        return S_OK;
    }

    /* Unlike other effect profiles fx_4_x is using DXBC container. */
    if (!strcmp(profile, "fx_4_0") || !strcmp(profile, "fx_4_1"))
    {
        struct vkd3d_shader_dxbc_section_desc section = { .tag = TAG_FX10, .data = byte_code };
        struct vkd3d_shader_code dxbc;

        ret = vkd3d_shader_serialize_dxbc(1, &section, &dxbc, NULL);
        vkd3d_shader_free_shader_code(&byte_code);
        if (ret)
            return hresult_from_vkd3d_result(ret);

        byte_code = dxbc;
    }

    if (SUCCEEDED(hr = D3DCreateBlob(byte_code.size, shader_blob)))
        memcpy(ID3D10Blob_GetBufferPointer(*shader_blob), byte_code.code, byte_code.size);

    vkd3d_shader_free_shader_code(&byte_code);

    return hr;
}

Referenced by D3DCompile().

D3DCompileFromFile()

HRESULT WINAPI D3DCompileFromFile	(	const WCHAR *	filename,
		const D3D_SHADER_MACRO *	defines,
		ID3DInclude *	include,
		const char *	entrypoint,
		const char *	target,
		UINT	flags1,
		UINT	flags2,
		ID3DBlob **	code,
		ID3DBlob **	errors
	)

Definition at line 743 of file compiler.c.

{
    char filename_a[MAX_PATH], *source = NULL;
    DWORD source_size, read_size;
    HANDLE file;
    HRESULT hr;

    TRACE("filename %s, defines %p, include %p, entrypoint %s, target %s, flags1 %#x, flags2 %#x, "
            "code %p, errors %p.\n", debugstr_w(filename), defines, include, debugstr_a(entrypoint),
            debugstr_a(target), flags1, flags2, code, errors);

    file = CreateFileW(filename, GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
    if (file == INVALID_HANDLE_VALUE)
        return HRESULT_FROM_WIN32(GetLastError());

    source_size = GetFileSize(file, NULL);
    if (source_size == INVALID_FILE_SIZE)
    {
        hr = HRESULT_FROM_WIN32(GetLastError());
        goto end;
    }

    if (!(source = malloc(source_size)))
    {
        hr = E_OUTOFMEMORY;
        goto end;
    }

    if (!ReadFile(file, source, source_size, &read_size, NULL) || read_size != source_size)
    {
        WARN("Failed to read file contents.\n");
        hr = E_FAIL;
        goto end;
    }

    WideCharToMultiByte(CP_ACP, 0, filename, -1, filename_a, sizeof(filename_a), NULL, NULL);

    hr = D3DCompile(source, source_size, filename_a, defines, include, entrypoint, target,
            flags1, flags2, code, errors);

end:
    free(source);
    CloseHandle(file);
    return hr;
}

Referenced by D3DX11CompileFromFileW(), and test_include().

d3dcompiler_include_from_file_close()

static HRESULT WINAPI d3dcompiler_include_from_file_close ( ID3DInclude *  iface, const void *  data  )

static

Definition at line 137 of file compiler.c.

{
    free((void *)data);
    return S_OK;
}

d3dcompiler_include_from_file_open()

static HRESULT WINAPI d3dcompiler_include_from_file_open ( ID3DInclude *  iface, D3D_INCLUDE_TYPE  include_type, const char *  filename, const void *  parent_data, const void **  data, UINT *  bytes  )

static

Definition at line 78 of file compiler.c.

{
    struct d3dcompiler_include_from_file *include = impl_from_ID3DInclude(iface);
    char *fullpath, *buffer = NULL, current_dir[MAX_PATH + 1];
    const char *initial_dir;
    SIZE_T size;
    HANDLE file;
    ULONG read;
    DWORD len;

    if ((initial_dir = strrchr(include->initial_filename, '\\')))
    {
        len = initial_dir - include->initial_filename + 1;
        initial_dir = include->initial_filename;
    }
    else
    {
        len = GetCurrentDirectoryA(MAX_PATH, current_dir);
        current_dir[len] = '\\';
        len++;
        initial_dir = current_dir;
    }
    fullpath = malloc(len + strlen(filename) + 1);
    if (!fullpath)
        return E_OUTOFMEMORY;
    memcpy(fullpath, initial_dir, len);
    strcpy(fullpath + len, filename);

    file = CreateFileA(fullpath, GENERIC_READ, FILE_SHARE_READ, 0, OPEN_EXISTING, 0, 0);
    if (file == INVALID_HANDLE_VALUE)
        goto error;

    TRACE("Include file found at %s.\n", debugstr_a(fullpath));

    size = GetFileSize(file, NULL);
    if (size == INVALID_FILE_SIZE)
        goto error;
    buffer = malloc(size);
    if (!buffer)
        goto error;
    if (!ReadFile(file, buffer, size, &read, NULL) || read != size)
        goto error;

    *bytes = size;
    *data = buffer;

    free(fullpath);
    CloseHandle(file);
    return S_OK;

error:
    free(fullpath);
    free(buffer);
    CloseHandle(file);
    WARN("Returning E_FAIL.\n");
    return E_FAIL;
}

D3DCreateLinker()

HRESULT WINAPI D3DCreateLinker

(

ID3D11Linker **

linker

)

Definition at line 790 of file compiler.c.

{
    FIXME("linker %p stub!\n", linker);
    return E_NOTIMPL;
}

D3DDisassemble()

HRESULT WINAPI D3DDisassemble	(	const void *	data,
		SIZE_T	size,
		UINT	flags,
		const char *	comments,
		ID3DBlob **	disassembly
	)

Definition at line 668 of file compiler.c.

{
    struct vkd3d_shader_compile_info compile_info;
    enum vkd3d_shader_source_type source_type;
    struct vkd3d_shader_code asm_code;
    const char *ptr = data;
    char *messages;
    HRESULT hr;
    int ret;

    TRACE("data %p, size %Iu, flags %#x, comments %p, disassembly %p.\n",
            data, size, flags, comments, disassembly);

    if (flags)
        FIXME("Ignoring flags %#x.\n", flags);

    if (comments)
        FIXME("Ignoring comments %s.\n", debugstr_a(comments));

#if D3D_COMPILER_VERSION >= 46
    if (!size)
        return E_INVALIDARG;
#endif

    if (size >= 4 && read_u32(&ptr) == TAG_DXBC)
        source_type = VKD3D_SHADER_SOURCE_DXBC_TPF;
    else
        source_type = VKD3D_SHADER_SOURCE_D3D_BYTECODE;

    compile_info.type = VKD3D_SHADER_STRUCTURE_TYPE_COMPILE_INFO;
    compile_info.next = NULL;
    compile_info.source.code = data;
    compile_info.source.size = size;
    compile_info.source_type = source_type;
    compile_info.target_type = VKD3D_SHADER_TARGET_D3D_ASM;
    compile_info.options = NULL;
    compile_info.option_count = 0;
    compile_info.log_level = VKD3D_SHADER_LOG_INFO;
    compile_info.source_name = NULL;

    ret = vkd3d_shader_compile(&compile_info, &asm_code, &messages);

    if (ret)
        ERR("Failed to disassemble shader, vkd3d result %d.\n", ret);

    if (messages)
    {
        if (*messages && ERR_ON(d3dcompiler))
        {
            const char *ptr = messages;
            const char *line;

            ERR("Shader log:\n");
            while ((line = get_line(&ptr)))
            {
                ERR("    %.*s", (int)(ptr - line), line);
            }
            ERR("\n");
        }

        vkd3d_shader_free_messages(messages);
    }

    if (ret)
        return hresult_from_vkd3d_result(ret);

    if (SUCCEEDED(hr = D3DCreateBlob(asm_code.size, disassembly)))
        memcpy(ID3D10Blob_GetBufferPointer(*disassembly), asm_code.code, asm_code.size);

    vkd3d_shader_free_shader_code(&asm_code);

    return hr;
}

Referenced by D3DXDisassembleShader(), and test_disassemble_shader().

D3DLoadModule()

HRESULT WINAPI D3DLoadModule	(	const void *	data,
		SIZE_T	size,
		ID3D11Module **	module
	)

Definition at line 796 of file compiler.c.

{
    FIXME("data %p, size %Iu, module %p stub!\n", data, size, module);
    return E_NOTIMPL;
}

D3DPreprocess()

HRESULT WINAPI D3DPreprocess	(	const void *	data,
		SIZE_T	size,
		const char *	filename,
		const D3D_SHADER_MACRO *	defines,
		ID3DInclude *	include,
		ID3DBlob **	shader,
		ID3DBlob **	error_messages
	)

Definition at line 652 of file compiler.c.

{
    TRACE("data %p, size %Iu, filename %s, defines %p, include %p, shader %p, error_messages %p.\n",
          data, size, debugstr_a(filename), defines, include, shader, error_messages);

    if (!data)
        return E_INVALIDARG;

    if (shader) *shader = NULL;
    if (error_messages) *error_messages = NULL;

    return preprocess_shader(data, size, filename, defines, include, shader, error_messages);
}

Referenced by call_D3DPreprocess(), d3dpreprocess_test(), D3DX10PreprocessShaderFromMemory(), D3DXPreprocessShader(), and D3DXPreprocessShaderFromFileW().

get_line()

static const char * get_line ( const char **  ptr )

static

Definition at line 174 of file compiler.c.

{
    const char *p, *q;

    p = *ptr;
    if (!(q = strstr(p, "\n")))
    {
        if (!*p)
            return NULL;
        *ptr += strlen(p);
        return p;
    }
    *ptr = q + 1;

    return p;
}

get_target_for_profile()

static enum vkd3d_shader_target_type get_target_for_profile ( const char *  profile )

static

Definition at line 400 of file compiler.c.

{
    size_t profile_len, i;

    static const char * const d3dbc_profiles[] =
    {
        "ps.1.",
        "ps.2.",
        "ps.3.",

        "ps_1_",
        "ps_2_",
        "ps_3_",

        "vs.1.",
        "vs.2.",
        "vs.3.",

        "vs_1_",
        "vs_2_",
        "vs_3_",

        "tx_1_",
    };

    static const char * const fx_profiles[] =
    {
        "fx_2_0",
        "fx_4_0",
        "fx_4_1",
        "fx_5_0",
    };

    profile_len = strlen(profile);
    for (i = 0; i < ARRAY_SIZE(d3dbc_profiles); ++i)
    {
        size_t len = strlen(d3dbc_profiles[i]);

        if (len <= profile_len && !memcmp(profile, d3dbc_profiles[i], len))
            return VKD3D_SHADER_TARGET_D3D_BYTECODE;
    }

    for (i = 0; i < ARRAY_SIZE(fx_profiles); ++i)
    {
        if (!strcmp(profile, fx_profiles[i]))
            return VKD3D_SHADER_TARGET_FX;
    }

    return VKD3D_SHADER_TARGET_DXBC_TPF;
}

Referenced by D3DCompile2().

hresult_from_vkd3d_result()

static HRESULT hresult_from_vkd3d_result ( int  vkd3d_result )

static

Definition at line 30 of file compiler.c.

{
    switch (vkd3d_result)
    {
        case VKD3D_OK:
            return S_OK;
        case VKD3D_ERROR_INVALID_SHADER:
            WARN("Invalid shader bytecode.\n");
            /* fall-through */
        case VKD3D_ERROR:
            return E_FAIL;
        case VKD3D_ERROR_OUT_OF_MEMORY:
            return E_OUTOFMEMORY;
        case VKD3D_ERROR_INVALID_ARGUMENT:
            return E_INVALIDARG;
        case VKD3D_ERROR_NOT_IMPLEMENTED:
            return E_NOTIMPL;
        default:
            FIXME("Unhandled vkd3d result %d.\n", vkd3d_result);
            return E_FAIL;
    }
}

Referenced by create_shader_stage(), d3d12_cache_session_FindValue(), d3d12_cache_session_init(), d3d12_cache_session_StoreValue(), d3d12_pipeline_state_find_and_init_uav_counters(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_create(), d3d12_root_signature_deserializer_init(), d3d12_versioned_root_signature_deserializer_GetRootSignatureDescAtVersion(), d3d12_versioned_root_signature_deserializer_init(), D3DCompile2(), D3DDisassemble(), preprocess_shader(), vkd3d_serialize_root_signature(), and vkd3d_serialize_versioned_root_signature().

impl_from_ID3DInclude()

static struct d3dcompiler_include_from_file * impl_from_ID3DInclude ( ID3DInclude *  iface )

inlinestatic

Definition at line 73 of file compiler.c.

{
    return CONTAINING_RECORD(iface, struct d3dcompiler_include_from_file, ID3DInclude_iface);
}

Referenced by d3dcompiler_include_from_file_open().

open_include()

static int open_include ( const char *  filename, bool  local, const char *  parent_data, void *  context, struct vkd3d_shader_code *  code  )

static

Definition at line 149 of file compiler.c.

{
    ID3DInclude *iface = context;
    unsigned int size = 0;

    if (!iface)
        return VKD3D_ERROR;

    memset(code, 0, sizeof(*code));
    if (FAILED(ID3DInclude_Open(iface, local ? D3D_INCLUDE_LOCAL : D3D_INCLUDE_SYSTEM,
            filename, parent_data, &code->code, &size)))
        return VKD3D_ERROR;

    code->size = size;
    return VKD3D_OK;
}

Referenced by D3DCompile2(), and preprocess_shader().

preprocess_shader()

static HRESULT preprocess_shader ( const void *  data, SIZE_T  data_size, const char *  filename, const D3D_SHADER_MACRO *  defines, ID3DInclude *  include, ID3DBlob **  shader_blob, ID3DBlob **  messages_blob  )

static

Definition at line 191 of file compiler.c.

{
    struct d3dcompiler_include_from_file include_from_file;
    struct vkd3d_shader_preprocess_info preprocess_info;
    struct vkd3d_shader_compile_info compile_info;
    const D3D_SHADER_MACRO *def = defines;
    struct vkd3d_shader_code byte_code;
    char *messages;
    HRESULT hr;
    int ret;

    if (include == D3D_COMPILE_STANDARD_FILE_INCLUDE)
    {
        include_from_file.ID3DInclude_iface.lpVtbl = &d3dcompiler_include_from_file_vtbl;
        include_from_file.initial_filename = filename ? filename : "";
        include = &include_from_file.ID3DInclude_iface;
    }

    compile_info.type = VKD3D_SHADER_STRUCTURE_TYPE_COMPILE_INFO;
    compile_info.next = &preprocess_info;
    compile_info.source.code = data;
    compile_info.source.size = data_size;
    compile_info.source_type = VKD3D_SHADER_SOURCE_HLSL;
    compile_info.target_type = VKD3D_SHADER_TARGET_NONE;
    compile_info.options = NULL;
    compile_info.option_count = 0;
    compile_info.log_level = VKD3D_SHADER_LOG_INFO;
    compile_info.source_name = filename;

    preprocess_info.type = VKD3D_SHADER_STRUCTURE_TYPE_PREPROCESS_INFO;
    preprocess_info.next = NULL;
    preprocess_info.macros = (const struct vkd3d_shader_macro *)defines;
    preprocess_info.macro_count = 0;
    if (defines)
    {
        for (def = defines; def->Name; ++def)
            ++preprocess_info.macro_count;
    }
    preprocess_info.pfn_open_include = open_include;
    preprocess_info.pfn_close_include = close_include;
    preprocess_info.include_context = include;

    ret = vkd3d_shader_preprocess(&compile_info, &byte_code, &messages);

    if (ret)
        ERR("Failed to preprocess shader, vkd3d result %d.\n", ret);

    if (messages)
    {
        if (*messages && ERR_ON(d3dcompiler))
        {
            const char *ptr = messages;
            const char *line;

            ERR("Shader log:\n");
            while ((line = get_line(&ptr)))
            {
                ERR("    %.*s", (int)(ptr - line), line);
            }
            ERR("\n");
        }

        if (messages_blob)
        {
            size_t size = strlen(messages);
            if (FAILED(hr = D3DCreateBlob(size, messages_blob)))
            {
                vkd3d_shader_free_messages(messages);
                vkd3d_shader_free_shader_code(&byte_code);
                return hr;
            }
            memcpy(ID3D10Blob_GetBufferPointer(*messages_blob), messages, size);
        }
        else
        {
            vkd3d_shader_free_messages(messages);
        }
    }

    if (!ret)
    {
        if (FAILED(hr = D3DCreateBlob(byte_code.size, shader_blob)))
        {
            vkd3d_shader_free_shader_code(&byte_code);
            return hr;
        }
        memcpy(ID3D10Blob_GetBufferPointer(*shader_blob), byte_code.code, byte_code.size);
    }

    return hresult_from_vkd3d_result(ret);
}

Referenced by D3DAssemble(), and D3DPreprocess().

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

d3dcompiler

)

Variable Documentation

d3dcompiler_include_from_file_vtbl

const struct ID3DIncludeVtbl d3dcompiler_include_from_file_vtbl

Initial value:

=
{
    d3dcompiler_include_from_file_open,
    d3dcompiler_include_from_file_close
}

Definition at line 143 of file compiler.c.

Referenced by D3DCompile2(), and preprocess_shader().

wpp_mutex

static CRITICAL_SECTION wpp_mutex = { &wpp_mutex_debug, -1, 0, 0, 0, 0 }

static

Definition at line 57 of file compiler.c.

Referenced by D3DAssemble().

wpp_mutex_debug

CRITICAL_SECTION_DEBUG wpp_mutex_debug

static

Initial value:

=
{
    0, 0, &wpp_mutex,
    { &wpp_mutex_debug.ProcessLocksList,
      &wpp_mutex_debug.ProcessLocksList },
      0, 0, { (DWORD_PTR)(__FILE__ ": wpp_mutex") }
}

Definition at line 58 of file compiler.c.
