d3d12_main.c File Reference

#include "windef.h"
#include "dxgi1_6.h"
#include "d3d12.h"
#include "wine/vulkan.h"
#include <vkd3d.h>
#include "initguid.h"
#include "wine/wined3d.h"
#include "wine/winedxgi.h"
#include "wine/debug.h"

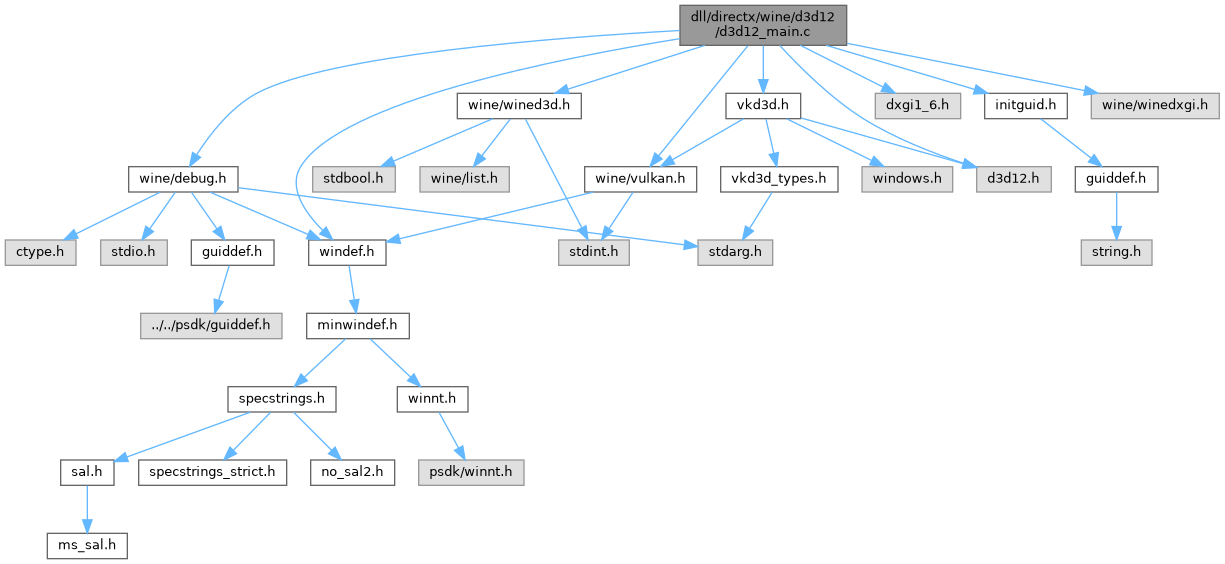

Include dependency graph for d3d12_main.c:

Go to the source code of this file.

Macros
#define	COBJMACROS
#define	VKD3D_NO_VULKAN_H
#define	VKD3D_NO_WIN32_TYPES

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (d3d12)
	WINE_DECLARE_DEBUG_CHANNEL (winediag)
static BOOL WINAPI	load_vulkan_dll_once (INIT_ONCE *once, void *param, void **context)
static PFN_vkGetInstanceProcAddr	load_vulkan (void)
HRESULT WINAPI	D3D12GetDebugInterface (REFIID iid, void **debug)
HRESULT WINAPI	D3D12EnableExperimentalFeatures (UINT feature_count, const IID *iids, void *configurations, UINT *configurations_sizes)
static HRESULT	d3d12_signal_event (HANDLE event)
static HRESULT	d3d12_get_adapter (IWineDXGIAdapter **wine_adapter, IUnknown *adapter)
static BOOL	check_vk_instance_extension (VkInstance vk_instance, PFN_vkGetInstanceProcAddr pfn_vkGetInstanceProcAddr, const char *name)
static VkPhysicalDevice	d3d12_get_vk_physical_device (struct vkd3d_instance *instance, PFN_vkGetInstanceProcAddr pfn_vkGetInstanceProcAddr, const struct wine_dxgi_adapter_info *adapter_info)
HRESULT WINAPI	D3D12CreateDevice (IUnknown *adapter, D3D_FEATURE_LEVEL minimum_feature_level, REFIID iid, void **device)
HRESULT WINAPI	D3D12CreateRootSignatureDeserializer (const void *data, SIZE_T data_size, REFIID iid, void **deserializer)
HRESULT WINAPI	D3D12CreateVersionedRootSignatureDeserializer (const void *data, SIZE_T data_size, REFIID iid, void **deserializer)
HRESULT WINAPI	D3D12SerializeRootSignature (const D3D12_ROOT_SIGNATURE_DESC *root_signature_desc, D3D_ROOT_SIGNATURE_VERSION version, ID3DBlob **blob, ID3DBlob **error_blob)
HRESULT WINAPI	D3D12SerializeVersionedRootSignature (const D3D12_VERSIONED_ROOT_SIGNATURE_DESC *desc, ID3DBlob **blob, ID3DBlob **error_blob)

Variables
static HMODULE	vulkan_module

Macro Definition Documentation

COBJMACROS

#define COBJMACROS

Definition at line 20 of file d3d12_main.c.

VKD3D_NO_VULKAN_H

#define VKD3D_NO_VULKAN_H

Definition at line 21 of file d3d12_main.c.

VKD3D_NO_WIN32_TYPES

#define VKD3D_NO_WIN32_TYPES

Definition at line 22 of file d3d12_main.c.

Function Documentation

check_vk_instance_extension()

static BOOL check_vk_instance_extension ( VkInstance  vk_instance, PFN_vkGetInstanceProcAddr  pfn_vkGetInstanceProcAddr, const char *  name  )

static

Definition at line 117 of file d3d12_main.c.

{
    PFN_vkEnumerateInstanceExtensionProperties pfn_vkEnumerateInstanceExtensionProperties;
    VkExtensionProperties *properties;
    BOOL ret = FALSE;
    unsigned int i;
    uint32_t count;

    pfn_vkEnumerateInstanceExtensionProperties
            = (void *)pfn_vkGetInstanceProcAddr(vk_instance, "vkEnumerateInstanceExtensionProperties");

    if (pfn_vkEnumerateInstanceExtensionProperties(NULL, &count, NULL) < 0)
        return FALSE;

    if (!(properties = calloc(count, sizeof(*properties))))
        return FALSE;

    if (pfn_vkEnumerateInstanceExtensionProperties(NULL, &count, properties) >= 0)
    {
        for (i = 0; i < count; ++i)
        {
            if (!strcmp(properties[i].extensionName, name))
            {
                ret = TRUE;
                break;
            }
        }
    }

    free(properties);
    return ret;
}

Referenced by d3d12_get_vk_physical_device().

d3d12_get_adapter()

static HRESULT d3d12_get_adapter ( IWineDXGIAdapter **  wine_adapter, IUnknown *  adapter  )

static

Definition at line 82 of file d3d12_main.c.

{
    IDXGIAdapter *dxgi_adapter = NULL;
    IDXGIFactory4 *factory = NULL;
    HRESULT hr;

    if (!adapter)
    {
        if (FAILED(hr = CreateDXGIFactory2(0, &IID_IDXGIFactory4, (void **)&factory)))
        {
            WARN("Failed to create DXGI factory, hr %#lx.\n", hr);
            goto done;
        }

        if (FAILED(hr = IDXGIFactory4_EnumAdapters(factory, 0, &dxgi_adapter)))
        {
            WARN("Failed to enumerate primary adapter, hr %#lx.\n", hr);
            goto done;
        }

        adapter = (IUnknown *)dxgi_adapter;
    }

    if (FAILED(hr = IUnknown_QueryInterface(adapter, &IID_IWineDXGIAdapter, (void **)wine_adapter)))
        WARN("Invalid adapter %p, hr %#lx.\n", adapter, hr);

done:
    if (dxgi_adapter)
        IDXGIAdapter_Release(dxgi_adapter);
    if (factory)
        IDXGIFactory4_Release(factory);

    return hr;
}

Referenced by D3D12CreateDevice().

d3d12_get_vk_physical_device()

static VkPhysicalDevice d3d12_get_vk_physical_device ( struct vkd3d_instance *  instance, PFN_vkGetInstanceProcAddr  pfn_vkGetInstanceProcAddr, const struct wine_dxgi_adapter_info *  adapter_info  )

static

Definition at line 151 of file d3d12_main.c.

{
    PFN_vkGetPhysicalDeviceProperties2 pfn_vkGetPhysicalDeviceProperties2 = NULL;
    PFN_vkGetPhysicalDeviceProperties pfn_vkGetPhysicalDeviceProperties;
    PFN_vkEnumeratePhysicalDevices pfn_vkEnumeratePhysicalDevices;
    VkPhysicalDevice vk_physical_device = VK_NULL_HANDLE;
    VkPhysicalDeviceIDProperties id_properties;
    VkPhysicalDeviceProperties2 properties2;
    VkPhysicalDeviceProperties properties;
    VkPhysicalDevice *vk_physical_devices;
    VkInstance vk_instance;
    unsigned int i;
    uint32_t count;
    VkResult vr;

    vk_instance = vkd3d_instance_get_vk_instance(instance);

    pfn_vkEnumeratePhysicalDevices = (void *)pfn_vkGetInstanceProcAddr(vk_instance, "vkEnumeratePhysicalDevices");

    pfn_vkGetPhysicalDeviceProperties = (void *)pfn_vkGetInstanceProcAddr(vk_instance, "vkGetPhysicalDeviceProperties");
    if (check_vk_instance_extension(vk_instance, pfn_vkGetInstanceProcAddr, VK_KHR_GET_PHYSICAL_DEVICE_PROPERTIES_2_EXTENSION_NAME))
        pfn_vkGetPhysicalDeviceProperties2 = (void *)pfn_vkGetInstanceProcAddr(vk_instance, "vkGetPhysicalDeviceProperties2KHR");

    if ((vr = pfn_vkEnumeratePhysicalDevices(vk_instance, &count, NULL)) < 0)
    {
        WARN("Failed to get device count, vr %d.\n", vr);
        return VK_NULL_HANDLE;
    }
    if (!count)
    {
        WARN("No physical device available.\n");
        return VK_NULL_HANDLE;
    }

    if (!(vk_physical_devices = calloc(count, sizeof(*vk_physical_devices))))
        return VK_NULL_HANDLE;

    if ((vr = pfn_vkEnumeratePhysicalDevices(vk_instance, &count, vk_physical_devices)) < 0)
        goto done;

    if (!IsEqualGUID(&adapter_info->driver_uuid, &GUID_NULL) && pfn_vkGetPhysicalDeviceProperties2
            && check_vk_instance_extension(vk_instance, pfn_vkGetInstanceProcAddr,
                    VK_KHR_EXTERNAL_MEMORY_CAPABILITIES_EXTENSION_NAME))
    {
        TRACE("Matching adapters by UUIDs.\n");

        for (i = 0; i < count; ++i)
        {
            memset(&id_properties, 0, sizeof(id_properties));
            id_properties.sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_ID_PROPERTIES;

            properties2.sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_PROPERTIES_2;
            properties2.pNext = &id_properties;

            pfn_vkGetPhysicalDeviceProperties2(vk_physical_devices[i], &properties2);

            if (!memcmp(id_properties.driverUUID, &adapter_info->driver_uuid, VK_UUID_SIZE)
                    && !memcmp(id_properties.deviceUUID, &adapter_info->device_uuid, VK_UUID_SIZE))
            {
                vk_physical_device = vk_physical_devices[i];
                break;
            }
        }
    }

    if (!vk_physical_device)
    {
        WARN("Matching adapters by PCI IDs.\n");

        for (i = 0; i < count; ++i)
        {
            pfn_vkGetPhysicalDeviceProperties(vk_physical_devices[i], &properties);

            if (properties.vendorID == adapter_info->vendor_id && properties.deviceID == adapter_info->device_id)
            {
                vk_physical_device = vk_physical_devices[i];
                break;
            }
        }
    }

    if (!vk_physical_device)
        FIXME("Could not find Vulkan physical device for DXGI adapter.\n");

done:
    free(vk_physical_devices);
    return vk_physical_device;
}

Referenced by D3D12CreateDevice().

d3d12_signal_event()

static HRESULT d3d12_signal_event ( HANDLE  event )

static

Definition at line 77 of file d3d12_main.c.

{
    return SetEvent(event) ? S_OK : E_FAIL;
}

Referenced by D3D12CreateDevice().

D3D12CreateDevice()

HRESULT WINAPI D3D12CreateDevice	(	IUnknown *	adapter,
		D3D_FEATURE_LEVEL	minimum_feature_level,
		REFIID	iid,
		void **	device
	)

Definition at line 241 of file d3d12_main.c.

{
    struct vkd3d_optional_instance_extensions_info optional_extensions_info;
    struct vkd3d_instance_create_info instance_create_info;
    PFN_vkGetInstanceProcAddr pfn_vkGetInstanceProcAddr;
    struct vkd3d_device_create_info device_create_info;
    struct wine_dxgi_adapter_info adapter_info;
    struct vkd3d_instance *instance;
    IWineDXGIAdapter *wine_adapter;
    HRESULT hr;

    static const char * const instance_extensions[] =
    {
        VK_KHR_SURFACE_EXTENSION_NAME,
        VK_KHR_WIN32_SURFACE_EXTENSION_NAME,
    };
    static const char * const optional_instance_extensions[] =
    {
        VK_KHR_EXTERNAL_MEMORY_CAPABILITIES_EXTENSION_NAME,
        VK_KHR_GET_PHYSICAL_DEVICE_PROPERTIES_2_EXTENSION_NAME,
    };
    static const char * const device_extensions[] =
    {
        VK_KHR_SWAPCHAIN_EXTENSION_NAME,
    };
    static const struct vkd3d_application_info application_info =
    {
        .type = VKD3D_STRUCTURE_TYPE_APPLICATION_INFO,
        .api_version = VKD3D_API_VERSION_1_2,
    };

    TRACE("adapter %p, minimum_feature_level %#x, iid %s, device %p.\n",
            adapter, minimum_feature_level, debugstr_guid(iid), device);

    if (!(pfn_vkGetInstanceProcAddr = load_vulkan()))
    {
        ERR_(winediag)("Failed to load Vulkan library.\n");
        return E_FAIL;
    }

    if (FAILED(hr = d3d12_get_adapter(&wine_adapter, adapter)))
        return hr;

    if (FAILED(hr = IWineDXGIAdapter_get_adapter_info(wine_adapter, &adapter_info)))
    {
        WARN("Failed to get adapter info, hr %#lx.\n", hr);
        goto done;
    }

    optional_extensions_info.type = VKD3D_STRUCTURE_TYPE_OPTIONAL_INSTANCE_EXTENSIONS_INFO;
    optional_extensions_info.next = &application_info;
    optional_extensions_info.extensions = optional_instance_extensions;
    optional_extensions_info.extension_count = ARRAY_SIZE(optional_instance_extensions);

    instance_create_info.type = VKD3D_STRUCTURE_TYPE_INSTANCE_CREATE_INFO;
    instance_create_info.next = &optional_extensions_info;
    instance_create_info.pfn_signal_event = d3d12_signal_event;
    instance_create_info.pfn_create_thread = NULL;
    instance_create_info.pfn_join_thread = NULL;
    instance_create_info.wchar_size = sizeof(WCHAR);
    instance_create_info.pfn_vkGetInstanceProcAddr = pfn_vkGetInstanceProcAddr;
    instance_create_info.instance_extensions = instance_extensions;
    instance_create_info.instance_extension_count = ARRAY_SIZE(instance_extensions);

    if (FAILED(hr = vkd3d_create_instance(&instance_create_info, &instance)))
    {
        WARN("Failed to create vkd3d instance, hr %#lx.\n", hr);
        goto done;
    }

    device_create_info.type = VKD3D_STRUCTURE_TYPE_DEVICE_CREATE_INFO;
    device_create_info.next = NULL;
    device_create_info.minimum_feature_level = minimum_feature_level;
    device_create_info.instance = instance;
    device_create_info.instance_create_info = NULL;
    device_create_info.vk_physical_device = d3d12_get_vk_physical_device(instance, pfn_vkGetInstanceProcAddr, &adapter_info);
    device_create_info.device_extensions = device_extensions;
    device_create_info.device_extension_count = ARRAY_SIZE(device_extensions);
    device_create_info.parent = (IUnknown *)wine_adapter;
    device_create_info.adapter_luid = adapter_info.luid;

    hr = vkd3d_create_device(&device_create_info, iid, device);

    vkd3d_instance_decref(instance);

done:
    IWineDXGIAdapter_Release(wine_adapter);
    return hr;
}

D3D12CreateRootSignatureDeserializer()

HRESULT WINAPI D3D12CreateRootSignatureDeserializer	(	const void *	data,
		SIZE_T	data_size,
		REFIID	iid,
		void **	deserializer
	)

Definition at line 332 of file d3d12_main.c.

{
    TRACE("data %p, data_size %Iu, iid %s, deserializer %p.\n",
            data, data_size, debugstr_guid(iid), deserializer);

    return vkd3d_create_root_signature_deserializer(data, data_size, iid, deserializer);
}

D3D12CreateVersionedRootSignatureDeserializer()

HRESULT WINAPI D3D12CreateVersionedRootSignatureDeserializer	(	const void *	data,
		SIZE_T	data_size,
		REFIID	iid,
		void **	deserializer
	)

Definition at line 341 of file d3d12_main.c.

{
    TRACE("data %p, data_size %Iu, iid %s, deserializer %p.\n",
            data, data_size, debugstr_guid(iid), deserializer);

    return vkd3d_create_versioned_root_signature_deserializer(data, data_size, iid, deserializer);
}

D3D12EnableExperimentalFeatures()

HRESULT WINAPI D3D12EnableExperimentalFeatures	(	UINT	feature_count,
		const IID *	iids,
		void *	configurations,
		UINT *	configurations_sizes
	)

Definition at line 68 of file d3d12_main.c.

{
    FIXME("feature_count %u, iids %p, configurations %p, configurations_sizes %p stub!\n",
            feature_count, iids, configurations, configurations_sizes);

    return E_NOINTERFACE;
}

D3D12GetDebugInterface()

HRESULT WINAPI D3D12GetDebugInterface	(	REFIID	iid,
		void **	debug
	)

Definition at line 60 of file d3d12_main.c.

{
    TRACE("iid %s, debug %p.\n", debugstr_guid(iid), debug);

    WARN("Returning DXGI_ERROR_SDK_COMPONENT_MISSING.\n");
    return DXGI_ERROR_SDK_COMPONENT_MISSING;
}

D3D12SerializeRootSignature()

HRESULT WINAPI D3D12SerializeRootSignature	(	const D3D12_ROOT_SIGNATURE_DESC *	root_signature_desc,
		D3D_ROOT_SIGNATURE_VERSION	version,
		ID3DBlob **	blob,
		ID3DBlob **	error_blob
	)

Definition at line 350 of file d3d12_main.c.

{
    TRACE("root_signature_desc %p, version %#x, blob %p, error_blob %p.\n",
            root_signature_desc, version, blob, error_blob);

    return vkd3d_serialize_root_signature(root_signature_desc, version, blob, error_blob);
}

D3D12SerializeVersionedRootSignature()

HRESULT WINAPI D3D12SerializeVersionedRootSignature	(	const D3D12_VERSIONED_ROOT_SIGNATURE_DESC *	desc,
		ID3DBlob **	blob,
		ID3DBlob **	error_blob
	)

Definition at line 359 of file d3d12_main.c.

{
    TRACE("desc %p, blob %p, error_blob %p.\n", desc, blob, error_blob);

    return vkd3d_serialize_versioned_root_signature(desc, blob, error_blob);
}

load_vulkan()

static PFN_vkGetInstanceProcAddr load_vulkan ( void  )

static

Definition at line 48 of file d3d12_main.c.

{
    static INIT_ONCE init_once = INIT_ONCE_STATIC_INIT;

    InitOnceExecuteOnce(&init_once, load_vulkan_dll_once, NULL, NULL);

    if (vulkan_module)
        return (void *)GetProcAddress(vulkan_module, "vkGetInstanceProcAddr");

    return NULL;
}

Referenced by D3D12CreateDevice().

load_vulkan_dll_once()

static BOOL WINAPI load_vulkan_dll_once ( INIT_ONCE *  once, void *  param, void **  context  )

static

Definition at line 42 of file d3d12_main.c.

{
    vulkan_module = LoadLibraryA("vulkan-1.dll");
    return TRUE;
}

Referenced by load_vulkan().

WINE_DECLARE_DEBUG_CHANNEL()

WINE_DECLARE_DEBUG_CHANNEL

(

winediag

)

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

d3d12

)

Variable Documentation

vulkan_module

HMODULE vulkan_module

static

Definition at line 39 of file d3d12_main.c.

Referenced by d3d12_swapchain_destroy(), load_vulkan(), and load_vulkan_dll_once().
