d3d10_private.h File Reference

#include <math.h>
#include <stdint.h>
#include "wine/debug.h"
#include "wine/rbtree.h"
#include "winbase.h"
#include "winuser.h"
#include "objbase.h"
#include "d3d10.h"
#include "d3dcompiler.h"
#include "utils.h"

Include dependency graph for d3d10_private.h:

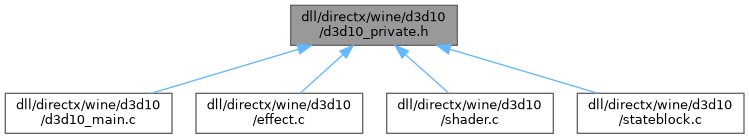

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	d3d10_matrix
struct	d3d10_effect_shader_resource
struct	d3d10_effect_shader_signature
struct	d3d10_effect_shader_variable
struct	d3d10_effect_prop_dependencies
struct	d3d10_effect_sampler_desc
struct	d3d10_effect_state_object_variable
struct	d3d10_effect_resource_variable
struct	d3d10_effect_buffer_variable
struct	d3d10_effect_type
struct	d3d10_effect_type_member
struct	d3d10_effect_annotations
struct	d3d10_effect_variable
struct	d3d10_effect_pass_shader_desc
struct	d3d10_effect_pass
struct	d3d10_effect_technique
struct	d3d10_effect_anonymous_shader
struct	d3d10_effect_var_array
struct	d3d10_effect

Macros
#define	COBJMACROS
#define	D3DERR_INVALIDCALL   0x8876086c

Enumerations
enum	d3d10_effect_object_type_flags { D3D10_EOT_FLAG_GS_SO = 0x1 }
enum	d3d10_effect_object_operation {   D3D10_EOO_CONST = 1 , D3D10_EOO_VAR = 2 , D3D10_EOO_CONST_INDEX = 3 , D3D10_EOO_VAR_INDEX = 4 ,   D3D10_EOO_INDEX_EXPRESSION = 5 , D3D10_EOO_VALUE_EXPRESSION = 6 , D3D10_EOO_ANONYMOUS_SHADER = 7 }
enum	d3d10_effect_flags { D3D10_EFFECT_OPTIMIZED = 0x1 , D3D10_EFFECT_IS_POOL = 0x2 }

Functions
HRESULT	d3d10_effect_parse (struct d3d10_effect *effect, const void *data, SIZE_T data_size)
HRESULT WINAPI	D3D10CoreCreateDevice (IDXGIFactory *factory, IDXGIAdapter *adapter, unsigned int flags, D3D_FEATURE_LEVEL feature_level, ID3D10Device **device)
HRESULT WINAPI	D3DCompileFromMemory (const void *data, SIZE_T data_size, const char *filename, const D3D_SHADER_MACRO *defines, ID3DInclude *include, const char *entrypoint, const char *target, UINT sflags, UINT eflags, ID3DBlob **shader, ID3DBlob **error_messages)
HRESULT WINAPI	D3DDisassembleCode (const void *data, SIZE_T data_size, UINT flags, const char *comments, ID3DBlob **disassembly)

Macro Definition Documentation

COBJMACROS

#define COBJMACROS

Definition at line 28 of file d3d10_private.h.

D3DERR_INVALIDCALL

#define D3DERR_INVALIDCALL   0x8876086c

Definition at line 42 of file d3d10_private.h.

Enumeration Type Documentation

d3d10_effect_flags

enum d3d10_effect_flags

Enumerator
D3D10_EFFECT_OPTIMIZED
D3D10_EFFECT_IS_POOL

Definition at line 262 of file d3d10_private.h.

{
    D3D10_EFFECT_OPTIMIZED = 0x1,
    D3D10_EFFECT_IS_POOL   = 0x2,
};

d3d10_effect_object_operation

enum d3d10_effect_object_operation

Enumerator
D3D10_EOO_CONST
D3D10_EOO_VAR
D3D10_EOO_CONST_INDEX
D3D10_EOO_VAR_INDEX
D3D10_EOO_INDEX_EXPRESSION
D3D10_EOO_VALUE_EXPRESSION
D3D10_EOO_ANONYMOUS_SHADER

Definition at line 49 of file d3d10_private.h.

{
    D3D10_EOO_CONST = 1,
    D3D10_EOO_VAR = 2,
    D3D10_EOO_CONST_INDEX = 3,
    D3D10_EOO_VAR_INDEX = 4,
    D3D10_EOO_INDEX_EXPRESSION = 5,
    D3D10_EOO_VALUE_EXPRESSION = 6,
    D3D10_EOO_ANONYMOUS_SHADER = 7,
};

d3d10_effect_object_type_flags

enum d3d10_effect_object_type_flags

Enumerator
D3D10_EOT_FLAG_GS_SO

Definition at line 44 of file d3d10_private.h.

{
    D3D10_EOT_FLAG_GS_SO = 0x1,
};

Function Documentation

d3d10_effect_parse()

HRESULT d3d10_effect_parse	(	struct d3d10_effect *	effect,
		const void *	data,
		SIZE_T	data_size
	)

Definition at line 4308 of file effect.c.

{
    const struct vkd3d_shader_code dxbc = {.code = data, .size = data_size};
    const struct vkd3d_shader_dxbc_section_desc *section;
    struct vkd3d_shader_dxbc_desc dxbc_desc;
    HRESULT hr = S_OK;
    unsigned int i;
    int ret;

    if ((ret = vkd3d_shader_parse_dxbc(&dxbc, 0, &dxbc_desc, NULL)) < 0)
    {
        WARN("Failed to parse DXBC, ret %d.\n", ret);
        return E_FAIL;
    }

    for (i = 0; i < dxbc_desc.section_count; ++i)
    {
        section = &dxbc_desc.sections[i];

        TRACE("Section %u: tag %s, data {%p, %#Ix}.\n",
                i, debugstr_fourcc(section->tag),
                section->data.code, section->data.size);

        if (section->tag != TAG_FX10)
        {
            FIXME("Unhandled chunk %s.\n", debugstr_fourcc(section->tag));
            continue;
        }

        if (FAILED(hr = parse_fx10(effect, section->data.code, section->data.size)))
            break;
    }

    vkd3d_shader_free_dxbc(&dxbc_desc);

    return hr;
}

Referenced by d3d10_create_effect().

D3D10CoreCreateDevice()

HRESULT WINAPI D3D10CoreCreateDevice	(	IDXGIFactory *	factory,
		IDXGIAdapter *	adapter,
		unsigned int	flags,
		D3D_FEATURE_LEVEL	feature_level,
		ID3D10Device **	device
	)

Definition at line 39 of file d3d10core_main.c.

{
    IUnknown *dxgi_device;
    HMODULE d3d11;
    HRESULT hr;

    TRACE("factory %p, adapter %p, flags %#x, feature_level %#x, device %p.\n",
            factory, adapter, flags, feature_level, device);

    d3d11 = LoadLibraryA("d3d11.dll");
    hr = DXGID3D10CreateDevice(d3d11, factory, adapter, flags, &feature_level, 1, (void **)&dxgi_device);
    FreeLibrary(d3d11);
    if (FAILED(hr))
    {
        WARN("Failed to create device, hr %#lx.\n", hr);
        return hr;
    }

    hr = IUnknown_QueryInterface(dxgi_device, &IID_ID3D10Device, (void **)device);
    IUnknown_Release(dxgi_device);
    if (FAILED(hr))
    {
        ERR("Failed to query ID3D10Device interface, returning E_FAIL.\n");
        return E_FAIL;
    }

    return S_OK;
}

Referenced by d3d10_create_device().

D3DCompileFromMemory()

HRESULT WINAPI D3DCompileFromMemory	(	const void *	data,
		SIZE_T	data_size,
		const char *	filename,
		const D3D_SHADER_MACRO *	defines,
		ID3DInclude *	include,
		const char *	entrypoint,
		const char *	target,
		UINT	sflags,
		UINT	eflags,
		ID3DBlob **	shader,
		ID3DBlob **	error_messages
	)

Referenced by D3D10CompileEffectFromMemory(), and D3D10CompileShader().

D3DDisassembleCode()

HRESULT WINAPI D3DDisassembleCode	(	const void *	data,
		SIZE_T	data_size,
		UINT	flags,
		const char *	comments,
		ID3DBlob **	disassembly
	)

Referenced by D3D10DisassembleShader().
