#include "d2d1_private.h"

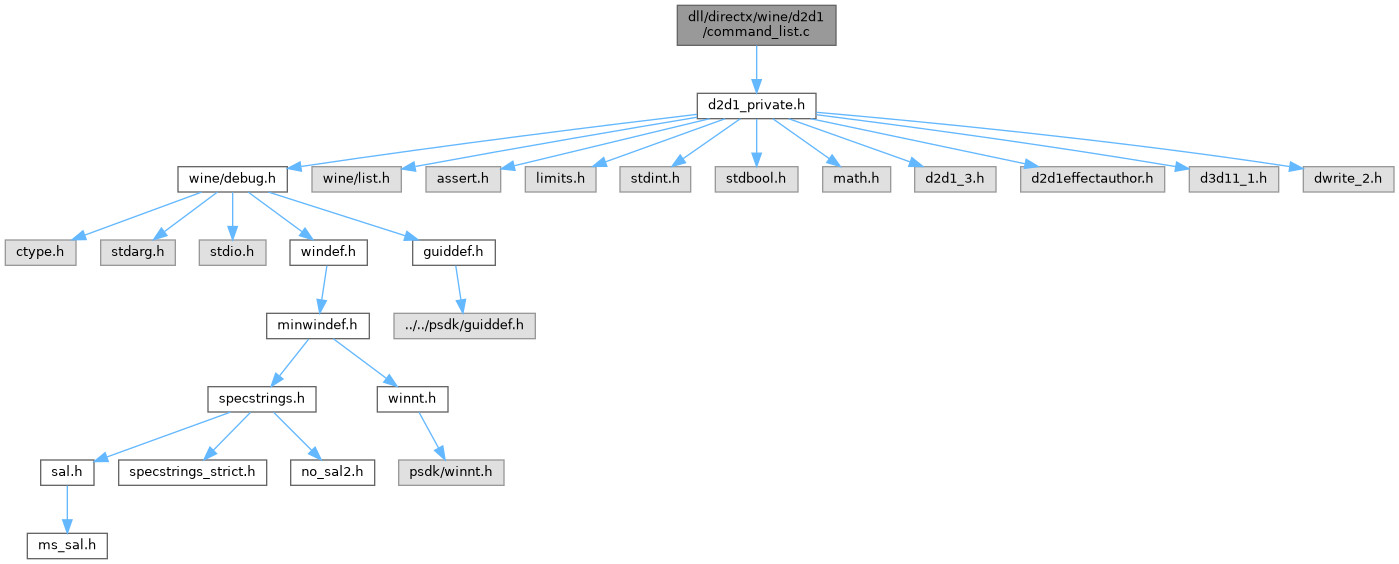

Include dependency graph for command_list.c:

Classes
struct	d2d_command

struct	d2d_command_set_antialias_mode

struct	d2d_command_set_tags

struct	d2d_command_set_text_antialias_mode

struct	d2d_command_set_text_rendering_params

struct	d2d_command_set_transform

struct	d2d_command_set_primitive_blend

struct	d2d_command_set_unit_mode

struct	d2d_command_clear

struct	d2d_command_push_clip

struct	d2d_command_push_layer

struct	d2d_command_draw_line

struct	d2d_command_draw_geometry

struct	d2d_command_draw_rectangle

struct	d2d_command_fill_mesh

struct	d2d_command_fill_opacity_mask

struct	d2d_command_fill_geometry

struct	d2d_command_fill_rectangle

struct	d2d_command_draw_glyph_run

struct	d2d_command_draw_bitmap

struct	d2d_command_draw_image

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (d2d)

static struct d2d_command_list *	impl_from_ID2D1CommandList (ID2D1CommandList *iface)

static HRESULT STDMETHODCALLTYPE	d2d_command_list_QueryInterface (ID2D1CommandList iface, REFIID iid, void *out)

static ULONG STDMETHODCALLTYPE	d2d_command_list_AddRef (ID2D1CommandList *iface)

static ULONG STDMETHODCALLTYPE	d2d_command_list_Release (ID2D1CommandList *iface)

static void STDMETHODCALLTYPE	d2d_command_list_GetFactory (ID2D1CommandList iface, ID2D1Factory *factory)

static HRESULT STDMETHODCALLTYPE	d2d_command_list_Stream (ID2D1CommandList iface, ID2D1CommandSink sink)

static HRESULT STDMETHODCALLTYPE	d2d_command_list_Close (ID2D1CommandList *iface)

HRESULT	d2d_command_list_create (ID2D1Factory factory, struct d2d_command_list *command_list)

struct d2d_command_list *	unsafe_impl_from_ID2D1CommandList (ID2D1CommandList *iface)

static void *	d2d_command_list_require_space (struct d2d_command_list *command_list, size_t size)

static void	d2d_command_list_reference_object (struct d2d_command_list command_list, void object)

static HRESULT	d2d_command_list_create_brush (struct d2d_command_list command_list, const struct d2d_device_context ctx, ID2D1Brush orig_brush, ID2D1Brush *ret)

void	d2d_command_list_set_antialias_mode (struct d2d_command_list *command_list, D2D1_ANTIALIAS_MODE mode)

void	d2d_command_list_set_primitive_blend (struct d2d_command_list *command_list, D2D1_PRIMITIVE_BLEND primitive_blend)

void	d2d_command_list_set_unit_mode (struct d2d_command_list *command_list, D2D1_UNIT_MODE mode)

void	d2d_command_list_set_text_antialias_mode (struct d2d_command_list *command_list, D2D1_TEXT_ANTIALIAS_MODE mode)

void	d2d_command_list_set_tags (struct d2d_command_list *command_list, D2D1_TAG tag1, D2D1_TAG tag2)

void	d2d_command_list_set_transform (struct d2d_command_list command_list, const D2D1_MATRIX_3X2_F transform)

void	d2d_command_list_begin_draw (struct d2d_command_list command_list, const struct d2d_device_context context)

void	d2d_command_list_push_clip (struct d2d_command_list command_list, const D2D1_RECT_F rect, D2D1_ANTIALIAS_MODE mode)

void	d2d_command_list_pop_clip (struct d2d_command_list *command_list)

void	d2d_command_list_push_layer (struct d2d_command_list command_list, const struct d2d_device_context context, const D2D1_LAYER_PARAMETERS1 params, ID2D1Layer layer)

void	d2d_command_list_pop_layer (struct d2d_command_list *command_list)

void	d2d_command_list_clear (struct d2d_command_list command_list, const D2D1_COLOR_F color)

void	d2d_command_list_draw_line (struct d2d_command_list command_list, const struct d2d_device_context context, D2D1_POINT_2F p0, D2D1_POINT_2F p1, ID2D1Brush orig_brush, float stroke_width, ID2D1StrokeStyle stroke_style)

void	d2d_command_list_draw_geometry (struct d2d_command_list command_list, const struct d2d_device_context context, ID2D1Geometry geometry, ID2D1Brush orig_brush, float stroke_width, ID2D1StrokeStyle *stroke_style)

void	d2d_command_list_draw_rectangle (struct d2d_command_list command_list, const struct d2d_device_context context, const D2D1_RECT_F rect, ID2D1Brush orig_brush, float stroke_width, ID2D1StrokeStyle *stroke_style)

void	d2d_command_list_fill_geometry (struct d2d_command_list command_list, const struct d2d_device_context context, ID2D1Geometry geometry, ID2D1Brush orig_brush, ID2D1Brush *orig_opacity_brush)

void	d2d_command_list_fill_rectangle (struct d2d_command_list command_list, const struct d2d_device_context context, const D2D1_RECT_F rect, ID2D1Brush orig_brush)

static void	d2d_command_list_set_text_rendering_params_internal (struct d2d_command_list command_list, BOOL allow_null, IDWriteRenderingParams params)

void	d2d_command_list_set_text_rendering_params (struct d2d_command_list command_list, IDWriteRenderingParams params)

static void	d2d_command_list_write_field (BYTE *data, void dst, const void *src, size_t size)

void	d2d_command_list_draw_glyph_run (struct d2d_command_list command_list, const struct d2d_device_context context, D2D1_POINT_2F origin, const DWRITE_GLYPH_RUN run, const DWRITE_GLYPH_RUN_DESCRIPTION run_desc, ID2D1Brush *orig_brush, DWRITE_MEASURING_MODE measuring_mode)

void	d2d_command_list_draw_bitmap (struct d2d_command_list command_list, ID2D1Bitmap bitmap, const D2D1_RECT_F dst_rect, float opacity, D2D1_INTERPOLATION_MODE interpolation_mode, const D2D1_RECT_F src_rect, const D2D1_MATRIX_4X4_F *perspective_transform)

void	d2d_command_list_draw_image (struct d2d_command_list command_list, ID2D1Image image, const D2D1_POINT_2F target_offset, const D2D1_RECT_F image_rect, D2D1_INTERPOLATION_MODE interpolation_mode, D2D1_COMPOSITE_MODE composite_mode)

void	d2d_command_list_fill_mesh (struct d2d_command_list command_list, const struct d2d_device_context context, ID2D1Mesh mesh, ID2D1Brush orig_brush)

void	d2d_command_list_fill_opacity_mask (struct d2d_command_list command_list, const struct d2d_device_context context, ID2D1Bitmap bitmap, ID2D1Brush orig_brush, const D2D1_RECT_F dst_rect, const D2D1_RECT_F src_rect)

Variables
static const ID2D1CommandListVtbl	d2d_command_list_vtbl

Enumeration Type Documentation

◆ d2d_command_list_flags

enum d2d_command_list_flags

Enumerator
D2D_COMMAND_LIST_HAS_NULL_TEXT_RENDERING_PARAMS

Definition at line 23 of file command_list.c.

{
    D2D_COMMAND_LIST_HAS_NULL_TEXT_RENDERING_PARAMS = 0x1,
};

◆ d2d_command_type

enum d2d_command_type

Enumerator
D2D_COMMAND_SET_ANTIALIAS_MODE
D2D_COMMAND_SET_TAGS
D2D_COMMAND_SET_TEXT_ANTIALIAS_MODE
D2D_COMMAND_SET_TEXT_RENDERING_PARAMS
D2D_COMMAND_SET_TRANSFORM
D2D_COMMAND_SET_PRIMITIVE_BLEND
D2D_COMMAND_SET_UNIT_MODE
D2D_COMMAND_CLEAR
D2D_COMMAND_DRAW_GLYPH_RUN
D2D_COMMAND_DRAW_LINE
D2D_COMMAND_DRAW_GEOMETRY
D2D_COMMAND_DRAW_RECTANGLE
D2D_COMMAND_DRAW_BITMAP
D2D_COMMAND_DRAW_IMAGE
D2D_COMMAND_FILL_MESH
D2D_COMMAND_FILL_OPACITY_MASK
D2D_COMMAND_FILL_GEOMETRY
D2D_COMMAND_FILL_RECTANGLE
D2D_COMMAND_PUSH_CLIP
D2D_COMMAND_PUSH_LAYER
D2D_COMMAND_POP_CLIP
D2D_COMMAND_POP_LAYER

Definition at line 28 of file command_list.c.

{
    D2D_COMMAND_SET_ANTIALIAS_MODE,
    D2D_COMMAND_SET_TAGS,
    D2D_COMMAND_SET_TEXT_ANTIALIAS_MODE,
    D2D_COMMAND_SET_TEXT_RENDERING_PARAMS,
    D2D_COMMAND_SET_TRANSFORM,
    D2D_COMMAND_SET_PRIMITIVE_BLEND,
    D2D_COMMAND_SET_UNIT_MODE,
    D2D_COMMAND_CLEAR,
    D2D_COMMAND_DRAW_GLYPH_RUN,
    D2D_COMMAND_DRAW_LINE,
    D2D_COMMAND_DRAW_GEOMETRY,
    D2D_COMMAND_DRAW_RECTANGLE,
    D2D_COMMAND_DRAW_BITMAP,
    D2D_COMMAND_DRAW_IMAGE,
    D2D_COMMAND_FILL_MESH,
    D2D_COMMAND_FILL_OPACITY_MASK,
    D2D_COMMAND_FILL_GEOMETRY,
    D2D_COMMAND_FILL_RECTANGLE,
    D2D_COMMAND_PUSH_CLIP,
    D2D_COMMAND_PUSH_LAYER,
    D2D_COMMAND_POP_CLIP,
    D2D_COMMAND_POP_LAYER,
};

Function Documentation

◆ d2d_command_list_AddRef()

static ULONG STDMETHODCALLTYPE d2d_command_list_AddRef ( ID2D1CommandList * iface )

static

Definition at line 236 of file command_list.c.

{
    struct d2d_command_list *command_list = impl_from_ID2D1CommandList(iface);
    ULONG refcount = InterlockedIncrement(&command_list->refcount);

    TRACE("%p increasing refcount to %lu.\n", iface, refcount);

    return refcount;
}

◆ d2d_command_list_begin_draw()

void d2d_command_list_begin_draw	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context
	)

Definition at line 676 of file command_list.c.

{
    if (command_list->state != D2D_COMMAND_LIST_STATE_INITIAL)
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    d2d_command_list_set_antialias_mode(command_list, context->drawing_state.antialiasMode);
    d2d_command_list_set_primitive_blend(command_list, context->drawing_state.primitiveBlend);
    d2d_command_list_set_unit_mode(command_list, context->drawing_state.unitMode);
    d2d_command_list_set_text_antialias_mode(command_list, context->drawing_state.textAntialiasMode);
    d2d_command_list_set_tags(command_list, context->drawing_state.tag1, context->drawing_state.tag2);
    d2d_command_list_set_transform(command_list, &context->drawing_state.transform);
    d2d_command_list_set_text_rendering_params(command_list, context->text_rendering_params);

    command_list->state = D2D_COMMAND_LIST_STATE_OPEN;
}

Referenced by d2d_device_context_BeginDraw().

◆ d2d_command_list_clear()

void d2d_command_list_clear	(	struct d2d_command_list *	command_list,
		const D2D1_COLOR_F *	color
	)

Definition at line 746 of file command_list.c.

{
    struct d2d_command_clear *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_CLEAR;
    if (color) command->color = *color;
    else memset(&command->color, 0, sizeof(command->color));
}

Referenced by d2d_device_context_Clear().

◆ d2d_command_list_Close()

static HRESULT STDMETHODCALLTYPE d2d_command_list_Close ( ID2D1CommandList * iface )

static

Definition at line 472 of file command_list.c.

{
    struct d2d_command_list *command_list = impl_from_ID2D1CommandList(iface);

    FIXME("iface %p stub.\n", iface);

    if (command_list->state != D2D_COMMAND_LIST_STATE_OPEN)
        return D2DERR_WRONG_STATE;

    command_list->state = D2D_COMMAND_LIST_STATE_CLOSED;

    /* FIXME: reset as a target */

    return S_OK;
}

◆ d2d_command_list_create()

HRESULT d2d_command_list_create	(	ID2D1Factory *	factory,
		struct d2d_command_list **	command_list
	)

Definition at line 498 of file command_list.c.

{
    if (!(*command_list = calloc(1, sizeof(**command_list))))
        return E_OUTOFMEMORY;

    (*command_list)->ID2D1CommandList_iface.lpVtbl = &d2d_command_list_vtbl;
    (*command_list)->refcount = 1;
    ID2D1Factory_AddRef((*command_list)->factory = factory);

    TRACE("Created command list %p.\n", *command_list);

    return S_OK;
}

Referenced by d2d_device_context_CreateCommandList().

◆ d2d_command_list_create_brush()

static HRESULT d2d_command_list_create_brush	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	ctx,
		ID2D1Brush *	orig_brush,
		ID2D1Brush **	ret
	)

static

Definition at line 551 of file command_list.c.

{
    ID2D1DeviceContext *context = (ID2D1DeviceContext *)&ctx->ID2D1DeviceContext6_iface;
    struct d2d_brush *brush = unsafe_impl_from_ID2D1Brush(orig_brush);
    D2D1_LINEAR_GRADIENT_BRUSH_PROPERTIES linear_properties;
    D2D1_RADIAL_GRADIENT_BRUSH_PROPERTIES radial_properties;
    D2D1_BITMAP_BRUSH_PROPERTIES1 bitmap_properties;
    D2D1_IMAGE_BRUSH_PROPERTIES image_properties;
    D2D1_BRUSH_PROPERTIES properties;
    HRESULT hr;

    properties.opacity = brush->opacity;
    properties.transform = brush->transform;

    switch (brush->type)
    {
        case D2D_BRUSH_TYPE_SOLID:
            hr = ID2D1DeviceContext_CreateSolidColorBrush(context, &brush->u.solid.color,
                    &properties, (ID2D1SolidColorBrush **)ret);
            break;
        case D2D_BRUSH_TYPE_LINEAR:
            linear_properties.startPoint = brush->u.linear.start;
            linear_properties.endPoint = brush->u.linear.end;
            hr = ID2D1DeviceContext_CreateLinearGradientBrush(context, &linear_properties,
                    &properties, &brush->u.linear.gradient->ID2D1GradientStopCollection_iface,
                    (ID2D1LinearGradientBrush **)ret);
            break;
        case D2D_BRUSH_TYPE_RADIAL:
            radial_properties.center = brush->u.radial.centre;
            radial_properties.gradientOriginOffset = brush->u.radial.offset;
            radial_properties.radiusX = brush->u.radial.radius.x;
            radial_properties.radiusY = brush->u.radial.radius.y;
            hr = ID2D1DeviceContext_CreateRadialGradientBrush(context, &radial_properties,
                    &properties, &brush->u.radial.gradient->ID2D1GradientStopCollection_iface,
                    (ID2D1RadialGradientBrush **)ret);
            break;
        case D2D_BRUSH_TYPE_BITMAP:
            bitmap_properties.extendModeX = brush->u.bitmap.extend_mode_x;
            bitmap_properties.extendModeY = brush->u.bitmap.extend_mode_y;
            bitmap_properties.interpolationMode = brush->u.bitmap.interpolation_mode;
            hr = ID2D1DeviceContext_CreateBitmapBrush(context, (ID2D1Bitmap *)&brush->u.bitmap.bitmap->ID2D1Bitmap1_iface,
                    &bitmap_properties, &properties, (ID2D1BitmapBrush1 **)ret);
            break;
        case D2D_BRUSH_TYPE_IMAGE:
            image_properties.sourceRectangle = brush->u.image.source_rect;
            image_properties.extendModeX = brush->u.image.extend_mode_x;
            image_properties.extendModeY = brush->u.image.extend_mode_y;
            image_properties.interpolationMode = brush->u.image.interpolation_mode;
            hr = ID2D1DeviceContext_CreateImageBrush(context, brush->u.image.image,
                    &image_properties, &properties, (ID2D1ImageBrush **)ret);
            break;
        default:
            FIXME("Unsupported brush type %u.\n", brush->type);
            return E_UNEXPECTED;
    }

    if (SUCCEEDED(hr))
    {
        d2d_command_list_reference_object(command_list, *ret);
        ID2D1Brush_Release(*ret);
    }

    return hr;
}

Referenced by d2d_command_list_draw_geometry(), d2d_command_list_draw_glyph_run(), d2d_command_list_draw_line(), d2d_command_list_draw_rectangle(), d2d_command_list_fill_geometry(), d2d_command_list_fill_mesh(), d2d_command_list_fill_opacity_mask(), d2d_command_list_fill_rectangle(), and d2d_command_list_push_layer().

◆ d2d_command_list_draw_bitmap()

void d2d_command_list_draw_bitmap	(	struct d2d_command_list *	command_list,
		ID2D1Bitmap *	bitmap,
		const D2D1_RECT_F *	dst_rect,
		float	opacity,
		D2D1_INTERPOLATION_MODE	interpolation_mode,
		const D2D1_RECT_F *	src_rect,
		const D2D1_MATRIX_4X4_F *	perspective_transform
	)

Definition at line 999 of file command_list.c.

{
    struct d2d_command_draw_bitmap *command;
    size_t size;
    BYTE *data;

    size = sizeof(*command);
    if (dst_rect) size += sizeof(*dst_rect);
    if (src_rect) size += sizeof(*src_rect);
    if (perspective_transform) size += sizeof(*perspective_transform);

    d2d_command_list_reference_object(command_list, bitmap);

    command = d2d_command_list_require_space(command_list, size);
    command->c.op = D2D_COMMAND_DRAW_BITMAP;
    command->bitmap = bitmap;
    command->opacity = opacity;
    command->interpolation_mode = interpolation_mode;

    data = (BYTE *)(command + 1);

    d2d_command_list_write_field(&data, &command->dst_rect, dst_rect, sizeof(*dst_rect));
    d2d_command_list_write_field(&data, &command->src_rect, src_rect, sizeof(*src_rect));
    d2d_command_list_write_field(&data, &command->perspective_transform, perspective_transform, sizeof(*perspective_transform));
}

Referenced by d2d_device_context_DrawBitmap(), and d2d_device_context_ID2D1DeviceContext_DrawBitmap().

◆ d2d_command_list_draw_geometry()

void d2d_command_list_draw_geometry	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		ID2D1Geometry *	geometry,
		ID2D1Brush *	orig_brush,
		float	stroke_width,
		ID2D1StrokeStyle *	stroke_style
	)

Definition at line 780 of file command_list.c.

{
    struct d2d_command_draw_geometry *command;
    ID2D1Brush *brush;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    d2d_command_list_reference_object(command_list, geometry);
    d2d_command_list_reference_object(command_list, stroke_style);

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_DRAW_GEOMETRY;
    command->brush = brush;
    command->stroke_width = stroke_width;
    command->stroke_style = stroke_style;
}

Referenced by d2d_device_context_DrawGeometry().

◆ d2d_command_list_draw_glyph_run()

void d2d_command_list_draw_glyph_run	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		D2D1_POINT_2F	origin,
		const DWRITE_GLYPH_RUN *	run,
		const DWRITE_GLYPH_RUN_DESCRIPTION *	run_desc,
		ID2D1Brush *	orig_brush,
		DWRITE_MEASURING_MODE	measuring_mode
	)

Definition at line 919 of file command_list.c.

{
    struct d2d_command_draw_glyph_run *command;
    DWRITE_GLYPH_RUN_DESCRIPTION *d;
    DWRITE_GLYPH_RUN *r;
    UINT32 glyph_count;
    ID2D1Brush *brush;
    size_t size;
    BYTE *data;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    /* Set rendering parameters automatically. Explicitly set null parameters are not recorded,
       either separately or as a part of a restored state block. Forcing parameters update on
       DrawGlyphRun() ensures that state is reset correctly. */

    d2d_command_list_set_text_rendering_params_internal(command_list, TRUE,
            context->text_rendering_params);

    /* Get combined size of variable data. */

    glyph_count = run->glyphCount;
    size = sizeof(*command);
    if (run->glyphIndices) size += glyph_count * sizeof(*run->glyphIndices);
    if (run->glyphAdvances) size += glyph_count * sizeof(*run->glyphAdvances);
    if (run->glyphOffsets) size += glyph_count * sizeof(*run->glyphOffsets);
    if (run_desc)
    {
        size += sizeof(*run_desc);
        if (run_desc->localeName) size += (wcslen(run_desc->localeName) + 1) * sizeof(*run_desc->localeName);
        if (run_desc->string) size += run_desc->stringLength * sizeof(*run_desc->string);
        if (run_desc->clusterMap) size += run_desc->stringLength * sizeof(*run_desc->clusterMap);
        size += sizeof(run_desc->stringLength);
        size += sizeof(run_desc->textPosition);
    }

    d2d_command_list_reference_object(command_list, run->fontFace);

    command = d2d_command_list_require_space(command_list, size);
    command->c.op = D2D_COMMAND_DRAW_GLYPH_RUN;
    r = &command->run;

    r->fontFace = run->fontFace;
    r->fontEmSize = run->fontEmSize;
    r->glyphCount = run->glyphCount;
    r->isSideways = run->isSideways;
    r->bidiLevel = run->bidiLevel;

    data = (BYTE *)(command + 1);

    d2d_command_list_write_field(&data, &r->glyphIndices, run->glyphIndices, glyph_count * sizeof(*r->glyphIndices));
    d2d_command_list_write_field(&data, &r->glyphAdvances, run->glyphAdvances, glyph_count * sizeof(*r->glyphAdvances));
    d2d_command_list_write_field(&data, &r->glyphOffsets, run->glyphOffsets, glyph_count * sizeof(*r->glyphOffsets));

    command->run_desc = NULL;
    if (run_desc)
    {
        d = command->run_desc = (DWRITE_GLYPH_RUN_DESCRIPTION *)data;
        memset(d, 0, sizeof(*d));
        data += sizeof(*d);

        d2d_command_list_write_field(&data, &d->localeName, run_desc->localeName, (wcslen(run_desc->localeName) + 1) * sizeof(*run_desc->localeName));
        d2d_command_list_write_field(&data, &d->string, run_desc->string, run_desc->stringLength * sizeof(*run_desc->string));
        d->stringLength = run_desc->stringLength;
        d2d_command_list_write_field(&data, &d->clusterMap, run_desc->clusterMap, run_desc->stringLength * sizeof(*run_desc->clusterMap));
        d->textPosition = run_desc->textPosition;
    }

    command->brush = brush;
    command->origin = origin;
    command->measuring_mode = measuring_mode;
}

Referenced by d2d_device_context_draw_glyph_run().

◆ d2d_command_list_draw_image()

void d2d_command_list_draw_image	(	struct d2d_command_list *	command_list,
		ID2D1Image *	image,
		const D2D1_POINT_2F *	target_offset,
		const D2D1_RECT_F *	image_rect,
		D2D1_INTERPOLATION_MODE	interpolation_mode,
		D2D1_COMPOSITE_MODE	composite_mode
	)

Definition at line 1027 of file command_list.c.

{
    struct d2d_command_draw_image *command;
    size_t size;
    BYTE *data;

    size = sizeof(*command);
    if (target_offset) size += sizeof(*target_offset);
    if (image_rect) size += sizeof(*image_rect);

    d2d_command_list_reference_object(command_list, image);

    command = d2d_command_list_require_space(command_list, size);
    command->c.op = D2D_COMMAND_DRAW_IMAGE;
    command->image = image;
    command->interpolation_mode = interpolation_mode;
    command->composite_mode = composite_mode;

    data = (BYTE *)(command + 1);

    d2d_command_list_write_field(&data, &command->target_offset, target_offset, sizeof(*target_offset));
    d2d_command_list_write_field(&data, &command->image_rect, image_rect, sizeof(*image_rect));
}

Referenced by d2d_device_context_DrawImage().

◆ d2d_command_list_draw_line()

void d2d_command_list_draw_line	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		D2D1_POINT_2F	p0,
		D2D1_POINT_2F	p1,
		ID2D1Brush *	orig_brush,
		float	stroke_width,
		ID2D1StrokeStyle *	stroke_style
	)

Definition at line 756 of file command_list.c.

{
    struct d2d_command_draw_line *command;
    ID2D1Brush *brush;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    d2d_command_list_reference_object(command_list, stroke_style);

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_DRAW_LINE;
    command->p0 = p0;
    command->p1 = p1;
    command->brush = brush;
    command->stroke_width = stroke_width;
    command->stroke_style = stroke_style;
}

Referenced by d2d_device_context_DrawLine().

◆ d2d_command_list_draw_rectangle()

void d2d_command_list_draw_rectangle	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		const D2D1_RECT_F *	rect,
		ID2D1Brush *	orig_brush,
		float	stroke_width,
		ID2D1StrokeStyle *	stroke_style
	)

Definition at line 803 of file command_list.c.

{
    struct d2d_command_draw_rectangle *command;
    ID2D1Brush *brush;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    d2d_command_list_reference_object(command_list, stroke_style);

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_DRAW_RECTANGLE;
    command->rect = *rect;
    command->brush = brush;
    command->stroke_width = stroke_width;
    command->stroke_style = stroke_style;
}

Referenced by d2d_device_context_DrawRectangle().

◆ d2d_command_list_fill_geometry()

void d2d_command_list_fill_geometry	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		ID2D1Geometry *	geometry,
		ID2D1Brush *	orig_brush,
		ID2D1Brush *	orig_opacity_brush
	)

Definition at line 825 of file command_list.c.

{
    ID2D1Brush *brush, *opacity_brush = NULL;
    struct d2d_command_fill_geometry *command;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    if (orig_opacity_brush && FAILED(d2d_command_list_create_brush(command_list, context,
            orig_opacity_brush, &opacity_brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        ID2D1Brush_Release(brush);
        return;
    }

    d2d_command_list_reference_object(command_list, geometry);

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_FILL_GEOMETRY;
    command->geometry = geometry;
    command->brush = brush;
    command->opacity_brush = opacity_brush;
}

Referenced by d2d_device_context_FillGeometry().

◆ d2d_command_list_fill_mesh()

void d2d_command_list_fill_mesh	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		ID2D1Mesh *	mesh,
		ID2D1Brush *	orig_brush
	)

Definition at line 1053 of file command_list.c.

{
    struct d2d_command_fill_mesh *command;
    ID2D1Brush *brush;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    d2d_command_list_reference_object(command_list, mesh);

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_FILL_MESH;
    command->mesh = mesh;
    command->brush = brush;
}

Referenced by d2d_device_context_FillMesh().

◆ d2d_command_list_fill_opacity_mask()

void d2d_command_list_fill_opacity_mask	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		ID2D1Bitmap *	bitmap,
		ID2D1Brush *	orig_brush,
		const D2D1_RECT_F *	dst_rect,
		const D2D1_RECT_F *	src_rect
	)

Definition at line 1073 of file command_list.c.

{
    struct d2d_command_fill_opacity_mask *command;
    ID2D1Brush *brush;
    size_t size;
    BYTE *data;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    size = sizeof(*command);
    if (dst_rect) size += sizeof(*dst_rect);
    if (src_rect) size += sizeof(*src_rect);

    d2d_command_list_reference_object(command_list, bitmap);

    command = d2d_command_list_require_space(command_list, size);
    command->c.op = D2D_COMMAND_FILL_OPACITY_MASK;
    command->bitmap = bitmap;
    command->brush = brush;

    data = (BYTE *)(command + 1);

    d2d_command_list_write_field(&data, &command->dst_rect, dst_rect, sizeof(*dst_rect));
    d2d_command_list_write_field(&data, &command->src_rect, src_rect, sizeof(*src_rect));
}

Referenced by d2d_device_context_FillOpacityMask(), and d2d_device_context_ID2D1DeviceContext_FillOpacityMask().

◆ d2d_command_list_fill_rectangle()

void d2d_command_list_fill_rectangle	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		const D2D1_RECT_F *	rect,
		ID2D1Brush *	orig_brush
	)

Definition at line 855 of file command_list.c.

{
    struct d2d_command_fill_rectangle *command;
    ID2D1Brush *brush;

    if (FAILED(d2d_command_list_create_brush(command_list, context, orig_brush, &brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_FILL_RECTANGLE;
    command->rect = *rect;
    command->brush = brush;
}

Referenced by d2d_device_context_FillRectangle().

◆ d2d_command_list_GetFactory()

static void STDMETHODCALLTYPE d2d_command_list_GetFactory	(	ID2D1CommandList *	iface,
		ID2D1Factory **	factory
	)

static

Definition at line 267 of file command_list.c.

{
    struct d2d_command_list *command_list = impl_from_ID2D1CommandList(iface);

    TRACE("iface %p, factory %p.\n", iface, factory);

    ID2D1Factory_AddRef(*factory = command_list->factory);
}

◆ d2d_command_list_pop_clip()

void d2d_command_list_pop_clip ( struct d2d_command_list * command_list )

Definition at line 707 of file command_list.c.

{
    struct d2d_command *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->op = D2D_COMMAND_POP_CLIP;
}

Referenced by d2d_device_context_PopAxisAlignedClip().

◆ d2d_command_list_pop_layer()

void d2d_command_list_pop_layer ( struct d2d_command_list * command_list )

Definition at line 738 of file command_list.c.

{
    struct d2d_command *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->op = D2D_COMMAND_POP_LAYER;
}

Referenced by d2d_device_context_PopLayer().

◆ d2d_command_list_push_clip()

void d2d_command_list_push_clip	(	struct d2d_command_list *	command_list,
		const D2D1_RECT_F *	rect,
		D2D1_ANTIALIAS_MODE	mode
	)

Definition at line 696 of file command_list.c.

{
    struct d2d_command_push_clip *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_PUSH_CLIP;
    command->rect = *rect;
    command->mode = mode;
}

Referenced by d2d_device_context_PushAxisAlignedClip().

◆ d2d_command_list_push_layer()

void d2d_command_list_push_layer	(	struct d2d_command_list *	command_list,
		const struct d2d_device_context *	context,
		const D2D1_LAYER_PARAMETERS1 *	params,
		ID2D1Layer *	layer
	)

Definition at line 715 of file command_list.c.

{
    struct d2d_command_push_layer *command;
    ID2D1Brush *opacity_brush = NULL;

    if (params->opacityBrush && FAILED(d2d_command_list_create_brush(command_list, context,
            params->opacityBrush, &opacity_brush)))
    {
        command_list->state = D2D_COMMAND_LIST_STATE_ERROR;
        return;
    }

    d2d_command_list_reference_object(command_list, layer);
    d2d_command_list_reference_object(command_list, params->geometricMask);

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_PUSH_LAYER;
    command->params = *params;
    command->params.opacityBrush = opacity_brush;
    command->layer = layer;
}

Referenced by d2d_device_context_ID2D1DeviceContext_PushLayer(), and d2d_device_context_PushLayer().

◆ d2d_command_list_QueryInterface()

static HRESULT STDMETHODCALLTYPE d2d_command_list_QueryInterface	(	ID2D1CommandList *	iface,
		REFIID	iid,
		void **	out
	)

static

Definition at line 216 of file command_list.c.

{
    TRACE("iface %p, iid %s, out %p.\n", iface, debugstr_guid(iid), out);

    if (IsEqualGUID(iid, &IID_ID2D1CommandList)
            || IsEqualGUID(iid, &IID_ID2D1Image)
            || IsEqualGUID(iid, &IID_ID2D1Resource)
            || IsEqualGUID(iid, &IID_IUnknown))
    {
        ID2D1CommandList_AddRef(iface);
        *out = iface;
        return S_OK;
    }

    WARN("%s not implemented, returning E_NOINTERFACE.\n", debugstr_guid(iid));

    *out = NULL;
    return E_NOINTERFACE;
}

◆ d2d_command_list_reference_object()

static void d2d_command_list_reference_object	(	struct d2d_command_list *	command_list,
		void *	object
	)

static

Definition at line 535 of file command_list.c.

{
    IUnknown *obj = object;

    if (!obj) return;

    if (!d2d_array_reserve((void **)&command_list->objects, &command_list->objects_capacity,
            command_list->objects_count + 1, sizeof(*command_list->objects)))
    {
        return;
    }

    command_list->objects[command_list->objects_count++] = obj;
    IUnknown_AddRef(obj);
}

Referenced by d2d_command_list_create_brush(), d2d_command_list_draw_bitmap(), d2d_command_list_draw_geometry(), d2d_command_list_draw_glyph_run(), d2d_command_list_draw_image(), d2d_command_list_draw_line(), d2d_command_list_draw_rectangle(), d2d_command_list_fill_geometry(), d2d_command_list_fill_mesh(), d2d_command_list_fill_opacity_mask(), d2d_command_list_push_layer(), and d2d_command_list_set_text_rendering_params_internal().

◆ d2d_command_list_Release()

static ULONG STDMETHODCALLTYPE d2d_command_list_Release ( ID2D1CommandList * iface )

static

Definition at line 246 of file command_list.c.

{
    struct d2d_command_list *command_list = impl_from_ID2D1CommandList(iface);
    ULONG refcount = InterlockedDecrement(&command_list->refcount);
    size_t i;

    TRACE("%p decreasing refcount to %lu.\n", iface, refcount);

    if (!refcount)
    {
        ID2D1Factory_Release(command_list->factory);
        for (i = 0; i < command_list->objects_count; ++i)
            IUnknown_Release(command_list->objects[i]);
        free(command_list->objects);
        free(command_list->data);
        free(command_list);
    }

    return refcount;
}

◆ d2d_command_list_require_space()

static void * d2d_command_list_require_space	(	struct d2d_command_list *	command_list,
		size_t	size
	)

static

Definition at line 520 of file command_list.c.

{
    struct d2d_command *command;

    if (!d2d_array_reserve(&command_list->data, &command_list->capacity, command_list->size + size, 1))
        return NULL;

    command = (struct d2d_command *)((char *)command_list->data + command_list->size);
    command->size = size;

    command_list->size += size;

    return command;
}

◆ d2d_command_list_set_antialias_mode()

void d2d_command_list_set_antialias_mode	(	struct d2d_command_list *	command_list,
		D2D1_ANTIALIAS_MODE	mode
	)

Definition at line 617 of file command_list.c.

{
    struct d2d_command_set_antialias_mode *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_ANTIALIAS_MODE;
    command->mode = mode;
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetAntialiasMode().

◆ d2d_command_list_set_primitive_blend()

void d2d_command_list_set_primitive_blend	(	struct d2d_command_list *	command_list,
		D2D1_PRIMITIVE_BLEND	primitive_blend
	)

Definition at line 627 of file command_list.c.

{
    struct d2d_command_set_primitive_blend *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_PRIMITIVE_BLEND;
    command->primitive_blend = primitive_blend;
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetPrimitiveBlend().

◆ d2d_command_list_set_tags()

void d2d_command_list_set_tags	(	struct d2d_command_list *	command_list,
		D2D1_TAG	tag1,
		D2D1_TAG	tag2
	)

Definition at line 656 of file command_list.c.

{
    struct d2d_command_set_tags *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_TAGS;
    command->tag1 = tag1;
    command->tag2 = tag2;
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetTags().

◆ d2d_command_list_set_text_antialias_mode()

void d2d_command_list_set_text_antialias_mode	(	struct d2d_command_list *	command_list,
		D2D1_TEXT_ANTIALIAS_MODE	mode
	)

Definition at line 646 of file command_list.c.

{
    struct d2d_command_set_text_antialias_mode *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_TEXT_ANTIALIAS_MODE;
    command->mode = mode;
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetTextAntialiasMode().

◆ d2d_command_list_set_text_rendering_params()

void d2d_command_list_set_text_rendering_params	(	struct d2d_command_list *	command_list,
		IDWriteRenderingParams *	params
	)

Definition at line 898 of file command_list.c.

{
    d2d_command_list_set_text_rendering_params_internal(command_list, FALSE, params);
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetTextRenderingParams().

◆ d2d_command_list_set_text_rendering_params_internal()

static void d2d_command_list_set_text_rendering_params_internal	(	struct d2d_command_list *	command_list,
		BOOL	allow_null,
		IDWriteRenderingParams *	params
	)

static

Definition at line 873 of file command_list.c.

{
    struct d2d_command_set_text_rendering_params *command;

    if (!params && !allow_null) return;

    if ((command_list->flags & D2D_COMMAND_LIST_HAS_NULL_TEXT_RENDERING_PARAMS)
            && !params)
    {
        return;
    }

    d2d_command_list_reference_object(command_list, params);

    if (params)
        command_list->flags &= ~D2D_COMMAND_LIST_HAS_NULL_TEXT_RENDERING_PARAMS;
    else
        command_list->flags |= D2D_COMMAND_LIST_HAS_NULL_TEXT_RENDERING_PARAMS;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_TEXT_RENDERING_PARAMS;
    command->params = params;
}

Referenced by d2d_command_list_draw_glyph_run(), and d2d_command_list_set_text_rendering_params().

◆ d2d_command_list_set_transform()

void d2d_command_list_set_transform	(	struct d2d_command_list *	command_list,
		const D2D1_MATRIX_3X2_F *	transform
	)

Definition at line 666 of file command_list.c.

{
    struct d2d_command_set_transform *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_TRANSFORM;
    command->transform = *transform;
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetTransform().

◆ d2d_command_list_set_unit_mode()

void d2d_command_list_set_unit_mode	(	struct d2d_command_list *	command_list,
		D2D1_UNIT_MODE	mode
	)

Definition at line 637 of file command_list.c.

{
    struct d2d_command_set_unit_mode *command;

    command = d2d_command_list_require_space(command_list, sizeof(*command));
    command->c.op = D2D_COMMAND_SET_UNIT_MODE;
    command->mode = mode;
}

Referenced by d2d_command_list_begin_draw(), d2d_device_context_RestoreDrawingState(), and d2d_device_context_SetUnitMode().

◆ d2d_command_list_Stream()

static HRESULT STDMETHODCALLTYPE d2d_command_list_Stream	(	ID2D1CommandList *	iface,
		ID2D1CommandSink *	sink
	)

static

Definition at line 276 of file command_list.c.

{
    struct d2d_command_list *command_list = impl_from_ID2D1CommandList(iface);
    const void *data, *end;
    HRESULT hr;

    TRACE("iface %p, sink %p.\n", iface, sink);

    if (command_list->state != D2D_COMMAND_LIST_STATE_CLOSED) return S_OK;

    if (FAILED(hr = ID2D1CommandSink_BeginDraw(sink)))
        return hr;

    data = command_list->data;
    end = (char *)command_list->data + command_list->size;
    while (data < end)
    {
        const struct d2d_command *command = data;

        switch (command->op)
        {
            case D2D_COMMAND_SET_ANTIALIAS_MODE:
            {
                const struct d2d_command_set_antialias_mode *c = data;
                hr = ID2D1CommandSink_SetAntialiasMode(sink, c->mode);
                break;
            }
            case D2D_COMMAND_SET_TAGS:
            {
                const struct d2d_command_set_tags *c = data;
                hr = ID2D1CommandSink_SetTags(sink, c->tag1, c->tag2);
                break;
            }
            case D2D_COMMAND_SET_TEXT_ANTIALIAS_MODE:
            {
                const struct d2d_command_set_text_antialias_mode *c = data;
                hr = ID2D1CommandSink_SetTextAntialiasMode(sink, c->mode);
                break;
            }
            case D2D_COMMAND_SET_TEXT_RENDERING_PARAMS:
            {
                const struct d2d_command_set_text_rendering_params *c = data;
                hr = ID2D1CommandSink_SetTextRenderingParams(sink, c->params);
                break;
            }
            case D2D_COMMAND_SET_TRANSFORM:
            {
                const struct d2d_command_set_transform *c = data;
                hr = ID2D1CommandSink_SetTransform(sink, &c->transform);
                break;
            }
            case D2D_COMMAND_SET_PRIMITIVE_BLEND:
            {
                const struct d2d_command_set_primitive_blend *c = data;
                ID2D1CommandSink1 *sink1;
                ID2D1CommandSink4 *sink4;

                switch (c->primitive_blend)
                {
                    case D2D1_PRIMITIVE_BLEND_SOURCE_OVER:
                    case D2D1_PRIMITIVE_BLEND_COPY:
                        hr = ID2D1CommandSink_SetPrimitiveBlend(sink, c->primitive_blend);
                        break;
                    case D2D1_PRIMITIVE_BLEND_MIN:
                    case D2D1_PRIMITIVE_BLEND_ADD:
                        if (SUCCEEDED(ID2D1CommandSink_QueryInterface(sink, &IID_ID2D1CommandSink1, (void **)&sink1)))
                        {
                            hr = ID2D1CommandSink1_SetPrimitiveBlend1(sink1, c->primitive_blend);
                            ID2D1CommandSink1_Release(sink1);
                        }
                        else
                            hr = ID2D1CommandSink_SetPrimitiveBlend(sink, D2D1_PRIMITIVE_BLEND_SOURCE_OVER);
                        break;
                    case D2D1_PRIMITIVE_BLEND_MAX:
                        if (SUCCEEDED(ID2D1CommandSink_QueryInterface(sink, &IID_ID2D1CommandSink4, (void **)&sink4)))
                        {
                            hr = ID2D1CommandSink4_SetPrimitiveBlend2(sink4, c->primitive_blend);
                            ID2D1CommandSink4_Release(sink4);
                        }
                        else
                            hr = ID2D1CommandSink_SetPrimitiveBlend(sink, D2D1_PRIMITIVE_BLEND_SOURCE_OVER);
                        break;
                    default:
                        FIXME("Unexpected blend mode %u.\n", c->primitive_blend);
                        hr = E_UNEXPECTED;
                }
                break;
            }
            case D2D_COMMAND_SET_UNIT_MODE:
            {
                const struct d2d_command_set_unit_mode *c = data;
                hr = ID2D1CommandSink_SetUnitMode(sink, c->mode);
                break;
            }
            case D2D_COMMAND_CLEAR:
            {
                const struct d2d_command_clear *c = data;
                hr = ID2D1CommandSink_Clear(sink, &c->color);
                break;
            }
            case D2D_COMMAND_DRAW_GLYPH_RUN:
            {
                const struct d2d_command_draw_glyph_run *c = data;
                hr = ID2D1CommandSink_DrawGlyphRun(sink, c->origin, &c->run, c->run_desc, c->brush, c->measuring_mode);
                break;
            }
            case D2D_COMMAND_DRAW_LINE:
            {
                const struct d2d_command_draw_line *c = data;
                hr = ID2D1CommandSink_DrawLine(sink, c->p0, c->p1, c->brush, c->stroke_width,
                        c->stroke_style);
                break;
            }
            case D2D_COMMAND_DRAW_GEOMETRY:
            {
                const struct d2d_command_draw_geometry *c = data;
                hr = ID2D1CommandSink_DrawGeometry(sink, c->geometry, c->brush, c->stroke_width,
                        c->stroke_style);
                break;
            }
            case D2D_COMMAND_DRAW_RECTANGLE:
            {
                const struct d2d_command_draw_rectangle *c = data;
                hr = ID2D1CommandSink_DrawRectangle(sink, &c->rect, c->brush, c->stroke_width,
                        c->stroke_style);
                break;
            }
            case D2D_COMMAND_DRAW_BITMAP:
            {
                const struct d2d_command_draw_bitmap *c = data;
                hr = ID2D1CommandSink_DrawBitmap(sink, c->bitmap, c->dst_rect, c->opacity,
                        c->interpolation_mode, c->src_rect, c->perspective_transform);
                break;
            }
            case D2D_COMMAND_DRAW_IMAGE:
            {
                const struct d2d_command_draw_image *c = data;
                hr = ID2D1CommandSink_DrawImage(sink, c->image, c->target_offset, c->image_rect,
                        c->interpolation_mode, c->composite_mode);
                break;
            }
            case D2D_COMMAND_FILL_MESH:
            {
                const struct d2d_command_fill_mesh *c = data;
                hr = ID2D1CommandSink_FillMesh(sink, c->mesh, c->brush);
                break;
            }
            case D2D_COMMAND_FILL_OPACITY_MASK:
            {
                const struct d2d_command_fill_opacity_mask *c = data;
                hr = ID2D1CommandSink_FillOpacityMask(sink, c->bitmap, c->brush, c->dst_rect, c->src_rect);
                break;
            }
            case D2D_COMMAND_FILL_GEOMETRY:
            {
                const struct d2d_command_fill_geometry *c = data;
                hr = ID2D1CommandSink_FillGeometry(sink, c->geometry, c->brush, c->opacity_brush);
                break;
            }
            case D2D_COMMAND_FILL_RECTANGLE:
            {
                const struct d2d_command_fill_rectangle *c = data;
                hr = ID2D1CommandSink_FillRectangle(sink, &c->rect, c->brush);
                break;
            }
            case D2D_COMMAND_PUSH_CLIP:
            {
                const struct d2d_command_push_clip *c = data;
                hr = ID2D1CommandSink_PushAxisAlignedClip(sink, &c->rect, c->mode);
                break;
            }
            case D2D_COMMAND_PUSH_LAYER:
            {
                const struct d2d_command_push_layer *c = data;
                hr = ID2D1CommandSink_PushLayer(sink, &c->params, c->layer);
                break;
            }
            case D2D_COMMAND_POP_CLIP:
                hr = ID2D1CommandSink_PopAxisAlignedClip(sink);
                break;
            case D2D_COMMAND_POP_LAYER:
                hr = ID2D1CommandSink_PopLayer(sink);
                break;
            default:
                FIXME("Unhandled command %u.\n", command->op);
                hr = E_UNEXPECTED;
        }

        if (FAILED(hr)) return hr;

        data = (char *)data + command->size;
    }

    return ID2D1CommandSink_EndDraw(sink);
}

◆ d2d_command_list_write_field()

static void d2d_command_list_write_field	(	BYTE **	data,
		void *	dst,
		const void *	src,
		size_t	size
	)

inlinestatic

Definition at line 904 of file command_list.c.

{
    void **ptr = dst;

    if (!src)
    {
        *ptr = NULL;
        return;
    }

    *ptr = *data;
    memcpy(*data, src, size);
    *data = *data + size;
}

Referenced by d2d_command_list_draw_bitmap(), d2d_command_list_draw_glyph_run(), d2d_command_list_draw_image(), and d2d_command_list_fill_opacity_mask().

◆ impl_from_ID2D1CommandList()

static struct d2d_command_list * impl_from_ID2D1CommandList ( ID2D1CommandList * iface )

inlinestatic

Definition at line 211 of file command_list.c.

{
    return CONTAINING_RECORD(iface, struct d2d_command_list, ID2D1CommandList_iface);
}

Referenced by d2d_command_list_AddRef(), d2d_command_list_Close(), d2d_command_list_GetFactory(), d2d_command_list_Release(), and d2d_command_list_Stream().

◆ unsafe_impl_from_ID2D1CommandList()

struct d2d_command_list * unsafe_impl_from_ID2D1CommandList ( ID2D1CommandList * iface )

Definition at line 512 of file command_list.c.

{
    if (!iface)
        return NULL;
    assert(iface->lpVtbl == (ID2D1CommandListVtbl *)&d2d_command_list_vtbl);
    return CONTAINING_RECORD(iface, struct d2d_command_list, ID2D1CommandList_iface);
}

Referenced by d2d_device_context_SetTarget().

◆ WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL ( d2d )

Variable Documentation

◆ d2d_command_list_vtbl

const ID2D1CommandListVtbl d2d_command_list_vtbl

static

Initial value:

=
{
    d2d_command_list_QueryInterface,
    d2d_command_list_AddRef,
    d2d_command_list_Release,
    d2d_command_list_GetFactory,
    d2d_command_list_Stream,
    d2d_command_list_Close,
}

Definition at line 488 of file command_list.c.

Referenced by d2d_command_list_create(), and unsafe_impl_from_ID2D1CommandList().

Enumerations
enum	d2d_command_list_flags { D2D_COMMAND_LIST_HAS_NULL_TEXT_RENDERING_PARAMS = 0x1 }

enum	d2d_command_type { D2D_COMMAND_SET_ANTIALIAS_MODE , D2D_COMMAND_SET_TAGS , D2D_COMMAND_SET_TEXT_ANTIALIAS_MODE , D2D_COMMAND_SET_TEXT_RENDERING_PARAMS , D2D_COMMAND_SET_TRANSFORM , D2D_COMMAND_SET_PRIMITIVE_BLEND , D2D_COMMAND_SET_UNIT_MODE , D2D_COMMAND_CLEAR , D2D_COMMAND_DRAW_GLYPH_RUN , D2D_COMMAND_DRAW_LINE , D2D_COMMAND_DRAW_GEOMETRY , D2D_COMMAND_DRAW_RECTANGLE , D2D_COMMAND_DRAW_BITMAP , D2D_COMMAND_DRAW_IMAGE , D2D_COMMAND_FILL_MESH , D2D_COMMAND_FILL_OPACITY_MASK , D2D_COMMAND_FILL_GEOMETRY , D2D_COMMAND_FILL_RECTANGLE , D2D_COMMAND_PUSH_CLIP , D2D_COMMAND_PUSH_LAYER , D2D_COMMAND_POP_CLIP , D2D_COMMAND_POP_LAYER }

Classes

Enumerations

Functions

Variables

Enumeration Type Documentation

◆ d2d_command_list_flags

◆ d2d_command_type

Function Documentation

◆ d2d_command_list_AddRef()

◆ d2d_command_list_begin_draw()

◆ d2d_command_list_clear()

◆ d2d_command_list_Close()

◆ d2d_command_list_create()

◆ d2d_command_list_create_brush()

◆ d2d_command_list_draw_bitmap()

◆ d2d_command_list_draw_geometry()

◆ d2d_command_list_draw_glyph_run()

◆ d2d_command_list_draw_image()

◆ d2d_command_list_draw_line()

◆ d2d_command_list_draw_rectangle()

◆ d2d_command_list_fill_geometry()

◆ d2d_command_list_fill_mesh()

◆ d2d_command_list_fill_opacity_mask()

◆ d2d_command_list_fill_rectangle()

◆ d2d_command_list_GetFactory()

◆ d2d_command_list_pop_clip()

◆ d2d_command_list_pop_layer()

◆ d2d_command_list_push_clip()

◆ d2d_command_list_push_layer()

◆ d2d_command_list_QueryInterface()

◆ d2d_command_list_reference_object()

◆ d2d_command_list_Release()

◆ d2d_command_list_require_space()

◆ d2d_command_list_set_antialias_mode()

◆ d2d_command_list_set_primitive_blend()

◆ d2d_command_list_set_tags()

◆ d2d_command_list_set_text_antialias_mode()

◆ d2d_command_list_set_text_rendering_params()

◆ d2d_command_list_set_text_rendering_params_internal()

◆ d2d_command_list_set_transform()

◆ d2d_command_list_set_unit_mode()

◆ d2d_command_list_Stream()

◆ d2d_command_list_write_field()

◆ impl_from_ID2D1CommandList()

◆ unsafe_impl_from_ID2D1CommandList()

◆ WINE_DEFAULT_DEBUG_CHANNEL()

Variable Documentation

◆ d2d_command_list_vtbl
