wave.c File Reference

#include "dmusic_private.h"
#include "soundfont.h"

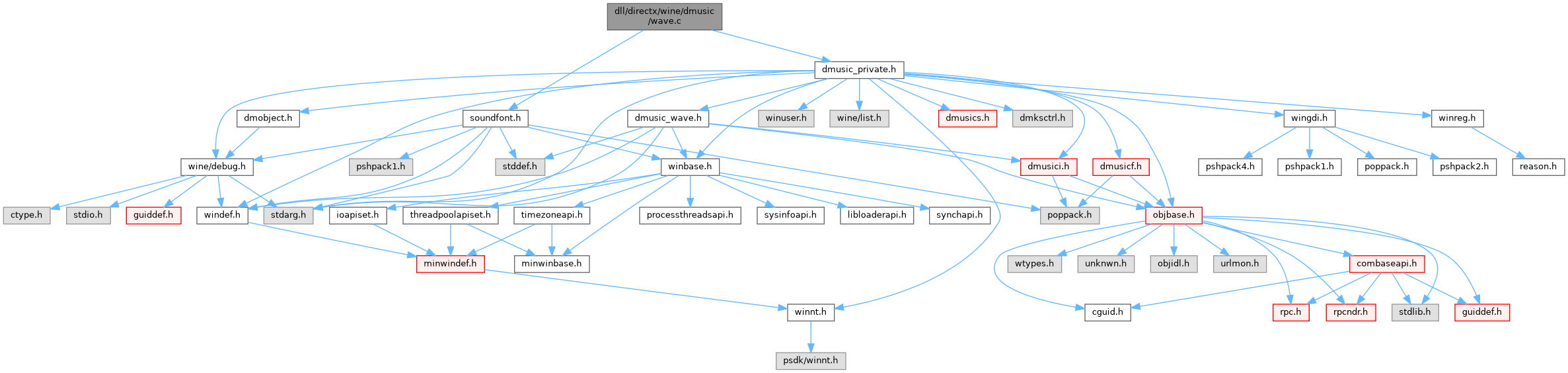

Include dependency graph for wave.c:

Go to the source code of this file.

Classes
struct	sample
struct	wave

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (dmusic)
	C_ASSERT (sizeof(struct sample)==offsetof(struct sample, loops[0]))
static struct wave *	impl_from_IUnknown (IUnknown *iface)
static HRESULT WINAPI	wave_QueryInterface (IUnknown *iface, REFIID riid, void **ret_iface)
static ULONG WINAPI	wave_AddRef (IUnknown *iface)
static ULONG WINAPI	wave_Release (IUnknown *iface)
static HRESULT	parse_wsmp_chunk (struct wave *This, IStream *stream, struct chunk_entry *chunk)
static HRESULT	parse_wave_chunk (struct wave *This, IStream *stream, struct chunk_entry *parent)
static struct wave *	impl_from_IDirectMusicObject (IDirectMusicObject *iface)
static HRESULT WINAPI	wave_object_ParseDescriptor (IDirectMusicObject *iface, IStream *stream, DMUS_OBJECTDESC *desc)
static struct wave *	impl_from_IPersistStream (IPersistStream *iface)
static HRESULT WINAPI	wave_persist_stream_Load (IPersistStream *iface, IStream *stream)
HRESULT	wave_create (IDirectMusicObject **ret_iface)
HRESULT	wave_create_from_chunk (IStream *stream, struct chunk_entry *parent, IDirectMusicObject **ret_iface)
HRESULT	wave_create_from_soundfont (struct soundfont *soundfont, UINT index, IDirectMusicObject **ret_iface)
static HRESULT	wave_read_data (struct wave *This, void *data, DWORD *data_size)
HRESULT	wave_download_to_port (IDirectMusicObject *iface, IDirectMusicPortDownload *port, DWORD *id)
HRESULT	wave_download_to_dsound (IDirectMusicObject *iface, IDirectSound *dsound, IDirectSoundBuffer **ret_iface)
HRESULT	wave_get_duration (IDirectMusicObject *iface, REFERENCE_TIME *duration)

Variables
static const IUnknownVtbl	unknown_vtbl
static const IDirectMusicObjectVtbl	wave_object_vtbl
static const IPersistStreamVtbl	wave_persist_stream_vtbl

Function Documentation

C_ASSERT()

C_ASSERT

(

sizeof(struct sample)

= =offsetof(struct sample, loops[0])

)

impl_from_IDirectMusicObject()

static struct wave * impl_from_IDirectMusicObject ( IDirectMusicObject *  iface )

inlinestatic

Definition at line 183 of file wave.c.

{
    return CONTAINING_RECORD(iface, struct wave, dmobj.IDirectMusicObject_iface);
}

Referenced by wave_create_from_chunk(), wave_create_from_soundfont(), wave_download_to_dsound(), wave_download_to_port(), and wave_get_duration().

impl_from_IPersistStream()

static struct wave * impl_from_IPersistStream ( IPersistStream *  iface )

inlinestatic

Definition at line 231 of file wave.c.

{
    return CONTAINING_RECORD(iface, struct wave, dmobj.IPersistStream_iface);
}

Referenced by wave_persist_stream_Load().

impl_from_IUnknown()

static struct wave * impl_from_IUnknown ( IUnknown *  iface )

inlinestatic

Definition at line 48 of file wave.c.

{
    return CONTAINING_RECORD(iface, struct wave, IUnknown_iface);
}

Referenced by wave_AddRef(), wave_QueryInterface(), and wave_Release().

parse_wave_chunk()

static HRESULT parse_wave_chunk ( struct wave *  This, IStream *  stream, struct chunk_entry *  parent  )

static

Definition at line 142 of file wave.c.

{
    struct chunk_entry chunk = {.parent = parent};
    HRESULT hr;

    while ((hr = stream_next_chunk(stream, &chunk)) == S_OK)
    {
        switch (MAKE_IDTYPE(chunk.id, chunk.type))
        {
        case mmioFOURCC('f','m','t',' '):
            if (!(This->format = malloc(chunk.size))) return E_OUTOFMEMORY;
            hr = stream_chunk_get_data(stream, &chunk, This->format, chunk.size);
            break;

        case mmioFOURCC('d','a','t','a'):
            if (This->data) IStream_Release(This->data);
            hr = IStream_Clone(stream, &This->data);
            if (SUCCEEDED(hr)) This->data_size = chunk.size;
            break;

        case FOURCC_WSMP:
            hr = parse_wsmp_chunk(This, stream, &chunk);
            break;

        case mmioFOURCC('w','a','v','u'):
        case mmioFOURCC('s','m','p','l'):
        case MAKE_IDTYPE(FOURCC_LIST, DMUS_FOURCC_INFO_LIST):
            break;

        default:
            FIXME("Ignoring chunk %s %s\n", debugstr_fourcc(chunk.id), debugstr_fourcc(chunk.type));
            break;
        }

        if (FAILED(hr)) break;
    }

    if (This->format && This->data) return S_OK;
    return hr;
}

Referenced by wave_create_from_chunk(), and wave_persist_stream_Load().

parse_wsmp_chunk()

static HRESULT parse_wsmp_chunk ( struct wave *  This, IStream *  stream, struct chunk_entry *  chunk  )

static

Definition at line 118 of file wave.c.

{
    struct sample *sample;
    WSMPL wsmpl;
    HRESULT hr;
    UINT size;

    if (chunk->size < sizeof(wsmpl)) return E_INVALIDARG;
    if (FAILED(hr = stream_read(stream, &wsmpl, sizeof(wsmpl)))) return hr;
    if (chunk->size != wsmpl.cbSize + sizeof(WLOOP) * wsmpl.cSampleLoops) return E_INVALIDARG;
    if (wsmpl.cbSize != sizeof(wsmpl)) return E_INVALIDARG;
    if (wsmpl.cSampleLoops > 1) FIXME("Not implemented: found more than one wave loop\n");

    size = offsetof(struct sample, loops[wsmpl.cSampleLoops]);
    if (!(sample = malloc(size))) return E_OUTOFMEMORY;
    sample->head = wsmpl;

    size = sizeof(WLOOP) * wsmpl.cSampleLoops;
    if (FAILED(hr = stream_read(stream, sample->loops, size))) free(sample);
    else This->sample = sample;

    return hr;
}

Referenced by parse_wave_chunk().

wave_AddRef()

static ULONG WINAPI wave_AddRef ( IUnknown *  iface )

static

Definition at line 85 of file wave.c.

{
    struct wave *This = impl_from_IUnknown(iface);
    LONG ref = InterlockedIncrement(&This->ref);
    TRACE("(%p) ref=%ld\n", This, ref);
    return ref;
}

wave_create()

HRESULT wave_create

(

IDirectMusicObject **

ret_iface

)

Definition at line 277 of file wave.c.

{
    struct wave *obj;

    if (!(obj = calloc(1, sizeof(*obj)))) return E_OUTOFMEMORY;
    obj->IUnknown_iface.lpVtbl = &unknown_vtbl;
    obj->ref = 1;
    dmobject_init(&obj->dmobj, &CLSID_DirectSoundWave, &obj->IUnknown_iface);
    obj->dmobj.IDirectMusicObject_iface.lpVtbl = &wave_object_vtbl;
    obj->dmobj.IPersistStream_iface.lpVtbl = &wave_persist_stream_vtbl;

    *ret_iface = &obj->dmobj.IDirectMusicObject_iface;
    return S_OK;
}

Referenced by wave_create_from_chunk(), wave_create_from_soundfont(), and WaveCF_CreateInstance().

wave_create_from_chunk()

HRESULT wave_create_from_chunk	(	IStream *	stream,
		struct chunk_entry *	parent,
		IDirectMusicObject **	ret_iface
	)

Definition at line 292 of file wave.c.

{
    struct wave *This;
    IDirectMusicObject *iface;
    HRESULT hr;

    TRACE("(%p, %p, %p)\n", stream, parent, ret_iface);

    if (FAILED(hr = wave_create(&iface))) return hr;
    This = impl_from_IDirectMusicObject(iface);

    if (FAILED(hr = parse_wave_chunk(This, stream, parent)))
    {
        IDirectMusicObject_Release(iface);
        return DMUS_E_UNSUPPORTED_STREAM;
    }

    if (TRACE_ON(dmusic))
    {
        UINT i;

        TRACE("*** Created DirectMusicWave %p\n", This);
        TRACE(" - format: %p\n", This->format);
        if (This->format)
        {
            TRACE("    - wFormatTag: %u\n", This->format->wFormatTag);
            TRACE("    - nChannels: %u\n", This->format->nChannels);
            TRACE("    - nSamplesPerSec: %lu\n", This->format->nSamplesPerSec);
            TRACE("    - nAvgBytesPerSec: %lu\n", This->format->nAvgBytesPerSec);
            TRACE("    - nBlockAlign: %u\n", This->format->nBlockAlign);
            TRACE("    - wBitsPerSample: %u\n", This->format->wBitsPerSample);
            TRACE("    - cbSize: %u\n", This->format->cbSize);
        }
        if (This->sample)
        {
            TRACE(" - sample: {size: %lu, unity_note: %u, fine_tune: %d, attenuation: %ld, options: %#lx, loops: %lu}\n",
                    This->sample->head.cbSize, This->sample->head.usUnityNote,
                    This->sample->head.sFineTune, This->sample->head.lAttenuation,
                    This->sample->head.fulOptions, This->sample->head.cSampleLoops);
            for (i = 0; i < This->sample->head.cSampleLoops; i++)
                TRACE(" - loops[%u]: {size: %lu, type: %lu, start: %lu, length: %lu}\n", i,
                        This->sample->loops[i].cbSize, This->sample->loops[i].ulType,
                        This->sample->loops[i].ulStart, This->sample->loops[i].ulLength);
        }
    }

    *ret_iface = iface;
    return S_OK;
}

Referenced by parse_wvpl_list(), and wave_track_create_from_chunk().

wave_create_from_soundfont()

HRESULT wave_create_from_soundfont	(	struct soundfont *	soundfont,
		UINT	index,
		IDirectMusicObject **	ret_iface
	)

Definition at line 342 of file wave.c.

{
    struct sf_sample *sf_sample = soundfont->shdr + index;
    struct sample *sample = NULL;
    WAVEFORMATEX *format = NULL;
    HRESULT hr = E_OUTOFMEMORY;
    DWORD data_size, offset;
    struct wave *This;
    IStream *stream = NULL;
    IDirectMusicObject *iface;
    const LARGE_INTEGER zero = { .QuadPart = 0 };

    TRACE("(%p, %u, %p)\n", soundfont, index, ret_iface);

    if (sf_sample->sample_link) FIXME("Stereo sample not supported\n");

    if (!(format = calloc(1, sizeof(*format)))) goto failed;
    format->wFormatTag = WAVE_FORMAT_PCM;
    format->nChannels = 1;
    format->wBitsPerSample = 16;
    format->nSamplesPerSec = sf_sample->sample_rate;
    format->nBlockAlign = format->wBitsPerSample * format->nChannels / 8;
    format->nAvgBytesPerSec = format->nBlockAlign * format->nSamplesPerSec;

    if (!(sample = calloc(1, offsetof(struct sample, loops[1])))) goto failed;
    sample->head.cbSize = sizeof(sample->head);
    sample->head.cSampleLoops = 1;
    sample->loops[0].ulStart = sf_sample->start_loop - sf_sample->start;
    sample->loops[0].ulLength = sf_sample->end_loop - sf_sample->start_loop;

    data_size = sf_sample->end - sf_sample->start;
    if (FAILED(hr = CreateStreamOnHGlobal(NULL, TRUE, &stream))) goto failed;
    offset = sf_sample->start * format->nBlockAlign / format->nChannels;
    if (FAILED(hr = IStream_Write(stream, soundfont->sdta + offset, data_size, &data_size))) goto failed;
    if (FAILED(hr = IStream_Seek(stream, zero, STREAM_SEEK_SET, NULL))) goto failed;

    if (FAILED(hr = wave_create(&iface))) goto failed;

    This = impl_from_IDirectMusicObject(iface);
    This->format = format;
    This->sample = sample;
    This->data_size = data_size;
    This->data = stream;

    if (TRACE_ON(dmusic))
    {
        UINT i;

        TRACE("*** Created DirectMusicWave %p\n", This);
        TRACE(" - format: %p\n", This->format);
        if (This->format)
        {
            TRACE("    - wFormatTag: %u\n", This->format->wFormatTag);
            TRACE("    - nChannels: %u\n", This->format->nChannels);
            TRACE("    - nSamplesPerSec: %lu\n", This->format->nSamplesPerSec);
            TRACE("    - nAvgBytesPerSec: %lu\n", This->format->nAvgBytesPerSec);
            TRACE("    - nBlockAlign: %u\n", This->format->nBlockAlign);
            TRACE("    - wBitsPerSample: %u\n", This->format->wBitsPerSample);
            TRACE("    - cbSize: %u\n", This->format->cbSize);
        }

        TRACE(" - sample: {size: %lu, unity_note: %u, fine_tune: %d, attenuation: %ld, options: %#lx, loops: %lu}\n",
                This->sample->head.cbSize, This->sample->head.usUnityNote,
                This->sample->head.sFineTune, This->sample->head.lAttenuation,
                This->sample->head.fulOptions, This->sample->head.cSampleLoops);
        for (i = 0; i < This->sample->head.cSampleLoops; i++)
            TRACE(" - loops[%u]: {size: %lu, type: %lu, start: %lu, length: %lu}\n", i,
                    This->sample->loops[i].cbSize, This->sample->loops[i].ulType,
                    This->sample->loops[i].ulStart, This->sample->loops[i].ulLength);
    }

    *ret_iface = iface;
    return S_OK;

failed:
    if (stream) IStream_Release(stream);
    free(sample);
    free(format);
    return hr;
}

Referenced by parse_sfbk_chunk().

wave_download_to_dsound()

HRESULT wave_download_to_dsound	(	IDirectMusicObject *	iface,
		IDirectSound *	dsound,
		IDirectSoundBuffer **	ret_iface
	)

Definition at line 481 of file wave.c.

{
    struct wave *This = impl_from_IDirectMusicObject(iface);
    DSBUFFERDESC desc =
    {
        .dwSize = sizeof(desc),
        .dwBufferBytes = This->data_size,
        .lpwfxFormat = This->format,
    };
    IDirectSoundBuffer *buffer;
    HRESULT hr;
    void *data;
    DWORD size;

    TRACE("%p, %p, %p\n", This, dsound, ret_iface);

    if (FAILED(hr = IDirectSound_CreateSoundBuffer(dsound, &desc, &buffer, NULL)))
    {
        WARN("Failed to create direct sound buffer, hr %#lx\n", hr);
        return hr;
    }

    if (SUCCEEDED(hr = IDirectSoundBuffer_Lock(buffer, 0, This->data_size, &data, &size, NULL, 0, 0)))
    {
        if (FAILED(hr = wave_read_data(This, data, &size)))
            WARN("Failed to read wave data from stream, hr %#lx\n", hr);
        hr = IDirectSoundBuffer_Unlock(buffer, data, size, NULL, 0);
    }

    if (FAILED(hr))
    {
        WARN("Failed to download wave to dsound, hr %#lx\n", hr);
        IDirectSoundBuffer_Release(buffer);
        return hr;
    }

    *ret_iface = buffer;
    return S_OK;
}

Referenced by wave_track_SetParam().

wave_download_to_port()

HRESULT wave_download_to_port	(	IDirectMusicObject *	iface,
		IDirectMusicPortDownload *	port,
		DWORD *	id
	)

Definition at line 437 of file wave.c.

{
    struct download_buffer
    {
        DMUS_DOWNLOADINFO info;
        ULONG offsets[2];
        DMUS_WAVE wave;
        DMUS_WAVEDATA data;
    } *buffer;

    struct wave *This = impl_from_IDirectMusicObject(iface);
    DWORD size = offsetof(struct download_buffer, data.byData[This->data_size]);
    IDirectMusicDownload *download;
    HRESULT hr;

    if (FAILED(hr = IDirectMusicPortDownload_AllocateBuffer(port, size, &download))) return hr;

    if (SUCCEEDED(hr = IDirectMusicDownload_GetBuffer(download, (void **)&buffer, &size))
            && SUCCEEDED(hr = IDirectMusicPortDownload_GetDLId(port, &buffer->info.dwDLId, 1)))
    {
        buffer->info.dwDLType = DMUS_DOWNLOADINFO_WAVE;
        buffer->info.dwNumOffsetTableEntries = 2;
        buffer->info.cbSize = size;

        buffer->offsets[0] = offsetof(struct download_buffer, wave);
        buffer->offsets[1] = offsetof(struct download_buffer, data);

        buffer->wave.WaveformatEx = *This->format;
        buffer->wave.ulWaveDataIdx = 1;
        buffer->wave.ulCopyrightIdx = 0;
        buffer->wave.ulFirstExtCkIdx = 0;

        if (FAILED(hr = wave_read_data(This, buffer->data.byData, &buffer->data.cbSize)))
            WARN("Failed to read wave data from stream, hr %#lx\n", hr);
        else if (FAILED(hr = IDirectMusicPortDownload_Download(port, download)))
            WARN("Failed to download wave to port, hr %#lx\n", hr);
        else
            *id = buffer->info.dwDLId;
    }

    IDirectMusicDownload_Release(download);
    return hr;
}

Referenced by instrument_download_to_port().

wave_get_duration()

HRESULT wave_get_duration	(	IDirectMusicObject *	iface,
		REFERENCE_TIME *	duration
	)

Definition at line 521 of file wave.c.

{
    struct wave *This = impl_from_IDirectMusicObject(iface);
    *duration = (REFERENCE_TIME)This->data_size * 10000000 / This->format->nAvgBytesPerSec;
    return S_OK;
}

Referenced by wave_track_create_from_chunk().

wave_object_ParseDescriptor()

static HRESULT WINAPI wave_object_ParseDescriptor ( IDirectMusicObject *  iface, IStream *  stream, DMUS_OBJECTDESC *  desc  )

static

Definition at line 188 of file wave.c.

{
    struct chunk_entry chunk = {0};
    HRESULT hr;

    TRACE("(%p, %p, %p)\n", iface, stream, desc);

    if (!stream || !desc) return E_POINTER;

    if ((hr = stream_next_chunk(stream, &chunk)) == S_OK)
    {
        switch (MAKE_IDTYPE(chunk.id, chunk.type))
        {
        case MAKE_IDTYPE(FOURCC_RIFF, mmioFOURCC('W','A','V','E')):
            hr = dmobj_parsedescriptor(stream, &chunk, desc,
                    DMUS_OBJ_NAME_INFO | DMUS_OBJ_OBJECT | DMUS_OBJ_VERSION);
            break;

        default:
            WARN("Invalid wave chunk %s %s\n", debugstr_fourcc(chunk.id), debugstr_fourcc(chunk.type));
            hr = DMUS_E_CHUNKNOTFOUND;
            break;
        }
    }

    if (FAILED(hr)) return hr;

    TRACE("returning descriptor:\n");
    dump_DMUS_OBJECTDESC(desc);
    return S_OK;
}

wave_persist_stream_Load()

static HRESULT WINAPI wave_persist_stream_Load ( IPersistStream *  iface, IStream *  stream  )

static

Definition at line 236 of file wave.c.

{
    struct wave *This = impl_from_IPersistStream(iface);
    struct chunk_entry chunk = {0};
    HRESULT hr;

    TRACE("(%p, %p)\n", This, stream);

    if (!stream) return E_POINTER;

    if ((hr = stream_next_chunk(stream, &chunk)) == S_OK)
    {
        switch (MAKE_IDTYPE(chunk.id, chunk.type))
        {
        case MAKE_IDTYPE(FOURCC_RIFF, mmioFOURCC('W','A','V','E')):
            hr = parse_wave_chunk(This, stream, &chunk);
            break;

        default:
            WARN("Invalid wave chunk %s %s\n", debugstr_fourcc(chunk.id), debugstr_fourcc(chunk.type));
            hr = DMUS_E_UNSUPPORTED_STREAM;
            break;
        }
    }

    stream_skip_chunk(stream, &chunk);
    return hr;
}

wave_QueryInterface()

static HRESULT WINAPI wave_QueryInterface ( IUnknown *  iface, REFIID  riid, void **  ret_iface  )

static

Definition at line 53 of file wave.c.

{
    struct wave *This = impl_from_IUnknown(iface);

    TRACE("(%p, %s, %p)\n", This, debugstr_dmguid(riid), ret_iface);

    if (IsEqualIID(riid, &IID_IUnknown))
    {
        *ret_iface = &This->IUnknown_iface;
        IUnknown_AddRef(&This->IUnknown_iface);
        return S_OK;
    }

    if (IsEqualIID(riid, &IID_IDirectMusicObject))
    {
        *ret_iface = &This->dmobj.IDirectMusicObject_iface;
        IDirectMusicObject_AddRef(&This->dmobj.IDirectMusicObject_iface);
        return S_OK;
    }

    if (IsEqualIID(riid, &IID_IPersistStream))
    {
        *ret_iface = &This->dmobj.IPersistStream_iface;
        IDirectMusicObject_AddRef(&This->dmobj.IPersistStream_iface);
        return S_OK;
    }

    WARN("(%p, %s, %p): not found\n", This, debugstr_dmguid(riid), ret_iface);
    *ret_iface = NULL;
    return E_NOINTERFACE;
}

wave_read_data()

static HRESULT wave_read_data ( struct wave *  This, void *  data, DWORD *  data_size  )

static

Definition at line 423 of file wave.c.

{
    IStream *stream;
    HRESULT hr;

    if (SUCCEEDED(hr = IStream_Clone(This->data, &stream)))
    {
        hr = IStream_Read(stream, data, This->data_size, data_size);
        IStream_Release(stream);
    }

    return hr;
}

Referenced by wave_download_to_dsound(), and wave_download_to_port().

wave_Release()

static ULONG WINAPI wave_Release ( IUnknown *  iface )

static

Definition at line 93 of file wave.c.

{
    struct wave *This = impl_from_IUnknown(iface);
    LONG ref = InterlockedDecrement(&This->ref);

    TRACE("(%p) ref=%ld\n", This, ref);

    if (!ref)
    {
        free(This->format);
        if (This->data) IStream_Release(This->data);
        free(This->sample);
        free(This);
    }

    return ref;
}

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

dmusic

)

Variable Documentation

unknown_vtbl

const IUnknownVtbl unknown_vtbl

static

Initial value:

=
{
    wave_QueryInterface,
    wave_AddRef,
    wave_Release,
}

Definition at line 111 of file wave.c.

Referenced by wave_create().

wave_object_vtbl

const IDirectMusicObjectVtbl wave_object_vtbl

static

Initial value:

=
{
    dmobj_IDirectMusicObject_QueryInterface,
    dmobj_IDirectMusicObject_AddRef,
    dmobj_IDirectMusicObject_Release,
    dmobj_IDirectMusicObject_GetDescriptor,
    dmobj_IDirectMusicObject_SetDescriptor,
    wave_object_ParseDescriptor,
}

Definition at line 221 of file wave.c.

Referenced by wave_create().

wave_persist_stream_vtbl

const IPersistStreamVtbl wave_persist_stream_vtbl

static

Initial value:

=
{
    dmobj_IPersistStream_QueryInterface,
    dmobj_IPersistStream_AddRef,
    dmobj_IPersistStream_Release,
    dmobj_IPersistStream_GetClassID,
    unimpl_IPersistStream_IsDirty,
    wave_persist_stream_Load,
    unimpl_IPersistStream_Save,
    unimpl_IPersistStream_GetSizeMax,
}

Definition at line 265 of file wave.c.

Referenced by wave_create().
