MenuUI.c File Reference

#include "precomp.h"
#include <shellapi.h>

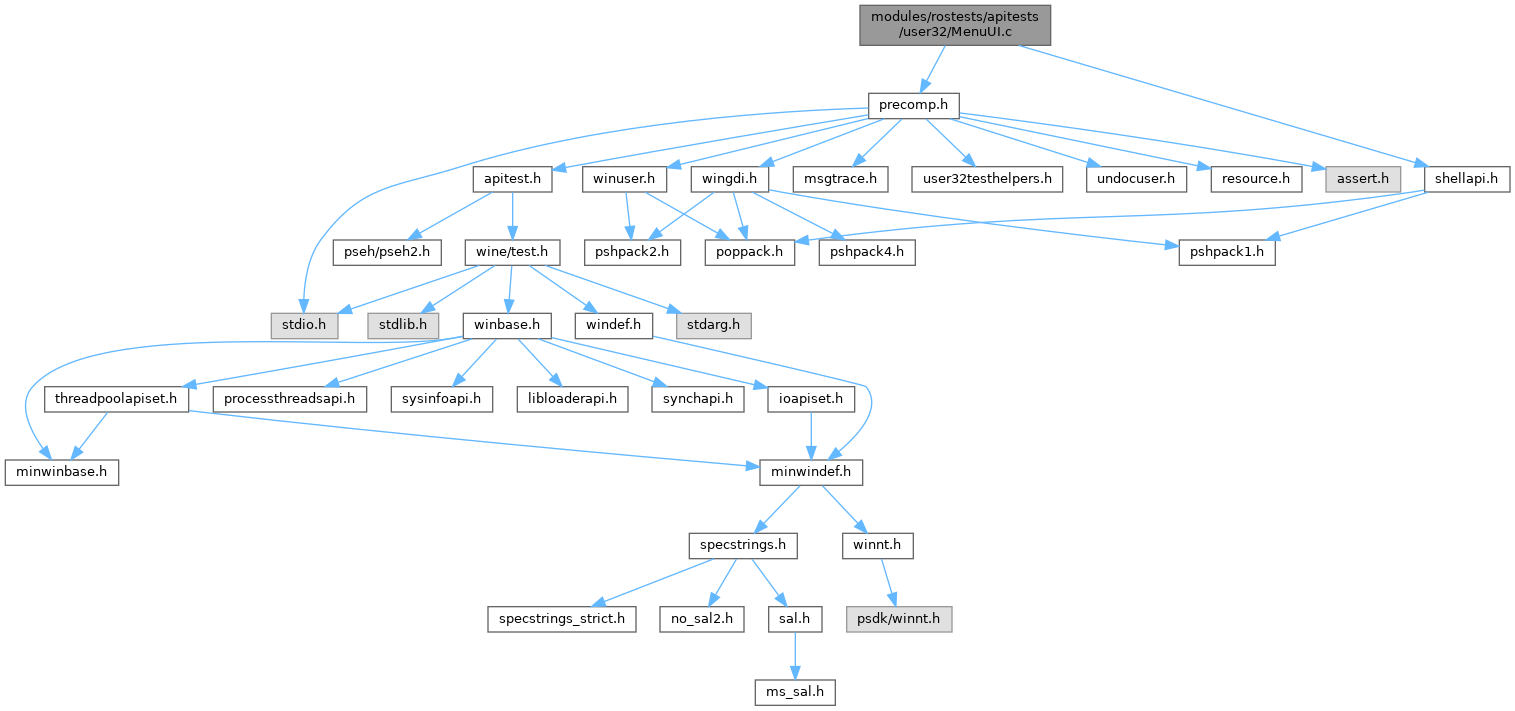

Include dependency graph for MenuUI.c:

Go to the source code of this file.

Classes
struct	tagCOUNTMENUWND

Macros
#define	SUB_PROGRAM   L"user32_apitest_menuui.exe"
#define	CLASSNAME   L"MenuUITest"
#define	MENUCLASS   L"#32768"
#define	MENUID_100   100
#define	MENUID_101   101
#define	MENUID_200   200
#define	MENUID_201   201
#define	DELAY   100
#define	INTERVAL   300

Typedefs
typedef BOOL(WINAPI *	FN_ShellExecuteExW) (SHELLEXECUTEINFOW *)
typedef HRESULT(WINAPI *	FN_DwmGetWindowAttribute) (HWND, DWORD, PVOID, DWORD)
typedef enum tagAUTO_CLICK	AUTO_CLICK
typedef enum tagAUTO_KEY	AUTO_KEY
typedef struct tagCOUNTMENUWND	COUNTMENUWND
typedef struct tagCOUNTMENUWND *	PCOUNTMENUWND

Enumerations
enum	tagAUTO_CLICK {   AUTO_LEFT_CLICK , AUTO_RIGHT_CLICK , AUTO_LEFT_DOUBLE_CLICK , AUTO_RIGHT_DOUBLE_CLICK ,   AUTO_LEFT_CLICK , AUTO_RIGHT_CLICK , AUTO_LEFT_DOUBLE_CLICK , AUTO_RIGHT_DOUBLE_CLICK }
enum	tagAUTO_KEY {   AUTO_KEY_DOWN , AUTO_KEY_UP , AUTO_KEY_DOWN_UP , AUTO_KEY_DOWN ,   AUTO_KEY_UP , AUTO_KEY_DOWN_UP }

Functions
static VOID	AutoKey (AUTO_KEY type, UINT vKey)
static VOID	AutoClick (AUTO_CLICK type, INT x, INT y)
static POINT	CenterPoint (const RECT *prc)
static INT	GetHitID (HWND hwndTarget)
static BOOL CALLBACK	CountMenuWndProc (HWND hwnd, LPARAM lParam)
static INT	CountMenuWnds (VOID)
static VOID	CloseSubPrograms (VOID)
static HWND	GetThreadActiveWnd (DWORD dwThreadID)
static HWND	GetThreadFocus (DWORD dwThreadID)
static HWND	GetThreadCapture (DWORD dwThreadID)
static DWORD WINAPI	ThreadFunc (LPVOID arg)
static INT	OnCreate (HWND hwnd)
static VOID	OnDestroy (HWND hwnd)
static LRESULT CALLBACK	WindowProc (HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
static VOID	TEST_MenuUI (VOID)
	START_TEST (MenuUI)

Variables
static FN_ShellExecuteExW	s_pShellExecuteExW = NULL
static HANDLE	s_hThread = NULL

Macro Definition Documentation

CLASSNAME

#define CLASSNAME   L"MenuUITest"

Definition at line 12 of file MenuUI.c.

DELAY

#define DELAY   100

Definition at line 25 of file MenuUI.c.

INTERVAL

#define INTERVAL   300

Definition at line 26 of file MenuUI.c.

MENUCLASS

#define MENUCLASS   L"#32768"

Definition at line 13 of file MenuUI.c.

MENUID_100

#define MENUID_100   100

Definition at line 15 of file MenuUI.c.

MENUID_101

#define MENUID_101   101

Definition at line 16 of file MenuUI.c.

MENUID_200

#define MENUID_200   200

Definition at line 17 of file MenuUI.c.

MENUID_201

#define MENUID_201   201

Definition at line 18 of file MenuUI.c.

SUB_PROGRAM

#define SUB_PROGRAM   L"user32_apitest_menuui.exe"

Definition at line 11 of file MenuUI.c.

Typedef Documentation

AUTO_CLICK

typedef enum tagAUTO_CLICK AUTO_CLICK

AUTO_KEY

typedef enum tagAUTO_KEY AUTO_KEY

COUNTMENUWND

typedef struct tagCOUNTMENUWND COUNTMENUWND

FN_DwmGetWindowAttribute

typedef HRESULT(WINAPI * FN_DwmGetWindowAttribute) (HWND, DWORD, PVOID, DWORD)

Definition at line 23 of file MenuUI.c.

FN_ShellExecuteExW

typedef BOOL(WINAPI * FN_ShellExecuteExW) (SHELLEXECUTEINFOW *)

Definition at line 20 of file MenuUI.c.

PCOUNTMENUWND

typedef struct tagCOUNTMENUWND * PCOUNTMENUWND

Enumeration Type Documentation

tagAUTO_CLICK

enum tagAUTO_CLICK

Enumerator
AUTO_LEFT_CLICK
AUTO_RIGHT_CLICK
AUTO_LEFT_DOUBLE_CLICK
AUTO_RIGHT_DOUBLE_CLICK
AUTO_LEFT_CLICK
AUTO_RIGHT_CLICK
AUTO_LEFT_DOUBLE_CLICK
AUTO_RIGHT_DOUBLE_CLICK

Definition at line 29 of file MenuUI.c.

{
    AUTO_LEFT_CLICK,
    AUTO_RIGHT_CLICK,
    AUTO_LEFT_DOUBLE_CLICK,
    AUTO_RIGHT_DOUBLE_CLICK,
} AUTO_CLICK;

tagAUTO_KEY

enum tagAUTO_KEY

Enumerator
AUTO_KEY_DOWN
AUTO_KEY_UP
AUTO_KEY_DOWN_UP
AUTO_KEY_DOWN
AUTO_KEY_UP
AUTO_KEY_DOWN_UP

Definition at line 37 of file MenuUI.c.

{
    AUTO_KEY_DOWN,
    AUTO_KEY_UP,
    AUTO_KEY_DOWN_UP,
} AUTO_KEY;

Function Documentation

AutoClick()

static VOID AutoClick ( AUTO_CLICK  type, INT  x, INT  y  )

static

Definition at line 65 of file MenuUI.c.

{
    INPUT input;
    ZeroMemory(&input, sizeof(input));

    INT nScreenWidth = GetSystemMetrics(SM_CXSCREEN) - 1;
    INT nScreenHeight = GetSystemMetrics(SM_CYSCREEN) - 1;

    input.type = INPUT_MOUSE;
    input.mi.dx = (LONG)(x * (65535.0f / nScreenWidth));
    input.mi.dy = (LONG)(y * (65535.0f / nScreenHeight));
    input.mi.dwFlags = MOUSEEVENTF_MOVE | MOUSEEVENTF_ABSOLUTE;
    SendInput(1, &input, sizeof(INPUT));
    Sleep(DELAY);

    input.mi.dx = input.mi.dy = 0;

    INT i, count = 1;
    switch (type)
    {
        case AUTO_LEFT_DOUBLE_CLICK:
            count = 2;
            // FALL THROUGH
        case AUTO_LEFT_CLICK:
        {
            for (i = 0; i < count; ++i)
            {
                input.mi.dwFlags = MOUSEEVENTF_LEFTDOWN;
                SendInput(1, &input, sizeof(INPUT));
                Sleep(DELAY);

                input.mi.dwFlags = MOUSEEVENTF_LEFTUP;
                SendInput(1, &input, sizeof(INPUT));
                Sleep(DELAY);
            }
            break;
        }
        case AUTO_RIGHT_DOUBLE_CLICK:
            count = 2;
            // FALL THROUGH
        case AUTO_RIGHT_CLICK:
        {
            for (i = 0; i < count; ++i)
            {
                input.mi.dwFlags = MOUSEEVENTF_RIGHTDOWN;
                SendInput(1, &input, sizeof(INPUT));
                Sleep(DELAY);

                input.mi.dwFlags = MOUSEEVENTF_RIGHTUP;
                SendInput(1, &input, sizeof(INPUT));
                Sleep(DELAY);
            }
            break;
        }
    }
}

Referenced by ThreadFunc().

AutoKey()

static VOID AutoKey ( AUTO_KEY  type, UINT  vKey  )

static

Definition at line 45 of file MenuUI.c.

{
    if (type == AUTO_KEY_DOWN_UP)
    {
        AutoKey(AUTO_KEY_DOWN, vKey);
        AutoKey(AUTO_KEY_UP, vKey);
        return;
    }

    INPUT input;
    ZeroMemory(&input, sizeof(input));

    input.type = INPUT_KEYBOARD;
    input.ki.wVk = vKey;
    input.ki.dwFlags = ((type == AUTO_KEY_UP) ? KEYEVENTF_KEYUP : 0);
    SendInput(1, &input, sizeof(INPUT));
    Sleep(DELAY);
}

Referenced by AutoKey(), and ThreadFunc().

CenterPoint()

static POINT CenterPoint ( const RECT *  prc )

static

Definition at line 123 of file MenuUI.c.

{
    POINT pt = { (prc->left + prc->right) / 2, (prc->top + prc->bottom) / 2 };
    return pt;
}

Referenced by ThreadFunc().

CloseSubPrograms()

static VOID CloseSubPrograms ( VOID  )

static

Definition at line 165 of file MenuUI.c.

{
    for (INT i = 0; i < 10; ++i)
    {
        HWND hwnd1 = FindWindowW(L"user32_apitest_menuui", L"#1");
        if (!hwnd1)
            break;
        PostMessage(hwnd1, WM_CLOSE, 0, 0);
        Sleep(INTERVAL);
    }
    for (INT i = 0; i < 10; ++i)
    {
        HWND hwnd2 = FindWindowW(L"user32_apitest_menuui", L"#2");
        if (!hwnd2)
            break;
        PostMessage(hwnd2, WM_CLOSE, 0, 0);
        Sleep(INTERVAL);
    }
}

Referenced by START_TEST(), and ThreadFunc().

CountMenuWndProc()

static BOOL CALLBACK CountMenuWndProc ( HWND  hwnd, LPARAM  lParam  )

static

Definition at line 141 of file MenuUI.c.

{
    if (!IsWindowVisible(hwnd))
        return TRUE;

    WCHAR szClass[64];
    GetClassNameW(hwnd, szClass, _countof(szClass));
    if (lstrcmpiW(szClass, MENUCLASS) != 0)
        return TRUE;

    PCOUNTMENUWND pData = (PCOUNTMENUWND)lParam;
    pData->nMenuCount += 1;
    return TRUE;
}

Referenced by CountMenuWnds().

CountMenuWnds()

static INT CountMenuWnds ( VOID  )

static

Definition at line 157 of file MenuUI.c.

{
    COUNTMENUWND data = { 0 };
    EnumWindows(CountMenuWndProc, (LPARAM)&data);
    return data.nMenuCount;
}

Referenced by ThreadFunc().

GetHitID()

static INT GetHitID ( HWND  hwndTarget )

static

Definition at line 130 of file MenuUI.c.

{
    return HandleToUlong(GetPropW(hwndTarget, L"Hit"));
}

Referenced by ThreadFunc().

GetThreadActiveWnd()

static HWND GetThreadActiveWnd ( DWORD  dwThreadID )

static

Definition at line 186 of file MenuUI.c.

{
    GUITHREADINFO info = { sizeof(info) };
    GetGUIThreadInfo(dwThreadID, &info);
    return info.hwndActive;
}

Referenced by ThreadFunc().

GetThreadCapture()

static HWND GetThreadCapture ( DWORD  dwThreadID )

static

Definition at line 202 of file MenuUI.c.

{
    GUITHREADINFO info = { sizeof(info) };
    GetGUIThreadInfo(dwThreadID, &info);
    return info.hwndCapture;
}

Referenced by ThreadFunc().

GetThreadFocus()

static HWND GetThreadFocus ( DWORD  dwThreadID )

static

Definition at line 194 of file MenuUI.c.

{
    GUITHREADINFO info = { sizeof(info) };
    GetGUIThreadInfo(dwThreadID, &info);
    return info.hwndFocus;
}

Referenced by ThreadFunc().

OnCreate()

static INT OnCreate ( HWND  hwnd )

static

Definition at line 745 of file MenuUI.c.

{
    s_hThread = CreateThread(NULL, 0, ThreadFunc, NULL, 0, NULL);
    if (!s_hThread)
        return -1;
    return 0;
}

Referenced by WindowProc().

OnDestroy()

static VOID OnDestroy ( HWND  hwnd )

static

Definition at line 754 of file MenuUI.c.

{
    if (s_hThread)
    {
        CloseHandle(s_hThread);
        s_hThread = NULL;
    }

    PostQuitMessage(0);
}

Referenced by WindowProc().

START_TEST()

START_TEST

(

MenuUI

)

Definition at line 819 of file MenuUI.c.

{
    if (GetFileAttributesW(SUB_PROGRAM) == INVALID_FILE_ATTRIBUTES)
    {
        skip("'%ls' not found\n", SUB_PROGRAM);
        return;
    }

    HINSTANCE hShell32 = LoadLibraryW(L"shell32.dll");
    s_pShellExecuteExW = (FN_ShellExecuteExW)GetProcAddress(hShell32, "ShellExecuteExW");
    if (!s_pShellExecuteExW)
    {
        skip("ShellExecuteExW not found\n");
        FreeLibrary(hShell32);
        return;
    }

    TEST_MenuUI();

    CloseSubPrograms();

    FreeLibrary(hShell32);
}

TEST_MenuUI()

static VOID TEST_MenuUI ( VOID  )

static

Definition at line 783 of file MenuUI.c.

{
    HINSTANCE hInstance = GetModuleHandleW(NULL);

    WNDCLASSW wc = { CS_HREDRAW | CS_VREDRAW | CS_DBLCLKS, WindowProc };
    wc.hInstance = hInstance;
    wc.hIcon = LoadIcon(NULL, IDI_APPLICATION);
    wc.hCursor = LoadCursor(NULL, IDC_ARROW);
    wc.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
    wc.lpszClassName = CLASSNAME;
    if (!RegisterClassW(&wc))
    {
        skip("RegisterClassW failed\n");
        return;
    }

    HWND hwnd = CreateWindowW(CLASSNAME, L"MenuUITest", WS_OVERLAPPEDWINDOW,
                              CW_USEDEFAULT, CW_USEDEFAULT, 400, 300,
                              NULL, NULL, hInstance, NULL);
    if (!hwnd)
    {
        skip("CreateWindowW failed\n");
        return;
    }

    ShowWindow(hwnd, SW_SHOWNORMAL);
    UpdateWindow(hwnd);

    MSG msg;
    while (GetMessageW(&msg, NULL, 0, 0))
    {
        TranslateMessage(&msg);
        DispatchMessageW(&msg);
    }
}

Referenced by START_TEST().

ThreadFunc()

static DWORD WINAPI ThreadFunc ( LPVOID  arg )

static

Definition at line 210 of file MenuUI.c.

{
    HWND hwnd = FindWindowW(L"MenuUITest", L"MenuUITest");
    ShowWindow(hwnd, SW_MINIMIZE);
    trace("hwnd: %p\n", hwnd);

    CloseSubPrograms();

    SHELLEXECUTEINFOW sei = { sizeof(sei), SEE_MASK_FLAG_NO_UI | SEE_MASK_NOCLOSEPROCESS };

    sei.lpFile = SUB_PROGRAM;
    sei.nShow = SW_SHOWNORMAL;

    // Start up sub program #1
    sei.lpParameters = L"#1";
    if (!s_pShellExecuteExW(&sei))
    {
        skip("ShellExecuteExW failed\n");
        return -1;
    }
    WaitForInputIdle(sei.hProcess, INFINITE);
    CloseHandle(sei.hProcess);

    // Start up sub program #2
    sei.lpParameters = L"#2";
    if (!s_pShellExecuteExW(&sei))
    {
        skip("ShellExecuteExW failed\n");
        return -1;
    }
    WaitForInputIdle(sei.hProcess, INFINITE);
    CloseHandle(sei.hProcess);

    Sleep(INTERVAL);
    HWND hwnd1 = FindWindowW(L"user32_apitest_menuui", L"#1");
    HWND hwnd2 = FindWindowW(L"user32_apitest_menuui", L"#2");
    trace("hwnd1: %p\n", hwnd1);
    trace("hwnd2: %p\n", hwnd2);
    ok(hwnd != NULL, "hwnd was NULL\n");
    ok(hwnd1 != NULL, "hwnd1 was NULL\n");
    ok(hwnd2 != NULL, "hwnd2 was NULL\n");
    ok(hwnd1 != hwnd2, "hwnd1 == hwnd2\n");

    DWORD dwTID1 = GetWindowThreadProcessId(hwnd1, NULL);
    DWORD dwTID2 = GetWindowThreadProcessId(hwnd2, NULL);

    RECT rcWork;
    SystemParametersInfoW(SPI_GETWORKAREA, 0, &rcWork, 0);
    INT cxWork = (rcWork.right - rcWork.left);

    RECT rc1 = { rcWork.left, rcWork.top, rcWork.left + cxWork / 2, rcWork.bottom };
    RECT rc2 = { rcWork.left + cxWork / 2, rcWork.top, rcWork.right, rcWork.bottom };
    MoveWindow(hwnd1, rc1.left, rc1.top, rc1.right - rc1.left, rc1.bottom - rc1.top, TRUE);
    MoveWindow(hwnd2, rc2.left, rc2.top, rc2.right - rc2.left, rc2.bottom - rc2.top, TRUE);

    POINT pt1 = CenterPoint(&rc1);
    POINT pt2 = CenterPoint(&rc2);

    // Right click on hwnd1
    AutoClick(AUTO_RIGHT_CLICK, pt1.x, pt1.y);
    Sleep(INTERVAL);

    HWND hwndMenu1 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu1: %p\n", hwndMenu1);
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible\n");

    HWND hwndFore, hwndActive, hwndFocus, hwndCapture;

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd1, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndCapture was %p\n", hwndCapture);

    // Right click on hwnd2
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    Sleep(INTERVAL);

    HWND hwndMenu2 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu2: %p\n", hwndMenu2);
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");
    ok(hwndMenu1 != hwndMenu2, "hwndMenu1 == hwndMenu2\n");

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd2, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(hwndActive == hwnd2, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd2, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd2, "hwndCapture was %p\n", hwndCapture);

    // Type Esc key
    AutoKey(AUTO_KEY_DOWN_UP, VK_ESCAPE);
    Sleep(INTERVAL);

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd2, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndCapture was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(hwndActive == hwnd2, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd2, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndCapture was %p\n", hwndCapture);

    ok(GetHitID(hwnd2) == 0, "GetHitID(hwnd2) was %d\n", GetHitID(hwnd2));
    HWND hwndMenu0 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu0: %p\n", hwndMenu0);
    ok(!IsWindowVisible(hwndMenu0), "hwndMenu0 was visible\n");

    // Click on hwnd1
    AutoClick(AUTO_RIGHT_CLICK, pt1.x, pt1.y);
    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu1: %p\n", hwndMenu1);
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible");

    RECT rcMenu1;
    GetWindowRect(hwndMenu1, &rcMenu1);
    POINT ptMenu1 = CenterPoint(&rcMenu1); // Separator

    // Clicking on separator is not effective
    AutoClick(AUTO_LEFT_CLICK, ptMenu1.x, ptMenu1.y);
    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu1: %p\n", hwndMenu1);
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible\n");

    AutoClick(AUTO_LEFT_DOUBLE_CLICK, ptMenu1.x, ptMenu1.y);
    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu1: %p\n", hwndMenu1);
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible\n");

    AutoClick(AUTO_RIGHT_CLICK, ptMenu1.x, ptMenu1.y);
    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu1: %p\n", hwndMenu1);
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible\n");

    AutoClick(AUTO_RIGHT_DOUBLE_CLICK, ptMenu1.x, ptMenu1.y);
    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    trace("hwndMenu1: %p\n", hwndMenu1);
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible\n");

    // Click on first item of hwnd1 context menu
    POINT pt1_3 = { ptMenu1.x, (2 * rcMenu1.top + 1 * rcMenu1.bottom) / (1 + 2) }; // First item
    AutoClick(AUTO_LEFT_CLICK, pt1_3.x, pt1_3.y);
    Sleep(INTERVAL);

    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    ok(!IsWindowVisible(hwndMenu1), "hwndMenu1 was visible\n");
    ok(GetHitID(hwnd1) == MENUID_100, "GetHitID(hwnd1) was %d\n", GetHitID(hwnd1));

    // Click on hwnd2
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");

    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN); // Down key
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");

    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN); // Enter key
    Sleep(INTERVAL);

    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(!IsWindowVisible(hwndMenu2), "hwndMenu2 was visible");
    ok(GetHitID(hwnd2) == MENUID_100, "GetHitID(hwnd2) was %d\n", GetHitID(hwnd2));

    // Click on hwnd2
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");

    AutoKey(AUTO_KEY_DOWN_UP, VK_UP); // Up key
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");

    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN); // Enter key
    Sleep(INTERVAL);

    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(!IsWindowVisible(hwndMenu2), "hwndMenu2 was visible");
    ok(GetHitID(hwnd2) == 101, "GetHitID(hwnd2) was %d\n", GetHitID(hwnd2));

    INT nMenuCount;

    // Shift + Right click on hwnd2
    AutoKey(AUTO_KEY_DOWN, VK_SHIFT);
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    AutoKey(AUTO_KEY_UP, VK_SHIFT);
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");
    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    AutoKey(AUTO_KEY_DOWN_UP, VK_UP); // Up key
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");

    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN); // Enter key
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");
    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 2, "nMenuCount was %d\n", nMenuCount);

    // Right click on hwnd1
    AutoClick(AUTO_RIGHT_CLICK, pt1.x, pt1.y);
    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN); // Down key
    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN); // Enter key
    Sleep(INTERVAL);

    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    ok(!IsWindowVisible(hwndMenu1), "hwndMenu1 was visible\n");

    // Getting menu bar info
    MENUBARINFO mbi = { sizeof(mbi) };
    GetMenuBarInfo(hwnd1, OBJID_MENU, 0, &mbi);
    INT xMenuBar1 = mbi.rcBar.left + 16;
    INT yMenuBar1 = (mbi.rcBar.top + mbi.rcBar.bottom) / 2;
    GetMenuBarInfo(hwnd2, OBJID_MENU, 0, &mbi);
    INT xMenuBar2 = mbi.rcBar.left + 16;
    INT yMenuBar2 = (mbi.rcBar.top + mbi.rcBar.bottom) / 2;

    // Click on menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar1, yMenuBar1);
    Sleep(INTERVAL);

    hwndMenu1 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu1), "hwndMenu1 not visible\n");

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd1, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndCapture was %p\n", hwndCapture);

    // Right click on hwnd2
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    Sleep(INTERVAL);

    ok(!IsWindowVisible(hwndMenu1), "hwndMenu1 was visible\n");
    hwndMenu2 = FindWindowW(MENUCLASS, L"");
    ok(IsWindowVisible(hwndMenu2), "hwndMenu2 not visible\n");
    ok(hwndMenu1 != hwndMenu2, "hwndMenu1 == hwndMenu2\n");

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd2, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(hwndActive == hwnd2, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd2, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd2, "hwndFocus was %p\n", hwndCapture);

    // Click on hwnd1 menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar1, yMenuBar1);
    Sleep(INTERVAL);

    ok(!IsWindowVisible(hwndMenu2), "hwndMenu2 was visible\n");
    hwndMenu1 = FindWindowW(MENUCLASS, L"");

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd1, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndCapture was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    // Shift + Right click on hwnd2
    AutoKey(AUTO_KEY_DOWN, VK_SHIFT);
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    AutoKey(AUTO_KEY_UP, VK_SHIFT);

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd2, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(hwndActive == hwnd2, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd2, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd2, "hwndFocus was %p\n", hwndCapture);

    ok(!IsWindowVisible(hwndMenu1), "hwndMenu1 was visible\n");
    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN);
    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN);
    ok(GetHitID(hwnd2) == 0, "GetHitID(hwnd2) was %d\n", GetHitID(hwnd2));
    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN);
    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN);
    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN);
    ok(GetHitID(hwnd2) == MENUID_101, "GetHitID(hwnd2) was %d\n", GetHitID(hwnd2));

    // Shift + Right click on hwnd2
    AutoKey(AUTO_KEY_DOWN, VK_SHIFT);
    AutoClick(AUTO_RIGHT_CLICK, pt2.x, pt2.y);
    AutoKey(AUTO_KEY_UP, VK_SHIFT);
    Sleep(INTERVAL);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    AutoKey(AUTO_KEY_DOWN_UP, VK_UP); // Up key
    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN); // Enter key
    Sleep(INTERVAL);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 2, "nMenuCount was %d\n", nMenuCount);

    AutoKey(AUTO_KEY_DOWN_UP, VK_LEFT); // Left key
    Sleep(INTERVAL);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    AutoKey(AUTO_KEY_DOWN_UP, VK_RIGHT); // Right key
    Sleep(INTERVAL);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 2, "nMenuCount was %d\n", nMenuCount);

    // Left click on hwnd1 menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar1, yMenuBar1);
    Sleep(INTERVAL);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN); // Down key
    AutoKey(AUTO_KEY_DOWN_UP, VK_RETURN); // Enter key
    Sleep(INTERVAL);

    ok(GetHitID(hwnd1) == MENUID_200, "GetHitID(hwnd1) was %d\n", GetHitID(hwnd1));

    // Left click on hwnd1 menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar1, yMenuBar1);
    AutoKey(AUTO_KEY_DOWN_UP, VK_DOWN);
    AutoKey(AUTO_KEY_DOWN_UP, VK_ESCAPE);

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd1, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndCapture was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    Sleep(INTERVAL);
    ok(GetHitID(hwnd1) == 0, "GetHitID(hwnd1) was %d\n", GetHitID(hwnd1));

    // Left click on hwnd1 menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar1, yMenuBar1);
    Sleep(INTERVAL);

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd1, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndCapture was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    // Left click on hwnd2 menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar2, yMenuBar2);
    Sleep(INTERVAL);

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd2, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(hwndActive == hwnd2, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd2, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd2, "hwndFocus was %p\n", hwndCapture);

    // Left click on hwnd1 menu bar
    AutoClick(AUTO_LEFT_CLICK, xMenuBar1, yMenuBar1);
    Sleep(INTERVAL);

    hwndFore = GetForegroundWindow();
    ok(hwndFore == hwnd1, "hwndFore was %p\n", hwndFore);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndCapture was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    // Get title bar info
    TITLEBARINFO titleInfo = { sizeof(titleInfo) };
    RECT rcTitleBar1, rcTitleBar2;
    GetTitleBarInfo(hwnd1, &titleInfo);
    rcTitleBar1 = titleInfo.rcTitleBar;
    GetTitleBarInfo(hwnd2, &titleInfo);
    rcTitleBar2 = titleInfo.rcTitleBar;
    POINT ptTitleBar1 = CenterPoint(&rcTitleBar1);
    POINT ptTitleBar2 = CenterPoint(&rcTitleBar2);

    // Right click on hwnd2 title bar
    AutoClick(AUTO_RIGHT_CLICK, ptTitleBar2.x, ptTitleBar2.y);
    Sleep(INTERVAL);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(hwndActive == hwnd2, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd2, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd2, "hwndFocus was %p\n", hwndCapture);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    // Right click on hwnd1 title bar
    AutoClick(AUTO_RIGHT_CLICK, ptTitleBar1.x, ptTitleBar1.y);
    Sleep(INTERVAL);

    hwndActive = GetThreadActiveWnd(dwTID1);
    hwndFocus = GetThreadFocus(dwTID1);
    hwndCapture = GetThreadCapture(dwTID1);
    ok(hwndActive == hwnd1, "hwndActive was %p\n", hwndActive);
    ok(hwndFocus == hwnd1, "hwndFocus was %p\n", hwndFocus);
    ok(hwndCapture == hwnd1, "hwndFocus was %p\n", hwndCapture);

    hwndActive = GetThreadActiveWnd(dwTID2);
    hwndFocus = GetThreadFocus(dwTID2);
    hwndCapture = GetThreadCapture(dwTID2);
    ok(!hwndActive, "hwndActive was %p\n", hwndActive);
    ok(!hwndFocus, "hwndFocus was %p\n", hwndFocus);
    ok(!hwndCapture, "hwndFocus was %p\n", hwndCapture);

    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 1, "nMenuCount was %d\n", nMenuCount);

    // Left double click on hwnd1 system menu icon (it will close hwnd1)
    POINT ptSysMenu = { rcTitleBar1.left - GetSystemMetrics(SM_CXSMICON) / 2, ptTitleBar1.y };
    ok(IsWindowVisible(hwnd1), "hwnd1 not visible\n");
    AutoClick(AUTO_LEFT_DOUBLE_CLICK, ptSysMenu.x, ptSysMenu.y);
    Sleep(INTERVAL);

    ok(!IsWindowVisible(hwnd1), "hwnd1 was visible\n");
    nMenuCount = CountMenuWnds();
    ok(nMenuCount == 0, "nMenuCount was %d\n", nMenuCount);

    PostMessageW(hwnd1, WM_CLOSE, 0, 0);
    PostMessageW(hwnd2, WM_CLOSE, 0, 0);

    ShowWindow(hwnd, SW_RESTORE);
    PostMessage(hwnd, WM_CLOSE, 0, 0);
    return 0;
}

Referenced by OnCreate().

WindowProc()

static LRESULT CALLBACK WindowProc ( HWND  hwnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

static

Definition at line 767 of file MenuUI.c.

{
    switch (uMsg)
    {
        case WM_CREATE:
            return OnCreate(hwnd);
        case WM_DESTROY:
            OnDestroy(hwnd);
            break;
        default:
            return DefWindowProcW(hwnd, uMsg, wParam, lParam);
    }
    return 0;
}

Referenced by TEST_MenuUI().

Variable Documentation

s_hThread

HANDLE s_hThread = NULL

static

Definition at line 27 of file MenuUI.c.

Referenced by OnCreate(), and OnDestroy().

s_pShellExecuteExW

FN_ShellExecuteExW s_pShellExecuteExW = NULL

static

Definition at line 21 of file MenuUI.c.

Referenced by START_TEST(), and ThreadFunc().
