xstate.c File Reference

#include <ntoskrnl.h>
#include <x86x64/Cpuid.h>
#include <x86x64/Msr.h>
#include <debug.h>

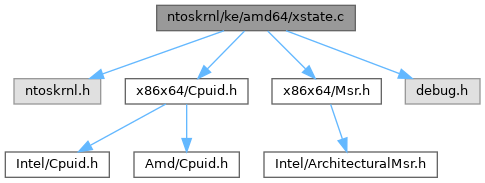

Include dependency graph for xstate.c:

Go to the source code of this file.

Macros
#define	NDEBUG
#define	XSTATE_PKRU   9
#define	XSTATE_HDC   13
#define	XSTATE_UINTR   14
#define	XSTATE_LBR   15
#define	XSTATE_MASK_PKRU   (1LL << (XSTATE_PKRU))
#define	XSTATE_MASK_HDC   (1LL << (XSTATE_HDC))
#define	XSTATE_MASK_UINTR   (1LL << (XSTATE_UINTR))
#define	XSTATE_MASK_LBR   (1LL << (XSTATE_LBR))
#define	XSTATE_MASK_SUPERVISOR

Functions
static VOID	KiGetXStateConfiguration (_Out_ PXSTATE_CONFIGURATION XStateConfig)
	Determines the extended state configuration for the current processor.
static VOID	ValidateXStateConfig (_In_ PXSTATE_CONFIGURATION XState)
	Validates the provided extended state configuration against the global one.
VOID NTAPI	KiInitializeXStateConfiguration (_In_ ULONG ProcessorNumber)
	Initializes the extended state configuration for the current processor.

Macro Definition Documentation

NDEBUG

#define NDEBUG

Definition at line 11 of file xstate.c.

XSTATE_HDC

#define XSTATE_HDC   13

Definition at line 16 of file xstate.c.

XSTATE_LBR

#define XSTATE_LBR   15

Definition at line 18 of file xstate.c.

XSTATE_MASK_HDC

#define XSTATE_MASK_HDC   (1LL << (XSTATE_HDC))

Definition at line 20 of file xstate.c.

XSTATE_MASK_LBR

#define XSTATE_MASK_LBR   (1LL << (XSTATE_LBR))

Definition at line 22 of file xstate.c.

XSTATE_MASK_PKRU

#define XSTATE_MASK_PKRU   (1LL << (XSTATE_PKRU))

Definition at line 19 of file xstate.c.

XSTATE_MASK_SUPERVISOR

#define XSTATE_MASK_SUPERVISOR

Value:

    (XSTATE_MASK_IPT | \
     XSTATE_MASK_PASID | \
     XSTATE_MASK_CET_U | \
     XSTATE_MASK_CET_S | \
     XSTATE_MASK_HDC | \
     XSTATE_MASK_UINTR | \
     XSTATE_MASK_LBR)

Definition at line 24 of file xstate.c.

XSTATE_MASK_UINTR

#define XSTATE_MASK_UINTR   (1LL << (XSTATE_UINTR))

Definition at line 21 of file xstate.c.

XSTATE_PKRU

#define XSTATE_PKRU   9

Definition at line 15 of file xstate.c.

XSTATE_UINTR

#define XSTATE_UINTR   14

Definition at line 17 of file xstate.c.

Function Documentation

KiGetXStateConfiguration()

static VOID KiGetXStateConfiguration ( _Out_ PXSTATE_CONFIGURATION  XStateConfig )

static

Determines the extended state configuration for the current processor.

Parameters

XStateConfig

- Pointer to a XSTATE_CONFIGURATION structure that receives the configuration

See also

https://windows-internals.com/cet-on-windows/#3-xstate-configuration

Definition at line 43 of file xstate.c.

{
    ULONG64 SupportedUserMask;
    ULONG64 SupportedSupervisorMask;
    ULONG64 SupportedComponentMask;
    ULONG NextUserOffset, NextSupervisorOffset, NextOffset;

    RtlZeroMemory(XStateConfig, sizeof(*XStateConfig));

    /* Read CPUID_EXTENDED_STATE main leaf (0x0D, 0x00) */
    CPUID_EXTENDED_STATE_MAIN_LEAF_REGS ExtStateMain;
    __cpuidex(ExtStateMain.AsInt32,
              CPUID_EXTENDED_STATE,
              CPUID_EXTENDED_STATE_MAIN_LEAF);

    /* Get the supported XCR0 bits */
    SupportedUserMask = (ULONG64)ExtStateMain.Edx << 32 |
                        (ULONG64)ExtStateMain.Eax.Uint32;

    /* FIXME: Temporary workaround until we have dynamic kernel stack size */
    SupportedUserMask &= ~XSTATE_MASK_LARGE_FEATURES;

    /* Mask the allowed components */
    SupportedUserMask &= XSTATE_MASK_ALLOWED;

    /* Read CPUID_EXTENDED_STATE sub-leaf (0x0D, 0x01) */
    CPUID_EXTENDED_STATE_SUB_LEAF_REGS ExtStateSub;
    __cpuidex(ExtStateSub.AsInt32,
              CPUID_EXTENDED_STATE,
              CPUID_EXTENDED_STATE_SUB_LEAF);

    /* Save control flags */
    XStateConfig->OptimizedSave = ExtStateSub.Eax.Bits.XSAVEOPT;
    XStateConfig->CompactionEnabled = ExtStateSub.Eax.Bits.XSAVEC;
    XStateConfig->ExtendedFeatureDisable = ExtStateSub.Eax.Bits.Xfd;

    /* Determine supported supervisor features */
    SupportedSupervisorMask = 0;
    if (ExtStateSub.Eax.Bits.XSAVES)
    {
        SupportedSupervisorMask = (ULONG64)ExtStateSub.Edx << 32 |
                                  (ULONG64)ExtStateSub.Ecx.Uint32;
        SupportedSupervisorMask &= XSTATE_MASK_ALLOWED & XSTATE_MASK_SUPERVISOR;
    }

    /* Calculate full mask */
    SupportedComponentMask = SupportedUserMask | SupportedSupervisorMask;

    /* Basic features (always enabled) */
    XStateConfig->Features[XSTATE_LEGACY_FLOATING_POINT].Offset = 0;
    XStateConfig->Features[XSTATE_LEGACY_FLOATING_POINT].Size = FIELD_OFFSET(XSAVE_FORMAT, XmmRegisters);
    XStateConfig->AllFeatures[XSTATE_LEGACY_FLOATING_POINT] = FIELD_OFFSET(XSAVE_FORMAT, XmmRegisters);
    XStateConfig->Features[XSTATE_LEGACY_SSE].Offset = FIELD_OFFSET(XSAVE_FORMAT, XmmRegisters);
    XStateConfig->Features[XSTATE_LEGACY_SSE].Size = FIELD_SIZE(XSAVE_FORMAT, XmmRegisters);
    XStateConfig->AllFeatures[XSTATE_LEGACY_SSE] = FIELD_SIZE(XSAVE_FORMAT, XmmRegisters);

    /* Other components start after legacy state + header */
    NextUserOffset = NextSupervisorOffset = sizeof(XSAVE_AREA);

    /* Loop all components from 2 up */
    for (ULONG Component = 2; Component < MAXIMUM_XSTATE_FEATURES; Component++)
    {
        ULONG64 ComponentBit = (1ULL << Component);

        /* Query component features */
        CPUID_EXTENDED_STATE_SIZE_OFFSET_REGS ExtStateComponent;
        __cpuidex(ExtStateComponent.AsInt32,
                  CPUID_EXTENDED_STATE,
                  Component);

        /* Save size for all features */
        XStateConfig->AllFeatures[Component] = ExtStateComponent.Size;

        /* If the offset is 0, this component isn't valid */
        if (ExtStateComponent.Size == 0) continue;

        /* Check for components that are not OS supported */
        if ((ComponentBit & SupportedComponentMask) == 0)
        {
            /* This emulates weird (broken) Windows behavior */
            if ((ComponentBit & XSTATE_MASK_SUPERVISOR) == 0)
            {
                XStateConfig->Features[Component].Offset = ExtStateComponent.Offset;
                XStateConfig->Features[Component].Size = ExtStateComponent.Size;
            }

            /* Skip the rest */
            continue;
        }

        /* Check if compaction is enabled */
        if (XStateConfig->CompactionEnabled)
        {
            /* Align the offsets, if needed */
            if (ExtStateComponent.Ecx.Bits.Aligned)
            {
                XStateConfig->AlignedFeatures |= ComponentBit;
                NextSupervisorOffset = ALIGN_UP(NextSupervisorOffset, 64);
                if ((ComponentBit & SupportedUserMask) != 0)
                {
                    NextUserOffset = ALIGN_UP(NextUserOffset, 64);
                }
            }

            /* Update the supervisor offset */
            NextSupervisorOffset += ExtStateComponent.Size;

            /* For user components save and update the offset and size */
            if ((ComponentBit & SupportedUserMask) != 0)
            {
                XStateConfig->Features[Component].Offset = NextUserOffset;
                XStateConfig->Features[Component].Size = ExtStateComponent.Size;
                NextUserOffset += ExtStateComponent.Size;
            }
        }
        else
        {
            /* Not compacted, use the offset and size specified by the CPUID */
            NextOffset = ExtStateComponent.Offset + ExtStateComponent.Size;
            NextSupervisorOffset = max(NextSupervisorOffset, NextOffset);

            /* For user components save and update the offset and size */
            if ((ComponentBit & SupportedUserMask) != 0)
            {
                XStateConfig->Features[Component].Offset = ExtStateComponent.Offset;
                XStateConfig->Features[Component].Size = ExtStateComponent.Size;
                NextUserOffset = max(NextUserOffset, NextOffset);
            }
        }
    }

    /* Save the features to be enabled */
    XStateConfig->EnabledFeatures = SupportedUserMask;
    XStateConfig->EnabledVolatileFeatures =
        SupportedUserMask & ~XSTATE_MASK_PERSISTENT;
    XStateConfig->EnabledSupervisorFeatures = SupportedSupervisorMask;
    XStateConfig->EnabledUserVisibleSupervisorFeatures =
        SupportedSupervisorMask & XSTATE_MASK_USER_VISIBLE_SUPERVISOR;

    /* Save the calculated sizes */
    XStateConfig->Size = NextUserOffset;
    XStateConfig->AllFeatureSize = NextSupervisorOffset;
    ASSERT(XStateConfig->AllFeatureSize >= XStateConfig->Size);
}

Referenced by KiInitializeXStateConfiguration().

KiInitializeXStateConfiguration()

VOID NTAPI KiInitializeXStateConfiguration

(

_In_ ULONG

ProcessorNumber

)

Initializes the extended state configuration for the current processor.

Parameters

ProcessorNumber

- Number of the current processor

Definition at line 231 of file xstate.c.

{
    /* Check if XSAVE is supported */
    if ((KeFeatureBits & KF_XSTATE) == 0)
    {
        /* XSAVE is not supported */
        return;
    }

    if (ProcessorNumber == 0)
    {
        /* Processor 0: Retrieve the global configuration */
        KiGetXStateConfiguration(&SharedUserData->XState);

        if (SharedUserData->XState.AllFeatureSize == 0)
        {
            KeFeatureBits &= ~KF_XSTATE;
            return;
        }

        KeXStateLength = SharedUserData->XState.AllFeatureSize;
    }
    else
    {
        /* Processor 1+: validate the configuration against the global one */
        XSTATE_CONFIGURATION XState;
        KiGetXStateConfiguration(&XState);
        ValidateXStateConfig(&XState);
    }

    /* Enable the user mode components in XCR0 */
    _xsetbv(0, SharedUserData->XState.EnabledFeatures);

    /* Now that we have set everything up, query CPUID again to get the required
       size based on components enabled in XCR0 */
    CPUID_EXTENDED_STATE_MAIN_LEAF_REGS ExtStateMain;
    __cpuidex(ExtStateMain.AsInt32,
              CPUID_EXTENDED_STATE,
              CPUID_EXTENDED_STATE_MAIN_LEAF);

    /* CPUID 0xD, leaf 0, EBX should return the size required by all components
       enabled in XCR0 and thus match our calculation. But VBox doesn't handle
       this correctly and simply returns the full size of all *supported*
       features, independent of XCR0. We check and warn. */
    if (ExtStateMain.Ebx > SharedUserData->XState.Size)
    {
        DPRINT1("Processor %lu, CPUID 0xD, leaf 0, EBX returns 0x%x, but we calculated 0x%lx\n",
                ProcessorNumber,
                ExtStateMain.Ebx,
                SharedUserData->XState.Size);
    }

    /* Check if we have any supervisor components enabled */
    if (SharedUserData->XState.EnabledSupervisorFeatures != 0)
    {
        /* Enable the supervisor components in IA32_XSS */
        __writemsr(MSR_IA32_XSS, SharedUserData->XState.EnabledSupervisorFeatures);

        /* Get the required size for features enabled in both XCR0 and IA32_XSS */
        CPUID_EXTENDED_STATE_SUB_LEAF_REGS ExtStateSubLeaf;
        __cpuidex(ExtStateSubLeaf.AsInt32,
                  CPUID_EXTENDED_STATE,
                  CPUID_EXTENDED_STATE_SUB_LEAF);

        /* Check if all components fit into what we calculated. Same VBox issue
           here as described above. */
        if (ExtStateSubLeaf.Ebx.XSaveAreaSize > SharedUserData->XState.AllFeatureSize)
        {
            DPRINT1("Processor %lu, CPUID 0xD, leaf 1, EBX returns 0x%x, but we calculated 0x%lx\n",
                    ProcessorNumber,
                    ExtStateMain.Ebx,
                    SharedUserData->XState.Size);

            /* The problem is likely the VM, but to be safe, we adjust the size */
            SharedUserData->XState.AllFeatureSize = ExtStateSubLeaf.Ebx.XSaveAreaSize;
        }
    }
}

Referenced by KiSystemStartup().

ValidateXStateConfig()

static VOID ValidateXStateConfig ( _In_ PXSTATE_CONFIGURATION  XState )

static

Validates the provided extended state configuration against the global one.

Parameters

XStateConfig

- Pointer to a XSTATE_CONFIGURATION structure containing the configuration

Definition at line 197 of file xstate.c.

{
    PXSTATE_CONFIGURATION GlobalXState = &SharedUserData->XState;

    if ((XState->EnabledFeatures != GlobalXState->EnabledFeatures) ||
        (XState->EnabledSupervisorFeatures != GlobalXState->EnabledSupervisorFeatures) ||
        (XState->Size != GlobalXState->Size) ||
        (XState->AllFeatureSize != GlobalXState->AllFeatureSize))
    {
        /* Invalid features */
        KeBugCheck(MULTIPROCESSOR_CONFIGURATION_NOT_SUPPORTED);
    }

    for (ULONG i = 0; i < MAXIMUM_XSTATE_FEATURES; i++)
    {
        if ((XState->Features[i].Size != GlobalXState->Features[i].Size) ||
            (XState->Features[i].Offset != GlobalXState->Features[i].Offset) ||
            (XState->AllFeatures[i] != GlobalXState->AllFeatures[i]))
        {
            /* Invalid features */
            KeBugCheck(MULTIPROCESSOR_CONFIGURATION_NOT_SUPPORTED);
        }
    }
}

Referenced by KiInitializeXStateConfiguration().
