RtlMemIoResource.c File Reference

#include "precomp.h"
#include <limits.h>

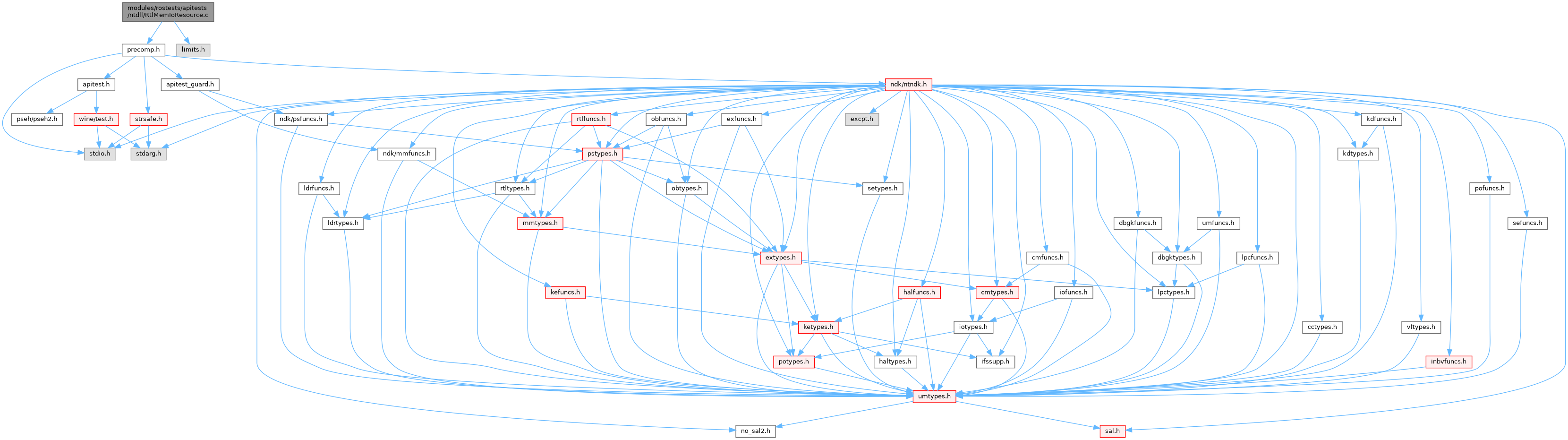

Include dependency graph for RtlMemIoResource.c:

Go to the source code of this file.

Functions
static	ULONGLONG (NTAPI *pRtlCmDecodeMemIoResource)(_In_ PCM_PARTIAL_RESOURCE_DESCRIPTOR Descriptor
static	NTSTATUS (NTAPI *pRtlCmEncodeMemIoResource)(_In_ PCM_PARTIAL_RESOURCE_DESCRIPTOR Descriptor
static void	Test_CmEncode (void)
static void	Test_CmDecode (void)
static void	Test_IoEncode (void)
static void	Test_IoDecode (void)
static void	Test_FindClosest (void)
	START_TEST (RtlMemIoResource)

Variables
static _Out_opt_ PULONGLONG	Start
static _In_ UCHAR	Type
static _In_ UCHAR _In_ ULONGLONG	Length
static _Out_ PULONGLONG	TargetLength
static _Out_opt_ PULONGLONG	Alignment
static _Out_opt_ PULONGLONG _Out_opt_ PULONGLONG	MinimumAddress
static _Out_opt_ PULONGLONG _Out_opt_ PULONGLONG _Out_opt_ PULONGLONG	MaximumAddress

Function Documentation

NTSTATUS()

static NTSTATUS ( NTAPI *  pRtlCmEncodeMemIoResource )

static

START_TEST()

START_TEST

(

RtlMemIoResource

)

Definition at line 479 of file RtlMemIoResource.c.

{
    HMODULE hNtdll = GetModuleHandleW(L"ntdll.dll");

    pRtlCmDecodeMemIoResource = (PVOID)GetProcAddress(hNtdll, "RtlCmDecodeMemIoResource");
    pRtlCmEncodeMemIoResource = (PVOID)GetProcAddress(hNtdll, "RtlCmEncodeMemIoResource");
    pRtlFindClosestEncodableLength = (PVOID)GetProcAddress(hNtdll, "RtlFindClosestEncodableLength");
    pRtlIoDecodeMemIoResource = (PVOID)GetProcAddress(hNtdll, "RtlIoDecodeMemIoResource");
    pRtlIoEncodeMemIoResource = (PVOID)GetProcAddress(hNtdll, "RtlIoEncodeMemIoResource");

    if (!pRtlCmDecodeMemIoResource || !pRtlCmEncodeMemIoResource ||
        !pRtlFindClosestEncodableLength ||
        !pRtlIoDecodeMemIoResource || !pRtlIoEncodeMemIoResource)
    {
        skip("Rtl*MemIoResource API not available (NT 6.0+ only)\n");
        return;
    }

    Test_CmEncode();
    Test_CmDecode();
    Test_IoEncode();
    Test_IoDecode();
    Test_FindClosest();
}

Test_CmDecode()

static void Test_CmDecode ( void  )

static

Definition at line 154 of file RtlMemIoResource.c.

{
    static const struct
    {
        ULONGLONG Length;
        USHORT ExpectedFlags;
    } RoundTrips[] =
    {
        { 0x1000,               0                           },
        { MAXULONG,             0                           },
        { 0x100000000ULL,       CM_RESOURCE_MEMORY_LARGE_40 },
        { 0xFFFFFFFF00ULL,      CM_RESOURCE_MEMORY_LARGE_40 },
        { 0x10000000000ULL,     CM_RESOURCE_MEMORY_LARGE_48 },
        { 0xFFFFFFFF0000ULL,    CM_RESOURCE_MEMORY_LARGE_48 },
        { 0x1000000000000ULL,   CM_RESOURCE_MEMORY_LARGE_64 },
        { 0xFFFFFFFF00000000ULL, CM_RESOURCE_MEMORY_LARGE_64 },
    };
    CM_PARTIAL_RESOURCE_DESCRIPTOR Desc;
    ULONGLONG Length, Start;
    NTSTATUS Status;
    ULONG i;

    /* Plain port descriptor decodes verbatim */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Desc.Type = CmResourceTypePort;
    Desc.u.Port.Start.QuadPart = 0x1122334455667788ULL;
    Desc.u.Port.Length = 0x1234;
    Start = 0;
    Length = pRtlCmDecodeMemIoResource(&Desc, &Start);
    ok_eq_hex64(Length, 0x1234);
    ok_eq_hex64(Start, 0x1122334455667788ULL);

    /* Start is optional */
    Length = pRtlCmDecodeMemIoResource(&Desc, NULL);
    ok_eq_hex64(Length, 0x1234);

    /* Large flags are ignored for plain port/memory types */
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_64;
    Length = pRtlCmDecodeMemIoResource(&Desc, NULL);
    ok_eq_hex64(Length, 0x1234);

    /* Hand-built large forms decode to the shifted length */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Desc.Type = CmResourceTypeMemoryLarge;
    Desc.u.Memory.Length = 0x01000000;
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_40;
    ok_eq_hex64(pRtlCmDecodeMemIoResource(&Desc, NULL), 0x100000000ULL);
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_48;
    ok_eq_hex64(pRtlCmDecodeMemIoResource(&Desc, NULL), 0x10000000000ULL);
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_64;
    ok_eq_hex64(pRtlCmDecodeMemIoResource(&Desc, NULL), 0x100000000000000ULL);

    /* A large type without any large flag decodes to zero, Start still returned */
    Desc.Flags = 0;
    Desc.u.Memory.Start.QuadPart = 0xABCD;
    Start = 0;
    ok_eq_hex64(pRtlCmDecodeMemIoResource(&Desc, &Start), 0);
    ok_eq_hex64(Start, 0xABCD);

    /* Encode/decode round-trips across all tiers */
    for (i = 0; i < ARRAYSIZE(RoundTrips); i++)
    {
        RtlZeroMemory(&Desc, sizeof(Desc));
        Status = pRtlCmEncodeMemIoResource(&Desc,
                                           CmResourceTypeMemory,
                                           RoundTrips[i].Length,
                                           0x40000000ULL + i);
        ok(Status == STATUS_SUCCESS, "[%lu] encode failed: 0x%lx\n", i, Status);
        ok(Desc.Flags == RoundTrips[i].ExpectedFlags,
           "[%lu] Flags = 0x%x, expected 0x%x\n",
           i, Desc.Flags, RoundTrips[i].ExpectedFlags);
        Start = 0;
        Length = pRtlCmDecodeMemIoResource(&Desc, &Start);
        ok(Length == RoundTrips[i].Length,
           "[%lu] Length = 0x%I64x, expected 0x%I64x\n",
           i, Length, RoundTrips[i].Length);
        ok(Start == 0x40000000ULL + i,
           "[%lu] Start = 0x%I64x\n", i, Start);
    }
}

Referenced by START_TEST().

Test_CmEncode()

static void Test_CmEncode ( void  )

static

Definition at line 44 of file RtlMemIoResource.c.

{
    CM_PARTIAL_RESOURCE_DESCRIPTOR Desc, Saved;
    NTSTATUS Status;

    /* Unsupported types must fail without touching the descriptor */
    RtlFillMemory(&Desc, sizeof(Desc), 0x55);
    Saved = Desc;
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeNull, 0x1000, 0);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    ok(!memcmp(&Desc, &Saved, sizeof(Desc)), "Descriptor modified on failure\n");
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeInterrupt, 0x1000, 0);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeDma, 0x1000, 0);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    ok(!memcmp(&Desc, &Saved, sizeof(Desc)), "Descriptor modified on failure\n");

    /* Basic port descriptor */
    RtlFillMemory(&Desc, sizeof(Desc), 0x55);
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypePort, 0x100, 0x3F8);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypePort);
    ok_eq_ulong(Desc.u.Port.Length, 0x100UL);
    ok_eq_hex64(Desc.u.Port.Start.QuadPart, 0x3F8);
    /* The port path does not clean stale large flags */
    ok_eq_hex(Desc.Flags, 0x5555);

    /* A port length cannot exceed 32 bits, and the failure leaves no writes */
    RtlFillMemory(&Desc, sizeof(Desc), 0x55);
    Saved = Desc;
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypePort, 0x100000000ULL, 0);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    ok(!memcmp(&Desc, &Saved, sizeof(Desc)), "Descriptor modified on failure\n");

    /* Small memory length: plain descriptor, stale large flags are cleared */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_48 | CM_RESOURCE_MEMORY_READ_ONLY;
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x1000, 0xFFFFFFFFFF000000ULL);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemory);
    ok_eq_ulong(Desc.u.Memory.Length, 0x1000UL);
    ok_eq_hex64(Desc.u.Memory.Start.QuadPart, 0xFFFFFFFFFF000000ULL);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_READ_ONLY);

    /* Asking for MemoryLarge with a small length demotes to plain Memory */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemoryLarge, MAXULONG, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemory);
    ok_eq_ulong(Desc.u.Memory.Length, MAXULONG);

    /* Asking for plain Memory with a big length promotes to MemoryLarge (40-bit) */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x100000000ULL, 0x8000000000ULL);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemoryLarge);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_40);
    ok_eq_ulong(Desc.u.Memory.Length, 0x01000000UL);
    ok_eq_hex64(Desc.u.Memory.Start.QuadPart, 0x8000000000ULL);

    /* 40-bit tier upper bound */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemoryLarge, CM_RESOURCE_MEMORY_LARGE_40_MAXLEN, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_40);
    ok_eq_ulong(Desc.u.Memory.Length, MAXULONG);

    /* Low 8 bits set in the 40-bit tier: not encodable */
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x100000080ULL, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);

    /* 48-bit tier */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x10000000000ULL, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemoryLarge);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_48);
    ok_eq_ulong(Desc.u.Memory.Length, 0x01000000UL);

    /*
     * The tier is picked by magnitude alone: a 256-byte-aligned length in the
     * 48-bit tier still fails because it is not 64K-aligned
     */
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x10000000100ULL, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);

    /* 64-bit tier and its upper bound */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x1000000000000ULL, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_64);
    ok_eq_ulong(Desc.u.Memory.Length, 0x10000UL);

    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, CM_RESOURCE_MEMORY_LARGE_64_MAXLEN, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_64);
    ok_eq_ulong(Desc.u.Memory.Length, MAXULONG);

    /* Low 32 bits set in the 64-bit tier, and beyond-the-max lengths */
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x100000000000100ULL, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, CM_RESOURCE_MEMORY_LARGE_64_MAXLEN + 1, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
    Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, ULLONG_MAX, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
}

Referenced by START_TEST().

Test_FindClosest()

static void Test_FindClosest ( void  )

static

Definition at line 424 of file RtlMemIoResource.c.

{
    static const struct
    {
        ULONGLONG Source;
        ULONGLONG Expected;
    } Cases[] =
    {
        /* 32-bit values are always exact */
        { 0,                        0                       },
        { 0x1234,                   0x1234                  },
        { MAXULONG,                 MAXULONG                },
        /* 40-bit tier: rounded up to 256 bytes */
        { 0x100000000ULL,           0x100000000ULL          },
        { 0x100000001ULL,           0x100000100ULL          },
        { 0xFFFFFFFF00ULL,          0xFFFFFFFF00ULL         },
        /* just past the 40-bit tier: 64K granularity now */
        { 0xFFFFFFFF01ULL,          0x10000000000ULL        },
        { 0x10000000001ULL,         0x10000010000ULL        },
        { 0xFFFFFFFF0000ULL,        0xFFFFFFFF0000ULL       },
        /* just past the 48-bit tier: 4G granularity */
        { 0xFFFFFFFF0001ULL,        0x1000000000000ULL      },
        { 0x1000000000000ULL,       0x1000000000000ULL      },
        { 0x1000000000001ULL,       0x1000100000000ULL      },
        { 0xFFFFFFFF00000000ULL,    0xFFFFFFFF00000000ULL   },
    };
    CM_PARTIAL_RESOURCE_DESCRIPTOR Desc;
    ULONGLONG Target;
    NTSTATUS Status;
    ULONG i;

    for (i = 0; i < ARRAYSIZE(Cases); i++)
    {
        Target = ULLONG_MAX;
        Status = pRtlFindClosestEncodableLength(Cases[i].Source, &Target);
        ok(Status == STATUS_SUCCESS, "[%lu] failed: 0x%lx\n", i, Status);
        ok(Target == Cases[i].Expected,
           "[%lu] Target = 0x%I64x, expected 0x%I64x\n",
           i, Target, Cases[i].Expected);

        /* The returned length must itself be encodable */
        RtlZeroMemory(&Desc, sizeof(Desc));
        Status = pRtlCmEncodeMemIoResource(&Desc, CmResourceTypeMemory, Target, 0);
        ok(Status == STATUS_SUCCESS, "[%lu] closest length not encodable: 0x%lx\n", i, Status);
    }

    /* Beyond the 64-bit tier there is nothing to round to */
    Target = ULLONG_MAX;
    Status = pRtlFindClosestEncodableLength(CM_RESOURCE_MEMORY_LARGE_64_MAXLEN + 1, &Target);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
    ok_eq_hex64(Target, 0);
    Status = pRtlFindClosestEncodableLength(ULLONG_MAX, &Target);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
}

Referenced by START_TEST().

Test_IoDecode()

static void Test_IoDecode ( void  )

static

Definition at line 353 of file RtlMemIoResource.c.

{
    IO_RESOURCE_DESCRIPTOR Desc;
    ULONGLONG Length, Alignment, Minimum, Maximum;
    NTSTATUS Status;

    /* Plain memory requirement */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Desc.Type = CmResourceTypeMemory;
    Desc.u.Memory.Length = 0x2000;
    Desc.u.Memory.Alignment = 0x1000;
    Desc.u.Memory.MinimumAddress.QuadPart = 0x100000;
    Desc.u.Memory.MaximumAddress.QuadPart = 0xFFFFFFFFULL;
    Alignment = Minimum = Maximum = 0;
    Length = pRtlIoDecodeMemIoResource(&Desc, &Alignment, &Minimum, &Maximum);
    ok_eq_hex64(Length, 0x2000);
    ok_eq_hex64(Alignment, 0x1000);
    ok_eq_hex64(Minimum, 0x100000);
    ok_eq_hex64(Maximum, 0xFFFFFFFFULL);

    Length = pRtlIoDecodeMemIoResource(&Desc, NULL, NULL, NULL);
    ok_eq_hex64(Length, 0x2000);

    /* Length and alignment both scale */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Desc.Type = CmResourceTypeMemoryLarge;
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_40;
    Desc.u.Memory.Length = 0x01000000;
    Desc.u.Memory.Alignment = 0x01000000;
    Alignment = 0;
    Length = pRtlIoDecodeMemIoResource(&Desc, &Alignment, NULL, NULL);
    ok_eq_hex64(Length, 0x100000000ULL);
    ok_eq_hex64(Alignment, 0x100000000ULL);

    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_48;
    Length = pRtlIoDecodeMemIoResource(&Desc, &Alignment, NULL, NULL);
    ok_eq_hex64(Length, 0x10000000000ULL);
    ok_eq_hex64(Alignment, 0x10000000000ULL);

    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_64;
    Length = pRtlIoDecodeMemIoResource(&Desc, &Alignment, NULL, NULL);
    ok_eq_hex64(Length, 0x100000000000000ULL);
    ok_eq_hex64(Alignment, 0x100000000000000ULL);

    /* A large type without large flags decodes to zero, bounds still returned */
    Desc.Flags = 0;
    Desc.u.Memory.MinimumAddress.QuadPart = 0x1234;
    Desc.u.Memory.MaximumAddress.QuadPart = 0x5678;
    Alignment = Minimum = Maximum = ULLONG_MAX;
    Length = pRtlIoDecodeMemIoResource(&Desc, &Alignment, &Minimum, &Maximum);
    ok_eq_hex64(Length, 0);
    ok_eq_hex64(Alignment, 0);
    ok_eq_hex64(Minimum, 0x1234);
    ok_eq_hex64(Maximum, 0x5678);

    /* Encode/decode round-trip: the rounded-up alignment is what comes back */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       0x10000000000ULL, 0x1000,
                                       0x10000, 0xFFFFFFFFFFFFULL);
    ok_eq_hex(Status, STATUS_SUCCESS);
    Alignment = Minimum = Maximum = 0;
    Length = pRtlIoDecodeMemIoResource(&Desc, &Alignment, &Minimum, &Maximum);
    ok_eq_hex64(Length, 0x10000000000ULL);
    ok_eq_hex64(Alignment, 0x10000);   /* 0x1000 rounded up to the 64K granularity */
    ok_eq_hex64(Minimum, 0x10000);
    ok_eq_hex64(Maximum, 0xFFFFFFFFFFFFULL);
}

Referenced by START_TEST().

Test_IoEncode()

static void Test_IoEncode ( void  )

static

Definition at line 237 of file RtlMemIoResource.c.

{
    IO_RESOURCE_DESCRIPTOR Desc, Saved;
    NTSTATUS Status;

    /* Unsupported types fail without touching the descriptor */
    RtlFillMemory(&Desc, sizeof(Desc), 0x55);
    Saved = Desc;
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeInterrupt, 0x1000, 4, 0, 0xFFFF);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    ok(!memcmp(&Desc, &Saved, sizeof(Desc)), "Descriptor modified on failure\n");

    /* Basic port requirement */
    RtlFillMemory(&Desc, sizeof(Desc), 0x55);
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypePort, 0x100, 4, 0x1000, 0xFFFF);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypePort);
    ok_eq_ulong(Desc.u.Port.Length, 0x100UL);
    ok_eq_ulong(Desc.u.Port.Alignment, 4UL);
    ok_eq_hex64(Desc.u.Port.MinimumAddress.QuadPart, 0x1000);
    ok_eq_hex64(Desc.u.Port.MaximumAddress.QuadPart, 0xFFFF);

    /* Port length/alignment above 32 bits are rejected, no writes */
    RtlFillMemory(&Desc, sizeof(Desc), 0x55);
    Saved = Desc;
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypePort, 0x100000000ULL, 4, 0, 0xFFFF);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypePort, 0x100, 0x100000000ULL, 0, 0xFFFF);
    ok_eq_hex(Status, STATUS_INVALID_PARAMETER);
    ok(!memcmp(&Desc, &Saved, sizeof(Desc)), "Descriptor modified on failure\n");

    /* Small memory requirement stays plain and clears stale large flags */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Desc.Flags = CM_RESOURCE_MEMORY_LARGE_40 | CM_RESOURCE_MEMORY_PREFETCHABLE;
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x1000, 0x1000, 0, 0xFFFFFFFFULL);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemory);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_PREFETCHABLE);
    ok_eq_ulong(Desc.u.Memory.Length, 0x1000UL);
    ok_eq_ulong(Desc.u.Memory.Alignment, 0x1000UL);
    ok_eq_hex64(Desc.u.Memory.MinimumAddress.QuadPart, 0);
    ok_eq_hex64(Desc.u.Memory.MaximumAddress.QuadPart, 0xFFFFFFFFULL);

    /* Large length: a small alignment is scaled up to the tier granularity */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       0x100000000ULL, 1,
                                       0, 0xFFFFFFFFFFULL);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemoryLarge);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_40);
    ok_eq_ulong(Desc.u.Memory.Length, 0x01000000UL);
    ok_eq_ulong(Desc.u.Memory.Alignment, 1UL);   /* i.e. 0x100 bytes */
    ok_eq_hex64(Desc.u.Memory.MaximumAddress.QuadPart, 0xFFFFFFFFFFULL);

    /* Zero alignment encodes as zero */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x100000000ULL, 0, 0, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_ulong(Desc.u.Memory.Alignment, 0UL);

    /* A non-power-of-two alignment is doubled until it fits the granularity */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x100000000ULL, 0x81, 0, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_ulong(Desc.u.Memory.Alignment, 0x81UL);   /* 0x81 << 8 == 0x8100 bytes */

    /*
     * A small length with a >4GB alignment still selects the large form
     * (the plain path needs both to fit in 32 bits)
     */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       0x1000, 0x100000000ULL, 0, 0);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_uint(Desc.Type, CmResourceTypeMemoryLarge);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_40);
    ok_eq_ulong(Desc.u.Memory.Length, 0x10UL);
    ok_eq_ulong(Desc.u.Memory.Alignment, 0x01000000UL);

    /* Length not representable at the tier granularity */
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x100000080ULL, 1, 0, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory, 0x10000000100ULL, 1, 0, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);

    /* Alignment above the tier picked by the length */
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       0x100000000ULL, 0x10000000000ULL, 0, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);

    /* Alignment whose scaling overflows 64 bits */
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       0x1000000000000ULL, 0x8000000000000001ULL, 0, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);

    /* 64-bit tier */
    RtlZeroMemory(&Desc, sizeof(Desc));
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       0x1000000000000ULL, 0x100000000ULL,
                                       0x100000000ULL, 0xFFFFFFFFFFFFFFFFULL);
    ok_eq_hex(Status, STATUS_SUCCESS);
    ok_eq_hex(Desc.Flags, CM_RESOURCE_MEMORY_LARGE_64);
    ok_eq_ulong(Desc.u.Memory.Length, 0x10000UL);
    ok_eq_ulong(Desc.u.Memory.Alignment, 1UL);
    ok_eq_hex64(Desc.u.Memory.MinimumAddress.QuadPart, 0x100000000ULL);
    ok_eq_hex64(Desc.u.Memory.MaximumAddress.QuadPart, 0xFFFFFFFFFFFFFFFFULL);

    /* Length beyond every tier */
    Status = pRtlIoEncodeMemIoResource(&Desc, CmResourceTypeMemory,
                                       ULLONG_MAX, 1, 0, 0);
    ok_eq_hex(Status, STATUS_UNSUCCESSFUL);
}

Referenced by START_TEST().

ULONGLONG()

static ULONGLONG ( NTAPI *  pRtlCmDecodeMemIoResource )

static

Variable Documentation

Alignment

_In_ UCHAR _In_ ULONGLONG _In_ ULONGLONG Alignment

Definition at line 30 of file RtlMemIoResource.c.

Referenced by Test_IoDecode().

Length

_In_ UCHAR _In_ ULONGLONG Length

Definition at line 21 of file RtlMemIoResource.c.

Referenced by Test_CmDecode(), and Test_IoDecode().

MaximumAddress

static _In_ UCHAR _In_ ULONGLONG _In_ ULONGLONG _In_ ULONGLONG _In_ ULONGLONG MaximumAddress

Definition at line 32 of file RtlMemIoResource.c.

Referenced by PdoGetRangeLength(), PdoQueryResourceRequirements(), RtlIoDecodeMemIoResource(), RtlIoEncodeMemIoResource(), and RtlpLookupDynamicFunctionEntry().

MinimumAddress

static _In_ UCHAR _In_ ULONGLONG _In_ ULONGLONG _In_ ULONGLONG MinimumAddress

Definition at line 31 of file RtlMemIoResource.c.

Referenced by RtlIoDecodeMemIoResource(), and RtlIoEncodeMemIoResource().

Start

static _In_ UCHAR _In_ ULONGLONG _In_ ULONGLONG Start

Definition at line 16 of file RtlMemIoResource.c.

Referenced by AcpiPsGetNextNamepath(), AcpiPsGetNextNamestring(), AcpiPsGetNextPackageEnd(), FxResourceCollection::AddAt(), ArbiterLibAddOrdering(), ArbpAddOrderingCallback(), AtaTrimIdString(), BSTR_UserSize(), CcpDereferenceCache(), CcpMarkForExclusive(), CcpReferenceCache(), CcpReferenceCacheExclusive(), CLEANLOCALSTORAGE_UserSize(), ConioComputeUpdateRect(), ConvertConfigToVA(), FxCmResList::CreateWdmList(), FxIoResReqList::CreateWdmList(), DECLARE_INTERFACE_(), EnumNameServers(), Ext2AddBlockExtent(), Ext2BuildExtents(), Ext2ExpandBlock(), Ext2ExpandExtent(), Ext2ExpandFile(), Ext2ExpandIndirect(), Ext2GetBlock(), Ext2InitializeZone(), Ext2LookupBlockExtent(), Ext2LookupFile(), Ext2RemoveBlockExtent(), Ext2TruncateBlock(), Ext2ZeroData(), FatIsIoRangeValid(), FileAsyncReader_Request(), FindVerbInDefaultVerbList(), ForDir(), ForF(), ForLoop(), FsRtlTest_FillBuffer(), FsVolCommitOpsQueue(), FxUsbFindDescriptorType(), FxUsbValidateDescriptorType(), GetAdapterResources(), FxCmResList::GetResourceLength(), GuiPaintTextModeBuffer(), HTMLTxtRange_collapse(), InitRomRange(), IntDrawArc(), interface_user_size(), IntExtTextOutW(), IntFillArc(), IntSetPaletteEntries(), IntValidateParents(), IopArbBusNumberPackResource(), IopArbBusNumberUnpackResource(), IopArbDmaPackResource(), IopArbDmaUnpackResource(), IopArbIrqPackResource(), IopArbIrqUnpackResource(), IopArbMemPackResource(), IopArbMemUnpackResource(), IopFindBusNumberResource(), IopFindMemoryResource(), IopFindPortResource(), IopPortMemPackResource(), IopPortMemUnpackResource(), Is1On(), Is24On(), KdbpGetNextBreakPointNr(), CKsInterfaceHandler::KsCompleteIo(), LdrpNameToOrdinal(), CDowloadingAppsListView::LoadList(), main(), Open(), PALOBJ_cGetColors(), PciBuildDefaultExclusionLists(), Protocol_Start(), ProtocolEmul_Continue(), ProtocolEmul_Start(), ReadVolumeLabel(), RtlAddRange(), RtlCmDecodeMemIoResource(), RtlCmEncodeMemIoResource(), RtlDeleteRange(), RtlFindRange(), RtlIsDosDeviceName_Ustr(), RtlIsRangeAvailable(), RtlpConflictsOnAdd(), RtlpDphIsPageHeapBlock(), RtlpWindowIsAvailable(), RtlSeekMemoryStream(), ScControl(), Set1(), CRichEdit::SetRangeFormatting(), SHELL32_EnumDefaultVerbList(), _MdTimer::StartWithReturn(), StringHashTableInit(), SubstituteVar(), test_binding(), test_BindToObject(), test_BindToStorage(), Test_CmDecode(), test_CreateBinding(), test_download(), test_ReportResult(), test_submit(), Test_SyscallPerformance(), test_URLDownloadToFile(), TestAddConflict(), TestFindRange(), TestGetLastRange(), TestIsAvailable(), TestSharedFlag(), TestSharedNullCallback(), TestStartEqualsEnd(), UmaMgrInitialize(), USBPORT_SynchronizeControllersStart(), VARIANT_UserSize(), VGADDI_InitializeOffScreenMem(), and wire_extra_user_size().

TargetLength

_Out_ PULONGLONG TargetLength

Definition at line 26 of file RtlMemIoResource.c.

Referenced by CON_API(), ConvertInputAnsiToUnicode(), ConvertInputUnicodeToAnsi(), CSR_API(), IntCreateAliasEntry(), and RtlFindClosestEncodableLength().

Type

_In_ UCHAR Type

Definition at line 20 of file RtlMemIoResource.c.
