netio.c File Reference

#include <ntifs.h>
#include <netiodef.h>
#include <ws2def.h>
#include <wsk.h>
#include <ndis.h>
#include <reactos/debug.h>
#include <tdi.h>
#include <tcpioctl.h>
#include <tdikrnl.h>
#include <tdiinfo.h>
#include <tdi_proto.h>
#include <tdiconn.h>

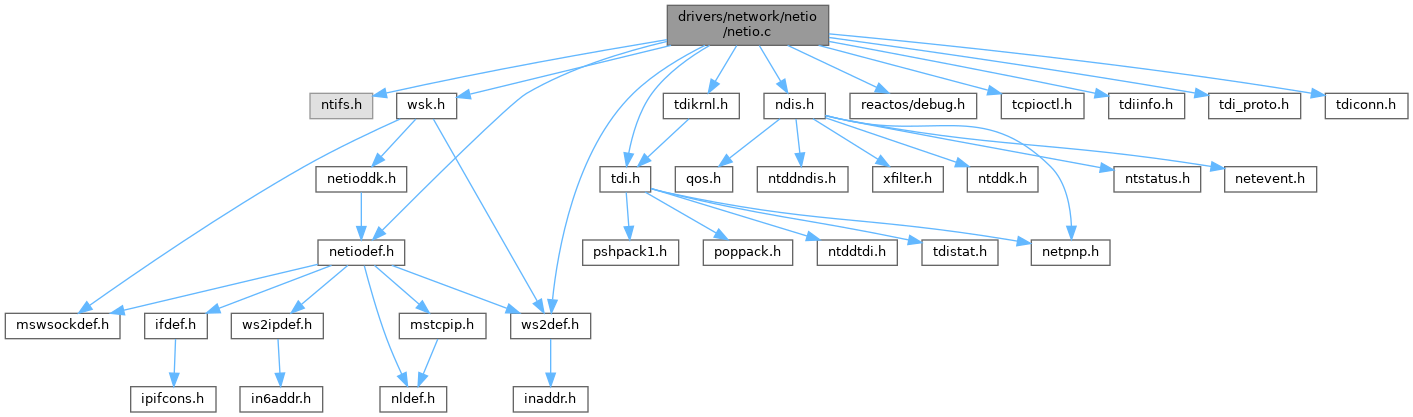

Include dependency graph for netio.c:

Go to the source code of this file.

Classes
struct	_WSK_SOCKET_INTERNAL
struct	_NETIO_CONTEXT
struct	_LISTEN_CONTEXT

Macros
#define	NDEBUG
#define	TAG_NETIO   'OIEN'
#define	TAG_AFD_TDI_CONNECTION_INFORMATION   'cTfA'
#define	AFD_SHARE_UNIQUE   0x0L
#define	AFD_SHARE_REUSE   0x1L
#define	AFD_SHARE_WILDCARD   0x2L
#define	AFD_SHARE_EXCLUSIVE   0x3L
#define	FUNCTION_TRACE   do { } while (0)

Typedefs
typedef struct _WSK_SOCKET_INTERNAL	WSK_SOCKET_INTERNAL
typedef struct _WSK_SOCKET_INTERNAL *	PWSK_SOCKET_INTERNAL
typedef struct _NETIO_CONTEXT	NETIO_CONTEXT
typedef struct _NETIO_CONTEXT *	PNETIO_CONTEXT
typedef struct _LISTEN_CONTEXT	LISTEN_CONTEXT
typedef struct _LISTEN_CONTEXT *	PLISTEN_CONTEXT

Enumerations
enum	direction { DIR_SEND , DIR_RECEIVE }

Functions
static void	ReferenceSocket (_In_ PWSK_SOCKET_INTERNAL Socket)
static void	DereferenceSocket (_In_ PWSK_SOCKET_INTERNAL Socket)
static void	SocketShutdown (_In_ PWSK_SOCKET_INTERNAL Socket)
static void	SocketDestroy (_In_ PWSK_SOCKET_INTERNAL Socket)
static void	DereferenceSocketSynchronous (_In_ PWSK_SOCKET_INTERNAL Socket)
static VOID NTAPI	DereferenceSocketsThread (_In_opt_ void *p)
static NTSTATUS	StartSocketDereferenceThread (void)
static void	StopSocketDereferenceThread (void)
NTSTATUS NTAPI	DriverEntry (_In_ PDRIVER_OBJECT DriverObject, _In_ PUNICODE_STRING RegistryPath)
static NTSTATUS WSKAPI	WskSocket (_In_ PWSK_CLIENT Client, _In_ ADDRESS_FAMILY AddressFamily, _In_ USHORT SocketType, _In_ ULONG Protocol, _In_ ULONG Flags, _In_opt_ PVOID SocketContext, _In_opt_ const VOID *Dispatch, _In_opt_ PEPROCESS OwningProcess, _In_opt_ PETHREAD OwningThread, _In_opt_ PSECURITY_DESCRIPTOR SecurityDescriptor, _Inout_ PIRP Irp)
static NTSTATUS NTAPI	NetioComplete (_In_ PDEVICE_OBJECT DeviceObject, _In_ PIRP Irp, _In_ PVOID ContextParam)
static NTSTATUS NTAPI	CompletionFireEvent (_In_ PDEVICE_OBJECT DeviceObject, _In_ PIRP Irp, _In_ PVOID Context)
static NTSTATUS	CreateSocket (_In_ ADDRESS_FAMILY AddressFamily, _In_ USHORT SocketType, _In_ ULONG Protocol, _In_ ULONG Flags, _Outptr_ PWSK_SOCKET_INTERNAL *TheSocket)
static void	QueueListening (_In_ PWSK_SOCKET_INTERNAL ListenSocket)
static NTSTATUS NTAPI	ListenComplete (_In_ PDEVICE_OBJECT DeviceObject, _In_ PIRP Irp, _In_ PVOID Context)
static NTSTATUS	StartListening (_In_ PWSK_SOCKET_INTERNAL ListenSocket)
static VOID NTAPI	RequeueListenThread (_In_ PVOID p)
static NTSTATUS WSKAPI	WskControlSocket (_In_ PWSK_SOCKET SocketParam, _In_ WSK_CONTROL_SOCKET_TYPE RequestType, _In_ ULONG ControlCode, _In_ ULONG Level, _In_ SIZE_T InputSize, _In_reads_bytes_opt_(InputSize) PVOID InputBuffer, _In_ SIZE_T OutputSize, _Out_writes_bytes_opt_(OutputSize) PVOID OutputBuffer, _Out_opt_ SIZE_T *OutputSizeReturned, _Inout_opt_ PIRP Irp)
static NTSTATUS WSKAPI	WskCloseSocket (_In_ PWSK_SOCKET SocketParam, _Inout_ PIRP Irp)
static PTRANSPORT_ADDRESS	TdiTransportAddressFromSocketAddress (_In_ PSOCKADDR SocketAddress)
static PTDI_CONNECTION_INFORMATION	TdiConnectionInfoFromSocketAddress (_In_ PSOCKADDR SocketAddress)
static NTSTATUS WSKAPI	WskBind (_In_ PWSK_SOCKET SocketParam, _In_ PSOCKADDR LocalAddress, _Reserved_ ULONG Flags, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskSendTo (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_BUF Buffer, _Reserved_ ULONG Flags, _In_opt_ PSOCKADDR RemoteAddress, _In_ ULONG ControlInfoLength, _In_reads_bytes_opt_(ControlInfoLength) PCMSGHDR ControlInfo, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskReceiveFrom (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_BUF Buffer, _Reserved_ ULONG Flags, _Out_opt_ PSOCKADDR RemoteAddress, _Inout_ PULONG ControlLength, _Out_writes_bytes_opt_(*ControlLength) PCMSGHDR ControlInfo, _Out_opt_ PULONG ControlFlags, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskReleaseUdp (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_DATAGRAM_INDICATION DatagramIndication)
static NTSTATUS WSKAPI	WskReleaseTcp (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_DATA_INDICATION DataIndication)
static NTSTATUS WSKAPI	WskGetLocalAddress (_In_ PWSK_SOCKET SocketParam, _Out_ PSOCKADDR LocalAddress, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskGetRemoteAddress (_In_ PWSK_SOCKET SocketParam, _Out_ PSOCKADDR RemoteAddress, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskSocketConnect (_In_ PWSK_CLIENT Client, _In_ USHORT SocketType, _In_ ULONG Protocol, _In_ PSOCKADDR LocalAddress, _In_ PSOCKADDR RemoteAddress, _In_ ULONG Flags, _In_opt_ PVOID SocketContext, _In_opt_ const WSK_CLIENT_CONNECTION_DISPATCH *Dispatch, _In_opt_ PEPROCESS OwningProcess, _In_opt_ PETHREAD OwningThread, _In_opt_ PSECURITY_DESCRIPTOR SecurityDescriptor, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskControlClient (_In_ PWSK_CLIENT Client, _In_ ULONG ControlCode, _In_ SIZE_T InputSize, _In_reads_bytes_opt_(InputSize) PVOID InputBuffer, _In_ SIZE_T OutputSize, _Out_writes_bytes_opt_(OutputSize) PVOID OutputBuffer, _Out_opt_ SIZE_T *OutputSizeReturned, _Inout_opt_ PIRP Irp)
static NTSTATUS WSKAPI	WskConnect (_In_ PWSK_SOCKET SocketParam, _In_ PSOCKADDR RemoteAddress, _Reserved_ ULONG Flags, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskStreamIo (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_BUF Buffer, _In_ ULONG Flags, _Inout_ PIRP Irp, _In_ enum direction Direction)
static NTSTATUS WSKAPI	WskSend (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_BUF Buffer, _In_ ULONG Flags, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskReceive (_In_ PWSK_SOCKET SocketParam, _In_ PWSK_BUF Buffer, _In_ ULONG Flags, _Inout_ PIRP Irp)
static NTSTATUS WSKAPI	WskDisconnect (_In_ PWSK_SOCKET SocketParam, _In_opt_ PWSK_BUF Buffer, _In_ ULONG Flags, _Inout_ PIRP Irp)
NTSTATUS WSKAPI	WskRegister (_In_ PWSK_CLIENT_NPI client_npi, _Out_ PWSK_REGISTRATION reg)
NTSTATUS WSKAPI	WskCaptureProviderNPI (_In_ PWSK_REGISTRATION reg, _In_ ULONG wait, _Out_ PWSK_PROVIDER_NPI npi)
VOID WSKAPI	WskReleaseProviderNPI (_In_ PWSK_REGISTRATION reg)
VOID WSKAPI	WskDeregister (_In_ PWSK_REGISTRATION reg)

Variables
static PWSK_SOCKET_INTERNAL	SocketsToDereference = NULL
static KSPIN_LOCK	SocketsToDereferenceListLock = 0
static volatile BOOLEAN	DereferenceSocketsThreadShouldRun = FALSE
static KEVENT	DereferenceSocketsEvent
static HANDLE	DereferenceSocketsThreadHandle
static WSK_PROVIDER_DATAGRAM_DISPATCH	UdpDispatch
static WSK_PROVIDER_CONNECTION_DISPATCH	TcpDispatch
static WSK_PROVIDER_DISPATCH	provider_dispatch

Macro Definition Documentation

AFD_SHARE_EXCLUSIVE

#define AFD_SHARE_EXCLUSIVE   0x3L

Definition at line 70 of file netio.c.

AFD_SHARE_REUSE

#define AFD_SHARE_REUSE   0x1L

Definition at line 68 of file netio.c.

AFD_SHARE_UNIQUE

#define AFD_SHARE_UNIQUE   0x0L

Definition at line 67 of file netio.c.

AFD_SHARE_WILDCARD

#define AFD_SHARE_WILDCARD   0x2L

Definition at line 69 of file netio.c.

FUNCTION_TRACE

#define FUNCTION_TRACE   do { } while (0)

Definition at line 74 of file netio.c.

NDEBUG

#define NDEBUG

Definition at line 50 of file netio.c.

TAG_AFD_TDI_CONNECTION_INFORMATION

#define TAG_AFD_TDI_CONNECTION_INFORMATION   'cTfA'

Definition at line 63 of file netio.c.

TAG_NETIO

#define TAG_NETIO   'OIEN'

Definition at line 60 of file netio.c.

Typedef Documentation

LISTEN_CONTEXT

typedef struct _LISTEN_CONTEXT LISTEN_CONTEXT

NETIO_CONTEXT

typedef struct _NETIO_CONTEXT NETIO_CONTEXT

PLISTEN_CONTEXT

typedef struct _LISTEN_CONTEXT * PLISTEN_CONTEXT

PNETIO_CONTEXT

typedef struct _NETIO_CONTEXT * PNETIO_CONTEXT

PWSK_SOCKET_INTERNAL

typedef struct _WSK_SOCKET_INTERNAL * PWSK_SOCKET_INTERNAL

WSK_SOCKET_INTERNAL

typedef struct _WSK_SOCKET_INTERNAL WSK_SOCKET_INTERNAL

Enumeration Type Documentation

direction

enum direction

Enumerator
DIR_SEND
DIR_RECEIVE

Definition at line 881 of file netio.c.

{
    DIR_SEND,
    DIR_RECEIVE
};

Function Documentation

CompletionFireEvent()

static NTSTATUS NTAPI CompletionFireEvent ( _In_ PDEVICE_OBJECT  DeviceObject, _In_ PIRP  Irp, _In_ PVOID  Context  )

static

Definition at line 414 of file netio.c.

{
    PKEVENT Event = (PKEVENT)Context;

    FUNCTION_TRACE;

    KeSetEvent(Event, IO_NO_INCREMENT, FALSE);

    return STATUS_MORE_PROCESSING_REQUIRED;
}

Referenced by CreateSocket().

CreateSocket()

static NTSTATUS CreateSocket ( _In_ ADDRESS_FAMILY  AddressFamily, _In_ USHORT  SocketType, _In_ ULONG  Protocol, _In_ ULONG  Flags, _Outptr_ PWSK_SOCKET_INTERNAL *  TheSocket  )

static

Definition at line 425 of file netio.c.

{
    PIRP NewSocketIrp;
    KEVENT CompletionEvent;
    NTSTATUS Status;

    FUNCTION_TRACE;

    NewSocketIrp = IoAllocateIrp(1, FALSE);
    if (NewSocketIrp == NULL)
    {
        DPRINT1("Out of memory?\n");
        return STATUS_INSUFFICIENT_RESOURCES;
    }
    KeInitializeEvent(&CompletionEvent, NotificationEvent, FALSE);
    IoSetCompletionRoutine(NewSocketIrp, CompletionFireEvent, &CompletionEvent, TRUE, TRUE, TRUE);
    NewSocketIrp->Tail.Overlay.Thread = PsGetCurrentThread();

    Status = WskSocket(NULL, AddressFamily, SocketType, Protocol, Flags,
        NULL, NULL, NULL, NULL, NULL, NewSocketIrp);

    if (Status == STATUS_PENDING)
    {
        KeWaitForSingleObject(&CompletionEvent, Executive, KernelMode, FALSE, NULL);
        Status = NewSocketIrp->IoStatus.Status;
    }

    if (NT_SUCCESS(Status))
    {
        *TheSocket = (PWSK_SOCKET_INTERNAL)NewSocketIrp->IoStatus.Information;
    }

    IoFreeIrp(NewSocketIrp);
    return Status;
}

DereferenceSocket()

static void DereferenceSocket ( _In_ PWSK_SOCKET_INTERNAL  Socket )

static

Definition at line 311 of file netio.c.

{
    KIRQL OldIrql;

    FUNCTION_TRACE;

    /* We are doing calls like ZwClose, TdiDisassociateAddressFile, ...
       which require IRQL to be PASSIVE_LEVEL. So if we get here
       when IRQL is greater than PASSIVE_LEVEL, defer the DereferenceSocket()
       to a separate thread. */

    if (KeGetCurrentIrql() > PASSIVE_LEVEL)
    {
        KeAcquireSpinLock(&SocketsToDereferenceListLock, &OldIrql);
        if (Socket->NumSocketDereferences == 0)
        {
            Socket->NextSocketToDereference = SocketsToDereference;
            SocketsToDereference = Socket;
            Socket->NumSocketDereferences = 1;
        }
        else
        {
            Socket->NumSocketDereferences++;
        }
        KeReleaseSpinLock(&SocketsToDereferenceListLock, OldIrql);

        KeSetEvent(&DereferenceSocketsEvent, IO_NO_INCREMENT, FALSE);

        return;
    }
    DereferenceSocketSynchronous(Socket);
}

Referenced by ListenComplete(), NetioComplete(), SocketShutdown(), StartListening(), WskCloseSocket(), WskConnect(), and WskSendTo().

DereferenceSocketsThread()

static VOID NTAPI DereferenceSocketsThread ( _In_opt_ void *  p )

static

Definition at line 246 of file netio.c.

{
    NTSTATUS status;
    PWSK_SOCKET_INTERNAL SocketToDereference;
    KIRQL OldIrql;
    ULONG NumSocketDereferences;

    FUNCTION_TRACE;

    while (DereferenceSocketsThreadShouldRun)
    {
        status = KeWaitForSingleObject(&DereferenceSocketsEvent, Executive, KernelMode, FALSE, NULL);
        if (!NT_SUCCESS(status))
        {
            DPRINT1("KeWaitForSingleObject failed with status 0x%08x!\n", status);
        }

        KeAcquireSpinLock(&SocketsToDereferenceListLock, &OldIrql);
        while (SocketsToDereference != NULL)
        {
            SocketToDereference = SocketsToDereference;
            SocketsToDereference = SocketToDereference->NextSocketToDereference;
            NumSocketDereferences = SocketToDereference->NumSocketDereferences;

            while (NumSocketDereferences > 0)
            {
                SocketToDereference->NumSocketDereferences--;
                NumSocketDereferences = SocketToDereference->NumSocketDereferences;

                KeReleaseSpinLock(&SocketsToDereferenceListLock, OldIrql);
                DereferenceSocketSynchronous(SocketToDereference);
                KeAcquireSpinLock(&SocketsToDereferenceListLock, &OldIrql);
            }
        }
        KeReleaseSpinLock(&SocketsToDereferenceListLock, OldIrql);
    }

    PsTerminateSystemThread(STATUS_SUCCESS);
}

Referenced by StartSocketDereferenceThread().

DereferenceSocketSynchronous()

static void DereferenceSocketSynchronous ( _In_ PWSK_SOCKET_INTERNAL  Socket )

static

Definition at line 232 of file netio.c.

{
    if (InterlockedDecrement(&Socket->RefCount) == 0)
    {
        SocketDestroy(Socket);
    }
}

Referenced by DereferenceSocket(), and DereferenceSocketsThread().

DriverEntry()

NTSTATUS NTAPI DriverEntry	(	_In_ PDRIVER_OBJECT	DriverObject,
		_In_ PUNICODE_STRING	RegistryPath
	)

Definition at line 345 of file netio.c.

{
    FUNCTION_TRACE;

    return STATUS_SUCCESS;
}

ListenComplete()

static NTSTATUS NTAPI ListenComplete ( _In_ PDEVICE_OBJECT  DeviceObject, _In_ PIRP  Irp, _In_ PVOID  Context  )

static

Definition at line 474 of file netio.c.

{
    PLISTEN_CONTEXT ListenContext = (PLISTEN_CONTEXT)Context;
    PWSK_SOCKET_INTERNAL ListenSocket = ListenContext->ListenSocket;
    PWSK_SOCKET_INTERNAL AcceptSocket = ListenContext->AcceptSocket;
    PWSK_CLIENT_LISTEN_DISPATCH ListenDispatch =
        (PWSK_CLIENT_LISTEN_DISPATCH)ListenSocket->ListenDispatch;

    /* A PTRANSPORT_ADDRESS address field has an additional
     * AddressLength field so the struct sockaddr_in starts
     * at the AddressType (the address family, 2 for AF_INET)
     * field.
     */

    PSOCKADDR RemoteAddress =
        (PSOCKADDR)(&((PTRANSPORT_ADDRESS)ListenContext->ReturnConnectionInfo->RemoteAddress)->Address[0].AddressType);
    PVOID AcceptSocketContext;
    const WSK_CLIENT_CONNECTION_DISPATCH *AcceptSocketDispatch;
    NTSTATUS Status;

    FUNCTION_TRACE;

    if (ListenSocket->CallbackMask & WSK_EVENT_ACCEPT &&
        ListenDispatch->WskAcceptEvent != NULL &&
        ListenSocket->ListenIrp != NULL &&
        !ListenSocket->ListenCancelled &&
        Irp->IoStatus.Status != STATUS_CANCELLED)
    {
        ListenSocket->ListenIrp = NULL;

        Status = ListenDispatch->WskAcceptEvent(ListenSocket->user_context,
                                                0,
                                                &ListenSocket->LocalAddress,
                                                RemoteAddress,
                                                &AcceptSocket->Socket,
                                                &AcceptSocketContext,
                                                &AcceptSocketDispatch);

        if (!NT_SUCCESS(Status))
        {
            DPRINT1("ListenDispatch->WskAcceptEvent returned non-successful status 0x%08x\n", Status);
        }
        else
        {
            memcpy(&AcceptSocket->RemoteAddress, RemoteAddress, sizeof(AcceptSocket->RemoteAddress));
        }
    }
    else
    {
        DereferenceSocket(AcceptSocket);    /* close the AcceptSocket */
    }
    ListenSocket->ListenIrp = NULL;

    DereferenceSocket(AcceptSocket);
    DereferenceSocket(ListenSocket);

    ExFreePoolWithTag(ListenContext->ReturnConnectionInfo, TAG_AFD_TDI_CONNECTION_INFORMATION);
    ExFreePoolWithTag(ListenContext->RequestConnectionInfo, TAG_AFD_TDI_CONNECTION_INFORMATION);
    ExFreePoolWithTag(ListenContext, TAG_NETIO);

    /* And wait for the next incoming connection.
     * This is done in a separate thread at IRQL = PASSIVE_LEVEL
     */

    QueueListening(ListenSocket);

    return STATUS_SUCCESS;
}

NetioComplete()

static NTSTATUS NTAPI NetioComplete ( _In_ PDEVICE_OBJECT  DeviceObject, _In_ PIRP  Irp, _In_ PVOID  ContextParam  )

static

Definition at line 367 of file netio.c.

{
    PNETIO_CONTEXT Context = (PNETIO_CONTEXT)ContextParam;
    PIRP UserIrp = Context->UserIrp;

    FUNCTION_TRACE;

    if (Irp->IoStatus.Status != STATUS_CANCELLED)
    {
        UserIrp->IoStatus.Status = Irp->IoStatus.Status;
        UserIrp->IoStatus.Information = Irp->IoStatus.Information;
    }

    if (Context->PeerAddrRet != NULL)
    {
        PSOCKADDR RemoteAddress =
            (PSOCKADDR)(&((PTRANSPORT_ADDRESS)Context->PeerAddrRet->RemoteAddress)->Address[0].AddressType);

        memcpy(&Context->socket->RemoteAddress, RemoteAddress, sizeof(Context->socket->RemoteAddress));
    }
    if (Irp->IoStatus.Status != STATUS_CANCELLED)
    {
        IoCompleteRequest(UserIrp, IO_NETWORK_INCREMENT);
    }

    DereferenceSocket(Context->socket);
    if (Context->TargetConnectionInfo != NULL)
    {
        ExFreePoolWithTag(Context->TargetConnectionInfo, TAG_AFD_TDI_CONNECTION_INFORMATION);
    }
    if (Context->PeerAddrRet != NULL)
    {
        ExFreePoolWithTag(Context->PeerAddrRet, TAG_AFD_TDI_CONNECTION_INFORMATION);
    }
    ExFreePoolWithTag(Context, TAG_NETIO);

    return STATUS_SUCCESS;
}

Referenced by WskConnect(), WskSendTo(), and WskStreamIo().

QueueListening()

static void QueueListening ( _In_ PWSK_SOCKET_INTERNAL  ListenSocket )

static

Definition at line 466 of file netio.c.

{
    FUNCTION_TRACE;

    KeSetEvent(&ListenSocket->StartListenEvent, IO_NO_INCREMENT, FALSE);
}

Referenced by ListenComplete(), and WskControlSocket().

ReferenceSocket()

static void ReferenceSocket ( _In_ PWSK_SOCKET_INTERNAL  Socket )

static

Definition at line 137 of file netio.c.

{
    FUNCTION_TRACE;

    InterlockedIncrement(&Socket->RefCount);
}

Referenced by StartListening(), WskConnect(), WskSendTo(), and WskStreamIo().

RequeueListenThread()

static VOID NTAPI RequeueListenThread ( _In_ PVOID  p )

static

Definition at line 641 of file netio.c.

{
    PWSK_SOCKET_INTERNAL ListenSocket = (PWSK_SOCKET_INTERNAL)p;
    NTSTATUS status;

    FUNCTION_TRACE;

    while (ListenSocket->ListenThreadShouldRun)
    {
        status = KeWaitForSingleObject(&ListenSocket->StartListenEvent, Executive, KernelMode, FALSE, NULL);
        if (!NT_SUCCESS(status))
        {
            DPRINT1("KeWaitForSingleObject failed with status 0x%08x!\n", status);
        }
        if (!ListenSocket->ListenThreadShouldRun)
        {
            break;
        }
        StartListening(ListenSocket);
    }
    PsTerminateSystemThread(STATUS_SUCCESS);
}

Referenced by WskSocket().

SocketDestroy()

static void SocketDestroy ( _In_ PWSK_SOCKET_INTERNAL  Socket )

static

Definition at line 206 of file netio.c.

{
    SocketShutdown(Socket);

    /* Especially listen sockets must keep the LocalAddressFile
     * open when being closed and there are still accepted sockets
     * somewhere. Else the accepted socket I/O will fail with
     * STATUS_INVALID_DEVICE_STATE. So do not close the
     * address file in Shutdown only close it here when all AcceptSockets
     * are gone (AcceptSockets hold a reference to the listen socket).
     */

    if (Socket->LocalAddressFile != NULL)
    {
        ObDereferenceObject(Socket->LocalAddressFile);
        Socket->LocalAddressFile = NULL;
    }
    if (Socket->LocalAddressHandle != NULL)
    {
        ZwClose(Socket->LocalAddressHandle);
        Socket->LocalAddressHandle = NULL;
    }
    ExFreePoolWithTag(Socket, TAG_NETIO);
}

Referenced by DereferenceSocketSynchronous().

SocketShutdown()

static void SocketShutdown ( _In_ PWSK_SOCKET_INTERNAL  Socket )

static

Definition at line 153 of file netio.c.

{
    NTSTATUS status;

    FUNCTION_TRACE;

    if (Socket->ListenSocket != NULL)
    {
        DereferenceSocket(Socket->ListenSocket);
        Socket->ListenSocket = NULL;
    }
    if (Socket->ListenThreadHandle != NULL)
    {
        Socket->ListenThreadShouldRun = FALSE;
        KeSetEvent(&Socket->StartListenEvent, IO_NO_INCREMENT, FALSE);
        status = KeWaitForSingleObject(Socket->ListenThread, Executive, KernelMode, FALSE, (PLARGE_INTEGER)NULL);
        if (!NT_SUCCESS(status))
        {
            DPRINT1("KeWaitForSingleObject failed with status 0x%08x!\n", status);
        }
        ObDereferenceObject(Socket->ListenThread);
        Socket->ListenThread = NULL;
        Socket->ListenThreadHandle = NULL;
    }
    if (Socket->ListenIrp != NULL)
    {
        Socket->ListenCancelled = TRUE;
        IoCancelIrp(Socket->ListenIrp);
        Socket->ListenIrp = NULL;
    }
    if (Socket->ConnectionFile != NULL)
    {
        if (Socket->ConnectionFileAssociated)
        {
            /* This fails with error STATUS_CONNECTION_ACTIVE on Windows 2003 */
            status = TdiDisassociateAddressFile(Socket->ConnectionFile);
            if (!NT_SUCCESS(status))
            {
                DPRINT1("Warning: TdiDisassociateAddressFile returned status %08x\n", status);
            }
            Socket->ConnectionFileAssociated = FALSE;
        }
        ObDereferenceObject(Socket->ConnectionFile);
        Socket->ConnectionFile = NULL;
    }
    if (Socket->ConnectionHandle != NULL)
    {
        ZwClose(Socket->ConnectionHandle);
        Socket->ConnectionHandle = NULL;
    }
}

Referenced by SocketDestroy(), WskCloseSocket(), and WskDisconnect().

StartListening()

static NTSTATUS StartListening ( _In_ PWSK_SOCKET_INTERNAL  ListenSocket )

static

Definition at line 544 of file netio.c.

{
    PIRP tdiIrp;
    NTSTATUS status;
    PLISTEN_CONTEXT lc;
    PWSK_SOCKET_INTERNAL AcceptSocket;

    FUNCTION_TRACE;

    if (ListenSocket->LocalAddressHandle == NULL)
    {
        DPRINT1("LocalAddressHandle is not set, need to bind your socket before listening\n");
        return STATUS_INVALID_PARAMETER;
    }

    status = CreateSocket(ListenSocket->family, ListenSocket->type, ListenSocket->proto, WSK_FLAG_CONNECTION_SOCKET, &AcceptSocket);
    if (!NT_SUCCESS(status))
    {
        DPRINT1("Could not create AcceptSocket, status is 0x%08x\n", status);
        return status;
    }
    AcceptSocket->ListenSocket = ListenSocket;
    /* Dereferenced when the AcceptSocket is closed */
    ReferenceSocket(AcceptSocket->ListenSocket);

    status = STATUS_INSUFFICIENT_RESOURCES;
    lc = ExAllocatePoolUninitialized(NonPagedPool, sizeof(*lc), TAG_NETIO);
    if (lc == NULL)
    {
        goto err_out_free_accept_socket;
    }
    lc->ListenSocket = ListenSocket;
    lc->AcceptSocket = AcceptSocket;

    tdiIrp = NULL;

    status = TdiAssociateAddressFile(ListenSocket->LocalAddressHandle, AcceptSocket->ConnectionFile);
    if (!NT_SUCCESS(status))
    {
        goto err_out_free_lc;
    }
    AcceptSocket->ConnectionFileAssociated = TRUE;

    lc->RequestConnectionInfo = NULL;
    TdiBuildNullConnectionInfo(&lc->RequestConnectionInfo, TDI_ADDRESS_TYPE_IP);
    if (lc->RequestConnectionInfo == NULL)
    {
        goto err_out_free_lc_and_disassociate;
    }
    lc->RequestConnectionInfo->OptionsLength = 0;

    lc->ReturnConnectionInfo = NULL;
    TdiBuildNullConnectionInfo(&lc->ReturnConnectionInfo, TDI_ADDRESS_TYPE_IP);
    if (lc->ReturnConnectionInfo == NULL)
    {
        goto err_out_free_lc_and_req_conn_info;
    }
    lc->ReturnConnectionInfo->OptionsLength = 0;

    ReferenceSocket(ListenSocket);
    ReferenceSocket(AcceptSocket);

    ListenSocket->ListenCancelled = FALSE;
    /* pass the ConnectionFile from accept socket, not from ListenSocket ... */
    status = TdiListen(&tdiIrp, AcceptSocket->ConnectionFile, &lc->RequestConnectionInfo, &lc->ReturnConnectionInfo, ListenComplete, lc);

    if (!NT_SUCCESS(status))
    {
        ExFreePoolWithTag(lc->ReturnConnectionInfo, TAG_NETIO);
        DereferenceSocket(ListenSocket);
        DereferenceSocket(AcceptSocket);
        goto err_out_free_lc_and_req_conn_info;
    }
    ListenSocket->ListenIrp = tdiIrp;

    return STATUS_PENDING;

err_out_free_lc_and_req_conn_info:
    ExFreePoolWithTag(lc->RequestConnectionInfo, TAG_NETIO);

err_out_free_lc_and_disassociate:
    status = TdiDisassociateAddressFile(AcceptSocket->ConnectionFile);
    if (!NT_SUCCESS(status))
    {
        DPRINT1("Warning: TdiDisassociateAddressFile returned status %08x\n", status);
    }
    AcceptSocket->ConnectionFileAssociated = FALSE;

err_out_free_lc:
    ExFreePoolWithTag(lc, TAG_NETIO);

err_out_free_accept_socket:
    DereferenceSocket(AcceptSocket);

    return status;
}

Referenced by RequeueListenThread().

StartSocketDereferenceThread()

static NTSTATUS StartSocketDereferenceThread ( void  )

static

Definition at line 286 of file netio.c.

{
    NTSTATUS status;

    KeInitializeSpinLock(&SocketsToDereferenceListLock);
    KeInitializeEvent(&DereferenceSocketsEvent, SynchronizationEvent, FALSE);
    DereferenceSocketsThreadShouldRun = TRUE;

    status = PsCreateSystemThread(&DereferenceSocketsThreadHandle, THREAD_ALL_ACCESS, NULL, NULL, NULL, DereferenceSocketsThread, NULL);
    if (!NT_SUCCESS(status))
    {
        DPRINT1("Could not start put sockets thread, status is %x\n", status);
    }
    return status;
}

Referenced by WskCaptureProviderNPI().

StopSocketDereferenceThread()

static void StopSocketDereferenceThread ( void  )

static

Definition at line 302 of file netio.c.

{
    DereferenceSocketsThreadShouldRun = FALSE;
    KeSetEvent(&DereferenceSocketsEvent, IO_NO_INCREMENT, FALSE);

    /* eventually it will terminate, no need to wait for that. */
}

Referenced by WskReleaseProviderNPI().

TdiConnectionInfoFromSocketAddress()

static PTDI_CONNECTION_INFORMATION TdiConnectionInfoFromSocketAddress ( _In_ PSOCKADDR  SocketAddress )

static

Definition at line 822 of file netio.c.

{
    PTRANSPORT_ADDRESS TargetAddress;
    PTDI_CONNECTION_INFORMATION ConnectionInformation = NULL;
    NTSTATUS status;

    TargetAddress = TdiTransportAddressFromSocketAddress(SocketAddress);
    if (TargetAddress == NULL)
        return NULL;

    status = TdiBuildConnectionInfo(&ConnectionInformation, TargetAddress);
    ExFreePoolWithTag(TargetAddress, TAG_NETIO);

    if (!NT_SUCCESS(status))
    {
        if (ConnectionInformation != NULL)
        {
            ExFreePoolWithTag(ConnectionInformation, TAG_AFD_TDI_CONNECTION_INFORMATION);
        }
        return NULL;
    }
    ConnectionInformation->OptionsLength = 0;
    return ConnectionInformation;
}

Referenced by WskConnect(), and WskSendTo().

TdiTransportAddressFromSocketAddress()

static PTRANSPORT_ADDRESS TdiTransportAddressFromSocketAddress ( _In_ PSOCKADDR  SocketAddress )

static

Definition at line 797 of file netio.c.

{
    PTRANSPORT_ADDRESS ta;
    ULONG Size;

    Size = FIELD_OFFSET(TRANSPORT_ADDRESS, Address) +
           FIELD_OFFSET(TA_ADDRESS, Address[sizeof(SocketAddress->sa_data)]);

    ta = ExAllocatePoolUninitialized(NonPagedPool, Size, TAG_NETIO);
    if (ta == NULL)
    {
        DPRINT1("TdiTransportAddressFromSocketAddress: Out of memory\n");
        return NULL;
    }

    ta->TAAddressCount = 1;
    ta->Address[0].AddressLength = sizeof(SocketAddress->sa_data);
    ta->Address[0].AddressType = TDI_ADDRESS_TYPE_IP;   /* AF_INET */

    memcpy(&ta->Address[0].Address[0], &SocketAddress->sa_data, ta->Address[0].AddressLength);

    return ta;
}

Referenced by TdiConnectionInfoFromSocketAddress(), and WskBind().

WskBind()

static NTSTATUS WSKAPI WskBind ( _In_ PWSK_SOCKET  SocketParam, _In_ PSOCKADDR  LocalAddress, _Reserved_ ULONG  Flags, _Inout_ PIRP  Irp  )

static

Definition at line 848 of file netio.c.

{
    NTSTATUS status;
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);

    PTRANSPORT_ADDRESS ta = TdiTransportAddressFromSocketAddress(LocalAddress);

    FUNCTION_TRACE;
    IoSetNextIrpStackLocation(Irp);

    if (ta == NULL)
    {
        status = STATUS_INSUFFICIENT_RESOURCES;
        goto err_out;
    }
    if (Socket->LocalAddressHandle != NULL)
    {
        status = STATUS_INVALID_PARAMETER;
        goto err_out;
    }

    status = TdiOpenAddressFile(&Socket->TdiName,
                                ta, AFD_SHARE_REUSE, &Socket->LocalAddressHandle, &Socket->LocalAddressFile);

    ExFreePoolWithTag(ta, TAG_NETIO);

err_out:
    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return STATUS_PENDING;
}

WskCaptureProviderNPI()

NTSTATUS WSKAPI WskCaptureProviderNPI	(	_In_ PWSK_REGISTRATION	reg,
		_In_ ULONG	wait,
		_Out_ PWSK_PROVIDER_NPI	npi
	)

Definition at line 1477 of file netio.c.

{
    FUNCTION_TRACE;

    npi->Client = NULL;
    npi->Dispatch = &provider_dispatch;

    return StartSocketDereferenceThread();
}

WskCloseSocket()

static NTSTATUS WSKAPI WskCloseSocket ( _In_ PWSK_SOCKET  SocketParam, _Inout_ PIRP  Irp  )

static

Definition at line 775 of file netio.c.

{
    NTSTATUS status = STATUS_SUCCESS;
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);

    IoSetNextIrpStackLocation(Irp);

    /* There might be a reference from (for example) a pending
     * receive. Shutdown the socket here explicitly. We expect
     * all pending I/O operations to be cancelled, then.
     */

    SocketShutdown(Socket);
    DereferenceSocket(Socket);

    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return STATUS_PENDING;
}

WskConnect()

static NTSTATUS WSKAPI WskConnect ( _In_ PWSK_SOCKET  SocketParam, _In_ PSOCKADDR  RemoteAddress, _Reserved_ ULONG  Flags, _Inout_ PIRP  Irp  )

static

Definition at line 1098 of file netio.c.

{
    PTDI_CONNECTION_INFORMATION TargetConnectionInfo, PeerAddrRet;
    PIRP tdiIrp;
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);
    NTSTATUS status, status2;
    PNETIO_CONTEXT NetioContext;

    FUNCTION_TRACE;

    IoSetNextIrpStackLocation(Irp);

    status = STATUS_INVALID_PARAMETER;
    if (Socket->LocalAddressHandle == NULL)
    {
        DPRINT1("LocalAddressHandle is not set, need to bind your socket before connecting\n");
        goto err_out;
    }

    status = STATUS_INSUFFICIENT_RESOURCES;
    NetioContext = ExAllocatePoolUninitialized(NonPagedPool, sizeof(*NetioContext), TAG_NETIO);
    if (NetioContext == NULL)
    {
        goto err_out;
    }
    NetioContext->socket = Socket;
    NetioContext->UserIrp = Irp;

    tdiIrp = NULL;

    status = TdiAssociateAddressFile(Socket->LocalAddressHandle, Socket->ConnectionFile);
    if (!NT_SUCCESS(status))
    {
        goto err_out_free_nc;
    }
    Socket->ConnectionFileAssociated = TRUE;

    TargetConnectionInfo = TdiConnectionInfoFromSocketAddress(RemoteAddress);
    if (TargetConnectionInfo == NULL)
    {
        goto err_out_free_nc_and_disassociate;
    }
    NetioContext->TargetConnectionInfo = TargetConnectionInfo;

    PeerAddrRet = NULL;
    TdiBuildNullConnectionInfo(&PeerAddrRet, TDI_ADDRESS_TYPE_IP);
    if (PeerAddrRet == NULL)
    {
        goto err_out_free_nc_and_tci;
    }
    PeerAddrRet->OptionsLength = 0;
    NetioContext->PeerAddrRet = PeerAddrRet;

    IoMarkIrpPending(Irp);
    ReferenceSocket(Socket);

    status = TdiConnect(&tdiIrp, Socket->ConnectionFile, TargetConnectionInfo, PeerAddrRet, NetioComplete, NetioContext);

    if (!NT_SUCCESS(status))
    {
        /* If allocating tdiIrp fails we get here.
         * Call the IoCompletion of the application's Irp so this Irp
         * gets freed.
         */
        ExFreePoolWithTag(PeerAddrRet, TAG_NETIO);
        DereferenceSocket(Socket);
        goto err_out_free_nc_and_tci;
    }
    return STATUS_PENDING;

err_out_free_nc_and_tci:
    ExFreePoolWithTag(TargetConnectionInfo, TAG_AFD_TDI_CONNECTION_INFORMATION);

err_out_free_nc_and_disassociate:
    status2 = TdiDisassociateAddressFile(Socket->ConnectionFile);
    if (!NT_SUCCESS(status2))
    {
        DPRINT1("Warning: TdiDisassociateAddressFile returned status %08x\n", status);
    }
    Socket->ConnectionFileAssociated = FALSE;

err_out_free_nc:
    ExFreePoolWithTag(NetioContext, TAG_NETIO);

err_out:
    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return status;
}

WskControlClient()

static NTSTATUS WSKAPI WskControlClient ( _In_ PWSK_CLIENT  Client, _In_ ULONG  ControlCode, _In_ SIZE_T  InputSize, _In_reads_bytes_opt_(InputSize) PVOID  InputBuffer, _In_ SIZE_T  OutputSize, _Out_writes_bytes_opt_(OutputSize) PVOID  OutputBuffer, _Out_opt_ SIZE_T *  OutputSizeReturned, _Inout_opt_ PIRP  Irp  )

static

Definition at line 1065 of file netio.c.

{
    FUNCTION_TRACE;

    UNIMPLEMENTED;
    if (Irp != NULL)
    {
        Irp->IoStatus.Status = STATUS_NOT_IMPLEMENTED;
        IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);
    }
    return STATUS_NOT_IMPLEMENTED;
}

WskControlSocket()

static NTSTATUS WSKAPI WskControlSocket ( _In_ PWSK_SOCKET  SocketParam, _In_ WSK_CONTROL_SOCKET_TYPE  RequestType, _In_ ULONG  ControlCode, _In_ ULONG  Level, _In_ SIZE_T  InputSize, _In_reads_bytes_opt_(InputSize) PVOID  InputBuffer, _In_ SIZE_T  OutputSize, _Out_writes_bytes_opt_(OutputSize) PVOID  OutputBuffer, _Out_opt_ SIZE_T *  OutputSizeReturned, _Inout_opt_ PIRP  Irp  )

static

Definition at line 665 of file netio.c.

{
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);
    NTSTATUS status = STATUS_NOT_IMPLEMENTED;

    FUNCTION_TRACE;

    if (Socket == NULL)
    {
        status = STATUS_INVALID_PARAMETER;
        goto err_out;
    }
    IoSetNextIrpStackLocation(Irp);

    switch (RequestType)
    {
        case WskSetOption:
            switch (Level)
            {
                case SOL_SOCKET:
                    switch (ControlCode)
                    {
                        case SO_REUSEADDR:     /* add more supported flags here */
                            if (InputBuffer == NULL)
                            {
                                DPRINT1("WskControlSocket: Need an InputBuffer for this operation\n");
                                status = STATUS_INVALID_PARAMETER;
                                break;
                            }
                            if (InputSize < sizeof(UINT))
                            {
                                DPRINT1("WskControlSocket: InputBuffer too small for this operation\n");
                                status = STATUS_INVALID_PARAMETER;
                                break;
                            }
                            UINT enable = *(PUINT)InputBuffer;
                            if (enable != 0)
                            {
                                Socket->Flags |= ControlCode;
                            }
                            else
                            {
                                Socket->Flags &= ~ControlCode;
                            }
                            status = STATUS_SUCCESS;
                            break;

                            /* Windows specific. This sets the mask for callback functions. */
                        case SO_WSK_EVENT_CALLBACK:
                            if (InputBuffer == NULL)
                            {
                                DPRINT1("WskControlSocket: Need an InputBuffer for this operation\n");
                                status = STATUS_INVALID_PARAMETER;
                                break;
                            }
                            if (InputSize < sizeof(WSK_EVENT_CALLBACK_CONTROL))
                            {
                                DPRINT1("WskControlSocket: InputBuffer too small for this operation\n");
                                status = STATUS_INVALID_PARAMETER;
                                break;
                            }
                            PWSK_EVENT_CALLBACK_CONTROL Control = (WSK_EVENT_CALLBACK_CONTROL *)InputBuffer;

                            if (((Socket->CallbackMask & WSK_EVENT_ACCEPT) == 0) &&
                                ((Control->EventMask & WSK_EVENT_ACCEPT) == WSK_EVENT_ACCEPT))
                            {
                                Socket->CallbackMask = Control->EventMask;
                                QueueListening(Socket);
                            }
                            else
                            {
                                Socket->CallbackMask = Control->EventMask;
                            }

                            status = STATUS_SUCCESS;
                            break;

                        default:
                            DPRINT1("WskControlSocket: ControlCode %d Not implemented\n", ControlCode);
                    }
                    break;
                default:
                    DPRINT1("WskControlSocket: Level %d Not implemented\n", Level);
            }
            break;

        case WskGetOption:
        case WskIoctl:
        default:
            DPRINT1("WskControlSocket: Option %d Not implemented\n", RequestType);
    }

err_out:
    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return STATUS_PENDING;
}

WskDeregister()

VOID WSKAPI WskDeregister

(

_In_ PWSK_REGISTRATION

reg

)

Definition at line 1496 of file netio.c.

{
    FUNCTION_TRACE;

    reg->ReservedRegistrationState = 0;
    reg->ReservedRegistrationContext = NULL;
}

WskDisconnect()

static NTSTATUS WSKAPI WskDisconnect ( _In_ PWSK_SOCKET  SocketParam, _In_opt_ PWSK_BUF  Buffer, _In_ ULONG  Flags, _Inout_ PIRP  Irp  )

static

Definition at line 1278 of file netio.c.

{
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);

    FUNCTION_TRACE;

    SocketShutdown(Socket);

    IoSetNextIrpStackLocation(Irp);

    Irp->IoStatus.Status = STATUS_SUCCESS;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return STATUS_PENDING;
}

WskGetLocalAddress()

static NTSTATUS WSKAPI WskGetLocalAddress ( _In_ PWSK_SOCKET  SocketParam, _Out_ PSOCKADDR  LocalAddress, _Inout_ PIRP  Irp  )

static

Definition at line 1005 of file netio.c.

{
    FUNCTION_TRACE;

    UNIMPLEMENTED;
    if (Irp != NULL)
    {
        Irp->IoStatus.Status = STATUS_NOT_IMPLEMENTED;
        IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);
    }
    return STATUS_NOT_IMPLEMENTED;
}

WskGetRemoteAddress()

static NTSTATUS WSKAPI WskGetRemoteAddress ( _In_ PWSK_SOCKET  SocketParam, _Out_ PSOCKADDR  RemoteAddress, _Inout_ PIRP  Irp  )

static

Definition at line 1019 of file netio.c.

{
    FUNCTION_TRACE;

    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);
    NTSTATUS Status = STATUS_INVALID_PARAMETER;

    IoSetNextIrpStackLocation(Irp);
    if (Socket != NULL)
    {
        memcpy(RemoteAddress, &Socket->RemoteAddress, sizeof(*RemoteAddress));
        Status = STATUS_SUCCESS;
    }
    Irp->IoStatus.Status = Status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return STATUS_PENDING;  /* Caller has to wait for his completion routine */
}

WskReceive()

static NTSTATUS WSKAPI WskReceive ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_BUF  Buffer, _In_ ULONG  Flags, _Inout_ PIRP  Irp  )

static

Definition at line 1270 of file netio.c.

{
    FUNCTION_TRACE;

    return WskStreamIo(SocketParam, Buffer, Flags, Irp, DIR_RECEIVE);
}

WskReceiveFrom()

static NTSTATUS WSKAPI WskReceiveFrom ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_BUF  Buffer, _Reserved_ ULONG  Flags, _Out_opt_ PSOCKADDR  RemoteAddress, _Inout_ PULONG  ControlLength, _Out_writes_bytes_opt_ *ControlLength PCMSGHDR  ControlInfo, _Out_opt_ PULONG  ControlFlags, _Inout_ PIRP  Irp  )

static

Definition at line 964 of file netio.c.

{
    FUNCTION_TRACE;

    UNIMPLEMENTED;
    if (Irp != NULL)
    {
        Irp->IoStatus.Status = STATUS_NOT_IMPLEMENTED;
        IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);
    }
    return STATUS_NOT_IMPLEMENTED;
}

WskRegister()

NTSTATUS WSKAPI WskRegister	(	_In_ PWSK_CLIENT_NPI	client_npi,
		_Out_ PWSK_REGISTRATION	reg
	)

Definition at line 1465 of file netio.c.

{
    FUNCTION_TRACE;

    reg->ReservedRegistrationState = 0;
    reg->ReservedRegistrationContext = NULL;
    KeInitializeSpinLock(&reg->ReservedRegistrationLock);

    return STATUS_SUCCESS;
}

WskReleaseProviderNPI()

VOID WSKAPI WskReleaseProviderNPI

(

_In_ PWSK_REGISTRATION

reg

)

Definition at line 1488 of file netio.c.

{
    FUNCTION_TRACE;

    StopSocketDereferenceThread();
}

WskReleaseTcp()

static NTSTATUS WSKAPI WskReleaseTcp ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_DATA_INDICATION  DataIndication  )

static

Definition at line 995 of file netio.c.

{
    FUNCTION_TRACE;

    UNIMPLEMENTED;

    return STATUS_NOT_IMPLEMENTED;
}

WskReleaseUdp()

static NTSTATUS WSKAPI WskReleaseUdp ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_DATAGRAM_INDICATION  DatagramIndication  )

static

Definition at line 985 of file netio.c.

{
    FUNCTION_TRACE;

    UNIMPLEMENTED;

    return STATUS_NOT_IMPLEMENTED;
}

WskSend()

static NTSTATUS WSKAPI WskSend ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_BUF  Buffer, _In_ ULONG  Flags, _Inout_ PIRP  Irp  )

static

Definition at line 1262 of file netio.c.

{
    FUNCTION_TRACE;

    return WskStreamIo(SocketParam, Buffer, Flags, Irp, DIR_SEND);
}

WskSendTo()

static NTSTATUS WSKAPI WskSendTo ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_BUF  Buffer, _Reserved_ ULONG  Flags, _In_opt_ PSOCKADDR  RemoteAddress, _In_ ULONG  ControlInfoLength, _In_reads_bytes_opt_(ControlInfoLength) PCMSGHDR  ControlInfo, _Inout_ PIRP  Irp  )

static

Definition at line 888 of file netio.c.

{
    PIRP tdiIrp = NULL;
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);
    PTDI_CONNECTION_INFORMATION TargetConnectionInfo;
    NTSTATUS status;
    void *BufferData;
    PNETIO_CONTEXT NetioContext;

    FUNCTION_TRACE;

    IoSetNextIrpStackLocation(Irp);

    status = STATUS_INSUFFICIENT_RESOURCES;
    NetioContext = ExAllocatePoolUninitialized(NonPagedPool, sizeof(*NetioContext), TAG_NETIO);
    if (NetioContext == NULL)
    {
        goto err_out;
    }
    NetioContext->socket = Socket;
    NetioContext->UserIrp = Irp;

    TargetConnectionInfo = TdiConnectionInfoFromSocketAddress(RemoteAddress);
    if (TargetConnectionInfo == NULL)
    {
        goto err_out_free_nc;
    }
    NetioContext->TargetConnectionInfo = TargetConnectionInfo;
    NetioContext->PeerAddrRet = NULL;

    BufferData = MmGetSystemAddressForMdlSafe(Buffer->Mdl, NormalPagePriority);
    if (BufferData == NULL)
    {
        DPRINT1("Error mapping MDL\n");
        goto err_out_free_nc_and_tci;
    }

    IoMarkIrpPending(Irp);
    ReferenceSocket(Socket);

    /* This will create a tdiIrp */
    status = TdiSendDatagram(&tdiIrp, Socket->LocalAddressFile, ((char *)BufferData) + Buffer->Offset,
                        Buffer->Length, TargetConnectionInfo, NetioComplete, NetioContext);

    /* If allocating tdiIrp fails we get here.
     * Call the IoCompletion of the application's Irp so this Irp
     * gets freed.
     */
    if (!NT_SUCCESS(status))
    {
        DereferenceSocket(Socket);
        goto err_out_free_nc_and_tci;   /* caller has to clean up mdl mapping */
    }
    return STATUS_PENDING;

err_out_free_nc_and_tci:
    ExFreePoolWithTag(TargetConnectionInfo, TAG_AFD_TDI_CONNECTION_INFORMATION);

err_out_free_nc:
    ExFreePoolWithTag(NetioContext, TAG_NETIO);

err_out:
    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return status;
}

WskSocket()

static NTSTATUS WSKAPI WskSocket ( _In_ PWSK_CLIENT  Client, _In_ ADDRESS_FAMILY  AddressFamily, _In_ USHORT  SocketType, _In_ ULONG  Protocol, _In_ ULONG  Flags, _In_opt_ PVOID  SocketContext, _In_opt_ const VOID *  Dispatch, _In_opt_ PEPROCESS  OwningProcess, _In_opt_ PETHREAD  OwningThread, _In_opt_ PSECURITY_DESCRIPTOR  SecurityDescriptor, _Inout_ PIRP  Irp  )

static

Definition at line 1309 of file netio.c.

{
    PWSK_SOCKET_INTERNAL Socket;
    NTSTATUS status;

    FUNCTION_TRACE;

    IoSetNextIrpStackLocation(Irp);

    if (AddressFamily != AF_INET)
    {
        DPRINT1("Address family %d not supported\n", AddressFamily);
        status = STATUS_NOT_SUPPORTED;
        goto err_out;
    }
    switch (SocketType)
    {
        case SOCK_DGRAM:
            if (Protocol != IPPROTO_UDP)
            {
                DPRINT1("SOCK_DGRAM only supports IPPROTO_UDP\n");
                status = STATUS_INVALID_PARAMETER;
                goto err_out;
            }
            if (Flags != WSK_FLAG_DATAGRAM_SOCKET)
            {
                DPRINT1("SOCK_DGRAM flags must be WSK_FLAG_DATAGRAM_SOCKET\n");
                status = STATUS_INVALID_PARAMETER;
                goto err_out;
            }
            break;

        case SOCK_STREAM:
            if (Protocol != IPPROTO_TCP)
            {
                DPRINT1("SOCK_STREAM only supports IPPROTO_TCP\n");
                status = STATUS_INVALID_PARAMETER;
                goto err_out;
            }
            if ((Flags != WSK_FLAG_CONNECTION_SOCKET) && (Flags != WSK_FLAG_LISTEN_SOCKET))
            {
                DPRINT1("SOCK_STREAM flags must be either WSK_FLAG_CONNECTION_SOCKET or WSK_FLAG_LISTEN_SOCKET\n");
                status = STATUS_INVALID_PARAMETER;
                goto err_out;
            }
            break;

        case SOCK_RAW:
            DPRINT1("SOCK_RAW not supported\n");
            status = STATUS_NOT_SUPPORTED;
            goto err_out;

        default:
            status = STATUS_INVALID_PARAMETER;
            goto err_out;
    }

    Socket = ExAllocatePoolZero(NonPagedPool, sizeof(*Socket), TAG_NETIO);
    if (Socket == NULL)
    {
        DPRINT1("WskSocket: Out of memory\n");
        status = STATUS_INSUFFICIENT_RESOURCES;
        goto err_out;
    }
    Socket->family = AddressFamily;
    Socket->type = SocketType;
    Socket->proto = Protocol;
    Socket->WskFlags = Flags;
    Socket->user_context = SocketContext;
    Socket->ListenDispatch = Dispatch;
    Socket->RefCount = 1;            /* DereferenceSocket() is in WskCloseSocket */

    switch (SocketType)
    {
        case SOCK_DGRAM:
            Socket->Socket.Dispatch = &UdpDispatch;
            RtlInitUnicodeString(&Socket->TdiName, L"\\Device\\Udp");
            break;
        case SOCK_STREAM:
            Socket->Socket.Dispatch = &TcpDispatch;
            RtlInitUnicodeString(&Socket->TdiName, L"\\Device\\Tcp");

            if (Flags != WSK_FLAG_LISTEN_SOCKET)
            {
                status = TdiOpenConnectionEndpointFile(&Socket->TdiName, &Socket->ConnectionHandle, &Socket->ConnectionFile);
                if (!NT_SUCCESS(status))
                {
                    DPRINT1("Could not open TDI handle, status is %x\n", status);
                    ExFreePoolWithTag(Socket, TAG_NETIO);
                    goto err_out;
                }
            }
            else
            {
                KeInitializeEvent(&Socket->StartListenEvent, SynchronizationEvent, FALSE);
                Socket->ListenThreadShouldRun = TRUE;

                status = PsCreateSystemThread(&Socket->ListenThreadHandle, THREAD_ALL_ACCESS, NULL, NULL, NULL, RequeueListenThread, Socket);
                if (!NT_SUCCESS(status))
                {
                    DPRINT1("Could not start listen thread, status is %x\n", status);
                    ExFreePoolWithTag(Socket, TAG_NETIO);
                    goto err_out;
                }
                status = ObReferenceObjectByHandle(Socket->ListenThreadHandle, THREAD_ALL_ACCESS, NULL, KernelMode, (void **)&Socket->ListenThread, NULL);
                if (!NT_SUCCESS(status))
                {
                    DPRINT1("Could not get a PKTHREAD object, status is %x\n", status);
                    ExFreePoolWithTag(Socket, TAG_NETIO);
                    goto err_out;
                }
                ZwClose(Socket->ListenThreadHandle);
            }

            if (Flags == WSK_FLAG_LISTEN_SOCKET && Socket->ListenDispatch == NULL)
            {
                DPRINT1("Warning: no callbacks given for listen socket\n");
            }
            break;

        default:
            DPRINT1("Socket type not yet supported\n");
            status = STATUS_NOT_SUPPORTED;
            goto err_out;
    }

    Irp->IoStatus.Information = (ULONG_PTR)Socket;
    status = STATUS_SUCCESS;

err_out:
    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return STATUS_PENDING;
}

Referenced by CreateSocket().

WskSocketConnect()

static NTSTATUS WSKAPI WskSocketConnect ( _In_ PWSK_CLIENT  Client, _In_ USHORT  SocketType, _In_ ULONG  Protocol, _In_ PSOCKADDR  LocalAddress, _In_ PSOCKADDR  RemoteAddress, _In_ ULONG  Flags, _In_opt_ PVOID  SocketContext, _In_opt_ const WSK_CLIENT_CONNECTION_DISPATCH *  Dispatch, _In_opt_ PEPROCESS  OwningProcess, _In_opt_ PETHREAD  OwningThread, _In_opt_ PSECURITY_DESCRIPTOR  SecurityDescriptor, _Inout_ PIRP  Irp  )

static

Definition at line 1039 of file netio.c.

{
    FUNCTION_TRACE;

    UNIMPLEMENTED;
    if (Irp != NULL)
    {
        Irp->IoStatus.Status = STATUS_NOT_IMPLEMENTED;
        IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);
    }
    return STATUS_NOT_IMPLEMENTED;
}

WskStreamIo()

static NTSTATUS WSKAPI WskStreamIo ( _In_ PWSK_SOCKET  SocketParam, _In_ PWSK_BUF  Buffer, _In_ ULONG  Flags, _Inout_ PIRP  Irp, _In_ enum direction  Direction  )

static

Definition at line 1190 of file netio.c.

{
    PIRP tdiIrp = NULL;
    PWSK_SOCKET_INTERNAL Socket = CONTAINING_RECORD(SocketParam, WSK_SOCKET_INTERNAL, Socket);
    NTSTATUS status;
    void *BufferData;
    PNETIO_CONTEXT NetioContext;

    FUNCTION_TRACE;

    IoSetNextIrpStackLocation(Irp);
    status = STATUS_INSUFFICIENT_RESOURCES;

    NetioContext = ExAllocatePoolUninitialized(NonPagedPool, sizeof(*NetioContext), TAG_NETIO);
    if (NetioContext == NULL)
    {
        goto err_out;
    }
    NetioContext->socket = Socket;
    NetioContext->UserIrp = Irp;

    NetioContext->TargetConnectionInfo = NULL;
    NetioContext->PeerAddrRet = NULL;

    BufferData = MmGetSystemAddressForMdlSafe(Buffer->Mdl, NormalPagePriority);
    if (BufferData == NULL)
    {
        DPRINT1("Error mapping MDL\n");
        goto err_out_free_nc;
    }

    IoMarkIrpPending(Irp);
    ReferenceSocket(Socket);

    if (Direction == DIR_SEND)
    {
        /* This will create a tdiIrp */
        status = TdiSend(&tdiIrp, Socket->ConnectionFile, 0, ((char *)BufferData) + Buffer->Offset,
                    Buffer->Length, NetioComplete, NetioContext);
    }
    else
    {
        status = TdiReceive(&tdiIrp, Socket->ConnectionFile, 0, ((char *)BufferData) + Buffer->Offset,
                       Buffer->Length, NetioComplete, NetioContext);
    }

    /* If allocating tdiIrp fails we get here.
     * Call the IoCompletion of the application's Irp so this Irp
     * gets freed.
     */
    if (!NT_SUCCESS(status))
    {
        goto err_out_free_nc;   /* caller has to clean up mdl mapping */
    }
    return STATUS_PENDING;

err_out_free_nc:
    ExFreePoolWithTag(NetioContext, TAG_NETIO);

err_out:
    Irp->IoStatus.Status = status;
    IoCompleteRequest(Irp, IO_NETWORK_INCREMENT);

    return status;
}

Referenced by WskReceive(), and WskSend().

Variable Documentation

DereferenceSocketsEvent

KEVENT DereferenceSocketsEvent

static

Definition at line 243 of file netio.c.

Referenced by DereferenceSocket(), DereferenceSocketsThread(), StartSocketDereferenceThread(), and StopSocketDereferenceThread().

DereferenceSocketsThreadHandle

HANDLE DereferenceSocketsThreadHandle

static

Definition at line 244 of file netio.c.

Referenced by StartSocketDereferenceThread().

DereferenceSocketsThreadShouldRun

volatile BOOLEAN DereferenceSocketsThreadShouldRun = FALSE

static

Definition at line 242 of file netio.c.

Referenced by DereferenceSocketsThread(), StartSocketDereferenceThread(), and StopSocketDereferenceThread().

provider_dispatch

WSK_PROVIDER_DISPATCH provider_dispatch

static

Initial value:

= {
    .Version = 0,
    .Reserved = 0,
    .WskSocket = WskSocket,
    .WskSocketConnect = WskSocketConnect,
    .WskControlClient = WskControlClient
}

Definition at line 1456 of file netio.c.

Referenced by WskCaptureProviderNPI().

SocketsToDereference

PWSK_SOCKET_INTERNAL SocketsToDereference = NULL

static

Definition at line 240 of file netio.c.

Referenced by DereferenceSocket(), and DereferenceSocketsThread().

SocketsToDereferenceListLock

KSPIN_LOCK SocketsToDereferenceListLock = 0

static

Definition at line 241 of file netio.c.

Referenced by DereferenceSocket(), DereferenceSocketsThread(), and StartSocketDereferenceThread().

TcpDispatch

WSK_PROVIDER_CONNECTION_DISPATCH TcpDispatch

static

Initial value:

= {
    .WskControlSocket = WskControlSocket,
    .WskCloseSocket = WskCloseSocket,
    .WskBind = WskBind,
    .WskConnect = WskConnect,
    .WskGetLocalAddress = WskGetLocalAddress,
    .WskGetRemoteAddress = WskGetRemoteAddress,
    .WskSend = WskSend,
    .WskReceive = WskReceive,
    .WskDisconnect = WskDisconnect,
    .WskRelease = WskReleaseTcp,
}

Definition at line 1295 of file netio.c.

Referenced by WskSocket().

UdpDispatch

WSK_PROVIDER_DATAGRAM_DISPATCH UdpDispatch

static

Initial value:

= {
    .WskControlSocket = WskControlSocket,
    .WskCloseSocket = WskCloseSocket,
    .WskBind = WskBind,
    .WskSendTo = WskSendTo,
    .WskReceiveFrom = WskReceiveFrom,
    .WskRelease = WskReleaseUdp,
    .WskGetLocalAddress = WskGetLocalAddress,
}

Definition at line 1085 of file netio.c.

Referenced by WskSocket().
