ftoutln.h File Reference
#include <ft2build.h>

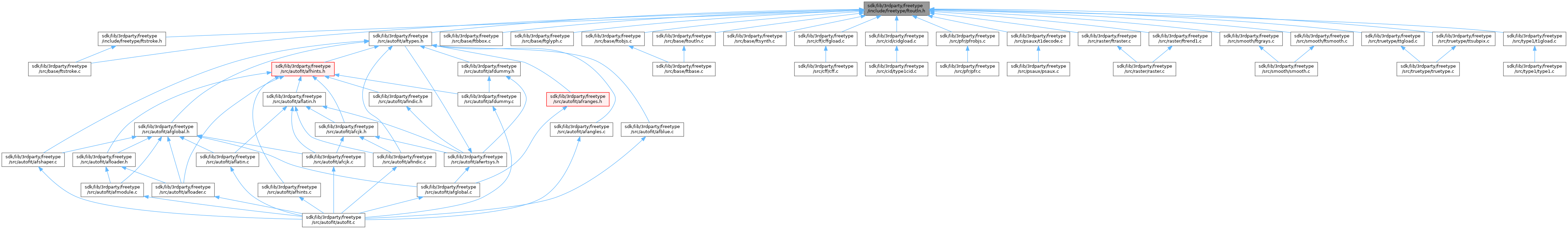

Include dependency graph for ftoutln.h:

Go to the source code of this file.

Typedefs

typedef enum FT_Orientation_ FT_Orientation


Enumerations

enum  FT_Orientation_ {
  FT_ORIENTATION_TRUETYPE = 0, FT_ORIENTATION_POSTSCRIPT = 1, FT_ORIENTATION_FILL_RIGHT = FT_ORIENTATION_TRUETYPE, FT_ORIENTATION_FILL_LEFT = FT_ORIENTATION_POSTSCRIPT,
  FT_ORIENTATION_NONE
}


Functions

FT_BEGIN_HEADER FT_Outline_Decompose (FT_Outline *outline, const FT_Outline_Funcs *func_interface, void *user)

 FT_Outline_New (FT_Library library, FT_UInt numPoints, FT_Int numContours, FT_Outline *anoutline)

 FT_Outline_New_Internal (FT_Memory memory, FT_UInt numPoints, FT_Int numContours, FT_Outline *anoutline)

 FT_Outline_Done (FT_Library library, FT_Outline *outline)

 FT_Outline_Done_Internal (FT_Memory memory, FT_Outline *outline)

 FT_Outline_Check (FT_Outline *outline)

 FT_Outline_Get_CBox (const FT_Outline *outline, FT_BBox *acbox)

 FT_Outline_Translate (const FT_Outline *outline, FT_Pos xOffset, FT_Pos yOffset)

 FT_Outline_Copy (const FT_Outline *source, FT_Outline *target)

 FT_Outline_Transform (const FT_Outline *outline, const FT_Matrix *matrix)

 FT_Outline_Embolden (FT_Outline *outline, FT_Pos strength)

 FT_Outline_EmboldenXY (FT_Outline *outline, FT_Pos xstrength, FT_Pos ystrength)

 FT_Outline_Reverse (FT_Outline *outline)

 FT_Outline_Get_Bitmap (FT_Library library, FT_Outline *outline, const FT_Bitmap *abitmap)

 FT_Outline_Render (FT_Library library, FT_Outline *outline, FT_Raster_Params *params)

 FT_Outline_Get_Orientation (FT_Outline *outline)


Typedef Documentation

◆ FT_Orientation

Enumeration Type Documentation

◆ FT_Orientation_

Enumerator
FT_ORIENTATION_TRUETYPE
FT_ORIENTATION_POSTSCRIPT
FT_ORIENTATION_FILL_RIGHT
FT_ORIENTATION_FILL_LEFT
FT_ORIENTATION_NONE

Definition at line 531 of file ftoutln.h.

Function Documentation

◆ FT_Outline_Check()

FT_Outline_Check ( FT_Outline outline)

Definition at line 357 of file ftoutln.c.

358  {
359  if ( outline )
360  {
361  FT_Int n_points = outline->n_points;
362  FT_Int n_contours = outline->n_contours;
363  FT_Int end0, end;
364  FT_Int n;
365
366
367  /* empty glyph? */
368  if ( n_points == 0 && n_contours == 0 )
369  return FT_Err_Ok;
370
371  /* check point and contour counts */
372  if ( n_points <= 0 || n_contours <= 0 )
373  goto Bad;
374
375  end0 = end = -1;
376  for ( n = 0; n < n_contours; n++ )
377  {
378  end = outline->contours[n];
379
380  /* note that we don't accept empty contours */
381  if ( end <= end0 || end >= n_points )
382  goto Bad;
383
384  end0 = end;
385  }
386
387  if ( end != n_points - 1 )
388  goto Bad;
389
390  /* XXX: check the tags array */
391  return FT_Err_Ok;
392  }
393
394  Bad:
395  return FT_THROW( Invalid_Argument );
396  }
signed int FT_Int
Definition: fttypes.h:220
GLdouble n
Definition: glext.h:7729
GLuint GLuint end
Definition: gl.h:1545
return FT_Err_Ok
Definition: ftbbox.c:511
#define FT_THROW(e)
Definition: ftdebug.h:213
Definition: mesh.c:5329

Referenced by FT_Load_Glyph(), and ft_stroke_border_export().

◆ FT_Outline_Copy()

FT_Outline_Copy ( const FT_Outline source,
FT_Outline target
)

Definition at line 402 of file ftoutln.c.

404  {
405  FT_Int is_owner;
406
407
408  if ( !source || !target )
409  return FT_THROW( Invalid_Outline );
410
411  if ( source->n_points != target->n_points ||
412  source->n_contours != target->n_contours )
413  return FT_THROW( Invalid_Argument );
414
415  if ( source == target )
416  return FT_Err_Ok;
417
418  if ( source->n_points )
419  {
420  FT_ARRAY_COPY( target->points, source->points, source->n_points );
421  FT_ARRAY_COPY( target->tags, source->tags, source->n_points );
422  }
423
424  if ( source->n_contours )
425  FT_ARRAY_COPY( target->contours, source->contours, source->n_contours );
426
427  /* copy all flags, except the `FT_OUTLINE_OWNER' one */
428  is_owner = target->flags & FT_OUTLINE_OWNER;
429  target->flags = source->flags;
430
431  target->flags &= ~FT_OUTLINE_OWNER;
432  target->flags |= is_owner;
433
434  return FT_Err_Ok;
435  }
signed int FT_Int
Definition: fttypes.h:220
#define FT_ARRAY_COPY(dest, source, count)
Definition: ftmemory.h:244
return FT_Err_Ok
Definition: ftbbox.c:511
#define FT_THROW(e)
Definition: ftdebug.h:213
#define FT_OUTLINE_OWNER
Definition: ftimage.h:428
GLenum target
Definition: glext.h:7315

Referenced by FT_DEFINE_GLYPH(), and ft_outline_glyph_copy().

◆ FT_Outline_Decompose()

FT_BEGIN_HEADER FT_Outline_Decompose ( FT_Outline outline,
const FT_Outline_Funcs func_interface,
void user
)

Definition at line 51 of file ftoutln.c.

54  {
55 #undef SCALED
56 #define SCALED( x ) ( ( (x) < 0 ? -( -(x) << shift ) \
57  : ( (x) << shift ) ) - delta )
58
59  FT_Vector v_last;
60  FT_Vector v_control;
61  FT_Vector v_start;
62
65  char* tags;
66
68
69  FT_Int n; /* index of contour in outline */
70  FT_UInt first; /* index of first point in contour */
71  FT_Int tag; /* current point's state */
72
73  FT_Int shift;
74  FT_Pos delta;
75
76
77  if ( !outline )
78  return FT_THROW( Invalid_Outline );
79
80  if ( !func_interface )
81  return FT_THROW( Invalid_Argument );
82
83  shift = func_interface->shift;
84  delta = func_interface->delta;
85  first = 0;
86
87  for ( n = 0; n < outline->n_contours; n++ )
88  {
89  FT_Int last; /* index of last point in contour */
90
91
92  FT_TRACE5(( "FT_Outline_Decompose: Outline %d\n", n ));
93
94  last = outline->contours[n];
95  if ( last < 0 )
96  goto Invalid_Outline;
97  limit = outline->points + last;
98
99  v_start = outline->points[first];
100  v_start.x = SCALED( v_start.x );
101  v_start.y = SCALED( v_start.y );
102
103  v_last = outline->points[last];
104  v_last.x = SCALED( v_last.x );
105  v_last.y = SCALED( v_last.y );
106
107  v_control = v_start;
108
109  point = outline->points + first;
110  tags = outline->tags + first;
111  tag = FT_CURVE_TAG( tags[0] );
112
113  /* A contour cannot start with a cubic control point! */
114  if ( tag == FT_CURVE_TAG_CUBIC )
115  goto Invalid_Outline;
116
117  /* check first point to determine origin */
118  if ( tag == FT_CURVE_TAG_CONIC )
119  {
120  /* first point is conic control. Yes, this happens. */
121  if ( FT_CURVE_TAG( outline->tags[last] ) == FT_CURVE_TAG_ON )
122  {
123  /* start at last point if it is on the curve */
124  v_start = v_last;
125  limit--;
126  }
127  else
128  {
129  /* if both first and last points are conic, */
130  /* start at their middle and record its position */
131  /* for closure */
132  v_start.x = ( v_start.x + v_last.x ) / 2;
133  v_start.y = ( v_start.y + v_last.y ) / 2;
134
135  /* v_last = v_start; */
136  }
137  point--;
138  tags--;
139  }
140
141  FT_TRACE5(( " move to (%.2f, %.2f)\n",
142  v_start.x / 64.0, v_start.y / 64.0 ));
143  error = func_interface->move_to( &v_start, user );
144  if ( error )
145  goto Exit;
146
147  while ( point < limit )
148  {
149  point++;
150  tags++;
151
152  tag = FT_CURVE_TAG( tags[0] );
153  switch ( tag )
154  {
155  case FT_CURVE_TAG_ON: /* emit a single line_to */
156  {
157  FT_Vector vec;
158
159
160  vec.x = SCALED( point->x );
161  vec.y = SCALED( point->y );
162
163  FT_TRACE5(( " line to (%.2f, %.2f)\n",
164  vec.x / 64.0, vec.y / 64.0 ));
165  error = func_interface->line_to( &vec, user );
166  if ( error )
167  goto Exit;
168  continue;
169  }
170
171  case FT_CURVE_TAG_CONIC: /* consume conic arcs */
172  v_control.x = SCALED( point->x );
173  v_control.y = SCALED( point->y );
174
175  Do_Conic:
176  if ( point < limit )
177  {
178  FT_Vector vec;
179  FT_Vector v_middle;
180
181
182  point++;
183  tags++;
184  tag = FT_CURVE_TAG( tags[0] );
185
186  vec.x = SCALED( point->x );
187  vec.y = SCALED( point->y );
188
189  if ( tag == FT_CURVE_TAG_ON )
190  {
191  FT_TRACE5(( " conic to (%.2f, %.2f)"
192  " with control (%.2f, %.2f)\n",
193  vec.x / 64.0, vec.y / 64.0,
194  v_control.x / 64.0, v_control.y / 64.0 ));
195  error = func_interface->conic_to( &v_control, &vec, user );
196  if ( error )
197  goto Exit;
198  continue;
199  }
200
201  if ( tag != FT_CURVE_TAG_CONIC )
202  goto Invalid_Outline;
203
204  v_middle.x = ( v_control.x + vec.x ) / 2;
205  v_middle.y = ( v_control.y + vec.y ) / 2;
206
207  FT_TRACE5(( " conic to (%.2f, %.2f)"
208  " with control (%.2f, %.2f)\n",
209  v_middle.x / 64.0, v_middle.y / 64.0,
210  v_control.x / 64.0, v_control.y / 64.0 ));
211  error = func_interface->conic_to( &v_control, &v_middle, user );
212  if ( error )
213  goto Exit;
214
215  v_control = vec;
216  goto Do_Conic;
217  }
218
219  FT_TRACE5(( " conic to (%.2f, %.2f)"
220  " with control (%.2f, %.2f)\n",
221  v_start.x / 64.0, v_start.y / 64.0,
222  v_control.x / 64.0, v_control.y / 64.0 ));
223  error = func_interface->conic_to( &v_control, &v_start, user );
224  goto Close;
225
226  default: /* FT_CURVE_TAG_CUBIC */
227  {
228  FT_Vector vec1, vec2;
229
230
231  if ( point + 1 > limit ||
233  goto Invalid_Outline;
234
235  point += 2;
236  tags += 2;
237
238  vec1.x = SCALED( point[-2].x );
239  vec1.y = SCALED( point[-2].y );
240
241  vec2.x = SCALED( point[-1].x );
242  vec2.y = SCALED( point[-1].y );
243
244  if ( point <= limit )
245  {
246  FT_Vector vec;
247
248
249  vec.x = SCALED( point->x );
250  vec.y = SCALED( point->y );
251
252  FT_TRACE5(( " cubic to (%.2f, %.2f)"
253  " with controls (%.2f, %.2f) and (%.2f, %.2f)\n",
254  vec.x / 64.0, vec.y / 64.0,
255  vec1.x / 64.0, vec1.y / 64.0,
256  vec2.x / 64.0, vec2.y / 64.0 ));
257  error = func_interface->cubic_to( &vec1, &vec2, &vec, user );
258  if ( error )
259  goto Exit;
260  continue;
261  }
262
263  FT_TRACE5(( " cubic to (%.2f, %.2f)"
264  " with controls (%.2f, %.2f) and (%.2f, %.2f)\n",
265  v_start.x / 64.0, v_start.y / 64.0,
266  vec1.x / 64.0, vec1.y / 64.0,
267  vec2.x / 64.0, vec2.y / 64.0 ));
268  error = func_interface->cubic_to( &vec1, &vec2, &v_start, user );
269  goto Close;
270  }
271  }
272  }
273
274  /* close the contour with a line segment */
275  FT_TRACE5(( " line to (%.2f, %.2f)\n",
276  v_start.x / 64.0, v_start.y / 64.0 ));
277  error = func_interface->line_to( &v_start, user );
278
279  Close:
280  if ( error )
281  goto Exit;
282
283  first = (FT_UInt)last + 1;
284  }
285
286  FT_TRACE5(( "FT_Outline_Decompose: Done\n", n ));
287  return FT_Err_Ok;
288
289  Exit:
290  FT_TRACE5(( "FT_Outline_Decompose: Error 0x%x\n", error ));
291  return error;
292
293  Invalid_Outline:
294  return FT_THROW( Invalid_Outline );
295  }
int FT_Error
Definition: fttypes.h:300
FT_Pos y
Definition: ftimage.h:77
const char * tags[7 *8]
Definition: apphelp.c:214
#define shift
Definition: input.c:1668
FT_BEGIN_HEADER typedef signed long FT_Pos
Definition: ftimage.h:58
#define SCALED(x)
#define error(str)
Definition: mkdosfs.c:1605
FT_Pos x
Definition: ftimage.h:76
#define FT_CURVE_TAG_CUBIC
Definition: ftimage.h:455
POINT last
Definition: font.c:46
signed int FT_Int
Definition: fttypes.h:220
const GLint * first
Definition: glext.h:5794
GLdouble n
Definition: glext.h:7729
Definition: ecma_167.h:138
GLint GLint GLint GLint GLint x
Definition: gl.h:1548
return FT_Err_Ok
Definition: ftbbox.c:511
POINTL point
Definition: edittest.c:50
LONG y
Definition: windef.h:315
GLint limit
Definition: glext.h:10326
FT_Outline_LineToFunc line_to
Definition: ftimage.h:631
#define FT_THROW(e)
Definition: ftdebug.h:213
FT_Outline_CubicToFunc cubic_to
Definition: ftimage.h:633
static void Exit(void)
Definition: sock.c:1331
LONG x
Definition: windef.h:314
FT_Vector * vec
Definition: ftbbox.c:448
Definition: mesh.c:5329
Definition: sacdrv.h:267
unsigned int FT_UInt
Definition: fttypes.h:231
FT_Outline_MoveToFunc move_to
Definition: ftimage.h:630
#define FT_TRACE5(varformat)
Definition: ftdebug.h:162
GLint GLint GLint GLint GLint GLint y
Definition: gl.h:1548
#define FT_CURVE_TAG_ON
Definition: ftimage.h:453
#define FT_CURVE_TAG_CONIC
Definition: ftimage.h:454
#define FT_CURVE_TAG(flag)
Definition: ftimage.h:451
FT_Outline_ConicToFunc conic_to
Definition: ftimage.h:632
void user(int argc, const char *argv[])
Definition: cmds.c:1350
char * tag
Definition: main.c:59

Referenced by FT_DEFINE_OUTLINE_FUNCS(), if(), and TestFace().

◆ FT_Outline_Done()

FT_Outline_Done ( FT_Library  library,
FT_Outline outline
)

Definition at line 463 of file ftoutln.c.

465  {
466  /* check for valid `outline' in FT_Outline_Done_Internal() */
467
468  if ( !library )
469  return FT_THROW( Invalid_Library_Handle );
470
472  }
FT_Memory memory
Definition: ftobjs.h:918
FT_Library library
Definition: cffdrivr.c:654
#define FT_THROW(e)
Definition: ftdebug.h:213
FT_Outline_Done_Internal(FT_Memory memory, FT_Outline *outline)
Definition: ftoutln.c:439
Definition: mesh.c:5329

Referenced by FT_Glyph_Stroke(), FT_Glyph_StrokeBorder(), and ft_outline_glyph_done().

◆ FT_Outline_Done_Internal()

FT_Outline_Done_Internal ( FT_Memory  memory,
FT_Outline outline
)

Definition at line 439 of file ftoutln.c.

441  {
442  if ( !outline )
443  return FT_THROW( Invalid_Outline );
444
445  if ( !memory )
446  return FT_THROW( Invalid_Argument );
447
448  if ( outline->flags & FT_OUTLINE_OWNER )
449  {
450  FT_FREE( outline->points );
451  FT_FREE( outline->tags );
452  FT_FREE( outline->contours );
453  }
455
456  return FT_Err_Ok;
457  }
return FT_Err_Ok
Definition: ftbbox.c:511
static char memory[1024 *256]
Definition: process.c:116
#define FT_THROW(e)
Definition: ftdebug.h:213
#define FT_FREE(ptr)
Definition: ftmemory.h:329
#define FT_OUTLINE_OWNER
Definition: ftimage.h:428
Definition: mesh.c:5329
static const FT_Outline null_outline
Definition: ftoutln.c:45

Referenced by FT_Outline_Done(), and FT_Outline_New_Internal().

◆ FT_Outline_Embolden()

FT_Outline_Embolden ( FT_Outline outline,
FT_Pos  strength
)

Definition at line 899 of file ftoutln.c.

901  {
902  return FT_Outline_EmboldenXY( outline, strength, strength );
903  }
FT_Outline_EmboldenXY(FT_Outline *outline, FT_Pos xstrength, FT_Pos ystrength)
Definition: ftoutln.c:909
Definition: mesh.c:5329

◆ FT_Outline_EmboldenXY()

FT_Outline_EmboldenXY ( FT_Outline outline,
FT_Pos  xstrength,
FT_Pos  ystrength
)

Definition at line 909 of file ftoutln.c.

912  {
913  FT_Vector* points;
914  FT_Int c, first, last;
915  FT_Int orientation;
916
917
918  if ( !outline )
919  return FT_THROW( Invalid_Outline );
920
921  xstrength /= 2;
922  ystrength /= 2;
923  if ( xstrength == 0 && ystrength == 0 )
924  return FT_Err_Ok;
925
926  orientation = FT_Outline_Get_Orientation( outline );
927  if ( orientation == FT_ORIENTATION_NONE )
928  {
929  if ( outline->n_contours )
930  return FT_THROW( Invalid_Argument );
931  else
932  return FT_Err_Ok;
933  }
934
935  points = outline->points;
936
937  first = 0;
938  for ( c = 0; c < outline->n_contours; c++ )
939  {
940  FT_Vector in, out, anchor, shift;
941  FT_Fixed l_in, l_out, l_anchor = 0, l, q, d;
942  FT_Int i, j, k;
943
944
945  l_in = 0;
946  last = outline->contours[c];
947
948  /* pacify compiler */
949  in.x = in.y = anchor.x = anchor.y = 0;
950
951  /* Counter j cycles though the points; counter i advances only */
952  /* when points are moved; anchor k marks the first moved point. */
953  for ( i = last, j = first, k = -1;
954  j != i && i != k;
955  j = j < last ? j + 1 : first )
956  {
957  if ( j != k )
958  {
959  out.x = points[j].x - points[i].x;
960  out.y = points[j].y - points[i].y;
961  l_out = (FT_Fixed)FT_Vector_NormLen( &out );
962
963  if ( l_out == 0 )
964  continue;
965  }
966  else
967  {
968  out = anchor;
969  l_out = l_anchor;
970  }
971
972  if ( l_in != 0 )
973  {
974  if ( k < 0 )
975  {
976  k = i;
977  anchor = in;
978  l_anchor = l_in;
979  }
980
981  d = FT_MulFix( in.x, out.x ) + FT_MulFix( in.y, out.y );
982
983  /* shift only if turn is less than ~160 degrees */
984  if ( d > -0xF000L )
985  {
986  d = d + 0x10000L;
987
988  /* shift components along lateral bisector in proper orientation */
989  shift.x = in.y + out.y;
990  shift.y = in.x + out.x;
991
992  if ( orientation == FT_ORIENTATION_TRUETYPE )
993  shift.x = -shift.x;
994  else
995  shift.y = -shift.y;
996
997  /* restrict shift magnitude to better handle collapsing segments */
998  q = FT_MulFix( out.x, in.y ) - FT_MulFix( out.y, in.x );
999  if ( orientation == FT_ORIENTATION_TRUETYPE )
1000  q = -q;
1001
1002  l = FT_MIN( l_in, l_out );
1003
1004  /* non-strict inequalities avoid divide-by-zero when q == l == 0 */
1005  if ( FT_MulFix( xstrength, q ) <= FT_MulFix( l, d ) )
1006  shift.x = FT_MulDiv( shift.x, xstrength, d );
1007  else
1008  shift.x = FT_MulDiv( shift.x, l, q );
1009
1010
1011  if ( FT_MulFix( ystrength, q ) <= FT_MulFix( l, d ) )
1012  shift.y = FT_MulDiv( shift.y, ystrength, d );
1013  else
1014  shift.y = FT_MulDiv( shift.y, l, q );
1015  }
1016  else
1017  shift.x = shift.y = 0;
1018
1019  for ( ;
1020  i != j;
1021  i = i < last ? i + 1 : first )
1022  {
1023  points[i].x += xstrength + shift.x;
1024  points[i].y += ystrength + shift.y;
1025  }
1026  }
1027  else
1028  i = j;
1029
1030  in = out;
1031  l_in = l_out;
1032  }
1033
1034  first = last + 1;
1035  }
1036
1037  return FT_Err_Ok;
1038  }
FT_Pos y
Definition: ftimage.h:77
#define shift
Definition: input.c:1668
FT_Pos x
Definition: ftimage.h:76
POINT last
Definition: font.c:46
signed int FT_Int
Definition: fttypes.h:220
const GLint * first
Definition: glext.h:5794
#define FT_MIN(a, b)
Definition: ftobjs.h:71
return FT_Err_Ok
Definition: ftbbox.c:511
GLsizei GLenum const GLvoid GLsizei GLenum GLbyte GLbyte GLbyte GLdouble GLdouble GLdouble GLfloat GLfloat GLfloat GLint GLint GLint GLshort GLshort GLshort GLubyte GLubyte GLubyte GLuint GLuint GLuint GLushort GLushort GLushort GLbyte GLbyte GLbyte GLbyte GLdouble GLdouble GLdouble GLdouble GLfloat GLfloat GLfloat GLfloat GLint GLint GLint GLint GLshort GLshort GLshort GLshort GLubyte GLubyte GLubyte GLubyte GLuint GLuint GLuint GLuint GLushort GLushort GLushort GLushort GLboolean const GLdouble const GLfloat const GLint const GLshort const GLbyte const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLdouble const GLfloat const GLfloat const GLint const GLint const GLshort const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort GLenum GLenum GLenum GLfloat GLenum GLint GLenum GLenum GLenum GLfloat GLenum GLenum GLint GLenum GLfloat GLenum GLint GLint GLushort GLenum GLenum GLfloat GLenum GLenum GLint GLfloat const GLubyte GLenum GLenum GLenum const GLfloat GLenum GLenum const GLint GLenum GLint GLint GLsizei GLsizei GLint GLenum GLenum const GLvoid GLenum GLenum const GLfloat GLenum GLenum const GLint GLenum GLenum const GLdouble GLenum GLenum const GLfloat GLenum GLenum const GLint GLsizei GLuint GLfloat GLuint GLbitfield GLfloat GLint GLuint GLboolean GLenum GLfloat GLenum GLbitfield GLenum GLfloat GLfloat GLint GLint const GLfloat GLenum GLfloat GLfloat GLint GLint GLfloat GLfloat GLint GLint const GLfloat GLint GLfloat GLfloat GLint GLfloat GLfloat GLint GLfloat GLfloat const GLdouble const GLfloat const GLdouble const GLfloat GLint i
Definition: glfuncs.h:248
#define FT_THROW(e)
Definition: ftdebug.h:213
FT_Vector_NormLen(FT_Vector *vector)
Definition: ftcalc.c:776
GLsizei GLenum const GLvoid GLsizei GLenum GLbyte GLbyte GLbyte GLdouble GLdouble GLdouble GLfloat GLfloat GLfloat GLint GLint GLint GLshort GLshort GLshort GLubyte GLubyte GLubyte GLuint GLuint GLuint GLushort GLushort GLushort GLbyte GLbyte GLbyte GLbyte GLdouble GLdouble GLdouble GLdouble GLfloat GLfloat GLfloat GLfloat GLint GLint GLint GLint GLshort GLshort GLshort GLshort GLubyte GLubyte GLubyte GLubyte GLuint GLuint GLuint GLuint GLushort GLushort GLushort GLushort GLboolean const GLdouble const GLfloat const GLint const GLshort const GLbyte const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLdouble const GLfloat const GLfloat const GLint const GLint const GLshort const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort const GLdouble const GLfloat const GLint const GLshort GLenum GLenum GLenum GLfloat GLenum GLint GLenum GLenum GLenum GLfloat GLenum GLenum GLint GLenum GLfloat GLenum GLint GLint GLushort GLenum GLenum GLfloat GLenum GLenum GLint GLfloat const GLubyte GLenum GLenum GLenum const GLfloat GLenum GLenum const GLint GLenum GLint GLint GLsizei GLsizei GLint GLenum GLenum const GLvoid GLenum GLenum const GLfloat GLenum GLenum const GLint GLenum GLenum const GLdouble GLenum GLenum const GLfloat GLenum GLenum const GLint GLsizei GLuint GLfloat GLuint GLbitfield GLfloat GLint GLuint GLboolean GLenum GLfloat GLenum GLbitfield GLenum GLfloat GLfloat GLint GLint const GLfloat GLenum GLfloat GLfloat GLint GLint GLfloat GLfloat GLint GLint const GLfloat GLint GLfloat GLfloat GLint GLfloat GLfloat GLint GLfloat GLfloat const GLdouble const GLfloat const GLdouble const GLfloat GLint GLint GLint j
Definition: glfuncs.h:250
r l[0]
Definition: byte_order.h:167
FT_MulDiv(FT_Long a, FT_Long b, FT_Long c)
Definition: ftcalc.c:416
#define d
Definition: ke_i.h:81
const GLubyte * c
Definition: glext.h:8905
static FILE * out
Definition: regtests2xml.c:44
GLdouble GLdouble GLdouble GLdouble q
Definition: gl.h:2063
GLsizei const GLfloat * points
Definition: glext.h:8112
static const WCHAR L[]
Definition: oid.c:1250
Definition: mesh.c:5329
FT_MulFix(FT_Long a, FT_Long b)
Definition: ftcalc.c:509
signed long FT_Fixed
Definition: fttypes.h:288
GLuint in
Definition: glext.h:9616
FT_Outline_Get_Orientation(FT_Outline *outline)
Definition: ftoutln.c:1044
#define c
Definition: ke_i.h:80
int k
Definition: mpi.c:3369

Referenced by af_loader_embolden_glyph_in_slot(), FT_GlyphSlot_Embolden(), FT_Outline_Embolden(), TT_Hint_Glyph(), and TT_Process_Simple_Glyph().

◆ FT_Outline_Get_Bitmap()

FT_Outline_Get_Bitmap ( FT_Library  library,
FT_Outline outline,
const FT_Bitmap abitmap
)

Definition at line 661 of file ftoutln.c.

664  {
666
667
668  if ( !abitmap )
669  return FT_THROW( Invalid_Argument );
670
671  /* other checks are delayed to `FT_Outline_Render' */
672
673  params.target = abitmap;
674  params.flags = 0;
675
676  if ( abitmap->pixel_mode == FT_PIXEL_MODE_GRAY ||
677  abitmap->pixel_mode == FT_PIXEL_MODE_LCD ||
678  abitmap->pixel_mode == FT_PIXEL_MODE_LCD_V )
679  params.flags |= FT_RASTER_FLAG_AA;
680
682  }
unsigned char pixel_mode
Definition: ftimage.h:268
#define FT_RASTER_FLAG_AA
Definition: ftimage.h:941
FT_Library library
Definition: cffdrivr.c:654
GLenum const GLfloat * params
Definition: glext.h:5645
#define FT_THROW(e)
Definition: ftdebug.h:213
FT_Outline_Render(FT_Library library, FT_Outline *outline, FT_Raster_Params *params)
Definition: ftoutln.c:614
Definition: mesh.c:5329

Referenced by ftGdiGetGlyphOutline().

◆ FT_Outline_Get_CBox()

FT_Outline_Get_CBox ( const FT_Outline outline,
FT_BBox acbox
)

Definition at line 478 of file ftoutln.c.

480  {
481  FT_Pos xMin, yMin, xMax, yMax;
482
483
484  if ( outline && acbox )
485  {
486  if ( outline->n_points == 0 )
487  {
488  xMin = 0;
489  yMin = 0;
490  xMax = 0;
491  yMax = 0;
492  }
493  else
494  {
495  FT_Vector* vec = outline->points;
496  FT_Vector* limit = vec + outline->n_points;
497
498
499  xMin = xMax = vec->x;
500  yMin = yMax = vec->y;
501  vec++;
502
503  for ( ; vec < limit; vec++ )
504  {
505  FT_Pos x, y;
506
507
508  x = vec->x;
509  if ( x < xMin ) xMin = x;
510  if ( x > xMax ) xMax = x;
511
512  y = vec->y;
513  if ( y < yMin ) yMin = y;
514  if ( y > yMax ) yMax = y;
515  }
516  }
517  acbox->xMin = xMin;
518  acbox->xMax = xMax;
519  acbox->yMin = yMin;
520  acbox->yMax = yMax;
521  }
522  }
FT_Pos y
Definition: ftimage.h:77
FT_BEGIN_HEADER typedef signed long FT_Pos
Definition: ftimage.h:58
FT_Pos x
Definition: ftimage.h:76
GLint GLint GLint GLint GLint x
Definition: gl.h:1548
GLint limit
Definition: glext.h:10326
FT_Pos yMax
Definition: ftimage.h:118
FT_Pos xMin
Definition: ftimage.h:117
FT_Pos xMax
Definition: ftimage.h:118
FT_Vector * vec
Definition: ftbbox.c:448
Definition: mesh.c:5329
FT_Pos yMin
Definition: ftimage.h:117
GLint GLint GLint GLint GLint GLint y
Definition: gl.h:1548

Referenced by af_loader_load_glyph(), cff_slot_load(), cid_slot_load_glyph(), compute_glyph_metrics(), dump_outline(), ft_glyphslot_preset_bitmap(), FT_Outline_Get_Orientation(), ft_outline_glyph_bbox(), ft_raster1_get_cbox(), ft_smooth_get_cbox(), gray_raster_render(), pfr_slot_load(), profile_outline(), and T1_Load_Glyph().

◆ FT_Outline_Get_Orientation()

FT_Outline_Get_Orientation ( FT_Outline outline)

Definition at line 1044 of file ftoutln.c.

1045  {
1046  FT_BBox cbox;
1047  FT_Int xshift, yshift;
1048  FT_Vector* points;
1049  FT_Vector v_prev, v_cur;
1050  FT_Int c, n, first;
1051  FT_Pos area = 0;
1052
1053
1054  if ( !outline || outline->n_points <= 0 )
1055  return FT_ORIENTATION_TRUETYPE;
1056
1057  /* We use the nonzero winding rule to find the orientation. */
1058  /* Since glyph outlines behave much more `regular' than arbitrary */
1059  /* cubic or quadratic curves, this test deals with the polygon */
1060  /* only that is spanned up by the control points. */
1061
1062  FT_Outline_Get_CBox( outline, &cbox );
1063
1064  /* Handle collapsed outlines to avoid undefined FT_MSB. */
1065  if ( cbox.xMin == cbox.xMax || cbox.yMin == cbox.yMax )
1066  return FT_ORIENTATION_NONE;
1067
1068  xshift = FT_MSB( (FT_UInt32)( FT_ABS( cbox.xMax ) |
1069  FT_ABS( cbox.xMin ) ) ) - 14;
1070  xshift = FT_MAX( xshift, 0 );
1071
1072  yshift = FT_MSB( (FT_UInt32)( cbox.yMax - cbox.yMin ) ) - 14;
1073  yshift = FT_MAX( yshift, 0 );
1074
1075  points = outline->points;
1076
1077  first = 0;
1078  for ( c = 0; c < outline->n_contours; c++ )
1079  {
1080  FT_Int last = outline->contours[c];
1081
1082
1083  v_prev.x = points[last].x >> xshift;
1084  v_prev.y = points[last].y >> yshift;
1085
1086  for ( n = first; n <= last; n++ )
1087  {
1088  v_cur.x = points[n].x >> xshift;
1089  v_cur.y = points[n].y >> yshift;
1090
1091  area = ADD_LONG( area,
1092  ( v_cur.y - v_prev.y ) * ( v_cur.x + v_prev.x ) );
1093
1094  v_prev = v_cur;
1095  }
1096
1097  first = last + 1;
1098  }
1099
1100  if ( area > 0 )
1102  else if ( area < 0 )
1103  return FT_ORIENTATION_TRUETYPE;
1104  else
1105  return FT_ORIENTATION_NONE;
1106  }
FT_Pos y
Definition: ftimage.h:77
FT_BEGIN_HEADER typedef signed long FT_Pos
Definition: ftimage.h:58
FT_Pos x
Definition: ftimage.h:76
POINT last
Definition: font.c:46
signed int FT_Int
Definition: fttypes.h:220
#define FT_ABS(a)
Definition: ftobjs.h:74
const GLint * first
Definition: glext.h:5794
GLdouble n
Definition: glext.h:7729
FT_Outline_Get_CBox(const FT_Outline *outline, FT_BBox *acbox)
Definition: ftoutln.c:478
#define ADD_LONG(a, b)
Definition: ftcalc.h:420
FT_Pos yMax
Definition: ftimage.h:118
FT_Pos xMin
Definition: ftimage.h:117
#define FT_MAX(a, b)
Definition: ftobjs.h:72
const GLubyte * c
Definition: glext.h:8905
FT_Pos xMax
Definition: ftimage.h:118
GLsizei const GLfloat * points
Definition: glext.h:8112
FT_MSB(FT_UInt32 z)
Definition: ftcalc.c:114
Definition: mesh.c:5329
FT_Pos yMin
Definition: ftimage.h:117
static Real area(Real A[2], Real B[2], Real C[2])
Definition: polyDBG.cc:50
#define c
Definition: ke_i.h:80

Referenced by af_glyph_hints_reload(), FT_Outline_EmboldenXY(), FT_Outline_GetInsideBorder(), and FT_Outline_GetOutsideBorder().

◆ FT_Outline_New()

FT_Outline_New ( FT_Library  library,
FT_UInt  numPoints,
FT_Int  numContours,
FT_Outline anoutline
)

Definition at line 341 of file ftoutln.c.

345  {
346  if ( !library )
347  return FT_THROW( Invalid_Library_Handle );
348
349  return FT_Outline_New_Internal( library->memory, numPoints,
350  numContours, anoutline );
351  }
FT_Memory memory
Definition: ftobjs.h:918
FT_Library library
Definition: cffdrivr.c:654
#define FT_THROW(e)
Definition: ftdebug.h:213
FT_Outline_New_Internal(FT_Memory memory, FT_UInt numPoints, FT_Int numContours, FT_Outline *anoutline)
Definition: ftoutln.c:299

Referenced by FT_DEFINE_GLYPH(), FT_Glyph_Stroke(), FT_Glyph_StrokeBorder(), and ft_outline_glyph_copy().

◆ FT_Outline_New_Internal()

FT_Outline_New_Internal ( FT_Memory  memory,
FT_UInt  numPoints,
FT_Int  numContours,
FT_Outline anoutline
)

Definition at line 299 of file ftoutln.c.

303  {
304  FT_Error error;
305
306
307  if ( !anoutline || !memory )
308  return FT_THROW( Invalid_Argument );
309
310  *anoutline = null_outline;
311
312  if ( numContours < 0 ||
313  (FT_UInt)numContours > numPoints )
314  return FT_THROW( Invalid_Argument );
315
316  if ( numPoints > FT_OUTLINE_POINTS_MAX )
317  return FT_THROW( Array_Too_Large );
318
319  if ( FT_NEW_ARRAY( anoutline->points, numPoints ) ||
320  FT_NEW_ARRAY( anoutline->tags, numPoints ) ||
321  FT_NEW_ARRAY( anoutline->contours, numContours ) )
322  goto Fail;
323
324  anoutline->n_points = (FT_Short)numPoints;
325  anoutline->n_contours = (FT_Short)numContours;
326  anoutline->flags |= FT_OUTLINE_OWNER;
327
328  return FT_Err_Ok;
329
330  Fail:
331  anoutline->flags |= FT_OUTLINE_OWNER;
332  FT_Outline_Done_Internal( memory, anoutline );
333
334  return error;
335  }
int FT_Error
Definition: fttypes.h:300
char * tags
Definition: ftimage.h:340
#define error(str)
Definition: mkdosfs.c:1605
return FT_Err_Ok
Definition: ftbbox.c:511
static char memory[1024 *256]
Definition: process.c:116
FT_Vector * points
Definition: ftimage.h:339
#define FT_THROW(e)
Definition: ftdebug.h:213
#define FT_OUTLINE_POINTS_MAX
Definition: ftimage.h:352
FT_Outline_Done_Internal(FT_Memory memory, FT_Outline *outline)
Definition: ftoutln.c:439
#define FT_OUTLINE_OWNER
Definition: ftimage.h:428
int flags
Definition: ftimage.h:343
signed short FT_Short
Definition: fttypes.h:198
#define FT_NEW_ARRAY(ptr, count)
Definition: ftmemory.h:333
static const FT_Outline null_outline
Definition: ftoutln.c:45
Definition: hiveinit.c:368
short n_points
Definition: ftimage.h:337
short * contours
Definition: ftimage.h:341
unsigned int FT_UInt
Definition: fttypes.h:231
short n_contours
Definition: ftimage.h:336

Referenced by FT_Outline_New().

◆ FT_Outline_Render()

FT_Outline_Render ( FT_Library  library,
FT_Outline outline,
FT_Raster_Params params
)

Definition at line 614 of file ftoutln.c.

617  {
618  FT_Error error;
619  FT_Renderer renderer;
621
622
623  if ( !library )
624  return FT_THROW( Invalid_Library_Handle );
625
626  if ( !outline )
627  return FT_THROW( Invalid_Outline );
628
629  if ( !params )
630  return FT_THROW( Invalid_Argument );
631
632  renderer = library->cur_renderer;
634
635  params->source = (void*)outline;
636
637  error = FT_ERR( Cannot_Render_Glyph );
638  while ( renderer )
639  {
640  error = renderer->raster_render( renderer->raster, params );
641  if ( !error || FT_ERR_NEQ( error, Cannot_Render_Glyph ) )
642  break;
643
644  /* FT_Err_Cannot_Render_Glyph is returned if the render mode */
645  /* is unsupported by the current renderer for this glyph image */
646  /* format */
647
648  /* now, look for another renderer that supports the same */
649  /* format */
651  &node );
652  }
653
654  return error;
655  }
int FT_Error
Definition: fttypes.h:300
#define error(str)
Definition: mkdosfs.c:1605
FT_ListNode head
Definition: fttypes.h:569
FT_Library library
Definition: cffdrivr.c:654
FT_Renderer cur_renderer
Definition: ftobjs.h:928
FT_Lookup_Renderer(FT_Library library, FT_Glyph_Format format, FT_ListNode *node)
Definition: ftobjs.c:4264
struct node node
GLenum const GLfloat * params
Definition: glext.h:5645
#define FT_THROW(e)
Definition: ftdebug.h:213
#define FT_ERR(e)
Definition: fttypes.h:586
smooth FT_Module_Constructor FT_Module_Destructor FT_Module_Requester FT_GLYPH_FORMAT_OUTLINE
Definition: ftsmooth.c:416
#define FT_ERR_NEQ(x, e)
Definition: fttypes.h:593
Definition: mesh.c:5329
FT_Raster_Render_Func raster_render
Definition: ftobjs.h:779
FT_ListRec renderers
Definition: ftobjs.h:927
FT_Raster raster
Definition: ftobjs.h:778
Definition: dlist.c:348

Referenced by FT_Outline_Get_Bitmap().

◆ FT_Outline_Reverse()

FT_Outline_Reverse ( FT_Outline outline)

Definition at line 553 of file ftoutln.c.

554  {
555  FT_UShort n;
556  FT_Int first, last;
557
558
559  if ( !outline )
560  return;
561
562  first = 0;
563
564  for ( n = 0; n < outline->n_contours; n++ )
565  {
566  last = outline->contours[n];
567
568  /* reverse point table */
569  {
570  FT_Vector* p = outline->points + first;
571  FT_Vector* q = outline->points + last;
572  FT_Vector swap;
573
574
575  while ( p < q )
576  {
577  swap = *p;
578  *p = *q;
579  *q = swap;
580  p++;
581  q--;
582  }
583  }
584
585  /* reverse tags table */
586  {
587  char* p = outline->tags + first;
588  char* q = outline->tags + last;
589
590
591  while ( p < q )
592  {
593  char swap;
594
595
596  swap = *p;
597  *p = *q;
598  *q = swap;
599  p++;
600  q--;
601  }
602  }
603
604  first = last + 1;
605  }
606
608  }
#define swap(a, b)
Definition: qsort.c:63
POINT last
Definition: font.c:46
signed int FT_Int
Definition: fttypes.h:220
const GLint * first
Definition: glext.h:5794
GLdouble n
Definition: glext.h:7729
GLdouble GLdouble GLdouble GLdouble q
Definition: gl.h:2063
Definition: mesh.c:5329
GLfloat GLfloat p
Definition: glext.h:8902
unsigned short FT_UShort
Definition: fttypes.h:209
#define FT_OUTLINE_REVERSE_FILL
Definition: ftimage.h:430

◆ FT_Outline_Transform()

FT_Outline_Transform ( const FT_Outline outline,
const FT_Matrix matrix
)

Definition at line 711 of file ftoutln.c.

713  {
714  FT_Vector* vec;
715  FT_Vector* limit;
716
717
718  if ( !outline || !matrix )
719  return;
720
721  vec = outline->points;
722  limit = vec + outline->n_points;
723
724  for ( ; vec < limit; vec++ )
726  }
GLuint GLenum matrix
Definition: glext.h:9407
GLint limit
Definition: glext.h:10326
FT_Vector_Transform(FT_Vector *vector, const FT_Matrix *matrix)
Definition: ftoutln.c:688
FT_Vector * vec
Definition: ftbbox.c:448
Definition: mesh.c:5329

Referenced by af_loader_embolden_glyph_in_slot(), af_loader_load_glyph(), cff_slot_load(), cid_slot_load_glyph(), FT_GlyphSlot_Oblique(), FT_Load_Glyph(), ft_outline_glyph_transform(), ft_raster1_transform(), ft_smooth_transform(), ftGdiGetGlyphOutline(), pfr_slot_load(), T1_Load_Glyph(), and TT_Process_Composite_Component().

◆ FT_Outline_Translate()

FT_Outline_Translate ( const FT_Outline outline,
FT_Pos  xOffset,
FT_Pos  yOffset
)

Definition at line 528 of file ftoutln.c.

531  {
532  FT_UShort n;
533  FT_Vector* vec;
534
535
536  if ( !outline )
537  return;
538
539  vec = outline->points;
540
541  for ( n = 0; n < outline->n_points; n++ )
542  {
543  vec->x = ADD_LONG( vec->x, xOffset );
544  vec->y = ADD_LONG( vec->y, yOffset );
545  vec++;
546  }
547  }
FT_Pos y
Definition: ftimage.h:77
FT_Pos x
Definition: ftimage.h:76
GLdouble n
Definition: glext.h:7729
#define ADD_LONG(a, b)
Definition: ftcalc.h:420
FT_Vector * vec
Definition: ftbbox.c:448
Definition: mesh.c:5329
int xOffset
Definition: appswitch.c:59
int yOffset
Definition: appswitch.c:59
unsigned short FT_UShort
Definition: fttypes.h:209

Referenced by af_loader_load_glyph(), cff_slot_load(), cid_slot_load_glyph(), FT_Load_Glyph(), ft_outline_glyph_transform(), ft_raster1_render(), ft_raster1_transform(), ft_smooth_render_generic(), ft_smooth_transform(), ftGdiGetGlyphOutline(), T1_Load_Glyph(), TT_Load_Glyph(), and TT_Process_Composite_Component().
