dxcore_interface.h File Reference

#include <stdarg.h>
#include <stdint.h>
#include <ole2.h>

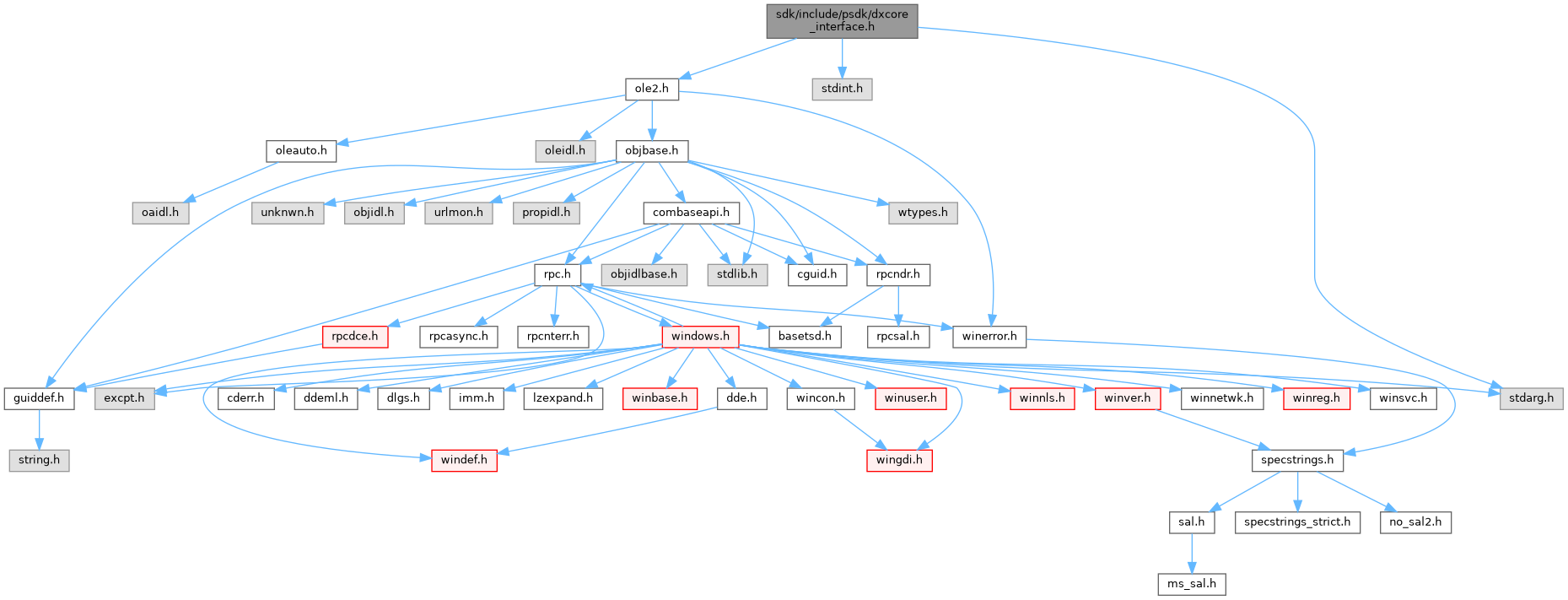

Include dependency graph for dxcore_interface.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	DXCoreHardwareID
struct	DXCoreHardwareIDParts
struct	DXCoreAdapterMemoryBudgetNodeSegmentGroup
struct	DXCoreAdapterMemoryBudget

Macros
#define	DECLARE_ENUM_CLASS(x)   typedef enum x x; enum x
#define	REFLUID   const LUID *
#define	INTERFACE   IDXCoreAdapter
#define	INTERFACE   IDXCoreAdapterList
#define	INTERFACE   IDXCoreAdapterFactory

Typedefs
typedef struct DXCoreHardwareID	DXCoreHardwareID
typedef struct DXCoreHardwareIDParts	DXCoreHardwareIDParts
typedef struct DXCoreAdapterMemoryBudgetNodeSegmentGroup	DXCoreAdapterMemoryBudgetNodeSegmentGroup
typedef struct DXCoreAdapterMemoryBudget	DXCoreAdapterMemoryBudget
typedef void(STDMETHODCALLTYPE *	PFN_DXCORE_NOTIFICATION_CALLBACK) (DXCoreNotificationType type, IUnknown *object, void *context)

Functions
	DECLARE_ENUM_CLASS (DXCoreAdapterProperty)
	DECLARE_ENUM_CLASS (DXCoreAdapterState)
	DECLARE_ENUM_CLASS (DXCoreSegmentGroup)
	DECLARE_ENUM_CLASS (DXCoreNotificationType)
	DECLARE_ENUM_CLASS (DXCoreAdapterPreference)
	DEFINE_GUID (IID_IDXCoreAdapterFactory, 0x78ee5945, 0xc36e, 0x4b13, 0xa6, 0x69, 0x00, 0x5d, 0xd1, 0x1c, 0x0f, 0x06)
	DEFINE_GUID (IID_IDXCoreAdapterList, 0x526c7776, 0x40e9, 0x459b, 0xb7, 0x11, 0xf3, 0x2a, 0xd7, 0x6d, 0xfc, 0x28)
	DEFINE_GUID (IID_IDXCoreAdapter, 0xf0db4c7f, 0xfe5a, 0x42a2, 0xbd, 0x62, 0xf2, 0xa6, 0xcf, 0x6f, 0xc8, 0x3e)
	DEFINE_GUID (DXCORE_ADAPTER_ATTRIBUTE_D3D11_GRAPHICS, 0x8c47866b, 0x7583, 0x450d, 0xf0, 0xf0, 0x6b, 0xad, 0xa8, 0x95, 0xaf, 0x4b)
	DEFINE_GUID (DXCORE_ADAPTER_ATTRIBUTE_D3D12_GRAPHICS, 0x0c9ece4d, 0x2f6e, 0x4f01, 0x8c, 0x96, 0xe8, 0x9e, 0x33, 0x1b, 0x47, 0xb1)
	DEFINE_GUID (DXCORE_ADAPTER_ATTRIBUTE_D3D12_CORE_COMPUTE, 0x248e2800, 0xa793, 0x4724, 0xab, 0xaa, 0x23, 0xa6, 0xde, 0x1b, 0xe0, 0x90)
	DECLARE_INTERFACE_IID_ (IDXCoreAdapter, IUnknown, "f0db4c7f-fe5a-42a2-bd62-f2a6cf6fc83e")
	DECLARE_INTERFACE_IID_ (IDXCoreAdapterList, IUnknown, "526c7776-40e9-459b-b711-f32ad76dfc28")
	DECLARE_INTERFACE_IID_ (IDXCoreAdapterFactory, IUnknown, "78ee5945-c36e-4b13-a669-005dd11c0f06")

Macro Definition Documentation

DECLARE_ENUM_CLASS

#define DECLARE_ENUM_CLASS

(

x

)

typedef enum x x; enum x

Definition at line 30 of file dxcore_interface.h.

INTERFACE [1/3]

#define INTERFACE   IDXCoreAdapter

Definition at line 205 of file dxcore_interface.h.

INTERFACE [2/3]

#define INTERFACE   IDXCoreAdapterList

Definition at line 205 of file dxcore_interface.h.

INTERFACE [3/3]

#define INTERFACE   IDXCoreAdapterFactory

Definition at line 205 of file dxcore_interface.h.

REFLUID

#define REFLUID   const LUID *

Definition at line 31 of file dxcore_interface.h.

Typedef Documentation

DXCoreAdapterMemoryBudget

typedef struct DXCoreAdapterMemoryBudget DXCoreAdapterMemoryBudget

DXCoreAdapterMemoryBudgetNodeSegmentGroup

typedef struct DXCoreAdapterMemoryBudgetNodeSegmentGroup DXCoreAdapterMemoryBudgetNodeSegmentGroup

DXCoreHardwareID

typedef struct DXCoreHardwareID DXCoreHardwareID

DXCoreHardwareIDParts

typedef struct DXCoreHardwareIDParts DXCoreHardwareIDParts

PFN_DXCORE_NOTIFICATION_CALLBACK

typedef void(STDMETHODCALLTYPE * PFN_DXCORE_NOTIFICATION_CALLBACK) (DXCoreNotificationType type, IUnknown *object, void *context)

Definition at line 111 of file dxcore_interface.h.

Function Documentation

DECLARE_ENUM_CLASS() [1/5]

DECLARE_ENUM_CLASS

(

DXCoreAdapterPreference

)

Definition at line 73 of file dxcore_interface.h.

{
    Hardware = 0,
    MinimumPower = 1,
    HighPerformance = 2,
};

DECLARE_ENUM_CLASS() [2/5]

DECLARE_ENUM_CLASS

(

DXCoreAdapterProperty

)

Definition at line 34 of file dxcore_interface.h.

{
    InstanceLuid = 0,
    DriverVersion = 1,
    DriverDescription = 2,
    HardwareID = 3,
    KmdModelVersion = 4,
    ComputePreemptionGranularity = 5,
    GraphicsPreemptionGranularity = 6,
    DedicatedAdapterMemory = 7,
    DedicatedSystemMemory = 8,
    SharedSystemMemory = 9,
    AcgCompatible = 10,
    IsHardware = 11,
    IsIntegrated = 12,
    IsDetachable = 13,
    HardwareIDParts = 14,
};

DECLARE_ENUM_CLASS() [3/5]

DECLARE_ENUM_CLASS

(

DXCoreAdapterState

)

Definition at line 53 of file dxcore_interface.h.

{
    IsDriverUpdateInProgress = 0,
    AdapterMemoryBudget = 1,
};

DECLARE_ENUM_CLASS() [4/5]

DECLARE_ENUM_CLASS

(

DXCoreNotificationType

)

Definition at line 65 of file dxcore_interface.h.

{
    AdapterListStale = 0,
    AdapterNoLongerValid = 1,
    AdapterBudgetChange = 2,
    AdapterHardwareContentProtectionTeardown = 3,
};

DECLARE_ENUM_CLASS() [5/5]

DECLARE_ENUM_CLASS

(

DXCoreSegmentGroup

)

Definition at line 59 of file dxcore_interface.h.

{
    Local = 0,
    NonLocal = 1,
};

DECLARE_INTERFACE_IID_() [1/3]

DECLARE_INTERFACE_IID_	(	IDXCoreAdapter	,
		IUnknown	,
		"f0db4c7f-fe5a-42a2-bd62-f2a6cf6fc83e"
	)

Definition at line 122 of file dxcore_interface.h.

{
    /* IUnknown methods */
    STDMETHOD(QueryInterface) (THIS_ REFIID riid, void **ppv) PURE;
    STDMETHOD_(ULONG, AddRef) (THIS) PURE;
    STDMETHOD_(ULONG, Release) (THIS) PURE;
    /* IDXCoreAdapter methods */
    STDMETHOD_(BOOL, IsValid) (THIS) PURE;
    STDMETHOD_(BOOL, IsAttributeSupported) (THIS_ REFGUID attribute) PURE;
    STDMETHOD_(BOOL, IsPropertySupported) (THIS_ DXCoreAdapterProperty property) PURE;
    STDMETHOD(GetProperty) (THIS_ DXCoreAdapterProperty property, size_t buffer_size, void *buffer) PURE;
    STDMETHOD(GetPropertySize) (THIS_ DXCoreAdapterProperty property, size_t *buffer_size) PURE;
    STDMETHOD_(BOOL, IsQueryStateSupported) (THIS_ DXCoreAdapterState property) PURE;
    STDMETHOD(QueryState) (THIS_ DXCoreAdapterState state, size_t state_details_size, const void *state_details, size_t buffer_size, void *buffer) PURE;
    STDMETHOD_(BOOL, IsSetStateSupported) (THIS_ DXCoreAdapterState property) PURE;
    STDMETHOD(SetState) (THIS_ DXCoreAdapterState state, size_t state_details_size, const void *state_details, size_t buffer_size, const void *buffer) PURE;
    STDMETHOD(GetFactory) (THIS_ REFIID riid, void **ppv) PURE;

    #ifdef __cplusplus
    template <class T>
    HRESULT GetProperty(DXCoreAdapterProperty property, T *buffer)
    {
        return GetProperty(property, sizeof(T), (void *)buffer);
    }

    template <class T1, class T2>
    HRESULT QueryState(DXCoreAdapterState state, const T1 *state_details, T2 *buffer)
    {
        return QueryState(state, sizeof(T1), (const void *)state_details, sizeof(T2), (void *)buffer);
    }

    template <class T>
    HRESULT QueryState(DXCoreAdapterState state, T *buffer)
    {
        return QueryState(state, 0, NULL, sizeof(T), (void *)buffer);
    }

    template <class T1, class T2>
    HRESULT SetState(DXCoreAdapterState state, const T1 *state_details, const T2 *buffer)
    {
        return SetState(state, sizeof(T1), (const void *)state_details, sizeof(T2), (const void *)buffer);
    }

    template <class T>
    HRESULT GetFactory(T **ppv)
    {
        return GetFactory(IID_PPV_ARGS(ppv));
    }
    #endif
};

DECLARE_INTERFACE_IID_() [2/3]

DECLARE_INTERFACE_IID_	(	IDXCoreAdapterFactory	,
		IUnknown	,
		"78ee5945-c36e-4b13-a669-005dd11c0f06"
	)

Definition at line 206 of file dxcore_interface.h.

{
    /* IUnknown methods */
    STDMETHOD(QueryInterface) (THIS_ REFIID riid, void **ppv) PURE;
    STDMETHOD_(ULONG, AddRef) (THIS) PURE;
    STDMETHOD_(ULONG, Release) (THIS) PURE;
    /* IDXCoreAdapterFactory methods */
    STDMETHOD(CreateAdapterList) (THIS_ uint32_t num_attributes, const GUID *filter_attributes, REFIID riid, void **ppv) PURE;
    STDMETHOD(GetAdapterByLuid) (THIS_ REFLUID adapter_luid, REFIID riid, void **ppv) PURE;
    STDMETHOD_(BOOL, IsNotificationTypeSupported) (THIS_ DXCoreNotificationType type) PURE;
    STDMETHOD(RegisterEventNotification) (THIS_ IUnknown *dxcore_object, DXCoreNotificationType type, PFN_DXCORE_NOTIFICATION_CALLBACK callback,
                                          void *callback_context, uint32_t *event_cookie) PURE;
    STDMETHOD(UnregisterEventNotification) (THIS_ uint32_t event_cookie) PURE;

    #ifdef __cplusplus
    template<class T>
    HRESULT STDMETHODCALLTYPE CreateAdapterList(uint32_t num_attributes, const GUID *filter_attributes, T **ppv)
    {
        return CreateAdapterList(num_attributes, filter_attributes, IID_PPV_ARGS(ppv));
    }

    template<class T>
    HRESULT STDMETHODCALLTYPE GetAdapterByLuid(const LUID &adapter_luid, T **ppv)
    {
        return GetAdapterByLuid(adapter_luid, IID_PPV_ARGS(ppv));
    }
    #endif
};

DECLARE_INTERFACE_IID_() [3/3]

DECLARE_INTERFACE_IID_	(	IDXCoreAdapterList	,
		IUnknown	,
		"526c7776-40e9-459b-b711-f32ad76dfc28"
	)

Definition at line 175 of file dxcore_interface.h.

{
    /* IUnknown methods */
    STDMETHOD(QueryInterface) (THIS_ REFIID riid, void **ppv) PURE;
    STDMETHOD_(ULONG, AddRef) (THIS) PURE;
    STDMETHOD_(ULONG, Release) (THIS) PURE;
    /* IDXCoreAdapterList methods */
    STDMETHOD(GetAdapter) (THIS_ uint32_t index, REFIID riid, void **ppv) PURE;
    STDMETHOD_(uint32_t, GetAdapterCount) (THIS) PURE;
    STDMETHOD_(BOOL, IsStale) (THIS) PURE;
    STDMETHOD(GetFactory) (THIS_ REFIID riid, void **ppv) PURE;
    STDMETHOD(Sort) (THIS_ uint32_t num_preferences, const DXCoreAdapterPreference *preferences) PURE;
    STDMETHOD_(BOOL, IsAdapterPreferenceSupported) (THIS_ DXCoreAdapterPreference preference) PURE;

    #ifdef __cplusplus
    template<class T>
    HRESULT STDMETHODCALLTYPE GetAdapter(uint32_t index, T **ppv)
    {
        return GetAdapter(index, IID_PPV_ARGS(ppv));
    }

    template <class T>
    HRESULT GetFactory(T **ppv)
    {
        return GetFactory(IID_PPV_ARGS(ppv));
    }
    #endif
};

DEFINE_GUID() [1/6]

DEFINE_GUID	(	DXCORE_ADAPTER_ATTRIBUTE_D3D11_GRAPHICS	,
		0x8c47866b	,
		0x7583	,
		0x450d	,
		0xf0	,
		0xf0	,
		0x6b	,
		0xad	,
		0xa8	,
		0x95	,
		0xaf	,
		0x4b
	)

DEFINE_GUID() [2/6]

DEFINE_GUID	(	DXCORE_ADAPTER_ATTRIBUTE_D3D12_CORE_COMPUTE	,
		0x248e2800	,
		0xa793	,
		0x4724	,
		0xab	,
		0xaa	,
		0x23	,
		0xa6	,
		0xde	,
		0x1b	,
		0xe0	,
		0x90
	)

DEFINE_GUID() [3/6]

DEFINE_GUID	(	DXCORE_ADAPTER_ATTRIBUTE_D3D12_GRAPHICS	,
		0x0c9ece4d	,
		0x2f6e	,
		0x4f01	,
		0x8c	,
		0x96	,
		0xe8	,
		0x9e	,
		0x33	,
		0x1b	,
		0x47	,
		0xb1
	)

DEFINE_GUID() [4/6]

DEFINE_GUID	(	IID_IDXCoreAdapter	,
		0xf0db4c7f	,
		0xfe5a	,
		0x42a2	,
		0xbd	,
		0x62	,
		0xf2	,
		0xa6	,
		0xcf	,
		0x6f	,
		0xc8	,
		0x3e
	)

DEFINE_GUID() [5/6]

DEFINE_GUID	(	IID_IDXCoreAdapterFactory	,
		0x78ee5945	,
		0xc36e	,
		0x4b13	,
		0xa6	,
		0x69	,
		0x00	,
		0x5d	,
		0xd1	,
		0x1c	,
		0x0f	,
		0x06
	)

DEFINE_GUID() [6/6]

DEFINE_GUID	(	IID_IDXCoreAdapterList	,
		0x526c7776	,
		0x40e9	,
		0x459b	,
		0xb7	,
		0x11	,
		0xf3	,
		0x2a	,
		0xd7	,
		0x6d	,
		0xfc	,
		0x28
	)
