hdac_controller.cpp File Reference

#include "driver.h"

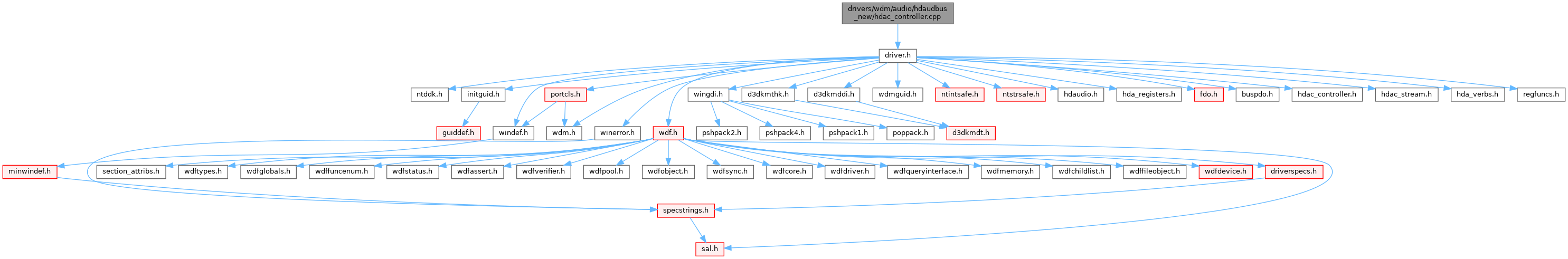

Include dependency graph for hdac_controller.cpp:

Go to the source code of this file.

Macros
#define	HDA_RIRB_EX_UNSOL_EV   (1<<4)

Functions
NTSTATUS	ResetHDAController (PFDO_CONTEXT fdoCtx, BOOLEAN wakeup)
NTSTATUS	GetHDACapabilities (PFDO_CONTEXT fdoCtx)
void	HDAInitCorb (PFDO_CONTEXT fdoCtx)
void	HDAInitRirb (PFDO_CONTEXT fdoCtx)
void	HDAStartCorb (PFDO_CONTEXT fdoCtx)
void	HDAStartRirb (PFDO_CONTEXT fdoCtx)
NTSTATUS	StartHDAController (PFDO_CONTEXT fdoCtx)
NTSTATUS	StopHDAController (PFDO_CONTEXT fdoCtx)
static UINT16	HDACommandAddr (UINT32 cmd)
NTSTATUS	SendHDACmds (PFDO_CONTEXT fdoCtx, ULONG count, PHDAUDIO_CODEC_TRANSFER CodecTransfer)
NTSTATUS	RunSingleHDACmd (PFDO_CONTEXT fdoCtx, ULONG val, ULONG *res)
static void	HDAFlushRIRB (PFDO_CONTEXT fdoCtx)
int	hda_stream_interrupt (PFDO_CONTEXT fdoCtx, unsigned int status)
BOOLEAN NTAPI	hda_interrupt (WDFINTERRUPT Interrupt, ULONG MessageID)
void NTAPI	hda_dpc (WDFINTERRUPT Interrupt, WDFOBJECT AssociatedObject)

Macro Definition Documentation

HDA_RIRB_EX_UNSOL_EV

#define HDA_RIRB_EX_UNSOL_EV   (1<<4)

Definition at line 269 of file hdac_controller.cpp.

Function Documentation

GetHDACapabilities()

NTSTATUS GetHDACapabilities

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 72 of file hdac_controller.cpp.

                                                 {
    UINT16 gcap = hda_read16(fdoCtx, GCAP);
    SklHdAudBusPrint(DEBUG_LEVEL_INFO, DBG_INIT,
        "chipset global capabilities = 0x%x\n", gcap);

    fdoCtx->is64BitOK = !!(gcap & 0x1);
    SklHdAudBusPrint(DEBUG_LEVEL_INFO, DBG_INIT,
        "64 bit OK? %d\n", fdoCtx->is64BitOK);

    fdoCtx->hwVersion = (hda_read8(fdoCtx, VMAJ) << 8) | hda_read8(fdoCtx, VMIN);

    fdoCtx->captureStreams = (gcap >> 8) & 0x0f;
    fdoCtx->playbackStreams = (gcap >> 12) & 0x0f;

    SklHdAudBusPrint(DEBUG_LEVEL_INFO, DBG_INIT,
        "streams (cap %d, playback %d)\n", fdoCtx->captureStreams, fdoCtx->playbackStreams);

    fdoCtx->captureIndexOff = 0;
    fdoCtx->playbackIndexOff = fdoCtx->captureStreams;
    fdoCtx->numStreams = fdoCtx->captureStreams + fdoCtx->playbackStreams;

    UINT8 corbSize = hda_read8(fdoCtx, CORBSIZE);
    if (!(corbSize & 0x40)) {
        return STATUS_DEVICE_FEATURE_NOT_SUPPORTED; //CORB must support 256
    }

    UINT8 rirbSize = hda_read8(fdoCtx, RIRBSIZE);
    if (!(rirbSize & 0x40)) {
        return STATUS_DEVICE_FEATURE_NOT_SUPPORTED; //RIRB must support 256
    }

    return STATUS_SUCCESS;
}

Referenced by Fdo_EvtDevicePrepareHardware().

hda_dpc()

void NTAPI hda_dpc	(	WDFINTERRUPT	Interrupt,
		WDFOBJECT	AssociatedObject
	)

Definition at line 415 of file hdac_controller.cpp.

  {
    UNREFERENCED_PARAMETER(AssociatedObject);

    WDFDEVICE Device = WdfInterruptGetDevice(Interrupt);
    PFDO_CONTEXT fdoCtx = Fdo_GetContext(Device);

    for (UINT32 i = 0; i < fdoCtx->numStreams; i++) {
        PHDAC_STREAM stream = &fdoCtx->streams[i];
        if (stream->irqReceived) {
            stream->irqReceived = FALSE;

            for (int j = 0; j < MAX_NOTIF_EVENTS; j++) {
                if (stream->registeredCallbacks[j].InUse) {
                    LARGE_INTEGER unknownVal = { 0 };
                    KeQuerySystemTime(&unknownVal);
                    stream->registeredCallbacks[j].NotificationCallback(stream->registeredCallbacks[j].CallbackContext, unknownVal);
                }
            }

            for (int j = 0; j < MAX_NOTIF_EVENTS; j++) {
                if (stream->registeredEvents[j]) {
                    KeSetEvent(stream->registeredEvents[j], IO_NO_INCREMENT, FALSE);
                }
            }
        }
    }

    if (fdoCtx->processRirb) {
        fdoCtx->processRirb = FALSE;
        HDAFlushRIRB(fdoCtx);
    }
}

Referenced by Fdo_Initialize().

hda_interrupt()

BOOLEAN NTAPI hda_interrupt	(	WDFINTERRUPT	Interrupt,
		ULONG	MessageID
	)

Definition at line 374 of file hdac_controller.cpp.

                     {
    UNREFERENCED_PARAMETER(MessageID);

    WDFDEVICE Device = WdfInterruptGetDevice(Interrupt);
    PFDO_CONTEXT fdoCtx = Fdo_GetContext(Device);

    BOOLEAN handled = FALSE;

    if (fdoCtx->dspInterruptCallback) {
        handled = (BOOLEAN)fdoCtx->dspInterruptCallback(fdoCtx->dspInterruptContext);
    }

    if (!fdoCtx->ControllerEnabled)
        return handled;

    UINT32 status = hda_read32(fdoCtx, INTSTS);
    if (status == 0 || status == 0xffffffff)
        return handled;

    handled = TRUE;

    if (hda_stream_interrupt(fdoCtx, status)) {
        WdfInterruptQueueDpcForIsr(Interrupt);
    }

    status = hda_read8(fdoCtx, RIRBSTS);
    if (status & RIRB_INT_MASK) {
        hda_write8(fdoCtx, RIRBSTS, RIRB_INT_MASK);
        if (status & RIRB_INT_RESPONSE) {
            fdoCtx->processRirb = TRUE;
            WdfInterruptQueueDpcForIsr(Interrupt);
        }
    }

    return handled;
}

Referenced by Fdo_Initialize().

hda_stream_interrupt()

int hda_stream_interrupt	(	PFDO_CONTEXT	fdoCtx,
		unsigned int	status
	)

Definition at line 348 of file hdac_controller.cpp.

                                                                   {
    int handled = 0;
    UINT8 sd_status;

    for (UINT32 i = 0; i < fdoCtx->numStreams; i++) {
        PHDAC_STREAM stream = &fdoCtx->streams[i];
        if (status & stream->int_sta_mask) {
            sd_status = stream_read8(stream, SD_STS);
            stream_write8(stream, SD_STS, SD_INT_MASK);
            handled |= 1 << stream->idx;

            if (sd_status & SD_INT_COMPLETE) {
                if (stream->isr.IOC && stream->isr.IsrCallback) {
                    stream->isr.IsrCallback(
                                stream->isr.CallbackContext,
                                sd_status);
                }
                stream->irqReceived = TRUE;
            }
        }
    }
    return handled;
}

Referenced by hda_interrupt().

HDACommandAddr()

static UINT16 HDACommandAddr ( UINT32  cmd )

static

Definition at line 203 of file hdac_controller.cpp.

                                         {
    return (cmd >> 28) & 0xF;
}

Referenced by RunSingleHDACmd(), and SendHDACmds().

HDAFlushRIRB()

static void HDAFlushRIRB ( PFDO_CONTEXT  fdoCtx )

static

Definition at line 271 of file hdac_controller.cpp.

                                              {
    UINT16 wp, addr;

    wp = hda_read16(fdoCtx, RIRBWP);
    if (wp == 0xffff) {
        //Invalid WP
        return;
    }

    if (wp == fdoCtx->rirb.wp)
        return;
    fdoCtx->rirb.wp = wp;

    while (fdoCtx->rirb.rp != wp) {
        fdoCtx->rirb.rp++;
        fdoCtx->rirb.rp %= HDA_MAX_RIRB_ENTRIES;

        HDAC_RIRB rirb = fdoCtx->rirb.rirbbuf[fdoCtx->rirb.rp];

        addr = rirb.response_ex & 0xf;
        if (addr >= HDA_MAX_CODECS) {
            SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                "Unexpected unsolicited response %x: %x\n",
                rirb.response, rirb.response_ex);
        }
        else if (rirb.response_ex & HDA_RIRB_EX_UNSOL_EV) {
            HDAUDIO_CODEC_RESPONSE response;
            RtlZeroMemory(&response, sizeof(HDAUDIO_CODEC_RESPONSE));

            response.SDataIn = addr;
            response.Response = rirb.response;
            response.IsUnsolicitedResponse = 1;
            response.IsValid = 1;

            SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                "Unsol response on 0x%x: 0x%x\n", addr, response.Response);

            PPDO_DEVICE_DATA codec = fdoCtx->codecs[addr];
            if (!codec || codec->FdoContext != fdoCtx)
                continue;

            UINT Tag = response.Unsolicited.Tag;
            CODEC_UNSOLICITED_CALLBACK callback = codec->unsolitCallbacks[Tag];
            if (callback.inUse && callback.Routine) {
                callback.Routine(response, callback.Context);
            }
        }
        else if (InterlockedAdd(&fdoCtx->rirb.cmds[addr], 0)) {
            PHDAC_CODEC_XFER codecXfer = &fdoCtx->rirb.xfer[addr];
            if (codecXfer->xfer[0]) {
                codecXfer->xfer[0]->Input.SDataIn = addr;
                codecXfer->xfer[0]->Input.Response = rirb.response;
                codecXfer->xfer[0]->Input.IsValid = 1;

                SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                    "Got response on 0x%x for 0x%x: 0x%x\n", addr, codecXfer->xfer[0]->Output.Command, rirb.response);
            }
            else {
                SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                    "Got response 0x%x but no xfer!\n", rirb.response);
            }

            RtlMoveMemory(&codecXfer->xfer[0], &codecXfer->xfer[1], sizeof(PHDAUDIO_CODEC_TRANSFER) * (HDA_MAX_CORB_ENTRIES - 1));
            codecXfer->xfer[HDA_MAX_CORB_ENTRIES - 1] = NULL;
            if (!InterlockedDecrement(&fdoCtx->rirb.cmds[addr])) {
                SklHdAudBusPrint(DEBUG_LEVEL_VERBOSE, DBG_IOCTL, "Empty queue for 0x%x\n", addr);
                KeSetEvent(&fdoCtx->rirb.xferEvent[addr], IO_NO_INCREMENT, FALSE);
            }
        }
        else {
            SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                "Unexpected unsolicited response from address %d %x\n", addr,
                rirb.response);
        }
    }
}

Referenced by hda_dpc().

HDAInitCorb()

void HDAInitCorb

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 106 of file hdac_controller.cpp.

                                      {
    //Set the corb size to 256 entries
    hda_write8(fdoCtx, CORBSIZE, 0x02);

    //Setup CORB address
    fdoCtx->corb.buf = (UINT32*)fdoCtx->rb;
    fdoCtx->corb.addr = MmGetPhysicalAddress(fdoCtx->corb.buf);
    hda_write32(fdoCtx, CORBLBASE, fdoCtx->corb.addr.LowPart);
    hda_write32(fdoCtx, CORBUBASE, fdoCtx->corb.addr.HighPart);

    //Set WP and RP
    fdoCtx->corb.wp = 0;
    hda_write16(fdoCtx, CORBWP, fdoCtx->corb.wp);
    hda_write16(fdoCtx, CORBRP, HDA_CORBRP_RST);

    udelay(10); //Delay for 10 us to reset

    hda_write16(fdoCtx, CORBRP, 0);
}

Referenced by StartHDAController().

HDAInitRirb()

void HDAInitRirb

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 126 of file hdac_controller.cpp.

                                      {
    //Set the rirb size to 256 entries
    hda_write8(fdoCtx, RIRBSIZE, 0x02);

    //Setup RIRB address
    fdoCtx->rirb.buf = (UINT32*)(fdoCtx->rb + 0x800);
    fdoCtx->rirb.addr = MmGetPhysicalAddress(fdoCtx->rirb.buf);
    RtlZeroMemory(fdoCtx->rirb.cmds, sizeof(fdoCtx->rirb.cmds));
    hda_write32(fdoCtx, RIRBLBASE, fdoCtx->rirb.addr.LowPart);
    hda_write32(fdoCtx, RIRBUBASE, fdoCtx->rirb.addr.HighPart);

    //Set WP and RP
    fdoCtx->rirb.rp = 0;
    hda_write16(fdoCtx, RIRBWP, HDA_RIRBWP_RST);

    //Set interrupt threshold
    hda_write16(fdoCtx, RINTCNT, 1);

    //Enable Received response reporting
    hda_write8(fdoCtx, RIRBCTL, HDA_RBCTL_IRQ_EN);
}

Referenced by StartHDAController().

HDAStartCorb()

void HDAStartCorb

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 148 of file hdac_controller.cpp.

                                       {
    UINT8 corbCTL;
    corbCTL = hda_read8(fdoCtx, CORBCTL);
    corbCTL |= HDA_CORBCTL_RUN;
    hda_write8(fdoCtx, CORBCTL, corbCTL);
}

Referenced by StartHDAController().

HDAStartRirb()

void HDAStartRirb

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 155 of file hdac_controller.cpp.

                                       {
    UINT8 rirbCTL;
    rirbCTL = hda_read8(fdoCtx, RIRBCTL);
    rirbCTL |= HDA_RBCTL_DMA_EN;
    hda_write8(fdoCtx, RIRBCTL, rirbCTL);
}

Referenced by StartHDAController().

ResetHDAController()

NTSTATUS ResetHDAController	(	PFDO_CONTEXT	fdoCtx,
		BOOLEAN	wakeup
	)

Definition at line 4 of file hdac_controller.cpp.

                                                                 {
    UINT32 gctl;

    //Clear STATESTS
    hda_write16(fdoCtx, STATESTS, STATESTS_INT_MASK);

    //Stop all Streams DMA Engine
    for (UINT32 i = 0; i < fdoCtx->numStreams; i++) {
        hdac_stream_stop(&fdoCtx->streams[i]);
    }

    //Stop CORB and RIRB
    hda_write8(fdoCtx, CORBCTL, 0);
    hda_write8(fdoCtx, RIRBCTL, 0);

    //Reset DMA position buffer
    hda_write32(fdoCtx, DPLBASE, 0);
    hda_write32(fdoCtx, DPUBASE, 0);

    //Reset the controller for at least 100 us
    gctl = hda_read32(fdoCtx, GCTL);
    hda_write32(fdoCtx, GCTL, gctl & ~HDA_GCTL_RESET);

    for (int count = 0; count < 1000; count++) {
        gctl = hda_read32(fdoCtx, GCTL);
        if (!(gctl & HDA_GCTL_RESET)) {
            break;
        }
        udelay(10);
    }

    if (gctl & HDA_GCTL_RESET) {
        SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_INIT, "%s Error: unable to put controller in reset\n", __func__);
        return STATUS_DEVICE_POWER_FAILURE;
    }

    //If wakeup not requested, leave in reset state
    if (!wakeup)
        return STATUS_SUCCESS;

    udelay(100);
    gctl = hda_read32(fdoCtx, GCTL);
    hda_write32(fdoCtx, GCTL, gctl | HDA_GCTL_RESET);

    for (int count = 0; count < 1000; count++) {
        gctl = hda_read32(fdoCtx, GCTL);
        if (gctl & HDA_GCTL_RESET) {
            break;
        }
        udelay(10);
    }
    if (!(gctl & HDA_GCTL_RESET)) {
        SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_INIT, "%s Error: controller stuck in reset\n", __func__);
        return STATUS_DEVICE_POWER_FAILURE;
    }

    //Wait for codecs to finish their own reset sequence. Delay from VoodooHDA so it resets properly
    udelay(1000);

    if (!fdoCtx->codecMask) {
        fdoCtx->codecMask = hda_read16(fdoCtx, STATESTS);
        SklHdAudBusPrint(DEBUG_LEVEL_INFO, DBG_INIT,
            "codec mask = 0x%lx\n", fdoCtx->codecMask);
    }

    return STATUS_SUCCESS;
}

Referenced by StartHDAController(), and StopHDAController().

RunSingleHDACmd()

NTSTATUS RunSingleHDACmd	(	PFDO_CONTEXT	fdoCtx,
		ULONG	val,
		ULONG *	res
	)

Definition at line 249 of file hdac_controller.cpp.

                                                                     {
    HDAUDIO_CODEC_TRANSFER transfer = { 0 };
    transfer.Output.Command = val;

    SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
        "%s: Called. Command: 0x%x\n", __func__, val);

    NTSTATUS status = SendHDACmds(fdoCtx, 1, &transfer);
    if (!NT_SUCCESS(status)) {
        return status;
    }

    UINT16 addr = HDACommandAddr(transfer.Output.Command);
    status = HDA_WaitForTransfer(fdoCtx, addr, 1, &transfer);
    if (transfer.Input.IsValid && res) {
        *res = transfer.Input.Response;
    }
    return status;
}

Referenced by Fdo_EnumerateCodec(), and Fdo_EvtDeviceD0EntryPostInterrupts().

SendHDACmds()

NTSTATUS SendHDACmds	(	PFDO_CONTEXT	fdoCtx,
		ULONG	count,
		PHDAUDIO_CODEC_TRANSFER	CodecTransfer
	)

Definition at line 207 of file hdac_controller.cpp.

                                                                                              {
    WdfInterruptAcquireLock(fdoCtx->Interrupt);
    for (ULONG i = 0; i < count; i++) {
        PHDAUDIO_CODEC_TRANSFER transfer = &CodecTransfer[i];
        RtlZeroMemory(&transfer->Input, sizeof(transfer->Input));

        UINT16 addr = HDACommandAddr(transfer->Output.Command);

        //Add command to corb
        UINT16 wp = hda_read16(fdoCtx, CORBWP);
        if (wp == 0xffff) {
            //Something wrong, controller likely went to sleep
            SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                "%s: device not found\n", __func__);
            WdfInterruptReleaseLock(fdoCtx->Interrupt);
            return STATUS_DEVICE_DOES_NOT_EXIST;
        }

        wp++;
        wp %= HDA_MAX_CORB_ENTRIES;

        UINT16 rp = hda_read16(fdoCtx, CORBRP);
        if (wp == rp) {
            //Oops it's full
            SklHdAudBusPrint(DEBUG_LEVEL_ERROR, DBG_IOCTL,
                "%s: device busy\n", __func__);
            WdfInterruptReleaseLock(fdoCtx->Interrupt);
            return STATUS_RETRY;
        }

        LONG oldVal = InterlockedIncrement(&fdoCtx->rirb.cmds[addr]);
        fdoCtx->rirb.xfer[addr].xfer[oldVal - 1] = transfer;

        fdoCtx->corb.buf[wp] = transfer->Output.Command;

        hda_write16(fdoCtx, CORBWP, wp);
    }

    WdfInterruptReleaseLock(fdoCtx->Interrupt);
    return STATUS_SUCCESS;
}

Referenced by HDA_TransferCodecVerbs(), and RunSingleHDACmd().

StartHDAController()

NTSTATUS StartHDAController

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 162 of file hdac_controller.cpp.

                                                 {
    NTSTATUS status;
    status = ResetHDAController(fdoCtx, TRUE);
    if (!NT_SUCCESS(status)) {
        goto exit;
    }

    //Clear STATESTS
    hda_write16(fdoCtx, STATESTS, STATESTS_INT_MASK);

    HDAInitCorb(fdoCtx);
    HDAInitRirb(fdoCtx);

    HDAStartCorb(fdoCtx);
    HDAStartRirb(fdoCtx);

    //Enabling Controller Interrupt
    hda_write32(fdoCtx, GCTL, hda_read32(fdoCtx, GCTL) | HDA_GCTL_UNSOL);
    hda_write32(fdoCtx, INTCTL, hda_read32(fdoCtx, INTCTL) | HDA_INT_CTRL_EN | HDA_INT_GLOBAL_EN);

    {
    //Program position buffer
    PHYSICAL_ADDRESS posbufAddr = MmGetPhysicalAddress(fdoCtx->posbuf);
    hda_write32(fdoCtx, DPLBASE, posbufAddr.LowPart);
    hda_write32(fdoCtx, DPUBASE, posbufAddr.HighPart);
    }

    udelay(1000);

    fdoCtx->ControllerEnabled = TRUE;

exit:
    return status;
}

Referenced by Fdo_EvtDeviceD0Entry().

StopHDAController()

NTSTATUS StopHDAController

(

PFDO_CONTEXT

fdoCtx

)

Definition at line 197 of file hdac_controller.cpp.

                                                {
    NTSTATUS status = ResetHDAController(fdoCtx, FALSE);
    fdoCtx->ControllerEnabled = FALSE;
    return status;
}

Referenced by Fdo_EvtDeviceD0Exit().
