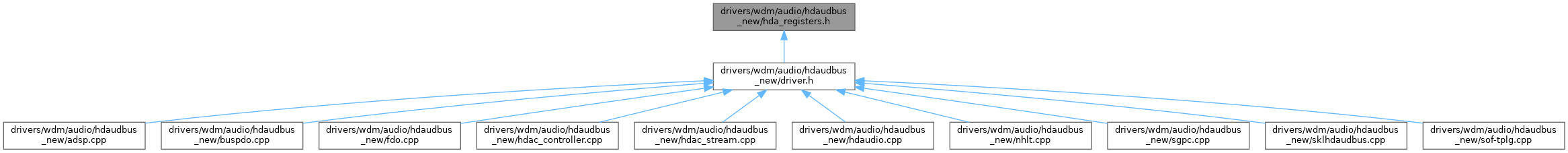

This graph shows which files directly or indirectly include this file:

Macros
#define	HDA_REG_GCAP 0x00

#define	HDA_GCAP_64OK (1 << 0) /* 64bit address support */

#define	HDA_GCAP_NSDO (3 << 1) /* # of serial data out signals */

#define	HDA_GCAP_BSS (31 << 3) /* # of bidirectional streams */

#define	HDA_GCAP_ISS (15 << 8) /* # of input streams */

#define	HDA_GCAP_OSS (15 << 12) /* # of output streams */

#define	HDA_REG_VMIN 0x02

#define	HDA_REG_VMAJ 0x03

#define	HDA_REG_OUTPAY 0x04

#define	HDA_REG_INPAY 0x06

#define	HDA_REG_GCTL 0x08

#define	HDA_GCTL_RESET (1 << 0) /* controller reset */

#define	HDA_GCTL_FCNTRL (1 << 1) /* flush control */

#define	HDA_GCTL_UNSOL (1 << 8) /* accept unsol. response enable */

#define	HDA_REG_WAKEEN 0x0c

#define	HDA_REG_STATESTS 0x0e

#define	HDA_REG_GSTS 0x10

#define	HDA_GSTS_FSTS (1 << 1) /* flush status */

#define	HDA_REG_GCAP2 0x12

#define	HDA_REG_LLCH 0x14

#define	HDA_REG_OUTSTRMPAY 0x18

#define	HDA_REG_INSTRMPAY 0x1A

#define	HDA_REG_INTCTL 0x20

#define	HDA_REG_INTSTS 0x24

#define	HDA_REG_WALLCLK 0x30 /* 24Mhz source */

#define	HDA_REG_WALLCLKA 0x2030 /* 24Mhz source */

#define	HDA_REG_OLD_SSYNC 0x34 /* SSYNC for old ICH */

#define	HDA_REG_SSYNC 0x38

#define	HDA_REG_CORBLBASE 0x40

#define	HDA_REG_CORBUBASE 0x44

#define	HDA_REG_CORBWP 0x48

#define	HDA_REG_CORBRP 0x4a

#define	HDA_CORBRP_RST (1 << 15) /* read pointer reset */

#define	HDA_REG_CORBCTL 0x4c

#define	HDA_CORBCTL_RUN (1 << 1) /* enable DMA */

#define	HDA_CORBCTL_CMEIE (1 << 0) /* enable memory error irq */

#define	HDA_REG_CORBSTS 0x4d

#define	HDA_CORBSTS_CMEI (1 << 0) /* memory error indication */

#define	HDA_REG_CORBSIZE 0x4e

#define	HDA_REG_RIRBLBASE 0x50

#define	HDA_REG_RIRBUBASE 0x54

#define	HDA_REG_RIRBWP 0x58

#define	HDA_RIRBWP_RST (1 << 15) /* write pointer reset */

#define	HDA_REG_RINTCNT 0x5a

#define	HDA_REG_RIRBCTL 0x5c

#define	HDA_RBCTL_IRQ_EN (1 << 0) /* enable IRQ */

#define	HDA_RBCTL_DMA_EN (1 << 1) /* enable DMA */

#define	HDA_RBCTL_OVERRUN_EN (1 << 2) /* enable overrun irq */

#define	HDA_REG_RIRBSTS 0x5d

#define	HDA_RBSTS_IRQ (1 << 0) /* response irq */

#define	HDA_RBSTS_OVERRUN (1 << 2) /* overrun irq */

#define	HDA_REG_RIRBSIZE 0x5e

#define	HDA_REG_IC 0x60

#define	HDA_REG_IR 0x64

#define	HDA_REG_IRS 0x68

#define	HDA_IRS_VALID (1<<1)

#define	HDA_IRS_BUSY (1<<0)

#define	HDA_REG_DPLBASE 0x70

#define	HDA_REG_DPUBASE 0x74

#define	HDA_DPLBASE_ENABLE 0x1 /* Enable position buffer */

#define	HDA_REG_SD_CTL 0x00

#define	HDA_REG_SD_CTL_3B 0x02 /* 3rd byte of SD_CTL register */

#define	HDA_REG_SD_STS 0x03

#define	HDA_REG_SD_LPIB 0x04

#define	HDA_REG_SD_CBL 0x08

#define	HDA_REG_SD_LVI 0x0c

#define	HDA_REG_SD_FIFOW 0x0e

#define	HDA_REG_SD_FIFOSIZE 0x10

#define	HDA_REG_SD_FORMAT 0x12

#define	HDA_REG_SD_FIFOL 0x14

#define	HDA_REG_SD_BDLPL 0x18

#define	HDA_REG_SD_BDLPU 0x1c

#define	HDA_REG_SD_LPIBA 0x2004

#define	HDA_REG_LLCH 0x14

#define	HDA_REG_GTS_BASE 0x520

#define	HDA_REG_GTSCC (HDA_REG_GTS_BASE + 0x00)

#define	HDA_REG_WALFCC (HDA_REG_GTS_BASE + 0x04)

#define	HDA_REG_TSCCL (HDA_REG_GTS_BASE + 0x08)

#define	HDA_REG_TSCCU (HDA_REG_GTS_BASE + 0x0C)

#define	HDA_REG_LLPFOC (HDA_REG_GTS_BASE + 0x14)

#define	HDA_REG_LLPCL (HDA_REG_GTS_BASE + 0x18)

#define	HDA_REG_LLPCU (HDA_REG_GTS_BASE + 0x1C)

#define	HDA_REG_HSW_EM4 0x100c

#define	HDA_REG_HSW_EM5 0x1010

#define	HDA_REG_VS_EM1 0x1000

#define	HDA_REG_VS_INRC 0x1004

#define	HDA_REG_VS_OUTRC 0x1008

#define	HDA_REG_VS_FIFOTRK 0x100C

#define	HDA_REG_VS_FIFOTRK2 0x1010

#define	HDA_REG_VS_EM2 0x1030

#define	HDA_REG_VS_EM3L 0x1038

#define	HDA_REG_VS_EM3U 0x103C

#define	HDA_REG_VS_EM4L 0x1040

#define	HDA_REG_VS_EM4U 0x1044

#define	HDA_REG_VS_LTRP 0x1048

#define	HDA_REG_VS_D0I3C 0x104A

#define	HDA_REG_VS_PCE 0x104B

#define	HDA_REG_VS_L2MAGC 0x1050

#define	HDA_REG_VS_L2LAHPT 0x1054

#define	HDA_REG_VS_SDXDPIB_XBASE 0x1084

#define	HDA_REG_VS_SDXDPIB_XINTERVAL 0x20

#define	HDA_REG_VS_SDXEFIFOS_XBASE 0x1094

#define	HDA_REG_VS_SDXEFIFOS_XINTERVAL 0x20

#define	HDA_PCIREG_TCSEL 0x44

#define	BDL_SIZE 4096

#define	HDA_MAX_BDL_ENTRIES (BDL_SIZE / 16)

#define	HDA_MAX_BUF_SIZE (410241024)

#define	RIRB_INT_RESPONSE 0x01

#define	RIRB_INT_OVERRUN 0x04

#define	RIRB_INT_MASK 0x05

#define	STATESTS_INT_MASK ((1 << HDA_MAX_CODECS) - 1)

#define	SD_CTL_STREAM_RESET 0x01 /* stream reset bit */

#define	SD_CTL_DMA_START 0x02 /* stream DMA start bit */

#define	SD_CTL_STRIPE (3 << 16) /* stripe control */

#define	SD_CTL_TRAFFIC_PRIO (1 << 18) /* traffic priority */

#define	SD_CTL_DIR (1 << 19) /* bi-directional stream */

#define	SD_CTL_STREAM_TAG_MASK (0xf << 20)

#define	SD_CTL_STREAM_TAG_SHIFT 20

#define	SD_INT_DESC_ERR 0x10 /* descriptor error interrupt */

#define	SD_INT_FIFO_ERR 0x08 /* FIFO error interrupt */

#define	SD_INT_COMPLETE 0x04 /* completion interrupt */

#define	SD_INT_MASK

#define	SD_CTL_STRIPE_MASK 0x3 /* stripe control mask */

#define	SD_STS_FIFO_READY 0x20 /* FIFO ready */

#define	HDA_INT_ALL_STREAM 0xff /* all stream interrupts */

#define	HDA_INT_CTRL_EN 0x40000000 /* controller interrupt enable bit */

#define	HDA_INT_GLOBAL_EN 0x80000000 /* global interrupt enable bit */

#define	HDA_MAX_CORB_ENTRIES 256

#define	HDA_MAX_RIRB_ENTRIES 256

#define	HDA_REG_CAP_HDR 0x0

#define	HDA_CAP_HDR_VER_OFF 28

#define	HDA_CAP_HDR_VER_MASK (0xF << HDA_CAP_HDR_VER_OFF)

#define	HDA_CAP_HDR_ID_OFF 16

#define	HDA_CAP_HDR_ID_MASK (0xFFF << HDA_CAP_HDR_ID_OFF)

#define	HDA_CAP_HDR_NXT_PTR_MASK 0xFFFF

#define	HDA_SPB_CAP_ID 0x4

#define	HDA_REG_SPB_BASE_ADDR 0x700

#define	HDA_REG_SPB_SPBFCH 0x00

#define	HDA_REG_SPB_SPBFCCTL 0x04

#define	HDA_SPB_BASE 0x08

#define	HDA_SPB_INTERVAL 0x08

#define	HDA_SPB_SPIB 0x00

#define	HDA_SPB_MAXFIFO 0x04

#define	HDA_GTS_CAP_ID 0x1

#define	HDA_REG_GTS_GTSCH 0x00

#define	HDA_REG_GTS_GTSCD 0x04

#define	HDA_REG_GTS_GTSCTLAC 0x0C

#define	HDA_GTS_BASE 0x20

#define	HDA_GTS_INTERVAL 0x20

#define	HDA_PP_CAP_ID 0x3

#define	HDA_REG_PP_PPCH 0x10

#define	HDA_REG_PP_PPCTL 0x04

#define	HDA_PPCTL_PIE (1<<31)

#define	HDA_PPCTL_GPROCEN (1<<30)

#define	HDA_PPCTL_PROCEN(_X_) (1<<(_X_))

#define	HDA_REG_PP_PPSTS 0x08

#define	HDA_PPHC_BASE 0x10

#define	HDA_PPHC_INTERVAL 0x10

#define	HDA_REG_PPHCLLPL 0x0

#define	HDA_REG_PPHCLLPU 0x4

#define	HDA_REG_PPHCLDPL 0x8

#define	HDA_REG_PPHCLDPU 0xC

#define	HDA_PPLC_BASE 0x10

#define	HDA_PPLC_MULTI 0x10

#define	HDA_PPLC_INTERVAL 0x10

#define	HDA_REG_PPLCCTL 0x0

#define	HDA_PPLCCTL_STRM_BITS 4

#define	HDA_PPLCCTL_STRM_SHIFT 20

#define	HDA_REG_MASK(bit_num, offset) (((1 << (bit_num)) - 1) << (offset))

#define	HDA_PPLCCTL_STRM_MASK HDA_REG_MASK(HDA_PPLCCTL_STRM_BITS, HDA_PPLCCTL_STRM_SHIFT)

#define	HDA_PPLCCTL_RUN (1<<1)

#define	HDA_PPLCCTL_STRST (1<<0)

#define	HDA_REG_PPLCFMT 0x4

#define	HDA_REG_PPLCLLPL 0x8

#define	HDA_REG_PPLCLLPU 0xC

#define	HDA_ML_CAP_ID 0x2

#define	HDA_REG_ML_MLCH 0x00

#define	HDA_REG_ML_MLCD 0x04

#define	HDA_ML_BASE 0x40

#define	HDA_ML_INTERVAL 0x40

#define	HDA_REG_ML_LCAP 0x00

#define	HDA_REG_ML_LCTL 0x04

#define	HDA_REG_ML_LOSIDV 0x08

#define	HDA_REG_ML_LSDIID 0x0C

#define	HDA_REG_ML_LPSOO 0x10

#define	HDA_REG_ML_LPSIO 0x12

#define	HDA_REG_ML_LWALFC 0x18

#define	HDA_REG_ML_LOUTPAY 0x20

#define	HDA_REG_ML_LINPAY 0x30

#define	ML_LOSIDV_STREAM_MASK 0xFFFE

#define	ML_LCTL_SCF_MASK 0xF

#define	HDA_MLCTL_SPA (0x1 << 16)

#define	HDA_MLCTL_CPA (0x1 << 23)

#define	HDA_MLCTL_SPA_SHIFT 16

#define	HDA_MLCTL_CPA_SHIFT 23

#define	HDA_DRSM_CAP_ID 0x5

#define	HDA_REG_DRSM_CTL 0x4

#define	HDA_DRSM_BASE 0x08

#define	HDA_DRSM_INTERVAL 0x08

#define	GTSCC_TSCCD_MASK 0x80000000

#define	GTSCC_TSCCD_SHIFT BIT(31)

#define	GTSCC_TSCCI_MASK 0x20

#define	GTSCC_CDMAS_DMA_DIR_SHIFT 4

#define	WALFCC_CIF_MASK 0x1FF

#define	WALFCC_FN_SHIFT 9

#define	HDA_CLK_CYCLES_PER_FRAME 512

#define	HDA_MAX_CYCLE_VALUE 499

#define	HDA_MAX_CYCLE_OFFSET 10

#define	HDA_MAX_CYCLE_READ_RETRY 10

#define	TSCCU_CCU_SHIFT 32

#define	LLPC_CCU_SHIFT 32

#define	INTEL_HDA_CGCTL 0x48

#define	INTEL_HDA_CGCTL_MISCBDCGE (0x1 << 6)

#define	INTEL_SCH_HDA_DEVC 0x78

#define	INTEL_SCH_HDA_DEVC_NOSNOOP (0x1<<11)

#define	HDA_VS_EM2_DUM (1 << 23)

#define	ATI_SB450_HDAUDIO_MISC_CNTR2_ADDR 0x42

#define	ATI_SB450_HDAUDIO_ENABLE_SNOOP 0x02

#define	NVIDIA_HDA_TRANSREG_ADDR 0x4e

#define	NVIDIA_HDA_ENABLE_COHBITS 0x0f

#define	NVIDIA_HDA_ISTRM_COH 0x4d

#define	NVIDIA_HDA_OSTRM_COH 0x4c

#define	NVIDIA_HDA_ENABLE_COHBIT 0x01

#define	INTEL_HDA_CGCTL 0x48

#define	INTEL_HDA_CGCTL_MISCBDCGE (0x1 << 6)

#define	INTEL_SCH_HDA_DEVC 0x78

#define	INTEL_SCH_HDA_DEVC_NOSNOOP (0x1<<11)

Enumerations
enum	{ SDI0 , SDI1 , SDI2 , SDI3 , SDO0 , SDO1 , SDO2 , SDO3 }
