opregion.c File Reference

#include <uacpi/kernel_api.h>
#include <uacpi/internal/opregion.h>
#include <uacpi/internal/namespace.h>
#include <uacpi/internal/stdlib.h>
#include <uacpi/internal/log.h>
#include <uacpi/internal/utilities.h>
#include <uacpi/internal/mutex.h>
#include <uacpi/internal/interpreter.h>

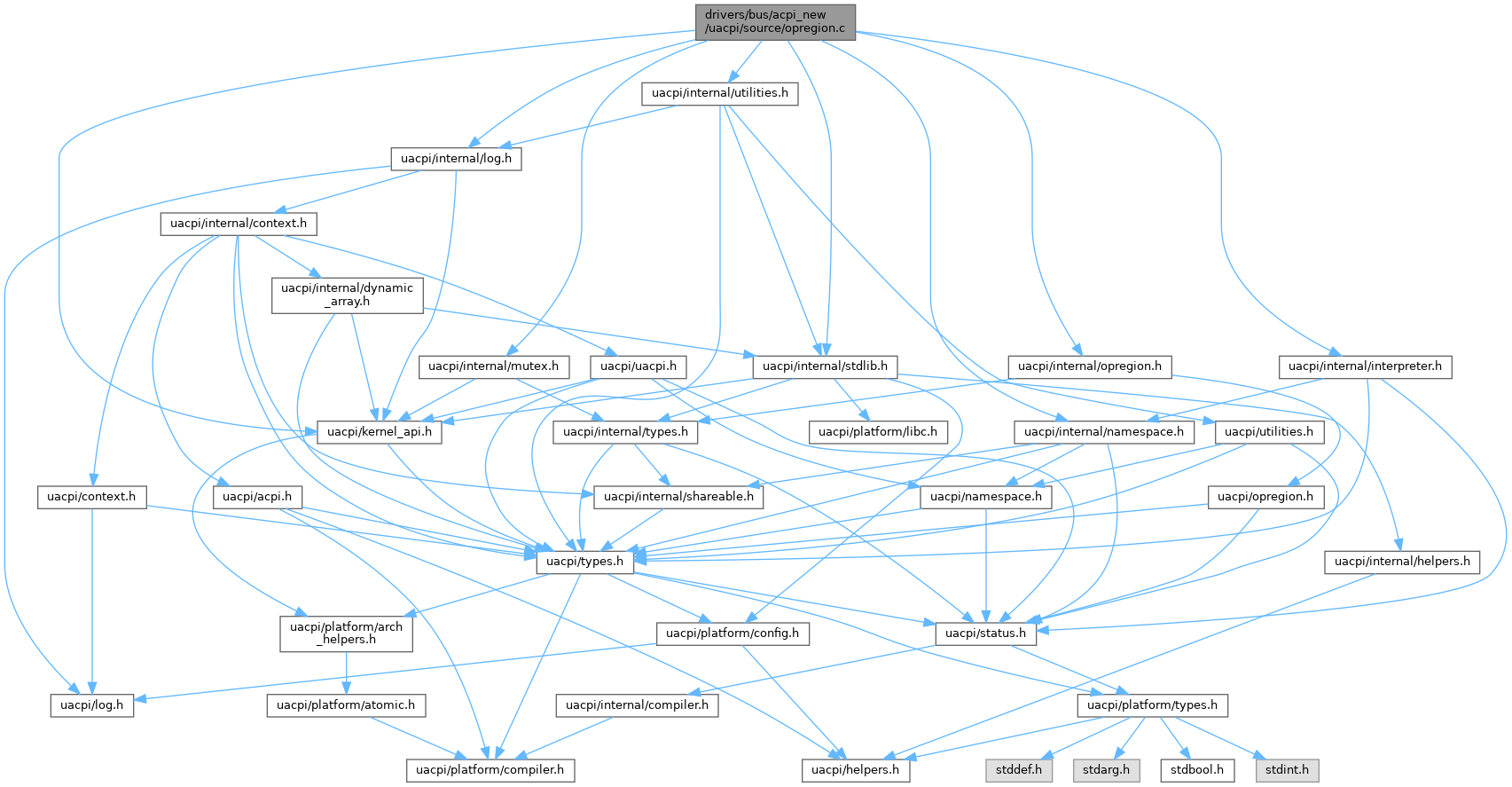

Include dependency graph for opregion.c:

Go to the source code of this file.

Classes
struct	opregion_iter_ctx
struct	reg_run_ctx

Enumerations
enum	unreg { UNREG_NO = 0 , UNREG_YES }
enum	opregion_iter_action { OPREGION_ITER_ACTION_UNINSTALL , OPREGION_ITER_ACTION_INSTALL }

Functions
uacpi_status	uacpi_initialize_opregion (void)
void	uacpi_deinitialize_opregion (void)
void	uacpi_trace_region_error (uacpi_namespace_node *node, uacpi_char *message, uacpi_status ret)
static void	trace_region_io (uacpi_field_unit *field, uacpi_address_space space, uacpi_u64 offset, uacpi_region_op op, union uacpi_opregion_io_data data)
static uacpi_bool	space_needs_reg (enum uacpi_address_space space)
static uacpi_status	region_run_reg (uacpi_namespace_node *node, uacpi_u8 connection_code)
uacpi_address_space_handlers *	uacpi_node_get_address_space_handlers (uacpi_namespace_node *node)
static uacpi_address_space_handler *	find_handler (uacpi_address_space_handlers *handlers, enum uacpi_address_space space)
static uacpi_operation_region *	find_previous_region_link (uacpi_operation_region *region)
uacpi_status	uacpi_opregion_attach (uacpi_namespace_node *node)
static void	region_install_handler (uacpi_namespace_node *node, uacpi_address_space_handler *handler)
static void	region_uninstall_handler (uacpi_namespace_node *node, enum unreg unreg)
uacpi_status	uacpi_upgrade_to_opregion_lock (void)
void	uacpi_release_opregion_lock (void)
void	uacpi_opregion_uninstall_handler (uacpi_namespace_node *node)
uacpi_bool	uacpi_address_space_handler_is_default (uacpi_address_space_handler *handler)
static uacpi_iteration_decision	do_install_or_uninstall_handler (uacpi_handle opaque, uacpi_namespace_node *node, uacpi_u32 depth)
static uacpi_iteration_decision	do_run_reg (void *opaque, uacpi_namespace_node *node, uacpi_u32 depth)
static uacpi_status	reg_or_unreg_all_opregions (uacpi_namespace_node *device_node, enum uacpi_address_space space, uacpi_u8 connection_code)
static uacpi_address_space_handlers *	extract_handlers (uacpi_namespace_node *node)
uacpi_status	uacpi_reg_all_opregions (uacpi_namespace_node *device_node, enum uacpi_address_space space)
uacpi_status	uacpi_install_address_space_handler_with_flags (uacpi_namespace_node *device_node, enum uacpi_address_space space, uacpi_region_handler handler, uacpi_handle handler_context, uacpi_u16 flags)
uacpi_status	uacpi_install_address_space_handler (uacpi_namespace_node *device_node, enum uacpi_address_space space, uacpi_region_handler handler, uacpi_handle handler_context)
uacpi_status	uacpi_uninstall_address_space_handler (uacpi_namespace_node *device_node, enum uacpi_address_space space)
uacpi_status	uacpi_initialize_opregion_node (uacpi_namespace_node *node)
uacpi_bool	uacpi_is_buffer_access_address_space (uacpi_address_space space)
static uacpi_bool	space_needs_bounds_checking (uacpi_address_space space)
uacpi_status	uacpi_dispatch_opregion_io (uacpi_field_unit *field, uacpi_u32 offset, uacpi_region_op op, union uacpi_opregion_io_data data)

Variables
struct uacpi_recursive_lock	g_opregion_lock

Enumeration Type Documentation

opregion_iter_action

enum opregion_iter_action

Enumerator
OPREGION_ITER_ACTION_UNINSTALL
OPREGION_ITER_ACTION_INSTALL

Definition at line 420 of file opregion.c.

                          {
    OPREGION_ITER_ACTION_UNINSTALL,
    OPREGION_ITER_ACTION_INSTALL,
};

unreg

enum unreg

Enumerator
UNREG_NO
UNREG_YES

Definition at line 311 of file opregion.c.

           {
    UNREG_NO = 0,
    UNREG_YES,
};

Function Documentation

do_install_or_uninstall_handler()

static uacpi_iteration_decision do_install_or_uninstall_handler ( uacpi_handle  opaque, uacpi_namespace_node *  node, uacpi_u32  depth  )

static

Definition at line 430 of file opregion.c.

{
    struct opregion_iter_ctx *ctx = opaque;
    uacpi_address_space_handlers *handlers;
    uacpi_object *object;

    UACPI_UNUSED(depth);

    object = uacpi_namespace_node_get_object(node);
    if (object->type == UACPI_OBJECT_OPERATION_REGION) {
        uacpi_operation_region *region = object->op_region;

        if (region->space != ctx->handler->space)
            return UACPI_ITERATION_DECISION_CONTINUE;

        if (ctx->action == OPREGION_ITER_ACTION_INSTALL) {
            if (region->handler)
                region_uninstall_handler(node, UNREG_NO);

            region_install_handler(node, ctx->handler);
        } else {
            if (uacpi_unlikely(region->handler != ctx->handler)) {
                uacpi_trace_region_error(
                    node, "handler mismatch for",
                    UACPI_STATUS_INTERNAL_ERROR
                );
                return UACPI_ITERATION_DECISION_CONTINUE;
            }

            region_uninstall_handler(node, UNREG_NO);
        }

        return UACPI_ITERATION_DECISION_CONTINUE;
    }

    handlers = uacpi_node_get_address_space_handlers(node);
    if (handlers == UACPI_NULL)
        return UACPI_ITERATION_DECISION_CONTINUE;

    // Device already has a handler for this space installed
    if (find_handler(handlers, ctx->handler->space) != UACPI_NULL)
        return UACPI_ITERATION_DECISION_NEXT_PEER;

    return UACPI_ITERATION_DECISION_CONTINUE;
}

Referenced by uacpi_install_address_space_handler_with_flags(), and uacpi_uninstall_address_space_handler().

do_run_reg()

static uacpi_iteration_decision do_run_reg ( void *  opaque, uacpi_namespace_node *  node, uacpi_u32  depth  )

static

Definition at line 485 of file opregion.c.

{
    struct reg_run_ctx *ctx = opaque;
    uacpi_operation_region *region;
    uacpi_status ret;
    uacpi_bool was_regged;

    UACPI_UNUSED(depth);

    region = uacpi_namespace_node_get_object(node)->op_region;

    if (region->space != ctx->space)
        return UACPI_ITERATION_DECISION_CONTINUE;

    was_regged = region->state_flags & UACPI_OP_REGION_STATE_REG_EXECUTED;
    if (was_regged == (ctx->connection_code == ACPI_REG_CONNECT))
        return UACPI_ITERATION_DECISION_CONTINUE;

    ret = region_run_reg(node, ctx->connection_code);
    if (ctx->connection_code == ACPI_REG_DISCONNECT)
        region->state_flags &= ~UACPI_OP_REGION_STATE_REG_EXECUTED;

    if (ret == UACPI_STATUS_NOT_FOUND)
        return UACPI_ITERATION_DECISION_CONTINUE;

    if (ctx->connection_code == ACPI_REG_CONNECT)
        region->state_flags |= UACPI_OP_REGION_STATE_REG_EXECUTED;

    ctx->reg_executed++;

    if (uacpi_unlikely_error(ret)) {
        ctx->reg_errors++;
        return UACPI_ITERATION_DECISION_CONTINUE;
    }

    return UACPI_ITERATION_DECISION_CONTINUE;
}

Referenced by reg_or_unreg_all_opregions().

extract_handlers()

static uacpi_address_space_handlers * extract_handlers ( uacpi_namespace_node *  node )

static

Definition at line 570 of file opregion.c.

{
    uacpi_object *handlers_obj;

    if (node == uacpi_namespace_root())
        return g_uacpi_rt_ctx.root_object->address_space_handlers;

    handlers_obj = uacpi_namespace_node_get_object_typed(
        node,
        UACPI_OBJECT_DEVICE_BIT | UACPI_OBJECT_THERMAL_ZONE_BIT |
        UACPI_OBJECT_PROCESSOR_BIT
    );
    if (uacpi_unlikely(handlers_obj == UACPI_NULL))
        return UACPI_NULL;

    return handlers_obj->address_space_handlers;
}

Referenced by uacpi_install_address_space_handler_with_flags(), uacpi_reg_all_opregions(), and uacpi_uninstall_address_space_handler().

find_handler()

static uacpi_address_space_handler * find_handler ( uacpi_address_space_handlers *  handlers, enum uacpi_address_space  space  )

static

Definition at line 193 of file opregion.c.

{
    uacpi_address_space_handler *handler = handlers->head;

    while (handler) {
        if (handler->space == space)
            return handler;

        handler = handler->next;
    }

    return UACPI_NULL;
}

Referenced by do_install_or_uninstall_handler(), reg_or_unreg_all_opregions(), uacpi_initialize_opregion_node(), uacpi_install_address_space_handler_with_flags(), and uacpi_uninstall_address_space_handler().

find_previous_region_link()

static uacpi_operation_region * find_previous_region_link ( uacpi_operation_region *  region )

static

Definition at line 210 of file opregion.c.

{
    uacpi_address_space_handler *handler = region->handler;
    uacpi_operation_region *parent = handler->regions;

    if (parent == region)
        // This is the last attached region, it has no previous link
        return region;

    while (parent->next != region) {
        parent = parent->next;

        if (uacpi_unlikely(parent == UACPI_NULL))
            return UACPI_NULL;
    }

    return parent;
}

Referenced by region_uninstall_handler().

reg_or_unreg_all_opregions()

static uacpi_status reg_or_unreg_all_opregions ( uacpi_namespace_node *  device_node, enum uacpi_address_space  space, uacpi_u8  connection_code  )

static

Definition at line 525 of file opregion.c.

{
    uacpi_address_space_handlers *handlers;
    uacpi_bool is_connect;
    enum uacpi_permanent_only perm_only;
    struct reg_run_ctx ctx = { 0 };

    ctx.space = space;
    ctx.connection_code = connection_code;

    handlers = uacpi_node_get_address_space_handlers(device_node);
    if (uacpi_unlikely(handlers == UACPI_NULL))
        return UACPI_STATUS_INVALID_ARGUMENT;

    is_connect = connection_code == ACPI_REG_CONNECT;
    if (uacpi_unlikely(is_connect &&
                       find_handler(handlers, space) == UACPI_NULL))
        return UACPI_STATUS_NO_HANDLER;

    /*
     * We want to unreg non-permanent opregions as well, however,
     * registering them is handled separately and should not be
     * done by us.
     */
    perm_only = is_connect ? UACPI_PERMANENT_ONLY_YES : UACPI_PERMANENT_ONLY_NO;

    uacpi_namespace_do_for_each_child(
        device_node, do_run_reg, UACPI_NULL,
        UACPI_OBJECT_OPERATION_REGION_BIT, UACPI_MAX_DEPTH_ANY,
        UACPI_SHOULD_LOCK_NO, perm_only, &ctx
    );

    uacpi_trace(
        "%sactivated all '%s' opregions controlled by '%.4s', "
        "%zu _REG() calls (%zu errors)",
        connection_code == ACPI_REG_CONNECT ? "" : "de",
        uacpi_address_space_to_string(space),
        device_node->name.text, ctx.reg_executed, ctx.reg_errors
    );
    return UACPI_STATUS_OK;
}

Referenced by uacpi_install_address_space_handler_with_flags(), uacpi_reg_all_opregions(), and uacpi_uninstall_address_space_handler().

region_install_handler()

static void region_install_handler ( uacpi_namespace_node *  node, uacpi_address_space_handler *  handler  )

static

Definition at line 297 of file opregion.c.

{
    uacpi_operation_region *region;

    region = uacpi_namespace_node_get_object(node)->op_region;
    region->handler = handler;
    uacpi_shareable_ref(handler);

    region->next = handler->regions;
    handler->regions = region;
}

Referenced by do_install_or_uninstall_handler(), and uacpi_initialize_opregion_node().

region_run_reg()

static uacpi_status region_run_reg ( uacpi_namespace_node *  node, uacpi_u8  connection_code  )

static

Definition at line 122 of file opregion.c.

{
    uacpi_status ret;
    uacpi_namespace_node *reg_node;
    uacpi_object_array method_args;
    uacpi_object *reg_obj, *args[2];

    ret = uacpi_namespace_node_resolve(
        node->parent, "_REG", UACPI_SHOULD_LOCK_NO,
        UACPI_MAY_SEARCH_ABOVE_PARENT_NO, UACPI_PERMANENT_ONLY_NO, &reg_node
    );
    if (uacpi_unlikely_error(ret))
        return ret;

    reg_obj = uacpi_namespace_node_get_object_typed(
        reg_node, UACPI_OBJECT_METHOD_BIT
    );
    if (uacpi_unlikely(reg_obj == UACPI_NULL))
        return UACPI_STATUS_OK;

    args[0] = uacpi_create_object(UACPI_OBJECT_INTEGER);
    if (uacpi_unlikely(args[0] == UACPI_NULL))
        return UACPI_STATUS_OUT_OF_MEMORY;

    args[1] = uacpi_create_object(UACPI_OBJECT_INTEGER);
    if (uacpi_unlikely(args[1] == UACPI_NULL)) {
        uacpi_object_unref(args[0]);
        return UACPI_STATUS_OUT_OF_MEMORY;
    }

    args[0]->integer = uacpi_namespace_node_get_object(node)->op_region->space;
    args[1]->integer = connection_code;
    method_args.objects = args;
    method_args.count = 2;

    ret = uacpi_execute_control_method(
        reg_node, reg_obj->method, &method_args, UACPI_NULL
    );
    if (uacpi_unlikely_error(ret))
        uacpi_trace_region_error(node, "error during _REG execution for", ret);

    uacpi_object_unref(args[0]);
    uacpi_object_unref(args[1]);
    return ret;
}

Referenced by do_run_reg(), region_uninstall_handler(), and uacpi_initialize_opregion_node().

region_uninstall_handler()

static void region_uninstall_handler ( uacpi_namespace_node *  node, enum unreg  unreg  )

static

Definition at line 316 of file opregion.c.

{
    uacpi_status ret;
    uacpi_object *obj;
    uacpi_address_space_handler *handler;
    uacpi_operation_region *region, *link;

    obj = uacpi_namespace_node_get_object_typed(
        node, UACPI_OBJECT_OPERATION_REGION_BIT
    );
    if (uacpi_unlikely(obj == UACPI_NULL))
        return;

    region = obj->op_region;

    handler = region->handler;
    if (handler == UACPI_NULL)
        return;

    link = find_previous_region_link(region);
    if (uacpi_unlikely(link == UACPI_NULL)) {
        uacpi_error("operation region @%p not in the handler@%p list(?)",
                    region, handler);
        goto out;
    } else if (link == region) {
        link = link->next;
        handler->regions = link;
    } else {
        link->next = region->next;
    }

out:
    if (region->state_flags & UACPI_OP_REGION_STATE_ATTACHED) {
        uacpi_region_detach_data detach_data = { 0 };

        detach_data.region_node = node;
        detach_data.region_context = region->user_context;
        detach_data.handler_context = handler->user_context;

        uacpi_shareable_ref(node);
        uacpi_namespace_write_unlock();

        ret = handler->callback(UACPI_REGION_OP_DETACH, &detach_data);

        uacpi_namespace_write_lock();
        uacpi_namespace_node_unref(node);

        if (uacpi_unlikely_error(ret)) {
            uacpi_trace_region_error(
                node, "error during handler detach for", ret
            );
        }
    }

    if ((region->state_flags & UACPI_OP_REGION_STATE_REG_EXECUTED) &&
        unreg == UNREG_YES) {
        region_run_reg(node, ACPI_REG_DISCONNECT);
        region->state_flags &= ~UACPI_OP_REGION_STATE_REG_EXECUTED;
    }

    uacpi_address_space_handler_unref(region->handler);
    region->handler = UACPI_NULL;
    region->state_flags &= ~UACPI_OP_REGION_STATE_ATTACHED;
}

Referenced by do_install_or_uninstall_handler(), and uacpi_opregion_uninstall_handler().

space_needs_bounds_checking()

static uacpi_bool space_needs_bounds_checking ( uacpi_address_space  space )

static

Definition at line 847 of file opregion.c.

{
    return !uacpi_is_buffer_access_address_space(space) &&
        space != UACPI_ADDRESS_SPACE_GENERAL_PURPOSE_IO;
}

Referenced by uacpi_dispatch_opregion_io().

space_needs_reg()

static uacpi_bool space_needs_reg ( enum uacpi_address_space  space )

static

Definition at line 112 of file opregion.c.

{
    if (space == UACPI_ADDRESS_SPACE_SYSTEM_MEMORY ||
        space == UACPI_ADDRESS_SPACE_SYSTEM_IO ||
        space == UACPI_ADDRESS_SPACE_TABLE_DATA)
        return UACPI_FALSE;

    return UACPI_TRUE;
}

Referenced by uacpi_initialize_opregion_node(), uacpi_install_address_space_handler_with_flags(), uacpi_reg_all_opregions(), and uacpi_uninstall_address_space_handler().

trace_region_io()

static void trace_region_io ( uacpi_field_unit *  field, uacpi_address_space  space, uacpi_u64  offset, uacpi_region_op  op, union uacpi_opregion_io_data  data  )

static

Definition at line 47 of file opregion.c.

{
    const uacpi_char *path;
    const uacpi_char *type_str;

    if (!uacpi_should_log(UACPI_LOG_TRACE))
        return;

    switch (op) {
    case UACPI_REGION_OP_READ:
        type_str = "read from";
        break;
    case UACPI_REGION_OP_WRITE:
        type_str = "write to";
        break;
    default:
        type_str = "<INVALID-OP>";
    }

    path = uacpi_namespace_node_generate_absolute_path(field->region);

    switch (space) {
    case UACPI_ADDRESS_SPACE_IPMI:
    case UACPI_ADDRESS_SPACE_PRM:
    case UACPI_ADDRESS_SPACE_FFIXEDHW:
        uacpi_trace(
            "write-then-read from [%s] %s[0x%016"UACPI_PRIX64"] = "
            "<buffer of %zu bytes>", path,
            uacpi_address_space_to_string(space),
            UACPI_FMT64(offset), data.buffer.length
        );
        break;
    case UACPI_ADDRESS_SPACE_SMBUS:
    case UACPI_ADDRESS_SPACE_GENERIC_SERIAL_BUS:
        uacpi_trace(
            "%s [%s] %s[0x%016"UACPI_PRIX64"] = "
            "<buffer of %zu bytes>", type_str, path,
            uacpi_address_space_to_string(space),
            UACPI_FMT64(offset), data.buffer.length
        );
        break;
    case UACPI_ADDRESS_SPACE_GENERAL_PURPOSE_IO:
        uacpi_trace(
            "%s [%s] %s pins[%u..%u] = 0x%"UACPI_PRIX64,
            type_str, path, uacpi_address_space_to_string(space),
            field->pin_offset, (field->pin_offset + field->bit_length) - 1,
            UACPI_FMT64(*data.integer)
        );
        break;
    default:
        uacpi_trace(
            "%s [%s] (%d bytes) %s[0x%016"UACPI_PRIX64"] = 0x%"UACPI_PRIX64,
            type_str, path, field->access_width_bytes,
            uacpi_address_space_to_string(space),
            UACPI_FMT64(offset), UACPI_FMT64(*data.integer)
        );
        break;
    }

    uacpi_free_dynamic_string(path);
}

Referenced by uacpi_dispatch_opregion_io().

uacpi_address_space_handler_is_default()

uacpi_bool uacpi_address_space_handler_is_default

(

uacpi_address_space_handler *

handler

)

Definition at line 413 of file opregion.c.

{
    return handler->flags & UACPI_ADDRESS_SPACE_HANDLER_DEFAULT;
}

Referenced by uacpi_namespace_initialize().

uacpi_deinitialize_opregion()

void uacpi_deinitialize_opregion

(

void

)

Definition at line 20 of file opregion.c.

{
    uacpi_recursive_lock_deinit(&g_opregion_lock);
}

Referenced by uacpi_state_reset().

uacpi_dispatch_opregion_io()

uacpi_status uacpi_dispatch_opregion_io	(	uacpi_field_unit *	field,
		uacpi_u32	offset,
		uacpi_region_op	op,
		union uacpi_opregion_io_data	data
	)

Definition at line 853 of file opregion.c.

{
    uacpi_status ret;
    uacpi_object *obj;
    uacpi_operation_region *region;
    uacpi_address_space_handler *handler;
    uacpi_address_space space;
    uacpi_u64 abs_offset, offset_end = offset;
    uacpi_bool is_oob = UACPI_FALSE;
    uacpi_region_op orig_op = op;

    union {
        uacpi_region_rw_data rw;
        uacpi_region_pcc_send_data pcc;
        uacpi_region_gpio_rw_data gpio;
        uacpi_region_ipmi_rw_data ipmi;
        uacpi_region_ffixedhw_rw_data ffixedhw;
        uacpi_region_prm_rw_data prm;
        uacpi_region_serial_rw_data serial;
    } handler_data;

    ret = uacpi_opregion_attach(field->region);
    if (uacpi_unlikely_error(ret)) {
        uacpi_trace_region_error(
            field->region, "unable to attach", ret
        );
        return ret;
    }

    obj = uacpi_namespace_node_get_object_typed(
        field->region, UACPI_OBJECT_OPERATION_REGION_BIT
    );
    if (uacpi_unlikely(obj == UACPI_NULL))
        return UACPI_STATUS_INVALID_ARGUMENT;

    region = obj->op_region;
    space = region->space;
    handler = region->handler;

    abs_offset = region->offset + offset;
    offset_end += field->access_width_bytes;

    if (uacpi_likely(space_needs_bounds_checking(region->space)))
        is_oob = region->length < offset_end || abs_offset < offset;
    if (uacpi_unlikely(is_oob)) {
        const uacpi_char *path;

        path = uacpi_namespace_node_generate_absolute_path(field->region);
        uacpi_error(
            "out-of-bounds access to opregion %s[0x%"UACPI_PRIX64"->"
            "0x%"UACPI_PRIX64"] at 0x%"UACPI_PRIX64" (idx=%u, width=%d)",
            path, UACPI_FMT64(region->offset),
            UACPI_FMT64(region->offset + region->length),
            UACPI_FMT64(abs_offset), offset, field->access_width_bytes
        );
        uacpi_free_dynamic_string(path);
        return UACPI_STATUS_AML_OUT_OF_BOUNDS_INDEX;
    }

    handler_data.rw.region_context = region->user_context;
    handler_data.rw.handler_context = handler->user_context;

    switch (region->space) {
    case UACPI_ADDRESS_SPACE_PCC: {
        uacpi_u8 *cursor;

        cursor = region->internal_buffer + offset;

        /*
         * Reads from PCC just return the current contents of the internal
         * buffer.
         */
        if (op == UACPI_REGION_OP_READ) {
            uacpi_memcpy_zerout(
                data.integer, cursor, sizeof(*data.integer),
                field->access_width_bytes
            );
            goto io_done;
        }

        uacpi_memcpy(cursor, data.integer, field->access_width_bytes);

        /*
         * Dispatch a PCC send command if this was a write to the command field
         *
         * ACPI 6.5: 14.3. Extended PCC Subspace Shared Memory Region
         */
        if (offset >= 12 && offset < 16) {
            uacpi_memzero(&handler_data.pcc.buffer, sizeof(handler_data.pcc.buffer));
            handler_data.pcc.buffer.bytes = region->internal_buffer;
            handler_data.pcc.buffer.length = region->length;

            op = UACPI_REGION_OP_PCC_SEND;
            break;
        }

        // No dispatch needed, IO is done
        goto io_done;
    }
    case UACPI_ADDRESS_SPACE_GENERAL_PURPOSE_IO:
        handler_data.gpio.pin_offset = field->pin_offset;
        handler_data.gpio.num_pins = field->bit_length;
        handler_data.gpio.value = *data.integer;

        ret = uacpi_object_get_string_or_buffer(
            field->connection, &handler_data.gpio.connection
        );
        if (uacpi_unlikely_error(ret))
            goto io_done;

        op = op == UACPI_REGION_OP_READ ?
            UACPI_REGION_OP_GPIO_READ : UACPI_REGION_OP_GPIO_WRITE;
        break;
    case UACPI_ADDRESS_SPACE_IPMI:
        handler_data.ipmi.in_out_message = data.buffer;
        handler_data.ipmi.command = abs_offset;
        op = UACPI_REGION_OP_IPMI_COMMAND;
        break;
    case UACPI_ADDRESS_SPACE_FFIXEDHW:
        handler_data.ffixedhw.in_out_message = data.buffer;
        handler_data.ffixedhw.command = abs_offset;
        op = UACPI_REGION_OP_FFIXEDHW_COMMAND;
        break;
    case UACPI_ADDRESS_SPACE_PRM:
        handler_data.prm.in_out_message = data.buffer;
        op = UACPI_REGION_OP_PRM_COMMAND;
        break;
    case UACPI_ADDRESS_SPACE_GENERIC_SERIAL_BUS:
    case UACPI_ADDRESS_SPACE_SMBUS:
        ret = uacpi_object_get_string_or_buffer(
            field->connection, &handler_data.serial.connection
        );
        if (uacpi_unlikely_error(ret))
            goto io_done;

        handler_data.serial.command = abs_offset;
        handler_data.serial.in_out_buffer = data.buffer;
        handler_data.serial.access_attribute = field->attributes;

        switch (field->attributes) {
        case UACPI_ACCESS_ATTRIBUTE_BYTES:
        case UACPI_ACCESS_ATTRIBUTE_RAW_BYTES:
        case UACPI_ACCESS_ATTRIBUTE_RAW_PROCESS_BYTES:
            handler_data.serial.access_length = field->access_length;
            break;
        default:
            handler_data.serial.access_length = 0;
        }

        op = op == UACPI_REGION_OP_READ ?
            UACPI_REGION_OP_SERIAL_READ : UACPI_REGION_OP_SERIAL_WRITE;
        break;
    default:
        handler_data.rw.byte_width = field->access_width_bytes;
        handler_data.rw.offset = abs_offset;
        handler_data.rw.value = *data.integer;
        break;
    }

    uacpi_object_ref(obj);
    uacpi_namespace_write_unlock();

    ret = handler->callback(op, &handler_data);

    uacpi_namespace_write_lock();
    uacpi_object_unref(obj);

io_done:
    if (uacpi_unlikely_error(ret)) {
        uacpi_trace_region_error(field->region, "unable to perform IO", ret);
        return ret;
    }

    if (orig_op == UACPI_REGION_OP_READ) {
        switch (region->space) {
        case UACPI_ADDRESS_SPACE_PCC:
        case UACPI_ADDRESS_SPACE_IPMI:
        case UACPI_ADDRESS_SPACE_FFIXEDHW:
        case UACPI_ADDRESS_SPACE_PRM:
        case UACPI_ADDRESS_SPACE_GENERIC_SERIAL_BUS:
        case UACPI_ADDRESS_SPACE_SMBUS:
            break;
        case UACPI_ADDRESS_SPACE_GENERAL_PURPOSE_IO:
            *data.integer = handler_data.gpio.value;
            break;
        default:
            *data.integer = handler_data.rw.value;
            break;
        }
    }

    trace_region_io(field, space, abs_offset, orig_op, data);
    return ret;
}

Referenced by access_field_unit().

uacpi_initialize_opregion()

uacpi_status uacpi_initialize_opregion

(

void

)

Definition at line 15 of file opregion.c.

{
    return uacpi_recursive_lock_init(&g_opregion_lock);
}

Referenced by uacpi_initialize().

uacpi_initialize_opregion_node()

uacpi_status uacpi_initialize_opregion_node

(

uacpi_namespace_node *

node

)

Definition at line 788 of file opregion.c.

{
    uacpi_status ret;
    uacpi_namespace_node *parent = node->parent;
    uacpi_operation_region *region;
    uacpi_address_space_handlers *handlers;
    uacpi_address_space_handler *handler;

    ret = uacpi_upgrade_to_opregion_lock();
    if (uacpi_unlikely_error(ret))
        return ret;

    region = uacpi_namespace_node_get_object(node)->op_region;
    ret = UACPI_STATUS_NOT_FOUND;

    while (parent) {
        handlers = uacpi_node_get_address_space_handlers(parent);
        if (handlers != UACPI_NULL) {
            handler = find_handler(handlers, region->space);

            if (handler != UACPI_NULL) {
                region_install_handler(node, handler);
                ret = UACPI_STATUS_OK;
                break;
            }
        }

        parent = parent->parent;
    }

    if (ret != UACPI_STATUS_OK)
        goto out;
    if (!space_needs_reg(region->space))
        goto out;
    if (uacpi_get_current_init_level() < UACPI_INIT_LEVEL_NAMESPACE_LOADED)
        goto out;

    if (region_run_reg(node, ACPI_REG_CONNECT) != UACPI_STATUS_NOT_FOUND)
        region->state_flags |= UACPI_OP_REGION_STATE_REG_EXECUTED;

out:
    uacpi_recursive_lock_release(&g_opregion_lock);
    return ret;
}

Referenced by handle_create_data_region(), and handle_create_op_region().

uacpi_install_address_space_handler()

uacpi_status uacpi_install_address_space_handler	(	uacpi_namespace_node *	device_node,
		enum uacpi_address_space	space,
		uacpi_region_handler	handler,
		uacpi_handle	handler_context
	)

Install an address space handler to a device node. The handler is recursively connected to all of the operation regions of type 'space' underneath 'device_node'. Note that this recursion stops as soon as another device node that already has an address space handler of this type installed is encountered.

Definition at line 706 of file opregion.c.

{
    return uacpi_install_address_space_handler_with_flags(
        device_node, space, handler, handler_context, 0
    );
}

uacpi_install_address_space_handler_with_flags()

uacpi_status uacpi_install_address_space_handler_with_flags	(	uacpi_namespace_node *	device_node,
		enum uacpi_address_space	space,
		uacpi_region_handler	handler,
		uacpi_handle	handler_context,
		uacpi_u16	flags
	)

Definition at line 625 of file opregion.c.

{
    uacpi_status ret;
    uacpi_address_space_handlers *handlers;
    uacpi_address_space_handler *this_handler, *new_handler;
    struct opregion_iter_ctx iter_ctx;

    ret = uacpi_recursive_lock_acquire(&g_opregion_lock);
    if (uacpi_unlikely_error(ret))
        return ret;

    ret = uacpi_namespace_write_lock();
    if (uacpi_unlikely_error(ret)) {
        uacpi_recursive_lock_release(&g_opregion_lock);
        return ret;
    }

    handlers = extract_handlers(device_node);
    if (uacpi_unlikely(handlers == UACPI_NULL)) {
        ret = UACPI_STATUS_INVALID_ARGUMENT;
        goto out;
    }

    this_handler = find_handler(handlers, space);
    if (this_handler != UACPI_NULL) {
        ret = UACPI_STATUS_ALREADY_EXISTS;
        goto out;
    }

    new_handler = uacpi_kernel_alloc(sizeof(*new_handler));
    if (new_handler == UACPI_NULL) {
        ret = UACPI_STATUS_OUT_OF_MEMORY;
        goto out;
    }
    uacpi_shareable_init(new_handler);

    new_handler->next = handlers->head;
    new_handler->space = space;
    new_handler->user_context = handler_context;
    new_handler->callback = handler;
    new_handler->regions = UACPI_NULL;
    new_handler->flags = flags;
    handlers->head = new_handler;

    iter_ctx.handler = new_handler;
    iter_ctx.action = OPREGION_ITER_ACTION_INSTALL;

    uacpi_namespace_do_for_each_child(
        device_node, do_install_or_uninstall_handler, UACPI_NULL,
        UACPI_OBJECT_ANY_BIT, UACPI_MAX_DEPTH_ANY, UACPI_SHOULD_LOCK_NO,
        UACPI_PERMANENT_ONLY_YES, &iter_ctx
    );

    if (!space_needs_reg(space))
        goto out;

     /*
      * Installing an early address space handler, obviously not possible to
      * execute any _REG methods here. Just return and hope that it is either
      * a global address space handler, or a handler installed by a user who
      * will run uacpi_reg_all_opregions manually after loading/initializing
      * the namespace.
      */
    if (g_uacpi_rt_ctx.init_level < UACPI_INIT_LEVEL_NAMESPACE_LOADED)
        goto out;

    // Init level is NAMESPACE_INITIALIZED, so we can safely run _REG now
    ret = reg_or_unreg_all_opregions(
        device_node, space, ACPI_REG_CONNECT
    );

out:
    uacpi_namespace_write_unlock();
    uacpi_recursive_lock_release(&g_opregion_lock);
    return ret;
}

Referenced by uacpi_install_address_space_handler(), and uacpi_install_default_address_space_handlers().

uacpi_is_buffer_access_address_space()

uacpi_bool uacpi_is_buffer_access_address_space

(

uacpi_address_space

space

)

Definition at line 833 of file opregion.c.

{
    switch (space) {
    case UACPI_ADDRESS_SPACE_SMBUS:
    case UACPI_ADDRESS_SPACE_IPMI:
    case UACPI_ADDRESS_SPACE_GENERIC_SERIAL_BUS:
    case UACPI_ADDRESS_SPACE_PRM:
    case UACPI_ADDRESS_SPACE_FFIXEDHW:
        return UACPI_TRUE;
    default:
        return UACPI_FALSE;
    }
}

Referenced by space_needs_bounds_checking(), uacpi_field_unit_get_bit_length(), and uacpi_field_unit_get_read_type().

uacpi_node_get_address_space_handlers()

uacpi_address_space_handlers * uacpi_node_get_address_space_handlers

(

uacpi_namespace_node *

node

)

Definition at line 170 of file opregion.c.

{
    uacpi_object *object;

    if (node == uacpi_namespace_root())
        return g_uacpi_rt_ctx.root_object->address_space_handlers;

    object = uacpi_namespace_node_get_object(node);
    if (uacpi_unlikely(object == UACPI_NULL))
        return UACPI_NULL;

    switch (object->type) {
    case UACPI_OBJECT_DEVICE:
    case UACPI_OBJECT_PROCESSOR:
    case UACPI_OBJECT_THERMAL_ZONE:
        return object->address_space_handlers;
    default:
        return UACPI_NULL;
    }
}

Referenced by do_install_or_uninstall_handler(), reg_or_unreg_all_opregions(), uacpi_initialize_opregion_node(), and uacpi_namespace_initialize().

uacpi_opregion_attach()

uacpi_status uacpi_opregion_attach

(

uacpi_namespace_node *

node

)

Definition at line 231 of file opregion.c.

{
    uacpi_object *obj;
    uacpi_operation_region *region;
    uacpi_address_space_handler *handler;
    uacpi_status ret;
    uacpi_region_attach_data attach_data = { 0 };

    if (uacpi_namespace_node_is_dangling(node))
        return UACPI_STATUS_NAMESPACE_NODE_DANGLING;

    obj = uacpi_namespace_node_get_object_typed(
        node, UACPI_OBJECT_OPERATION_REGION_BIT
    );
    if (uacpi_unlikely(obj == UACPI_NULL))
        return UACPI_STATUS_INVALID_ARGUMENT;

    region = obj->op_region;

    if (region->handler == UACPI_NULL)
        return UACPI_STATUS_NO_HANDLER;
    if (region->state_flags & UACPI_OP_REGION_STATE_ATTACHED)
        return UACPI_STATUS_OK;

    handler = region->handler;
    attach_data.region_node = node;

    switch (region->space) {
    case UACPI_ADDRESS_SPACE_PCC:
        if (region->length) {
            region->internal_buffer = uacpi_kernel_alloc_zeroed(region->length);
            if (uacpi_unlikely(region->internal_buffer == UACPI_NULL))
                return UACPI_STATUS_OUT_OF_MEMORY;
        }

        attach_data.pcc_info.buffer.bytes = region->internal_buffer;
        attach_data.pcc_info.buffer.length = region->length;
        attach_data.pcc_info.subspace_id = region->offset;
        break;
    case UACPI_ADDRESS_SPACE_GENERAL_PURPOSE_IO:
        attach_data.gpio_info.num_pins = region->length;
        break;
    default:
        attach_data.generic_info.base = region->offset;
        attach_data.generic_info.length = region->length;
        break;
    }

    attach_data.handler_context = handler->user_context;

    uacpi_object_ref(obj);
    uacpi_namespace_write_unlock();
    ret = handler->callback(UACPI_REGION_OP_ATTACH, &attach_data);
    uacpi_namespace_write_lock();

    if (uacpi_unlikely_error(ret)) {
        uacpi_object_unref(obj);
        return ret;
    }

    region->state_flags |= UACPI_OP_REGION_STATE_ATTACHED;
    region->user_context = attach_data.out_region_context;
    uacpi_object_unref(obj);
    return ret;
}

Referenced by uacpi_dispatch_opregion_io().

uacpi_opregion_uninstall_handler()

void uacpi_opregion_uninstall_handler

(

uacpi_namespace_node *

node

)

Definition at line 403 of file opregion.c.

{
    if (uacpi_unlikely_error(uacpi_upgrade_to_opregion_lock()))
        return;

    region_uninstall_handler(node, UNREG_YES);

    uacpi_recursive_lock_release(&g_opregion_lock);
}

Referenced by namespace_node_detach_object(), and opregion_try_detach_from_parent().

uacpi_reg_all_opregions()

uacpi_status uacpi_reg_all_opregions	(	uacpi_namespace_node *	device_node,
		enum uacpi_address_space	space
	)

Execute _REG(space, ACPI_REG_CONNECT) for all of the opregions with this address space underneath this device. This should only be called manually if you want to register an early handler that must be available before the call to uacpi_namespace_initialize().

Definition at line 590 of file opregion.c.

{
    uacpi_status ret;

    UACPI_ENSURE_INIT_LEVEL_AT_LEAST(UACPI_INIT_LEVEL_NAMESPACE_LOADED);

    if (!space_needs_reg(space))
        return UACPI_STATUS_OK;

    ret = uacpi_recursive_lock_acquire(&g_opregion_lock);
    if (uacpi_unlikely_error(ret))
        return ret;

    ret = uacpi_namespace_write_lock();
    if (uacpi_unlikely_error(ret)) {
        uacpi_recursive_lock_release(&g_opregion_lock);
        return ret;
    }

    if (uacpi_unlikely(extract_handlers(device_node) == UACPI_NULL)) {
        ret = UACPI_STATUS_INVALID_ARGUMENT;
        goto out;
    }

    ret = reg_or_unreg_all_opregions(device_node, space, ACPI_REG_CONNECT);

out:
    uacpi_namespace_write_unlock();
    uacpi_recursive_lock_release(&g_opregion_lock);
    return ret;
}

Referenced by uacpi_namespace_initialize().

uacpi_release_opregion_lock()

void uacpi_release_opregion_lock

(

void

)

Definition at line 398 of file opregion.c.

{
    uacpi_recursive_lock_release(&g_opregion_lock);
}

Referenced by unlock_field_unit_transaction().

uacpi_trace_region_error()

void uacpi_trace_region_error	(	uacpi_namespace_node *	node,
		uacpi_char *	message,
		uacpi_status	ret
	)

Definition at line 25 of file opregion.c.

{
    const uacpi_char *path, *space_string = "<unknown>";
    uacpi_object *obj;

    path = uacpi_namespace_node_generate_absolute_path(node);

    obj = uacpi_namespace_node_get_object_typed(
        node, UACPI_OBJECT_OPERATION_REGION_BIT
    );
    if (uacpi_likely(obj != UACPI_NULL))
        space_string = uacpi_address_space_to_string(obj->op_region->space);

    uacpi_error(
        "%s (%s) operation region %s: %s",
        message, space_string, path, uacpi_status_to_string(ret)
    );
    uacpi_free_dynamic_string(path);
}

Referenced by do_install_or_uninstall_handler(), find_pci_root(), handle_special_field(), io_region_attach(), memory_region_attach(), pci_region_attach(), region_run_reg(), region_uninstall_handler(), and uacpi_dispatch_opregion_io().

uacpi_uninstall_address_space_handler()

uacpi_status uacpi_uninstall_address_space_handler	(	uacpi_namespace_node *	device_node,
		enum uacpi_address_space	space
	)

Uninstall the handler of type 'space' from a given device node.

Definition at line 716 of file opregion.c.

{
    uacpi_status ret;
    uacpi_address_space_handlers *handlers;
    uacpi_address_space_handler *handler = UACPI_NULL, *prev_handler;
    struct opregion_iter_ctx iter_ctx;

    ret = uacpi_recursive_lock_acquire(&g_opregion_lock);
    if (uacpi_unlikely_error(ret))
        return ret;

    ret = uacpi_namespace_write_lock();
    if (uacpi_unlikely_error(ret)) {
        uacpi_recursive_lock_release(&g_opregion_lock);
        return ret;
    }

    handlers = extract_handlers(device_node);
    if (uacpi_unlikely(handlers == UACPI_NULL)) {
        ret = UACPI_STATUS_INVALID_ARGUMENT;
        goto out;
    }

    handler = find_handler(handlers, space);
    if (uacpi_unlikely(handler == UACPI_NULL)) {
        ret = UACPI_STATUS_NO_HANDLER;
        goto out;
    }

    iter_ctx.handler = handler;
    iter_ctx.action = OPREGION_ITER_ACTION_UNINSTALL;

    uacpi_namespace_do_for_each_child(
        device_node, do_install_or_uninstall_handler, UACPI_NULL,
        UACPI_OBJECT_ANY_BIT, UACPI_MAX_DEPTH_ANY, UACPI_SHOULD_LOCK_NO,
        UACPI_PERMANENT_ONLY_NO, &iter_ctx
    );

    prev_handler = handlers->head;

    // Are we the last linked handler?
    if (prev_handler == handler) {
        handlers->head = handler->next;
        goto out_unreg;
    }

    // Nope, we're somewhere in the middle. Do a search.
    while (prev_handler) {
        if (prev_handler->next == handler) {
            prev_handler->next = handler->next;
            goto out;
        }

        prev_handler = prev_handler->next;
    }

out_unreg:
    if (space_needs_reg(space))
        reg_or_unreg_all_opregions(device_node, space, ACPI_REG_DISCONNECT);

out:
    if (handler != UACPI_NULL)
        uacpi_address_space_handler_unref(handler);

    uacpi_namespace_write_unlock();
    uacpi_recursive_lock_release(&g_opregion_lock);
    return ret;
}

uacpi_upgrade_to_opregion_lock()

uacpi_status uacpi_upgrade_to_opregion_lock

(

void

)

Definition at line 383 of file opregion.c.

{
    uacpi_status ret;

    /*
     * Drop the namespace lock, and reacquire it after the opregion lock
     * so we keep the ordering with user API.
     */
    uacpi_namespace_write_unlock();

    ret = uacpi_recursive_lock_acquire(&g_opregion_lock);
    uacpi_namespace_write_lock();
    return ret;
}

Referenced by lock_field_unit_transaction(), uacpi_initialize_opregion_node(), and uacpi_opregion_uninstall_handler().

Variable Documentation

g_opregion_lock

struct uacpi_recursive_lock g_opregion_lock

Definition at line 13 of file opregion.c.

Referenced by uacpi_deinitialize_opregion(), uacpi_initialize_opregion(), uacpi_initialize_opregion_node(), uacpi_install_address_space_handler_with_flags(), uacpi_opregion_uninstall_handler(), uacpi_reg_all_opregions(), uacpi_release_opregion_lock(), uacpi_uninstall_address_space_handler(), and uacpi_upgrade_to_opregion_lock().
