sdp.c File Reference

#include <stdarg.h>
#include <windef.h>
#include <winbase.h>
#include <winternl.h>
#include "wine/debug.h"
#include "bthsdpdef.h"
#include "bluetoothapis.h"

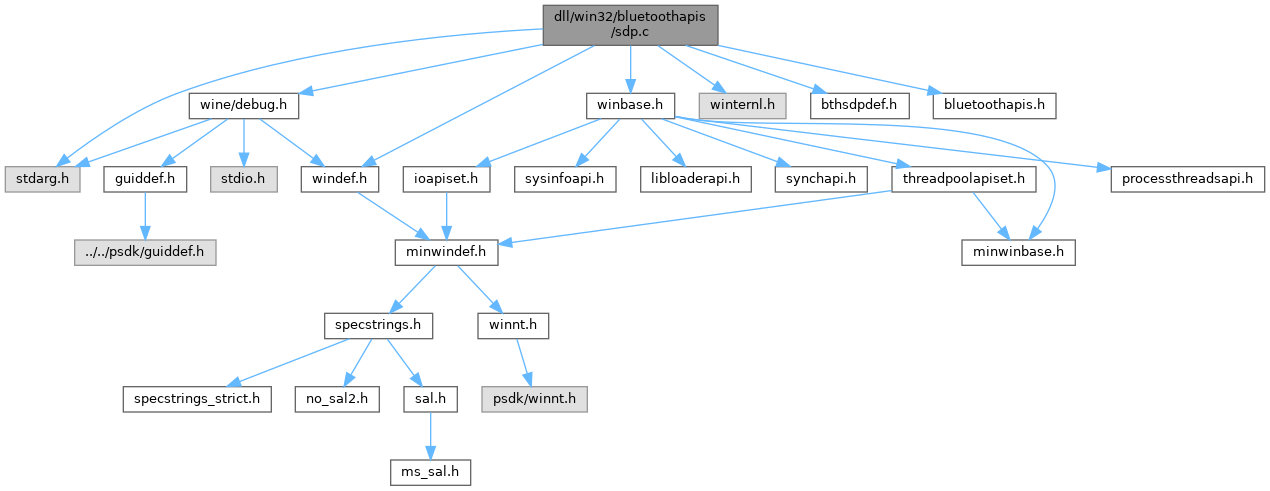

Include dependency graph for sdp.c:

Go to the source code of this file.

Classes
struct	get_attr_value_data

Macros
#define	BTH_READ_UINT16(s)   RtlUshortByteSwap( *(USHORT *)(s) )
#define	BTH_READ_UINT32(s)   RtlUlongByteSwap( *(ULONG *)(s) )
#define	BTH_READ_UINT64(s)   RtlUlonglongByteSwap( *(ULONGLONG *)(s) )
#define	SDP_SIZE_DESC_1_BYTE   0
#define	SDP_SIZE_DESC_2_BYTES   1
#define	SDP_SIZE_DESC_4_BYTES   2
#define	SDP_SIZE_DESC_8_BYTES   3
#define	SDP_SIZE_DESC_16_BYTES   4
#define	SDP_SIZE_DESC_NEXT_UINT8   5
#define	SDP_SIZE_DESC_NEXT_UINT16   6
#define	SDP_SIZE_DESC_NEXT_UINT32   7
#define	SDP_ELEMENT_IS_UINT16(d)   ( (d)->type == SDP_TYPE_UINT && (d)->specificType == SDP_ST_UINT16 )
#define	SDP_ELEMENT_IS_ATTRID(d)   SDP_ELEMENT_IS_UINT16((d))

Functions
	WINE_DEFAULT_DEBUG_CHANNEL (bluetoothapis)
static void	bth_read_uint128 (BYTE *s, SDP_ULARGE_INTEGER_16 *v)
static BYTE	data_elem_type (BYTE elem)
static BYTE	data_elem_size_desc (BYTE elem)
static BOOL	sdp_elem_read_var_size (BYTE *stream, ULONG stream_size, SIZE_T *read, BYTE size_desc, UINT32 *size)
static BOOL	sdp_read_specific_type (BYTE *stream, ULONG stream_size, SDP_SPECIFICTYPE st, SDP_ELEMENT_DATA *data, SIZE_T *read)
static DWORD	sdp_read_element_data (BYTE *stream, ULONG stream_size, SDP_ELEMENT_DATA *data, SIZE_T *read)
DWORD WINAPI	BluetoothSdpGetElementData (BYTE *stream, ULONG stream_size, SDP_ELEMENT_DATA *data)
DWORD WINAPI	BluetoothSdpGetContainerElementData (BYTE *stream, ULONG stream_size, HBLUETOOTH_CONTAINER_ELEMENT *handle, SDP_ELEMENT_DATA *data)
BOOL WINAPI	BluetoothSdpEnumAttributes (BYTE *stream, ULONG stream_size, PFN_BLUETOOTH_ENUM_ATTRIBUTES_CALLBACK callback, void *param)
static BOOL WINAPI	get_attr_value_callback (ULONG attr_id, BYTE *stream, ULONG stream_size, void *params)
DWORD WINAPI	BluetoothSdpGetAttributeValue (BYTE *stream, ULONG stream_size, USHORT attr_id, SDP_ELEMENT_DATA *data)

Variables
static const SDP_SPECIFICTYPE	SDP_BASIC_TYPES [4][5]

Macro Definition Documentation

BTH_READ_UINT16

#define BTH_READ_UINT16

(

s

)

RtlUshortByteSwap( *(USHORT *)(s) )

Definition at line 33 of file sdp.c.

BTH_READ_UINT32

#define BTH_READ_UINT32

(

s

)

RtlUlongByteSwap( *(ULONG *)(s) )

Definition at line 34 of file sdp.c.

BTH_READ_UINT64

#define BTH_READ_UINT64

(

s

)

RtlUlonglongByteSwap( *(ULONGLONG *)(s) )

Definition at line 35 of file sdp.c.

SDP_ELEMENT_IS_ATTRID

#define SDP_ELEMENT_IS_ATTRID

(

d

)

SDP_ELEMENT_IS_UINT16((d))

Definition at line 56 of file sdp.c.

SDP_ELEMENT_IS_UINT16

#define SDP_ELEMENT_IS_UINT16

(

d

)

( (d)->type == SDP_TYPE_UINT && (d)->specificType == SDP_ST_UINT16 )

Definition at line 55 of file sdp.c.

SDP_SIZE_DESC_16_BYTES

#define SDP_SIZE_DESC_16_BYTES   4

Definition at line 41 of file sdp.c.

SDP_SIZE_DESC_1_BYTE

#define SDP_SIZE_DESC_1_BYTE   0

Definition at line 37 of file sdp.c.

SDP_SIZE_DESC_2_BYTES

#define SDP_SIZE_DESC_2_BYTES   1

Definition at line 38 of file sdp.c.

SDP_SIZE_DESC_4_BYTES

#define SDP_SIZE_DESC_4_BYTES   2

Definition at line 39 of file sdp.c.

SDP_SIZE_DESC_8_BYTES

#define SDP_SIZE_DESC_8_BYTES   3

Definition at line 40 of file sdp.c.

SDP_SIZE_DESC_NEXT_UINT16

#define SDP_SIZE_DESC_NEXT_UINT16   6

Definition at line 43 of file sdp.c.

SDP_SIZE_DESC_NEXT_UINT32

#define SDP_SIZE_DESC_NEXT_UINT32   7

Definition at line 44 of file sdp.c.

SDP_SIZE_DESC_NEXT_UINT8

#define SDP_SIZE_DESC_NEXT_UINT8   5

Definition at line 42 of file sdp.c.

Function Documentation

BluetoothSdpEnumAttributes()

BOOL WINAPI BluetoothSdpEnumAttributes	(	BYTE *	stream,
		ULONG	stream_size,
		PFN_BLUETOOTH_ENUM_ATTRIBUTES_CALLBACK	callback,
		void *	param
	)

Definition at line 320 of file sdp.c.

{
    SDP_ELEMENT_DATA data = {0};
    DWORD result;
    HBLUETOOTH_CONTAINER_ELEMENT cursor = NULL;

    TRACE( "(%p, %ld, %p, %p)\n", stream, stream_size, callback, param );

    if (stream == NULL || callback == NULL) return ERROR_INVALID_PARAMETER;

    result = BluetoothSdpGetElementData( stream, stream_size, &data );
    if (result != ERROR_SUCCESS)
    {
        SetLastError( ERROR_INVALID_DATA );
        return FALSE;
    }

    switch (data.type)
    {
    case SDP_TYPE_SEQUENCE:
    case SDP_TYPE_ALTERNATIVE:
        break;
    default:
        SetLastError( ERROR_INVALID_DATA );
        return FALSE;
    }

    for (;;)
    {
        SDP_ELEMENT_DATA attrid = {0};
        SDP_ELEMENT_DATA attr = {0};
        BYTE *raw_attr_stream;

        result = BluetoothSdpGetContainerElementData( data.data.sequence.value,
                                                      data.data.sequence.length, &cursor, &attrid );
        if (result == ERROR_NO_MORE_ITEMS) return TRUE;
        if (result || !SDP_ELEMENT_IS_ATTRID( &attrid ))
        {
            SetLastError( ERROR_INVALID_DATA );
            return FALSE;
        }

        raw_attr_stream = cursor;
        result = BluetoothSdpGetContainerElementData( data.data.sequence.value,
                                                      data.data.sequence.length, &cursor, &attr );
        if (result != ERROR_SUCCESS)
        {
            SetLastError( ERROR_INVALID_DATA );
            return FALSE;
        }
        if (!callback( attrid.data.uint16, raw_attr_stream, ((BYTE *)cursor - raw_attr_stream),
                       param ))
            return TRUE;
    }
}

Referenced by BluetoothSdpGetAttributeValue().

BluetoothSdpGetAttributeValue()

DWORD WINAPI BluetoothSdpGetAttributeValue	(	BYTE *	stream,
		ULONG	stream_size,
		USHORT	attr_id,
		SDP_ELEMENT_DATA *	data
	)

Definition at line 400 of file sdp.c.

{
    struct get_attr_value_data args = {0};

    TRACE( "(%p %lu %u %p)\n", stream, stream_size, attr_id, data );

    if (stream == NULL || data == NULL) return ERROR_INVALID_PARAMETER;

    args.attr_id = attr_id;
    if (!BluetoothSdpEnumAttributes( stream, stream_size, get_attr_value_callback, &args ))
        return ERROR_INVALID_PARAMETER;
    if (!args.attr_stream) return ERROR_FILE_NOT_FOUND;

    return BluetoothSdpGetElementData( args.attr_stream, args.stream_size, data );
}

BluetoothSdpGetContainerElementData()

DWORD WINAPI BluetoothSdpGetContainerElementData	(	BYTE *	stream,
		ULONG	stream_size,
		HBLUETOOTH_CONTAINER_ELEMENT *	handle,
		SDP_ELEMENT_DATA *	data
	)

Definition at line 263 of file sdp.c.

{
    BYTE *cursor;
    DWORD result;
    SIZE_T read = 0;

    TRACE( "(%p, %lu, %p, %p)\n", stream, stream_size, handle, data );

    if (stream == NULL || stream_size < sizeof( BYTE ) || handle == NULL || data == NULL)
        return ERROR_INVALID_PARAMETER;

    cursor = (BYTE *)(*handle);

    if (cursor == NULL)
    {
        BYTE header, type, size_desc;
        UINT32 elems_size = 0;
        SIZE_T read = 0;

        header = *stream;
        type = data_elem_type( header );
        size_desc = data_elem_size_desc( header );

        if (type != SDP_TYPE_SEQUENCE && type != SDP_TYPE_ALTERNATIVE)
            return ERROR_INVALID_PARAMETER;
        if (!(size_desc >= SDP_SIZE_DESC_NEXT_UINT8 && size_desc <= SDP_SIZE_DESC_NEXT_UINT32))
            return ERROR_INVALID_PARAMETER;

        stream++;
        if (!sdp_elem_read_var_size( stream, stream_size, &read, size_desc, &elems_size ))
            return ERROR_INVALID_PARAMETER;

        stream += read;
        stream_size -= read;
    }
    else
    {
        if (cursor < stream) return ERROR_INVALID_PARAMETER;
        if (cursor == (stream + stream_size)) return ERROR_NO_MORE_ITEMS;

        stream = cursor;
        stream_size = stream_size - (cursor - stream);
    }
    result = sdp_read_element_data( stream, stream_size, data, &read );
    if (result != ERROR_SUCCESS) return result;

    stream += read;
    TRACE( "handle=%p\n", stream );
    *handle = stream;
    return ERROR_SUCCESS;
}

Referenced by BluetoothSdpEnumAttributes().

BluetoothSdpGetElementData()

DWORD WINAPI BluetoothSdpGetElementData	(	BYTE *	stream,
		ULONG	stream_size,
		SDP_ELEMENT_DATA *	data
	)

Definition at line 248 of file sdp.c.

{
    SIZE_T read = 0;

    TRACE( "(%p, %lu, %p)\n", stream, stream_size, data );

    if (stream == NULL || stream_size < sizeof( BYTE ) || data == NULL)
        return ERROR_INVALID_PARAMETER;

    return sdp_read_element_data( stream, stream_size, data, &read );
}

Referenced by BluetoothSdpEnumAttributes(), and BluetoothSdpGetAttributeValue().

bth_read_uint128()

static void bth_read_uint128 ( BYTE *  s, SDP_ULARGE_INTEGER_16 *  v  )

static

Definition at line 46 of file sdp.c.

{
    v->HighPart = BTH_READ_UINT64( s );
    v->LowPart = BTH_READ_UINT64( s + 8 );
}

Referenced by sdp_read_specific_type().

data_elem_size_desc()

static BYTE data_elem_size_desc ( BYTE  elem )

static

Definition at line 53 of file sdp.c.

{ return elem & 0x7; }

Referenced by BluetoothSdpGetContainerElementData(), and sdp_read_element_data().

data_elem_type()

static BYTE data_elem_type ( BYTE  elem )

static

Definition at line 52 of file sdp.c.

{ return (elem & 0xf8) >> 3; }

Referenced by BluetoothSdpGetContainerElementData(), and sdp_read_element_data().

get_attr_value_callback()

static BOOL WINAPI get_attr_value_callback ( ULONG  attr_id, BYTE *  stream, ULONG  stream_size, void *  params  )

static

Definition at line 384 of file sdp.c.

{
    struct get_attr_value_data *args = params;
    if (attr_id == args->attr_id)
    {
        args->attr_stream = stream;
        args->stream_size = stream_size;
        return FALSE;
    }
    return TRUE;
}

Referenced by BluetoothSdpGetAttributeValue().

sdp_elem_read_var_size()

static BOOL sdp_elem_read_var_size ( BYTE *  stream, ULONG  stream_size, SIZE_T *  read, BYTE  size_desc, UINT32 *  size  )

static

Definition at line 60 of file sdp.c.

{
    switch (size_desc)
    {
    case SDP_SIZE_DESC_NEXT_UINT8:
        if (stream_size < sizeof( UINT8 )) return FALSE;
        *size = *stream;
        *read += sizeof( UINT8 );
        return TRUE;
    case SDP_SIZE_DESC_NEXT_UINT16:
        if (stream_size < sizeof( UINT16 )) return FALSE;
        *size = BTH_READ_UINT16( stream );
        *read += sizeof( UINT16 );
        return TRUE;
    case SDP_SIZE_DESC_NEXT_UINT32:
        if (stream_size < sizeof( UINT32 )) return FALSE;
        *size = BTH_READ_UINT32( stream );
        *read += sizeof( UINT32 );
        return TRUE;
    default:
        return FALSE;
    }
}

Referenced by BluetoothSdpGetContainerElementData(), and sdp_read_element_data().

sdp_read_element_data()

static DWORD sdp_read_element_data ( BYTE *  stream, ULONG  stream_size, SDP_ELEMENT_DATA *  data, SIZE_T *  read  )

static

Definition at line 154 of file sdp.c.

{
    BYTE type, size_desc, elem;
    SDP_SPECIFICTYPE st;

    if (stream_size < sizeof( BYTE )) return ERROR_INVALID_PARAMETER;

    elem = *stream;
    type = data_elem_type( elem );
    size_desc = data_elem_size_desc( elem );

    stream += sizeof( BYTE );
    *read += sizeof( BYTE );
    stream_size -= sizeof( BYTE );

    memset( data, 0, sizeof( *data ) );
    switch (type)
    {
    case SDP_TYPE_NIL:
        if (size_desc != 0) return ERROR_INVALID_PARAMETER;

        data->type = type;
        data->specificType = SDP_ST_NONE;
        break;
    case SDP_TYPE_UINT:
    case SDP_TYPE_INT:
    case SDP_TYPE_UUID:
        if (size_desc > SDP_SIZE_DESC_16_BYTES) return ERROR_INVALID_PARAMETER;

        st = SDP_BASIC_TYPES[type][size_desc];
        if (st == SDP_ST_NONE) return ERROR_INVALID_PARAMETER;

        if (!sdp_read_specific_type( stream, stream_size, st, data, read ))
            return ERROR_INVALID_PARAMETER;

        data->type = type;
        data->specificType = st;
        break;
    case SDP_TYPE_BOOLEAN:
        if (size_desc != SDP_SIZE_DESC_1_BYTE) return ERROR_INVALID_PARAMETER;
        if (stream_size < sizeof( BYTE )) return ERROR_INVALID_PARAMETER;

        data->type = type;
        data->specificType = SDP_ST_NONE;
        data->data.booleanVal = *stream;
        *read += sizeof( BYTE );
        break;
    case SDP_TYPE_STRING:
    case SDP_TYPE_URL:
    case SDP_TYPE_SEQUENCE:
    case SDP_TYPE_ALTERNATIVE:
    {
        UINT32 elems_size;
        SIZE_T size_read = 0;

        if (!(size_desc >= SDP_SIZE_DESC_NEXT_UINT8 && size_desc <= SDP_SIZE_DESC_NEXT_UINT32))
            return ERROR_INVALID_PARAMETER;
        if (!sdp_elem_read_var_size( stream, stream_size, &size_read, size_desc, &elems_size ))
            return ERROR_INVALID_PARAMETER;

        stream_size -= size_read;
        if (type == SDP_TYPE_STRING || type == SDP_TYPE_URL)
            stream += size_read;

        if (stream_size < elems_size) return ERROR_INVALID_PARAMETER;

        data->type = type;
        data->specificType = SDP_ST_NONE;
        if (type == SDP_TYPE_STRING || type == SDP_TYPE_URL)
        {
            data->data.string.value = stream;
            data->data.string.length = elems_size;
        }
        else
        {
            /* For sequence and alternative containers, the stream should begin at the container
             * header. */
            data->data.sequence.value = stream - sizeof( BYTE );
            data->data.sequence.length = elems_size + *read + size_read;
        }
        *read += size_read + elems_size;
        break;
    }
    default:
        return ERROR_INVALID_PARAMETER;
    }

    return ERROR_SUCCESS;
}

Referenced by BluetoothSdpGetContainerElementData(), and BluetoothSdpGetElementData().

sdp_read_specific_type()

static BOOL sdp_read_specific_type ( BYTE *  stream, ULONG  stream_size, SDP_SPECIFICTYPE  st, SDP_ELEMENT_DATA *  data, SIZE_T *  read  )

static

Definition at line 110 of file sdp.c.

{
    switch (st)
    {
    case SDP_ST_UINT8:
    case SDP_ST_INT8:
        if (stream_size < sizeof( UINT8 )) return FALSE;
        data->data.uint8 = *stream;
        *read += sizeof( UINT8 );
        break;
    case SDP_ST_UINT16:
    case SDP_ST_INT16:
    case SDP_ST_UUID16:
        if (stream_size < sizeof( UINT16 )) return FALSE;
        data->data.uint16 = BTH_READ_UINT16( stream );
        *read += sizeof( UINT16 );
        break;
    case SDP_ST_UINT32:
    case SDP_ST_INT32:
        if (stream_size < sizeof( UINT32 )) return FALSE;
        data->data.uint32 = BTH_READ_UINT32( stream );
        *read += sizeof( UINT32 );
        break;
    case SDP_ST_UINT64:
    case SDP_ST_INT64:
        if (stream_size < sizeof( UINT64 )) return FALSE;
        data->data.uint64 = BTH_READ_UINT64( stream );
        *read += sizeof( UINT64 );
        break;
    case SDP_ST_UINT128:
    case SDP_ST_INT128:
    case SDP_ST_UUID128:
        if (stream_size < sizeof( SDP_ULARGE_INTEGER_16 )) return FALSE;
        bth_read_uint128( stream, &data->data.uint128 );
        *read += sizeof( SDP_ULARGE_INTEGER_16 );
        break;
    default:
        return FALSE;
    }

    return TRUE;
}

Referenced by sdp_read_element_data().

WINE_DEFAULT_DEBUG_CHANNEL()

WINE_DEFAULT_DEBUG_CHANNEL

(

bluetoothapis

)

Variable Documentation

SDP_BASIC_TYPES

const SDP_SPECIFICTYPE SDP_BASIC_TYPES[4][5]

static

Initial value:

= {
    [SDP_TYPE_UINT] =
        {
            [SDP_SIZE_DESC_1_BYTE] = SDP_ST_UINT8,
            [SDP_SIZE_DESC_2_BYTES] = SDP_ST_UINT16,
            [SDP_SIZE_DESC_4_BYTES] = SDP_ST_UINT32,
            [SDP_SIZE_DESC_8_BYTES] = SDP_ST_UINT64,
            [SDP_SIZE_DESC_16_BYTES] = SDP_ST_UINT128,
        },
    [SDP_TYPE_INT] =
        {
            [SDP_SIZE_DESC_1_BYTE] = SDP_ST_INT8,
            [SDP_SIZE_DESC_2_BYTES] = SDP_ST_INT16,
            [SDP_SIZE_DESC_4_BYTES] = SDP_ST_INT32,
            [SDP_SIZE_DESC_8_BYTES] = SDP_ST_INT64,
            [SDP_SIZE_DESC_16_BYTES] = SDP_ST_INT128,
        },
    [SDP_TYPE_UUID] =
        {
            [SDP_SIZE_DESC_2_BYTES] = SDP_ST_UUID16,
            [SDP_SIZE_DESC_4_BYTES] = SDP_ST_UUID32,
            [SDP_SIZE_DESC_16_BYTES] = SDP_ST_UUID128,
        },
}

Definition at line 85 of file sdp.c.

Referenced by sdp_read_element_data().
