ordering.c File Reference

#include <ntifs.h>
#include <ndk/rtlfuncs.h>
#include "arbiter.h"
#include <debug.h>

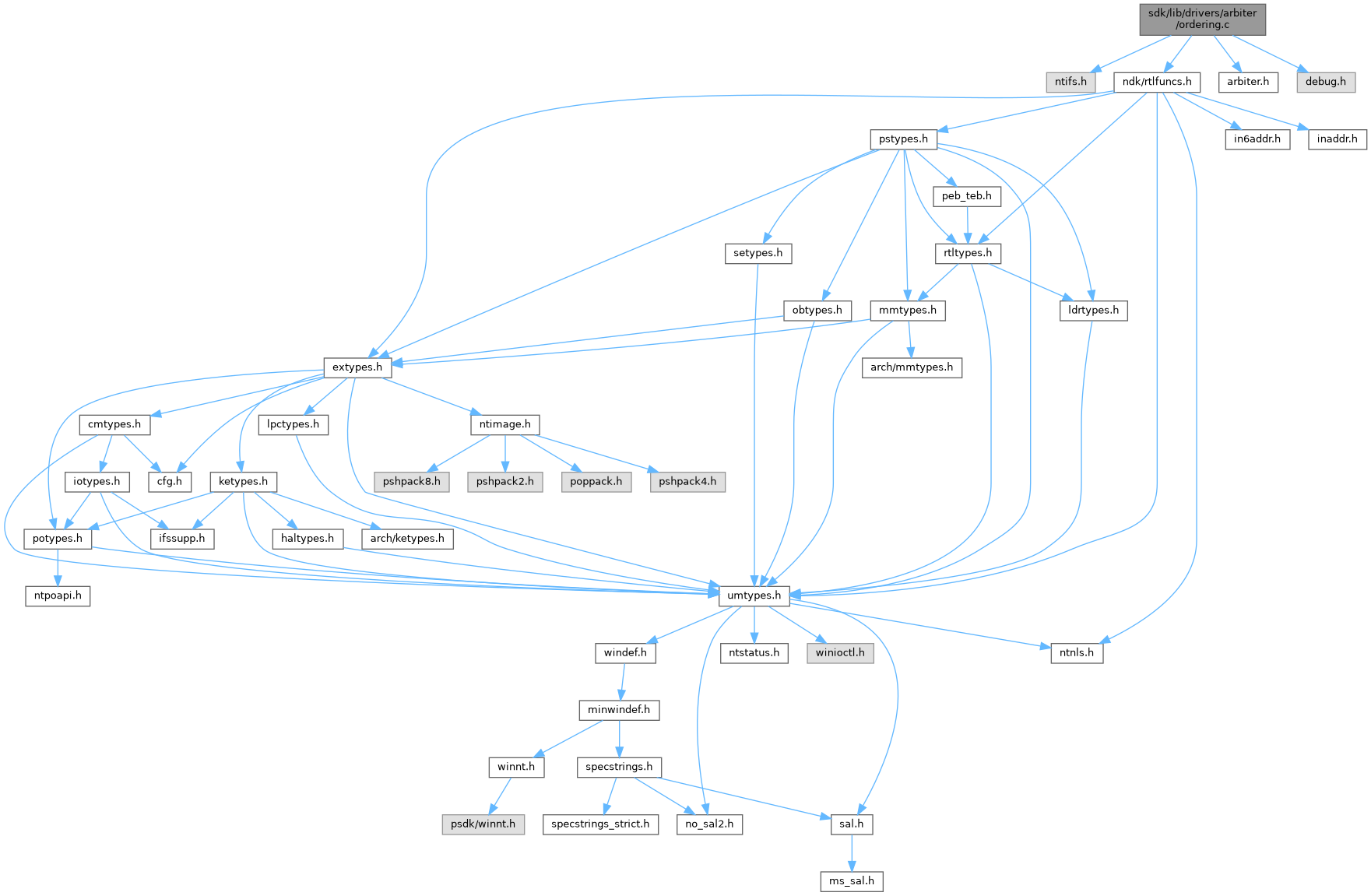

Include dependency graph for ordering.c:

Go to the source code of this file.

Macros
#define	NDEBUG
#define	ARBITER_ORDERING_GRANULARITY   16
#define	ARBITER_ORDERING_LIMIT   1024
#define	ARBP_POLICY_ROOT   L"\\Registry\\Machine\\System\\CurrentControlSet\\Control\\Arbiters\\"
#define	ARBP_LONGEST_SUBKEY   L"ReservedResources"

Typedefs
typedef VOID(NTAPI *	PARB_RANGE_CALLBACK) (_In_ PARBITER_INSTANCE Arbiter, _In_opt_ PVOID Context, _In_ ULONGLONG Start, _In_ ULONGLONG End)

Functions
static NTSTATUS	ArbpCreateOrderingList (_Out_ PARBITER_ORDERING_LIST OrderingList)
VOID NTAPI	ArbiterLibFreeOrderingList (_Inout_ PARBITER_ORDERING_LIST OrderingList)
NTSTATUS NTAPI	ArbiterLibAddOrdering (_Inout_ PARBITER_ORDERING_LIST OrderingList, _In_ UINT64 Start, _In_ UINT64 End)
static NTSTATUS	ArbpExcludeOrderingRange (_Inout_ PARBITER_ORDERING_LIST OrderingList, _In_ UINT64 Start, _In_ UINT64 End)
	Removes [Start, End] from every window of an ordering list, splitting windows that straddle it.
static NTSTATUS	ArbpOpenPolicySubkey (_In_ PCWSTR SubkeyName, _Out_ PHANDLE KeyHandle)
static NTSTATUS	ArbpReadPolicyValue (_In_ HANDLE KeyHandle, _In_ PCWSTR ValueName, _Out_ PKEY_VALUE_FULL_INFORMATION *Value)
static BOOLEAN	ArbpDescriptorMatchesArbiter (_In_ PARBITER_INSTANCE Arbiter, _In_ UCHAR DescriptorType)
static NTSTATUS	ArbpForEachRegistryRange (_In_ PARBITER_INSTANCE Arbiter, _In_ PCWSTR Subkey, _In_ PCWSTR ValueName, _In_opt_ PARB_TRANSLATE_ORDERING Translate, _In_ PARB_RANGE_CALLBACK Callback, _In_opt_ PVOID Context)
static VOID NTAPI	ArbpAddOrderingCallback (_In_ PARBITER_INSTANCE Arbiter, _In_opt_ PVOID Context, _In_ ULONGLONG Start, _In_ ULONGLONG End)
static VOID NTAPI	ArbpAddReservedCallback (_In_ PARBITER_INSTANCE Arbiter, _In_opt_ PVOID Context, _In_ ULONGLONG Start, _In_ ULONGLONG End)
	Range callback moving one reserved window into last-resort territory: recorded in the arbiter's ReservedList and pruned out of every ordering window, including the full-range fallback.
static VOID NTAPI	ArbpAddRangeCallback (_In_ PARBITER_INSTANCE Arbiter, _In_opt_ PVOID Context, _In_ ULONGLONG Start, _In_ ULONGLONG End)
	Range callback carving one window out of a range list as an unowned blocking range, so it is never handed to a device.
static VOID NTAPI	ArbpMmConfigCallback (_In_ PARBITER_INSTANCE Arbiter, _In_opt_ PVOID Context, _In_ ULONGLONG Start, _In_ ULONGLONG End)
	Range callback recording the MMCONFIG (ECAM) window and reserving it in a range list as a boot allocation.
NTSTATUS NTAPI	ArbiterLibDefaultAssignmentOrdering (_Inout_ PARBITER_INSTANCE Arbiter, _In_ PCWSTR AllocationOrderName, _In_ PCWSTR ReservedResourcesName, _In_opt_ PARB_TRANSLATE_ORDERING TranslateOrderingFunction)
	Builds the arbiter's allocation ordering from the registry policy, most-preferred window first.
NTSTATUS NTAPI	ArbiterLibAddInaccessibleAllocationRange (_In_ PARBITER_INSTANCE Arbiter, _In_ PCWSTR OrderingName, _Inout_ PRTL_RANGE_LIST RangeList)
	Carves the firmware-reported inaccessible ranges (Arbiters\InaccessibleRange<OrderingName>) out of a range list as unowned blocking ranges, so they are never handed to a device.
NTSTATUS NTAPI	ArbiterLibAddMmConfigRangeAsBootReserved (_In_ PARBITER_INSTANCE Arbiter, _Inout_ PRTL_RANGE_LIST RangeList)
	Reserves the PCI-Express enhanced-config (MMCONFIG / ECAM) MMIO window (Arbiters\ReservedResources\MmConfigRange) in a range list, and records it for ArbiterLibIsConflictWithMmConfigRange.
BOOLEAN NTAPI	ArbiterLibIsConflictWithMmConfigRange (_In_ ULONGLONG Start, _In_ ULONGLONG End)
	Determines whether a range overlaps the recorded MMCONFIG window.

Variables
static ULONGLONG	ArbpMmConfigStart = 1
static ULONGLONG	ArbpMmConfigEnd = 0

Macro Definition Documentation

ARBITER_ORDERING_GRANULARITY

#define ARBITER_ORDERING_GRANULARITY   16

Definition at line 17 of file ordering.c.

ARBITER_ORDERING_LIMIT

#define ARBITER_ORDERING_LIMIT   1024

Definition at line 18 of file ordering.c.

ARBP_LONGEST_SUBKEY

#define ARBP_LONGEST_SUBKEY   L"ReservedResources"

Definition at line 21 of file ordering.c.

ARBP_POLICY_ROOT

#define ARBP_POLICY_ROOT   L"\\Registry\\Machine\\System\\CurrentControlSet\\Control\\Arbiters\\"

Definition at line 20 of file ordering.c.

NDEBUG

#define NDEBUG

Definition at line 14 of file ordering.c.

Typedef Documentation

PARB_RANGE_CALLBACK

typedef VOID(NTAPI * PARB_RANGE_CALLBACK) (_In_ PARBITER_INSTANCE Arbiter, _In_opt_ PVOID Context, _In_ ULONGLONG Start, _In_ ULONGLONG End)

Definition at line 206 of file ordering.c.

Function Documentation

ArbiterLibAddInaccessibleAllocationRange()

NTSTATUS NTAPI ArbiterLibAddInaccessibleAllocationRange	(	_In_ PARBITER_INSTANCE	Arbiter,
		_In_ PCWSTR	OrderingName,
		_Inout_ PRTL_RANGE_LIST	RangeList
	)

Carves the firmware-reported inaccessible ranges (Arbiters\InaccessibleRange<OrderingName>) out of a range list as unowned blocking ranges, so they are never handed to a device.

Parameters

[in]	Arbiter	The arbiter instance the ranges are filtered for.
[in]	OrderingName	The InaccessibleRange value to read.
[in,out]	RangeList	The range list to carve the windows out of.

Returns

Returns STATUS_SUCCESS, including when nothing is recorded (an absent value reserves nothing).

Definition at line 634 of file ordering.c.

{
    PAGED_CODE();
    return ArbpForEachRegistryRange(Arbiter, L"InaccessibleRange", OrderingName,
                                    NULL, ArbpAddRangeCallback, RangeList);
}

ArbiterLibAddMmConfigRangeAsBootReserved()

NTSTATUS NTAPI ArbiterLibAddMmConfigRangeAsBootReserved	(	_In_ PARBITER_INSTANCE	Arbiter,
		_Inout_ PRTL_RANGE_LIST	RangeList
	)

Reserves the PCI-Express enhanced-config (MMCONFIG / ECAM) MMIO window (Arbiters\ReservedResources\MmConfigRange) in a range list, and records it for ArbiterLibIsConflictWithMmConfigRange.

Parameters

[in]	Arbiter	The arbiter instance the window is filtered for.
[in,out]	RangeList	The range list to reserve the window in.

Returns

Returns STATUS_SUCCESS, including on a legacy pre-PCIe machine where the value is simply absent and nothing is reserved.

Definition at line 663 of file ordering.c.

{
    PAGED_CODE();
    return ArbpForEachRegistryRange(Arbiter, L"ReservedResources", L"MmConfigRange",
                                    NULL, ArbpMmConfigCallback, RangeList);
}

ArbiterLibAddOrdering()

NTSTATUS NTAPI ArbiterLibAddOrdering	(	_Inout_ PARBITER_ORDERING_LIST	OrderingList,
		_In_ UINT64	Start,
		_In_ UINT64	End
	)

Definition at line 78 of file ordering.c.

{
    PAGED_CODE();

    if (End < Start)
        return STATUS_INVALID_PARAMETER;

    /* Double the array capacity when it fills up, up to the sanity cap. */
    if (OrderingList->Count == OrderingList->Maximum)
    {
        ULONG NewMaximum;
        PARBITER_ORDERING NewArray;

        NewMaximum = OrderingList->Maximum ? (ULONG)OrderingList->Maximum * 2
                                           : ARBITER_ORDERING_GRANULARITY;
        if (NewMaximum > ARBITER_ORDERING_LIMIT)
            return STATUS_INSUFFICIENT_RESOURCES;

        NewArray = ExAllocatePoolWithTag(PagedPool,
                                         NewMaximum * sizeof(ARBITER_ORDERING),
                                         TAG_ARBITER);
        if (NewArray == NULL)
            return STATUS_INSUFFICIENT_RESOURCES;

        if (OrderingList->Orderings != NULL)
        {
            RtlCopyMemory(NewArray, OrderingList->Orderings,
                          OrderingList->Count * sizeof(ARBITER_ORDERING));
            ExFreePoolWithTag(OrderingList->Orderings, TAG_ARBITER);
        }

        OrderingList->Maximum = (UINT16)NewMaximum;
        OrderingList->Orderings = NewArray;
    }

    OrderingList->Orderings[OrderingList->Count].Start = Start;
    OrderingList->Orderings[OrderingList->Count].End = End;
    OrderingList->Count++;
    return STATUS_SUCCESS;
}

Referenced by ArbiterLibDefaultAssignmentOrdering(), ArbpAddOrderingCallback(), ArbpAddReservedCallback(), and ArbpExcludeOrderingRange().

ArbiterLibDefaultAssignmentOrdering()

NTSTATUS NTAPI ArbiterLibDefaultAssignmentOrdering	(	_Inout_ PARBITER_INSTANCE	Arbiter,
		_In_ PCWSTR	AllocationOrderName,
		_In_ PCWSTR	ReservedResourcesName,
		_In_opt_ PARB_TRANSLATE_ORDERING	TranslateOrderingFunction
	)

Builds the arbiter's allocation ordering from the registry policy, most-preferred window first.

Parameters

[in,out]	Arbiter	The arbiter instance whose OrderingList and ReservedList are (re)created. Callers may rebuild an existing ordering against a different policy table (see pcix!ario_ApplyBrokenVideoHack).
[in]	AllocationOrderName	The AllocationOrder value naming this arbiter's preferred windows. The engine walks the resulting list in index order, so index 0 is the most-preferred window.
[in]	ReservedResourcesName	The ReservedResources value naming this arbiter's last-resort windows: each is recorded in the ReservedList for the engine's final pass and pruned out of every ordering window, so it is only ever offered once all orderings fail.
[in]	TranslateOrderingFunction	Optional per-arbiter descriptor translation.

Returns

Returns STATUS_SUCCESS if the ordering was built. Absent registry policy is not a failure; the ordering then holds only the full-range fallback, so the arbiter can always search the whole space.

Definition at line 571 of file ordering.c.

{
    NTSTATUS Status;

    PAGED_CODE();

    ArbiterLibFreeOrderingList(&Arbiter->OrderingList);
    ArbiterLibFreeOrderingList(&Arbiter->ReservedList);

    Status = ArbpCreateOrderingList(&Arbiter->OrderingList);
    if (!NT_SUCCESS(Status))
        return Status;
    Status = ArbpCreateOrderingList(&Arbiter->ReservedList);
    if (!NT_SUCCESS(Status))
    {
        ArbiterLibFreeOrderingList(&Arbiter->OrderingList);
        return Status;
    }

    ArbpForEachRegistryRange(Arbiter, L"AllocationOrder", AllocationOrderName,
                             TranslateOrderingFunction, ArbpAddOrderingCallback, NULL);

    Status = ArbiterLibAddOrdering(&Arbiter->OrderingList, 0, ARBITER_MAXIMUM_ADDRESS);
    if (!NT_SUCCESS(Status))
        return Status;

    /*
     * The reserved windows come last, after the fallback is in place, so the
     * pruning punches them out of the fallback too. Otherwise the fallback
     * pass would hand them out like any other range.
     */
    return ArbpForEachRegistryRange(Arbiter, L"ReservedResources", ReservedResourcesName,
                                    TranslateOrderingFunction, ArbpAddReservedCallback,
                                    NULL);
}

Referenced by ArbiterLibInitializeInstance(), and ario_ApplyBrokenVideoHack().

ArbiterLibFreeOrderingList()

VOID NTAPI ArbiterLibFreeOrderingList

(

_Inout_ PARBITER_ORDERING_LIST

OrderingList

)

Definition at line 60 of file ordering.c.

{
    PAGED_CODE();

    if (OrderingList->Orderings != NULL)
        ExFreePoolWithTag(OrderingList->Orderings, TAG_ARBITER);

    OrderingList->Orderings = NULL;
    OrderingList->Count = 0;
    OrderingList->Maximum = 0;
}

Referenced by ArbiterLibDefaultAssignmentOrdering(), ArbiterLibDeleteInstance(), ArbpExcludeOrderingRange(), and ario_ApplyBrokenVideoHack().

ArbiterLibIsConflictWithMmConfigRange()

BOOLEAN NTAPI ArbiterLibIsConflictWithMmConfigRange	(	_In_ ULONGLONG	Start,
		_In_ ULONGLONG	End
	)

Determines whether a range overlaps the recorded MMCONFIG window.

Parameters

[in]	Start	The inclusive start of the range to test.
[in]	End	The inclusive end of the range to test.

Returns

Returns TRUE if [Start, End] overlaps the recorded window, FALSE otherwise or when no window was ever recorded.

Definition at line 689 of file ordering.c.

{
    if (ArbpMmConfigStart > ArbpMmConfigEnd)
        return FALSE;  /* No MMCONFIG window recorded */

    return (BOOLEAN)(Start <= ArbpMmConfigEnd && ArbpMmConfigStart <= End);
}

Referenced by ArbiterLibFindSuitableRange().

ArbpAddOrderingCallback()

static VOID NTAPI ArbpAddOrderingCallback ( _In_ PARBITER_INSTANCE  Arbiter, _In_opt_ PVOID  Context, _In_ ULONGLONG  Start, _In_ ULONGLONG  End  )

static

Definition at line 415 of file ordering.c.

{
    PAGED_CODE();
    UNREFERENCED_PARAMETER(Context);
    ArbiterLibAddOrdering(&Arbiter->OrderingList, Start, End);
}

Referenced by ArbiterLibDefaultAssignmentOrdering().

ArbpAddRangeCallback()

static VOID NTAPI ArbpAddRangeCallback ( _In_ PARBITER_INSTANCE  Arbiter, _In_opt_ PVOID  Context, _In_ ULONGLONG  Start, _In_ ULONGLONG  End  )

static

Range callback carving one window out of a range list as an unowned blocking range, so it is never handed to a device.

Parameters

[in]	Arbiter	Unused.
[in]	Context	The RTL_RANGE_LIST to add the blocking range to.
[in]	Start	The inclusive start of the window.
[in]	End	The inclusive end of the window.

Definition at line 490 of file ordering.c.

{
    PAGED_CODE();
    UNREFERENCED_PARAMETER(Arbiter);
    RtlAddRange((PRTL_RANGE_LIST)Context, Start, End, ARBITER_RANGE_INACCESSIBLE,
                RTL_RANGE_LIST_ADD_IF_CONFLICT, NULL, NULL);
}

Referenced by ArbiterLibAddInaccessibleAllocationRange().

ArbpAddReservedCallback()

static VOID NTAPI ArbpAddReservedCallback ( _In_ PARBITER_INSTANCE  Arbiter, _In_opt_ PVOID  Context, _In_ ULONGLONG  Start, _In_ ULONGLONG  End  )

static

Range callback moving one reserved window into last-resort territory: recorded in the arbiter's ReservedList and pruned out of every ordering window, including the full-range fallback.

Parameters

[in]	Arbiter	The arbiter instance whose lists are adjusted.
[in]	Context	Unused.
[in]	Start	The inclusive start of the reserved window.
[in]	End	The inclusive end of the reserved window.

Remarks

Once pruned here, the window can only ever be offered by the engine's (PREFERRED_)RESERVED pass, the one that is usable only when nothing else fits. This is what keeps allocations from touching ranges like COM1/COM2 and the VGA windows that the PCStandard policy table reserves, even though no enumerated device owns them yet.

Definition at line 456 of file ordering.c.

{
    PAGED_CODE();
    UNREFERENCED_PARAMETER(Context);

    if (NT_SUCCESS(ArbiterLibAddOrdering(&Arbiter->ReservedList, Start, End)))
        ArbpExcludeOrderingRange(&Arbiter->OrderingList, Start, End);
}

Referenced by ArbiterLibDefaultAssignmentOrdering().

ArbpCreateOrderingList()

static NTSTATUS ArbpCreateOrderingList ( _Out_ PARBITER_ORDERING_LIST  OrderingList )

static

Definition at line 37 of file ordering.c.

{
    PAGED_CODE();

    OrderingList->Orderings = ExAllocatePoolWithTag(PagedPool,
                                                    ARBITER_ORDERING_GRANULARITY * sizeof(ARBITER_ORDERING),
                                                    TAG_ARBITER);
    if (OrderingList->Orderings == NULL)
    {
        OrderingList->Count = 0;
        OrderingList->Maximum = 0;
        return STATUS_INSUFFICIENT_RESOURCES;
    }

    OrderingList->Count = 0;
    OrderingList->Maximum = ARBITER_ORDERING_GRANULARITY;
    return STATUS_SUCCESS;
}

Referenced by ArbiterLibDefaultAssignmentOrdering(), and ArbpExcludeOrderingRange().

ArbpDescriptorMatchesArbiter()

static BOOLEAN ArbpDescriptorMatchesArbiter ( _In_ PARBITER_INSTANCE  Arbiter, _In_ UCHAR  DescriptorType  )

static

Definition at line 292 of file ordering.c.

{
    PAGED_CODE();

    if (DescriptorType == (UCHAR)Arbiter->ResourceType)
        return TRUE;

    /* Large-memory descriptors also satisfy the plain memory arbiter. */
    return (DescriptorType == CmResourceTypeMemoryLarge &&
            Arbiter->ResourceType == CmResourceTypeMemory);
}

Referenced by ArbpForEachRegistryRange().

ArbpExcludeOrderingRange()

static NTSTATUS ArbpExcludeOrderingRange ( _Inout_ PARBITER_ORDERING_LIST  OrderingList, _In_ UINT64  Start, _In_ UINT64  End  )

static

Removes [Start, End] from every window of an ordering list, splitting windows that straddle it.

Parameters

[in,out]	OrderingList	The ordering list to prune. The pruned set is built in a temporary list and swapped in on success; on failure the original list is left untouched.
[in]	Start	The inclusive start of the range to remove.
[in]	End	The inclusive end of the range to remove. Must not be below Start.

Returns

Returns STATUS_SUCCESS, STATUS_INVALID_PARAMETER for a backwards range, or STATUS_INSUFFICIENT_RESOURCES.

Definition at line 146 of file ordering.c.

{
    ARBITER_ORDERING_LIST Pruned;
    NTSTATUS Status;
    UINT16 Index;

    PAGED_CODE();

    if (End < Start)
        return STATUS_INVALID_PARAMETER;

    Status = ArbpCreateOrderingList(&Pruned);
    if (!NT_SUCCESS(Status))
        return Status;

    for (Index = 0; Index < OrderingList->Count; ++Index)
    {
        UINT64 CurrentStart = OrderingList->Orderings[Index].Start;
        UINT64 CurrentEnd = OrderingList->Orderings[Index].End;

        Status = STATUS_SUCCESS;

        if (CurrentEnd < Start || CurrentStart > End)
        {
            /* Wholly outside the hole: survives unchanged. */
            Status = ArbiterLibAddOrdering(&Pruned, CurrentStart, CurrentEnd);
        }
        else
        {
            if (CurrentStart < Start)  /* Left fragment survives */
                Status = ArbiterLibAddOrdering(&Pruned, CurrentStart, Start - 1);

            if (NT_SUCCESS(Status) && CurrentEnd > End)  /* Right fragment survives */
                Status = ArbiterLibAddOrdering(&Pruned, End + 1, CurrentEnd);
        }

        if (!NT_SUCCESS(Status))
        {
            ArbiterLibFreeOrderingList(&Pruned);
            return Status;
        }
    }

    ArbiterLibFreeOrderingList(OrderingList);
    *OrderingList = Pruned;
    return STATUS_SUCCESS;
}

Referenced by ArbpAddReservedCallback().

ArbpForEachRegistryRange()

static NTSTATUS ArbpForEachRegistryRange ( _In_ PARBITER_INSTANCE  Arbiter, _In_ PCWSTR  Subkey, _In_ PCWSTR  ValueName, _In_opt_ PARB_TRANSLATE_ORDERING  Translate, _In_ PARB_RANGE_CALLBACK  Callback, _In_opt_ PVOID  Context  )

static

Definition at line 313 of file ordering.c.

{
    HANDLE KeyHandle;
    PKEY_VALUE_FULL_INFORMATION Value = NULL;
    NTSTATUS Status;

    PAGED_CODE();

    if (!NT_SUCCESS(ArbpOpenPolicySubkey(Subkey, &KeyHandle)))
        return STATUS_SUCCESS;

    Status = ArbpReadPolicyValue(KeyHandle, ValueName, &Value);

    /* Follow a REG_SZ indirection to the named sibling value. */
    if (NT_SUCCESS(Status) && Value->Type == REG_SZ)
    {
        PWSTR TargetName = (PWSTR)((PUCHAR)Value + Value->DataOffset);
        ULONG TargetChars = Value->DataLength / sizeof(WCHAR);
        PKEY_VALUE_FULL_INFORMATION Target = NULL;

        if (TargetChars != 0 &&
            TargetName[TargetChars - 1] == UNICODE_NULL &&
            NT_SUCCESS(ArbpReadPolicyValue(KeyHandle, TargetName, &Target)))
        {
            ExFreePoolWithTag(Value, TAG_ARBITER);
            Value = Target;
        }
    }

    if (NT_SUCCESS(Status) &&
        Value->Type == REG_RESOURCE_REQUIREMENTS_LIST &&
        Value->DataLength >= sizeof(IO_RESOURCE_REQUIREMENTS_LIST))
    {
        PIO_RESOURCE_REQUIREMENTS_LIST Requirements;
        PIO_RESOURCE_LIST Alternative;
        PUCHAR DataEnd;
        ULONG Index;

        Requirements = (PIO_RESOURCE_REQUIREMENTS_LIST)((PUCHAR)Value + Value->DataOffset);
        DataEnd = (PUCHAR)Requirements + Value->DataLength;
        Alternative = &Requirements->List[0];

        for (Index = 0; Index < Alternative->Count; ++Index)
        {
            PIO_RESOURCE_DESCRIPTOR Descriptor = &Alternative->Descriptors[Index];
            IO_RESOURCE_DESCRIPTOR Window;
            UINT64 Minimum, Maximum, Length, Alignment;

            /* Never trust the stored Count past the actual value data. */
            if ((PUCHAR)(Descriptor + 1) > DataEnd)
                break;

            /*
             * Policy windows are written in bus-relative terms, so an arbiter
             * that allocates in a different space translates each one first.
             * A window it cannot translate comes back CmResourceTypeNull and
             * is dropped by the type test below.
             */
            if (Translate != NULL)
            {
                Status = Translate(&Window, Descriptor);
                if (!NT_SUCCESS(Status))
                    break;
            }
            else
            {
                Window = *Descriptor;
            }

            if (!ArbpDescriptorMatchesArbiter(Arbiter, Window.Type))
                continue;

            /*
             * Decode through the arbiter's own callback: the bounds live in a
             * different union member for every resource type.
             */
            Status = Arbiter->UnpackRequirement(&Window, &Minimum, &Maximum,
                                                &Length, &Alignment);
            if (!NT_SUCCESS(Status))

                break;
            Callback(Arbiter, Context, Minimum, Maximum);
        }
    }

    if (Value != NULL)
        ExFreePoolWithTag(Value, TAG_ARBITER);
    ZwClose(KeyHandle);
    return STATUS_SUCCESS;
}

Referenced by ArbiterLibAddInaccessibleAllocationRange(), ArbiterLibAddMmConfigRangeAsBootReserved(), and ArbiterLibDefaultAssignmentOrdering().

ArbpMmConfigCallback()

static VOID NTAPI ArbpMmConfigCallback ( _In_ PARBITER_INSTANCE  Arbiter, _In_opt_ PVOID  Context, _In_ ULONGLONG  Start, _In_ ULONGLONG  End  )

static

Range callback recording the MMCONFIG (ECAM) window and reserving it in a range list as a boot allocation.

Parameters

[in]	Arbiter	Unused.
[in]	Context	The RTL_RANGE_LIST to reserve the window in.
[in]	Start	The inclusive start of the ECAM window.
[in]	End	The inclusive end of the ECAM window.

Definition at line 523 of file ordering.c.

{
    PAGED_CODE();
    UNREFERENCED_PARAMETER(Arbiter);

    ArbpMmConfigStart = Start;
    ArbpMmConfigEnd = End;
    RtlAddRange((PRTL_RANGE_LIST)Context, Start, End, ARBITER_RANGE_BOOT_ALLOCATED,
                RTL_RANGE_LIST_ADD_IF_CONFLICT, NULL, NULL);
}

Referenced by ArbiterLibAddMmConfigRangeAsBootReserved().

ArbpOpenPolicySubkey()

static NTSTATUS ArbpOpenPolicySubkey ( _In_ PCWSTR  SubkeyName, _Out_ PHANDLE  KeyHandle  )

static

Definition at line 217 of file ordering.c.

{
    WCHAR PathBuffer[sizeof(ARBP_POLICY_ROOT ARBP_LONGEST_SUBKEY) / sizeof(WCHAR)];
    UNICODE_STRING KeyPath;
    OBJECT_ATTRIBUTES ObjectAttributes;
    NTSTATUS Status;

    PAGED_CODE();

    RtlInitEmptyUnicodeString(&KeyPath, PathBuffer, sizeof(PathBuffer));
    Status = RtlAppendUnicodeToString(&KeyPath, ARBP_POLICY_ROOT);
    if (NT_SUCCESS(Status))
        Status = RtlAppendUnicodeToString(&KeyPath, SubkeyName);
    if (!NT_SUCCESS(Status))
        return Status;

    InitializeObjectAttributes(&ObjectAttributes, &KeyPath,
                               OBJ_KERNEL_HANDLE | OBJ_CASE_INSENSITIVE, NULL, NULL);
    return ZwOpenKey(KeyHandle, KEY_READ, &ObjectAttributes);
}

Referenced by ArbpForEachRegistryRange().

ArbpReadPolicyValue()

static NTSTATUS ArbpReadPolicyValue ( _In_ HANDLE  KeyHandle, _In_ PCWSTR  ValueName, _Out_ PKEY_VALUE_FULL_INFORMATION *  Value  )

static

Definition at line 244 of file ordering.c.

{
    UNICODE_STRING NameString;
    PKEY_VALUE_FULL_INFORMATION Buffer;
    ULONG Size = 0;
    ULONG ResultLength = 0;
    NTSTATUS Status;

    PAGED_CODE();

    RtlInitUnicodeString(&NameString, ValueName);

    /* Size probe: only a buffer-size result means the value is readable. */
    Status = ZwQueryValueKey(KeyHandle, &NameString, KeyValueFullInformationAlign64,
                             NULL, 0, &Size);
    if (Status != STATUS_BUFFER_TOO_SMALL && Status != STATUS_BUFFER_OVERFLOW)
        return NT_SUCCESS(Status) ? STATUS_UNSUCCESSFUL : Status;

    Buffer = ExAllocatePoolWithTag(PagedPool, Size, TAG_ARBITER);
    if (Buffer == NULL)
        return STATUS_INSUFFICIENT_RESOURCES;

    Status = ZwQueryValueKey(KeyHandle, &NameString, KeyValueFullInformationAlign64,
                             Buffer, Size, &ResultLength);

    if (NT_SUCCESS(Status) &&
        ((ULONGLONG)Buffer->DataOffset + Buffer->DataLength > ResultLength))
    {
        Status = STATUS_UNSUCCESSFUL;
    }

    if (!NT_SUCCESS(Status))
    {
        ExFreePoolWithTag(Buffer, TAG_ARBITER);
        return Status;
    }

    *Value = Buffer;
    return STATUS_SUCCESS;
}

Referenced by ArbpForEachRegistryRange().

Variable Documentation

ArbpMmConfigEnd

ULONGLONG ArbpMmConfigEnd = 0

static

Definition at line 29 of file ordering.c.

Referenced by ArbiterLibIsConflictWithMmConfigRange(), and ArbpMmConfigCallback().

ArbpMmConfigStart

ULONGLONG ArbpMmConfigStart = 1

static

Definition at line 28 of file ordering.c.

Referenced by ArbiterLibIsConflictWithMmConfigRange(), and ArbpMmConfigCallback().
