d3dx10mesh.h File Reference

#include "d3dx10.h"

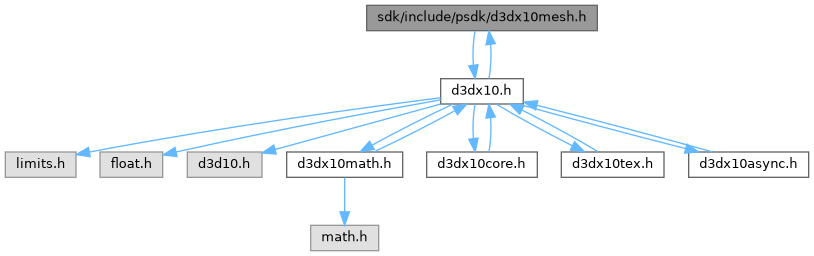

Include dependency graph for d3dx10mesh.h:

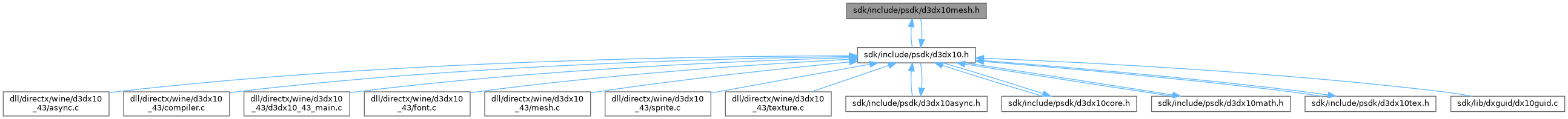

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_D3DX10_ATTRIBUTE_RANGE

Macros
#define	INTERFACE   ID3DX10MeshBuffer
#define	INTERFACE   ID3DX10Mesh

Typedefs
typedef enum _D3DX10_MESH_DISCARD_FLAGS	D3DX10_MESH_DISCARD_FLAGS
typedef struct _D3DX10_ATTRIBUTE_RANGE	D3DX10_ATTRIBUTE_RANGE
typedef D3DX10_ATTRIBUTE_RANGE *	LPD3DX10_ATTRIBUTE_RANGE

Enumerations
enum	_D3DX10_MESH_DISCARD_FLAGS {   D3DX10_MESH_DISCARD_ATTRIBUTE_BUFFER = 0x01 , D3DX10_MESH_DISCARD_ATTRIBUTE_TABLE = 0x02 , D3DX10_MESH_DISCARD_POINTREPS = 0x04 , D3DX10_MESH_DISCARD_ADJACENCY = 0x08 ,   D3DX10_MESH_DISCARD_DEVICE_BUFFERS = 0x10 }

Functions
	DEFINE_GUID (IID_ID3DX10Mesh, 0x4020e5c2, 0x1403, 0x4929, 0x88, 0x3f, 0xe2, 0xe8, 0x49, 0xfa, 0xc1, 0x95)
	DEFINE_GUID (IID_ID3DX10MeshBuffer, 0x4b0d117, 0x1041, 0x46b1, 0xaa, 0x8a, 0x39, 0x52, 0x84, 0x8b, 0xa2, 0x2e)
	DECLARE_INTERFACE_ (ID3DX10MeshBuffer, IUnknown)
	DECLARE_INTERFACE_ (ID3DX10Mesh, IUnknown)

Macro Definition Documentation

INTERFACE [1/2]

#define INTERFACE   ID3DX10MeshBuffer

Definition at line 57 of file d3dx10mesh.h.

INTERFACE [2/2]

#define INTERFACE   ID3DX10Mesh

Definition at line 57 of file d3dx10mesh.h.

Typedef Documentation

D3DX10_ATTRIBUTE_RANGE

typedef struct _D3DX10_ATTRIBUTE_RANGE D3DX10_ATTRIBUTE_RANGE

D3DX10_MESH_DISCARD_FLAGS

typedef enum _D3DX10_MESH_DISCARD_FLAGS D3DX10_MESH_DISCARD_FLAGS

LPD3DX10_ATTRIBUTE_RANGE

typedef D3DX10_ATTRIBUTE_RANGE* LPD3DX10_ATTRIBUTE_RANGE

Definition at line 41 of file d3dx10mesh.h.

Enumeration Type Documentation

_D3DX10_MESH_DISCARD_FLAGS

enum _D3DX10_MESH_DISCARD_FLAGS

Enumerator
D3DX10_MESH_DISCARD_ATTRIBUTE_BUFFER
D3DX10_MESH_DISCARD_ATTRIBUTE_TABLE
D3DX10_MESH_DISCARD_POINTREPS
D3DX10_MESH_DISCARD_ADJACENCY
D3DX10_MESH_DISCARD_DEVICE_BUFFERS

Definition at line 24 of file d3dx10mesh.h.

{
    D3DX10_MESH_DISCARD_ATTRIBUTE_BUFFER = 0x01,
    D3DX10_MESH_DISCARD_ATTRIBUTE_TABLE  = 0x02,
    D3DX10_MESH_DISCARD_POINTREPS        = 0x04,
    D3DX10_MESH_DISCARD_ADJACENCY        = 0x08,
    D3DX10_MESH_DISCARD_DEVICE_BUFFERS   = 0x10,
} D3DX10_MESH_DISCARD_FLAGS;

Function Documentation

DECLARE_INTERFACE_() [1/2]

DECLARE_INTERFACE_	(	ID3DX10Mesh	,
		IUnknown
	)

Definition at line 58 of file d3dx10mesh.h.

{
    /*** IUnknown methods ***/
    STDMETHOD(QueryInterface)(THIS_ REFIID iid, void **out) PURE;
    STDMETHOD_(ULONG, AddRef)(THIS) PURE;
    STDMETHOD_(ULONG, Release)(THIS) PURE;
    /*** ID3DX10Mesh methods ***/
    STDMETHOD_(UINT, GetFaceCount)(THIS) PURE;
    STDMETHOD_(UINT, GetVertexCount)(THIS) PURE;
    STDMETHOD_(UINT, GetVertexBufferCount)(THIS) PURE;
    STDMETHOD_(UINT, GetFlags)(THIS) PURE;
    STDMETHOD(GetVertexDescription)(THIS_ const D3D10_INPUT_ELEMENT_DESC **desc, UINT *count) PURE;
    STDMETHOD(SetVertexData)(THIS_ UINT index, const void *data) PURE;
    STDMETHOD(GetVertexBuffer)(THIS_ UINT index, ID3DX10MeshBuffer **buffer) PURE;
    STDMETHOD(SetIndexData)(THIS_ const void *data, UINT count) PURE;
    STDMETHOD(GetIndexBuffer)(THIS_ ID3DX10MeshBuffer **buffer) PURE;
    STDMETHOD(SetAttributeData)(THIS_ const UINT *data) PURE;
    STDMETHOD(GetAttributeBuffer)(THIS_ ID3DX10MeshBuffer **buffer) PURE;
    STDMETHOD(SetAttributeTable)(THIS_ const D3DX10_ATTRIBUTE_RANGE *table, UINT size) PURE;
    STDMETHOD(GetAttributeTable)(THIS_ D3DX10_ATTRIBUTE_RANGE *table, UINT *size) PURE;
    STDMETHOD(GenerateAdjacencyAndPointReps)(THIS_ float epsilon) PURE;
    STDMETHOD(GenerateGSAdjacency)(THIS) PURE;
    STDMETHOD(SetAdjacencyData)(THIS_ const UINT *adjacency) PURE;
    STDMETHOD(GetAdjacenctBuffer)(THIS_ ID3DX10MeshBuffer **buffer) PURE;
    STDMETHOD(SetPointRepData)(THIS_ const UINT *pointreps) PURE;
    STDMETHOD(GetPointRepBuffer)(THIS_ ID3DX10MeshBuffer **buffer) PURE;
    STDMETHOD(Discard)(THIS_ D3DX10_MESH_DISCARD_FLAGS flags) PURE;
    STDMETHOD(CloneMesh)(THIS_ UINT flags, const char *pos_semantic, const D3D10_INPUT_ELEMENT_DESC *desc,
            UINT decl_count, ID3DX10Mesh **cloned_mesh);
    STDMETHOD(Optimize)(THIS_ UINT flags, UINT *face_remap, ID3D10Blob **vertex_remap) PURE;
    STDMETHOD(GenerateAttributeBufferFromTable)(THIS) PURE;
    STDMETHOD(Intersect)(THIS_ D3DXVECTOR3 *ray_pos, D3DXVECTOR3 *ray_dir, UINT *hit_count, UINT *face_index,
            float *u, float *v, float *dist, ID3D10Blob **all_hits) PURE;
    STDMETHOD(IntersectSubset)(THIS_ UINT attr_id, D3DXVECTOR3 *ray_pos, D3DXVECTOR3 *ray_dir, UINT *hit_count,
            float *u, float *v, float *dist, ID3D10Blob **all_hits) PURE;
    STDMETHOD(CommitToDevice)(THIS) PURE;
    STDMETHOD(DrawSubset)(THIS_ UINT attr_id) PURE;
    STDMETHOD(DrawSubsetInstanced)(THIS_ UINT attr_id, UINT instance_count, UINT start_instance) PURE;
    STDMETHOD(GetDeviceVertexBuffer)(THIS_ UINT index, ID3D10Buffer **buffer) PURE;
    STDMETHOD(GetDeviceIndexBuffer)(THIS_ ID3D10Buffer **buffer) PURE;
};

DECLARE_INTERFACE_() [2/2]

DECLARE_INTERFACE_	(	ID3DX10MeshBuffer	,
		IUnknown
	)

Definition at line 44 of file d3dx10mesh.h.

{
    /*** IUnknown methods ***/
    STDMETHOD(QueryInterface)(THIS_ REFIID iid, void **out) PURE;
    STDMETHOD_(ULONG, AddRef)(THIS) PURE;
    STDMETHOD_(ULONG, Release)(THIS) PURE;
    /*** ID3DX10MeshBuffer methods ***/
    STDMETHOD(Map)(THIS_ void **data, SIZE_T *size) PURE;
    STDMETHOD(Unmap)(THIS) PURE;
    STDMETHOD_(SIZE_T, GetSize)(THIS) PURE;
};

DEFINE_GUID() [1/2]

DEFINE_GUID	(	IID_ID3DX10Mesh	,
		0x4020e5c2	,
		0x1403	,
		0x4929	,
		0x88	,
		0x3f	,
		0xe2	,
		0xe8	,
		0x49	,
		0xfa	,
		0xc1	,
		0x95
	)

DEFINE_GUID() [2/2]

DEFINE_GUID	(	IID_ID3DX10MeshBuffer	,
		0x4b0d117	,
		0x1041	,
		0x46b1	,
		0xaa	,
		0x8a	,
		0x39	,
		0x52	,
		0x84	,
		0x8b	,
		0xa2	,
		0x2e
	)
