hpt.c File Reference

#include "pciidex.h"

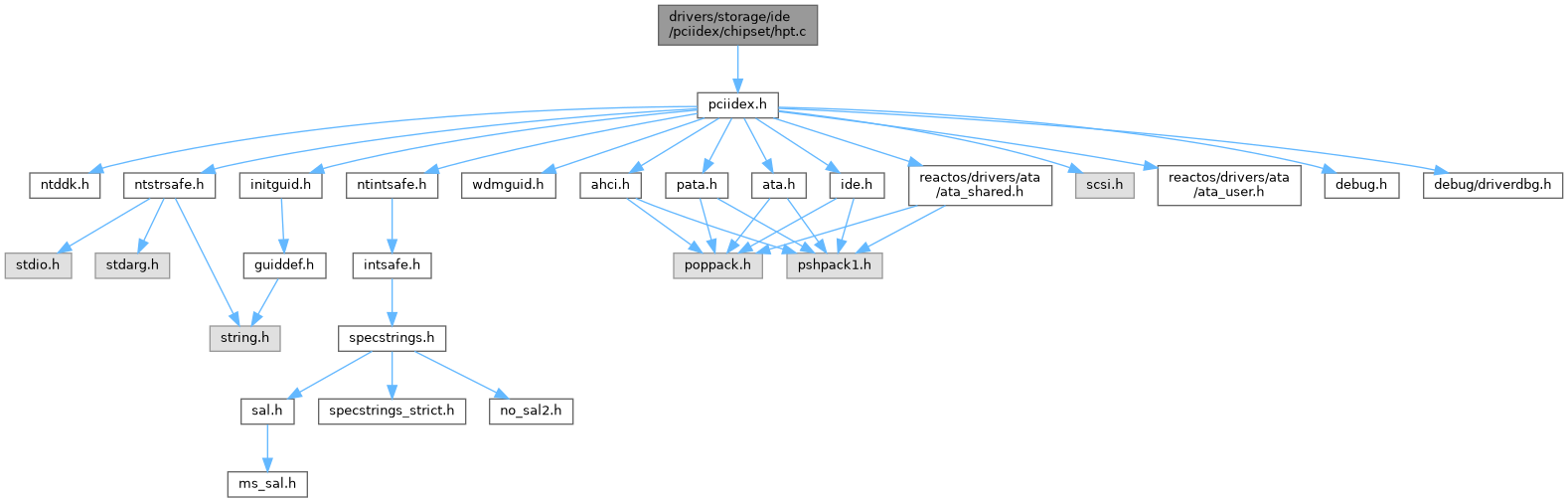

Include dependency graph for hpt.c:

Go to the source code of this file.

Macros
#define	PCI_DEV_HPT366   0x0004
#define	PCI_DEV_HPT372   0x0005
#define	PCI_DEV_HPT302   0x0006
#define	PCI_DEV_HPT371   0x0007
#define	PCI_DEV_HPT374   0x0008
#define	PCI_DEV_HPT372N   0x0009
#define	TYPE_366   0
#define	TYPE_370   1
#define	TYPE_372   2
#define	TYPE_374   3
#define	GET_TYPE(Flags)   ((Flags) & HW_FLAGS_TYPE_MASK)
#define	HW_FLAGS_TYPE_MASK   0x03
#define	HW_FLAGS_SINGLE_CHAN   0x04
#define	HW_FLAGS_UDMA4   0x08
#define	HW_FLAGS_UDMA5   0x10
#define	HPT_REG_TIMING(Index)   (0x40 + (Index << 2))
#define	HPT366_TIM_DATA_HIGH_CYT_MASK   0x0000000F
#define	HPT366_TIM_DATA_LOW_CYT_MASK   0x000000F0
#define	HPT366_TIM_CMD_HIGH_CYT_MASK   0x00000F00
#define	HPT366_TIM_CMD_LOW_CYT_MASK   0x0000F000
#define	HPT366_TIM_UDMA_CYT_MASK   0x00070000
#define	HPT366_TIM_PRE_HIGH_CYT_MASK   0x00380000
#define	HPT366_TIM_CMD_PRE_HIGH_CYT_MASK   0x01C00000
#define	HPT366_TIM_UDMA_ENABLE   0x10000000
#define	HPT366_TIM_DMA_ENABLE   0x20000000
#define	HPT366_TIM_PIO_MST_ENABLE   0x40000000
#define	HPT366_TIM_PIO_BUFFER_ENABLE   0x80000000
#define	HPT37X_TIM_DATA_HIGH_CYT_MASK   0x0000000F
#define	HPT37X_TIM_DATA_LOW_CYT_MASK   0x000001F0
#define	HPT37X_TIM_CMD_HIGH_CYT_MASK   0x00001E00
#define	HPT37X_TIM_CMD_LOW_CYT_MASK   0x0003E000
#define	HPT37X_TIM_UDMA_CYT_MASK   0x001C0000
#define	HPT37X_TIM_UDMA_DUAL_CLOCK_ENABLE   0x00200000
#define	HPT37X_TIM_PRE_HIGH_CYT_MASK   0x01C00000
#define	HPT37X_TIM_CMD_PRE_HIGH_CYT_MASK   0x0E000000
#define	HPT37X_TIM_UDMA_ENABLE   0x10000000
#define	HPT37X_TIM_DMA_ENABLE   0x20000000
#define	HPT37X_TIM_PIO_MST_ENABLE   0x40000000
#define	HPT37X_TIM_PIO_BUFFER_ENABLE   0x80000000

Functions
static ULONG	HptChooseTimings (_Inout_ PCHANNEL_DEVICE_CONFIG Device, _In_ ULONG HptType)
static VOID	HptSetTransferMode (_In_ PATA_CONTROLLER Controller, _In_ ULONG Channel, _In_reads_(MAX_IDE_DEVICE) PCHANNEL_DEVICE_CONFIG *DeviceList)
static VOID	HptControllerStart (_In_ PATA_CONTROLLER Controller)
static BOOLEAN	HptHasUdmaCable (_In_ PATA_CONTROLLER Controller, _In_ ULONG HwFlags, _In_ ULONG Channel)
NTSTATUS	HptGetControllerProperties (_Inout_ PATA_CONTROLLER Controller)

Variables
struct {
USHORT   DeviceID
UCHAR   MinimumRevisionID
UCHAR   Flags
}	HptControllerList []
static const ULONG	HptTimings [][4]
static const ULONG	HptMwDmaToPioMode []
static PCIIDEX_PAGED_DATA const ATA_PCI_ENABLE_BITS	Hpt37xEnableBits [MAX_IDE_CHANNEL]
static PCIIDEX_PAGED_DATA const ATA_PCI_ENABLE_BITS	Hpt366EnableBits [1]

Macro Definition Documentation

GET_TYPE

#define GET_TYPE

(

Flags

)

((Flags) & HW_FLAGS_TYPE_MASK)

Definition at line 31 of file hpt.c.

HPT366_TIM_CMD_HIGH_CYT_MASK

#define HPT366_TIM_CMD_HIGH_CYT_MASK   0x00000F00

Definition at line 42 of file hpt.c.

HPT366_TIM_CMD_LOW_CYT_MASK

#define HPT366_TIM_CMD_LOW_CYT_MASK   0x0000F000

Definition at line 43 of file hpt.c.

HPT366_TIM_CMD_PRE_HIGH_CYT_MASK

#define HPT366_TIM_CMD_PRE_HIGH_CYT_MASK   0x01C00000

Definition at line 46 of file hpt.c.

HPT366_TIM_DATA_HIGH_CYT_MASK

#define HPT366_TIM_DATA_HIGH_CYT_MASK   0x0000000F

Definition at line 40 of file hpt.c.

HPT366_TIM_DATA_LOW_CYT_MASK

#define HPT366_TIM_DATA_LOW_CYT_MASK   0x000000F0

Definition at line 41 of file hpt.c.

HPT366_TIM_DMA_ENABLE

#define HPT366_TIM_DMA_ENABLE   0x20000000

Definition at line 48 of file hpt.c.

HPT366_TIM_PIO_BUFFER_ENABLE

#define HPT366_TIM_PIO_BUFFER_ENABLE   0x80000000

Definition at line 50 of file hpt.c.

HPT366_TIM_PIO_MST_ENABLE

#define HPT366_TIM_PIO_MST_ENABLE   0x40000000

Definition at line 49 of file hpt.c.

HPT366_TIM_PRE_HIGH_CYT_MASK

#define HPT366_TIM_PRE_HIGH_CYT_MASK   0x00380000

Definition at line 45 of file hpt.c.

HPT366_TIM_UDMA_CYT_MASK

#define HPT366_TIM_UDMA_CYT_MASK   0x00070000

Definition at line 44 of file hpt.c.

HPT366_TIM_UDMA_ENABLE

#define HPT366_TIM_UDMA_ENABLE   0x10000000

Definition at line 47 of file hpt.c.

HPT37X_TIM_CMD_HIGH_CYT_MASK

#define HPT37X_TIM_CMD_HIGH_CYT_MASK   0x00001E00

Definition at line 54 of file hpt.c.

HPT37X_TIM_CMD_LOW_CYT_MASK

#define HPT37X_TIM_CMD_LOW_CYT_MASK   0x0003E000

Definition at line 55 of file hpt.c.

HPT37X_TIM_CMD_PRE_HIGH_CYT_MASK

#define HPT37X_TIM_CMD_PRE_HIGH_CYT_MASK   0x0E000000

Definition at line 59 of file hpt.c.

HPT37X_TIM_DATA_HIGH_CYT_MASK

#define HPT37X_TIM_DATA_HIGH_CYT_MASK   0x0000000F

Definition at line 52 of file hpt.c.

HPT37X_TIM_DATA_LOW_CYT_MASK

#define HPT37X_TIM_DATA_LOW_CYT_MASK   0x000001F0

Definition at line 53 of file hpt.c.

HPT37X_TIM_DMA_ENABLE

#define HPT37X_TIM_DMA_ENABLE   0x20000000

Definition at line 61 of file hpt.c.

HPT37X_TIM_PIO_BUFFER_ENABLE

#define HPT37X_TIM_PIO_BUFFER_ENABLE   0x80000000

Definition at line 63 of file hpt.c.

HPT37X_TIM_PIO_MST_ENABLE

#define HPT37X_TIM_PIO_MST_ENABLE   0x40000000

Definition at line 62 of file hpt.c.

HPT37X_TIM_PRE_HIGH_CYT_MASK

#define HPT37X_TIM_PRE_HIGH_CYT_MASK   0x01C00000

Definition at line 58 of file hpt.c.

HPT37X_TIM_UDMA_CYT_MASK

#define HPT37X_TIM_UDMA_CYT_MASK   0x001C0000

Definition at line 56 of file hpt.c.

HPT37X_TIM_UDMA_DUAL_CLOCK_ENABLE

#define HPT37X_TIM_UDMA_DUAL_CLOCK_ENABLE   0x00200000

Definition at line 57 of file hpt.c.

HPT37X_TIM_UDMA_ENABLE

#define HPT37X_TIM_UDMA_ENABLE   0x10000000

Definition at line 60 of file hpt.c.

HPT_REG_TIMING

#define HPT_REG_TIMING

(

Index

)

(0x40 + (Index << 2))

Definition at line 38 of file hpt.c.

HW_FLAGS_SINGLE_CHAN

#define HW_FLAGS_SINGLE_CHAN   0x04

Definition at line 34 of file hpt.c.

HW_FLAGS_TYPE_MASK

#define HW_FLAGS_TYPE_MASK   0x03

Definition at line 33 of file hpt.c.

HW_FLAGS_UDMA4

#define HW_FLAGS_UDMA4   0x08

Definition at line 35 of file hpt.c.

HW_FLAGS_UDMA5

#define HW_FLAGS_UDMA5   0x10

Definition at line 36 of file hpt.c.

PCI_DEV_HPT302

#define PCI_DEV_HPT302   0x0006

Definition at line 21 of file hpt.c.

PCI_DEV_HPT366

#define PCI_DEV_HPT366   0x0004

Definition at line 19 of file hpt.c.

PCI_DEV_HPT371

#define PCI_DEV_HPT371   0x0007

Definition at line 22 of file hpt.c.

PCI_DEV_HPT372

#define PCI_DEV_HPT372   0x0005

Definition at line 20 of file hpt.c.

PCI_DEV_HPT372N

#define PCI_DEV_HPT372N   0x0009

Definition at line 24 of file hpt.c.

PCI_DEV_HPT374

#define PCI_DEV_HPT374   0x0008

Definition at line 23 of file hpt.c.

TYPE_366

#define TYPE_366   0

Definition at line 26 of file hpt.c.

TYPE_370

#define TYPE_370   1

Definition at line 27 of file hpt.c.

TYPE_372

#define TYPE_372   2

Definition at line 28 of file hpt.c.

TYPE_374

#define TYPE_374   3

Definition at line 29 of file hpt.c.

Function Documentation

HptChooseTimings()

static ULONG HptChooseTimings ( _Inout_ PCHANNEL_DEVICE_CONFIG  Device, _In_ ULONG  HptType  )

static

Definition at line 133 of file hpt.c.

{
    ULONG Mask, Mode, PioTimings, DmaTimings;

    Mode = Device->PioMode;
    PioTimings = HptTimings[Mode][HptType];

    Mode = Device->DmaMode;
    if (Mode >= MWDMA_MODE(0))
        Mode -= MWDMA_MODE(0) - SWDMA_MODE(0);
    DmaTimings = HptTimings[Mode][HptType];

    if (Device->DmaMode >= UDMA_MODE(0))
    {
        if (HptType == TYPE_366)
        {
            Mask = HPT366_TIM_UDMA_CYT_MASK |
                   HPT366_TIM_UDMA_ENABLE |
                   HPT366_TIM_PIO_MST_ENABLE;
        }
        else
        {
            Mask = HPT37X_TIM_UDMA_CYT_MASK |
                   HPT37X_TIM_UDMA_DUAL_CLOCK_ENABLE |
                   HPT37X_TIM_UDMA_ENABLE |
                   HPT37X_TIM_PIO_MST_ENABLE;
        }
    }
    else if (Device->DmaMode != PIO_MODE(0))
    {
        Mask = 0xFFFFFFFF;

        for (Mode = Device->DmaMode; Mode > PIO_MODE(0); Mode--)
        {
            ULONG MinPio;

            if (!(Device->SupportedModes & ~PIO_ALL & (1 << Mode)))
                continue;

            MinPio = HptMwDmaToPioMode[Mode - MWDMA_MODE(0)];

            if (Device->SupportedModes & (1 << MinPio))
            {
                Device->PioMode = MinPio;
                break;
            }
        }
        if (Mode != Device->DmaMode)
        {
            if (Mode == PIO_MODE(0))
                WARN("Too slow device '%s', disabling DMA\n", Device->FriendlyName);
            else
                INFO("Downgrade DMA speed from %lu to %lu\n", Device->DmaMode, Mode);
        }
        Device->DmaMode = Mode;
    }

    if (Device->DmaMode == PIO_MODE(0))
        Mask = 0;

    return (PioTimings & ~Mask) | (DmaTimings & Mask);
}

Referenced by HptSetTransferMode().

HptControllerStart()

static VOID HptControllerStart ( _In_ PATA_CONTROLLER  Controller )

static

Definition at line 231 of file hpt.c.

{
    PCHANNEL_DATA_PATA ChanData = Controller->Channels[0];
    ULONG HwFlags = ChanData->HwFlags;
    UCHAR Value;

    if (GET_TYPE(HwFlags) == TYPE_366)
    {
        /* Disable interrupt prediction */
        Value = PciRead8(Controller, 0x51);
        Value &= ~0x80;
        PciWrite8(Controller, 0x51, Value);
    }
    else
    {
        /* Disable interrupt prediction */
        Value = PciRead8(Controller, 0x51);
        Value &= ~0x03;
        PciWrite8(Controller, 0x51, Value);

        Value = PciRead8(Controller, 0x55);
        Value &= ~0x03;
        PciWrite8(Controller, 0x55, Value);

        /* Enable interrupts */
        Value = PciRead8(Controller, 0x5A);
        Value &= ~0x10;
        PciWrite8(Controller, 0x5A, Value);

        /* Set clocks */
        if (GET_TYPE(HwFlags) < TYPE_372)
        {
            PciWrite8(Controller, 0x5B, 0x22);
        }
        else
        {
            Value = PciRead8(Controller, 0x5B);
            Value &= 0x01;
            Value |= 0x20;
            PciWrite8(Controller, 0x5B, Value);
        }
    }
}

Referenced by HptGetControllerProperties().

HptGetControllerProperties()

NTSTATUS HptGetControllerProperties

(

_Inout_ PATA_CONTROLLER

Controller

)

Definition at line 316 of file hpt.c.

{
    NTSTATUS Status;
    ULONG i, HwFlags;

    PAGED_CODE();
    ASSERT(Controller->Pci.VendorID == PCI_VEN_HIGHPOINT);

    for (i = 0; i < RTL_NUMBER_OF(HptControllerList); ++i)
    {
        HwFlags = HptControllerList[i].Flags;

        if ((Controller->Pci.DeviceID == HptControllerList[i].DeviceID) &&
            (Controller->Pci.RevisionID >= HptControllerList[i].MinimumRevisionID))
        {
            break;
        }
    }
    if (i == RTL_NUMBER_OF(HptControllerList))
        return STATUS_NO_MATCH;

    Controller->Flags |= CTRL_FLAG_DMA_INTERRUPT;
    Controller->Start = HptControllerStart;

    if (HwFlags & HW_FLAGS_SINGLE_CHAN)
        Controller->MaxChannels = 1;

    if (GET_TYPE(HwFlags) == TYPE_366)
        Controller->ChannelEnableBits = Hpt366EnableBits;
    else
        Controller->ChannelEnableBits = Hpt37xEnableBits;

    Status = PciIdeCreateChannelData(Controller, 0);
    if (!NT_SUCCESS(Status))
        return Status;

    for (i = 0; i < Controller->MaxChannels; ++i)
    {
        PCHANNEL_DATA_PATA ChanData = Controller->Channels[i];

        ChanData->HwFlags = HwFlags;
        ChanData->SetTransferMode = HptSetTransferMode;

        ChanData->TransferModeSupported = PIO_ALL | MWDMA_ALL | UDMA_ALL;
        if (HwFlags & HW_FLAGS_UDMA5)
            ChanData->TransferModeSupported &= ~UDMA_MODE6;
        else if (HwFlags & HW_FLAGS_UDMA4)
            ChanData->TransferModeSupported &= ~(UDMA_MODE6 | UDMA_MODE5);

        /* Check for 80-conductor cable */
        if (!HptHasUdmaCable(Controller, HwFlags, i))
        {
            INFO("CH %lu: BIOS detected 40-conductor cable\n", ChanData->Channel);
            ChanData->TransferModeSupported &= ~UDMA_80C_ALL;
        }
    }

    return STATUS_SUCCESS;
}

Referenced by PciIdeGetControllerProperties().

HptHasUdmaCable()

static BOOLEAN HptHasUdmaCable ( _In_ PATA_CONTROLLER  Controller, _In_ ULONG  HwFlags, _In_ ULONG  Channel  )

static

Definition at line 279 of file hpt.c.

{
    UCHAR Register, Value, CableSelect;

    PAGED_CODE();

    /* Unlock the cable state pins */
    if (GET_TYPE(HwFlags) != TYPE_366)
    {
        if ((GET_TYPE(HwFlags) == TYPE_374) && (Controller->BusLocation & 1))
        {
            Register = (Channel == 0) ? 0x53 : 0x57;
            Value = PciRead8(Controller, Register);
            PciWrite8(Controller, Register, Value | 0x80);
        }
        else
        {
            Register = 0x5B;
            Value = PciRead8(Controller, Register);
            PciWrite8(Controller, Register, Value & ~0x01);
        }
    }

    CableSelect = PciRead8(Controller, 0x5A);

    /* Restore settings */
    if (GET_TYPE(HwFlags) != TYPE_366)
        PciWrite8(Controller, Register, Value);

    return !(CableSelect & (0x02 >> Channel));
}

Referenced by HptGetControllerProperties().

HptSetTransferMode()

static VOID HptSetTransferMode ( _In_ PATA_CONTROLLER  Controller, _In_ ULONG  Channel, _In_reads_(MAX_IDE_DEVICE) PCHANNEL_DEVICE_CONFIG *  DeviceList  )

static

Definition at line 200 of file hpt.c.

{
    PCHANNEL_DATA_PATA ChanData = Controller->Channels[Channel];
    ULONG i;

    for (i = 0; i < MAX_IDE_DEVICE; ++i)
    {
        PCHANNEL_DEVICE_CONFIG Device = DeviceList[i];
        const ULONG DeviceIndex = (Channel << 1) + i;
        ULONG Value;

        if (!Device)
            continue;

        Value = HptChooseTimings(Device, GET_TYPE(ChanData->HwFlags));

        INFO("CH %lu: Dev %lu update timings from %08lx to %08lx\n",
             Channel,
             i,
             PciRead32(Controller, HPT_REG_TIMING(DeviceIndex)),
             Value);

        PciWrite32(Controller, HPT_REG_TIMING(DeviceIndex), Value);
    }
}

Referenced by HptGetControllerProperties().

Variable Documentation

DeviceID

USHORT DeviceID

Definition at line 68 of file hpt.c.

Flags

UCHAR Flags

Definition at line 70 of file hpt.c.

Hpt366EnableBits

PCIIDEX_PAGED_DATA const ATA_PCI_ENABLE_BITS Hpt366EnableBits[1]

static

Initial value:

=
{
    { 0x50, 0x30, 0x30 },
}

Definition at line 124 of file hpt.c.

Referenced by HptGetControllerProperties().

Hpt37xEnableBits

PCIIDEX_PAGED_DATA const ATA_PCI_ENABLE_BITS Hpt37xEnableBits[MAX_IDE_CHANNEL]

static

Initial value:

=
{
    { 0x50, 0x04, 0x04 },
    { 0x54, 0x04, 0x04 },
}

Definition at line 117 of file hpt.c.

Referenced by HptGetControllerProperties().

PCIIDEX_PAGED_DATA const struct { ... } HptControllerList[]

Initial value:

=
{
    { PCI_DEV_HPT366,  5, TYPE_372 },
    { PCI_DEV_HPT366,  3, TYPE_370 | HW_FLAGS_UDMA5 },
    { PCI_DEV_HPT366,  0, TYPE_366 | HW_FLAGS_UDMA4 | HW_FLAGS_SINGLE_CHAN },

    { PCI_DEV_HPT302,  0, TYPE_372 },

    { PCI_DEV_HPT371,  2, TYPE_372 },
    { PCI_DEV_HPT371,  0, TYPE_372 | HW_FLAGS_SINGLE_CHAN},

    { PCI_DEV_HPT372,  0, TYPE_372 },
    { PCI_DEV_HPT374,  0, TYPE_374 },
    { PCI_DEV_HPT372N, 0, TYPE_372 },
}

Referenced by HptGetControllerProperties().

HptMwDmaToPioMode

const ULONG HptMwDmaToPioMode[]

static

Initial value:

=
{
    PIO_MODE(1),
    PIO_MODE(3),
    PIO_MODE(4),
}

Definition at line 109 of file hpt.c.

Referenced by HptChooseTimings().

HptTimings

const ULONG HptTimings[][4]

static

Initial value:

=
{

    { 0x00d0a7aa, 0x06914e57, 0x0d029d5e, 0x0ac1f48a },
    { 0x00d0a7a3, 0x06914e43, 0x0d029d26, 0x0ac1f465 },
    { 0x00d0a753, 0x06514e33, 0x0c829ca6, 0x0a81f454 },
    { 0x00c8a742, 0x06514e22, 0x0c829c84, 0x0a81f443 },
    { 0x00c8a731, 0x06514e21, 0x0c829c62, 0x0a81f442 },

    { 0x20c8a797, 0x26514e97, 0x2c82922e, 0x228082ea },
    { 0x20c8a732, 0x26514e33, 0x2c829266, 0x22808254 },
    { 0x20c8a731, 0x26514e21, 0x2c829262, 0x22808242 },

    { 0x10c8a731, 0x16514e31, 0x1c829c62, 0x121882ea },
    { 0x10cba731, 0x164d4e31, 0x1c9a9c62, 0x12148254 },
    { 0x10caa731, 0x16494e31, 0x1c929c62, 0x120c8242 },
    { 0x10cfa731, 0x166d4e31, 0x1c8e9c62, 0x128c8242 },
    { 0x10c9a731, 0x16454e31, 0x1c8a9c62, 0x12ac8242 },
    { 0,          0x16454e31, 0x1c8a9c62, 0x12848242 },
    { 0,          0,          0x1c869c62, 0x12808242 }
}

Definition at line 87 of file hpt.c.

Referenced by HptChooseTimings().

MinimumRevisionID

UCHAR MinimumRevisionID

Definition at line 69 of file hpt.c.

Referenced by ViaQuerySouthBridgeInformation().
