sha512.c File Reference

#include "precomp.h"
#include "hash_pattern.c"

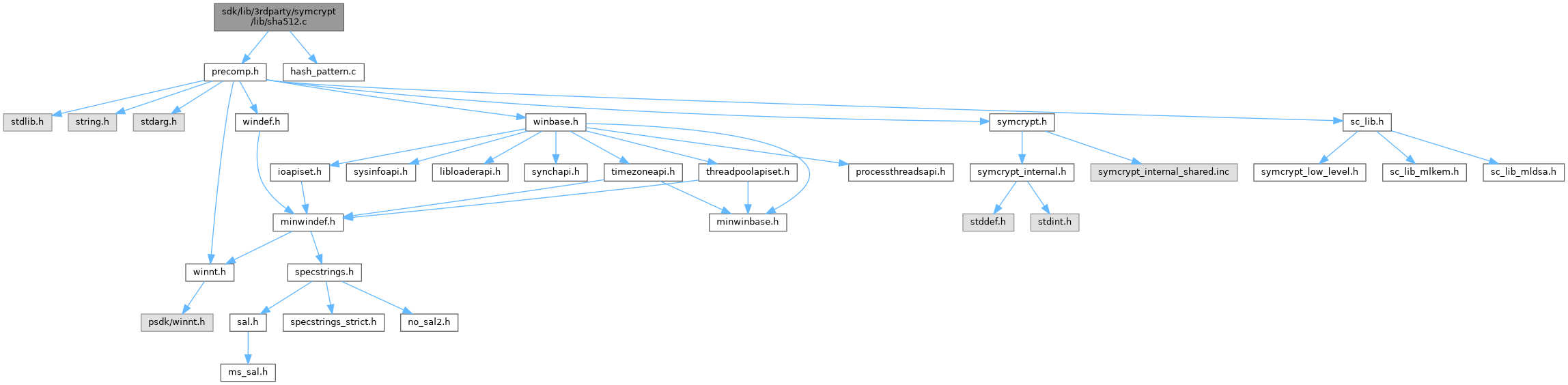

Include dependency graph for sha512.c:

Go to the source code of this file.

Macros
#define	ALG   SHA384
#define	Alg   Sha384
#define	ALG   SHA512
#define	Alg   Sha512
#define	ALG   SHA512_224
#define	Alg   Sha512_224
#define	ALG   SHA512_256
#define	Alg   Sha512_256
#define	MAJ(x, y, z)   ((((z) | (y)) & (x) ) | ((z) & (y)))
#define	CH(x, y, z)   ((((z) ^ (y)) & (x)) ^ (z))
#define	CSIGMA0(x)   (ROR64((ROR64((x), 6) ^ ROR64((x), 11) ^ (x)), 28))
#define	CSIGMA1(x)   (ROR64((ROR64((x), 4) ^ ROR64((x), 27) ^ (x)), 14))
#define	LSIGMA0(x)   (ROR64((x) ^ ROR64((x), 7), 1) ^ ((x)>> 7))
#define	LSIGMA1(x)   (ROR64((x) ^ ROR64((x), 42), 19) ^ ((x)>> 6))
#define	CROUND(a, b, c, d, e, f, g, h, r, r16)
#define	IROUND(a, b, c, d, e, f, g, h, r)
#define	FROUND(a, b, c, d, e, f, g, h, r, r16)
#define	EXPAND(a, b, c, d, r)
#define	DO_ROUND(a, b, c, d, t, r)
#define	EXPAND(a, b, c, d, r)
#define	DO_ROUND(a, b, c, d, e, f, g, h, r)

Functions
	SYMCRYPT_ALIGN_AT (64) const
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512Init (_Out_ PSYMCRYPT_SHA512_STATE pState)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha384Init (_Out_ PSYMCRYPT_SHA384_STATE pState)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512_224Init (_Out_ PSYMCRYPT_SHA512_224_STATE pState)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512_256Init (_Out_ PSYMCRYPT_SHA512_256_STATE pState)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512Append (_Inout_ PSYMCRYPT_SHA512_STATE pState, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha384Append (_Inout_ PSYMCRYPT_SHA384_STATE pState, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512_224Append (_Inout_ PSYMCRYPT_SHA512_224_STATE pState, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512_256Append (_Inout_ PSYMCRYPT_SHA512_256_STATE pState, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512Result (_Inout_ PSYMCRYPT_SHA512_STATE pState, _Out_writes_(SYMCRYPT_SHA512_RESULT_SIZE) PBYTE pbResult)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha384Result (_Inout_ PSYMCRYPT_SHA384_STATE pState, _Out_writes_(SYMCRYPT_SHA384_RESULT_SIZE) PBYTE pbResult)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512_224Result (_Inout_ PSYMCRYPT_SHA512_224_STATE pState, _Out_writes_(SYMCRYPT_SHA512_224_RESULT_SIZE) PBYTE pbResult)
SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL	SymCryptSha512_256Result (_Inout_ PSYMCRYPT_SHA512_256_STATE pState, _Out_writes_(SYMCRYPT_SHA512_256_RESULT_SIZE) PBYTE pbResult)
VOID SYMCRYPT_CALL	SymCryptSha512StateExportCore (_In_ PCSYMCRYPT_SHA512_STATE pState, _Out_writes_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PBYTE pbBlob, _In_ UINT32 type)
VOID SYMCRYPT_CALL	SymCryptSha512StateExport (_In_ PCSYMCRYPT_SHA512_STATE pState, _Out_writes_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PBYTE pbBlob)
VOID SYMCRYPT_CALL	SymCryptSha384StateExport (_In_ PCSYMCRYPT_SHA384_STATE pState, _Out_writes_bytes_(SYMCRYPT_SHA384_STATE_EXPORT_SIZE) PBYTE pbBlob)
VOID SYMCRYPT_CALL	SymCryptSha512_224StateExport (_In_ PCSYMCRYPT_SHA512_224_STATE pState, _Out_writes_bytes_(SYMCRYPT_SHA512_224_STATE_EXPORT_SIZE) PBYTE pbBlob)
VOID SYMCRYPT_CALL	SymCryptSha512_256StateExport (_In_ PCSYMCRYPT_SHA512_256_STATE pState, _Out_writes_bytes_(SYMCRYPT_SHA512_256_STATE_EXPORT_SIZE) PBYTE pbBlob)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSha512StateImportCore (_Out_ PSYMCRYPT_SHA512_STATE pState, _In_reads_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PCBYTE pbBlob, _In_ UINT32 type)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSha512StateImport (_Out_ PSYMCRYPT_SHA512_STATE pState, _In_reads_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PCBYTE pbBlob)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSha384StateImport (_Out_ PSYMCRYPT_SHA384_STATE pState, _In_reads_bytes_(SYMCRYPT_SHA384_STATE_EXPORT_SIZE) PCBYTE pbBlob)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSha512_224StateImport (_Out_ PSYMCRYPT_SHA512_224_STATE pState, _In_reads_bytes_(SYMCRYPT_SHA512_224_STATE_EXPORT_SIZE) PCBYTE pbBlob)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSha512_256StateImport (_Out_ PSYMCRYPT_SHA512_256_STATE pState, _In_reads_bytes_(SYMCRYPT_SHA512_256_STATE_EXPORT_SIZE) PCBYTE pbBlob)
VOID SYMCRYPT_CALL	SymCryptSha512Selftest (void)
VOID SYMCRYPT_CALL	SymCryptSha384Selftest (void)
VOID SYMCRYPT_CALL	SymCryptSha512_224Selftest (void)
VOID SYMCRYPT_CALL	SymCryptSha512_256Selftest (void)
VOID SYMCRYPT_CALL	SymCryptSha512AppendBlocks_ull (_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *pChain, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData, _Out_ SIZE_T *pcbRemaining)
VOID SYMCRYPT_CALL	SymCryptSha512AppendBlocks_ull2 (_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *pChain, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData, _Out_ SIZE_T *pcbRemaining)
VOID SYMCRYPT_CALL	SymCryptSha512AppendBlocks_ull3 (_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *pChain, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData, _Out_ SIZE_T *pcbRemaining)
VOID SYMCRYPT_CALL	SymCryptSha512AppendBlocks (_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *pChain, _In_reads_(cbData) PCBYTE pbData, SIZE_T cbData, _Out_ SIZE_T *pcbRemaining)

Variables
const UINT64	SymCryptSha512InitialState [8]
const UINT64	SymCryptSha384InitialState [8]
const UINT64	SymCryptSha512_224InitialState [8]
const UINT64	SymCryptSha512_256InitialState [8]
const SYMCRYPT_HASH	SymCryptSha384Algorithm_default
const SYMCRYPT_HASH	SymCryptSha512Algorithm_default
const SYMCRYPT_HASH	SymCryptSha512_224Algorithm_default
const SYMCRYPT_HASH	SymCryptSha512_256Algorithm_default
const PCSYMCRYPT_HASH	SymCryptSha384Algorithm = &SymCryptSha384Algorithm_default
const PCSYMCRYPT_HASH	SymCryptSha512Algorithm = &SymCryptSha512Algorithm_default
const PCSYMCRYPT_HASH	SymCryptSha512_224Algorithm = &SymCryptSha512_224Algorithm_default
const PCSYMCRYPT_HASH	SymCryptSha512_256Algorithm = &SymCryptSha512_256Algorithm_default
const BYTE	SymCryptSha512KATAnswer [64]
const BYTE	SymCryptSha384KATAnswer [48]
const BYTE	SymCryptSha512_224KATAnswer [28]
const BYTE	SymCryptSha512_256KATAnswer [32]

Macro Definition Documentation

ALG [1/4]

#define ALG   SHA384

Definition at line 204 of file sha512.c.

Alg [1/4]

#define Alg   Sha384

Definition at line 205 of file sha512.c.

ALG [2/4]

#define ALG   SHA512

Definition at line 204 of file sha512.c.

Alg [2/4]

#define Alg   Sha512

Definition at line 205 of file sha512.c.

ALG [3/4]

#define ALG   SHA512_224

Definition at line 204 of file sha512.c.

Alg [3/4]

#define Alg   Sha512_224

Definition at line 205 of file sha512.c.

ALG [4/4]

#define ALG   SHA512_256

Definition at line 204 of file sha512.c.

Alg [4/4]

#define Alg   Sha512_256

Definition at line 205 of file sha512.c.

CH

#define CH	(		x,
			y,
			z
	)		((((z) ^ (y)) & (x)) ^ (z))

Definition at line 832 of file sha512.c.

CROUND

#define CROUND	(		a,
			b,
			c,
			d,
			e,
			f,
			g,
			h,
			r,
			r16
	)

Value:

    {;\
    W[r16] = Wt; \
    h += CSIGMA1(e) + CH(e, f, g) + SymCryptSha512K[r] + Wt;\
    d += h;\
    h += CSIGMA0(a) + MAJ(a, b, c);\
}

Definition at line 875 of file sha512.c.

CSIGMA0

#define CSIGMA0

(

x

)

(ROR64((ROR64((x), 6) ^ ROR64((x), 11) ^ (x)), 28))

Definition at line 843 of file sha512.c.

CSIGMA1

#define CSIGMA1

(

x

)

(ROR64((ROR64((x), 4) ^ ROR64((x), 27) ^ (x)), 14))

Definition at line 844 of file sha512.c.

DO_ROUND [1/2]

#define DO_ROUND	(		a,
			b,
			c,
			d,
			e,
			f,
			g,
			h,
			r
	)

Value:

                h += W[r] + CSIGMA1( e ) + CH( e, f, g ) + SymCryptSha512K[r]; \
                d += h; \
                h += CSIGMA0( a ) + MAJ( c, b, a );

DO_ROUND [2/2]

#define DO_ROUND	(		a,
			b,
			c,
			d,
			t,
			r
	)

Value:

                t = W[r] + CSIGMA1( W[r-5] ) + W[r-8] + CH( W[r-5], W[r-6], W[r-7] ) + SymCryptSha512K[r]; \
                W[r-4] = t + d; \
                d = t + CSIGMA0( a ) + MAJ( c, b, a );

EXPAND [1/2]

#define EXPAND	(		a,
			b,
			c,
			d,
			r
	)

Value:

                        c = W[r-15]; \
                        b = d + LSIGMA1( b ) + W[r-7] + LSIGMA0( c ); \
                        W[r] = b; \

EXPAND [2/2]

#define EXPAND	(		a,
			b,
			c,
			d,
			r
	)

Value:

                        c = W[r-15]; \
                        b = d + LSIGMA1( b ) + W[r-7] + LSIGMA0( c ); \
                        W[r] = b; \

FROUND

#define FROUND	(		a,
			b,
			c,
			d,
			e,
			f,
			g,
			h,
			r,
			r16
	)

Value:

    {                                      \
    Wt = LSIGMA1( W[(r16-2) & 15] ) +   W[(r16-7) & 15] +    \
         LSIGMA0( W[(r16-15) & 15]) +   W[r16 & 15];       \
    CROUND( a, b, c, d, e, f, g, h, r, r16 ); \
    }

Definition at line 895 of file sha512.c.

IROUND

#define IROUND	(		a,
			b,
			c,
			d,
			e,
			f,
			g,
			h,
			r
	)

Value:

    {\
    Wt = SYMCRYPT_LOAD_MSBFIRST64( &pbData[ 8*r ] );\
    CROUND( a, b, c, d, e, f, g, h, r, r);\
    }

Definition at line 886 of file sha512.c.

LSIGMA0

#define LSIGMA0

(

x

)

(ROR64((x) ^ ROR64((x), 7), 1) ^ ((x)>> 7))

Definition at line 845 of file sha512.c.

LSIGMA1

#define LSIGMA1

(

x

)

(ROR64((x) ^ ROR64((x), 42), 19) ^ ((x)>> 6))

Definition at line 846 of file sha512.c.

MAJ

#define MAJ	(		x,
			y,
			z
	)		((((z) | (y)) & (x) ) | ((z) & (y)))

Definition at line 831 of file sha512.c.

Function Documentation

SYMCRYPT_ALIGN_AT()

SYMCRYPT_ALIGN_AT

(

64

)

const

Definition at line 22 of file sha512.c.

                                                            {
    0x428a2f98d728ae22UL, 0x7137449123ef65cdUL,
    0xb5c0fbcfec4d3b2fUL, 0xe9b5dba58189dbbcUL,
    0x3956c25bf348b538UL, 0x59f111f1b605d019UL,
    0x923f82a4af194f9bUL, 0xab1c5ed5da6d8118UL,
    0xd807aa98a3030242UL, 0x12835b0145706fbeUL,
    0x243185be4ee4b28cUL, 0x550c7dc3d5ffb4e2UL,
    0x72be5d74f27b896fUL, 0x80deb1fe3b1696b1UL,
    0x9bdc06a725c71235UL, 0xc19bf174cf692694UL,
    0xe49b69c19ef14ad2UL, 0xefbe4786384f25e3UL,
    0x0fc19dc68b8cd5b5UL, 0x240ca1cc77ac9c65UL,
    0x2de92c6f592b0275UL, 0x4a7484aa6ea6e483UL,
    0x5cb0a9dcbd41fbd4UL, 0x76f988da831153b5UL,
    0x983e5152ee66dfabUL, 0xa831c66d2db43210UL,
    0xb00327c898fb213fUL, 0xbf597fc7beef0ee4UL,
    0xc6e00bf33da88fc2UL, 0xd5a79147930aa725UL,
    0x06ca6351e003826fUL, 0x142929670a0e6e70UL,
    0x27b70a8546d22ffcUL, 0x2e1b21385c26c926UL,
    0x4d2c6dfc5ac42aedUL, 0x53380d139d95b3dfUL,
    0x650a73548baf63deUL, 0x766a0abb3c77b2a8UL,
    0x81c2c92e47edaee6UL, 0x92722c851482353bUL,
    0xa2bfe8a14cf10364UL, 0xa81a664bbc423001UL,
    0xc24b8b70d0f89791UL, 0xc76c51a30654be30UL,
    0xd192e819d6ef5218UL, 0xd69906245565a910UL,
    0xf40e35855771202aUL, 0x106aa07032bbd1b8UL,
    0x19a4c116b8d2d0c8UL, 0x1e376c085141ab53UL,
    0x2748774cdf8eeb99UL, 0x34b0bcb5e19b48a8UL,
    0x391c0cb3c5c95a63UL, 0x4ed8aa4ae3418acbUL,
    0x5b9cca4f7763e373UL, 0x682e6ff3d6b2b8a3UL,
    0x748f82ee5defb2fcUL, 0x78a5636f43172f60UL,
    0x84c87814a1f0ab72UL, 0x8cc702081a6439ecUL,
    0x90befffa23631e28UL, 0xa4506cebde82bde9UL,
    0xbef9a3f7b2c67915UL, 0xc67178f2e372532bUL,
    0xca273eceea26619cUL, 0xd186b8c721c0c207UL,
    0xeada7dd6cde0eb1eUL, 0xf57d4f7fee6ed178UL,
    0x06f067aa72176fbaUL, 0x0a637dc5a2c898a6UL,
    0x113f9804bef90daeUL, 0x1b710b35131c471bUL,
    0x28db77f523047d84UL, 0x32caab7b40c72493UL,
    0x3c9ebe0a15c9bebcUL, 0x431d67c49c100d4cUL,
    0x4cc5d4becb3e42b6UL, 0x597f299cfc657e2aUL,
    0x5fcb6fab3ad6faecUL, 0x6c44198c4a475817UL,
};

SymCryptSha384Append()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha384Append	(	_Inout_ PSYMCRYPT_SHA384_STATE	pState,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData
	)

Definition at line 370 of file sha512.c.

{

    SymCryptSha512Append( (PSYMCRYPT_SHA512_STATE)pState, pbData, cbData );

}

SymCryptSha384Init()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha384Init

(

_Out_ PSYMCRYPT_SHA384_STATE

pState

)

Definition at line 234 of file sha512.c.

{
    SYMCRYPT_SET_MAGIC( pState );

    pState->dataLengthH = 0;
    pState->dataLengthL = 0;
    pState->bytesInBuffer = 0;

    memcpy( &pState->chain.H[0], &SymCryptSha384InitialState[0], sizeof( SymCryptSha384InitialState ) );

    //
    // There is no need to initialize the buffer part of the state as that will be
    // filled before it is used.
    //
}

Referenced by SymCryptSha384Result().

SymCryptSha384Result()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha384Result	(	_Inout_ PSYMCRYPT_SHA384_STATE	pState,
		_Out_writes_(SYMCRYPT_SHA384_RESULT_SIZE) PBYTE	pbResult
	)

Definition at line 460 of file sha512.c.

{
    //
    // For simplicity we re-use SymCryptSha512Result. This is slightly slower,
    // but SHA-384 isn't used that much.
    //
    SYMCRYPT_ALIGN BYTE sha512Result[SYMCRYPT_SHA512_RESULT_SIZE];      // Buffer for SHA-512 output

    //
    // The SHA-384 result is the first 48 bytes of the SHA-512 result of our state
    //
    SymCryptSha512Result( (PSYMCRYPT_SHA512_STATE)pState, sha512Result );
    memcpy( pbResult, sha512Result, SYMCRYPT_SHA384_RESULT_SIZE );

    //
    // The buffer was already wiped by the SymCryptSha512Result function, we
    // just have to re-initialize for SHA-384
    //
    SymCryptSha384Init( pState );

    SymCryptWipeKnownSize( sha512Result, sizeof( sha512Result ) );
}

SymCryptSha384Selftest()

VOID SYMCRYPT_CALL SymCryptSha384Selftest

(

void

)

Definition at line 740 of file sha512.c.

{
    BYTE result[SYMCRYPT_SHA384_RESULT_SIZE];

    SymCryptSha384( SymCryptTestMsg3, sizeof( SymCryptTestMsg3 ), result );

    SymCryptInjectError( result, sizeof( result ) );

    if( memcmp( result, SymCryptSha384KATAnswer, sizeof( result ) ) != 0 ) {
        SymCryptFatal( 'SH38' );
    }
}

SymCryptSha384StateExport()

VOID SYMCRYPT_CALL SymCryptSha384StateExport	(	_In_ PCSYMCRYPT_SHA384_STATE	pState,
		_Out_writes_bytes_(SYMCRYPT_SHA384_STATE_EXPORT_SIZE) PBYTE	pbBlob
	)

Definition at line 584 of file sha512.c.

{
    SymCryptSha512StateExportCore( (PCSYMCRYPT_SHA512_STATE)pState, pbBlob, SymCryptBlobTypeSha384State );
}

SymCryptSha384StateImport()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSha384StateImport	(	_Out_ PSYMCRYPT_SHA384_STATE	pState,
		_In_reads_bytes_(SYMCRYPT_SHA384_STATE_EXPORT_SIZE) PCBYTE	pbBlob
	)

Definition at line 663 of file sha512.c.

{
    return SymCryptSha512StateImportCore( (PSYMCRYPT_SHA512_STATE)pState, pbBlob, SymCryptBlobTypeSha384State );
}

SymCryptSha512_224Append()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512_224Append	(	_Inout_ PSYMCRYPT_SHA512_224_STATE	pState,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData
	)

Definition at line 383 of file sha512.c.

{
    SymCryptSha512Append( (PSYMCRYPT_SHA512_STATE)pState, pbData, cbData );
}

SymCryptSha512_224Init()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512_224Init

(

_Out_ PSYMCRYPT_SHA512_224_STATE

pState

)

Definition at line 254 of file sha512.c.

{
    SYMCRYPT_SET_MAGIC( pState );

    pState->dataLengthH = 0;
    pState->dataLengthL = 0;
    pState->bytesInBuffer = 0;

    memcpy( &pState->chain.H[0], &SymCryptSha512_224InitialState[0], sizeof( SymCryptSha512_224InitialState ) );

    //
    // There is no need to initialize the buffer part of the state as that will be
    // filled before it is used.
    //
}

Referenced by SymCryptSha512_224Result().

SymCryptSha512_224Result()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512_224Result	(	_Inout_ PSYMCRYPT_SHA512_224_STATE	pState,
		_Out_writes_(SYMCRYPT_SHA512_224_RESULT_SIZE) PBYTE	pbResult
	)

Definition at line 489 of file sha512.c.

{
    SYMCRYPT_ALIGN BYTE sha512Result[SYMCRYPT_SHA512_RESULT_SIZE];      // Buffer for SHA-512 output

    //
    // The SHA-512/224 result is the first 28 bytes of the SHA-512 result of our state
    //
    SymCryptSha512Result( (PSYMCRYPT_SHA512_STATE)pState, sha512Result );
    memcpy( pbResult, sha512Result, SYMCRYPT_SHA512_224_RESULT_SIZE );

    //
    // The buffer was already wiped by the SymCryptSha512Result function, we
    // just have to re-initialize for SHA-512/224
    //
    SymCryptSha512_224Init( pState );

    SymCryptWipeKnownSize( sha512Result, sizeof( sha512Result ) );
}

SymCryptSha512_224Selftest()

VOID SYMCRYPT_CALL SymCryptSha512_224Selftest

(

void

)

Definition at line 767 of file sha512.c.

{
    BYTE result[SYMCRYPT_SHA512_224_RESULT_SIZE];

    SymCryptSha512_224( SymCryptTestMsg3, sizeof( SymCryptTestMsg3 ), result );

    SymCryptInjectError( result, sizeof( result ) );

    if( memcmp( result, SymCryptSha512_224KATAnswer, sizeof( result ) ) != 0 ) {
        SymCryptFatal( 'SH51' );
    }
}

SymCryptSha512_224StateExport()

VOID SYMCRYPT_CALL SymCryptSha512_224StateExport	(	_In_ PCSYMCRYPT_SHA512_224_STATE	pState,
		_Out_writes_bytes_(SYMCRYPT_SHA512_224_STATE_EXPORT_SIZE) PBYTE	pbBlob
	)

Definition at line 593 of file sha512.c.

{
    SymCryptSha512StateExportCore( (PCSYMCRYPT_SHA512_STATE)pState, pbBlob, SymCryptBlobTypeSha512_224State );
}

SymCryptSha512_224StateImport()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSha512_224StateImport	(	_Out_ PSYMCRYPT_SHA512_224_STATE	pState,
		_In_reads_bytes_(SYMCRYPT_SHA512_224_STATE_EXPORT_SIZE) PCBYTE	pbBlob
	)

Definition at line 672 of file sha512.c.

{
    return SymCryptSha512StateImportCore( (PSYMCRYPT_SHA512_STATE)pState, pbBlob, SymCryptBlobTypeSha512_224State );
}

SymCryptSha512_256Append()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512_256Append	(	_Inout_ PSYMCRYPT_SHA512_256_STATE	pState,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData
	)

Definition at line 394 of file sha512.c.

{
    SymCryptSha512Append( (PSYMCRYPT_SHA512_STATE)pState, pbData, cbData );
}

SymCryptSha512_256Init()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512_256Init

(

_Out_ PSYMCRYPT_SHA512_256_STATE

pState

)

Definition at line 274 of file sha512.c.

{
    SYMCRYPT_SET_MAGIC( pState );

    pState->dataLengthH = 0;
    pState->dataLengthL = 0;
    pState->bytesInBuffer = 0;

    memcpy( &pState->chain.H[0], &SymCryptSha512_256InitialState[0], sizeof( SymCryptSha512_256InitialState ) );

    //
    // There is no need to initialize the buffer part of the state as that will be
    // filled before it is used.
    //
}

Referenced by SymCryptSha512_256Result().

SymCryptSha512_256Result()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512_256Result	(	_Inout_ PSYMCRYPT_SHA512_256_STATE	pState,
		_Out_writes_(SYMCRYPT_SHA512_256_RESULT_SIZE) PBYTE	pbResult
	)

Definition at line 514 of file sha512.c.

{
    SYMCRYPT_ALIGN BYTE sha512Result[SYMCRYPT_SHA512_RESULT_SIZE];      // Buffer for SHA-512 output

    //
    // The SHA-512/256 result is the first 32 bytes of the SHA-512 result of our state
    //
    SymCryptSha512Result( (PSYMCRYPT_SHA512_STATE)pState, sha512Result );
    memcpy( pbResult, sha512Result, SYMCRYPT_SHA512_256_RESULT_SIZE );

    //
    // The buffer was already wiped by the SymCryptSha512Result function, we
    // just have to re-initialize for SHA-512/256
    //
    SymCryptSha512_256Init( pState );

    SymCryptWipeKnownSize( sha512Result, sizeof( sha512Result ) );
}

SymCryptSha512_256Selftest()

VOID SYMCRYPT_CALL SymCryptSha512_256Selftest

(

void

)

Definition at line 794 of file sha512.c.

{
    BYTE result[SYMCRYPT_SHA512_256_RESULT_SIZE];

    SymCryptSha512_256( SymCryptTestMsg3, sizeof( SymCryptTestMsg3 ), result );

    SymCryptInjectError( result, sizeof( result ) );

    if( memcmp( result, SymCryptSha512_256KATAnswer, sizeof( result ) ) != 0 ) {
        SymCryptFatal( 'SH51' );
    }
}

SymCryptSha512_256StateExport()

VOID SYMCRYPT_CALL SymCryptSha512_256StateExport	(	_In_ PCSYMCRYPT_SHA512_256_STATE	pState,
		_Out_writes_bytes_(SYMCRYPT_SHA512_256_STATE_EXPORT_SIZE) PBYTE	pbBlob
	)

Definition at line 602 of file sha512.c.

{
    SymCryptSha512StateExportCore( (PCSYMCRYPT_SHA512_STATE)pState, pbBlob, SymCryptBlobTypeSha512_256State );
}

SymCryptSha512_256StateImport()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSha512_256StateImport	(	_Out_ PSYMCRYPT_SHA512_256_STATE	pState,
		_In_reads_bytes_(SYMCRYPT_SHA512_256_STATE_EXPORT_SIZE) PCBYTE	pbBlob
	)

Definition at line 681 of file sha512.c.

{
    return SymCryptSha512StateImportCore( (PSYMCRYPT_SHA512_STATE)pState, pbBlob, SymCryptBlobTypeSha512_256State );
}

SymCryptSha512Append()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512Append	(	_Inout_ PSYMCRYPT_SHA512_STATE	pState,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData
	)

Definition at line 294 of file sha512.c.

{
    UINT32 bytesInBuffer;
    UINT32 freeInBuffer;
    SIZE_T tmp;

    SYMCRYPT_CHECK_MAGIC( pState );

    pState->dataLengthL += cbData;
    if( pState->dataLengthL < cbData ) {
        pState->dataLengthH++;
    }

    bytesInBuffer = pState->bytesInBuffer;

    //
    // If previous data in buffer, buffer new input and transform if possible.
    //
    if( bytesInBuffer > 0 )
    {
        SYMCRYPT_ASSERT( SYMCRYPT_SHA512_INPUT_BLOCK_SIZE > bytesInBuffer );

        freeInBuffer = SYMCRYPT_SHA512_INPUT_BLOCK_SIZE - bytesInBuffer;
        if( cbData < freeInBuffer )
        {
            //
            // All the data will fit in the buffer.
            // We don't do anything here.
            // As cbData < inputBlockSize the bulk data processing is skipped,
            // and the data will be copied to the buffer at the end
            // of this code.
        } else {
            //
            // Enough data to fill the whole buffer & process it
            //
            memcpy(&pState->buffer[bytesInBuffer], pbData, freeInBuffer);
            pbData += freeInBuffer;
            cbData -= freeInBuffer;
            SymCryptSha512AppendBlocks( &pState->chain, &pState->buffer[0], SYMCRYPT_SHA512_INPUT_BLOCK_SIZE, &tmp );

            bytesInBuffer = 0;
        }
    }

    //
    // Internal buffer is empty; process all remaining whole blocks in the input
    //
    if( cbData >= SYMCRYPT_SHA512_INPUT_BLOCK_SIZE )
    {
        SymCryptSha512AppendBlocks( &pState->chain, pbData, cbData, &tmp );
        SYMCRYPT_ASSERT( tmp < SYMCRYPT_SHA512_INPUT_BLOCK_SIZE );
        pbData += cbData - tmp;
        cbData = tmp;
    }

    SYMCRYPT_ASSERT( cbData < SYMCRYPT_SHA512_INPUT_BLOCK_SIZE );

    //
    // buffer remaining input if necessary.
    //
    if( cbData > 0 )
    {
        memcpy( &pState->buffer[bytesInBuffer], pbData, cbData );
        bytesInBuffer += (UINT32) cbData;
    }

    pState->bytesInBuffer = bytesInBuffer;

}

Referenced by SymCryptSha384Append(), SymCryptSha512_224Append(), and SymCryptSha512_256Append().

SymCryptSha512AppendBlocks()

VOID SYMCRYPT_CALL SymCryptSha512AppendBlocks	(	_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *	pChain,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData,
		_Out_ SIZE_T *	pcbRemaining
	)

Definition at line 1643 of file sha512.c.

{
#if SYMCRYPT_CPU_AMD64

    // Temporarily disabling use of Ymm in SHA2
    // SYMCRYPT_EXTENDED_SAVE_DATA SaveData;

    // if (SYMCRYPT_CPU_FEATURES_PRESENT(SYMCRYPT_CPU_FEATURE_AVX512 | SYMCRYPT_CPU_FEATURE_BMI2) &&
    //     SymCryptSaveYmm(&SaveData) == SYMCRYPT_NO_ERROR)
    // {
    //     SymCryptSha512AppendBlocks_ymm_avx512vl_asm(pChain, pbData, cbData, pcbRemaining);

    //     SymCryptRestoreYmm(&SaveData);
    // }
    // else if (SYMCRYPT_CPU_FEATURES_PRESENT(SYMCRYPT_CPU_FEATURE_AVX2 | SYMCRYPT_CPU_FEATURE_BMI2) &&
    //     SymCryptSaveYmm(&SaveData) == SYMCRYPT_NO_ERROR)
    // {
    //     //SymCryptSha512AppendBlocks_ymm_1block(pChain, pbData, cbData, pcbRemaining);
    //     //SymCryptSha512AppendBlocks_ymm_2blocks(pChain, pbData, cbData, pcbRemaining);
    //     //SymCryptSha512AppendBlocks_ymm_4blocks(pChain, pbData, cbData, pcbRemaining);
    //     SymCryptSha512AppendBlocks_ymm_avx2_asm(pChain, pbData, cbData, pcbRemaining);

    //     SymCryptRestoreYmm(&SaveData);
    // }
    // else
    {
        SymCryptSha512AppendBlocks_ull( pChain, pbData, cbData, pcbRemaining );
        //SymCryptSha512AppendBlocks_ull2( pChain, pbData, cbData, pcbRemaining );
        //SymCryptSha512AppendBlocks_ull3( pChain, pbData, cbData, pcbRemaining );
    }


#elif SYMCRYPT_CPU_ARM

    if( SYMCRYPT_CPU_FEATURES_PRESENT( SYMCRYPT_CPU_FEATURE_NEON ) )
    {
        SymCryptSha512AppendBlocks_neon( pChain, pbData, cbData, pcbRemaining );      // Tegra T3: 48 c/B
    } else {
        SymCryptSha512AppendBlocks_ull( pChain, pbData, cbData, pcbRemaining );       // Tegra T3: 65.34 c/B
        //SymCryptSha512AppendBlocks_ull2( pChain, pbData, cbData, pcbRemaining );      // Tegra T3: 77.4 c/B
        //SymCryptSha512AppendBlocks_ull3( pChain, pbData, cbData, pcbRemaining );      // Tegra T3: 71.6 c/B
    }

#elif SYMCRYPT_CPU_X86

    SYMCRYPT_EXTENDED_SAVE_DATA SaveData;

    if( SYMCRYPT_CPU_FEATURES_PRESENT( SYMCRYPT_CPU_FEATURE_SSSE3 ) && SymCryptSaveXmm( &SaveData ) == SYMCRYPT_NO_ERROR )
    {
        SymCryptSha512AppendBlocks_xmm( pChain, pbData, cbData, pcbRemaining );
        SymCryptRestoreXmm( &SaveData );
    } else {
        SymCryptSha512AppendBlocks_ull( pChain, pbData, cbData, pcbRemaining );       // core2: 36.40 c/B
        //SymCryptSha512AppendBlocks_ull2( pChain, pbData, cbData, pcbRemaining );      // core2: 49.09 c/B
        //SymCryptSha512AppendBlocks_ull3( pChain, pbData, cbData, pcbRemaining );      // core2: 38.29 c/B
    }

#else

    SymCryptSha512AppendBlocks_ull( pChain, pbData, cbData, pcbRemaining );       // need tuning...

#endif
}

Referenced by SymCryptSha512Append(), and SymCryptSha512Result().

SymCryptSha512AppendBlocks_ull()

VOID SYMCRYPT_CALL SymCryptSha512AppendBlocks_ull	(	_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *	pChain,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData,
		_Out_ SIZE_T *	pcbRemaining
	)

Definition at line 907 of file sha512.c.

{
    SYMCRYPT_ALIGN UINT64 W[16];
    UINT64 A, B, C, D, E, F, G, H;
    int round;
    UINT64 Wt;


    while( cbData >= 128 )
    {
        A = pChain->H[0];
        B = pChain->H[1];
        C = pChain->H[2];
        D = pChain->H[3];
        E = pChain->H[4];
        F = pChain->H[5];
        G = pChain->H[6];
        H = pChain->H[7];

        //
        // initial rounds 1 to 16
        //

        IROUND( A, B, C, D, E, F, G, H,  0 );
        IROUND( H, A, B, C, D, E, F, G,  1 );
        IROUND( G, H, A, B, C, D, E, F,  2 );
        IROUND( F, G, H, A, B, C, D, E,  3 );
        IROUND( E, F, G, H, A, B, C, D,  4 );
        IROUND( D, E, F, G, H, A, B, C,  5 );
        IROUND( C, D, E, F, G, H, A, B,  6 );
        IROUND( B, C, D, E, F, G, H, A,  7 );
        IROUND( A, B, C, D, E, F, G, H,  8 );
        IROUND( H, A, B, C, D, E, F, G,  9 );
        IROUND( G, H, A, B, C, D, E, F, 10 );
        IROUND( F, G, H, A, B, C, D, E, 11 );
        IROUND( E, F, G, H, A, B, C, D, 12 );
        IROUND( D, E, F, G, H, A, B, C, 13 );
        IROUND( C, D, E, F, G, H, A, B, 14 );
        IROUND( B, C, D, E, F, G, H, A, 15 );

        for( round=16; round<80; round += 16 )
        {
            FROUND( A, B, C, D, E, F, G, H, round +  0,  0 );
            FROUND( H, A, B, C, D, E, F, G, round +  1,  1 );
            FROUND( G, H, A, B, C, D, E, F, round +  2,  2 );
            FROUND( F, G, H, A, B, C, D, E, round +  3,  3 );
            FROUND( E, F, G, H, A, B, C, D, round +  4,  4 );
            FROUND( D, E, F, G, H, A, B, C, round +  5,  5 );
            FROUND( C, D, E, F, G, H, A, B, round +  6,  6 );
            FROUND( B, C, D, E, F, G, H, A, round +  7,  7 );
            FROUND( A, B, C, D, E, F, G, H, round +  8,  8 );
            FROUND( H, A, B, C, D, E, F, G, round +  9,  9 );
            FROUND( G, H, A, B, C, D, E, F, round + 10, 10 );
            FROUND( F, G, H, A, B, C, D, E, round + 11, 11 );
            FROUND( E, F, G, H, A, B, C, D, round + 12, 12 );
            FROUND( D, E, F, G, H, A, B, C, round + 13, 13 );
            FROUND( C, D, E, F, G, H, A, B, round + 14, 14 );
            FROUND( B, C, D, E, F, G, H, A, round + 15, 15 );
        }

        pChain->H[0] = A + pChain->H[0];
        pChain->H[1] = B + pChain->H[1];
        pChain->H[2] = C + pChain->H[2];
        pChain->H[3] = D + pChain->H[3];
        pChain->H[4] = E + pChain->H[4];
        pChain->H[5] = F + pChain->H[5];
        pChain->H[6] = G + pChain->H[6];
        pChain->H[7] = H + pChain->H[7];

        pbData += 128;
        cbData -= 128;
    }

    *pcbRemaining = cbData;

    //
    // Wipe the variables;
    //
    SymCryptWipeKnownSize( W, sizeof( W ) );
    SYMCRYPT_FORCE_WRITE64( &A, 0 );
    SYMCRYPT_FORCE_WRITE64( &B, 0 );
    SYMCRYPT_FORCE_WRITE64( &C, 0 );
    SYMCRYPT_FORCE_WRITE64( &D, 0 );
    SYMCRYPT_FORCE_WRITE64( &E, 0 );
    SYMCRYPT_FORCE_WRITE64( &F, 0 );
    SYMCRYPT_FORCE_WRITE64( &G, 0 );
    SYMCRYPT_FORCE_WRITE64( &H, 0 );
    SYMCRYPT_FORCE_WRITE64( &Wt, 0 );
}

Referenced by SymCryptSha512AppendBlocks().

SymCryptSha512AppendBlocks_ull2()

VOID SYMCRYPT_CALL SymCryptSha512AppendBlocks_ull2	(	_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *	pChain,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData,
		_Out_ SIZE_T *	pcbRemaining
	)

Definition at line 1013 of file sha512.c.

{
    SYMCRYPT_ALIGN UINT64 buf[4 + 8 + 80];    // 4 words original chaining state, chaining state, and expanded input block
    UINT64 * W = &buf[4 + 8];
    UINT64 * ha = &buf[4]; // initial state words, in order h, g, ..., b, a
    UINT64 A, B, C, D, T;
    int r;

    ha[7] = pChain->H[0]; buf[3] = ha[7];
    ha[6] = pChain->H[1]; buf[2] = ha[6];
    ha[5] = pChain->H[2]; buf[1] = ha[5];
    ha[4] = pChain->H[3]; buf[0] = ha[4];
    ha[3] = pChain->H[4];
    ha[2] = pChain->H[5];
    ha[1] = pChain->H[6];
    ha[0] = pChain->H[7];

    while( cbData >= 128 )
    {

        //
        // Capture the input into W[0..15]
        //
        for( r=0; r<16; r+= 2 )
        {
            W[r  ] = SYMCRYPT_LOAD_MSBFIRST64( &pbData[ 8* r    ] );
            W[r+1] = SYMCRYPT_LOAD_MSBFIRST64( &pbData[ 8*(r+1) ] );
        }

        //
        // Expand the message
        //
        A = W[15];
        B = W[14];
        D = W[0];
        for( r=16; r<80; r+= 2 )
        {
            // Loop invariant: A=W[r-1], B = W[r-2], D = W[r-16]

            //
            // Macro for one word of message expansion.
            // Invariant:
            // on entry: a = W[r-1], b = W[r-2], d = W[r-16]
            // on exit:  W[r] computed, a = W[r-1], b = W[r], c = W[r-15]
            //
            #define EXPAND( a, b, c, d, r ) \
                        c = W[r-15]; \
                        b = d + LSIGMA1( b ) + W[r-7] + LSIGMA0( c ); \
                        W[r] = b; \

            EXPAND( A, B, C, D, r );
            EXPAND( B, A, D, C, (r+1));

            #undef EXPAND
        }

        A = ha[7];
        B = ha[6];
        C = ha[5];
        D = ha[4];

        for( r=0; r<80; r += 4 )
        {
            //
            // Loop invariant:
            // A, B, C, and D are the a,b,c,d values of the current state.
            // W[r] is the next expanded message word to be processed.
            // W[r-8 .. r-5] contain the current state words h, g, f, e.
            //

            //
            // Macro to compute one round
            //
            #define DO_ROUND( a, b, c, d, t, r ) \
                t = W[r] + CSIGMA1( W[r-5] ) + W[r-8] + CH( W[r-5], W[r-6], W[r-7] ) + SymCryptSha512K[r]; \
                W[r-4] = t + d; \
                d = t + CSIGMA0( a ) + MAJ( c, b, a );

            DO_ROUND( A, B, C, D, T, r );
            DO_ROUND( D, A, B, C, T, (r+1) );
            DO_ROUND( C, D, A, B, T, (r+2) );
            DO_ROUND( B, C, D, A, T, (r+3) );
            #undef DO_ROUND
        }

        buf[3] = ha[7] = buf[3] + A;
        buf[2] = ha[6] = buf[2] + B;
        buf[1] = ha[5] = buf[1] + C;
        buf[0] = ha[4] = buf[0] + D;
        ha[3] += W[r-5];
        ha[2] += W[r-6];
        ha[1] += W[r-7];
        ha[0] += W[r-8];

        pbData += 128;
        cbData -= 128;
    }

    pChain->H[0] = ha[7];
    pChain->H[1] = ha[6];
    pChain->H[2] = ha[5];
    pChain->H[3] = ha[4];
    pChain->H[4] = ha[3];
    pChain->H[5] = ha[2];
    pChain->H[6] = ha[1];
    pChain->H[7] = ha[0];

    *pcbRemaining = cbData;

    //
    // Wipe the variables;
    //
    SymCryptWipeKnownSize( buf, sizeof( buf ) );
    SYMCRYPT_FORCE_WRITE64( &A, 0 );
    SYMCRYPT_FORCE_WRITE64( &B, 0 );
    SYMCRYPT_FORCE_WRITE64( &C, 0 );
    SYMCRYPT_FORCE_WRITE64( &D, 0 );
    SYMCRYPT_FORCE_WRITE64( &T, 0 );

}

SymCryptSha512AppendBlocks_ull3()

VOID SYMCRYPT_CALL SymCryptSha512AppendBlocks_ull3	(	_Inout_ SYMCRYPT_SHA512_CHAINING_STATE *	pChain,
		_In_reads_(cbData) PCBYTE	pbData,
		SIZE_T	cbData,
		_Out_ SIZE_T *	pcbRemaining
	)

Definition at line 1147 of file sha512.c.

{
    SYMCRYPT_ALIGN UINT64 W[80];
    SYMCRYPT_ALIGN UINT64 ha[8];
    UINT64 A, B, C, D, E, F, G, H;
    int r;

    ha[7] = pChain->H[0];
    ha[6] = pChain->H[1];
    ha[5] = pChain->H[2];
    ha[4] = pChain->H[3];
    ha[3] = pChain->H[4];
    ha[2] = pChain->H[5];
    ha[1] = pChain->H[6];
    ha[0] = pChain->H[7];

    while( cbData >= 128 )
    {

        //
        // Capture the input into W[0..15]
        //
        for( r=0; r<16; r+= 2 )
        {
            W[r  ] = SYMCRYPT_LOAD_MSBFIRST64( &pbData[ 8* r    ] );
            W[r+1] = SYMCRYPT_LOAD_MSBFIRST64( &pbData[ 8*(r+1) ] );
        }

        //
        // Expand the message
        //
        A = W[15];
        B = W[14];
        D = W[0];
        for( r=16; r<80; r+= 2 )
        {
            // Loop invariant: A=W[r-1], B = W[r-2], D = W[r-16]

            //
            // Macro for one word of message expansion.
            // Invariant:
            // on entry: a = W[r-1], b = W[r-2], d = W[r-16]
            // on exit:  W[r] computed, a = W[r-1], b = W[r], c = W[r-15]
            //
            #define EXPAND( a, b, c, d, r ) \
                        c = W[r-15]; \
                        b = d + LSIGMA1( b ) + W[r-7] + LSIGMA0( c ); \
                        W[r] = b; \

            EXPAND( A, B, C, D, r );
            EXPAND( B, A, D, C, (r+1));

            #undef EXPAND
        }

        A = ha[7];
        B = ha[6];
        C = ha[5];
        D = ha[4];
        E = ha[3];
        F = ha[2];
        G = ha[1];
        H = ha[0];

        for( r=0; r<80; r += 8 )
        {
            //
            // Loop invariant:
            // A, B, C, and D, E, F, G, H, are the values of the current state.
            // W[r] is the next expanded message word to be processed.
            //

            //
            // Macro to compute one round
            //
            #define DO_ROUND( a, b, c, d, e, f, g, h, r ) \
                h += W[r] + CSIGMA1( e ) + CH( e, f, g ) + SymCryptSha512K[r]; \
                d += h; \
                h += CSIGMA0( a ) + MAJ( c, b, a );

            DO_ROUND( A, B, C, D, E, F, G, H, (r  ) );
            DO_ROUND( H, A, B, C, D, E, F, G, (r+1) );
            DO_ROUND( G, H, A, B, C, D, E, F, (r+2) );
            DO_ROUND( F, G, H, A, B, C, D, E, (r+3) );
            DO_ROUND( E, F, G, H, A, B, C, D, (r+4) );
            DO_ROUND( D, E, F, G, H, A, B, C, (r+5) );
            DO_ROUND( C, D, E, F, G, H, A, B, (r+6) );
            DO_ROUND( B, C, D, E, F, G, H, A, (r+7) );
            #undef DO_ROUND
        }

        ha[7] += A;
        ha[6] += B;
        ha[5] += C;
        ha[4] += D;
        ha[3] += E;
        ha[2] += F;
        ha[1] += G;
        ha[0] += H;

        pbData += 128;
        cbData -= 128;
    }

    pChain->H[0] = ha[7];
    pChain->H[1] = ha[6];
    pChain->H[2] = ha[5];
    pChain->H[3] = ha[4];
    pChain->H[4] = ha[3];
    pChain->H[5] = ha[2];
    pChain->H[6] = ha[1];
    pChain->H[7] = ha[0];

    *pcbRemaining = cbData;

    //
    // Wipe the variables;
    //
    SymCryptWipeKnownSize( W, sizeof( W ) );
    SymCryptWipeKnownSize( ha, sizeof( ha ) );
    SYMCRYPT_FORCE_WRITE64( &A, 0 );
    SYMCRYPT_FORCE_WRITE64( &B, 0 );
    SYMCRYPT_FORCE_WRITE64( &C, 0 );
    SYMCRYPT_FORCE_WRITE64( &D, 0 );
    SYMCRYPT_FORCE_WRITE64( &E, 0 );
    SYMCRYPT_FORCE_WRITE64( &F, 0 );
    SYMCRYPT_FORCE_WRITE64( &G, 0 );
    SYMCRYPT_FORCE_WRITE64( &H, 0 );
}

SymCryptSha512Init()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512Init

(

_Out_ PSYMCRYPT_SHA512_STATE

pState

)

Definition at line 214 of file sha512.c.

{
    SYMCRYPT_SET_MAGIC( pState );

    pState->dataLengthH = 0;
    pState->dataLengthL = 0;
    pState->bytesInBuffer = 0;

    memcpy( &pState->chain.H[0], &SymCryptSha512InitialState[0], sizeof( SymCryptSha512InitialState ) );

    //
    // There is no need to initialize the buffer part of the state as that will be
    // filled before it is used.
    //
}

SymCryptSha512Result()

SYMCRYPT_NOINLINE VOID SYMCRYPT_CALL SymCryptSha512Result	(	_Inout_ PSYMCRYPT_SHA512_STATE	pState,
		_Out_writes_(SYMCRYPT_SHA512_RESULT_SIZE) PBYTE	pbResult
	)

Definition at line 406 of file sha512.c.

{
    UINT32 bytesInBuffer;
    SIZE_T tmp;

    SYMCRYPT_CHECK_MAGIC( pState );

    bytesInBuffer = pState->bytesInBuffer;

    //
    // The buffer is never completely full, so we can always put the first
    // padding byte in.
    //
    pState->buffer[bytesInBuffer++] = 0x80;

    if( bytesInBuffer > 128-16 ) {
        //
        // No room for the rest of the padding. Pad with zeroes & process block
        // bytesInBuffer is at most 128, so we do not have an integer underflow
        //
        SymCryptWipe( &pState->buffer[bytesInBuffer], 128-bytesInBuffer );
        SymCryptSha512AppendBlocks( &pState->chain, pState->buffer, 128, &tmp );
        bytesInBuffer = 0;
    }

    //
    // Set rest of padding
    // We wipe to the end of the buffer as it is 16-aligned,
    // and it is faster to wipe to an aligned point
    //
    SymCryptWipe( &pState->buffer[bytesInBuffer], 128-bytesInBuffer );
    SYMCRYPT_STORE_MSBFIRST64( &pState->buffer[128-16], (pState->dataLengthH << 3) + (pState->dataLengthL >> 61)  );
    SYMCRYPT_STORE_MSBFIRST64( &pState->buffer[128- 8], (pState->dataLengthL << 3) );

    SymCryptSha512AppendBlocks( &pState->chain, pState->buffer, 128, &tmp );

    SymCryptUint64ToMsbFirst( &pState->chain.H[0], pbResult, 8 );

    //
    // We have to wipe the whole state because the Init call
    // might be optimized away by a smart compiler.
    //
    SymCryptWipeKnownSize( pState, sizeof( *pState ) );

    SYMCRYPT_SET_MAGIC( pState );

    memcpy( &pState->chain.H[0], &SymCryptSha512InitialState[0], sizeof( SymCryptSha512InitialState ) );
    }

Referenced by SymCryptSha384Result(), SymCryptSha512_224Result(), and SymCryptSha512_256Result().

SymCryptSha512Selftest()

VOID SYMCRYPT_CALL SymCryptSha512Selftest

(

void

)

Definition at line 709 of file sha512.c.

{
    BYTE result[SYMCRYPT_SHA512_RESULT_SIZE];

    SymCryptSha512( SymCryptTestMsg3, sizeof( SymCryptTestMsg3 ), result );

    SymCryptInjectError( result, sizeof( result ) );

    if( memcmp( result, SymCryptSha512KATAnswer, sizeof( result ) ) != 0 ) {
        SymCryptFatal( 'SH51' );
    }
}

SymCryptSha512StateExport()

VOID SYMCRYPT_CALL SymCryptSha512StateExport	(	_In_ PCSYMCRYPT_SHA512_STATE	pState,
		_Out_writes_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PBYTE	pbBlob
	)

Definition at line 575 of file sha512.c.

{
    SymCryptSha512StateExportCore( pState, pbBlob, SymCryptBlobTypeSha512State );
}

SymCryptSha512StateExportCore()

VOID SYMCRYPT_CALL SymCryptSha512StateExportCore	(	_In_ PCSYMCRYPT_SHA512_STATE	pState,
		_Out_writes_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PBYTE	pbBlob,
		_In_ UINT32	type
	)

Definition at line 538 of file sha512.c.

{
    SYMCRYPT_ALIGN SYMCRYPT_SHA512_STATE_EXPORT_BLOB blob;           // local copy to have proper alignment.
    C_ASSERT( sizeof( blob ) == SYMCRYPT_SHA512_STATE_EXPORT_SIZE );

    SYMCRYPT_CHECK_MAGIC( pState );

    SymCryptWipeKnownSize( &blob, sizeof( blob ) ); // wipe to avoid any data leakage

    blob.header.magic = SYMCRYPT_BLOB_MAGIC;
    blob.header.size = SYMCRYPT_SHA512_STATE_EXPORT_SIZE;
    blob.header.type = type;

    //
    // Copy the relevant data. Buffer will be 0-padded.
    //

    SymCryptUint64ToMsbFirst( &pState->chain.H[0], &blob.chain[0], 8 );
    blob.dataLengthL = pState->dataLengthL;
    blob.dataLengthH = pState->dataLengthH;
    memcpy( &blob.buffer[0], &pState->buffer[0], blob.dataLengthL & 0x7f );

    SYMCRYPT_ASSERT( (PCBYTE) &blob + sizeof( blob ) - sizeof( SYMCRYPT_BLOB_TRAILER ) == (PCBYTE) &blob.trailer );
    SymCryptMarvin32( SymCryptMarvin32DefaultSeed, (PCBYTE) &blob, sizeof( blob ) - sizeof( SYMCRYPT_BLOB_TRAILER ), &blob.trailer.checksum[0] );

    memcpy( pbBlob, &blob, sizeof( blob ) );

//cleanup:
    SymCryptWipeKnownSize( &blob, sizeof( blob ) );
    return;
}

Referenced by SymCryptSha384StateExport(), SymCryptSha512_224StateExport(), SymCryptSha512_256StateExport(), and SymCryptSha512StateExport().

SymCryptSha512StateImport()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSha512StateImport	(	_Out_ PSYMCRYPT_SHA512_STATE	pState,
		_In_reads_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PCBYTE	pbBlob
	)

Definition at line 654 of file sha512.c.

{
    return SymCryptSha512StateImportCore( pState, pbBlob, SymCryptBlobTypeSha512State );
}

SymCryptSha512StateImportCore()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSha512StateImportCore	(	_Out_ PSYMCRYPT_SHA512_STATE	pState,
		_In_reads_bytes_(SYMCRYPT_SHA512_STATE_EXPORT_SIZE) PCBYTE	pbBlob,
		_In_ UINT32	type
	)

Definition at line 612 of file sha512.c.

{
    SYMCRYPT_ERROR                                      scError = SYMCRYPT_NO_ERROR;
    SYMCRYPT_ALIGN SYMCRYPT_SHA512_STATE_EXPORT_BLOB    blob;                       // local copy to have proper alignment.
    BYTE                                                checksum[8];

    C_ASSERT( sizeof( blob ) == SYMCRYPT_SHA512_STATE_EXPORT_SIZE );
    memcpy( &blob, pbBlob, sizeof( blob ) );

    if( blob.header.magic != SYMCRYPT_BLOB_MAGIC ||
        blob.header.size != SYMCRYPT_SHA512_STATE_EXPORT_SIZE ||
        blob.header.type != type )
    {
        scError = SYMCRYPT_INVALID_BLOB;
        goto cleanup;
    }

    SymCryptMarvin32( SymCryptMarvin32DefaultSeed, (PCBYTE) &blob, sizeof( blob ) - sizeof( SYMCRYPT_BLOB_TRAILER ), checksum );
    if( memcmp( checksum, &blob.trailer.checksum[0], 8 ) != 0 )
    {
        scError = SYMCRYPT_INVALID_BLOB;
        goto cleanup;
    }

    SymCryptMsbFirstToUint64( &blob.chain[0], &pState->chain.H[0], 8 );
    pState->dataLengthL = blob.dataLengthL;
    pState->dataLengthH = blob.dataLengthH;
    pState->bytesInBuffer = blob.dataLengthL & 0x7f;
    memcpy( &pState->buffer[0], &blob.buffer[0], pState->bytesInBuffer );

    SYMCRYPT_SET_MAGIC( pState );

cleanup:
    SymCryptWipeKnownSize( &blob, sizeof(blob) );
    return scError;
}

Referenced by SymCryptSha384StateImport(), SymCryptSha512_224StateImport(), SymCryptSha512_256StateImport(), and SymCryptSha512StateImport().

Variable Documentation

SymCryptSha384Algorithm

const PCSYMCRYPT_HASH SymCryptSha384Algorithm = &SymCryptSha384Algorithm_default

Definition at line 169 of file sha512.c.

Referenced by init_hash_impl().

SymCryptSha384Algorithm_default

const SYMCRYPT_HASH SymCryptSha384Algorithm_default

Initial value:

= {
    &SymCryptSha384Init,
    &SymCryptSha384Append,
    &SymCryptSha384Result,
    &SymCryptSha512AppendBlocks,
    &SymCryptSha384StateCopy,
    sizeof( SYMCRYPT_SHA384_STATE ),
    SYMCRYPT_SHA384_RESULT_SIZE,
    SYMCRYPT_SHA384_INPUT_BLOCK_SIZE,
    SYMCRYPT_FIELD_OFFSET( SYMCRYPT_SHA384_STATE, chain ),
    SYMCRYPT_FIELD_SIZE( SYMCRYPT_SHA384_STATE, chain ),
}

Definition at line 117 of file sha512.c.

SymCryptSha384InitialState

const UINT64 SymCryptSha384InitialState[8]

Initial value:

= {
    0xcbbb9d5dc1059ed8UL,
    0x629a292a367cd507UL,
    0x9159015a3070dd17UL,
    0x152fecd8f70e5939UL,
    0x67332667ffc00b31UL,
    0x8eb44a8768581511UL,
    0xdb0c2e0d64f98fa7UL,
    0x47b5481dbefa4fa4UL,
}

Definition at line 79 of file sha512.c.

Referenced by SymCryptSha384Init().

SymCryptSha384KATAnswer

const BYTE SymCryptSha384KATAnswer[48]

Initial value:

=
{
    0xcb, 0x00, 0x75, 0x3f, 0x45, 0xa3, 0x5e, 0x8b,
    0xb5, 0xa0, 0x3d, 0x69, 0x9a, 0xc6, 0x50, 0x07,
    0x27, 0x2c, 0x32, 0xab, 0x0e, 0xde, 0xd1, 0x63,
    0x1a, 0x8b, 0x60, 0x5a, 0x43, 0xff, 0x5b, 0xed,
    0x80, 0x86, 0x07, 0x2b, 0xa1, 0xe7, 0xcc, 0x23,
    0x58, 0xba, 0xec, 0xa1, 0x34, 0xc8, 0x25, 0xa7,
}

Definition at line 728 of file sha512.c.

Referenced by SymCryptSha384Selftest().

SymCryptSha512_224Algorithm

const PCSYMCRYPT_HASH SymCryptSha512_224Algorithm = &SymCryptSha512_224Algorithm_default

Definition at line 171 of file sha512.c.

SymCryptSha512_224Algorithm_default

const SYMCRYPT_HASH SymCryptSha512_224Algorithm_default

Initial value:

= {
    &SymCryptSha512_224Init,
    &SymCryptSha512_224Append,
    &SymCryptSha512_224Result,
    &SymCryptSha512AppendBlocks,
    &SymCryptSha512_224StateCopy,
    sizeof( SYMCRYPT_SHA512_224_STATE ),
    SYMCRYPT_SHA512_224_RESULT_SIZE,
    SYMCRYPT_SHA512_224_INPUT_BLOCK_SIZE,
    SYMCRYPT_FIELD_OFFSET( SYMCRYPT_SHA512_224_STATE, chain ),
    SYMCRYPT_FIELD_SIZE( SYMCRYPT_SHA512_224_STATE, chain ),
}

Definition at line 143 of file sha512.c.

SymCryptSha512_224InitialState

const UINT64 SymCryptSha512_224InitialState[8]

Initial value:

= {
    0x8c3d37c819544da2UL,
    0x73e1996689dcd4d6UL,
    0x1dfab7ae32ff9c82UL,
    0x679dd514582f9fcfUL,
    0x0f6d2b697bd44da8UL,
    0x77e36f7304c48942UL,
    0x3f9d85a86a1d36c8UL,
    0x1112e6ad91d692a1UL,
}

Definition at line 90 of file sha512.c.

Referenced by SymCryptSha512_224Init().

SymCryptSha512_224KATAnswer

const BYTE SymCryptSha512_224KATAnswer[28]

Initial value:

=
{
    0x46, 0x34, 0x27, 0x0f, 0x70, 0x7b, 0x6a, 0x54,
    0xda, 0xae, 0x75, 0x30, 0x46, 0x08, 0x42, 0xe2,
    0x0e, 0x37, 0xed, 0x26, 0x5c, 0xee, 0xe9, 0xa4,
    0x3e, 0x89, 0x24, 0xaa,
}

Definition at line 757 of file sha512.c.

Referenced by SymCryptSha512_224Selftest().

SymCryptSha512_256Algorithm

const PCSYMCRYPT_HASH SymCryptSha512_256Algorithm = &SymCryptSha512_256Algorithm_default

Definition at line 172 of file sha512.c.

SymCryptSha512_256Algorithm_default

const SYMCRYPT_HASH SymCryptSha512_256Algorithm_default

Initial value:

= {
    &SymCryptSha512_256Init,
    &SymCryptSha512_256Append,
    &SymCryptSha512_256Result,
    &SymCryptSha512AppendBlocks,
    &SymCryptSha512_256StateCopy,
    sizeof( SYMCRYPT_SHA512_256_STATE ),
    SYMCRYPT_SHA512_256_RESULT_SIZE,
    SYMCRYPT_SHA512_256_INPUT_BLOCK_SIZE,
    SYMCRYPT_FIELD_OFFSET( SYMCRYPT_SHA512_256_STATE, chain ),
    SYMCRYPT_FIELD_SIZE( SYMCRYPT_SHA512_256_STATE, chain ),
}

Definition at line 156 of file sha512.c.

SymCryptSha512_256InitialState

const UINT64 SymCryptSha512_256InitialState[8]

Initial value:

= {
    0x22312194fc2bf72cUL,
    0x9f555fa3c84c64c2UL,
    0x2393b86b6f53b151UL,
    0x963877195940eabdUL,
    0x96283ee2a88effe3UL,
    0xbe5e1e2553863992UL,
    0x2b0199fc2c85b8aaUL,
    0x0eb72ddc81c52ca2UL,
}

Definition at line 101 of file sha512.c.

Referenced by SymCryptSha512_256Init().

SymCryptSha512_256KATAnswer

const BYTE SymCryptSha512_256KATAnswer[32]

Initial value:

=
{
    0x53, 0x04, 0x8e, 0x26, 0x81, 0x94, 0x1e, 0xf9,
    0x9b, 0x2e, 0x29, 0xb7, 0x6b, 0x4c, 0x7d, 0xab,
    0xe4, 0xc2, 0xd0, 0xc6, 0x34, 0xfc, 0x6d, 0x46,
    0xe0, 0xe2, 0xf1, 0x31, 0x07, 0xe7, 0xaf, 0x23,
}

Definition at line 784 of file sha512.c.

Referenced by SymCryptSha512_256Selftest().

SymCryptSha512Algorithm

const PCSYMCRYPT_HASH SymCryptSha512Algorithm = &SymCryptSha512Algorithm_default

Definition at line 170 of file sha512.c.

Referenced by init_hash_impl(), and SymCryptSshKdfSha512SelfTest().

SymCryptSha512Algorithm_default

const SYMCRYPT_HASH SymCryptSha512Algorithm_default

Initial value:

= {
    &SymCryptSha512Init,
    &SymCryptSha512Append,
    &SymCryptSha512Result,
    &SymCryptSha512AppendBlocks,
    &SymCryptSha512StateCopy,
    sizeof( SYMCRYPT_SHA512_STATE ),
    SYMCRYPT_SHA512_RESULT_SIZE,
    SYMCRYPT_SHA512_INPUT_BLOCK_SIZE,
    SYMCRYPT_FIELD_OFFSET( SYMCRYPT_SHA512_STATE, chain ),
    SYMCRYPT_FIELD_SIZE( SYMCRYPT_SHA512_STATE, chain ),
}

Definition at line 130 of file sha512.c.

SymCryptSha512InitialState

const UINT64 SymCryptSha512InitialState[8]

Initial value:

= {
    0x6a09e667f3bcc908UL,
    0xbb67ae8584caa73bUL,
    0x3c6ef372fe94f82bUL,
    0xa54ff53a5f1d36f1UL,
    0x510e527fade682d1UL,
    0x9b05688c2b3e6c1fUL,
    0x1f83d9abfb41bd6bUL,
    0x5be0cd19137e2179UL,
}

Definition at line 68 of file sha512.c.

Referenced by SymCryptSha512Init(), and SymCryptSha512Result().

SymCryptSha512KATAnswer

const BYTE SymCryptSha512KATAnswer[64]

Initial value:

=
{
    0xdd, 0xaf, 0x35, 0xa1, 0x93, 0x61, 0x7a, 0xba,
    0xcc, 0x41, 0x73, 0x49, 0xae, 0x20, 0x41, 0x31,
    0x12, 0xe6, 0xfa, 0x4e, 0x89, 0xa9, 0x7e, 0xa2,
    0x0a, 0x9e, 0xee, 0xe6, 0x4b, 0x55, 0xd3, 0x9a,
    0x21, 0x92, 0x99, 0x2a, 0x27, 0x4f, 0xc1, 0xa8,
    0x36, 0xba, 0x3c, 0x23, 0xa3, 0xfe, 0xeb, 0xbd,
    0x45, 0x4d, 0x44, 0x23, 0x64, 0x3c, 0xe8, 0x0e,
    0x2a, 0x9a, 0xc9, 0x4f, 0xa5, 0x4c, 0xa4, 0x9f,
}

Definition at line 695 of file sha512.c.

Referenced by SymCryptSha512Selftest().
