ExPushLock.c File Reference

#include <kmt_test.h>

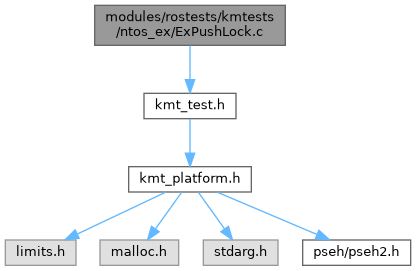

Include dependency graph for ExPushLock.c:

Go to the source code of this file.

Classes
struct	PUSH_LOCK_TEST_STATE
struct	PUSH_LOCK_THREAD_CONTEXT

Macros
#define	PUSH_LOCK_TIMEOUT_MS   5000
#define	PUSH_LOCK_POLL_INTERVAL_MS   1
#define	PUSH_LOCK_RELATIVE_TIMEOUT(Milliseconds)   (-((LONGLONG)(Milliseconds) * 10 * 1000))
#define	PUSH_LOCK_MAX_WAITERS   4
#define	PUSH_LOCK_RACE_ITERATIONS   64
#define	PUSH_LOCK_CONTENTION_THREADS   6
#define	PUSH_LOCK_CONTENTION_ITERATIONS   2048
#define	PUSH_LOCK_CHECKSUM_XOR   0xA5A5A5A5UL

Typedefs
typedef enum PUSH_LOCK_MODE	PUSH_LOCK_MODE
typedef enum PUSH_LOCK_RELEASE_KIND	PUSH_LOCK_RELEASE_KIND
typedef enum PUSH_LOCK_WAIT_CHAIN_STATE	PUSH_LOCK_WAIT_CHAIN_STATE
typedef struct PUSH_LOCK_TEST_STATE	PUSH_LOCK_TEST_STATE
typedef struct PUSH_LOCK_TEST_STATE *	PPUSH_LOCK_TEST_STATE
typedef struct PUSH_LOCK_THREAD_CONTEXT	PUSH_LOCK_THREAD_CONTEXT
typedef struct PUSH_LOCK_THREAD_CONTEXT *	PPUSH_LOCK_THREAD_CONTEXT

Enumerations
enum	PUSH_LOCK_MODE { PushLockModeShared , PushLockModeExclusive }
enum	PUSH_LOCK_RELEASE_KIND { PushLockReleaseSpecific , PushLockReleaseGeneric }
enum	PUSH_LOCK_WAIT_CHAIN_STATE { PushLockWaitChainInProgress , PushLockWaitChainStable , PushLockWaitChainInvalid }

Functions
	C_ASSERT (sizeof(EX_PUSH_LOCK)==sizeof(ULONG_PTR))
FORCEINLINE NTSTATUS	PushLockWaitForEvent (_In_ PKEVENT Event)
FORCEINLINE VOID	PushLockDelay (VOID)
static EX_PUSH_LOCK	PushLockReadValue (_In_ PEX_PUSH_LOCK PushLock)
static BOOLEAN	PushLockValueIsPlausible (_In_ EX_PUSH_LOCK Value)
FORCEINLINE VOID	PushLockRecordViolation (_Inout_ PPUSH_LOCK_TEST_STATE State)
static VOID	PushLockSampleState (_Inout_ PPUSH_LOCK_TEST_STATE State)
static VOID	PushLockAcquire (_Inout_ PEX_PUSH_LOCK PushLock, _In_ PUSH_LOCK_MODE Mode)
static VOID	PushLockRelease (_Inout_ PEX_PUSH_LOCK PushLock, _In_ PUSH_LOCK_MODE Mode, _In_ PUSH_LOCK_RELEASE_KIND ReleaseKind)
static VOID	PushLockEnterProtectedRegion (_Inout_ PPUSH_LOCK_TEST_STATE State, _In_ PUSH_LOCK_MODE Mode)
static VOID	PushLockLeaveProtectedRegion (_Inout_ PPUSH_LOCK_TEST_STATE State, _In_ PUSH_LOCK_MODE Mode)
static VOID	PushLockReadProtectedValue (_Inout_ PPUSH_LOCK_TEST_STATE State)
static VOID	PushLockWriteProtectedValue (_Inout_ PPUSH_LOCK_TEST_STATE State)
static VOID	PushLockInitializeState (_Out_ PPUSH_LOCK_TEST_STATE State)
static VOID	PushLockInitializeThreadContext (_Out_ PPUSH_LOCK_THREAD_CONTEXT Context, _Inout_ PPUSH_LOCK_TEST_STATE State, _In_ PUSH_LOCK_MODE Mode, _In_ PUSH_LOCK_RELEASE_KIND ReleaseKind)
static VOID NTAPI	PushLockControlledThread (_In_ PVOID Parameter)
static BOOLEAN	PushLockStartControlledThread (_Inout_ PPUSH_LOCK_THREAD_CONTEXT Context, _Out_ PKTHREAD *Thread)
static VOID	PushLockReleaseAndFinishThread (_In_opt_ PKTHREAD Thread, _Inout_ PPUSH_LOCK_THREAD_CONTEXT Context)
static PUSH_LOCK_WAIT_CHAIN_STATE	PushLockValidateWaitChain (_In_ PEX_PUSH_LOCK PushLock, _In_reads_(ExpectedCount) const PUSH_LOCK_MODE *ExpectedNewestFirst, _In_ ULONG ExpectedCount, _Out_opt_ PEX_PUSH_LOCK_WAIT_BLOCK *OldestWaitBlock)
static BOOLEAN	PushLockWaitForStableWaitChain (_In_ PEX_PUSH_LOCK PushLock, _In_reads_(ExpectedCount) const PUSH_LOCK_MODE *ExpectedNewestFirst, _In_ ULONG ExpectedCount, _Out_opt_ PEX_PUSH_LOCK_WAIT_BLOCK *OldestWaitBlock)
static VOID	TestPushLockUncontended (_In_ PUSH_LOCK_RELEASE_KIND ReleaseKind)
static VOID	TestPushLockWaiterSelection (VOID)
static VOID	TestPushLockSharedOwnerDrain (_In_ PUSH_LOCK_RELEASE_KIND ReleaseKind)
static VOID	TestPushLockWaiterArrivalDuringRelease (VOID)
static VOID NTAPI	PushLockContentionThread (_In_ PVOID Parameter)
static VOID	TestPushLockContention (VOID)
	START_TEST (ExPushLock)

Macro Definition Documentation

PUSH_LOCK_CHECKSUM_XOR

#define PUSH_LOCK_CHECKSUM_XOR   0xA5A5A5A5UL

Definition at line 21 of file ExPushLock.c.

PUSH_LOCK_CONTENTION_ITERATIONS

#define PUSH_LOCK_CONTENTION_ITERATIONS   2048

Definition at line 19 of file ExPushLock.c.

PUSH_LOCK_CONTENTION_THREADS

#define PUSH_LOCK_CONTENTION_THREADS   6

Definition at line 18 of file ExPushLock.c.

PUSH_LOCK_MAX_WAITERS

#define PUSH_LOCK_MAX_WAITERS   4

Definition at line 15 of file ExPushLock.c.

PUSH_LOCK_POLL_INTERVAL_MS

#define PUSH_LOCK_POLL_INTERVAL_MS   1

Definition at line 11 of file ExPushLock.c.

PUSH_LOCK_RACE_ITERATIONS

#define PUSH_LOCK_RACE_ITERATIONS   64

Definition at line 17 of file ExPushLock.c.

PUSH_LOCK_RELATIVE_TIMEOUT

#define PUSH_LOCK_RELATIVE_TIMEOUT

(

Milliseconds

)

(-((LONGLONG)(Milliseconds) * 10 * 1000))

Definition at line 13 of file ExPushLock.c.

PUSH_LOCK_TIMEOUT_MS

#define PUSH_LOCK_TIMEOUT_MS   5000

Definition at line 10 of file ExPushLock.c.

Typedef Documentation

PPUSH_LOCK_TEST_STATE

typedef struct PUSH_LOCK_TEST_STATE * PPUSH_LOCK_TEST_STATE

PPUSH_LOCK_THREAD_CONTEXT

typedef struct PUSH_LOCK_THREAD_CONTEXT * PPUSH_LOCK_THREAD_CONTEXT

PUSH_LOCK_MODE

typedef enum PUSH_LOCK_MODE PUSH_LOCK_MODE

PUSH_LOCK_RELEASE_KIND

typedef enum PUSH_LOCK_RELEASE_KIND PUSH_LOCK_RELEASE_KIND

PUSH_LOCK_TEST_STATE

typedef struct PUSH_LOCK_TEST_STATE PUSH_LOCK_TEST_STATE

PUSH_LOCK_THREAD_CONTEXT

typedef struct PUSH_LOCK_THREAD_CONTEXT PUSH_LOCK_THREAD_CONTEXT

PUSH_LOCK_WAIT_CHAIN_STATE

typedef enum PUSH_LOCK_WAIT_CHAIN_STATE PUSH_LOCK_WAIT_CHAIN_STATE

Enumeration Type Documentation

PUSH_LOCK_MODE

enum PUSH_LOCK_MODE

Enumerator
PushLockModeShared
PushLockModeExclusive

Definition at line 23 of file ExPushLock.c.

{
    PushLockModeShared,
    PushLockModeExclusive
} PUSH_LOCK_MODE;

PUSH_LOCK_RELEASE_KIND

enum PUSH_LOCK_RELEASE_KIND

Enumerator
PushLockReleaseSpecific
PushLockReleaseGeneric

Definition at line 29 of file ExPushLock.c.

{
    PushLockReleaseSpecific,
    PushLockReleaseGeneric
} PUSH_LOCK_RELEASE_KIND;

PUSH_LOCK_WAIT_CHAIN_STATE

enum PUSH_LOCK_WAIT_CHAIN_STATE

Enumerator
PushLockWaitChainInProgress
PushLockWaitChainStable
PushLockWaitChainInvalid

Definition at line 35 of file ExPushLock.c.

{
    PushLockWaitChainInProgress,
    PushLockWaitChainStable,
    PushLockWaitChainInvalid
} PUSH_LOCK_WAIT_CHAIN_STATE;

Function Documentation

C_ASSERT()

C_ASSERT

(

sizeof(EX_PUSH_LOCK)

= =sizeof(ULONG_PTR)

)

PushLockAcquire()

static VOID PushLockAcquire ( _Inout_ PEX_PUSH_LOCK  PushLock, _In_ PUSH_LOCK_MODE  Mode  )

static

Definition at line 187 of file ExPushLock.c.

{
    if (Mode == PushLockModeExclusive)
    {
        ExfAcquirePushLockExclusive(PushLock);
    }
    else
    {
        ExfAcquirePushLockShared(PushLock);
    }
}

Referenced by PushLockContentionThread(), and PushLockControlledThread().

PushLockContentionThread()

static VOID NTAPI PushLockContentionThread ( _In_ PVOID  Parameter )

static

Definition at line 1213 of file ExPushLock.c.

{
    PPUSH_LOCK_THREAD_CONTEXT Context;
    PPUSH_LOCK_TEST_STATE State;
    PUSH_LOCK_RELEASE_KIND ReleaseKind;
    NTSTATUS Status;
    ULONG Iteration;

    Context = Parameter;
    State = Context->State;

    KeSetEvent(&Context->ReadyEvent, IO_NO_INCREMENT, FALSE);

    Status = KeWaitForSingleObject(Context->StartGate,
                                   Executive,
                                   KernelMode,
                                   FALSE,
                                   NULL);
    if (Status != STATUS_SUCCESS)
    {
        PushLockRecordViolation(State);
        KeSetEvent(&Context->DoneEvent, IO_NO_INCREMENT, FALSE);
        return;
    }

    for (Iteration = 0; Iteration < Context->Iterations; Iteration++)
    {
        /* Alternate release per worker and iteration so every role uses
           both the generic and mode specific release functions */
        ReleaseKind = ((Iteration + Context->Index) & 1)
                          ? PushLockReleaseGeneric
                          : PushLockReleaseSpecific;

        KeEnterCriticalRegion();

        PushLockAcquire(&State->Lock, Context->Mode);
        /* The ownership counters and protected value checks validate the
           exclusion contract without relying on the internal push lock fields */
        PushLockEnterProtectedRegion(State, Context->Mode);

        if (Context->Mode == PushLockModeExclusive)
        {
            PushLockWriteProtectedValue(State);
        }
        else
        {
            PushLockReadProtectedValue(State);
        }

        PushLockLeaveProtectedRegion(State, Context->Mode);
        PushLockRelease(&State->Lock, Context->Mode, ReleaseKind);

        KeLeaveCriticalRegion();

        InterlockedIncrement(&State->CompletedOperations);

        /* Occasionally sample the encoded lock state and yield to increase useful nterleavings */
        if ((Iteration & 0x3f) == 0)
        {
            PushLockSampleState(State);
            YieldProcessor();
        }
    }

    KeSetEvent(&Context->DoneEvent, IO_NO_INCREMENT, FALSE);
}

Referenced by TestPushLockContention().

PushLockControlledThread()

static VOID NTAPI PushLockControlledThread ( _In_ PVOID  Parameter )

static

Definition at line 373 of file ExPushLock.c.

{
    PPUSH_LOCK_THREAD_CONTEXT Context;
    PPUSH_LOCK_TEST_STATE State;
    NTSTATUS Status;

    Context = (PPUSH_LOCK_THREAD_CONTEXT)Parameter;
    State = Context->State;

    /* ReadyEvent reports only that the thread is running. It may still be held
       behind StartGate and hasn't yet attempted to acquire the push lock. */
    KeSetEvent(&Context->ReadyEvent, IO_NO_INCREMENT, FALSE);

    if (Context->StartGate != NULL)
    {
        Status = KeWaitForSingleObject(Context->StartGate,
                                       Executive,
                                       KernelMode,
                                       FALSE,
                                       NULL);
        if (Status != STATUS_SUCCESS)
        {
            PushLockRecordViolation(State);
            KeSetEvent(&Context->DoneEvent, IO_NO_INCREMENT, FALSE);
            return;
        }
    }

    KeEnterCriticalRegion();

    PushLockAcquire(&State->Lock, Context->Mode);
    PushLockEnterProtectedRegion(State, Context->Mode);

    /* Publish acquisition only after updating the ownership counters,
       so the controlling thread can inspect a consistent protected
       state after this event is signaled */
    KeSetEvent(&Context->AcquiredEvent, IO_NO_INCREMENT, FALSE);

    /* Remain inside the protected region until the test has inspected the lock
       word and waiter chain for this acquisition */
    Status = KeWaitForSingleObject(&Context->ReleaseEvent,
                                   Executive,
                                   KernelMode,
                                   FALSE,
                                   NULL);
    if (Status != STATUS_SUCCESS)
    {
        PushLockRecordViolation(State);
    }

    PushLockLeaveProtectedRegion(State, Context->Mode);
    PushLockRelease(&State->Lock, Context->Mode, Context->ReleaseKind);

    KeLeaveCriticalRegion();

    KeSetEvent(&Context->DoneEvent, IO_NO_INCREMENT, FALSE);
}

Referenced by PushLockStartControlledThread().

PushLockDelay()

FORCEINLINE VOID PushLockDelay

(

VOID

)

Definition at line 95 of file ExPushLock.c.

{
    LARGE_INTEGER Delay;

    Delay.QuadPart = PUSH_LOCK_RELATIVE_TIMEOUT(PUSH_LOCK_POLL_INTERVAL_MS);

    KeDelayExecutionThread(KernelMode, FALSE, &Delay);
}

Referenced by PushLockWaitForStableWaitChain().

PushLockEnterProtectedRegion()

static VOID PushLockEnterProtectedRegion ( _Inout_ PPUSH_LOCK_TEST_STATE  State, _In_ PUSH_LOCK_MODE  Mode  )

static

Definition at line 229 of file ExPushLock.c.

{
    LONG Count;

    if (Mode == PushLockModeExclusive)
    {
        Count = InterlockedIncrement(&State->ActiveWriters);
        if (Count != 1 || State->ActiveReaders != 0)
        {
            PushLockRecordViolation(State);
        }

        InterlockedIncrement(&State->ExclusiveAcquisitions);
    }
    else
    {
        /* Check on both sides of the reader increment. The second check detects a
           writer that entered after the first load but before this reader published
           itself. */
        if (State->ActiveWriters != 0)
        {
            PushLockRecordViolation(State);
        }

        InterlockedIncrement(&State->ActiveReaders);

        if (State->ActiveWriters != 0)
        {
            PushLockRecordViolation(State);
        }

        InterlockedIncrement(&State->SharedAcquisitions);
    }
}

Referenced by PushLockContentionThread(), and PushLockControlledThread().

PushLockInitializeState()

static VOID PushLockInitializeState ( _Out_ PPUSH_LOCK_TEST_STATE  State )

static

Definition at line 337 of file ExPushLock.c.

{
    RtlZeroMemory(State, sizeof(*State));
    State->SequenceInverse = ~(ULONG)0;
    State->Checksum = PUSH_LOCK_CHECKSUM_XOR;
}

Referenced by TestPushLockContention(), TestPushLockSharedOwnerDrain(), TestPushLockUncontended(), TestPushLockWaiterArrivalDuringRelease(), and TestPushLockWaiterSelection().

PushLockInitializeThreadContext()

static VOID PushLockInitializeThreadContext ( _Out_ PPUSH_LOCK_THREAD_CONTEXT  Context, _Inout_ PPUSH_LOCK_TEST_STATE  State, _In_ PUSH_LOCK_MODE  Mode, _In_ PUSH_LOCK_RELEASE_KIND  ReleaseKind  )

static

Definition at line 347 of file ExPushLock.c.

{
    RtlZeroMemory(Context, sizeof(*Context));

    Context->State = State;
    Context->Mode = Mode;
    Context->ReleaseKind = ReleaseKind;

    KeInitializeEvent(&Context->ReadyEvent, NotificationEvent, FALSE);
    KeInitializeEvent(&Context->AcquiredEvent, NotificationEvent, FALSE);
    KeInitializeEvent(&Context->ReleaseEvent, NotificationEvent, FALSE);
    KeInitializeEvent(&Context->DoneEvent, NotificationEvent, FALSE);
}

Referenced by TestPushLockContention(), TestPushLockSharedOwnerDrain(), TestPushLockWaiterArrivalDuringRelease(), and TestPushLockWaiterSelection().

PushLockLeaveProtectedRegion()

static VOID PushLockLeaveProtectedRegion ( _Inout_ PPUSH_LOCK_TEST_STATE  State, _In_ PUSH_LOCK_MODE  Mode  )

static

Definition at line 268 of file ExPushLock.c.

{
    LONG Count;

    if (Mode == PushLockModeExclusive)
    {
        Count = InterlockedDecrement(&State->ActiveWriters);
        if (Count != 0)
        {
            PushLockRecordViolation(State);
        }
    }
    else
    {
        Count = InterlockedDecrement(&State->ActiveReaders);
        if (Count < 0)
        {
            PushLockRecordViolation(State);
        }
    }
}

Referenced by PushLockContentionThread(), and PushLockControlledThread().

PushLockReadProtectedValue()

static VOID PushLockReadProtectedValue ( _Inout_ PPUSH_LOCK_TEST_STATE  State )

static

Definition at line 294 of file ExPushLock.c.

{
    ULONG Sequence;
    ULONG SequenceInverse;
    ULONG Checksum;

    /* A reader must observe all 3 fields from the same completed writer
       update. Any mixture of old and new fields indicates overlap with an
       x owner. */
    Sequence = State->Sequence;
    SequenceInverse = State->SequenceInverse;
    Checksum = State->Checksum;

    if (SequenceInverse != ~Sequence ||
        Checksum != (Sequence ^ PUSH_LOCK_CHECKSUM_XOR))
    {
        PushLockRecordViolation(State);
    }
}

Referenced by PushLockContentionThread().

PushLockReadValue()

static EX_PUSH_LOCK PushLockReadValue ( _In_ PEX_PUSH_LOCK  PushLock )

static

Definition at line 106 of file ExPushLock.c.

{
    EX_PUSH_LOCK Value;

    /* Use a cmpxchg with identical xchg and comparand values as an
       atomic read of the complete push lock word. A zero value remains zero,
       and a nonzero value never matches the comparand, so the operation doesn't
       modify the lock. */
    Value.Ptr = InterlockedCompareExchangePointer(&PushLock->Ptr, NULL, NULL);

    return Value;
}

Referenced by PushLockSampleState(), PushLockValidateWaitChain(), TestPushLockContention(), TestPushLockSharedOwnerDrain(), TestPushLockUncontended(), TestPushLockWaiterArrivalDuringRelease(), and TestPushLockWaiterSelection().

PushLockRecordViolation()

FORCEINLINE VOID PushLockRecordViolation

(

_Inout_ PPUSH_LOCK_TEST_STATE

State

)

Definition at line 168 of file ExPushLock.c.

{
    InterlockedIncrement(&State->Violations);
}

Referenced by PushLockContentionThread(), PushLockControlledThread(), PushLockEnterProtectedRegion(), PushLockLeaveProtectedRegion(), PushLockReadProtectedValue(), and PushLockSampleState().

PushLockRelease()

static VOID PushLockRelease ( _Inout_ PEX_PUSH_LOCK  PushLock, _In_ PUSH_LOCK_MODE  Mode, _In_ PUSH_LOCK_RELEASE_KIND  ReleaseKind  )

static

Definition at line 203 of file ExPushLock.c.

{
    if (ReleaseKind == PushLockReleaseGeneric)
    {
        ExfReleasePushLock(PushLock);
    }
    else if (Mode == PushLockModeExclusive)
    {
        ExfReleasePushLockExclusive(PushLock);
    }
    else
    {
        ExfReleasePushLockShared(PushLock);
    }
}

Referenced by PushLockContentionThread(), PushLockControlledThread(), TestPushLockSharedOwnerDrain(), TestPushLockUncontended(), and TestPushLockWaiterArrivalDuringRelease().

PushLockReleaseAndFinishThread()

static VOID PushLockReleaseAndFinishThread ( _In_opt_ PKTHREAD  Thread, _Inout_ PPUSH_LOCK_THREAD_CONTEXT  Context  )

static

Definition at line 458 of file ExPushLock.c.

{
    NTSTATUS Status;

    if (Thread == NULL)
    {
        return;
    }

    KeSetEvent(&Context->ReleaseEvent, IO_NO_INCREMENT, FALSE);

    Status = PushLockWaitForEvent(&Context->DoneEvent);
    ok_eq_hex(Status, STATUS_SUCCESS);

    KmtFinishThread(Thread, NULL);
}

Referenced by TestPushLockSharedOwnerDrain(), TestPushLockWaiterArrivalDuringRelease(), and TestPushLockWaiterSelection().

PushLockSampleState()

static VOID PushLockSampleState ( _Inout_ PPUSH_LOCK_TEST_STATE  State )

static

Definition at line 176 of file ExPushLock.c.

{
    if (!PushLockValueIsPlausible(PushLockReadValue(&State->Lock)))
    {
        PushLockRecordViolation(State);
    }
}

Referenced by PushLockContentionThread().

PushLockStartControlledThread()

static BOOLEAN PushLockStartControlledThread ( _Inout_ PPUSH_LOCK_THREAD_CONTEXT  Context, _Out_ PKTHREAD *  Thread  )

static

Definition at line 434 of file ExPushLock.c.

{
    NTSTATUS Status;

    *Thread = KmtStartThread(PushLockControlledThread, Context);
    if (*Thread == NULL)
    {
        ok(FALSE, "Could not create push-lock test thread\n");
        return FALSE;
    }

    /* Don't examine the queue until the worker has started.
       N.B. ReadyEvent doesn't imply that acquisition or queue
            insertion has completed. */
    Status = PushLockWaitForEvent(&Context->ReadyEvent);
    ok_eq_hex(Status, STATUS_SUCCESS);

    return Status == STATUS_SUCCESS;
}

Referenced by TestPushLockSharedOwnerDrain(), TestPushLockWaiterArrivalDuringRelease(), and TestPushLockWaiterSelection().

PushLockValidateWaitChain()

static PUSH_LOCK_WAIT_CHAIN_STATE PushLockValidateWaitChain ( _In_ PEX_PUSH_LOCK  PushLock, _In_reads_(ExpectedCount) const PUSH_LOCK_MODE *  ExpectedNewestFirst, _In_ ULONG  ExpectedCount, _Out_opt_ PEX_PUSH_LOCK_WAIT_BLOCK *  OldestWaitBlock  )

static

Definition at line 492 of file ExPushLock.c.

{
    EX_PUSH_LOCK Value;
    EX_PUSH_LOCK CurrentValue;
    PVOID Seen[PUSH_LOCK_MAX_WAITERS];
    PUSH_LOCK_MODE ActualNewestFirst[PUSH_LOCK_MAX_WAITERS];
    PEX_PUSH_LOCK_WAIT_BLOCK Head;
    PEX_PUSH_LOCK_WAIT_BLOCK Current;
    PEX_PUSH_LOCK_WAIT_BLOCK Previous;
    PEX_PUSH_LOCK_WAIT_BLOCK Last;
    ULONG ActualCount;
    ULONG Index;
    ULONG SeenIndex;
    LONG Flags;

    if (ExpectedCount == 0 || ExpectedCount > PUSH_LOCK_MAX_WAITERS)
    {
        return PushLockWaitChainInvalid;
    }

    Value = PushLockReadValue(PushLock);

    if (!PushLockValueIsPlausible(Value))
    {
        return PushLockWaitChainInvalid;
    }

    /* The tests keep an owner in place while constructing the queue.
       Waiting may still be clear until the expected waiter is inserted,
       and Waking remains set while the list links are being optimized. */
    if (!Value.Locked)
    {
        return PushLockWaitChainInvalid;
    }

    if (!Value.Waiting || Value.Waking)
    {
        return PushLockWaitChainInProgress;
    }

    Head = (PEX_PUSH_LOCK_WAIT_BLOCK)(Value.Value & ~EX_PUSH_LOCK_PTR_BITS);
    if (!MmIsAddressValid(Head))
    {
        return PushLockWaitChainInvalid;
    }

    Last = Head->Last;
    if (Last == NULL)
        goto CheckForConcurrentChange;

    if (((ULONG_PTR)Last & EX_PUSH_LOCK_PTR_BITS) != 0 || !MmIsAddressValid(Last))
    {
        return PushLockWaitChainInvalid;
    }

    RtlZeroMemory(Seen, sizeof(Seen));

    Current = Head;
    Previous = NULL;
    ActualCount = 0;

    for (Index = 0; Index < PUSH_LOCK_MAX_WAITERS; Index++)
    {
        if (Current == NULL)
        {
            return PushLockWaitChainInvalid;
        }

        if (!MmIsAddressValid(Current))
        {
            return PushLockWaitChainInvalid;
        }

        if (((ULONG_PTR)Current & EX_PUSH_LOCK_PTR_BITS) != 0)
        {
            return PushLockWaitChainInvalid;
        }

        for (SeenIndex = 0; SeenIndex < ActualCount; SeenIndex++)
        {
            if (Seen[SeenIndex] == Current)
            {
                return PushLockWaitChainInvalid;
            }
        }

        Seen[ActualCount] = Current;

        /* Previous links are built by ExpOptimizePushLockList. If the
           push lock value changed while examining them, retry after the
           concurrent insertion/optimization completes. */
        if (Current->Previous != Previous)
        {
            goto CheckForConcurrentChange;
        }

        Flags = Current->Flags;

        /* WAIT is the wake/sleep handshake bit and may already be clear.
           EXCLUSIVE records the acquisition mode. No other flag bits are
           valid for these wait blocks. */
        if (Flags & ~(EX_PUSH_LOCK_FLAGS_EXCLUSIVE | EX_PUSH_LOCK_FLAGS_WAIT))
        {
            return PushLockWaitChainInvalid;
        }

        ActualNewestFirst[ActualCount] = Flags & EX_PUSH_LOCK_FLAGS_EXCLUSIVE
                                             ? PushLockModeExclusive
                                             : PushLockModeShared;

        ActualCount++;

        if (Current == Last)
        {
            break;
        }

        Previous = Current;
        Current = Current->Next;
    }

    if (Current != Last)
        return PushLockWaitChainInvalid;

    /* Make sure the lock word didn't change while the non-atomic wait block
       links were being examined */
    CurrentValue = PushLockReadValue(PushLock);
    if (CurrentValue.Value != Value.Value)
    {
        return PushLockWaitChainInProgress;
    }

    /* A shorter chain means that not all expected waiters have been queued yet.
       Additional waiters are invalid because the tests construct the queue in
       controlled steps. */
    if (ActualCount < ExpectedCount)
    {
        return PushLockWaitChainInProgress;
    }

    if (ActualCount > ExpectedCount)
    {
        return PushLockWaitChainInvalid;
    }

    for (Index = 0; Index < ExpectedCount; Index++)
    {
        /* EXCLUSIVE is the persistent mode bit, so the stable chain must
           match the acquisition modes requested by the test */
        if (ActualNewestFirst[Index] != ExpectedNewestFirst[Index])
        {
            return PushLockWaitChainInvalid;
        }
    }

    if (OldestWaitBlock != NULL)
    {
        *OldestWaitBlock = Last;
    }

    return PushLockWaitChainStable;

CheckForConcurrentChange:

    CurrentValue = PushLockReadValue(PushLock);
    if (CurrentValue.Value != Value.Value)
    {
        return PushLockWaitChainInProgress;
    }

    return PushLockWaitChainInvalid;
}

Referenced by PushLockWaitForStableWaitChain().

PushLockValueIsPlausible()

static BOOLEAN PushLockValueIsPlausible ( _In_ EX_PUSH_LOCK  Value )

static

Definition at line 127 of file ExPushLock.c.

{
    ULONG_PTR WaitBlockAddress;

    if (Value.Waking && !Value.Waiting)
    {
        return FALSE;
    }

    if (Value.MultipleShared && (!Value.Locked || !Value.Waiting))
    {
        return FALSE;
    }

    if (!Value.Waiting && (Value.Waking || Value.MultipleShared))
    {
        return FALSE;
    }

    if (!Value.Locked && !Value.Waiting && Value.Value != 0)
    {
        return FALSE;
    }

    /* When Waiting is set, the upper bits contain the address of the newest wait
       block while the low bits retain the push lock flags */
    if (Value.Waiting)
    {
        WaitBlockAddress = Value.Value & ~EX_PUSH_LOCK_PTR_BITS;
        if (WaitBlockAddress == 0)
        {
            return FALSE;
        }
    }

    return TRUE;
}

Referenced by PushLockSampleState(), and PushLockValidateWaitChain().

PushLockWaitForEvent()

FORCEINLINE NTSTATUS PushLockWaitForEvent

(

_In_ PKEVENT

Event

)

Definition at line 79 of file ExPushLock.c.

{
    LARGE_INTEGER Timeout;

    Timeout.QuadPart = PUSH_LOCK_RELATIVE_TIMEOUT(PUSH_LOCK_TIMEOUT_MS);

    return KeWaitForSingleObject(Event,
                                 Executive,
                                 KernelMode,
                                 FALSE,
                                 &Timeout);
}

Referenced by PushLockReleaseAndFinishThread(), PushLockStartControlledThread(), TestPushLockContention(), TestPushLockSharedOwnerDrain(), and TestPushLockWaiterSelection().

PushLockWaitForStableWaitChain()

static BOOLEAN PushLockWaitForStableWaitChain ( _In_ PEX_PUSH_LOCK  PushLock, _In_reads_(ExpectedCount) const PUSH_LOCK_MODE *  ExpectedNewestFirst, _In_ ULONG  ExpectedCount, _Out_opt_ PEX_PUSH_LOCK_WAIT_BLOCK *  OldestWaitBlock  )

static

Definition at line 676 of file ExPushLock.c.

{
    PUSH_LOCK_WAIT_CHAIN_STATE ChainState;
    ULONG Elapsed;

    /* Queue insertion and list optimization are separate operations. Poll until
       the waiter chain reaches the backward linked form required by the
       structural checks below. */
    for (Elapsed = 0;
         Elapsed < PUSH_LOCK_TIMEOUT_MS;
         Elapsed += PUSH_LOCK_POLL_INTERVAL_MS)
    {
        ChainState = PushLockValidateWaitChain(PushLock,
                                               ExpectedNewestFirst,
                                               ExpectedCount,
                                               OldestWaitBlock);

        if (ChainState == PushLockWaitChainStable)
        {
            return TRUE;
        }

        if (ChainState == PushLockWaitChainInvalid)
        {
            return FALSE;
        }

        PushLockDelay();
    }

    return FALSE;
}

Referenced by TestPushLockSharedOwnerDrain(), TestPushLockWaiterArrivalDuringRelease(), and TestPushLockWaiterSelection().

PushLockWriteProtectedValue()

static VOID PushLockWriteProtectedValue ( _Inout_ PPUSH_LOCK_TEST_STATE  State )

static

Definition at line 317 of file ExPushLock.c.

{
    ULONG Sequence;

    /* Publish an intentionally inconsistent value while the update is in
       progress. A reader entering concurrently is likely to observe
       either an invalid inverse or an invalid checksum. */
    Sequence = State->Sequence + 1;
    State->Sequence = Sequence;
    /* Keep the 3 stores ordered. N.B. The barriers aren't intended to replace
       the synchronization supplied by the push lock. */
    KeMemoryBarrier();
    State->SequenceInverse = ~Sequence;
    KeMemoryBarrier();
    State->Checksum = Sequence ^ PUSH_LOCK_CHECKSUM_XOR;
}

Referenced by PushLockContentionThread().

START_TEST()

START_TEST

(

ExPushLock

)

Definition at line 1373 of file ExPushLock.c.

{
    TestPushLockUncontended(PushLockReleaseSpecific);
    TestPushLockUncontended(PushLockReleaseGeneric);

    TestPushLockWaiterSelection();

    TestPushLockSharedOwnerDrain(PushLockReleaseSpecific);
    TestPushLockSharedOwnerDrain(PushLockReleaseGeneric);

    TestPushLockWaiterArrivalDuringRelease();
    TestPushLockContention();
}

TestPushLockContention()

static VOID TestPushLockContention ( VOID  )

static

Definition at line 1283 of file ExPushLock.c.

{
    PUSH_LOCK_TEST_STATE State;
    PUSH_LOCK_THREAD_CONTEXT Contexts[PUSH_LOCK_CONTENTION_THREADS];
    PKTHREAD Threads[PUSH_LOCK_CONTENTION_THREADS] = {NULL};
    KEVENT StartGate;
    NTSTATUS Status;
    ULONG Index;
    ULONG Started;
    ULONG WriterCount;
    ULONG ReaderCount;

    PushLockInitializeState(&State);
    KeInitializeEvent(&StartGate, NotificationEvent, FALSE);

    Started = 0;
    WriterCount = 0;
    ReaderCount = 0;

    for (Index = 0; Index < PUSH_LOCK_CONTENTION_THREADS; Index++)
    {
        PUSH_LOCK_MODE Mode;

        /* Threads 0 and 3 are writers; the remaining 4 are readers */
        Mode = ((Index % 3) == 0) ? PushLockModeExclusive : PushLockModeShared;

        if (Mode == PushLockModeExclusive)
        {
            WriterCount++;
        }
        else
        {
            ReaderCount++;
        }

        PushLockInitializeThreadContext(&Contexts[Index],
                                        &State,
                                        Mode,
                                        PushLockReleaseSpecific);
        Contexts[Index].StartGate = &StartGate;
        Contexts[Index].Index = Index;
        Contexts[Index].Iterations = PUSH_LOCK_CONTENTION_ITERATIONS;

        Threads[Index] = KmtStartThread(PushLockContentionThread,
                                        &Contexts[Index]);
        if (Threads[Index] == NULL)
        {
            ok(FALSE, "Could not create contention thread %lu\n", Index);
            break;
        }

        Started++;

        Status = PushLockWaitForEvent(&Contexts[Index].ReadyEvent);
        ok_eq_hex(Status, STATUS_SUCCESS);

        if (Status != STATUS_SUCCESS)
        {
            break;
        }
    }

    /* Release all successfully created workers together so their first
       acquisitions contend on the same initially unlocked push lock */
    KeSetEvent(&StartGate, IO_NO_INCREMENT, FALSE);

    for (Index = 0; Index < Started; Index++)
    {
        Status = PushLockWaitForEvent(&Contexts[Index].DoneEvent);
        ok_eq_hex(Status, STATUS_SUCCESS);
        KmtFinishThread(Threads[Index], NULL);
    }

    ok_eq_long(State.ActiveReaders, 0);
    ok_eq_long(State.ActiveWriters, 0);
    ok_eq_long(State.Violations, 0);
    ok_eq_long(State.CompletedOperations,
               (LONG)(Started * PUSH_LOCK_CONTENTION_ITERATIONS));

    if (Started == PUSH_LOCK_CONTENTION_THREADS)
    {
        ok_eq_long(State.ExclusiveAcquisitions,
                   (LONG)(WriterCount * PUSH_LOCK_CONTENTION_ITERATIONS));
        ok_eq_long(State.SharedAcquisitions,
                   (LONG)(ReaderCount * PUSH_LOCK_CONTENTION_ITERATIONS));
    }

    ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value, 0);
}

Referenced by START_TEST().

TestPushLockSharedOwnerDrain()

static VOID TestPushLockSharedOwnerDrain ( _In_ PUSH_LOCK_RELEASE_KIND  ReleaseKind )

static

Definition at line 901 of file ExPushLock.c.

{
    /*
     * shared
     * shared
     * shared
     *   |
     *   v
     * exclusive waiter     <- oldest, ShareCount = 3
     *   |
     *   v
     * shared waiter        <- newest
     *   |
     *   v
     * release share        ShareCount = 2, nobody wakes
     * release share        ShareCount = 1, nobody wakes
     * release share        ShareCount = 0
     *   |
     *   v
     * exclusive wakes      shared MUST remain queued
     *   |
     *   v
     * exclusive releases
     *   |
     *   v
     * shared wakes
     */
    static const PUSH_LOCK_MODE ExpectedExclusive[] = {PushLockModeExclusive};
    static const PUSH_LOCK_MODE ExpectedBoth[] = {PushLockModeShared, PushLockModeExclusive};
    static const PUSH_LOCK_MODE ExpectedShared[] = {PushLockModeShared};
    PUSH_LOCK_TEST_STATE State;
    PUSH_LOCK_THREAD_CONTEXT ExclusiveContext;
    PUSH_LOCK_THREAD_CONTEXT SharedContext;
    PKTHREAD ExclusiveThread;
    PKTHREAD SharedThread;
    PEX_PUSH_LOCK_WAIT_BLOCK OldestWaitBlock;
    EX_PUSH_LOCK Value;
    NTSTATUS Status;
    BOOLEAN Success;
    ULONG Count;

    PushLockInitializeState(&State);
    ExclusiveThread = NULL;
    SharedThread = NULL;
    OldestWaitBlock = NULL;

    PushLockInitializeThreadContext(&ExclusiveContext,
                                    &State,
                                    PushLockModeExclusive,
                                    PushLockReleaseSpecific);

    PushLockInitializeThreadContext(&SharedContext,
                                    &State,
                                    PushLockModeShared,
                                    PushLockReleaseSpecific);

    KeEnterCriticalRegion();

    /* 3 shared acquisitions force the 1st x waiter to use
       MultipleShared and store the outstanding count in its wait block */
    for (Count = 0; Count < 3; Count++)
    {
        ExfAcquirePushLockShared(&State.Lock);
    }

    if (!PushLockStartControlledThread(&ExclusiveContext, &ExclusiveThread))
    {
        goto Cleanup;
    }

    Success = PushLockWaitForStableWaitChain(&State.Lock,
                                             ExpectedExclusive,
                                             RTL_NUMBER_OF(ExpectedExclusive),
                                             &OldestWaitBlock);
    ok(Success, "Exclusive waiter did not reach a stable wait state\n");
    if (!Success)
    {
        goto Cleanup;
    }

    /* Queue an s waiter after the x waiter. Since Waiting is already set,
       it must queue instead of joining the current s owners */
    if (!PushLockStartControlledThread(&SharedContext, &SharedThread))
    {
        goto Cleanup;
    }

    Success = PushLockWaitForStableWaitChain(&State.Lock,
                                             ExpectedBoth,
                                             RTL_NUMBER_OF(ExpectedBoth),
                                             &OldestWaitBlock);
    ok(Success, "Exclusive/shared wait chain did not stabilize\n");
    if (!Success)
    {
        goto Cleanup;
    }

    Value = PushLockReadValue(&State.Lock);
    ok(Value.Locked, "Push lock is not locked\n");
    ok(Value.Waiting, "Push lock has no waiters\n");
    ok(!Value.Waking, "Push lock is waking\n");
    ok(Value.MultipleShared, "MultipleShared is not set\n");

    if (OldestWaitBlock != NULL)
    {
        ok_eq_long(OldestWaitBlock->ShareCount, 3);
        ok(OldestWaitBlock->Flags & EX_PUSH_LOCK_FLAGS_EXCLUSIVE, "Oldest waiter is not exclusive\n");
    }

    /* The first 2 releases only decrement the saved shared count.
       Neither waiter may acquire while an existing s owner remains. */
    for (Count = 3; Count > 1; Count--)
    {
        PushLockRelease(&State.Lock, PushLockModeShared, ReleaseKind);

        if (OldestWaitBlock != NULL)
        {
            ok_eq_long(OldestWaitBlock->ShareCount, Count - 1);
        }

        Value = PushLockReadValue(&State.Lock);
        ok(Value.Locked, "Push lock is not locked while shares remain\n");
        ok(Value.Waiting, "Push lock has no waiters while shares remain\n");
        ok(Value.MultipleShared, "MultipleShared is not set while shares remain\n");

        ok_eq_long(KeReadStateEvent(&ExclusiveContext.AcquiredEvent), 0);
        ok_eq_long(KeReadStateEvent(&SharedContext.AcquiredEvent), 0);
    }

    /* The final s release must select the oldest x waiter.
       The newer s waiter must remain queued behind it. */
    PushLockRelease(&State.Lock, PushLockModeShared, ReleaseKind);

    KeLeaveCriticalRegion();

    Status = PushLockWaitForEvent(&ExclusiveContext.AcquiredEvent);
    ok_eq_hex(Status, STATUS_SUCCESS);

    if (Status != STATUS_SUCCESS)
    {
        /* Allow either waiter to finish if the expected handoff failed.
           Signaling both avoids making cleanup depend on which one acquired. */
        KeSetEvent(&ExclusiveContext.ReleaseEvent, IO_NO_INCREMENT, FALSE);
        KeSetEvent(&SharedContext.ReleaseEvent, IO_NO_INCREMENT, FALSE);

        PushLockReleaseAndFinishThread(ExclusiveThread, &ExclusiveContext);
        PushLockReleaseAndFinishThread(SharedThread, &SharedContext);
        return;
    }

    ok_eq_long(KeReadStateEvent(&SharedContext.AcquiredEvent), 0);
    ok_eq_long(State.ActiveWriters, 1);
    ok_eq_long(State.ActiveReaders, 0);

    /* While the x waiter owns the lock, the newer s waiter must still be
       the complete remaining wait chain */
    Success = PushLockWaitForStableWaitChain(&State.Lock,
                                             ExpectedShared,
                                             RTL_NUMBER_OF(ExpectedShared),
                                             NULL);
    ok(Success, "Shared waiter did not remain queued behind the exclusive owner\n");

    /* Releasing the x owner now permits the remaining s waiter to acquire */
    PushLockReleaseAndFinishThread(ExclusiveThread, &ExclusiveContext);
    ExclusiveThread = NULL;

    Status = PushLockWaitForEvent(&SharedContext.AcquiredEvent);
    ok_eq_hex(Status, STATUS_SUCCESS);

    if (Status == STATUS_SUCCESS)
    {
        ok_eq_long(State.ActiveWriters, 0);
        ok_eq_long(State.ActiveReaders, 1);
    }

    PushLockReleaseAndFinishThread(SharedThread, &SharedContext);
    SharedThread = NULL;

    ok_eq_long(State.ActiveReaders, 0);
    ok_eq_long(State.ActiveWriters, 0);
    ok_eq_long(State.Violations, 0);
    ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value, 0);

    return;

Cleanup:

    /* Let any successfully started waiter leave immediately after acquiring,
       regardless of how far queue construction progressed */
    if (ExclusiveThread != NULL)
    {
        KeSetEvent(&ExclusiveContext.ReleaseEvent, IO_NO_INCREMENT, FALSE);
    }

    if (SharedThread != NULL)
    {
        KeSetEvent(&SharedContext.ReleaseEvent, IO_NO_INCREMENT, FALSE);
    }

    for (Count = 0; Count < 3; Count++)
    {
        PushLockRelease(&State.Lock, PushLockModeShared, ReleaseKind);
    }

    KeLeaveCriticalRegion();

    PushLockReleaseAndFinishThread(ExclusiveThread, &ExclusiveContext);
    PushLockReleaseAndFinishThread(SharedThread, &SharedContext);
}

Referenced by START_TEST().

TestPushLockUncontended()

static VOID TestPushLockUncontended ( _In_ PUSH_LOCK_RELEASE_KIND  ReleaseKind )

static

Definition at line 716 of file ExPushLock.c.

{
    PUSH_LOCK_TEST_STATE State;
    EX_PUSH_LOCK Value;
    ULONG Count;

    PushLockInitializeState(&State);
    ok_eq_ulongptr(State.Lock.Value, 0);

    KeEnterCriticalRegion();

    /* An uncontended exclusive acquisition is represented by the Locked bit alone */
    ExfAcquirePushLockExclusive(&State.Lock);
    ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value, EX_PUSH_LOCK_LOCK);

    PushLockRelease(&State.Lock, PushLockModeExclusive, ReleaseKind);
    ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value, 0);

    /* In the uncontended shared form, the lock word contains Locked plus one
       EX_PUSH_LOCK_SHARE_INC for each shared acquisition */
    for (Count = 1; Count <= 4; Count++)
    {
        ExfAcquirePushLockShared(&State.Lock);
        Value = PushLockReadValue(&State.Lock);
        ok_eq_ulongptr(Value.Value, EX_PUSH_LOCK_LOCK + Count * EX_PUSH_LOCK_SHARE_INC);
    }

    /* Verify every intermediate shared count, including the transition from the
       final shared owner back to the zero lock word */
    for (Count = 4; Count > 0; Count--)
    {
        PushLockRelease(&State.Lock, PushLockModeShared, ReleaseKind);
        Value = PushLockReadValue(&State.Lock);

        if (Count == 1)
        {
            ok_eq_ulongptr(Value.Value, 0);
        }
        else
        {
            ok_eq_ulongptr(Value.Value,
                           EX_PUSH_LOCK_LOCK + (Count - 1) * EX_PUSH_LOCK_SHARE_INC);
        }
    }

    KeLeaveCriticalRegion();
}

Referenced by START_TEST().

TestPushLockWaiterArrivalDuringRelease()

static VOID TestPushLockWaiterArrivalDuringRelease ( VOID  )

static

Definition at line 1120 of file ExPushLock.c.

{
    static const PUSH_LOCK_MODE ExpectedOldest[] = {PushLockModeExclusive};
    PUSH_LOCK_TEST_STATE State;
    PUSH_LOCK_THREAD_CONTEXT OldestContext;
    PUSH_LOCK_THREAD_CONTEXT NewestContext;
    PKTHREAD OldestThread;
    PKTHREAD NewestThread;
    KEVENT StartGate;
    PUSH_LOCK_RELEASE_KIND ReleaseKind;
    ULONG Iteration;

    for (Iteration = 0; Iteration < PUSH_LOCK_RACE_ITERATIONS; Iteration++)
    {
        PushLockInitializeState(&State);
        OldestThread = NULL;
        NewestThread = NULL;
        KeInitializeEvent(&StartGate, NotificationEvent, FALSE);

        KeEnterCriticalRegion();
        ExfAcquirePushLockShared(&State.Lock);

        PushLockInitializeThreadContext(&OldestContext,
                                        &State,
                                        PushLockModeExclusive,
                                        PushLockReleaseSpecific);
        if (!PushLockStartControlledThread(&OldestContext, &OldestThread))
        {
            ExfReleasePushLockShared(&State.Lock);
            KeLeaveCriticalRegion();
            PushLockReleaseAndFinishThread(OldestThread, &OldestContext);
            continue;
        }

        ok(PushLockWaitForStableWaitChain(&State.Lock, ExpectedOldest,
               RTL_NUMBER_OF(ExpectedOldest), NULL),
           "Oldest waiter did not stabilize at iteration %lu\n",
           Iteration);

        PushLockInitializeThreadContext(&NewestContext,
                                        &State,
                                        PushLockModeExclusive,
                                        PushLockReleaseSpecific);
        NewestContext.StartGate = &StartGate;

        if (!PushLockStartControlledThread(&NewestContext, &NewestThread))
        {
            KeSetEvent(&StartGate, IO_NO_INCREMENT, FALSE);
            ExfReleasePushLockShared(&State.Lock);
            KeLeaveCriticalRegion();
            PushLockReleaseAndFinishThread(OldestThread, &OldestContext);
            PushLockReleaseAndFinishThread(NewestThread, &NewestContext);
            continue;
        }

        /* Don't hold either waiter after acquisition. The test is interested in
           completion of the entire queue, not in inspecting an intermediate owner... */
        KeSetEvent(&OldestContext.ReleaseEvent, IO_NO_INCREMENT, FALSE);
        KeSetEvent(&NewestContext.ReleaseEvent, IO_NO_INCREMENT, FALSE);

        /* Exercise the same arrival window through both the s specific and
           generic release */
        ReleaseKind = (Iteration & 1)
                          ? PushLockReleaseGeneric
                          : PushLockReleaseSpecific;

        /* Make the new waiter ready immediately before the final shared release.
           The scheduler may insert it before or during the release. This can't
           force the exact load/CAS interleaving, but repeatedly exposes the
           implementation to the execution found by the tla */
        KeSetEvent(&StartGate, IO_NO_INCREMENT, FALSE);
        PushLockRelease(&State.Lock, PushLockModeShared, ReleaseKind);

        KeLeaveCriticalRegion();

        PushLockReleaseAndFinishThread(OldestThread, &OldestContext);
        PushLockReleaseAndFinishThread(NewestThread, &NewestContext);

        ok_eq_long(KeReadStateEvent(&OldestContext.AcquiredEvent), 1);
        ok_eq_long(KeReadStateEvent(&NewestContext.AcquiredEvent), 1);
        ok_eq_long(State.Violations, 0);
        ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value, 0);
    }
}

Referenced by START_TEST().

TestPushLockWaiterSelection()

static VOID TestPushLockWaiterSelection ( VOID  )

static

Definition at line 772 of file ExPushLock.c.

{
    static const PUSH_LOCK_MODE Modes[] = {
        PushLockModeExclusive,
        PushLockModeShared,
        PushLockModeShared
    };
    static const PUSH_LOCK_MODE ExpectedOne[] = {PushLockModeExclusive};
    static const PUSH_LOCK_MODE ExpectedTwo[] = {
        PushLockModeShared,
        PushLockModeExclusive
    };
    static const PUSH_LOCK_MODE ExpectedThree[] = {
        PushLockModeShared,
        PushLockModeShared,
        PushLockModeExclusive
    };
    static const PUSH_LOCK_MODE ExpectedReaders[] = {
        PushLockModeShared,
        PushLockModeShared
    };
    const PUSH_LOCK_MODE *Expected[] = {
        ExpectedOne,
        ExpectedTwo,
        ExpectedThree
    };
    PUSH_LOCK_TEST_STATE State;
    PUSH_LOCK_THREAD_CONTEXT Contexts[RTL_NUMBER_OF(Modes)];
    PKTHREAD Threads[RTL_NUMBER_OF(Modes)] = {NULL};
    NTSTATUS Status;
    ULONG Started;
    ULONG Index;

    PushLockInitializeState(&State);
    Started = 0;

    /* Hold the lock while constructing the waiter chain. Starting each waiter
       separately makes the newest-to-oldest order deterministic. */

    KeEnterCriticalRegion();

    ExfAcquirePushLockExclusive(&State.Lock);

    /* The resulting chains are:
        o exclusive
        o shared -> exclusive
        o shared -> shared -> exclusive
       where the leftmost entry is the newest waiter */

    for (Index = 0; Index < RTL_NUMBER_OF(Modes); Index++)
    {
        PushLockInitializeThreadContext(&Contexts[Index],
                                        &State,
                                        Modes[Index],
                                        PushLockReleaseSpecific);

        if (!PushLockStartControlledThread(&Contexts[Index], &Threads[Index]))
        {
            if (Threads[Index] != NULL)
            {
                Started++;
            }
            break;
        }

        Started++;

        ok(PushLockWaitForStableWaitChain(&State.Lock, Expected[Index], Index + 1, NULL),
           "Wait chain did not stabilize after waiter %lu\n", Index);
    }

    /* The oldest waiter is exclusive, so releasing the owner must select only
       that waiter and leave both shared waiters queued */
    ExfReleasePushLockExclusive(&State.Lock);

    KeLeaveCriticalRegion();

    if (Started == RTL_NUMBER_OF(Modes))
    {
        Status = PushLockWaitForEvent(&Contexts[0].AcquiredEvent);
        ok_eq_hex(Status, STATUS_SUCCESS);

        ok_eq_long(KeReadStateEvent(&Contexts[1].AcquiredEvent), 0);
        ok_eq_long(KeReadStateEvent(&Contexts[2].AcquiredEvent), 0);

        /* Once the x waiter owns the lock, the two newer s waiters must
           still form the complete remaining wait chain */
        ok(PushLockWaitForStableWaitChain(&State.Lock, ExpectedReaders,
               RTL_NUMBER_OF(ExpectedReaders), NULL),
           "Reader wait chain is invalid while the writer owns the lock\n");

        /* Releasing the oldest x waiter permits the remaining s batch to acquire together */
        PushLockReleaseAndFinishThread(Threads[0], &Contexts[0]);
        Threads[0] = NULL;

        Status = PushLockWaitForEvent(&Contexts[1].AcquiredEvent);
        ok_eq_hex(Status, STATUS_SUCCESS);
        Status = PushLockWaitForEvent(&Contexts[2].AcquiredEvent);
        ok_eq_hex(Status, STATUS_SUCCESS);

        ok_eq_long(State.ActiveReaders, 2);
        ok_eq_long(State.ActiveWriters, 0);
        ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value,
                       EX_PUSH_LOCK_LOCK + 2 * EX_PUSH_LOCK_SHARE_INC);
    }

    for (Index = 0; Index < Started; Index++)
    {
        if (Threads[Index] != NULL)
        {
            PushLockReleaseAndFinishThread(Threads[Index], &Contexts[Index]);
            Threads[Index] = NULL;
        }
    }

    ok_eq_long(State.ActiveReaders, 0);
    ok_eq_long(State.ActiveWriters, 0);
    ok_eq_long(State.Violations, 0);
    ok_eq_ulongptr(PushLockReadValue(&State.Lock).Value, 0);
}

Referenced by START_TEST().
