ns16550.c File Reference

#include <intrin.h>
#include <ioaccess.h>
#include <ntstatus.h>
#include <cportlib/cportlib.h>
#include <drivers/serial/ns16550.h>

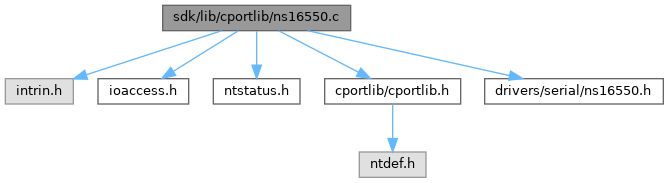

Include dependency graph for ns16550.c:

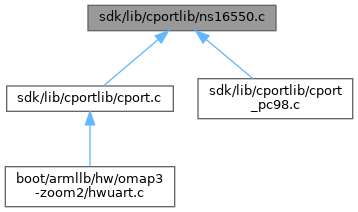

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	TIMEOUT_COUNT   (1024 * 200)

Functions
static BOOLEAN	ComPortTest1 (_In_ PUCHAR Address)
static BOOLEAN	ComPortTest2 (_In_ PUCHAR Address)
BOOLEAN NTAPI	Uart16550DoesPortExist (_In_ PUCHAR Address)
VOID NTAPI	Uart16550EnableFifo (_In_ PUCHAR Address, _In_ BOOLEAN Enable)
VOID NTAPI	Uart16550SetBaud (_Inout_ PCPPORT Port, _In_ ULONG BaudRate)
NTSTATUS NTAPI	Uart16550Initialize (_Inout_ PCPPORT Port, _In_ PUCHAR Address, _In_ ULONG BaudRate)
static UCHAR NTAPI	Cp16550ReadLsr (_Inout_ PCPPORT Port, _In_ UCHAR ExpectedValue)
USHORT NTAPI	Uart16550GetByte (_Inout_ PCPPORT Port, _Out_ PUCHAR Byte, _In_ BOOLEAN Wait, _In_ BOOLEAN Poll)
VOID NTAPI	Uart16550PutByte (_Inout_ PCPPORT Port, _In_ UCHAR Byte)

Variables
UCHAR	RingIndicator

Macro Definition Documentation

TIMEOUT_COUNT

#define TIMEOUT_COUNT   (1024 * 200)

Definition at line 32 of file ns16550.c.

Function Documentation

ComPortTest1()

static BOOLEAN ComPortTest1 ( _In_ PUCHAR  Address )

static

Definition at line 39 of file ns16550.c.

{
    /*
     * See "Building Hardware and Firmware to Complement Microsoft Windows Headless Operation"
     * Out-of-Band Management Port Device Requirements:
     * The device must act as a 16550 or 16450 UART.
     * Windows Server 2003 will test this device using the following process:
     *     1. Save off the current modem status register.
     *     2. Place the UART into diagnostic mode (The UART is placed into loopback mode
     *        by writing SERIAL_MCR_LOOP to the modem control register).
     *     3. The modem status register is read and the high bits are checked. This means
     *        SERIAL_MSR_CTS, SERIAL_MSR_DSR, SERIAL_MSR_RI and SERIAL_MSR_DCD should
     *        all be clear.
     *     4. Place the UART in diagnostic mode and turn on OUTPUT (Loopback Mode and
     *         OUTPUT are both turned on by writing (SERIAL_MCR_LOOP | SERIAL_MCR_OUT1)
     *         to the modem control register).
     *     5. The modem status register is read and the ring indicator is checked.
     *        This means SERIAL_MSR_RI should be set.
     *     6. Restore original modem status register.
     *
     * REMARK: Strangely enough, the Virtual PC 2007 virtual machine
     *         doesn't pass this test.
     */

    BOOLEAN RetVal = FALSE;
    UCHAR Mcr, Msr;

    /* Save the Modem Control Register */
    Mcr = READ_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER);

    /* Enable loop (diagnostic) mode (set Bit 4 of the MCR) */
    WRITE_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER, SERIAL_MCR_LOOP);

    /* Clear all modem output bits */
    WRITE_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER, SERIAL_MCR_LOOP);

    /* Read the Modem Status Register */
    Msr = READ_PORT_UCHAR(Address + MODEM_STATUS_REGISTER);

    /*
     * The upper nibble of the MSR (modem output bits) must be
     * equal to the lower nibble of the MCR (modem input bits).
     */
    if ((Msr & (SERIAL_MSR_CTS | SERIAL_MSR_DSR | SERIAL_MSR_RI | SERIAL_MSR_DCD)) == 0x00)
    {
        /* Set all modem output bits */
        WRITE_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER,
                         SERIAL_MCR_OUT1 | SERIAL_MCR_LOOP); // Windows
/* ReactOS
        WRITE_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER,
                         SERIAL_MCR_DTR | SERIAL_MCR_RTS | SERIAL_MCR_OUT1 | SERIAL_MCR_OUT2 | SERIAL_MCR_LOOP);
*/

        /* Read the Modem Status Register */
        Msr = READ_PORT_UCHAR(Address + MODEM_STATUS_REGISTER);

        /*
         * The upper nibble of the MSR (modem output bits) must be
         * equal to the lower nibble of the MCR (modem input bits).
         */
        if (Msr & SERIAL_MSR_RI) // Windows
        // if (Msr & (SERIAL_MSR_CTS | SERIAL_MSR_DSR | SERIAL_MSR_RI | SERIAL_MSR_DCD) == 0xF0) // ReactOS
        {
            RetVal = TRUE;
        }
    }

    /* Restore the MCR */
    WRITE_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER, Mcr);

    return RetVal;
}

Referenced by Uart16550DoesPortExist().

ComPortTest2()

static BOOLEAN ComPortTest2 ( _In_ PUCHAR  Address )

static

Definition at line 114 of file ns16550.c.

{
    /*
     * This test checks whether the 16450/16550 scratch register is available.
     * If not, the serial port is considered as unexisting.
     */

    UCHAR Byte = 0;

    do
    {
        WRITE_PORT_UCHAR(Address + SCRATCH_REGISTER, Byte);

        if (READ_PORT_UCHAR(Address + SCRATCH_REGISTER) != Byte)
            return FALSE;

    } while (++Byte != 0);

    return TRUE;
}

Referenced by Uart16550DoesPortExist().

Cp16550ReadLsr()

static UCHAR NTAPI Cp16550ReadLsr ( _Inout_ PCPPORT  Port, _In_ UCHAR  ExpectedValue  )

static

Definition at line 226 of file ns16550.c.

{
    UCHAR Lsr, Msr;

    /* Read the LSR and check if the expected value is present */
    Lsr = READ_PORT_UCHAR(Port->Address + LINE_STATUS_REGISTER);
    if (!(Lsr & ExpectedValue))
    {
        /* Check the MSR for ring indicator toggle */
        Msr = READ_PORT_UCHAR(Port->Address + MODEM_STATUS_REGISTER);

        /* If the indicator reaches 3, we've seen this on/off twice */
        RingIndicator |= (Msr & SERIAL_MSR_RI) ? 1 : 2;
        if (RingIndicator == 3)
            Port->Flags |= CPPORT_FLAG_MODEM_CONTROL;
    }

    return Lsr;
}

Referenced by CpReadLsr(), Uart16550GetByte(), and Uart16550PutByte().

Uart16550DoesPortExist()

BOOLEAN NTAPI Uart16550DoesPortExist

(

_In_ PUCHAR

Address

)

Definition at line 138 of file ns16550.c.

{
    return ( ComPortTest1(Address) || ComPortTest2(Address) );
}

Referenced by CpDoesPortExist(), and Uart16550Initialize().

Uart16550EnableFifo()

VOID NTAPI Uart16550EnableFifo	(	_In_ PUCHAR	Address,
		_In_ BOOLEAN	Enable
	)

Definition at line 146 of file ns16550.c.

{
    /* Set FIFO and clear the receive/transmit buffers */
    WRITE_PORT_UCHAR(Address + FIFO_CONTROL_REGISTER,
                     Enable ? SERIAL_FCR_ENABLE | SERIAL_FCR_RCVR_RESET | SERIAL_FCR_TXMT_RESET
                            : SERIAL_FCR_DISABLE);
}

Referenced by CpEnableFifo(), and Uart16550Initialize().

Uart16550GetByte()

USHORT NTAPI Uart16550GetByte	(	_Inout_ PCPPORT	Port,
		_Out_ PUCHAR	Byte,
		_In_ BOOLEAN	Wait,
		_In_ BOOLEAN	Poll
	)

Definition at line 250 of file ns16550.c.

{
    UCHAR Lsr;
    ULONG LimitCount = Wait ? TIMEOUT_COUNT : 1;

    /* Handle early read-before-init */
    if (!Port->Address)
        return CP_GET_NODATA;

    /* If "wait" mode enabled, spin many times, otherwise attempt just once */
    while (LimitCount--)
    {
        /* Read LSR for data ready */
        Lsr = Cp16550ReadLsr(Port, SERIAL_LSR_DR);
        if ((Lsr & SERIAL_LSR_DR) == SERIAL_LSR_DR)
        {
            /* If an error happened, clear the byte and fail */
            if (Lsr & (SERIAL_LSR_FE | SERIAL_LSR_PE | SERIAL_LSR_OE))
            {
                *Byte = 0;
                return CP_GET_ERROR;
            }

            /* If only polling was requested by caller, return now */
            if (Poll)
                return CP_GET_SUCCESS;

            /* Otherwise read the byte and return it */
            *Byte = READ_PORT_UCHAR(Port->Address + RECEIVE_BUFFER_REGISTER);

            /* Handle CD if port is in modem control mode */
            if (Port->Flags & CPPORT_FLAG_MODEM_CONTROL)
            {
                /* Not implemented yet */
                // DPRINT1("CP: CPPORT_FLAG_MODEM_CONTROL unexpected\n");
            }

            /* Byte was read */
            return CP_GET_SUCCESS;
        }
    }

    /* Reset LSR, no data was found */
    Cp16550ReadLsr(Port, 0);
    return CP_GET_NODATA;
}

Referenced by CpGetByte().

Uart16550Initialize()

NTSTATUS NTAPI Uart16550Initialize	(	_Inout_ PCPPORT	Port,
		_In_ PUCHAR	Address,
		_In_ ULONG	BaudRate
	)

Definition at line 182 of file ns16550.c.

{
    /* Validity checks */
    if (Port == NULL || Address == NULL || BaudRate == 0)
        return STATUS_INVALID_PARAMETER;

    if (!Uart16550DoesPortExist(Address))
        return STATUS_NOT_FOUND;

    /* Initialize port data */
    Port->Address  = Address;
    Port->BaudRate = 0;
    Port->Flags    = 0;

    /* Disable the interrupts */
    WRITE_PORT_UCHAR(Address + LINE_CONTROL_REGISTER, 0);
    WRITE_PORT_UCHAR(Address + INTERRUPT_ENABLE_REGISTER, 0);

    /* Turn on DTR, RTS and OUT2 */
    WRITE_PORT_UCHAR(Address + MODEM_CONTROL_REGISTER,
                     SERIAL_MCR_DTR | SERIAL_MCR_RTS | SERIAL_MCR_OUT2);

    /* Set the baud rate */
    Uart16550SetBaud(Port, BaudRate);

    /* Set 8 data bits, 1 stop bit, no parity, no break */
    WRITE_PORT_UCHAR(Port->Address + LINE_CONTROL_REGISTER,
                     SERIAL_8_DATA | SERIAL_1_STOP | SERIAL_NONE_PARITY);

    /* Turn on FIFO */
    // TODO: Check whether FIFO exists and turn it on in that case.
    Uart16550EnableFifo(Address, TRUE); // for 16550

    /* Read junk out of the RBR */
    (VOID)READ_PORT_UCHAR(Address + RECEIVE_BUFFER_REGISTER);

    return STATUS_SUCCESS;
}

Referenced by CpInitialize().

Uart16550PutByte()

VOID NTAPI Uart16550PutByte	(	_Inout_ PCPPORT	Port,
		_In_ UCHAR	Byte
	)

Definition at line 303 of file ns16550.c.

{
    /* Check if port is in modem control to handle CD */
    // while (Port->Flags & CPPORT_FLAG_MODEM_CONTROL)  // Commented for the moment.
    if (Port->Flags & CPPORT_FLAG_MODEM_CONTROL)    // To be removed when this becomes implemented.
    {
        /* Not implemented yet */
        // DPRINT1("CP: CPPORT_FLAG_MODEM_CONTROL unexpected\n");
    }

    /* Wait for LSR to say we can go ahead */
    while (!(Cp16550ReadLsr(Port, SERIAL_LSR_THRE) & SERIAL_LSR_THRE))
        NOTHING;

    /* Send the byte */
    WRITE_PORT_UCHAR(Port->Address + TRANSMIT_HOLDING_REGISTER, Byte);
}

Referenced by CpPutByte().

Uart16550SetBaud()

VOID NTAPI Uart16550SetBaud	(	_Inout_ PCPPORT	Port,
		_In_ ULONG	BaudRate
	)

Definition at line 158 of file ns16550.c.

{
    UCHAR Lcr;
    ULONG Mode = CLOCK_RATE / BaudRate;

    /* Set the DLAB on */
    Lcr = READ_PORT_UCHAR(Port->Address + LINE_CONTROL_REGISTER);
    WRITE_PORT_UCHAR(Port->Address + LINE_CONTROL_REGISTER, Lcr | SERIAL_LCR_DLAB);

    /* Set the baud rate */
    WRITE_PORT_UCHAR(Port->Address + DIVISOR_LATCH_LSB, (UCHAR)(Mode & 0xFF));
    WRITE_PORT_UCHAR(Port->Address + DIVISOR_LATCH_MSB, (UCHAR)((Mode >> 8) & 0xFF));

    /* Reset DLAB */
    WRITE_PORT_UCHAR(Port->Address + LINE_CONTROL_REGISTER, Lcr);

    /* Save baud rate in port */
    Port->BaudRate = BaudRate;
}

Referenced by CpSetBaud(), and Uart16550Initialize().

Variable Documentation

RingIndicator

UCHAR RingIndicator

Definition at line 34 of file ns16550.c.

Referenced by Cp16550ReadLsr(), and CpReadLsr().
