framebuf.c File Reference

#include <arc/arc.h>
#include <ndk/kefuncs.h>
#include <drivers/bootvid/framebuf.h>
#include <ndk/halfuncs.h>

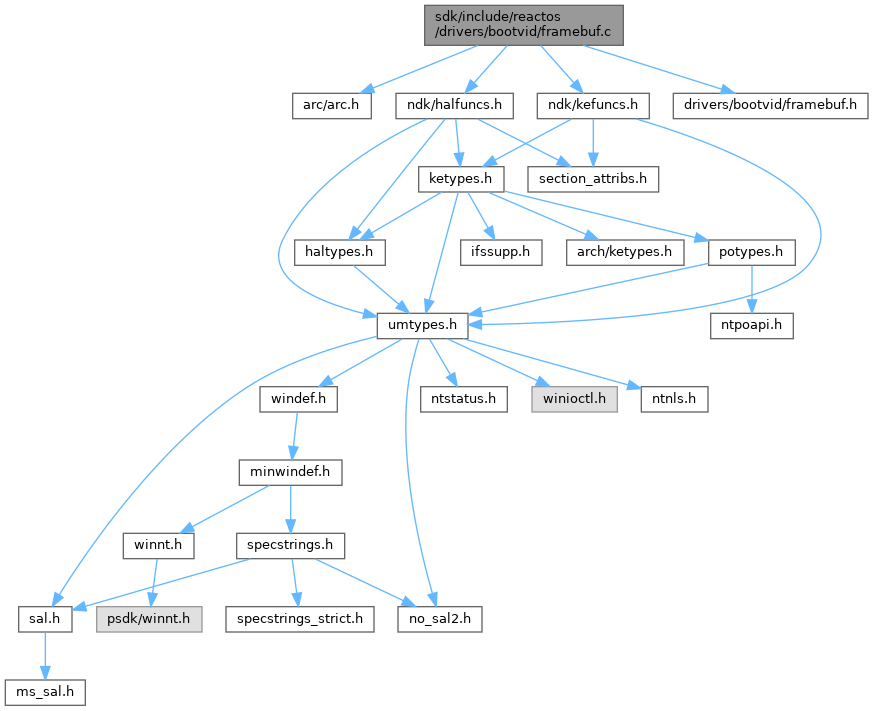

Include dependency graph for framebuf.c:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DPRINT_TRACE(...)

Functions
static BOOLEAN	IsNewConfigData (_In_ PVOID ConfigurationData, _In_ ULONG ConfigurationDataLength)
static VOID	GetVideoData (_In_ PCM_PARTIAL_RESOURCE_LIST ResourceList, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *Interrupt, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *ControlPort, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *CursorPort, _Out_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *VideoRam, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *DeviceSpecific)
	Given a CM_PARTIAL_RESOURCE_LIST, obtain pointers to resource descriptors for legacy video configuration: interrupt, control and cursor I/O ports, and video RAM memory descriptors. In addition, retrieve any device-specific resource present.
static VOID	GetMonitorData (_In_ PCM_PARTIAL_RESOURCE_LIST ResourceList, _Out_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *DeviceSpecific)
	Given a CM_PARTIAL_RESOURCE_LIST, obtain a pointer to resource descriptor for monitor configuration data, listed as a device-specific resource.
NTSTATUS	GetFramebufferVideoData (_Out_ PPHYSICAL_ADDRESS VideoRamAddress, _Out_ PULONG VideoRamSize, _Out_ PCM_FRAMEBUF_DEVICE_DATA VideoConfigData, _In_ PVOID ConfigurationData, _In_ ULONG ConfigurationDataLength)
NTSTATUS	GetFramebufferMonitorData (_Out_ PCM_MONITOR_DEVICE_DATA MonitorConfigData, _In_ PVOID ConfigurationData, _In_ ULONG ConfigurationDataLength)
static INTERFACE_TYPE	GetArcComponentInterface (_In_ PCONFIGURATION_COMPONENT Component, _Out_opt_ PULONG BusNumber)
	Retrieve the NT interface type and bus number of a given ARC configuration component, that can be used in a call to HalTranslateBusAddress() or to BootTranslateBusAddress().
static NTSTATUS	FindBootDisplayFromLoaderARCTree (_Out_ PPHYSICAL_ADDRESS VideoRamAddress, _Out_ PULONG VideoRamSize, _Out_ PCM_FRAMEBUF_DEVICE_DATA VideoConfigData, _Out_opt_ PCM_MONITOR_DEVICE_DATA MonitorConfigData, _Out_opt_ PINTERFACE_TYPE Interface, _Out_opt_ PULONG BusNumber)
NTSTATUS	FindBootDisplay (_Out_ PPHYSICAL_ADDRESS VideoRamAddress, _Out_ PULONG VideoRamSize, _Out_ PCM_FRAMEBUF_DEVICE_DATA VideoConfigData, _Out_opt_ PCM_MONITOR_DEVICE_DATA MonitorConfigData, _Out_opt_ PINTERFACE_TYPE Interface, _Out_opt_ PULONG BusNumber)
	Retrieves configuration data for the boot-time (POST) display controller and monitor peripheral.
BOOLEAN NTAPI	BootTranslateBusAddress (_In_ INTERFACE_TYPE InterfaceType, _In_ ULONG BusNumber, _In_ PHYSICAL_ADDRESS BusAddress, _Inout_ PULONG AddressSpace, _Out_ PPHYSICAL_ADDRESS TranslatedAddress)
	Wrapper around HalTranslateBusAddress() and HALPRIVATEDISPATCH->HalFindBusAddressTranslation().

Macro Definition Documentation

DPRINT_TRACE

#define DPRINT_TRACE

(

...

)

Definition at line 15 of file framebuf.c.

Function Documentation

BootTranslateBusAddress()

BOOLEAN NTAPI BootTranslateBusAddress	(	_In_ INTERFACE_TYPE	InterfaceType,
		_In_ ULONG	BusNumber,
		_In_ PHYSICAL_ADDRESS	BusAddress,
		_Inout_ PULONG	AddressSpace,
		_Out_ PPHYSICAL_ADDRESS	TranslatedAddress
	)

Wrapper around HalTranslateBusAddress() and HALPRIVATEDISPATCH->HalFindBusAddressTranslation().

Note

Context parameter is supplemental from standard HalTranslateBusAddress(). It allows context passing for the underlying HalFindBusAddressTranslation() between different calls of the function.

Definition at line 677 of file framebuf.c.

{
    ULONG_PTR Context = 0;

    /* If InterfaceType is negative, don't do any translation */
    if (InterfaceType <= InterfaceTypeUndefined)
    {
        /* Return the bus address */
        TranslatedAddress->QuadPart = BusAddress.QuadPart;
        return TRUE;
    }

    /* If InterfaceType is valid, attempt to call the original HAL function */
    if (InterfaceType < MaximumInterfaceType)
    {
        if (HalTranslateBusAddress(InterfaceType,
                                   BusNumber,
                                   BusAddress,
                                   AddressSpace,
                                   TranslatedAddress))
        {
            return TRUE;
        }
        DPRINT1("HalTranslateBusAddress(%lu, %lu, 0x%I64X) failed, fall back to finding a bus translation\n",
                InterfaceType, BusNumber, BusAddress.QuadPart);
    }

    /* Otherwise, in case of failure, or if InterfaceType is greater than
     * the maximum supported type (meaning we don't know yet the interface
     * and bus number), we need to find a bus translation. */

    /* Ensure we have a bus translation function then do the call */
    if (!HalFindBusAddressTranslation)
        return FALSE;
    return HalFindBusAddressTranslation(BusAddress,
                                        AddressSpace,
                                        TranslatedAddress,
                                        &Context,
                                        TRUE);
}

Referenced by VidInitialize().

FindBootDisplay()

NTSTATUS FindBootDisplay	(	_Out_ PPHYSICAL_ADDRESS	VideoRamAddress,
		_Out_ PULONG	VideoRamSize,
		_Out_ PCM_FRAMEBUF_DEVICE_DATA	VideoConfigData,
		_Out_opt_ PCM_MONITOR_DEVICE_DATA	MonitorConfigData,
		_Out_opt_ PINTERFACE_TYPE	Interface,
		_Out_opt_ PULONG	BusNumber
	)

Retrieves configuration data for the boot-time (POST) display controller and monitor peripheral.

This data is initialized by the firmware and the NT bootloader, and can be retrieved from the loader block configuration ARC tree.

Note

Data from the loader block is available only for boot drivers and gets freed later on during NT loading.

Definition at line 564 of file framebuf.c.

{
    CM_MONITOR_DEVICE_DATA LocalMonitorConfigData = {0};
    INTERFACE_TYPE LocalInterface;
    ULONG LocalBusNumber;
    NTSTATUS Status;

    PAGED_CODE();

    /*
     * Retrieve video and monitor configuration data.
     * For monitor data, use the local variable since we may need
     * to do some adjustments in the video data using monitor data,
     * even if the caller does not require the monitor data itself
     * to be returned.
     */
    Status = FindBootDisplayFromLoaderARCTree(VideoRamAddress,
                                              VideoRamSize,
                                              VideoConfigData,
                                              &LocalMonitorConfigData,
                                              &LocalInterface,
                                              &LocalBusNumber);
    if (!NT_SUCCESS(Status))
    {
        DPRINT1("Boot Display not found\n");
        return STATUS_DEVICE_DOES_NOT_EXIST; // STATUS_SYSTEM_DEVICE_NOT_FOUND; (Vista+)
    }

#if DBG
    DPRINT_TRACE("\n");
    DbgPrint("Boot Display found on Interface %lu, Bus %lu\n",
             LocalInterface, LocalBusNumber);
    DbgPrint("    VideoRamAddress   : 0x%I64X\n", VideoRamAddress->QuadPart);
    DbgPrint("    VideoRamSize      : %lu\n", *VideoRamSize);
    DbgPrint("    Version           : %u.%u\n", VideoConfigData->Version, VideoConfigData->Revision);
    DbgPrint("    VideoClock        : %lu\n", VideoConfigData->VideoClock);
    DbgPrint("Framebuffer format:\n");
    /* Absolute offset from the start of the video RAM of the framebuffer
     * to be displayed on the monitor. The framebuffer size is obtained by:
     * FrameBufferSize = ScreenHeight * PixelsPerScanLine * BytesPerPixel */
    DbgPrint("    BaseAddress       : 0x%I64X\n", VideoRamAddress->QuadPart + VideoConfigData->FrameBufferOffset);
    // DbgPrint("    BufferSize        : %lu\n", framebufInfo.BufferSize);
    DbgPrint("    ScreenWidth       : %lu\n", VideoConfigData->ScreenWidth);
    DbgPrint("    ScreenHeight      : %lu\n", VideoConfigData->ScreenHeight);
    DbgPrint("    PixelsPerScanLine : %lu\n", VideoConfigData->PixelsPerScanLine);
    DbgPrint("    BitsPerPixel      : %lu\n", VideoConfigData->BitsPerPixel);
    DbgPrint("    ARGB masks:       : %08x/%08x/%08x/%08x\n",
             VideoConfigData->PixelMasks.ReservedMask,
             VideoConfigData->PixelMasks.RedMask,
             VideoConfigData->PixelMasks.GreenMask,
             VideoConfigData->PixelMasks.BlueMask);
#endif

    /* If the screen sizes are not already initialized by now, use monitor data */
    // TODO: Investigate: Do we want to do this here, or in the caller?
    if ((VideoConfigData->ScreenWidth == 0) || (VideoConfigData->ScreenHeight == 0))
    {
        VideoConfigData->ScreenWidth  = LocalMonitorConfigData.HorizontalResolution;
        VideoConfigData->ScreenHeight = LocalMonitorConfigData.VerticalResolution;
#if DBG
        DbgPrint("Video screen dimensions not defined; use monitor resolution\n");
        DbgPrint("    ScreenWidth       : %lu\n", VideoConfigData->ScreenWidth);
        DbgPrint("    ScreenHeight      : %lu\n", VideoConfigData->ScreenHeight);
#endif
    }

    /* Return any optional data to the caller if required */
    if (MonitorConfigData)
        *MonitorConfigData = LocalMonitorConfigData;
    if (Interface)
        *Interface = LocalInterface;
    if (BusNumber)
        *BusNumber = LocalBusNumber;

    if ((VideoConfigData->ScreenWidth <= 1) || (VideoConfigData->ScreenHeight <= 1))
    {
        DPRINT1("Cannot obtain current screen resolution\n");
        /* Don't fail, but the caller will have to cope with it */
    }

    return STATUS_SUCCESS;
}

Referenced by VidInitialize().

FindBootDisplayFromLoaderARCTree()

static NTSTATUS FindBootDisplayFromLoaderARCTree ( _Out_ PPHYSICAL_ADDRESS  VideoRamAddress, _Out_ PULONG  VideoRamSize, _Out_ PCM_FRAMEBUF_DEVICE_DATA  VideoConfigData, _Out_opt_ PCM_MONITOR_DEVICE_DATA  MonitorConfigData, _Out_opt_ PINTERFACE_TYPE  Interface, _Out_opt_ PULONG  BusNumber  )

static

Definition at line 454 of file framebuf.c.

{
    PCONFIGURATION_COMPONENT_DATA ConfigurationRoot;
    PCONFIGURATION_COMPONENT_DATA Entry = NULL;
    // ULONG ComponentKey = 0; // First controller.
    NTSTATUS Status;

    ConfigurationRoot = (KeLoaderBlock ? KeLoaderBlock->ConfigurationRoot : NULL);
    if (!ConfigurationRoot)
        return STATUS_DEVICE_DOES_NOT_EXIST;

    /* Enumerate and find the boot-time console display controller */
#if 0
    Entry = KeFindConfigurationEntry(ConfigurationRoot,
                                     ControllerClass,
                                     DisplayController,
                                     &ComponentKey);
#else
    while (TRUE)
    {
        Entry = KeFindConfigurationNextEntry(ConfigurationRoot,
                                             ControllerClass,
                                             DisplayController,
                                             NULL, // &ComponentKey
                                             &Entry);
        if (!Entry)
            break; /* Not found */
        if (Entry->ComponentEntry.Flags & (Output | ConsoleOut))
            break; /* Found it */
    }
#endif

    if (!Entry)
        return STATUS_DEVICE_DOES_NOT_EXIST;

    // Entry->ComponentEntry.IdentifierLength;
    DPRINT_TRACE("Display: '%s'\n", Entry->ComponentEntry.Identifier);

    Status = GetFramebufferVideoData(VideoRamAddress,
                                     VideoRamSize,
                                     VideoConfigData,
                                     Entry->ConfigurationData,
                                     Entry->ComponentEntry.ConfigurationDataLength);
    if (!NT_SUCCESS(Status) ||
        (VideoRamAddress->QuadPart == 0) || (*VideoRamSize == 0))
    {
        /* Fail if no framebuffer was provided */
        DPRINT1("No framebuffer found!\n");
        return STATUS_DEVICE_DOES_NOT_EXIST;
    }

    if (Interface)
        *Interface = GetArcComponentInterface(&Entry->ComponentEntry, BusNumber);
    //if (BusNumber)
    //    *BusNumber = -1;

    /* If no monitor data to retrieve, just return success */
    if (!MonitorConfigData)
        return STATUS_SUCCESS;

    /* Now find the MonitorPeripheral to obtain more information.
     * It should be a child of the display controller. */
    Entry = Entry->Child;
    /* Ignore if no monitor data is given */
    if (!Entry)
        return STATUS_SUCCESS;

    // Entry->ComponentEntry.IdentifierLength;
    DPRINT_TRACE("Monitor: '%s'\n", Entry->ComponentEntry.Identifier);

    if ((Entry->ComponentEntry.Class != PeripheralClass)   ||
        (Entry->ComponentEntry.Type  != MonitorPeripheral) ||
       !(Entry->ComponentEntry.Flags & (Output | ConsoleOut)))
    {
        /* Ignore */
        return STATUS_SUCCESS;
    }

    /* Retrieve monitor configuration data. Use the local variable
     * since we may need to do some adjustments in the video data
     * using monitor data, even if the caller does not require the
     * monitor data itself to be returned. */
    Status = GetFramebufferMonitorData(MonitorConfigData,
                                       Entry->ConfigurationData,
                                       Entry->ComponentEntry.ConfigurationDataLength);
    if (!NT_SUCCESS(Status))
        DPRINT_TRACE("Invalid monitor data, ignoring.\n");

    return STATUS_SUCCESS;
}

Referenced by FindBootDisplay().

GetArcComponentInterface()

static INTERFACE_TYPE GetArcComponentInterface ( _In_ PCONFIGURATION_COMPONENT  Component, _Out_opt_ PULONG  BusNumber  )

static

Retrieve the NT interface type and bus number of a given ARC configuration component, that can be used in a call to HalTranslateBusAddress() or to BootTranslateBusAddress().

Definition at line 345 of file framebuf.c.

{
    static const struct
    {
        PCSTR Identifier;
        INTERFACE_TYPE InterfaceType;
        // USHORT Count;
    } CmpMultifunctionTypes[] =
    {
        {"ISA", Isa},
        {"MCA", MicroChannel},
        {"PCI", PCIBus},
        {"VME", VMEBus},
        {"PCMCIA", PCMCIABus},
        {"CBUS", CBus},
        {"MPIPI", MPIBus},
        {"MPSA", MPSABus},
        {NULL, Internal}
    };

    INTERFACE_TYPE Interface = InterfaceTypeUndefined;

    /* Retrieve the top-level parent adapter component */
    PCONFIGURATION_COMPONENT_DATA ComponentData =
        CONTAINING_RECORD(Component, CONFIGURATION_COMPONENT_DATA, ComponentEntry);
    for (; ComponentData->Parent; ComponentData = ComponentData->Parent)
    {
        if (ComponentData->Parent->ComponentEntry.Class == SystemClass)
            break;
    }
    Component = &ComponentData->ComponentEntry;

    /* Check if this is an adapter */
    if (!ComponentData->Parent ||
        (ComponentData->Parent->ComponentEntry.Class != SystemClass) ||
        (Component->Class != AdapterClass))
    {
        return Interface; /* It's not, return early */
    }

    /* Check what kind of adapter it is */
    switch (Component->Type)
    {
        /* EISA */
        case EisaAdapter:
        {
            Interface = Eisa;
            // Bus = CmpTypeCount[EisaAdapter]++;
            break;
        }

        /* Turbo-channel */
        case TcAdapter:
        {
            Interface = TurboChannel;
            // Bus = CmpTypeCount[TurboChannel]++;
            break;
        }

        /* ISA, PCI, etc buses */
        case MultiFunctionAdapter:
        {
            /* Check if we have an identifier */
            if (Component->Identifier)
            {
                /* Loop each multi-function adapter type */
                ULONG i;
                for (i = 0; CmpMultifunctionTypes[i].Identifier; i++)
                {
                    /* Check for a name match */
                    if (!_stricmp(CmpMultifunctionTypes[i].Identifier,
                                  Component->Identifier))
                    {
                        /* Match found */
                        break;
                    }
                }

                Interface = CmpMultifunctionTypes[i].InterfaceType;
                // Bus = CmpMultifunctionTypes[i].Count++;
            }
            break;
        }

        /* SCSI Bus */
        case ScsiAdapter:
        {
            Interface = Internal;
            // Bus = CmpTypeCount[ScsiAdapter]++;
            break;
        }

        /* Unknown */
        default:
        {
            Interface = InterfaceTypeUndefined;
            // Bus = CmpUnknownBusCount++;
            break;
        }
    }

    if (BusNumber)
        *BusNumber = Component->Key;
    return Interface;
}

Referenced by FindBootDisplayFromLoaderARCTree().

GetFramebufferMonitorData()

NTSTATUS GetFramebufferMonitorData	(	_Out_ PCM_MONITOR_DEVICE_DATA	MonitorConfigData,
		_In_ PVOID	ConfigurationData,
		_In_ ULONG	ConfigurationDataLength
	)

Definition at line 291 of file framebuf.c.

{
    if (!ConfigurationData ||
        (ConfigurationDataLength < sizeof(CM_PARTIAL_RESOURCE_LIST)))
    {
        /* Invalid entry */
        return STATUS_DEVICE_CONFIGURATION_ERROR;
    }

    /* Initialize the monitor parameters, converting
     * them to the new format if needed */
    // TODO: Handle legacy MONITOR_CONFIGURATION_DATA
    if (IsNewConfigData(ConfigurationData, ConfigurationDataLength))
    {
        /* New configuration data */
        PCM_PARTIAL_RESOURCE_DESCRIPTOR Descriptor;

        GetMonitorData((PCM_PARTIAL_RESOURCE_LIST)ConfigurationData,
                       &Descriptor);

        if (Descriptor &&
            (Descriptor->u.DeviceSpecificData.DataSize >= sizeof(CM_MONITOR_DEVICE_DATA)))
        {
            /* NOTE: This descriptor *MUST* be the last one.
             * The actual device data follows the descriptor. */
            PCM_MONITOR_DEVICE_DATA MonitorData = (PCM_MONITOR_DEVICE_DATA)(Descriptor + 1);

            /* Just copy the data */
            *MonitorConfigData = *MonitorData;
        }
        else
        {
            /* The configuration data does not contain any monitor information.
             * We will calculate default values later. */
        }

        return STATUS_SUCCESS;
    }

    /* Unknown configuration, invalid entry? */
    return STATUS_DEVICE_CONFIGURATION_ERROR;
}

Referenced by FindBootDisplayFromLoaderARCTree().

GetFramebufferVideoData()

NTSTATUS GetFramebufferVideoData	(	_Out_ PPHYSICAL_ADDRESS	VideoRamAddress,
		_Out_ PULONG	VideoRamSize,
		_Out_ PCM_FRAMEBUF_DEVICE_DATA	VideoConfigData,
		_In_ PVOID	ConfigurationData,
		_In_ ULONG	ConfigurationDataLength
	)

Definition at line 203 of file framebuf.c.

{
    if (!ConfigurationData ||
        (ConfigurationDataLength < sizeof(CM_PARTIAL_RESOURCE_LIST)))
    {
        /* Invalid entry */
        return STATUS_DEVICE_CONFIGURATION_ERROR;
    }

    /* Initialize the display adapter parameters, converting
     * them to the new format if needed */
    // TODO: Handle legacy VIDEO_HARDWARE_CONFIGURATION_DATA based data
    if (IsNewConfigData(ConfigurationData, ConfigurationDataLength))
    {
        /* New configuration data */
        PCM_PARTIAL_RESOURCE_DESCRIPTOR VideoRam, Descriptor;

        DPRINT_TRACE("**  FbBVid: New Config data found\n");
        GetVideoData((PCM_PARTIAL_RESOURCE_LIST)ConfigurationData,
                     NULL, // Interrupt
                     NULL, // ControlPort
                     NULL, // CursorPort
                     &VideoRam,
                     &Descriptor);

        if (VideoRam)
        {
            /* Save the video RAM base and size */
            *VideoRamAddress = VideoRam->u.Memory.Start;
            *VideoRamSize = VideoRam->u.Memory.Length;
            DPRINT_TRACE("**  FbBVid: Got video RAM address: 0x%I64X - Size: %lu\n",
                VideoRamAddress->QuadPart, *VideoRamSize);
        }
        else
        {
            /* No video RAM base: zero it out */
            DPRINT1("**  FbBVid: No video RAM available\n");
            VideoRamAddress->QuadPart = 0;
            *VideoRamSize = 0;
        }

        if (Descriptor &&
            (Descriptor->u.DeviceSpecificData.DataSize >= sizeof(CM_FRAMEBUF_DEVICE_DATA)))
        {
            /* NOTE: This descriptor *MUST* be the last one.
             * The actual device data follows the descriptor. */
            PCM_FRAMEBUF_DEVICE_DATA VideoData = (PCM_FRAMEBUF_DEVICE_DATA)(Descriptor + 1);

            /* Just copy the data */
            *VideoConfigData = *VideoData;

            DPRINT_TRACE("**  FbBVid: Framebuffer at: 0x%I64X\n",
                VideoRamAddress->QuadPart + VideoData->FrameBufferOffset);
        }
        else
        {
            /* The configuration data does not contain any
             * framebuffer information (format, etc.)
             * We will calculate default values later. */
            DPRINT1("**  FbBVid: Framebuffer data NOT FOUND\n");
        }

        return STATUS_SUCCESS;
    }
    else
    {
        /* Unknown configuration, invalid entry? */
        return STATUS_DEVICE_CONFIGURATION_ERROR;
    }

#if 0
    /* Fail if no video is available */
    if ((VideoRamAddress->QuadPart == 0) || (*VideoRamSize == 0))
    {
        DPRINT1("No video available!\n");
        return STATUS_DEVICE_DOES_NOT_EXIST;
    }
#endif

    return STATUS_SUCCESS;
}

Referenced by FindBootDisplayFromLoaderARCTree().

GetMonitorData()

static VOID GetMonitorData ( _In_ PCM_PARTIAL_RESOURCE_LIST  ResourceList, _Out_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *  DeviceSpecific  )

static

Given a CM_PARTIAL_RESOURCE_LIST, obtain a pointer to resource descriptor for monitor configuration data, listed as a device-specific resource.

Definition at line 175 of file framebuf.c.

{
    PCM_PARTIAL_RESOURCE_DESCRIPTOR Descriptor;
    ULONG i;

    /* Initialize the return values */
    *DeviceSpecific = NULL;

    /* Find the CmResourceTypeDeviceSpecific CM_MONITOR_DEVICE_DATA */
    for (i = 0; i < ResourceList->Count; ++i)
    {
        Descriptor = &ResourceList->PartialDescriptors[i];
        if (Descriptor->Type == CmResourceTypeDeviceSpecific)
        {
            /* NOTE: This descriptor *MUST* be the last one.
             * The actual device data follows the descriptor. */
            ASSERT(i == ResourceList->Count - 1);

            if (DeviceSpecific)
                *DeviceSpecific = Descriptor;
            break;
        }
    }
}

Referenced by GetFramebufferMonitorData().

GetVideoData()

static VOID GetVideoData ( _In_ PCM_PARTIAL_RESOURCE_LIST  ResourceList, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *  Interrupt, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *  ControlPort, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *  CursorPort, _Out_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *  VideoRam, _Out_opt_ PCM_PARTIAL_RESOURCE_DESCRIPTOR *  DeviceSpecific  )

static

Given a CM_PARTIAL_RESOURCE_LIST, obtain pointers to resource descriptors for legacy video configuration: interrupt, control and cursor I/O ports, and video RAM memory descriptors. In addition, retrieve any device-specific resource present.

Definition at line 65 of file framebuf.c.

{
    PCM_PARTIAL_RESOURCE_DESCRIPTOR Descriptor;
    ULONG PortCount = 0, IntCount = 0, MemCount = 0;
    ULONG i;

    /* Initialize the return values */
    if (Interrupt)   *Interrupt   = NULL;
    if (ControlPort) *ControlPort = NULL;
    if (CursorPort)  *CursorPort  = NULL;
    *VideoRam = NULL;
    if (DeviceSpecific) *DeviceSpecific = NULL;

    DPRINT_TRACE("GetVideoData\n");

    for (i = 0; i < ResourceList->Count; ++i)
    {
        Descriptor = &ResourceList->PartialDescriptors[i];

        switch (Descriptor->Type)
        {
            case CmResourceTypePort:
            {
                DPRINT_TRACE("    CmResourceTypePort\n");
                /* We only check for memory I/O ports */
                // if (!(Descriptor->Flags & CM_RESOURCE_PORT_MEMORY))
                if (Descriptor->Flags & CM_RESOURCE_PORT_IO)
                    break;

                /* If more than two memory I/O ports
                 * have been encountered, ignore them */
                if (PortCount > 2)
                    break;
                ++PortCount;

                /* First port is Control; second port is Cursor */
                if (PortCount == 1)
                {
                    if (ControlPort)
                        *ControlPort = Descriptor;
                }
                else // if (PortCount == 2)
                {
                    if (CursorPort)
                        *CursorPort = Descriptor;
                }
                break;
            }

            case CmResourceTypeInterrupt:
            {
                DPRINT_TRACE("    CmResourceTypeInterrupt\n");
                /* If more than one interrupt resource
                 * has been encountered, ignore them */
                if (IntCount > 1)
                    break;
                ++IntCount;

                if (Interrupt)
                    *Interrupt = Descriptor;
                break;
            }

            case CmResourceTypeMemory:
            {
                DPRINT_TRACE("    CmResourceTypeMemory\n");
                /* If more than one memory resource
                 * has been encountered, ignore them */
                if (MemCount > 1)
                    break;
                ++MemCount;

                /* Video RAM should be writable (but may or may not be readable) */
                if ((Descriptor->Flags & CM_RESOURCE_MEMORY_WRITEABILITY_MASK)
                        == CM_RESOURCE_MEMORY_READ_ONLY)
                {
                    break; /* Cannot use this memory */
                }
                *VideoRam = Descriptor;
                break;
            }

            case CmResourceTypeDeviceSpecific:
            {
                DPRINT_TRACE("    CmResourceTypeDeviceSpecific\n");
                /* NOTE: This descriptor *MUST* be the last one.
                 * The actual device data follows the descriptor. */
                ASSERT(i == ResourceList->Count - 1);
                i = ResourceList->Count; // To force-break the for-loop.

                if (DeviceSpecific)
                    *DeviceSpecific = Descriptor;
                break;
            }
        }
    }
}

Referenced by GetFramebufferVideoData().

IsNewConfigData()

static BOOLEAN IsNewConfigData ( _In_ PVOID  ConfigurationData, _In_ ULONG  ConfigurationDataLength  )

static

Definition at line 19 of file framebuf.c.

{
    /* Cast to PCM_PARTIAL_RESOURCE_LIST to access
     * the common Version and Revision fields */
    PCM_PARTIAL_RESOURCE_LIST ResourceList =
        (PCM_PARTIAL_RESOURCE_LIST)ConfigurationData;

    if (!ConfigurationData)
    {
        DPRINT_TRACE("IsNewConfigData:FALSE - ConfigurationData == NULL\n");
        return FALSE;
    }

    if (ConfigurationDataLength < FIELD_OFFSET(CM_PARTIAL_RESOURCE_LIST, PartialDescriptors))
    {
        DPRINT_TRACE("IsNewConfigData:FALSE - ConfigurationDataLength == %lu\n",
                ConfigurationDataLength);
        return FALSE;
    }

    /* If Version/Revision is strictly lower than 1.2, this cannot be
     * a new configuration data (even if the length appears to match
     * a CM_FULL_RESOURCE_DESCRIPTOR with zero or more descriptors) */
    if ( (ResourceList->Version <  1) ||
        ((ResourceList->Version == 1) && (ResourceList->Revision <= 1)) )
    {
        DPRINT_TRACE("IsNewConfigData:FALSE - Version %lu, Revision %lu\n",
                ResourceList->Version, ResourceList->Revision);
        return FALSE;
    }

    /* This should be a new configuration data */
    DPRINT_TRACE("IsNewConfigData:TRUE\n");
    return TRUE;
}

Referenced by GetFramebufferMonitorData(), and GetFramebufferVideoData().
