srb.c File Reference

#include "precomp.h"
#include "inline.h"
#include <debug/driverdbg.h>
#include <debug.h>

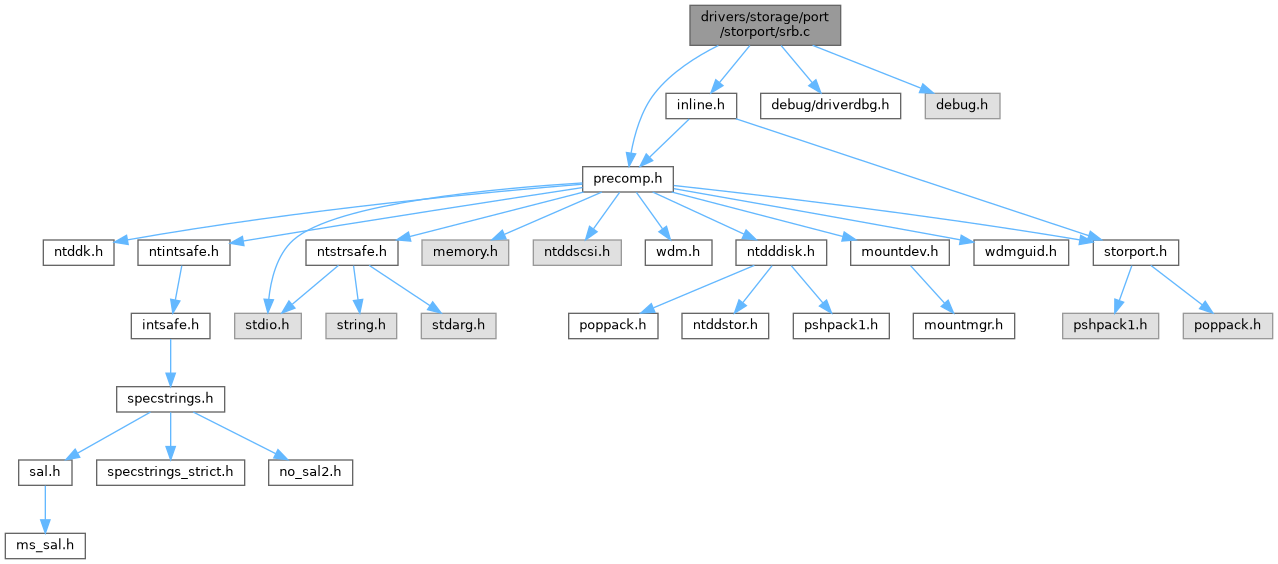

Include dependency graph for srb.c:

Go to the source code of this file.

Macros
#define	NDEBUG

Functions
static VOID	StorpSrbInitRequestReference (_In_ PQUEUED_REQUEST_REFERENCE RequestReference, _In_ PSCSI_REQUEST_BLOCK Srb, _In_ PIRP Irp, _In_ PPDO_DEVICE_EXTENSION PdoExtension)
	Initializes a request reference and sets the SRB => ReqRef link.
static PQUEUED_REQUEST_REFERENCE	StorpSrbAllocateRequestReference (_In_ PSCSI_REQUEST_BLOCK Srb, _In_ PIRP Irp, _In_ PPDO_DEVICE_EXTENSION PdoExtension)
	Allocates QUEUED_REQUEST_REFERENCE for an SRB that is going to be processed.
static PQUEUED_REQUEST_REFERENCE	StorpSrbAcquireReservedRequestReference (_In_ PSCSI_REQUEST_BLOCK Srb, _In_ PIRP Irp, _In_ PPDO_DEVICE_EXTENSION PdoExtension)
	Takes the adapter reserve, if it is there and nobody else holds it.
VOID	StorpSrbFreeRequestReference (_In_ PSCSI_REQUEST_BLOCK Srb)
	Frees an SRB's Request Reference and restore Srb->OriginalRequest field to IRP. This function does not check if Srb->OriginalRequest is actually an request reference, and you must determine it by other means.
FORCEINLINE BOOLEAN	StorpAssignTagToSrb (_In_ PPDO_DEVICE_EXTENSION PdoExtension, _In_ PSCSI_REQUEST_BLOCK Srb)
	Assigns a queue tag to a request if it stated it supports one.
VOID NTAPI	PortPdoAfterBuildingScatterGatherList (_In_ PDEVICE_OBJECT DeviceObject, _In_ PIRP Irp, _In_ PSCATTER_GATHER_LIST ScatterGatherList, _In_ PVOID Context)
static NTSTATUS	PortPdoStarveRequest (_In_ PFDO_DEVICE_EXTENSION FdoExtension, _In_ PSCSI_REQUEST_BLOCK Srb, _In_ PIRP Irp)
	Parks a request that is out of memory, or fails it if there is no reserve to wait for. Either way the IRP is no longer ours, hence STATUS_PENDING.
NTSTATUS	PortPdoSrbAllocatePrivateContexts (_In_ PSCSI_REQUEST_BLOCK Srb, _In_ PPDO_DEVICE_EXTENSION PdoExtension, _In_ PFDO_DEVICE_EXTENSION FdoExtension)
NTSTATUS	PortPdoIssueRequest (_In_ PPDO_DEVICE_EXTENSION PdoExtension, _In_ PQUEUED_REQUEST_REFERENCE RequestReference)
VOID	PortPdoScheduleRequestNoFlowControl (_In_ PFDO_DEVICE_EXTENSION FdoExtension, _In_ PQUEUED_REQUEST_REFERENCE RequestReference)
BOOLEAN	PortPdoScheduleRequestFlowControlled (_In_ PPDO_DEVICE_EXTENSION PdoExtension, _In_ PFDO_DEVICE_EXTENSION FdoExtension, _In_ PQUEUED_REQUEST_REFERENCE RequestReference)
	Schedules an outstanding request and return a boolean value to indicate if the request can be immediately issued.
NTSTATUS NTAPI	PortPdoScsi (_In_ PDEVICE_OBJECT DeviceObject, _In_ PIRP Irp)
static VOID	PortScheduleComingRequestsOnCompletion (_In_ PPDO_DEVICE_EXTENSION PdoExtension, _In_ PFDO_DEVICE_EXTENSION FdoExtension)
static VOID	PortCompleteRequest (_In_ PQUEUED_REQUEST_REFERENCE RequestReference)
VOID NTAPI	PortCompletionDpc (_In_ PKDPC Dpc, _In_ PVOID Context, _In_ PVOID SystemArgument1, _In_ PVOID SystemArgument2)

Macro Definition Documentation

NDEBUG

#define NDEBUG

Definition at line 13 of file srb.c.

Function Documentation

PortCompleteRequest()

static VOID PortCompleteRequest ( _In_ PQUEUED_REQUEST_REFERENCE  RequestReference )

static

Definition at line 770 of file srb.c.

{
    PSCSI_REQUEST_BLOCK Srb;
    PIRP Irp;
    PFDO_DEVICE_EXTENSION FdoExtension;
    PPDO_DEVICE_EXTENSION PdoExtension;
    KLOCK_QUEUE_HANDLE LockHandle;
    NTSTATUS IoStatus;
    BOOLEAN FromReserve;

    /* Take out our information */
    Srb = RequestReference->Srb;
    Irp = RequestReference->Irp;
    PdoExtension = RequestReference->PdoExtension;
    FdoExtension = PdoExtension->FdoExtension;

    /* The reference is released further down, so remember this while it is still valid */
    FromReserve = RequestReference->FromReserve;

    /* FIXME: DELETE AFTER DEBUG */
    // if (RequestReference->DumpSpecialRequest)
    // {
    //     StorpDumpRequestResponse(RequestReference);
    // }

    DPRINT("Completing request: (%d:%d:%d) ReqRef %p Srb %p Irp %p Tag %x\n",
            Srb->PathId, Srb->TargetId, Srb->Lun, RequestReference, Srb, RequestReference->Irp, Srb->QueueTag);

    /* Return SG list resources back to system */
    if (RequestReference->ScatterGatherList)
    {
        FdoExtension->DmaAdapter->DmaOperations->
            PutScatterGatherList(FdoExtension->DmaAdapter,
                                 (PSCATTER_GATHER_LIST)RequestReference->ScatterGatherList,
                                 RequestReference->WriteToDevice);
        RequestReference->ScatterGatherList = NULL;
    }

    /* A virtual miniport never built a list, so this cannot hang off one */
    if (RequestReference->MappedSystemVa)
    {
        MmUnlockPages(RequestReference->Irp->MdlAddress);
        RequestReference->MappedSystemVa = NULL;
    }

    /* Check if we need to interact with flow control. */
    if (RequestReference->IsOutstanding)
    {
        /* Take the request out of FDO and PDO structures, and update flow control data */
        KeAcquireInStackQueuedSpinLock(&FdoExtension->FlowControl.Lock, &LockHandle);
        StorpCheckFlowControl(FdoExtension);

        FdoExtension->FlowControl.OutstandingRequestCount--;
        if (FdoExtension->FlowControl.RemainingBusyRequests)
        {
            --FdoExtension->FlowControl.RemainingBusyRequests;

            /* Clear busy state as needed */
            if (FdoExtension->FlowControl.OutstandingRequestCount == 0 ||
                FdoExtension->FlowControl.RemainingBusyRequests == 0)
            {
                FdoExtension->FlowControl.IsBusy = FALSE;
            }
        }

        RemoveEntryList(&RequestReference->PdoEntry);
        --PdoExtension->FlowControl.OutstandingRequestCount;
        if (PdoExtension->FlowControl.RemainingBusyRequests)
        {
            --PdoExtension->FlowControl.RemainingBusyRequests;

            /* Clear busy state as needed */
            if (PdoExtension->FlowControl.OutstandingRequestCount == 0 ||
                PdoExtension->FlowControl.RemainingBusyRequests == 0)
            {
                PdoExtension->FlowControl.IsBusy = FALSE;
            }
        }

        /* Decrement strong ordered request count if needed */
        if (RequestReference->StrongOrdered)
        {
            --PdoExtension->FlowControl.StrongOrderedCount;
        }

        /* Free the private data structure. No one should use it anymore */
        StorpSrbFreeRequestReference(Srb);
        RequestReference = NULL;

        /* Schedule next IO before we release flow control lock */
        PortScheduleComingRequestsOnCompletion(PdoExtension, FdoExtension);

        /* We're done, release flow control lock */
        StorpCheckFlowControl(FdoExtension);
        KeReleaseInStackQueuedSpinLock(&LockHandle);

    }

    /*
     * Free SRB extension as this request will never go back to miniport again. Must free it before
     * IoCompleteRequest because class driver's completion routine may issue another request. If we
     * free it after IoCompleteRequest we may zero out the newly-issued SRB's extension, since one
     * single SRB can be reused between requests, and the SRB issued in completion routine could be
     * the same one we operating here.
     */
    if (Srb->SrbExtension)
    {
        /* The reserved one is handed back along with its packet, not freed */
        if (!FromReserve)
        {
            ExFreePoolWithTag(Srb->SrbExtension, TAG_SRB_EXTENSION);
        }
        Srb->SrbExtension = NULL;
    }

    /*
     * After done with internal accountings, we can finally complete this IO.
     *
     * We must not complete the IO before scheduling next IO, because at that point the flow control
     * lock is still held, and class driver's completion routine may issue another request. This
     * will cause a recursive lock acquisition in PDO SCSI handler and lead to bugcheck.
     */
    switch (SRB_STATUS(Srb->SrbStatus))
    {
        case SRB_STATUS_SUCCESS:
            IoStatus = STATUS_SUCCESS;
            break;

        case SRB_STATUS_BUSY:
            IoStatus = STATUS_DEVICE_BUSY;
            break;

        default:
            IoStatus = STATUS_UNSUCCESSFUL; // FIXME:
            break;
    }
    Irp->IoStatus.Status = IoStatus;
    Irp->IoStatus.Information = Srb->DataTransferLength; /* FIXME: hopefully this is correct */

    /* We just gave memory back, so let one request that ran out of it through */
    PortRetryStarvedRequest(FdoExtension);

    DPRINT("Calling IoCompleteRequest\n");
    IoCompleteRequest(Irp, IO_DISK_INCREMENT);
}

Referenced by PortCompletionDpc().

PortCompletionDpc()

VOID NTAPI PortCompletionDpc	(	_In_ PKDPC	Dpc,
		_In_ PVOID	Context,
		_In_ PVOID	SystemArgument1,
		_In_ PVOID	SystemArgument2
	)

Definition at line 920 of file srb.c.

{
    PQUEUED_REQUEST_REFERENCE RequestReference;
    PFDO_DEVICE_EXTENSION FdoExtension;
    PSLIST_ENTRY Entry;
    PSLIST_ENTRY Next;
    ULONG Count = 0;

    DPRINT("PortCompletionDpc(%p %p %p %p)\n", Dpc, Context, SystemArgument1, SystemArgument2);

    /* Take context pointer as FDO extension */
    FdoExtension = (PFDO_DEVICE_EXTENSION)Context;

    /* Flush all entries in the list and complete all requests */
    Entry = InterlockedFlushSList(&FdoExtension->CompletionList);
    while (Entry)
    {
        /* Prepare Next pointer first (Completion routine will free the memory that contains it) */
        Next = Entry->Next;

        /* Get original request */
        RequestReference = CONTAINING_RECORD(Entry, QUEUED_REQUEST_REFERENCE, CompletionEntry);

        /* Call real completion routine */
        PortCompleteRequest(RequestReference);

        /* Move on to next one */
        Entry = Next;
        ++Count;
    }

    DPRINT("Completed %d requests\n", Count);
}

Referenced by PortAddDevice().

PortPdoAfterBuildingScatterGatherList()

VOID NTAPI PortPdoAfterBuildingScatterGatherList	(	_In_ PDEVICE_OBJECT	DeviceObject,
		_In_ PIRP	Irp,
		_In_ PSCATTER_GATHER_LIST	ScatterGatherList,
		_In_ PVOID	Context
	)

Definition at line 174 of file srb.c.

{
    PFDO_DEVICE_EXTENSION FdoExtension;
    PVOID MiniportExtension;
    PHW_INITIALIZATION_DATA HwInitData;
    PQUEUED_REQUEST_REFERENCE RequestReference;
    PSCSI_REQUEST_BLOCK MiniportSrb;
    BOOLEAN CanStartIo = TRUE;
    KIRQL OldIrql;

    RequestReference = (PQUEUED_REQUEST_REFERENCE)Context;
    FdoExtension = (PFDO_DEVICE_EXTENSION)DeviceObject->DeviceExtension;
    MiniportExtension = &FdoExtension->Miniport.MiniportExtension->HwDeviceExtension;
    HwInitData = FdoExtension->HwInitData;

    /* Save our SG List */
    RequestReference->ScatterGatherList = (PSTOR_SCATTER_GATHER_LIST)ScatterGatherList;

    /* Translate last, once the tag and SRB extension are final */
    if (RequestReference->ExtendedRequest != NULL)
    {
        StorpBuildExtendedSrb(RequestReference->Srb, RequestReference->ExtendedRequest);
        MiniportSrb = (PSCSI_REQUEST_BLOCK)RequestReference->ExtendedRequest;
    }
    else
    {
        MiniportSrb = RequestReference->Srb;
    }

    /* BuildIo and StartIo are called on DISPATCH_LEVEL */
    OldIrql = KfRaiseIrql(DISPATCH_LEVEL);

    do {
        /* Call BuildIo, if one is provided */
        if (HwInitData->HwBuildIo)
        {
            CanStartIo = HwInitData->HwBuildIo(MiniportExtension, MiniportSrb);
        }

        /* If BuildIo says the request processing shall stop here, no more processing is needed */
        if (!CanStartIo)
        {
            break;
        }

        HwInitData->HwStartIo(MiniportExtension, MiniportSrb);
    }
    while (0);

    /* Restore IRQL */
    KeLowerIrql(OldIrql);
}

Referenced by PortPdoIssueRequest().

PortPdoIssueRequest()

NTSTATUS PortPdoIssueRequest	(	_In_ PPDO_DEVICE_EXTENSION	PdoExtension,
		_In_ PQUEUED_REQUEST_REFERENCE	RequestReference
	)

Definition at line 311 of file srb.c.

{
    PIRP Irp;
    NTSTATUS Status;
    PFDO_DEVICE_EXTENSION FdoExtension;
    PHW_INITIALIZATION_DATA HwInitData;
    KIRQL OldIrql;

    Irp = RequestReference->Irp;
    FdoExtension = PdoExtension->FdoExtension;
    HwInitData = FdoExtension->Miniport.InitData;

    NT_ASSERT(HwInitData);

    /* Fill in SCSI address data */
    /* FIXME: Not sure if this is the best place for it. */
    RequestReference->Srb->PathId = PdoExtension->Bus;
    RequestReference->Srb->TargetId = PdoExtension->Target;
    RequestReference->Srb->Lun = PdoExtension->Lun;

    /* FIXME: Delete after debug */
    // PSCSI_REQUEST_BLOCK Srb = RequestReference->Srb;
    // if (Srb->Function == SRB_FUNCTION_EXECUTE_SCSI &&
    //     (Srb->Cdb[0] == SCSIOP_GET_EVENT_STATUS || Srb->Cdb[0] == SCSIOP_TEST_UNIT_READY))
    // {
    //     RequestReference->DumpSpecialRequest = TRUE;
    //     StorpDumpRequest(RequestReference);
    // }

    /* Start an DMA if IO subsystem allocated an MDL for us */
    /* FIXME: Does this strategy work? */
    if (RequestReference->Irp->MdlAddress)
    {
        /*
         * Lock the buffer so that it stays in physical memory.
         * In the two cases avoided here the memory has already been locked
         */
        if (!TEST_FLAG(Irp->MdlAddress->MdlFlags, MDL_SOURCE_IS_NONPAGED_POOL) &&
            !TEST_FLAG(Irp->MdlAddress->MdlFlags, MDL_MAPPED_TO_SYSTEM_VA) &&
            !TEST_FLAG(Irp->MdlAddress->MdlFlags, MDL_PAGES_LOCKED) &&
            !TEST_FLAG(Irp->MdlAddress->MdlFlags, MDL_PARTIAL))
        {
            RequestReference->MappedSystemVa = (PVOID)1; /* FIXME: CHANGE ITS NAME */
            MmProbeAndLockPages(Irp->MdlAddress, KernelMode, IoModifyAccess);
        }

        RequestReference->WriteToDevice =
            TEST_FLAG(RequestReference->Srb->SrbFlags, SRB_FLAGS_DATA_OUT);

        /* A virtual miniport has no DMA adapter and moves the buffer itself through the MDL */
        if (FdoExtension->Miniport.IsVirtual)
        {
            PortPdoAfterBuildingScatterGatherList(FdoExtension->Device,
                                                  RequestReference->Irp,
                                                  NULL,
                                                  RequestReference);
            return STATUS_PENDING;
        }

        /* Following call requires DISPATCH_LEVEL. */
        OldIrql = KfRaiseIrql(DISPATCH_LEVEL);

        /* Make up the scatter gather list */
        /* FIXME: I don't know if we actually hit it */
        NT_ASSERT((RequestReference->Srb->SrbFlags & SRB_FLAGS_UNSPECIFIED_DIRECTION) !=
                  SRB_FLAGS_UNSPECIFIED_DIRECTION);

        FdoExtension->DmaAdapter->DmaOperations->
            GetScatterGatherList(FdoExtension->DmaAdapter,
                                 FdoExtension->Device,
                                 RequestReference->Irp->MdlAddress,
                                 MmGetMdlVirtualAddress(RequestReference->Irp->MdlAddress),
                                 RequestReference->Srb->DataTransferLength,
                                 PortPdoAfterBuildingScatterGatherList,
                                 (PVOID)RequestReference,
                                 RequestReference->WriteToDevice);

        /* Restore IRQL */
        KeLowerIrql(OldIrql);
    } else {
        /* Otherwise just start the IO with a NULL scatter gather list */
        PortPdoAfterBuildingScatterGatherList(FdoExtension->Device,
                                              RequestReference->Irp,
                                              NULL,
                                              RequestReference);
    }

    /* FIXME: Is this correct? */
    Status = STATUS_PENDING;

    return Status;
}

Referenced by PortPdoScsi(), and PortScheduleComingRequestsOnCompletion().

PortPdoScheduleRequestFlowControlled()

BOOLEAN PortPdoScheduleRequestFlowControlled	(	_In_ PPDO_DEVICE_EXTENSION	PdoExtension,
		_In_ PFDO_DEVICE_EXTENSION	FdoExtension,
		_In_ PQUEUED_REQUEST_REFERENCE	RequestReference
	)

Schedules an outstanding request and return a boolean value to indicate if the request can be immediately issued.

Parameters

PdoExtension	PDO device extension.
FdoExtension	FDO device extension.
RequestReference	RequestReference must be allocated beforehand.

Returns

BOOLEAN When TRUE, you can call PortPdoIssueRequest to issue request right away; When FALSE, the request is already queued in flow control structures and you can safely go on without further processing, it will be issued upon completions.

Definition at line 429 of file srb.c.

{
    PPDO_IO_FLOW_CONTROL FlowControl = &PdoExtension->FlowControl;
    KLOCK_QUEUE_HANDLE LockHandle;
    PSCSI_REQUEST_BLOCK Srb = RequestReference->Srb;
    BOOLEAN StrongOrderedRequest = FALSE;
    BOOLEAN IssueRequest = TRUE;

    /* Set outstanding flag */
    RequestReference->IsOutstanding = TRUE;

    /* Check if we can issue this request. */
    /* Acquire the HBA global flow control lock first */
    KeAcquireInStackQueuedSpinLock(&FdoExtension->FlowControl.Lock, &LockHandle);
    StorpCheckFlowControl(FdoExtension);

    do
    {
        /* Check PDO flow control conditions */

        /* Sanity check */
        NT_ASSERT(FlowControl->OutstandingRequestCount <= PdoExtension->OutstandingRequestMax);

        /* If PDO is not suitable to receive a request, make it wait */
        if (FlowControl->IsBusy || FlowControl->IsPaused ||
            (FlowControl->IsFrozen && !TEST_FLAG(Srb->SrbFlags, SRB_FLAGS_BYPASS_FROZEN_QUEUE)) ||
            (FlowControl->IsLocked && !TEST_FLAG(Srb->SrbFlags, SRB_FLAGS_BYPASS_LOCKED_QUEUE)) ||
            FlowControl->StrongOrderedCount ||
            FlowControl->OutstandingRequestCount == PdoExtension->OutstandingRequestMax ||
            (!IsListEmpty(&FlowControl->AwaitingRequestsListHead)))
        {
            InsertHeadList(&FlowControl->AwaitingRequestsListHead,
                           &RequestReference->PdoEntry);
            IssueRequest = FALSE;
            break;
        }

        /* Check if this request is strong-ordered */
        if (!TEST_FLAG(Srb->SrbFlags, SRB_FLAGS_QUEUE_ACTION_ENABLE) ||
            (Srb->QueueAction == SRB_ORDERED_QUEUE_TAG_REQUEST))
        {
            RequestReference->StrongOrdered = TRUE;
            StrongOrderedRequest = TRUE;
            ++FlowControl->StrongOrderedCount;
        }

        /*
        * If this request is strong ordered and the LUN's active/approved list is not
        * drained, the request must wait.
        */
        if (StrongOrderedRequest && !IsListEmpty(&FlowControl->ActiveRequestsListHead))
        {
            InsertHeadList(&FlowControl->AwaitingRequestsListHead,
                           &RequestReference->PdoEntry);
            IssueRequest = FALSE;
            break;
        }

        /*
        * If any break's triggered before this point, the request is in PDO waiting queue.
        * Going past this point meant PDO approves this request. Put it into active list.
        */
        if (Srb->QueueAction == SRB_HEAD_OF_QUEUE_TAG_REQUEST)
        {
            InsertTailList(&FlowControl->ActiveRequestsListHead,
                           &RequestReference->PdoEntry);
        } else {
            InsertHeadList(&FlowControl->ActiveRequestsListHead,
                           &RequestReference->PdoEntry);
        }

        /* A new outstanding request is added to this LUN */
        ++FlowControl->OutstandingRequestCount;

        /* Check FDO flow control status. */

        /* If the FDO can't handle more requests, then the request should be queued. */
        if (FlowControl->IsBusy || FlowControl->IsPaused ||
            FlowControl->OutstandingRequestCount == FdoExtension->OutstandingRequestMax)
        {
            /* Put into FDO queue */
            InsertHeadList(&FdoExtension->FlowControl.FdoBlockedRequestsListHead,
                           &RequestReference->FdoEntry);

            /*
            * Now the request is in PDO active list, in FDO awaiting queue, not issued.
            * Let it wait until another completion event schedules it.
            */
            break;
        }

        /* Seems good, increment FDO request count */
        ++FdoExtension->FlowControl.OutstandingRequestCount;

        /*
        * Now the request is counted in FDO & PDO, and is put into PDO active list,
        * next step we're going to issue it.
        */
    } while (0);

    // FIXME: The port driver indicates that an LU-specific queue has been frozen by
    // returning a request with SRB_STATUS_QUEUE_FROZEN in the SrbStatus member. New
    // requests from the class driver can be inserted into the queue, but only autosense
    // requests are sent to the logical unit as long as its queue is frozen.
    // https://learn.microsoft.com/en-us/windows-hardware/drivers/storage/storage-class-driver-s-releasequeue-routine

    /* We've determined where the request goes. Release the flow control lock */
    StorpCheckFlowControl(FdoExtension);
    KeReleaseInStackQueuedSpinLock(&LockHandle);

    return IssueRequest;
}

Referenced by PortPdoScsi().

PortPdoScheduleRequestNoFlowControl()

VOID PortPdoScheduleRequestNoFlowControl	(	_In_ PFDO_DEVICE_EXTENSION	FdoExtension,
		_In_ PQUEUED_REQUEST_REFERENCE	RequestReference
	)

Definition at line 408 of file srb.c.

{
    /* Ensure outstanding flag is unset */
    RequestReference->IsOutstanding = FALSE;
}

Referenced by PortPdoScsi().

PortPdoScsi()

NTSTATUS NTAPI PortPdoScsi	(	_In_ PDEVICE_OBJECT	DeviceObject,
		_In_ PIRP	Irp
	)

Definition at line 548 of file srb.c.

{
    NTSTATUS Status;
    PIO_STACK_LOCATION Stack;
    PSCSI_REQUEST_BLOCK Srb;
    PPDO_DEVICE_EXTENSION PdoExtension;
    PFDO_DEVICE_EXTENSION FdoExtension;
    PMINIPORT Miniport;

    DPRINT("PortPdoScsi(%p %p)\n", DeviceObject, Irp);

    Stack = IoGetCurrentIrpStackLocation(Irp);
    Srb = Stack->Parameters.Scsi.Srb;

    if (Srb == NULL) {
        DPRINT1("Srb is NULL!");
        DbgBreakPoint();
        Status = STATUS_UNSUCCESSFUL;

        Irp->IoStatus.Information = 0;
        Irp->IoStatus.Status = Status;

        IoCompleteRequest(Irp, IO_NO_INCREMENT);
        return Status;
    }

    PdoExtension = (PPDO_DEVICE_EXTENSION)DeviceObject->DeviceExtension;
    NT_ASSERT(PdoExtension);
    FdoExtension = PdoExtension->FdoExtension;
    NT_ASSERT(FdoExtension);
    Miniport = &FdoExtension->Miniport;

    switch (Srb->Function) {
        /* Both of these should be sent to device and let themselves process this */
        case SRB_FUNCTION_IO_CONTROL:
        case SRB_FUNCTION_EXECUTE_SCSI:
        {
            PQUEUED_REQUEST_REFERENCE RequestReference;
            BOOLEAN IssueRequest;

            /* Mark IRP as pending */
            IoMarkIrpPending(Irp);

            /* Allocate private contexts */
            Status = PortPdoSrbAllocatePrivateContexts(Srb, PdoExtension, FdoExtension);
            if (Status != STATUS_SUCCESS)
            {
                break;
            }
            RequestReference = (PQUEUED_REQUEST_REFERENCE)Srb->OriginalRequest;

            /* Assign a tag to the SRB if it supports tagging */
            StorpAssignTagToSrb(PdoExtension, Srb);

            DPRINT("New request (%d:%d:%d) ReqRef %p Srb %p Irp %p Tag %x SrbExt %p(%d)\n",
                    Srb->PathId, Srb->TargetId, Srb->Lun,
                    RequestReference, Srb, Irp, Srb->QueueTag,
                    Srb->SrbExtension, Miniport->PortConfig.SrbExtensionSize);

            /*
             * Do the scheduling. If returns TRUE, we should issue this request to the hardware.
             * Otherwise it will keep waiting until next completion schedules it, or be cancelled on
             * an error, etc.
             */
            IssueRequest = PortPdoScheduleRequestFlowControlled(PdoExtension,
                                                                FdoExtension,
                                                                RequestReference);

            /* This request is viable to be issued. */
            if (IssueRequest)
            {
                Status = PortPdoIssueRequest(PdoExtension, RequestReference);
            } else {
                Status = STATUS_PENDING;
            }

            break;
        }

        /*
         * These requests are actually sent to adapters and are not outstanding requests for devices
         * so we simply pass them down to miniport
         */
        case SRB_FUNCTION_FLUSH:
        case SRB_FUNCTION_SHUTDOWN:
        {
            PQUEUED_REQUEST_REFERENCE RequestReference;

            /* Mark IRP as pending */
            IoMarkIrpPending(Irp);

            /* Allocate private contexts */
            Status = PortPdoSrbAllocatePrivateContexts(Srb, PdoExtension, FdoExtension);
            if (Status != STATUS_SUCCESS)
            {
                break;
            }
            RequestReference = (PQUEUED_REQUEST_REFERENCE)Srb->OriginalRequest;

            /*
             * Call the non-flow-controlled scheduling function (it does nothing but the model is
             * preserved for consistency)
             */
            PortPdoScheduleRequestNoFlowControl(FdoExtension, RequestReference);

            /* Fire up the request immediately */
            Status = PortPdoIssueRequest(PdoExtension, RequestReference);

            break;
        }

        case SRB_FUNCTION_CLAIM_DEVICE:
        {
            if (InterlockedCompareExchange(&PdoExtension->IsClaimed, 1, 0))
            {
                Status = STATUS_DEVICE_BUSY;
                StorpCompleteRequest(Irp, SRB_STATUS_BUSY, Status);
                break;
            }

            /* The claimed device object is handed back to the class driver here */
            Srb->DataBuffer = PdoExtension->Device;
            Status = STATUS_SUCCESS;
            StorpCompleteRequest(Irp, SRB_STATUS_SUCCESS, Status);
            break;
        }

        case SRB_FUNCTION_RELEASE_DEVICE:
        {
            InterlockedExchange(&PdoExtension->IsClaimed, 0);

            Status = STATUS_SUCCESS;
            StorpCompleteRequest(Irp, SRB_STATUS_SUCCESS, Status);
            break;
        }

        default:
            DPRINT1("Unsupported Srb Function %02X!", Srb->Function);
            // DbgBreakPoint();
            Status = STATUS_NOT_IMPLEMENTED;
            StorpCompleteRequest(Irp, SRB_STATUS_INVALID_REQUEST, Status);
            break;
    }

    return Status;
}

Referenced by PortDispatchScsi(), and PortRetryStarvedRequest().

PortPdoSrbAllocatePrivateContexts()

NTSTATUS PortPdoSrbAllocatePrivateContexts	(	_In_ PSCSI_REQUEST_BLOCK	Srb,
		_In_ PPDO_DEVICE_EXTENSION	PdoExtension,
		_In_ PFDO_DEVICE_EXTENSION	FdoExtension
	)

Definition at line 258 of file srb.c.

{
    PQUEUED_REQUEST_REFERENCE RequestReference;
    ULONG SrbExtensionSize = FdoExtension->Miniport.PortConfig.SrbExtensionSize;
    PIRP Irp;

    Irp = (PIRP)Srb->OriginalRequest;

    /* Allocate our private data area, falling back on the reserve when pool is exhausted */
    RequestReference = StorpSrbAllocateRequestReference(Srb, Irp, PdoExtension);
    if (RequestReference == NULL)
    {
        RequestReference = StorpSrbAcquireReservedRequestReference(Srb, Irp, PdoExtension);
        if (RequestReference == NULL)
        {
            return PortPdoStarveRequest(FdoExtension, Srb, Irp);
        }
    }

    /* Allocate SRB extension */
    if (SrbExtensionSize == 0)
    {
        Srb->SrbExtension = NULL;
        return STATUS_SUCCESS;
    }

    if (RequestReference->FromReserve)
    {
        NT_ASSERT(FdoExtension->ReservedSrbExtension != NULL);
        Srb->SrbExtension = FdoExtension->ReservedSrbExtension;
        RtlZeroMemory(Srb->SrbExtension, SrbExtensionSize);
        return STATUS_SUCCESS;
    }

    Srb->SrbExtension = ExAllocatePoolWithTag(NonPagedPool,
                                              SrbExtensionSize,
                                              TAG_SRB_EXTENSION);
    if (Srb->SrbExtension == NULL)
    {
        StorpSrbFreeRequestReference(Srb);
        return PortPdoStarveRequest(FdoExtension, Srb, Irp);
    }

    RtlZeroMemory(Srb->SrbExtension, SrbExtensionSize);

    return STATUS_SUCCESS;
}

Referenced by PortPdoScsi().

PortPdoStarveRequest()

static NTSTATUS PortPdoStarveRequest ( _In_ PFDO_DEVICE_EXTENSION  FdoExtension, _In_ PSCSI_REQUEST_BLOCK  Srb, _In_ PIRP  Irp  )

static

Parks a request that is out of memory, or fails it if there is no reserve to wait for. Either way the IRP is no longer ours, hence STATUS_PENDING.

Definition at line 238 of file srb.c.

{
    /* Without a reserve nothing guarantees a completion that would retry the request */
    if (FdoExtension->ReservedRequestReference == NULL)
    {
        Srb->InternalStatus = STATUS_INSUFFICIENT_RESOURCES;
        StorpCompleteRequest(Irp, SRB_STATUS_INTERNAL_ERROR, STATUS_INSUFFICIENT_RESOURCES);
    }
    else
    {
        PortQueueStarvedRequest(FdoExtension, Irp);
    }

    return STATUS_PENDING;
}

Referenced by PortPdoSrbAllocatePrivateContexts().

PortScheduleComingRequestsOnCompletion()

static VOID PortScheduleComingRequestsOnCompletion ( _In_ PPDO_DEVICE_EXTENSION  PdoExtension, _In_ PFDO_DEVICE_EXTENSION  FdoExtension  )

static

Definition at line 700 of file srb.c.

{
    PLIST_ENTRY Entry;
    PQUEUED_REQUEST_REFERENCE RequestReference;

    /* Sanity check again whether FDO has resource to handle the request */
    NT_ASSERT(FdoExtension->FlowControl.OutstandingRequestCount <
              FdoExtension->OutstandingRequestMax);

    /* If FDO has waiting requests, issue one. */
    if (!IsListEmpty(&FdoExtension->FlowControl.FdoBlockedRequestsListHead))
    {
        /* Sanity check */
        NT_ASSERT(FdoExtension->FlowControl.OutstandingRequestCount <
                  FdoExtension->OutstandingRequestMax);

        /* Take it out of FDO list */
        Entry = RemoveTailList(&FdoExtension->FlowControl.FdoBlockedRequestsListHead);
        RequestReference = CONTAINING_RECORD(Entry, QUEUED_REQUEST_REFERENCE, FdoEntry);

        /* Increment FDO request counter */
        ++FdoExtension->FlowControl.OutstandingRequestCount;
        NT_ASSERT(FdoExtension->FlowControl.OutstandingRequestCount <=
                  FdoExtension->OutstandingRequestMax);

        /* Call the start routine */
        PortPdoIssueRequest(PdoExtension, RequestReference);

        /* Our task is done */
        return;
    }

    /* FDO's got no request, check the PDO of the just-finished request for awaiting requests */
    if (!IsListEmpty(&PdoExtension->FlowControl.AwaitingRequestsListHead))
    {
        /* Sanity check */
        NT_ASSERT(PdoExtension->FlowControl.OutstandingRequestCount <
                  PdoExtension->OutstandingRequestMax);

        /* Take one request */
        Entry = RemoveTailList(&PdoExtension->FlowControl.AwaitingRequestsListHead);
        RequestReference = CONTAINING_RECORD(Entry, QUEUED_REQUEST_REFERENCE, PdoEntry);

        /* This one goes to active list */
        InsertHeadList(&PdoExtension->FlowControl.ActiveRequestsListHead, Entry);

        /* Increment PDO request counter */
        ++PdoExtension->FlowControl.OutstandingRequestCount;
        NT_ASSERT(PdoExtension->FlowControl.OutstandingRequestCount <=
                  PdoExtension->OutstandingRequestMax);

        /* FIXME: should be false. Allocate resource if it is determined required */
        if (RequestReference->Srb->SrbExtension == NULL)
        {
            __debugbreak();
        }

        /* Call the start routine */
        PortPdoIssueRequest(PdoExtension, RequestReference);

        /* Our task is done */
        return;
    }
}

Referenced by PortCompleteRequest().

StorpAssignTagToSrb()

FORCEINLINE BOOLEAN StorpAssignTagToSrb	(	_In_ PPDO_DEVICE_EXTENSION	PdoExtension,
		_In_ PSCSI_REQUEST_BLOCK	Srb
	)

Assigns a queue tag to a request if it stated it supports one.

Parameters

PdoExtension	PDO Device extension
Srb	SRB that represents this request

Returns

BOOLEAN Whether the request was assigned a tag at last.

Definition at line 142 of file srb.c.

{
    ULONG NewTag;

    /* Bail out if the request is untagged */
    if (!TEST_FLAG(Srb->SrbFlags, SRB_FLAGS_QUEUE_ACTION_ENABLE))
    {
        return FALSE;
    }

    /* FIXME: What if the counter overflows? */
    NewTag = InterlockedIncrement(&PdoExtension->TagCounter);

    /*
     * We use ULONG for tag counter, and here seems to do a stupid truncation by casting to UCHAR;
     * But since Storport has a default maximum 254 requests/LUN limitation, this is actually OK for
     * our use case. If a miniport needs to support more than 254 tags it must use
     * STORAGE_REQUEST_BLOCK which we don't support yet :D
     */
    Srb->QueueTag = (UCHAR)(NewTag % PdoExtension->OutstandingRequestMax);

    DPRINT("StorpAssignTagToSrb: Assigned Tag %x, TagCounter was %x\n", Srb->QueueTag, NewTag);

    return TRUE;
}

Referenced by PortPdoScsi().

StorpSrbAcquireReservedRequestReference()

static PQUEUED_REQUEST_REFERENCE StorpSrbAcquireReservedRequestReference ( _In_ PSCSI_REQUEST_BLOCK  Srb, _In_ PIRP  Irp, _In_ PPDO_DEVICE_EXTENSION  PdoExtension  )

static

Takes the adapter reserve, if it is there and nobody else holds it.

Returns

PQUEUED_REQUEST_REFERENCE The reserved reference, or NULL if unavailable.

Definition at line 83 of file srb.c.

{
    PFDO_DEVICE_EXTENSION FdoExtension = PdoExtension->FdoExtension;
    PQUEUED_REQUEST_REFERENCE RequestReference;

    if (FdoExtension->ReservedRequestReference == NULL ||
        InterlockedCompareExchange(&FdoExtension->ReserveInUse, 1, 0) != 0)
    {
        return NULL;
    }

    RequestReference = FdoExtension->ReservedRequestReference;
    StorpSrbInitRequestReference(RequestReference, Srb, Irp, PdoExtension);
    RequestReference->FromReserve = TRUE;

    return RequestReference;
}

Referenced by PortPdoSrbAllocatePrivateContexts().

StorpSrbAllocateRequestReference()

static PQUEUED_REQUEST_REFERENCE StorpSrbAllocateRequestReference ( _In_ PSCSI_REQUEST_BLOCK  Srb, _In_ PIRP  Irp, _In_ PPDO_DEVICE_EXTENSION  PdoExtension  )

static

Allocates QUEUED_REQUEST_REFERENCE for an SRB that is going to be processed.

Parameters

Srb
Irp

Returns

PQUEUED_REQUEST_REFERENCE RequestReference structure allocated, or NULL on failure.

Definition at line 57 of file srb.c.

{
    PQUEUED_REQUEST_REFERENCE RequestReference;

    RequestReference =
        ExAllocateFromNPagedLookasideList(&PdoExtension->FdoExtension->RequestReferenceLookaside);
    if (RequestReference == NULL)
    {
        return NULL;
    }

    StorpSrbInitRequestReference(RequestReference, Srb, Irp, PdoExtension);

    return RequestReference;
}

Referenced by PortPdoSrbAllocatePrivateContexts().

StorpSrbFreeRequestReference()

VOID StorpSrbFreeRequestReference

(

_In_ PSCSI_REQUEST_BLOCK

Srb

)

Frees an SRB's Request Reference and restore Srb->OriginalRequest field to IRP. This function does not check if Srb->OriginalRequest is actually an request reference, and you must determine it by other means.

Parameters

Srb

Definition at line 112 of file srb.c.

{
    PQUEUED_REQUEST_REFERENCE RequestReference;
    PFDO_DEVICE_EXTENSION FdoExtension;

    RequestReference = (PQUEUED_REQUEST_REFERENCE)Srb->OriginalRequest;
    Srb->OriginalRequest = RequestReference->Irp;
    FdoExtension = RequestReference->PdoExtension->FdoExtension;

    if (RequestReference->FromReserve)
    {
        InterlockedExchange(&FdoExtension->ReserveInUse, 0);
    }
    else
    {
        ExFreeToNPagedLookasideList(&FdoExtension->RequestReferenceLookaside, RequestReference);
    }
}

Referenced by PortCompleteRequest(), and PortPdoSrbAllocatePrivateContexts().

StorpSrbInitRequestReference()

static VOID StorpSrbInitRequestReference ( _In_ PQUEUED_REQUEST_REFERENCE  RequestReference, _In_ PSCSI_REQUEST_BLOCK  Srb, _In_ PIRP  Irp, _In_ PPDO_DEVICE_EXTENSION  PdoExtension  )

static

Initializes a request reference and sets the SRB => ReqRef link.

Definition at line 25 of file srb.c.

{
    /* Both the lookaside entries and the reserve are recycled, so they need zeroing */
    RtlZeroMemory(RequestReference, FIELD_OFFSET(QUEUED_REQUEST_REFERENCE, Ex));

    Srb->OriginalRequest = (PVOID)RequestReference;
    RequestReference->Irp = Irp;
    RequestReference->Srb = Srb;
    RequestReference->TimeoutCounter = Srb->TimeOutValue;

    RequestReference->PdoExtension = PdoExtension;

    if (PdoExtension->FdoExtension->Miniport.PortConfig.SrbType == SRB_TYPE_STORAGE_REQUEST_BLOCK)
    {
        RequestReference->ExtendedRequest = &RequestReference->Ex;
        RtlZeroMemory(RequestReference->ExtendedRequest, sizeof(*RequestReference->ExtendedRequest));
    }
}

Referenced by StorpSrbAcquireReservedRequestReference(), and StorpSrbAllocateRequestReference().
