kbdnecat.c File Reference

#include <windef.h>
#include <winuser.h>
#include <ndk/kbd.h>

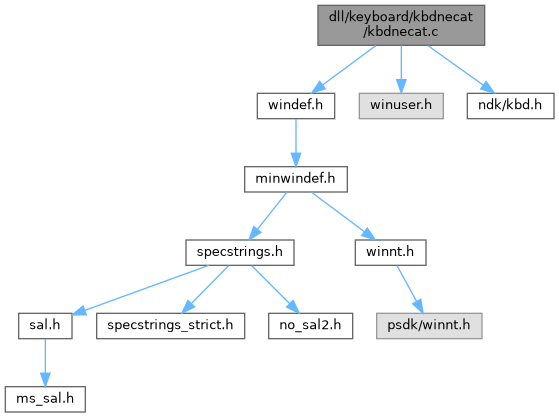

Include dependency graph for kbdnecat.c:

Go to the source code of this file.

Macros
#define	WIN32_NO_STATUS
#define	ROSDATA   static __attribute__((section(".data")))
#define	VK_EMPTY   0xff /* The non-existent VK */
#define	KNUMS   (KBDNUMPAD | KBDSPECIAL) /* Special + number pad */
#define	KMEXT   (KBDEXT | KBDMULTIVK) /* Multi + ext */
#define	KBDKANA   0x08
#define	VK_OEM_NEC_EQUAL   0x92
#define	vk_master(n, x)   { (PVK_TO_WCHARS1)x, n, sizeof(x[0]) }
#define	NLS_ENTRY(vk, p0, p1, p2, p3, p4, p5, p6, p7)
#define	NOP   { KBDNLS_NULL, 0 }
#define	BASE   { KBDNLS_SEND_BASE_VK, 0 }
#define	PARAM(vk)   { KBDNLS_SEND_PARAM_VK, (vk) }
#define	FUNC(f)   { (f), 0 }
#define	NLS_NUMPAD(vk)

Functions
PKBDTABLES WINAPI	KbdLayerDescriptor (VOID)
PKBDNLSTABLES WINAPI	KbdNlsLayerDescriptor (VOID)

Variables
ROSDATA USHORT	scancode_to_vk []
ROSDATA VSC_VK	extcode0_to_vk []
ROSDATA VSC_VK	extcode1_to_vk []
ROSDATA VK_TO_BIT	modifier_keys []
ROSDATA MODIFIERS	modifier_bits
ROSDATA VK_TO_WCHARS4	key_to_chars_4mod []
ROSDATA VK_TO_WCHARS6	key_to_chars_6mod []
ROSDATA VK_TO_WCHARS8	key_to_chars_8mod []
ROSDATA VK_TO_WCHARS4	keypad_numbers []
ROSDATA VK_TO_WCHAR_TABLE	vk_to_wchar_master_table []
ROSDATA VSC_LPWSTR	key_names []
ROSDATA VSC_LPWSTR	extended_key_names []
ROSDATA KBDTABLES_FE	keyboard_layout_table
ROSDATA VK_F	key_to_function []
ROSDATA USHORT	mouse_vkeys []
ROSDATA KBDNLSTABLES	keyboard_nls_table

Macro Definition Documentation

BASE

#define BASE   { KBDNLS_SEND_BASE_VK, 0 }

Definition at line 393 of file kbdnecat.c.

FUNC

#define FUNC

(

f

)

{ (f), 0 }

Definition at line 395 of file kbdnecat.c.

KBDKANA

#define KBDKANA   0x08

Definition at line 29 of file kbdnecat.c.

KMEXT

#define KMEXT   (KBDEXT | KBDMULTIVK) /* Multi + ext */

Definition at line 28 of file kbdnecat.c.

KNUMS

#define KNUMS   (KBDNUMPAD | KBDSPECIAL) /* Special + number pad */

Definition at line 27 of file kbdnecat.c.

NLS_ENTRY

#define NLS_ENTRY	(		vk,
			p0,
			p1,
			p2,
			p3,
			p4,
			p5,
			p6,
			p7
	)

Value:

  { (vk), KBDNLS_TYPE_NORMAL, KBDNLS_INDEX_NORMAL, 0,                    \
    { p0, p1, p2, p3, p4, p5, p6, p7 },                                  \
    { {0,0},{0,0},{0,0},{0,0},{0,0},{0,0},{0,0},{0,0} } }

Definition at line 387 of file kbdnecat.c.

NLS_NUMPAD

#define NLS_NUMPAD

(

vk

)

Value:

  NLS_ENTRY(vk, FUNC(KBDNLS_NUMPAD), FUNC(KBDNLS_NUMPAD), FUNC(KBDNLS_NUMPAD), \
                FUNC(KBDNLS_NUMPAD), FUNC(KBDNLS_NUMPAD), FUNC(KBDNLS_NUMPAD), \
                FUNC(KBDNLS_NUMPAD), FUNC(KBDNLS_NUMPAD))

NOP

#define NOP   { KBDNLS_NULL, 0 }

Definition at line 392 of file kbdnecat.c.

PARAM

#define PARAM

(

vk

)

{ KBDNLS_SEND_PARAM_VK, (vk) }

Definition at line 394 of file kbdnecat.c.

ROSDATA

#define ROSDATA   static __attribute__((section(".data")))

Definition at line 22 of file kbdnecat.c.

VK_EMPTY

#define VK_EMPTY   0xff /* The non-existent VK */

Definition at line 26 of file kbdnecat.c.

vk_master

#define vk_master	(		n,
			x
	)		{ (PVK_TO_WCHARS1)x, n, sizeof(x[0]) }

Definition at line 261 of file kbdnecat.c.

VK_OEM_NEC_EQUAL

#define VK_OEM_NEC_EQUAL   0x92

Definition at line 30 of file kbdnecat.c.

WIN32_NO_STATUS

#define WIN32_NO_STATUS

Definition at line 8 of file kbdnecat.c.

Function Documentation

KbdLayerDescriptor()

PKBDTABLES WINAPI KbdLayerDescriptor

(

VOID

)

Definition at line 379 of file kbdnecat.c.

                                           {
  return &keyboard_layout_table.Base;
}

KbdNlsLayerDescriptor()

PKBDNLSTABLES WINAPI KbdNlsLayerDescriptor

(

VOID

)

Definition at line 469 of file kbdnecat.c.

                                                 {
  return &keyboard_nls_table;
}

Variable Documentation

extcode0_to_vk

ROSDATA VSC_VK extcode0_to_vk[]

Initial value:

= {
  { 0x1C, VK_RETURN | KBDEXT },
  { 0x1D, VK_RCONTROL | KBDEXT },
  { 0x35, VK_DIVIDE | KBDEXT },
  { 0x37, VK_SNAPSHOT | KBDEXT },
  { 0x38, VK_EMPTY | KBDEXT },
  { 0x46, VK_CANCEL | KBDEXT },
  { 0x47, VK_HOME | KBDEXT | KBDSPECIAL },
  { 0x48, VK_UP | KBDEXT },
  { 0x49, VK_PRIOR | KBDEXT },
  { 0x4B, VK_LEFT | KBDEXT },
  { 0x4D, VK_RIGHT | KBDEXT },
  { 0x4F, VK_END | KBDEXT | KBDSPECIAL },
  { 0x50, VK_DOWN | KBDEXT },
  { 0x51, VK_NEXT | KBDEXT },
  { 0x52, VK_INSERT | KBDEXT },
  { 0x53, VK_DELETE | KBDEXT },
  { 0x5B, VK_LWIN | KBDEXT },
  { 0x5C, VK_RWIN | KBDEXT },
  { 0x5D, VK_APPS | KBDEXT },
  { 0, 0 },
}

Definition at line 109 of file kbdnecat.c.

extcode1_to_vk

ROSDATA VSC_VK extcode1_to_vk[]

Initial value:

= {
  { 0x1d, VK_PAUSE },
  { 0, 0 },
}

Definition at line 132 of file kbdnecat.c.

extended_key_names

ROSDATA VSC_LPWSTR extended_key_names[]

Initial value:

= {
  { 0x1c, L"Num Enter" },
  { 0x35, L"Num /" },
  { 0x37, L"COPY" },
  { 0x45, L"Num Lock" },
  { 0x46, L"STOP" },
  { 0x47, L"CLR" },
  { 0x48, L"UP" },
  { 0x49, L"ROLL DOWN" },
  { 0x4b, L"LEFT" },
  { 0x4d, L"RIGHT" },
  { 0x4f, L"HELP" },
  { 0x50, L"DOWN" },
  { 0x51, L"ROLL UP" },
  { 0x52, L"INS" },
  { 0x53, L"DEL" },
  { 0x54, L"<00>" },
  { 0x56, L"HELP" },
  { 0x5b, L"Left Windows" },
  { 0x5c, L"Right Windows" },
  { 0x5d, L"Application" },
  { 0, NULL },
}

Definition at line 326 of file kbdnecat.c.

key_names

ROSDATA VSC_LPWSTR key_names[]

Definition at line 274 of file kbdnecat.c.

key_to_chars_4mod

ROSDATA VK_TO_WCHARS4 key_to_chars_4mod[]

Definition at line 172 of file kbdnecat.c.

key_to_chars_6mod

ROSDATA VK_TO_WCHARS6 key_to_chars_6mod[]

Initial value:

= {
  { VK_BACK,   0, {0x08, 0x08, 0x08, 0x08, 0x7f, 0x7f} },
  { VK_CANCEL, 0, {0x03, 0x03, 0x03, 0x03, 0x03, 0x03} },
  { VK_ESCAPE, 0, {0x1b, 0x1b, 0x1b, 0x1b, 0x1b, 0x1b} },
  { VK_OEM_3,  KANALOK, {'@',  '~',  0xff9e, 0xff9e, 0x00, 0x00} },
  { VK_OEM_4,  KANALOK, {'[',  '{',  0xff9f, 0xff62, 0x1b, 0x1b} },
  { VK_OEM_5,  KANALOK, {'\\', '|',  0xff70, 0xff70, 0x1c, 0x1c} },
  { VK_OEM_6,  KANALOK, {']',  '}',  0xff91, 0xff63, 0x1d, 0x1d} },
  { VK_OEM_7,  KANALOK, {'^',  '`',  0xff8d, 0xff8d, 0x1e, 0x1e} },
  { VK_OEM_8,  KANALOK, {WCH_NONE, '_', 0xff9b, 0xff9b, 0x1f, 0x1f} },
  { VK_RETURN, 0, {'\r', '\r', '\r', '\r', '\n', '\n'} },
  { VK_SPACE,  0, {' ',  ' ',  ' ',  ' ',  ' ',  ' '} },
  { 0, 0 }
}

Definition at line 224 of file kbdnecat.c.

key_to_chars_8mod

ROSDATA VK_TO_WCHARS8 key_to_chars_8mod[]

Initial value:

= {
  { '2',          KANALOK, {'2', '"', 0xff8c, 0xff8c, WCH_NONE, WCH_NONE, 0x00, 0x00} },
  { '6',          KANALOK, {'6', '&', 0xff75, 0xff6b, WCH_NONE, WCH_NONE, 0x1e, 0x1e} },
  { VK_OEM_MINUS, KANALOK, {'-', '=', 0xff8e, 0xff8e, WCH_NONE, WCH_NONE, 0x1f, 0x1f} },
  { 0, 0 }
}

Definition at line 240 of file kbdnecat.c.

key_to_function

ROSDATA VK_F key_to_function[]

Definition at line 397 of file kbdnecat.c.

keyboard_layout_table

ROSDATA KBDTABLES_FE keyboard_layout_table

Initial value:

= {
  {
    &modifier_bits,
    vk_to_wchar_master_table,
    NULL,


    (VSC_LPWSTR *)key_names,
    (VSC_LPWSTR *)extended_key_names,
    NULL,


    scancode_to_vk,
    RTL_NUMBER_OF(scancode_to_vk),
    extcode0_to_vk,
    extcode1_to_vk,

    0,


    0, 0, NULL
  },
  7,
  0x0d02
}

Definition at line 353 of file kbdnecat.c.

Referenced by KbdLayerDescriptor().

keyboard_nls_table

ROSDATA KBDNLSTABLES keyboard_nls_table

Initial value:

= {
  0,
  2,
  RTL_NUMBER_OF(key_to_function),
  key_to_function,
  RTL_NUMBER_OF(mouse_vkeys),
  mouse_vkeys
}

Definition at line 460 of file kbdnecat.c.

Referenced by KbdNlsLayerDescriptor().

keypad_numbers

ROSDATA VK_TO_WCHARS4 keypad_numbers[]

Initial value:

= {
  { VK_NUMPAD0, 0, {'0', WCH_NONE, '0', WCH_NONE} },
  { VK_NUMPAD1, 0, {'1', WCH_NONE, '1', WCH_NONE} },
  { VK_NUMPAD2, 0, {'2', WCH_NONE, '2', WCH_NONE} },
  { VK_NUMPAD3, 0, {'3', WCH_NONE, '3', WCH_NONE} },
  { VK_NUMPAD4, 0, {'4', WCH_NONE, '4', WCH_NONE} },
  { VK_NUMPAD5, 0, {'5', WCH_NONE, '5', WCH_NONE} },
  { VK_NUMPAD6, 0, {'6', WCH_NONE, '6', WCH_NONE} },
  { VK_NUMPAD7, 0, {'7', WCH_NONE, '7', WCH_NONE} },
  { VK_NUMPAD8, 0, {'8', WCH_NONE, '8', WCH_NONE} },
  { VK_NUMPAD9, 0, {'9', WCH_NONE, '9', WCH_NONE} },
  { 0, 0 }
}

Definition at line 247 of file kbdnecat.c.

modifier_bits

ROSDATA MODIFIERS modifier_bits

Initial value:

= {
  modifier_keys,
  11,
  {
      0,
      1,
      4,
      6,
      SHFT_INVALID,
      SHFT_INVALID,
      SHFT_INVALID,
      SHFT_INVALID,
      2,
      3,
      5,
      7,
  }
}

Definition at line 148 of file kbdnecat.c.

modifier_keys

ROSDATA VK_TO_BIT modifier_keys[]

Initial value:

= {
  { VK_SHIFT,   KBDSHIFT },
  { VK_CONTROL, KBDCTRL },
  { VK_MENU,    KBDALT },
  { VK_KANA,    KBDKANA },
  { 0,          0 }
}

Definition at line 140 of file kbdnecat.c.

mouse_vkeys

ROSDATA USHORT mouse_vkeys[]

Initial value:

= {
  VK_NUMPAD5, VK_NUMPAD9, VK_NUMPAD3, VK_NUMPAD1,
  VK_NUMPAD7, VK_NUMPAD4, VK_NUMPAD8, VK_NUMPAD6,
  VK_NUMPAD2, VK_NUMPAD0, VK_DECIMAL, VK_MULTIPLY,
  VK_ADD,     VK_SUBTRACT,
  VK_DIVIDE | KBDEXT,
  VK_HOME   | KBDEXT
}

Definition at line 451 of file kbdnecat.c.

scancode_to_vk

ROSDATA USHORT scancode_to_vk[]

Definition at line 35 of file kbdnecat.c.

vk_to_wchar_master_table

ROSDATA VK_TO_WCHAR_TABLE vk_to_wchar_master_table[]

Initial value:

= {
  vk_master(6, key_to_chars_6mod),
  vk_master(8, key_to_chars_8mod),
  vk_master(4, key_to_chars_4mod),
  vk_master(4, keypad_numbers),
  { 0, 0, 0 }
}

Definition at line 263 of file kbdnecat.c.
