kbd101.c File Reference

#include <windef.h>
#include <winuser.h>
#include <ndk/kbd.h>

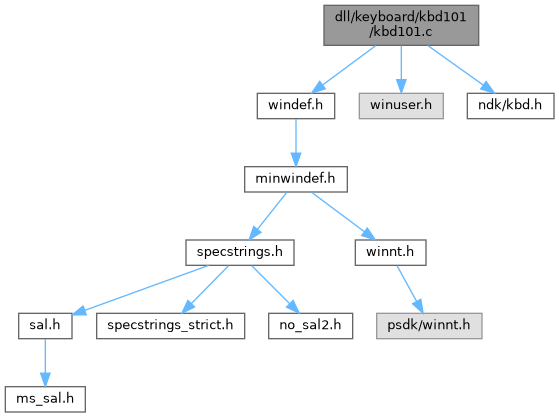

Include dependency graph for kbd101.c:

Go to the source code of this file.

Macros
#define	WIN32_NO_STATUS
#define	ROSDATA   static __attribute__((section(".data")))
#define	VK_EMPTY   0xff /* The non-existent VK */
#define	KBDKANA   0x08 /* Kana modifier bit */
#define	KNUMS   (KBDNUMPAD | KBDSPECIAL) /* Special + number pad */
#define	KMEXT   (KBDEXT | KBDMULTIVK) /* Multi + ext */

Functions
PKBDTABLES WINAPI	KbdLayerDescriptor (VOID)
PKBDNLSTABLES WINAPI	KbdNlsLayerDescriptor (VOID)

Variables
ROSDATA USHORT	scancode_to_vk []
ROSDATA VSC_VK	extcode0_to_vk []
ROSDATA VSC_VK	extcode1_to_vk []
ROSDATA VK_TO_BIT	modifier_keys []
ROSDATA MODIFIERS	modifier_bits
ROSDATA VK_TO_WCHARS6	key_to_chars_6mod []
ROSDATA VK_TO_WCHARS8	key_to_chars_8mod []
ROSDATA VK_TO_WCHARS4	key_to_chars_4mod []
ROSDATA VK_TO_WCHARS4	keypad_numbers []
ROSDATA VK_TO_WCHAR_TABLE	vk_to_wchar_master_table []
ROSDATA VSC_LPWSTR	key_names []
ROSDATA VSC_LPWSTR	extended_key_names []
ROSDATA KBDTABLES_FE	keyboard_layout_table
ROSDATA VK_F	vk_to_function_table []
ROSDATA KBDNLSTABLES	nls_layout_table

Macro Definition Documentation

KBDKANA

#define KBDKANA   0x08 /* Kana modifier bit */

Definition at line 32 of file kbd101.c.

KMEXT

#define KMEXT   (KBDEXT | KBDMULTIVK) /* Multi + ext */

Definition at line 36 of file kbd101.c.

KNUMS

#define KNUMS   (KBDNUMPAD | KBDSPECIAL) /* Special + number pad */

Definition at line 35 of file kbd101.c.

ROSDATA

#define ROSDATA   static __attribute__((section(".data")))

Definition at line 25 of file kbd101.c.

VK_EMPTY

#define VK_EMPTY   0xff /* The non-existent VK */

Definition at line 29 of file kbd101.c.

WIN32_NO_STATUS

#define WIN32_NO_STATUS

Definition at line 13 of file kbd101.c.

Function Documentation

KbdLayerDescriptor()

PKBDTABLES WINAPI KbdLayerDescriptor

(

VOID

)

Definition at line 477 of file kbd101.c.

{
  return (PKBDTABLES)&keyboard_layout_table;
}

KbdNlsLayerDescriptor()

PKBDNLSTABLES WINAPI KbdNlsLayerDescriptor

(

VOID

)

Definition at line 540 of file kbd101.c.

{
  return &nls_layout_table;
}

Variable Documentation

extcode0_to_vk

ROSDATA VSC_VK extcode0_to_vk[]

Definition at line 172 of file kbd101.c.

extcode1_to_vk

ROSDATA VSC_VK extcode1_to_vk[]

Initial value:

= {
  { 0x1D, VK_PAUSE },
  { 0, 0 },
}

Definition at line 214 of file kbd101.c.

extended_key_names

ROSDATA VSC_LPWSTR extended_key_names[]

Initial value:

= {
  { 0x1c, L"Num Enter" },
  { 0x1d, L"Right Control" },
  { 0x35, L"Num /" },
  { 0x37, L"Prnt Scrn" },
  { 0x38, L"Right Alt" },
  { 0x45, L"Num Lock" },
  { 0x46, L"Break" },
  { 0x47, L"Home" },
  { 0x48, L"Up" },
  { 0x49, L"Page Up" },
  { 0x4b, L"Left" },
  { 0x4d, L"Right" },
  { 0x4f, L"End" },
  { 0x50, L"Down" },
  { 0x51, L"Page Down" },
  { 0x52, L"Insert" },
  { 0x53, L"Delete" },
  { 0x5b, L"Left Windows" },
  { 0x5c, L"Right Windows" },
  { 0x5d, L"Application" },
  { 0, NULL },
}

Definition at line 416 of file kbd101.c.

key_names

ROSDATA VSC_LPWSTR key_names[]

Definition at line 361 of file kbd101.c.

Referenced by reset_subkeys().

key_to_chars_4mod

ROSDATA VK_TO_WCHARS4 key_to_chars_4mod[]

Definition at line 283 of file kbd101.c.

key_to_chars_6mod

ROSDATA VK_TO_WCHARS6 key_to_chars_6mod[]

Initial value:

= {
  { VK_BACK,    0,       {0x0008, 0x0008, 0x0008, 0x0008, 0x007f, 0x007f} },
  { VK_CANCEL,  0,       {0x0003, 0x0003, 0x0003, 0x0003, 0x0003, 0x0003} },
  { VK_ESCAPE,  0,       {0x001b, 0x001b, 0x001b, 0x001b, 0x001b, 0x001b} },
  { VK_OEM_4,   KANALOK, {'[', '{', 0xff9e, 0xff62, 0x001b, 0x001b} },
  { VK_OEM_5,   KANALOK, {'\\', '|', 0xff91, 0xff91, 0x001c, 0x001c} },
  { VK_OEM_102, KANALOK, {'\\', '|', 0xff91, 0xff91, 0x001c, 0x001c} },
  { VK_OEM_6,   KANALOK, {']', '}', 0xff9f, 0xff63, 0x001d, 0x001d} },
  { VK_RETURN,  0,       {0x000d, 0x000d, 0x000d, 0x000d, 0x000a, 0x000a} },
  { VK_SPACE,   0,       {' ', ' ', ' ', ' ', ' ', ' '} },
  { 0, 0 }
}

Definition at line 261 of file kbd101.c.

key_to_chars_8mod

ROSDATA VK_TO_WCHARS8 key_to_chars_8mod[]

Initial value:

= {
  { '2',           KANALOK, {'2', '@', 0xff8c, 0xff8c, WCH_NONE, WCH_NONE, 0x0000, 0x0000} },
  { '6',           KANALOK, {'6', '^', 0xff75, 0xff6b, WCH_NONE, WCH_NONE, 0x001e, 0x001e} },
  { VK_OEM_MINUS,  KANALOK, {'-', '_', 0xff8e, 0xff70, WCH_NONE, WCH_NONE, 0x001f, 0x001f} },
  { 0, 0 }
}

Definition at line 275 of file kbd101.c.

keyboard_layout_table

ROSDATA KBDTABLES_FE keyboard_layout_table

Definition at line 443 of file kbd101.c.

Referenced by KbdLayerDescriptor().

keypad_numbers

ROSDATA VK_TO_WCHARS4 keypad_numbers[]

Initial value:

= {
  { VK_NUMPAD0, 0, {'0', WCH_NONE, '0', WCH_NONE} },
  { VK_NUMPAD1, 0, {'1', WCH_NONE, '1', WCH_NONE} },
  { VK_NUMPAD2, 0, {'2', WCH_NONE, '2', WCH_NONE} },
  { VK_NUMPAD3, 0, {'3', WCH_NONE, '3', WCH_NONE} },
  { VK_NUMPAD4, 0, {'4', WCH_NONE, '4', WCH_NONE} },
  { VK_NUMPAD5, 0, {'5', WCH_NONE, '5', WCH_NONE} },
  { VK_NUMPAD6, 0, {'6', WCH_NONE, '6', WCH_NONE} },
  { VK_NUMPAD7, 0, {'7', WCH_NONE, '7', WCH_NONE} },
  { VK_NUMPAD8, 0, {'8', WCH_NONE, '8', WCH_NONE} },
  { VK_NUMPAD9, 0, {'9', WCH_NONE, '9', WCH_NONE} },
  { 0, 0 }
}

Definition at line 336 of file kbd101.c.

modifier_bits

ROSDATA MODIFIERS modifier_bits

Initial value:

= {
  modifier_keys,
  11,
  {
      0,
      1,
      4,
      6,
      SHFT_INVALID,
      SHFT_INVALID,
      SHFT_INVALID,
      SHFT_INVALID,
      2,
      3,
      5,
      7,
  }
}

Definition at line 238 of file kbd101.c.

modifier_keys

ROSDATA VK_TO_BIT modifier_keys[]

Initial value:

= {
  { VK_SHIFT,   KBDSHIFT },
  { VK_CONTROL, KBDCTRL },
  { VK_MENU,    KBDALT },
  { 0,          0 }
}

Definition at line 222 of file kbd101.c.

nls_layout_table

ROSDATA KBDNLSTABLES nls_layout_table

Initial value:

= {
  0,
  0,
  RTL_NUMBER_OF(vk_to_function_table),
  vk_to_function_table,
  0,
  NULL
}

Definition at line 531 of file kbd101.c.

Referenced by KbdNlsLayerDescriptor().

scancode_to_vk

ROSDATA USHORT scancode_to_vk[]

Definition at line 41 of file kbd101.c.

vk_to_function_table

ROSDATA VK_F vk_to_function_table[]

Definition at line 485 of file kbd101.c.

vk_to_wchar_master_table

ROSDATA VK_TO_WCHAR_TABLE vk_to_wchar_master_table[]

Initial value:

= {
  { (PVK_TO_WCHARS1)key_to_chars_6mod, 6, sizeof(key_to_chars_6mod[0]) },
  { (PVK_TO_WCHARS1)key_to_chars_8mod, 8, sizeof(key_to_chars_8mod[0]) },
  { (PVK_TO_WCHARS1)key_to_chars_4mod, 4, sizeof(key_to_chars_4mod[0]) },
  { (PVK_TO_WCHARS1)keypad_numbers,    4, sizeof(keypad_numbers[0]) },
  { 0, 0, 0 }
}

Definition at line 350 of file kbd101.c.
