#include "lwip/opt.h"

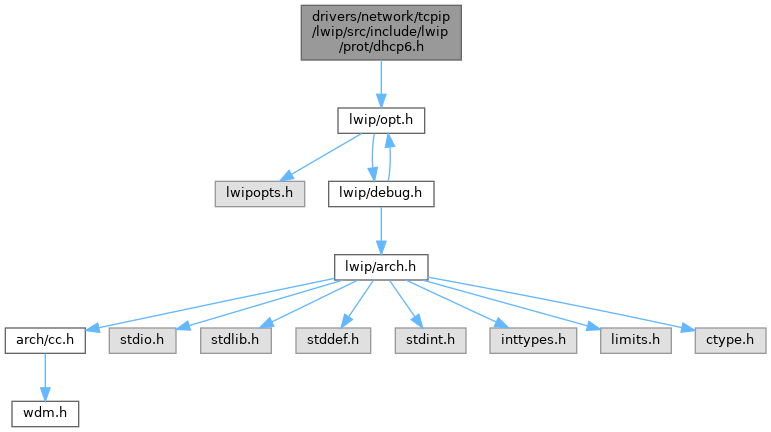

Include dependency graph for dhcp6.h:

Classes
struct	dhcp6_msg

Macros
#define	DHCP6_CLIENT_PORT 546

#define	DHCP6_SERVER_PORT 547

#define	DHCP6_TRANSACTION_ID_LEN 3

#define	DHCP6_SOLICIT 1

#define	DHCP6_ADVERTISE 2

#define	DHCP6_REQUEST 3

#define	DHCP6_CONFIRM 4

#define	DHCP6_RENEW 5

#define	DHCP6_REBIND 6

#define	DHCP6_REPLY 7

#define	DHCP6_RELEASE 8

#define	DHCP6_DECLINE 9

#define	DHCP6_RECONFIGURE 10

#define	DHCP6_INFOREQUEST 11

#define	DHCP6_RELAYFORW 12

#define	DHCP6_RELAYREPL 13

#define	DHCP6_STATUS_SUCCESS 0 /* Success. */

#define	DHCP6_STATUS_UNSPECFAIL 1 /* Failure, reason unspecified; this status code is sent by either a client or a server to indicate a failure not explicitly specified in this document. */

#define	DHCP6_STATUS_NOADDRSAVAIL 2 /* Server has no addresses available to assign to the IA(s). */

#define	DHCP6_STATUS_NOBINDING 3 /* Client record (binding) unavailable. */

#define	DHCP6_STATUS_NOTONLINK 4 /* The prefix for the address is not appropriate for the link to which the client is attached. */

#define	DHCP6_STATUS_USEMULTICAST 5 /* Sent by a server to a client to force the client to send messages to the server using the All_DHCP_Relay_Agents_and_Servers address. */

#define	DHCP6_DUID_LLT 1 /* LLT: Link-layer Address Plus Time */

#define	DHCP6_DUID_EN 2 /* EN: Enterprise number */

#define	DHCP6_DUID_LL 3 /* LL: Link-layer Address */

#define	DHCP6_DUID_UUID 4 /* UUID (RFC 6355) */

#define	DHCP6_OPTION_CLIENTID 1

#define	DHCP6_OPTION_SERVERID 2

#define	DHCP6_OPTION_IA_NA 3

#define	DHCP6_OPTION_IA_TA 4

#define	DHCP6_OPTION_IAADDR 5

#define	DHCP6_OPTION_ORO 6

#define	DHCP6_OPTION_PREFERENCE 7

#define	DHCP6_OPTION_ELAPSED_TIME 8

#define	DHCP6_OPTION_RELAY_MSG 9

#define	DHCP6_OPTION_AUTH 11

#define	DHCP6_OPTION_UNICAST 12

#define	DHCP6_OPTION_STATUS_CODE 13

#define	DHCP6_OPTION_RAPID_COMMIT 14

#define	DHCP6_OPTION_USER_CLASS 15

#define	DHCP6_OPTION_VENDOR_CLASS 16

#define	DHCP6_OPTION_VENDOR_OPTS 17

#define	DHCP6_OPTION_INTERFACE_ID 18

#define	DHCP6_OPTION_RECONF_MSG 19

#define	DHCP6_OPTION_RECONF_ACCEPT 20

#define	DHCP6_OPTION_DNS_SERVERS 23 /* RFC 3646 */

#define	DHCP6_OPTION_DOMAIN_LIST 24 /* RFC 3646 */

#define	DHCP6_OPTION_SNTP_SERVERS 31 /* RFC 4075 */

Enumerations
enum	dhcp6_state_enum_t { DHCP6_STATE_OFF = 0 , DHCP6_STATE_STATELESS_IDLE = 1 , DHCP6_STATE_REQUESTING_CONFIG = 2 }

Variables
PACK_STRUCT_BEGIN struct dhcp6_msg	PACK_STRUCT_STRUCT

Detailed Description

DHCPv6 protocol definitions

Definition in file dhcp6.h.

Macro Definition Documentation

◆ DHCP6_ADVERTISE

#define DHCP6_ADVERTISE 2

Definition at line 79 of file dhcp6.h.

◆ DHCP6_CLIENT_PORT

#define DHCP6_CLIENT_PORT 546

Definition at line 46 of file dhcp6.h.

◆ DHCP6_CONFIRM

#define DHCP6_CONFIRM 4

Definition at line 81 of file dhcp6.h.

◆ DHCP6_DECLINE

#define DHCP6_DECLINE 9

Definition at line 86 of file dhcp6.h.

◆ DHCP6_DUID_EN

#define DHCP6_DUID_EN 2 /* EN: Enterprise number */

Definition at line 104 of file dhcp6.h.

◆ DHCP6_DUID_LL

#define DHCP6_DUID_LL 3 /* LL: Link-layer Address */

Definition at line 105 of file dhcp6.h.

◆ DHCP6_DUID_LLT

#define DHCP6_DUID_LLT 1 /* LLT: Link-layer Address Plus Time */

DHCPv6 DUID types

Definition at line 103 of file dhcp6.h.

◆ DHCP6_DUID_UUID

#define DHCP6_DUID_UUID 4 /* UUID (RFC 6355) */

Definition at line 106 of file dhcp6.h.

◆ DHCP6_INFOREQUEST

#define DHCP6_INFOREQUEST 11

Definition at line 88 of file dhcp6.h.

◆ DHCP6_OPTION_AUTH

#define DHCP6_OPTION_AUTH 11

Definition at line 118 of file dhcp6.h.

◆ DHCP6_OPTION_CLIENTID

#define DHCP6_OPTION_CLIENTID 1

Definition at line 109 of file dhcp6.h.

◆ DHCP6_OPTION_DNS_SERVERS

#define DHCP6_OPTION_DNS_SERVERS 23 /* RFC 3646 */

Definition at line 129 of file dhcp6.h.

◆ DHCP6_OPTION_DOMAIN_LIST

#define DHCP6_OPTION_DOMAIN_LIST 24 /* RFC 3646 */

Definition at line 130 of file dhcp6.h.

◆ DHCP6_OPTION_ELAPSED_TIME

#define DHCP6_OPTION_ELAPSED_TIME 8

Definition at line 116 of file dhcp6.h.

◆ DHCP6_OPTION_IA_NA

#define DHCP6_OPTION_IA_NA 3

Definition at line 111 of file dhcp6.h.

◆ DHCP6_OPTION_IA_TA

#define DHCP6_OPTION_IA_TA 4

Definition at line 112 of file dhcp6.h.

◆ DHCP6_OPTION_IAADDR

#define DHCP6_OPTION_IAADDR 5

Definition at line 113 of file dhcp6.h.

◆ DHCP6_OPTION_INTERFACE_ID

#define DHCP6_OPTION_INTERFACE_ID 18

Definition at line 125 of file dhcp6.h.

◆ DHCP6_OPTION_ORO

#define DHCP6_OPTION_ORO 6

Definition at line 114 of file dhcp6.h.

◆ DHCP6_OPTION_PREFERENCE

#define DHCP6_OPTION_PREFERENCE 7

Definition at line 115 of file dhcp6.h.

◆ DHCP6_OPTION_RAPID_COMMIT

#define DHCP6_OPTION_RAPID_COMMIT 14

Definition at line 121 of file dhcp6.h.

◆ DHCP6_OPTION_RECONF_ACCEPT

#define DHCP6_OPTION_RECONF_ACCEPT 20

Definition at line 127 of file dhcp6.h.

◆ DHCP6_OPTION_RECONF_MSG

#define DHCP6_OPTION_RECONF_MSG 19

Definition at line 126 of file dhcp6.h.

◆ DHCP6_OPTION_RELAY_MSG

#define DHCP6_OPTION_RELAY_MSG 9

Definition at line 117 of file dhcp6.h.

◆ DHCP6_OPTION_SERVERID

#define DHCP6_OPTION_SERVERID 2

Definition at line 110 of file dhcp6.h.

◆ DHCP6_OPTION_SNTP_SERVERS

#define DHCP6_OPTION_SNTP_SERVERS 31 /* RFC 4075 */

Definition at line 131 of file dhcp6.h.

◆ DHCP6_OPTION_STATUS_CODE

#define DHCP6_OPTION_STATUS_CODE 13

Definition at line 120 of file dhcp6.h.

◆ DHCP6_OPTION_UNICAST

#define DHCP6_OPTION_UNICAST 12

Definition at line 119 of file dhcp6.h.

◆ DHCP6_OPTION_USER_CLASS

#define DHCP6_OPTION_USER_CLASS 15

Definition at line 122 of file dhcp6.h.

◆ DHCP6_OPTION_VENDOR_CLASS

#define DHCP6_OPTION_VENDOR_CLASS 16

Definition at line 123 of file dhcp6.h.

◆ DHCP6_OPTION_VENDOR_OPTS

#define DHCP6_OPTION_VENDOR_OPTS 17

Definition at line 124 of file dhcp6.h.

◆ DHCP6_REBIND

#define DHCP6_REBIND 6

Definition at line 83 of file dhcp6.h.

◆ DHCP6_RECONFIGURE

#define DHCP6_RECONFIGURE 10

Definition at line 87 of file dhcp6.h.

◆ DHCP6_RELAYFORW

#define DHCP6_RELAYFORW 12

Definition at line 89 of file dhcp6.h.

◆ DHCP6_RELAYREPL

#define DHCP6_RELAYREPL 13

Definition at line 90 of file dhcp6.h.

◆ DHCP6_RELEASE

#define DHCP6_RELEASE 8

Definition at line 85 of file dhcp6.h.

◆ DHCP6_RENEW

#define DHCP6_RENEW 5

Definition at line 82 of file dhcp6.h.

◆ DHCP6_REPLY

#define DHCP6_REPLY 7

Definition at line 84 of file dhcp6.h.

◆ DHCP6_REQUEST

#define DHCP6_REQUEST 3

Definition at line 80 of file dhcp6.h.

◆ DHCP6_SERVER_PORT

#define DHCP6_SERVER_PORT 547

Definition at line 47 of file dhcp6.h.

◆ DHCP6_SOLICIT

#define DHCP6_SOLICIT 1

Definition at line 78 of file dhcp6.h.

◆ DHCP6_STATUS_NOADDRSAVAIL

#define DHCP6_STATUS_NOADDRSAVAIL 2 /* Server has no addresses available to assign to the IA(s). */

Definition at line 96 of file dhcp6.h.

◆ DHCP6_STATUS_NOBINDING

#define DHCP6_STATUS_NOBINDING 3 /* Client record (binding) unavailable. */

Definition at line 97 of file dhcp6.h.

◆ DHCP6_STATUS_NOTONLINK

#define DHCP6_STATUS_NOTONLINK 4 /* The prefix for the address is not appropriate for the link to which the client is attached. */

Definition at line 98 of file dhcp6.h.

◆ DHCP6_STATUS_SUCCESS

#define DHCP6_STATUS_SUCCESS 0 /* Success. */

DHCPv6 status codes

Definition at line 94 of file dhcp6.h.

◆ DHCP6_STATUS_UNSPECFAIL

#define DHCP6_STATUS_UNSPECFAIL 1 /* Failure, reason unspecified; this status code is sent by either a client or a server to indicate a failure not explicitly specified in this document. */

Definition at line 95 of file dhcp6.h.

◆ DHCP6_STATUS_USEMULTICAST

#define DHCP6_STATUS_USEMULTICAST 5 /* Sent by a server to a client to force the client to send messages to the server using the All_DHCP_Relay_Agents_and_Servers address. */

Definition at line 99 of file dhcp6.h.

◆ DHCP6_TRANSACTION_ID_LEN

#define DHCP6_TRANSACTION_ID_LEN 3

Definition at line 51 of file dhcp6.h.

Enumeration Type Documentation

◆ dhcp6_state_enum_t

enum dhcp6_state_enum_t

Enumerator
DHCP6_STATE_OFF
DHCP6_STATE_STATELESS_IDLE
DHCP6_STATE_REQUESTING_CONFIG

Definition at line 71 of file dhcp6.h.

             {
  DHCP6_STATE_OFF               = 0,
  DHCP6_STATE_STATELESS_IDLE    = 1,
  DHCP6_STATE_REQUESTING_CONFIG = 2
} dhcp6_state_enum_t;

Variable Documentation

◆ PACK_STRUCT_STRUCT

PACK_STRUCT_BEGIN struct dhcp6_msg PACK_STRUCT_STRUCT
