srtp_kdf.c File Reference

#include "precomp.h"

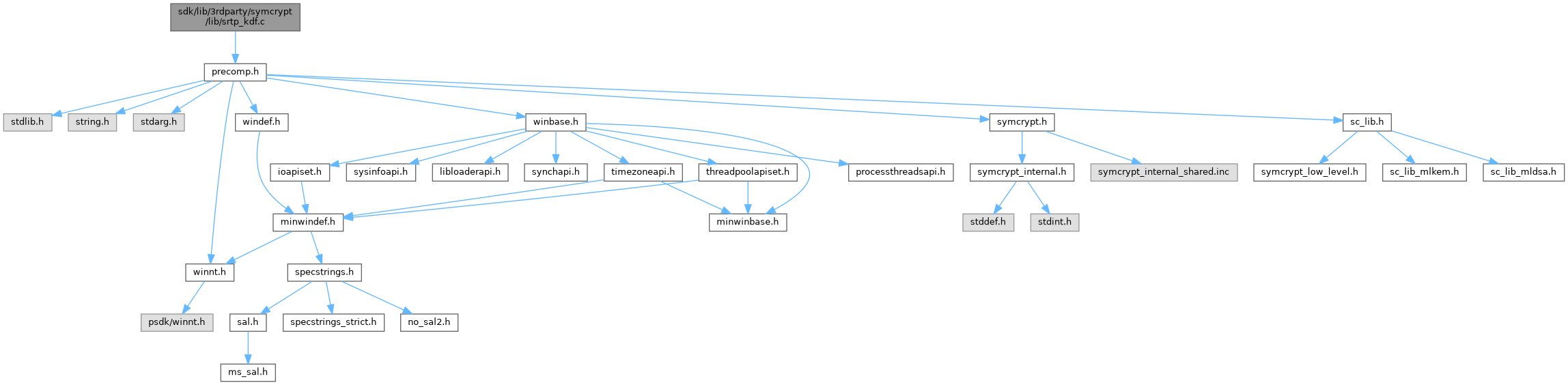

Include dependency graph for srtp_kdf.c:

Go to the source code of this file.

Macros
#define	SYMCRYPT_SRTP_KDF_SALT_SIZE   (112 / 8)

Functions
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSrtpKdfExpandKey (_Out_ PSYMCRYPT_SRTPKDF_EXPANDED_KEY pExpandedKey, _In_reads_(cbKey) PCBYTE pbKey, SIZE_T cbKey)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSrtpKdfDerive (_In_ PCSYMCRYPT_SRTPKDF_EXPANDED_KEY pExpandedKey, _In_reads_(cbSalt) PCBYTE pbSalt, SIZE_T cbSalt, UINT32 uKeyDerivationRate, UINT64 uIndex, UINT32 uIndexWidth, BYTE label, _Out_writes_(cbOutput) PBYTE pbOutput, SIZE_T cbOutput)
SYMCRYPT_ERROR SYMCRYPT_CALL	SymCryptSrtpKdf (_In_reads_(cbKey) PCBYTE pbKey, SIZE_T cbKey, _In_reads_(cbSalt) PCBYTE pbSalt, SIZE_T cbSalt, UINT32 uKeyDerivationRate, UINT64 uIndex, UINT32 uIndexWidth, BYTE label, _Out_writes_(cbOutput) PBYTE pbOutput, SIZE_T cbOutput)

Macro Definition Documentation

SYMCRYPT_SRTP_KDF_SALT_SIZE

#define SYMCRYPT_SRTP_KDF_SALT_SIZE   (112 / 8)

Definition at line 14 of file srtp_kdf.c.

Function Documentation

SymCryptSrtpKdf()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSrtpKdf	(	_In_reads_(cbKey) PCBYTE	pbKey,
		SIZE_T	cbKey,
		_In_reads_(cbSalt) PCBYTE	pbSalt,
		SIZE_T	cbSalt,
		UINT32	uKeyDerivationRate,
		UINT64	uIndex,
		UINT32	uIndexWidth,
		BYTE	label,
		_Out_writes_(cbOutput) PBYTE	pbOutput,
		SIZE_T	cbOutput
	)

Definition at line 141 of file srtp_kdf.c.

{
    SYMCRYPT_ERROR scError = SYMCRYPT_NO_ERROR;
    SYMCRYPT_SRTPKDF_EXPANDED_KEY expandedKey;

    scError = SymCryptSrtpKdfExpandKey(&expandedKey, pbKey, cbKey);

    if (scError != SYMCRYPT_NO_ERROR)
    {
        goto cleanup;
    }

    scError = SymCryptSrtpKdfDerive(&expandedKey,
                                    pbSalt, cbSalt,
                                    uKeyDerivationRate,
                                    uIndex, uIndexWidth,
                                    label,
                                    pbOutput, cbOutput);

cleanup:

    SymCryptWipeKnownSize(&expandedKey, sizeof(expandedKey));

    return scError;
}

SymCryptSrtpKdfDerive()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSrtpKdfDerive	(	_In_ PCSYMCRYPT_SRTPKDF_EXPANDED_KEY	pExpandedKey,
		_In_reads_(cbSalt) PCBYTE	pbSalt,
		SIZE_T	cbSalt,
		UINT32	uKeyDerivationRate,
		UINT64	uIndex,
		UINT32	uIndexWidth,
		BYTE	label,
		_Out_writes_(cbOutput) PBYTE	pbOutput,
		SIZE_T	cbOutput
	)

Definition at line 31 of file srtp_kdf.c.

{
    SYMCRYPT_ERROR scError = SYMCRYPT_NO_ERROR;
    BYTE X[16] = { 0 };

    //
    // uIndexWidth must be one of 0, 32 or 48. RFC 3711 defines SRTP indices to be
    // 48-bits. SRTCP indices were first specified as 32-bit values and then updated to
    // 48-bits by Errata ID 3712. uIndexWidth parameter allows specifying the width of
    // the uIndex parameter for both SRTP and SRTCP indices. The test vectors use
    // 32-bit SRTCP index values.
    //
    // The default value of 0 is equivalent to setting uIndexWidth to 48.
    if (uIndexWidth == 0)
    {
        uIndexWidth = 48;
    }
    else if (uIndexWidth != 32 && uIndexWidth != 48)
    {
        scError = SYMCRYPT_INVALID_ARGUMENT;
        goto cleanup;
    }

    if (cbSalt != SYMCRYPT_SRTP_KDF_SALT_SIZE)
    {
        scError = SYMCRYPT_INVALID_ARGUMENT;
        goto cleanup;
    }

    // uKeyDerivationRate must be zero or 2^i for 0 <= i <= 24.
    // This is verified by checking both it is not greater than 2^24 and it is either zero or a power of two.
    if( (uKeyDerivationRate > (1 << 24))  || ((uKeyDerivationRate & (uKeyDerivationRate - 1)) != 0) )
    {
        scError = SYMCRYPT_INVALID_ARGUMENT;
        goto cleanup;
    }

    // Initialize X to Salt || 0
    memcpy(X, pbSalt, cbSalt);

    // (uIndex DIV uKeyDerivationRate) operation can be performed with a right shift as
    // uKeyDerivationRate is either zero or a power of 2. When uKeyDerivationRate is zero,
    // DIV operation should evaluate to zero, which can be performed by shifting uIndex by 48 bits,
    // i.e., maximum value it may have.
    UINT32 kdrShift = 48;
    if (uKeyDerivationRate)
    {
        for (UINT32 i = 0; i <= 24; i++)
        {
            if (uKeyDerivationRate == (1UL << i))
            {
                kdrShift = i;
                break;
            }
        }
    }

    UINT64 r = uIndex >> kdrShift;

    UINT64 key_id = ((UINT64)label << uIndexWidth) | r;

    // XOR key_id into salt
    //
    // X = S0 ... |S6 ... S13| 0 0
    //            |  key_id  |
    //
    PBYTE pbXorPos = &X[SYMCRYPT_SRTP_KDF_SALT_SIZE - sizeof(key_id)];
    UINT64 uSaltLsb = SYMCRYPT_LOAD_MSBFIRST64(pbXorPos);
    SYMCRYPT_STORE_MSBFIRST64(pbXorPos, uSaltLsb ^ key_id);

    //
    // We break the read-once/write once rule here by writing to the pbOutput buffer twice.
    // The first write wipes the buffer so that we get the raw keystream bytes from AES-CTR encryption.
    // The second write to pbOutput occurs with the SymCryptAesCtrMsb64() call that produces the keystream bytes.
    //
    // Modification of pbOutput between the two calls does not leak any information, it just results in flipping of the
    // corresponding bits of the correct output.
    SymCryptWipe(pbOutput, cbOutput);
    SymCryptAesCtrMsb64(&pExpandedKey->aesExpandedKey, X, pbOutput, pbOutput, cbOutput & ~0xf);

    // SymCryptAesCtrMsb64 only processes full blocks. If cbOutput is not a multiple of 16 we generate the last block of
    // keystream to local buffer and copy the necessary number of bytes to output.
    if (cbOutput & 0xf)
    {
        BYTE lastBlockBytes[16] = { 0 };

        SymCryptAesCtrMsb64(&pExpandedKey->aesExpandedKey, X, lastBlockBytes, lastBlockBytes, 16);

        memcpy(pbOutput + 16 * (cbOutput / 16), lastBlockBytes, cbOutput & 0xf);

        SymCryptWipeKnownSize(lastBlockBytes, sizeof(lastBlockBytes));
    }

cleanup:

    return scError;
}

Referenced by SymCryptSrtpKdf().

SymCryptSrtpKdfExpandKey()

SYMCRYPT_ERROR SYMCRYPT_CALL SymCryptSrtpKdfExpandKey	(	_Out_ PSYMCRYPT_SRTPKDF_EXPANDED_KEY	pExpandedKey,
		_In_reads_(cbKey) PCBYTE	pbKey,
		SIZE_T	cbKey
	)

Definition at line 20 of file srtp_kdf.c.

{
    return SymCryptAesExpandKeyEncryptOnly(&pExpandedKey->aesExpandedKey, pbKey, cbKey);
}

Referenced by SymCryptSrtpKdf().
