ReactOS 0.4.17-dev-934-g091855f
Public Attributes | List of all members
d3d12_root_signature Struct Reference

#include <vkd3d_private.h>

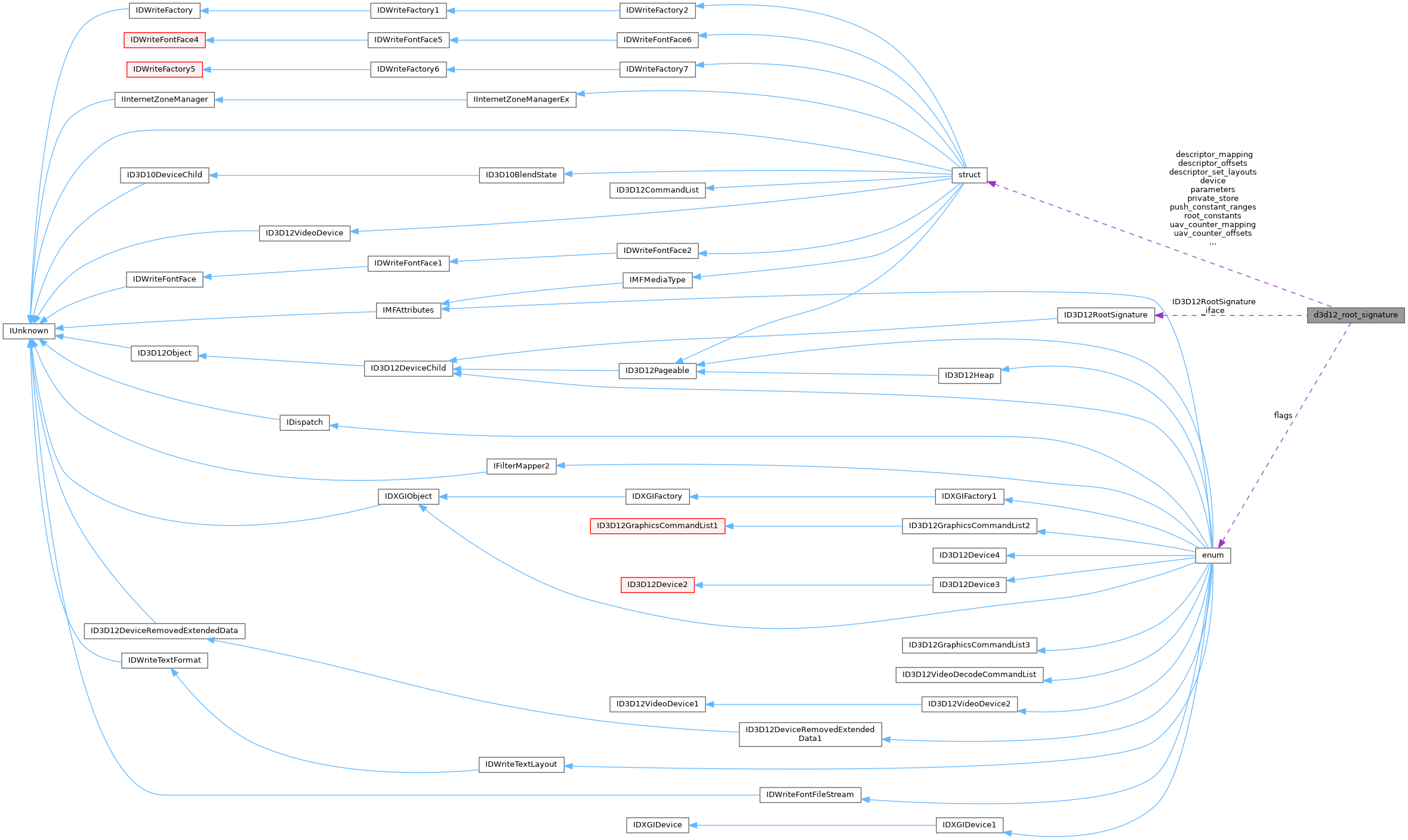

Collaboration diagram for d3d12_root_signature:
Collaboration graph
[legend]

Public Attributes

ID3D12RootSignature ID3D12RootSignature_iface

unsigned int refcount

VkPipelineLayout vk_pipeline_layout

struct d3d12_descriptor_set_layout descriptor_set_layouts [VKD3D_MAX_DESCRIPTOR_SETS]

uint32_t vk_set_count

bool use_descriptor_arrays

struct d3d12_root_parameter * parameters

unsigned int parameter_count

uint32_t main_set

uint64_t descriptor_table_mask

uint32_t push_descriptor_mask

D3D12_ROOT_SIGNATURE_FLAGS flags

unsigned int binding_count

unsigned int uav_mapping_count

struct vkd3d_shader_resource_binding * descriptor_mapping

struct vkd3d_shader_descriptor_offset * descriptor_offsets

struct vkd3d_shader_uav_counter_binding * uav_counter_mapping

struct vkd3d_shader_descriptor_offset * uav_counter_offsets

unsigned int descriptor_table_offset

unsigned int descriptor_table_count

unsigned int root_constant_count

struct vkd3d_shader_push_constant_buffer * root_constants

unsigned int root_descriptor_count

unsigned int push_constant_range_count

VkPushConstantRange push_constant_ranges [D3D12_SHADER_VISIBILITY_PIXEL+1]

unsigned int static_sampler_count

VkSampler * static_samplers

struct d3d12_device * device

struct vkd3d_private_store private_store


Detailed Description

Definition at line 957 of file vkd3d_private.h.

Member Data Documentation

◆ binding_count

unsigned int d3d12_root_signature::binding_count

Definition at line 976 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), and d3d12_root_signature_init().

◆ descriptor_mapping

struct vkd3d_shader_resource_binding* d3d12_root_signature::descriptor_mapping

Definition at line 978 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_append_vk_binding(), d3d12_root_signature_cleanup(), d3d12_root_signature_init(), d3d12_root_signature_map_vk_heap_binding(), and d3d12_root_signature_map_vk_unbounded_binding().

◆ descriptor_offsets

struct vkd3d_shader_descriptor_offset* d3d12_root_signature::descriptor_offsets

Definition at line 979 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_append_vk_binding(), d3d12_root_signature_cleanup(), d3d12_root_signature_init(), d3d12_root_signature_map_vk_heap_binding(), and d3d12_root_signature_map_vk_unbounded_binding().

◆ descriptor_set_layouts

struct d3d12_descriptor_set_layout d3d12_root_signature::descriptor_set_layouts[VKD3D_MAX_DESCRIPTOR_SETS]

Definition at line 963 of file vkd3d_private.h.

Referenced by d3d12_command_list_prepare_descriptors(), d3d12_root_signature_cleanup(), d3d12_root_signature_copy_descriptor_set_layouts(), and d3d12_root_signature_create_descriptor_set_layouts().

◆ descriptor_table_count

unsigned int d3d12_root_signature::descriptor_table_count

Definition at line 983 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_init(), and d3d12_root_signature_init_descriptor_table_push_constants().

◆ descriptor_table_mask

uint64_t d3d12_root_signature::descriptor_table_mask

Definition at line 971 of file vkd3d_private.h.

Referenced by d3d12_command_list_prepare_descriptors(), d3d12_command_list_update_descriptor_tables(), and d3d12_root_signature_init_root_descriptor_tables().

◆ descriptor_table_offset

unsigned int d3d12_root_signature::descriptor_table_offset

Definition at line 982 of file vkd3d_private.h.

Referenced by d3d12_command_list_update_descriptor_tables(), d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), and d3d12_root_signature_init_descriptor_table_push_constants().

◆ device

struct d3d12_device* d3d12_root_signature::device

Definition at line 997 of file vkd3d_private.h.

Referenced by d3d12_root_signature_copy_descriptor_set_layouts(), d3d12_root_signature_create_descriptor_set_layouts(), d3d12_root_signature_GetDevice(), d3d12_root_signature_init(), d3d12_root_signature_init_descriptor_table_push_constants(), d3d12_root_signature_init_push_constants(), d3d12_root_signature_init_root_descriptor_tables(), d3d12_root_signature_map_vk_heap_uav_counter(), d3d12_root_signature_Release(), d3d12_root_signature_SetName(), and vkd3d_descriptor_heap_binding_from_descriptor_range().

◆ flags

D3D12_ROOT_SIGNATURE_FLAGS d3d12_root_signature::flags

Definition at line 974 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_graphics(), and d3d12_root_signature_init().

◆ ID3D12RootSignature_iface

ID3D12RootSignature d3d12_root_signature::ID3D12RootSignature_iface

Definition at line 959 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_root_signature_init(), and impl_from_ID3D12RootSignature().

◆ main_set

uint32_t d3d12_root_signature::main_set

Definition at line 969 of file vkd3d_private.h.

Referenced by d3d12_command_list_prepare_descriptors(), d3d12_command_list_update_heap_descriptors(), d3d12_command_list_update_virtual_descriptors(), d3d12_root_signature_init(), d3d12_root_signature_init_root_descriptor_tables(), and d3d12_root_signature_map_vk_unbounded_binding().

◆ parameter_count

unsigned int d3d12_root_signature::parameter_count

Definition at line 968 of file vkd3d_private.h.

Referenced by d3d12_root_signature_cleanup(), and d3d12_root_signature_init().

◆ parameters

struct d3d12_root_parameter* d3d12_root_signature::parameters

Definition at line 967 of file vkd3d_private.h.

Referenced by d3d12_root_signature_cleanup(), d3d12_root_signature_init(), d3d12_root_signature_init_push_constants(), d3d12_root_signature_init_root_descriptor_tables(), d3d12_root_signature_init_root_descriptors(), and root_signature_get_parameter().

◆ private_store

struct vkd3d_private_store d3d12_root_signature::private_store

Definition at line 999 of file vkd3d_private.h.

Referenced by d3d12_root_signature_GetPrivateData(), d3d12_root_signature_init(), d3d12_root_signature_Release(), d3d12_root_signature_SetPrivateData(), and d3d12_root_signature_SetPrivateDataInterface().

◆ push_constant_range_count

unsigned int d3d12_root_signature::push_constant_range_count

Definition at line 990 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_uav_counters(), d3d12_root_signature_init(), and d3d12_root_signature_init_descriptor_table_push_constants().

◆ push_constant_ranges

VkPushConstantRange d3d12_root_signature::push_constant_ranges[D3D12_SHADER_VISIBILITY_PIXEL+1]

Definition at line 992 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_uav_counters(), d3d12_root_signature_init(), and d3d12_root_signature_init_descriptor_table_push_constants().

◆ push_descriptor_mask

uint32_t d3d12_root_signature::push_descriptor_mask

Definition at line 972 of file vkd3d_private.h.

Referenced by d3d12_command_list_prepare_descriptors(), and d3d12_root_signature_init_root_descriptors().

◆ refcount

unsigned int d3d12_root_signature::refcount

Definition at line 960 of file vkd3d_private.h.

Referenced by d3d12_root_signature_AddRef(), d3d12_root_signature_init(), and d3d12_root_signature_Release().

◆ root_constant_count

unsigned int d3d12_root_signature::root_constant_count

Definition at line 985 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), and d3d12_root_signature_init().

◆ root_constants

struct vkd3d_shader_push_constant_buffer* d3d12_root_signature::root_constants

Definition at line 986 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_cleanup(), d3d12_root_signature_init(), and d3d12_root_signature_init_push_constants().

◆ root_descriptor_count

unsigned int d3d12_root_signature::root_descriptor_count

Definition at line 988 of file vkd3d_private.h.

Referenced by d3d12_root_signature_init().

◆ static_sampler_count

unsigned int d3d12_root_signature::static_sampler_count

Definition at line 994 of file vkd3d_private.h.

Referenced by d3d12_root_signature_cleanup(), d3d12_root_signature_init(), and d3d12_root_signature_init_static_samplers().

◆ static_samplers

VkSampler* d3d12_root_signature::static_samplers

Definition at line 995 of file vkd3d_private.h.

Referenced by d3d12_root_signature_cleanup(), d3d12_root_signature_init(), and d3d12_root_signature_init_static_samplers().

◆ uav_counter_mapping

struct vkd3d_shader_uav_counter_binding* d3d12_root_signature::uav_counter_mapping

Definition at line 980 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_cleanup(), d3d12_root_signature_init(), and d3d12_root_signature_map_vk_heap_uav_counter().

◆ uav_counter_offsets

struct vkd3d_shader_descriptor_offset* d3d12_root_signature::uav_counter_offsets

Definition at line 981 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), d3d12_root_signature_cleanup(), d3d12_root_signature_init(), and d3d12_root_signature_map_vk_heap_uav_counter().

◆ uav_mapping_count

unsigned int d3d12_root_signature::uav_mapping_count

Definition at line 977 of file vkd3d_private.h.

Referenced by d3d12_pipeline_state_init_compute(), d3d12_pipeline_state_init_graphics(), and d3d12_root_signature_init().

◆ use_descriptor_arrays

bool d3d12_root_signature::use_descriptor_arrays

Definition at line 965 of file vkd3d_private.h.

Referenced by d3d12_command_list_update_descriptor_table(), d3d12_root_signature_init(), and d3d12_root_signature_init_root_descriptor_tables().

◆ vk_pipeline_layout

VkPipelineLayout d3d12_root_signature::vk_pipeline_layout

Definition at line 962 of file vkd3d_private.h.

Referenced by d3d12_command_list_bind_descriptor_heap(), d3d12_command_list_set_root_cbv(), d3d12_command_list_set_root_constants(), d3d12_command_list_set_root_descriptor(), d3d12_command_list_update_descriptor_tables(), d3d12_command_list_update_heap_descriptors(), d3d12_command_list_update_virtual_descriptors(), d3d12_pipeline_state_init_compute(), d3d12_root_signature_cleanup(), and d3d12_root_signature_init().

◆ vk_set_count

uint32_t d3d12_root_signature::vk_set_count

Definition at line 964 of file vkd3d_private.h.

Referenced by d3d12_command_list_bind_descriptor_heap(), d3d12_command_list_update_virtual_descriptors(), d3d12_root_signature_append_vk_binding(), d3d12_root_signature_append_vk_binding_array(), d3d12_root_signature_cleanup(), d3d12_root_signature_copy_descriptor_set_layouts(), d3d12_root_signature_create_descriptor_set_layouts(), d3d12_root_signature_current_vk_binding_array(), d3d12_root_signature_init(), d3d12_root_signature_init_root_descriptor_tables(), d3d12_root_signature_map_vk_heap_uav_counter(), and vkd3d_descriptor_heap_binding_from_descriptor_range().

The documentation for this struct was generated from the following file:
