soundfont.h File Reference

#include "stdarg.h"
#include "stddef.h"
#include "windef.h"
#include "winbase.h"
#include "wine/debug.h"
#include <pshpack1.h>
#include <poppack.h>

Include dependency graph for soundfont.h:

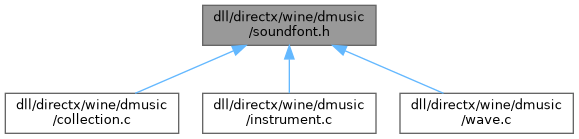

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sf_range
union	sf_amount
struct	sf_preset
struct	sf_bag
struct	sf_mod
struct	sf_gen
struct	sf_instrument
struct	sf_sample
struct	soundfont

Typedefs
typedef WORD	sf_sample_type
typedef WORD	sf_generator
typedef WORD	sf_modulator
typedef WORD	sf_transform

Enumerations
enum	{   SF_SAMPLE_MONO = 1 , SF_SAMPLE_RIGHT = 2 , SF_SAMPLE_LEFT = 4 , SF_SAMPLE_LINKED = 8 ,   SF_SAMPLE_ROM_MONO = 0x8001 , SF_SAMPLE_ROM_RIGHT = 0x8002 , SF_SAMPLE_ROM_LEFT = 0x8004 , SF_SAMPLE_ROM_LINKED = 0x8008 }
enum	{   SF_GEN_START_ADDRS_OFFSET = 0 , SF_GEN_END_ADDRS_OFFSET = 1 , SF_GEN_STARTLOOP_ADDRS_OFFSET = 2 , SF_GEN_ENDLOOP_ADDRS_OFFSET = 3 ,   SF_GEN_START_ADDRS_COARSE_OFFSET = 4 , SF_GEN_MOD_LFO_TO_PITCH = 5 , SF_GEN_VIB_LFO_TO_PITCH = 6 , SF_GEN_MOD_ENV_TO_PITCH = 7 ,   SF_GEN_INITIAL_FILTER_FC = 8 , SF_GEN_INITIAL_FILTER_Q = 9 , SF_GEN_MOD_LFO_TO_FILTER_FC = 10 , SF_GEN_MOD_ENV_TO_FILTER_FC = 11 ,   SF_GEN_END_ADDRS_COARSE_OFFSET = 12 , SF_GEN_MOD_LFO_TO_VOLUME = 13 , SF_GEN_CHORUS_EFFECTS_SEND = 15 , SF_GEN_REVERB_EFFECTS_SEND = 16 ,   SF_GEN_PAN = 17 , SF_GEN_DELAY_MOD_LFO = 21 , SF_GEN_FREQ_MOD_LFO = 22 , SF_GEN_DELAY_VIB_LFO = 23 ,   SF_GEN_FREQ_VIB_LFO = 24 , SF_GEN_DELAY_MOD_ENV = 25 , SF_GEN_ATTACK_MOD_ENV = 26 , SF_GEN_HOLD_MOD_ENV = 27 ,   SF_GEN_DECAY_MOD_ENV = 28 , SF_GEN_SUSTAIN_MOD_ENV = 29 , SF_GEN_RELEASE_MOD_ENV = 30 , SF_GEN_KEYNUM_TO_MOD_ENV_HOLD = 31 ,   SF_GEN_KEYNUM_TO_MOD_ENV_DECAY = 32 , SF_GEN_DELAY_VOL_ENV = 33 , SF_GEN_ATTACK_VOL_ENV = 34 , SF_GEN_HOLD_VOL_ENV = 35 ,   SF_GEN_DECAY_VOL_ENV = 36 , SF_GEN_SUSTAIN_VOL_ENV = 37 , SF_GEN_RELEASE_VOL_ENV = 38 , SF_GEN_KEYNUM_TO_VOL_ENV_HOLD = 39 ,   SF_GEN_KEYNUM_TO_VOL_ENV_DECAY = 40 , SF_GEN_INSTRUMENT = 41 , SF_GEN_KEY_RANGE = 43 , SF_GEN_VEL_RANGE = 44 ,   SF_GEN_STARTLOOP_ADDRS_COARSE_OFFSET = 45 , SF_GEN_KEYNUM = 46 , SF_GEN_VELOCITY = 47 , SF_GEN_INITIAL_ATTENUATION = 48 ,   SF_GEN_ENDLOOP_ADDRS_COARSE_OFFSET = 50 , SF_GEN_COARSE_TUNE = 51 , SF_GEN_FINE_TUNE = 52 , SF_GEN_SAMPLE_ID = 53 ,   SF_GEN_SAMPLE_MODES = 54 , SF_GEN_SCALE_TUNING = 56 , SF_GEN_EXCLUSIVE_CLASS = 57 , SF_GEN_OVERRIDING_ROOT_KEY = 58 ,   SF_GEN_END_OPER = 60 }
enum	{   SF_MOD_CTRL_GEN_NONE = 0 , SF_MOD_CTRL_GEN_VELOCITY = 0x2 , SF_MOD_CTRL_GEN_KEY = 0x3 , SF_MOD_CTRL_GEN_POLY_PRESSURE = 0xa ,   SF_MOD_CTRL_GEN_CHAN_PRESSURE = 0xd , SF_MOD_CTRL_GEN_PITCH_WHEEL = 0xe , SF_MOD_CTRL_GEN_PITCH_WHEEL_SENSITIVITY = 0x10 , SF_MOD_CTRL_GEN_LINK = 0x7f ,   SF_MOD_CTRL_GEN = 0 << 7 , SF_MOD_CTRL_MIDI = 1 << 7 , SF_MOD_DIR_INCREASING = 0 << 8 , SF_MOD_DIR_DECREASING = 1 << 8 ,   SF_MOD_POL_UNIPOLAR = 0 << 9 , SF_MOD_POL_BIPOLAR = 1 << 9 , SF_MOD_SRC_LINEAR = 0 << 10 , SF_MOD_SRC_CONCAVE = 1 << 10 ,   SF_MOD_SRC_CONVEX = 2 << 10 , SF_MOD_SRC_SWITCH = 3 << 10 }
enum	{ SF_TRAN_LINEAR = 0 , SF_TRAN_ABSOLUTE = 2 }

Functions
	C_ASSERT (sizeof(union sf_amount)==2)
static const char *	debugstr_sf_generator (sf_generator oper)
	C_ASSERT (sizeof(struct sf_preset)==38)
	C_ASSERT (sizeof(struct sf_bag)==4)
	C_ASSERT (sizeof(struct sf_mod)==10)
static const char *	debugstr_sf_mod (struct sf_mod *mod)
	C_ASSERT (sizeof(struct sf_gen)==4)
static const char *	debugstr_sf_gen (struct sf_gen *gen)
	C_ASSERT (sizeof(struct sf_instrument)==22)
	C_ASSERT (sizeof(struct sf_sample)==46)

Typedef Documentation

sf_generator

typedef WORD sf_generator

Definition at line 120 of file soundfont.h.

sf_modulator

typedef WORD sf_modulator

Definition at line 211 of file soundfont.h.

sf_sample_type

typedef WORD sf_sample_type

Definition at line 56 of file soundfont.h.

sf_transform

typedef WORD sf_transform

Definition at line 218 of file soundfont.h.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
SF_SAMPLE_MONO
SF_SAMPLE_RIGHT
SF_SAMPLE_LEFT
SF_SAMPLE_LINKED
SF_SAMPLE_ROM_MONO
SF_SAMPLE_ROM_RIGHT
SF_SAMPLE_ROM_LEFT
SF_SAMPLE_ROM_LINKED

Definition at line 45 of file soundfont.h.

{
    SF_SAMPLE_MONO = 1,
    SF_SAMPLE_RIGHT = 2,
    SF_SAMPLE_LEFT = 4,
    SF_SAMPLE_LINKED = 8,
    SF_SAMPLE_ROM_MONO = 0x8001,
    SF_SAMPLE_ROM_RIGHT = 0x8002,
    SF_SAMPLE_ROM_LEFT = 0x8004,
    SF_SAMPLE_ROM_LINKED = 0x8008,
};

anonymous enum

anonymous enum

Enumerator
SF_GEN_START_ADDRS_OFFSET
SF_GEN_END_ADDRS_OFFSET
SF_GEN_STARTLOOP_ADDRS_OFFSET
SF_GEN_ENDLOOP_ADDRS_OFFSET
SF_GEN_START_ADDRS_COARSE_OFFSET
SF_GEN_MOD_LFO_TO_PITCH
SF_GEN_VIB_LFO_TO_PITCH
SF_GEN_MOD_ENV_TO_PITCH
SF_GEN_INITIAL_FILTER_FC
SF_GEN_INITIAL_FILTER_Q
SF_GEN_MOD_LFO_TO_FILTER_FC
SF_GEN_MOD_ENV_TO_FILTER_FC
SF_GEN_END_ADDRS_COARSE_OFFSET
SF_GEN_MOD_LFO_TO_VOLUME
SF_GEN_CHORUS_EFFECTS_SEND
SF_GEN_REVERB_EFFECTS_SEND
SF_GEN_PAN
SF_GEN_DELAY_MOD_LFO
SF_GEN_FREQ_MOD_LFO
SF_GEN_DELAY_VIB_LFO
SF_GEN_FREQ_VIB_LFO
SF_GEN_DELAY_MOD_ENV
SF_GEN_ATTACK_MOD_ENV
SF_GEN_HOLD_MOD_ENV
SF_GEN_DECAY_MOD_ENV
SF_GEN_SUSTAIN_MOD_ENV
SF_GEN_RELEASE_MOD_ENV
SF_GEN_KEYNUM_TO_MOD_ENV_HOLD
SF_GEN_KEYNUM_TO_MOD_ENV_DECAY
SF_GEN_DELAY_VOL_ENV
SF_GEN_ATTACK_VOL_ENV
SF_GEN_HOLD_VOL_ENV
SF_GEN_DECAY_VOL_ENV
SF_GEN_SUSTAIN_VOL_ENV
SF_GEN_RELEASE_VOL_ENV
SF_GEN_KEYNUM_TO_VOL_ENV_HOLD
SF_GEN_KEYNUM_TO_VOL_ENV_DECAY
SF_GEN_INSTRUMENT
SF_GEN_KEY_RANGE
SF_GEN_VEL_RANGE
SF_GEN_STARTLOOP_ADDRS_COARSE_OFFSET
SF_GEN_KEYNUM
SF_GEN_VELOCITY
SF_GEN_INITIAL_ATTENUATION
SF_GEN_ENDLOOP_ADDRS_COARSE_OFFSET
SF_GEN_COARSE_TUNE
SF_GEN_FINE_TUNE
SF_GEN_SAMPLE_ID
SF_GEN_SAMPLE_MODES
SF_GEN_SCALE_TUNING
SF_GEN_EXCLUSIVE_CLASS
SF_GEN_OVERRIDING_ROOT_KEY
SF_GEN_END_OPER

Definition at line 58 of file soundfont.h.

{
    SF_GEN_START_ADDRS_OFFSET = 0,
    SF_GEN_END_ADDRS_OFFSET = 1,
    SF_GEN_STARTLOOP_ADDRS_OFFSET = 2,
    SF_GEN_ENDLOOP_ADDRS_OFFSET = 3,
    SF_GEN_START_ADDRS_COARSE_OFFSET = 4,
    SF_GEN_MOD_LFO_TO_PITCH = 5,
    SF_GEN_VIB_LFO_TO_PITCH = 6,
    SF_GEN_MOD_ENV_TO_PITCH = 7,
    SF_GEN_INITIAL_FILTER_FC = 8,
    SF_GEN_INITIAL_FILTER_Q = 9,
    SF_GEN_MOD_LFO_TO_FILTER_FC = 10,
    SF_GEN_MOD_ENV_TO_FILTER_FC = 11,
    SF_GEN_END_ADDRS_COARSE_OFFSET = 12,
    SF_GEN_MOD_LFO_TO_VOLUME = 13,

    SF_GEN_CHORUS_EFFECTS_SEND = 15,
    SF_GEN_REVERB_EFFECTS_SEND = 16,
    SF_GEN_PAN = 17,

    SF_GEN_DELAY_MOD_LFO = 21,
    SF_GEN_FREQ_MOD_LFO = 22,
    SF_GEN_DELAY_VIB_LFO = 23,
    SF_GEN_FREQ_VIB_LFO = 24,
    SF_GEN_DELAY_MOD_ENV = 25,
    SF_GEN_ATTACK_MOD_ENV = 26,
    SF_GEN_HOLD_MOD_ENV = 27,
    SF_GEN_DECAY_MOD_ENV = 28,
    SF_GEN_SUSTAIN_MOD_ENV = 29,
    SF_GEN_RELEASE_MOD_ENV = 30,
    SF_GEN_KEYNUM_TO_MOD_ENV_HOLD = 31,
    SF_GEN_KEYNUM_TO_MOD_ENV_DECAY = 32,
    SF_GEN_DELAY_VOL_ENV = 33,
    SF_GEN_ATTACK_VOL_ENV = 34,
    SF_GEN_HOLD_VOL_ENV = 35,
    SF_GEN_DECAY_VOL_ENV = 36,
    SF_GEN_SUSTAIN_VOL_ENV = 37,
    SF_GEN_RELEASE_VOL_ENV = 38,
    SF_GEN_KEYNUM_TO_VOL_ENV_HOLD = 39,
    SF_GEN_KEYNUM_TO_VOL_ENV_DECAY = 40,
    SF_GEN_INSTRUMENT = 41,

    SF_GEN_KEY_RANGE = 43,
    SF_GEN_VEL_RANGE = 44,
    SF_GEN_STARTLOOP_ADDRS_COARSE_OFFSET = 45,
    SF_GEN_KEYNUM = 46,
    SF_GEN_VELOCITY = 47,
    SF_GEN_INITIAL_ATTENUATION = 48,

    SF_GEN_ENDLOOP_ADDRS_COARSE_OFFSET = 50,
    SF_GEN_COARSE_TUNE = 51,
    SF_GEN_FINE_TUNE = 52,
    SF_GEN_SAMPLE_ID = 53,
    SF_GEN_SAMPLE_MODES = 54,

    SF_GEN_SCALE_TUNING = 56,
    SF_GEN_EXCLUSIVE_CLASS = 57,
    SF_GEN_OVERRIDING_ROOT_KEY = 58,

    SF_GEN_END_OPER = 60,
};

anonymous enum

anonymous enum

Enumerator
SF_MOD_CTRL_GEN_NONE
SF_MOD_CTRL_GEN_VELOCITY
SF_MOD_CTRL_GEN_KEY
SF_MOD_CTRL_GEN_POLY_PRESSURE
SF_MOD_CTRL_GEN_CHAN_PRESSURE
SF_MOD_CTRL_GEN_PITCH_WHEEL
SF_MOD_CTRL_GEN_PITCH_WHEEL_SENSITIVITY
SF_MOD_CTRL_GEN_LINK
SF_MOD_CTRL_GEN
SF_MOD_CTRL_MIDI
SF_MOD_DIR_INCREASING
SF_MOD_DIR_DECREASING
SF_MOD_POL_UNIPOLAR
SF_MOD_POL_BIPOLAR
SF_MOD_SRC_LINEAR
SF_MOD_SRC_CONCAVE
SF_MOD_SRC_CONVEX
SF_MOD_SRC_SWITCH

Definition at line 184 of file soundfont.h.

{
    /* sf_modulator is a set of flags ored together */

    SF_MOD_CTRL_GEN_NONE = 0,
    SF_MOD_CTRL_GEN_VELOCITY = 0x2,
    SF_MOD_CTRL_GEN_KEY = 0x3,
    SF_MOD_CTRL_GEN_POLY_PRESSURE = 0xa,
    SF_MOD_CTRL_GEN_CHAN_PRESSURE = 0xd,
    SF_MOD_CTRL_GEN_PITCH_WHEEL = 0xe,
    SF_MOD_CTRL_GEN_PITCH_WHEEL_SENSITIVITY = 0x10,
    SF_MOD_CTRL_GEN_LINK = 0x7f,

    SF_MOD_CTRL_GEN = 0 << 7,
    SF_MOD_CTRL_MIDI = 1 << 7, /* with LSB: MIDI CC */

    SF_MOD_DIR_INCREASING = 0 << 8,
    SF_MOD_DIR_DECREASING = 1 << 8,

    SF_MOD_POL_UNIPOLAR = 0 << 9,
    SF_MOD_POL_BIPOLAR = 1 << 9,

    SF_MOD_SRC_LINEAR = 0 << 10,
    SF_MOD_SRC_CONCAVE = 1 << 10,
    SF_MOD_SRC_CONVEX = 2 << 10,
    SF_MOD_SRC_SWITCH = 3 << 10,
};

anonymous enum

anonymous enum

Enumerator
SF_TRAN_LINEAR
SF_TRAN_ABSOLUTE

Definition at line 213 of file soundfont.h.

{
    SF_TRAN_LINEAR = 0,
    SF_TRAN_ABSOLUTE = 2,
};

Function Documentation

C_ASSERT() [1/7]

C_ASSERT

(

sizeof(struct sf_bag)

= =4

)

C_ASSERT() [2/7]

C_ASSERT

(

sizeof(struct sf_gen)

= =4

)

C_ASSERT() [3/7]

C_ASSERT

(

sizeof(struct sf_instrument)

= =22

)

C_ASSERT() [4/7]

C_ASSERT

(

sizeof(struct sf_mod)

= =10

)

C_ASSERT() [5/7]

C_ASSERT

(

sizeof(struct sf_preset)

= =38

)

C_ASSERT() [6/7]

C_ASSERT

(

sizeof(struct sf_sample)

= =46

)

C_ASSERT() [7/7]

C_ASSERT

(

sizeof(union sf_amount)

= =2

)

debugstr_sf_gen()

static const char * debugstr_sf_gen ( struct sf_gen *  gen )

inlinestatic

Definition at line 266 of file soundfont.h.

{
    const char *name = debugstr_sf_generator(gen->oper);

    switch (gen->oper)
    {
    case SF_GEN_KEY_RANGE:
    case SF_GEN_VEL_RANGE:
        return wine_dbg_sprintf("%s: %u-%u", name, gen->amount.range.low, gen->amount.range.high);
    default:
        return wine_dbg_sprintf("%s: %u", name, gen->amount.value);
    }
}

Referenced by parse_sfbk_chunk(), and parse_soundfont_generators().

debugstr_sf_generator()

static const char * debugstr_sf_generator ( sf_generator  oper )

inlinestatic

Definition at line 122 of file soundfont.h.

{
    switch (oper)
    {
    case SF_GEN_START_ADDRS_OFFSET: return "start_addrs_offset";
    case SF_GEN_END_ADDRS_OFFSET: return "end_addrs_offset";
    case SF_GEN_STARTLOOP_ADDRS_OFFSET: return "startloop_addrs_offset";
    case SF_GEN_ENDLOOP_ADDRS_OFFSET: return "endloop_addrs_offset";
    case SF_GEN_START_ADDRS_COARSE_OFFSET: return "start_addrs_coarse_offset";
    case SF_GEN_MOD_LFO_TO_PITCH: return "mod_lfo_to_pitch";
    case SF_GEN_VIB_LFO_TO_PITCH: return "vib_lfo_to_pitch";
    case SF_GEN_MOD_ENV_TO_PITCH: return "mod_env_to_pitch";
    case SF_GEN_INITIAL_FILTER_FC: return "initial_filter_fc";
    case SF_GEN_INITIAL_FILTER_Q: return "initial_filter_q";
    case SF_GEN_MOD_LFO_TO_FILTER_FC: return "mod_lfo_to_filter_fc";
    case SF_GEN_MOD_ENV_TO_FILTER_FC: return "mod_env_to_filter_fc";
    case SF_GEN_END_ADDRS_COARSE_OFFSET: return "end_addrs_coarse_offset";
    case SF_GEN_MOD_LFO_TO_VOLUME: return "mod_lfo_to_volume";
    case SF_GEN_CHORUS_EFFECTS_SEND: return "chorus_effects_send";
    case SF_GEN_REVERB_EFFECTS_SEND: return "reverb_effects_send";
    case SF_GEN_PAN: return "pan";
    case SF_GEN_DELAY_MOD_LFO: return "delay_mod_lfo";
    case SF_GEN_FREQ_MOD_LFO: return "freq_mod_lfo";
    case SF_GEN_DELAY_VIB_LFO: return "delay_vib_lfo";
    case SF_GEN_FREQ_VIB_LFO: return "freq_vib_lfo";
    case SF_GEN_DELAY_MOD_ENV: return "delay_mod_env";
    case SF_GEN_ATTACK_MOD_ENV: return "attack_mod_env";
    case SF_GEN_HOLD_MOD_ENV: return "hold_mod_env";
    case SF_GEN_DECAY_MOD_ENV: return "decay_mod_env";
    case SF_GEN_SUSTAIN_MOD_ENV: return "sustain_mod_env";
    case SF_GEN_RELEASE_MOD_ENV: return "release_mod_env";
    case SF_GEN_KEYNUM_TO_MOD_ENV_HOLD: return "keynum_to_mod_env_hold";
    case SF_GEN_KEYNUM_TO_MOD_ENV_DECAY: return "keynum_to_mod_env_decay";
    case SF_GEN_DELAY_VOL_ENV: return "delay_vol_env";
    case SF_GEN_ATTACK_VOL_ENV: return "attack_vol_env";
    case SF_GEN_HOLD_VOL_ENV: return "hold_vol_env";
    case SF_GEN_DECAY_VOL_ENV: return "decay_vol_env";
    case SF_GEN_SUSTAIN_VOL_ENV: return "sustain_vol_env";
    case SF_GEN_RELEASE_VOL_ENV: return "release_vol_env";
    case SF_GEN_KEYNUM_TO_VOL_ENV_HOLD: return "keynum_to_vol_env_hold";
    case SF_GEN_KEYNUM_TO_VOL_ENV_DECAY: return "keynum_to_vol_env_decay";
    case SF_GEN_INSTRUMENT: return "instrument";
    case SF_GEN_KEY_RANGE: return "key_range";
    case SF_GEN_VEL_RANGE: return "vel_range";
    case SF_GEN_STARTLOOP_ADDRS_COARSE_OFFSET: return "startloop_addrs_coarse_offset";
    case SF_GEN_KEYNUM: return "keynum";
    case SF_GEN_VELOCITY: return "velocity";
    case SF_GEN_INITIAL_ATTENUATION: return "initial_attenuation";
    case SF_GEN_ENDLOOP_ADDRS_COARSE_OFFSET: return "endloop_addrs_coarse_offset";
    case SF_GEN_COARSE_TUNE: return "coarse_tune";
    case SF_GEN_FINE_TUNE: return "fine_tune";
    case SF_GEN_SAMPLE_ID: return "sample_id";
    case SF_GEN_SAMPLE_MODES: return "sample_modes";
    case SF_GEN_SCALE_TUNING: return "scale_tuning";
    case SF_GEN_EXCLUSIVE_CLASS: return "exclusive_class";
    case SF_GEN_OVERRIDING_ROOT_KEY: return "overriding_root_key";
    case SF_GEN_END_OPER: return "end_oper";
    }

    return wine_dbg_sprintf("%u", oper);
}

Referenced by debugstr_sf_gen(), and debugstr_sf_mod().

debugstr_sf_mod()

static const char * debugstr_sf_mod ( struct sf_mod *  mod )

inlinestatic

Definition at line 252 of file soundfont.h.

{
    const char *dest_name = debugstr_sf_generator(mod->dest_gen);
    return wine_dbg_sprintf("%#x x %#x -> %s: %d (%#x)", mod->src_mod, mod->amount_src_mod, dest_name, mod->amount, mod->transform);
}

Referenced by parse_sfbk_chunk().
