graph Struct Reference

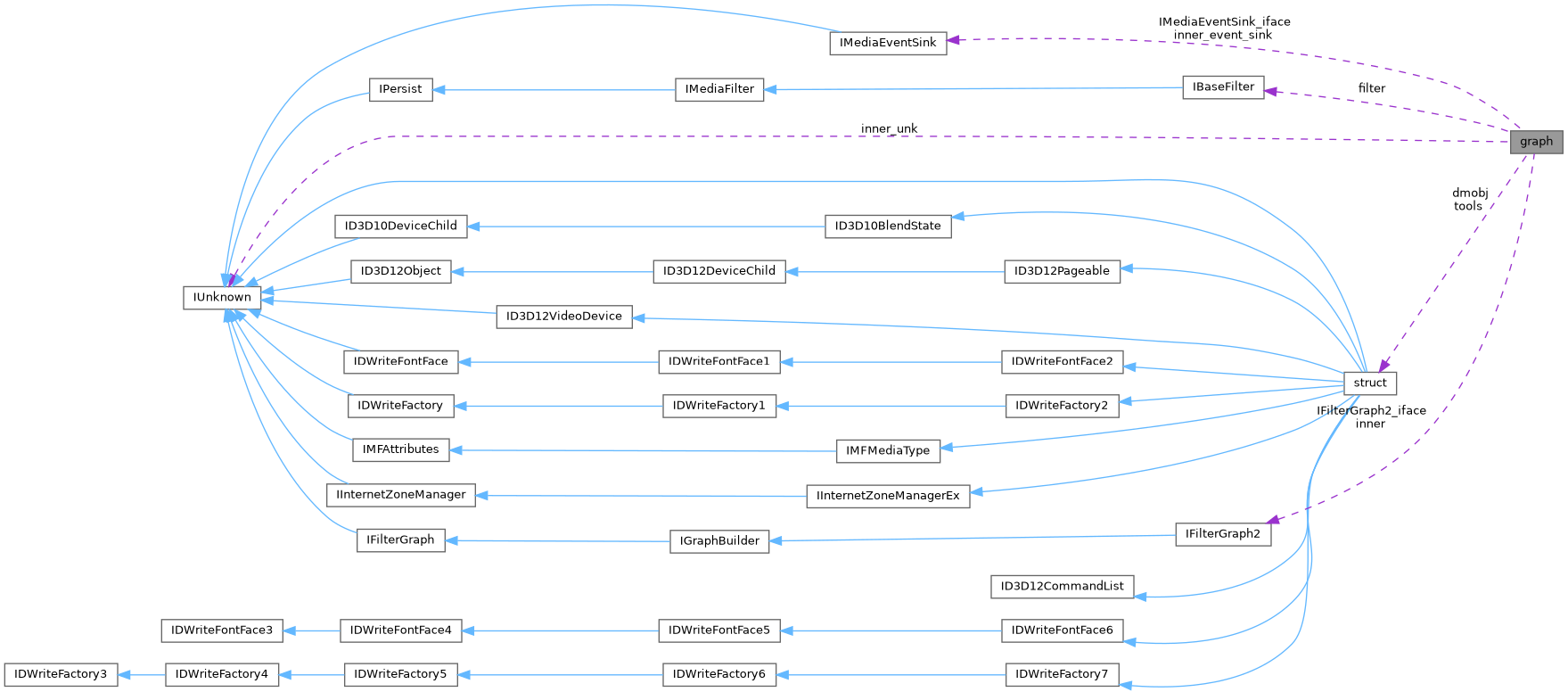

Collaboration diagram for graph:

Public Attributes
IDirectMusicGraph	IDirectMusicGraph_iface
struct dmobject	dmobj
LONG	ref
struct list	tools
IFilterGraph2	IFilterGraph2_iface
IMediaEventSink	IMediaEventSink_iface
IUnknown *	inner_unk
IFilterGraph2 *	inner
IMediaEventSink *	inner_event_sink
LONG	refcount
unsigned int	got_add_filter
IBaseFilter *	filter
WCHAR	filter_name [128]
unsigned int	got_notify
LONG	event_code
LONG_PTR	event_param1
LONG_PTR	event_param2

Detailed Description

Definition at line 31 of file graph.c.

Member Data Documentation

dmobj

struct dmobject graph::dmobj

Definition at line 34 of file graph.c.

Referenced by impl_from_IPersistStream().

event_code

LONG graph::event_code

Definition at line 2178 of file amstream.c.

Referenced by check_ammediastream_end_of_stream(), event_sink_Notify(), test_audiostream_begin_flush_end_flush(), and test_ddrawstream_begin_flush_end_flush().

event_param1

LONG_PTR graph::event_param1

Definition at line 2179 of file amstream.c.

Referenced by event_sink_Notify().

event_param2

LONG_PTR graph::event_param2

Definition at line 2180 of file amstream.c.

Referenced by event_sink_Notify().

filter

IBaseFilter* graph::filter

Definition at line 2175 of file amstream.c.

Referenced by graph_AddFilter(), test_initialize(), and test_mediastreamfilter_get_state().

filter_name

WCHAR graph::filter_name[128]

Definition at line 2176 of file amstream.c.

Referenced by graph_AddFilter(), and test_initialize().

got_add_filter

unsigned int graph::got_add_filter

Definition at line 2174 of file amstream.c.

Referenced by graph_AddFilter(), and test_initialize().

got_notify

unsigned int graph::got_notify

Definition at line 2177 of file amstream.c.

Referenced by check_ammediastream_end_of_stream(), event_sink_Notify(), test_audiostream_begin_flush_end_flush(), test_ddrawstream_begin_flush_end_flush(), and test_mediastreamfilter_end_of_stream().

IDirectMusicGraph_iface

IDirectMusicGraph graph::IDirectMusicGraph_iface

Definition at line 33 of file graph.c.

Referenced by impl_from_IDirectMusicGraph().

IFilterGraph2_iface

IFilterGraph2 graph::IFilterGraph2_iface

Definition at line 2168 of file amstream.c.

Referenced by autoplug(), autoplug_through_sink(), check_ammediastream_end_of_stream(), event_sink_AddRef(), event_sink_QueryInterface(), event_sink_Release(), FilterGraph2_AddFilter(), graph_init(), graph_start(), impl_from_IFilterGraph2(), MediaControl_Run(), MediaFilter_Pause(), test_audiostream_begin_flush_end_flush(), test_ddrawstream_begin_flush_end_flush(), test_initialize(), and test_mediastreamfilter_end_of_stream().

IMediaEventSink_iface

IMediaEventSink graph::IMediaEventSink_iface

Definition at line 2169 of file amstream.c.

Referenced by graph_init(), graph_QueryInterface(), and impl_from_IMediaEventSink().

inner

IFilterGraph2* graph::inner

Definition at line 2171 of file amstream.c.

Referenced by graph_AddFilter(), graph_ConnectDirect(), graph_destroy(), graph_Disconnect(), graph_EnumFilters(), and graph_init().

inner_event_sink

IMediaEventSink* graph::inner_event_sink

Definition at line 2172 of file amstream.c.

Referenced by event_sink_Notify(), graph_destroy(), and graph_init().

inner_unk

IUnknown* graph::inner_unk

Definition at line 2170 of file amstream.c.

Referenced by graph_destroy(), graph_init(), and graph_QueryInterface().

ref

LONG graph::ref

Definition at line 35 of file graph.c.

Referenced by check_ammediastream_end_of_stream(), FilterGraphInner_AddRef(), graph_AddRef(), graph_destroy(), test_audiostream_begin_flush_end_flush(), test_audiostreamsample_get_audio_data(), test_audiostreamsample_get_media_stream(), test_ddrawstream_begin_flush_end_flush(), test_ddrawstream_getsetdirectdraw(), test_initialize(), test_mediastreamfilter_end_of_stream(), and test_mediastreamfilter_get_state().

refcount

LONG graph::refcount

Definition at line 2173 of file amstream.c.

Referenced by d2d_transform_graph_AddRef(), d2d_transform_graph_Release(), graph_AddRef(), graph_init(), and graph_Release().

tools

struct list graph::tools

Definition at line 37 of file graph.c.

---

The documentation for this struct was generated from the following files:

• dll/directx/wine/dmime/graph.c
• modules/rostests/winetests/amstream/amstream.c
