vsir_cfg_structure Struct Reference

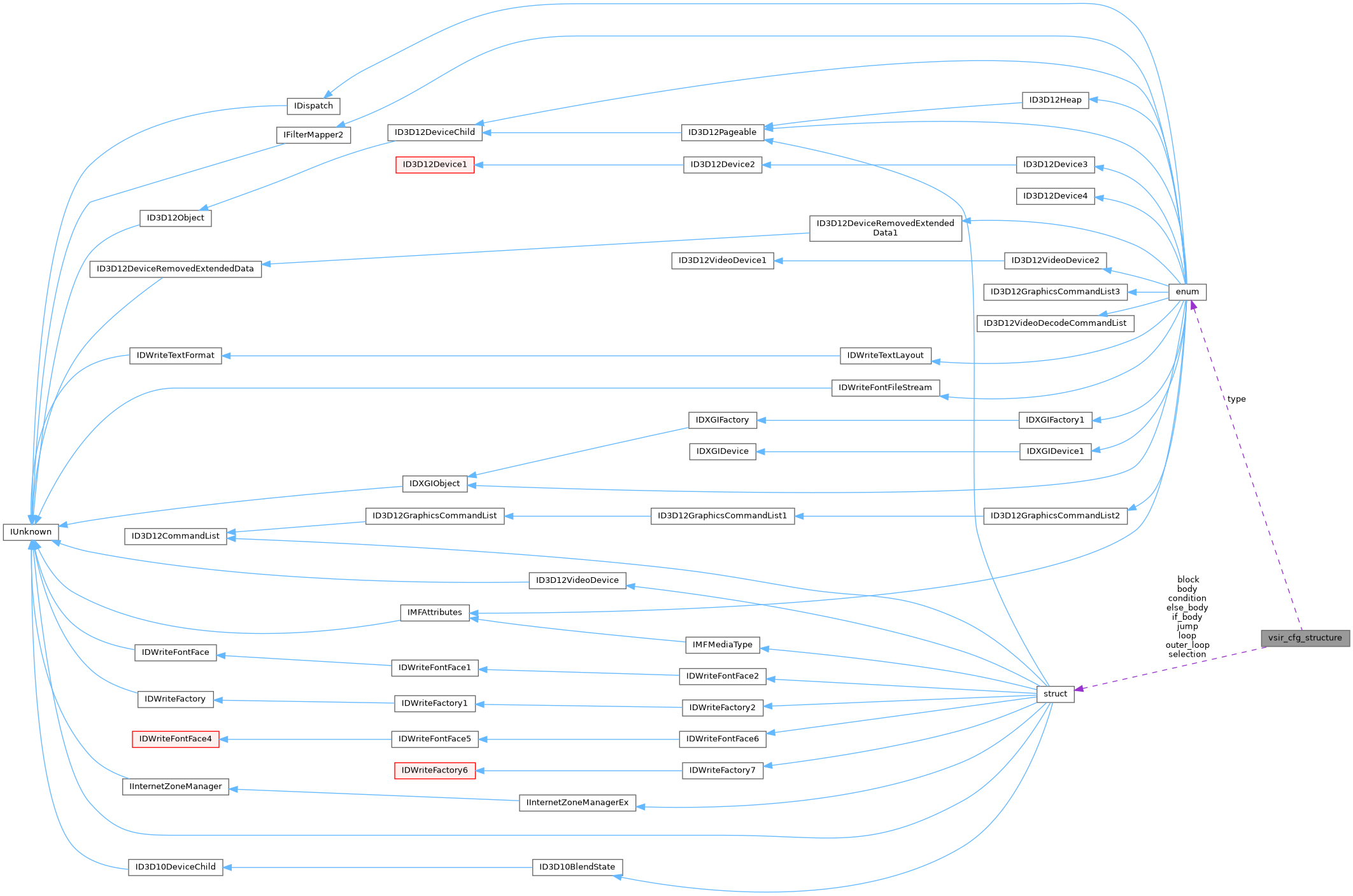

Collaboration diagram for vsir_cfg_structure:

Public Types
enum	vsir_cfg_structure_type { STRUCTURE_TYPE_BLOCK , STRUCTURE_TYPE_LOOP , STRUCTURE_TYPE_SELECTION , STRUCTURE_TYPE_JUMP }

Public Attributes
enum vsir_cfg_structure::vsir_cfg_structure_type	type
union {
struct vsir_block *   block
struct vsir_cfg_structure_loop {
struct vsir_cfg_structure_list   body
unsigned   idx
bool   needs_trampoline
struct vsir_cfg_structure *   outer_loop
}   loop
struct vsir_cfg_structure_selection {
struct vkd3d_shader_src_param *   condition
struct vsir_cfg_structure_list   if_body
struct vsir_cfg_structure_list   else_body
bool   invert_condition
}   selection
struct vsir_cfg_structure_jump {
enum	vsir_cfg_jump_type { JUMP_NONE , JUMP_BREAK , JUMP_CONTINUE , JUMP_RET }
enum vsir_cfg_structure:: { ... } ::vsir_cfg_structure_jump::vsir_cfg_jump_type   type
unsigned int   target
struct vkd3d_shader_src_param *   condition
bool   invert_condition
bool   needs_launcher
}   jump
}	u

Detailed Description

Definition at line 3642 of file ir.c.

Member Enumeration Documentation

vsir_cfg_structure_type

enum vsir_cfg_structure::vsir_cfg_structure_type

Enumerator
STRUCTURE_TYPE_BLOCK
STRUCTURE_TYPE_LOOP
STRUCTURE_TYPE_SELECTION
STRUCTURE_TYPE_JUMP

Definition at line 3644 of file ir.c.

    {
        /* Execute a block of the original VSIR program. */
        STRUCTURE_TYPE_BLOCK,
        /* Execute a loop, which is identified by an index. */
        STRUCTURE_TYPE_LOOP,
        /* Execute a selection construct. */
        STRUCTURE_TYPE_SELECTION,
        /* Execute a `return' or a (possibly) multilevel `break' or
         * `continue', targeting a loop by its index. If `condition'
         * is non-NULL, then the jump is conditional (this is
         * currently not allowed for `return'). */
        STRUCTURE_TYPE_JUMP,
    } type;

Member Data Documentation

block

struct vsir_block* vsir_cfg_structure::block

Definition at line 3660 of file ir.c.

Referenced by vsir_cfg_build_structured_program(), vsir_cfg_structure_dump(), and vsir_cfg_structure_list_emit().

body

struct vsir_cfg_structure_list vsir_cfg_structure::body

Definition at line 3663 of file ir.c.

condition

struct vkd3d_shader_src_param* vsir_cfg_structure::condition

Definition at line 3670 of file ir.c.

else_body

struct vsir_cfg_structure_list vsir_cfg_structure::else_body

Definition at line 3672 of file ir.c.

idx

unsigned vsir_cfg_structure::idx

Definition at line 3664 of file ir.c.

if_body

struct vsir_cfg_structure_list vsir_cfg_structure::if_body

Definition at line 3671 of file ir.c.

invert_condition

bool vsir_cfg_structure::invert_condition

Definition at line 3673 of file ir.c.

Referenced by vsir_cfg_build_structured_program().

struct { ... } ::vsir_cfg_structure_jump vsir_cfg_structure::jump

Referenced by vsir_cfg_append_loop(), vsir_cfg_build_structured_program(), vsir_cfg_count_targets(), vsir_cfg_get_trailing_break(), vsir_cfg_mark_launchers(), vsir_cfg_mark_trampolines(), vsir_cfg_move_breaks_out_of_selections(), vsir_cfg_structure_dump(), vsir_cfg_structure_list_emit(), and vsir_cfg_synthesize_selections().

struct { ... } ::vsir_cfg_structure_loop vsir_cfg_structure::loop

Referenced by vsir_cfg_append_loop(), vsir_cfg_build_structured_program(), vsir_cfg_count_targets(), vsir_cfg_mark_launchers(), vsir_cfg_mark_trampolines(), vsir_cfg_optimize_recurse(), vsir_cfg_structure_cleanup(), vsir_cfg_structure_dump(), and vsir_cfg_structure_list_emit().

needs_launcher

bool vsir_cfg_structure::needs_launcher

Definition at line 3689 of file ir.c.

needs_trampoline

bool vsir_cfg_structure::needs_trampoline

Definition at line 3665 of file ir.c.

outer_loop

struct vsir_cfg_structure* vsir_cfg_structure::outer_loop

Definition at line 3666 of file ir.c.

struct { ... } ::vsir_cfg_structure_selection vsir_cfg_structure::selection

Referenced by vsir_cfg_count_targets(), vsir_cfg_mark_launchers(), vsir_cfg_mark_trampolines(), vsir_cfg_structure_cleanup(), vsir_cfg_structure_dump(), vsir_cfg_structure_list_emit(), and vsir_cfg_synthesize_selections().

target

unsigned int vsir_cfg_structure::target

Definition at line 3686 of file ir.c.

Referenced by vsir_cfg_remove_trailing_continue().

type [1/2]

enum vsir_cfg_structure::vsir_cfg_structure_type vsir_cfg_structure::type

Referenced by vsir_cfg_build_structured_program(), vsir_cfg_count_targets(), vsir_cfg_get_trailing_break(), vsir_cfg_mark_launchers(), vsir_cfg_mark_trampolines(), vsir_cfg_optimize_recurse(), vsir_cfg_structure_cleanup(), vsir_cfg_structure_dump(), vsir_cfg_structure_init(), vsir_cfg_structure_list_emit(), and vsir_cfg_synthesize_selections().

[2/2]

enum { ... } ::vsir_cfg_structure_jump::vsir_cfg_jump_type vsir_cfg_structure::type

union { ... } vsir_cfg_structure::u

Referenced by vsir_cfg_append_loop(), vsir_cfg_build_structured_program(), vsir_cfg_count_targets(), vsir_cfg_get_trailing_break(), vsir_cfg_mark_launchers(), vsir_cfg_mark_trampolines(), vsir_cfg_move_breaks_out_of_selections(), vsir_cfg_optimize_recurse(), vsir_cfg_structure_cleanup(), vsir_cfg_structure_dump(), vsir_cfg_structure_list_emit(), and vsir_cfg_synthesize_selections().

---

The documentation for this struct was generated from the following file:

• sdk/lib/vkd3d/libs/vkd3d-shader/ir.c
