#include <Cpuid.h>

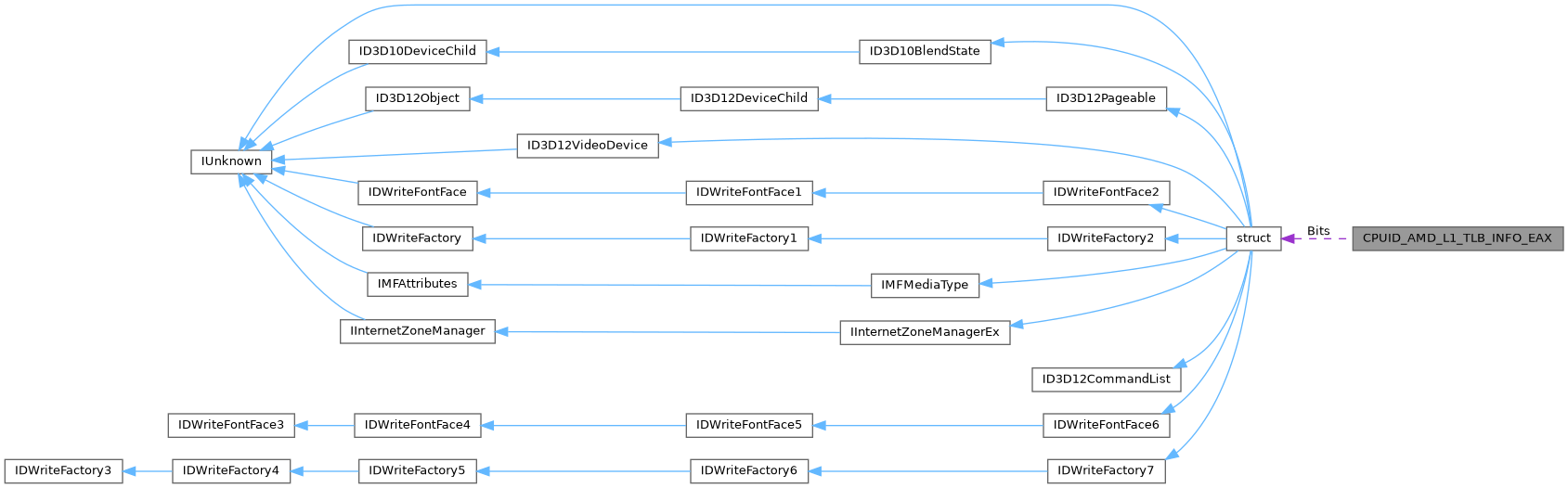

Collaboration diagram for CPUID_AMD_L1_TLB_INFO_EAX:

[legend]

Public Attributes
struct {
UINT32 L1ITlb2and4MSize: 8
	EAX[7..0] - ITLB number of entries for 2 MB and 4 MB pages. More...

UINT32 L1ITlb2and4MAssoc: 8
	EAX[15..8] - ITLB associativity for 2 MB and 4 MB pages (0xFF = Fully associative) More...

UINT32 L1DTlb2and4MSize: 8
	EAX[23..16] - DTLB number of entries for 2 MB and 4 MB pages. More...

UINT32 L1DTlb2and4MAssoc: 8
	EAX[31..24] - DTLB associativity for 2 MB and 4 MB pages (0xFF = Fully associative) More...

}	Bits

UINT32	Uint32

Detailed Description

Definition at line 183 of file Cpuid.h.

Member Data Documentation

struct { ... } CPUID_AMD_L1_TLB_INFO_EAX::Bits

UINT32 CPUID_AMD_L1_TLB_INFO_EAX::L1DTlb2and4MAssoc

EAX[31..24] - DTLB associativity for 2 MB and 4 MB pages (0xFF = Fully associative)

Definition at line 190 of file Cpuid.h.

UINT32 CPUID_AMD_L1_TLB_INFO_EAX::L1DTlb2and4MSize

EAX[23..16] - DTLB number of entries for 2 MB and 4 MB pages.

Definition at line 189 of file Cpuid.h.

UINT32 CPUID_AMD_L1_TLB_INFO_EAX::L1ITlb2and4MAssoc

EAX[15..8] - ITLB associativity for 2 MB and 4 MB pages (0xFF = Fully associative)

Definition at line 188 of file Cpuid.h.

UINT32 CPUID_AMD_L1_TLB_INFO_EAX::L1ITlb2and4MSize

EAX[7..0] - ITLB number of entries for 2 MB and 4 MB pages.

Definition at line 187 of file Cpuid.h.

UINT32 CPUID_AMD_L1_TLB_INFO_EAX::Uint32

Definition at line 192 of file Cpuid.h.

The documentation for this union was generated from the following file:
