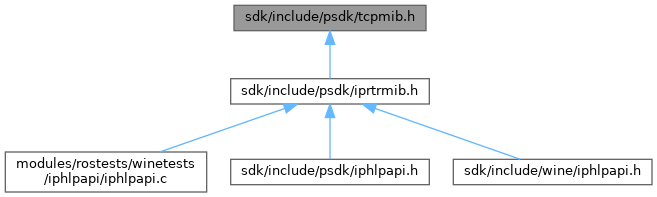

This graph shows which files directly or indirectly include this file:

Classes
struct	_MIB_TCPROW

struct	_MIB_TCPTABLE

struct	_MIB_TCPROW2

struct	_MIB_TCPTABLE2

struct	_MIB_TCPROW_OWNER_PID

struct	_MIB_TCPTABLE_OWNER_PID

struct	_MIB_TCPROW_OWNER_MODULE

struct	_MIB_TCPTABLE_OWNER_MODULE

struct	_MIB_TCPSTATS

struct	_MIB_TCPSTATS2

Macros
#define	TCPIP_OWNING_MODULE_SIZE 16

#define	MIB_TCP_MAXCONN_DYNAMIC ((ULONG)-1)

#define	SIZEOF_TCPTABLE(x) (FIELD_OFFSET(MIB_TCPTABLE, table[0]) + ((x) * sizeof(MIB_TCPROW)) + ALIGN_SIZE)

#define	SIZEOF_TCPTABLE2(x) (FIELD_OFFSET(MIB_TCPTABLE2, table[0]) + ((x) * sizeof(MIB_TCPROW2)) + ALIGN_SIZE)

#define	SIZEOF_TCPTABLE_OWNER_PID(x) (FIELD_OFFSET(MIB_TCPTABLE_OWNER_PID, table[0]) + ((x) * sizeof(MIB_TCPROW_OWNER_PID)) + ALIGN_SIZE)

#define	SIZEOF_TCPTABLE_OWNER_MODULE(x) (FIELD_OFFSET(MIB_TCPTABLE_OWNER_MODULE, table[0]) + ((x) * sizeof(MIB_TCPROW_OWNER_MODULE)) + ALIGN_SIZE)

Typedefs
typedef enum TCP_CONNECTION_OFFLOAD_STATE *	PTCP_CONNECTION_OFFLOAD_STATE

typedef struct _MIB_TCPROW	MIB_TCPROW

typedef struct _MIB_TCPROW *	PMIB_TCPROW

typedef struct _MIB_TCPTABLE	MIB_TCPTABLE

typedef struct _MIB_TCPTABLE *	PMIB_TCPTABLE

typedef struct _MIB_TCPROW2	MIB_TCPROW2

typedef struct _MIB_TCPROW2 *	PMIB_TCPROW2

typedef struct _MIB_TCPTABLE2	MIB_TCPTABLE2

typedef struct _MIB_TCPTABLE2 *	PMIB_TCPTABLE2

typedef struct _MIB_TCPROW_OWNER_PID	MIB_TCPROW_OWNER_PID

typedef struct _MIB_TCPROW_OWNER_PID *	PMIB_TCPROW_OWNER_PID

typedef struct _MIB_TCPTABLE_OWNER_PID	MIB_TCPTABLE_OWNER_PID

typedef struct _MIB_TCPTABLE_OWNER_PID *	PMIB_TCPTABLE_OWNER_PID

typedef struct _MIB_TCPROW_OWNER_MODULE	MIB_TCPROW_OWNER_MODULE

typedef struct _MIB_TCPROW_OWNER_MODULE *	PMIB_TCPROW_OWNER_MODULE

typedef struct _MIB_TCPTABLE_OWNER_MODULE	MIB_TCPTABLE_OWNER_MODULE

typedef struct _MIB_TCPTABLE_OWNER_MODULE *	PMIB_TCPTABLE_OWNER_MODULE

typedef enum TCP_RTO_ALGORITHM *	PTCP_RTO_ALGORITHM

typedef struct _MIB_TCPSTATS	MIB_TCPSTATS

typedef struct _MIB_TCPSTATS *	PMIB_TCPSTATS

typedef struct _MIB_TCPSTATS2	MIB_TCPSTATS2

typedef struct _MIB_TCPSTATS2 *	PMIB_TCPSTATS2

Enumerations
enum	MIB_TCP_STATE { MIB_TCP_STATE_CLOSED = 1 , MIB_TCP_STATE_LISTEN = 2 , MIB_TCP_STATE_SYN_SENT = 3 , MIB_TCP_STATE_SYN_RCVD = 4 , MIB_TCP_STATE_ESTAB = 5 , MIB_TCP_STATE_FIN_WAIT1 = 6 , MIB_TCP_STATE_FIN_WAIT2 = 7 , MIB_TCP_STATE_CLOSE_WAIT = 8 , MIB_TCP_STATE_CLOSING = 9 , MIB_TCP_STATE_LAST_ACK = 10 , MIB_TCP_STATE_TIME_WAIT = 11 , MIB_TCP_STATE_DELETE_TCB = 12 , MIB_TCP_STATE_RESERVED = 100 , MIB_TCP_STATE_CLOSED = 1 , MIB_TCP_STATE_LISTEN = 2 , MIB_TCP_STATE_SYN_SENT = 3 , MIB_TCP_STATE_SYN_RCVD = 4 , MIB_TCP_STATE_ESTAB = 5 , MIB_TCP_STATE_FIN_WAIT1 = 6 , MIB_TCP_STATE_FIN_WAIT2 = 7 , MIB_TCP_STATE_CLOSE_WAIT = 8 , MIB_TCP_STATE_CLOSING = 9 , MIB_TCP_STATE_LAST_ACK = 10 , MIB_TCP_STATE_TIME_WAIT = 11 , MIB_TCP_STATE_DELETE_TCB = 12 }

enum	TCP_CONNECTION_OFFLOAD_STATE { TcpConnectionOffloadStateInHost , TcpConnectionOffloadStateOffloading , TcpConnectionOffloadStateOffloaded , TcpConnectionOffloadStateUploading , TcpConnectionOffloadStateMax , TcpConnectionOffloadStateInHost , TcpConnectionOffloadStateOffloading , TcpConnectionOffloadStateOffloaded , TcpConnectionOffloadStateUploading , TcpConnectionOffloadStateMax }

enum	TCP_RTO_ALGORITHM { TcpRtoAlgorithmOther = 1 , TcpRtoAlgorithmConstant = 2 , TcpRtoAlgorithmRsre = 3 , TcpRtoAlgorithmVanj = 4 , MIB_TCP_RTO_OTHER = 1 , MIB_TCP_RTO_CONSTANT = 2 , MIB_TCP_RTO_RSRE = 3 , MIB_TCP_RTO_VANJ = 4 , TcpRtoAlgorithmOther = 0 , TcpRtoAlgorithmConstant = 1 , TcpRtoAlgorithmRsre = 2 , TcpRtoAlgorithmVanj = 3 , MIB_TCP_RTO_OTHER = 1 , MIB_TCP_RTO_CONSTANT = 2 , MIB_TCP_RTO_RSRE = 3 , MIB_TCP_RTO_VANJ = 4 }

Macro Definition Documentation

◆ MIB_TCP_MAXCONN_DYNAMIC

#define MIB_TCP_MAXCONN_DYNAMIC ((ULONG)-1)

Definition at line 12 of file tcpmib.h.

◆ SIZEOF_TCPTABLE

#define SIZEOF_TCPTABLE ( x ) (FIELD_OFFSET(MIB_TCPTABLE, table[0]) + ((x) * sizeof(MIB_TCPROW)) + ALIGN_SIZE)

Definition at line 55 of file tcpmib.h.

◆ SIZEOF_TCPTABLE2

#define SIZEOF_TCPTABLE2 ( x ) (FIELD_OFFSET(MIB_TCPTABLE2, table[0]) + ((x) * sizeof(MIB_TCPROW2)) + ALIGN_SIZE)

Definition at line 73 of file tcpmib.h.

◆ SIZEOF_TCPTABLE_OWNER_MODULE

#define SIZEOF_TCPTABLE_OWNER_MODULE ( x ) (FIELD_OFFSET(MIB_TCPTABLE_OWNER_MODULE, table[0]) + ((x) * sizeof(MIB_TCPROW_OWNER_MODULE)) + ALIGN_SIZE)

Definition at line 109 of file tcpmib.h.

◆ SIZEOF_TCPTABLE_OWNER_PID

#define SIZEOF_TCPTABLE_OWNER_PID ( x ) (FIELD_OFFSET(MIB_TCPTABLE_OWNER_PID, table[0]) + ((x) * sizeof(MIB_TCPROW_OWNER_PID)) + ALIGN_SIZE)

Definition at line 90 of file tcpmib.h.

◆ TCPIP_OWNING_MODULE_SIZE

#define TCPIP_OWNING_MODULE_SIZE 16

Definition at line 11 of file tcpmib.h.

Typedef Documentation

◆ MIB_TCPROW

typedef struct _MIB_TCPROW MIB_TCPROW

◆ MIB_TCPROW2

typedef struct _MIB_TCPROW2 MIB_TCPROW2

◆ MIB_TCPROW_OWNER_MODULE

typedef struct _MIB_TCPROW_OWNER_MODULE MIB_TCPROW_OWNER_MODULE

◆ MIB_TCPROW_OWNER_PID

typedef struct _MIB_TCPROW_OWNER_PID MIB_TCPROW_OWNER_PID

◆ MIB_TCPSTATS

typedef struct _MIB_TCPSTATS MIB_TCPSTATS

◆ MIB_TCPSTATS2

typedef struct _MIB_TCPSTATS2 MIB_TCPSTATS2

◆ MIB_TCPTABLE

typedef struct _MIB_TCPTABLE MIB_TCPTABLE

◆ MIB_TCPTABLE2

typedef struct _MIB_TCPTABLE2 MIB_TCPTABLE2

◆ MIB_TCPTABLE_OWNER_MODULE

typedef struct _MIB_TCPTABLE_OWNER_MODULE MIB_TCPTABLE_OWNER_MODULE

◆ MIB_TCPTABLE_OWNER_PID

typedef struct _MIB_TCPTABLE_OWNER_PID MIB_TCPTABLE_OWNER_PID

◆ PMIB_TCPROW

typedef struct _MIB_TCPROW * PMIB_TCPROW

◆ PMIB_TCPROW2

typedef struct _MIB_TCPROW2 * PMIB_TCPROW2

◆ PMIB_TCPROW_OWNER_MODULE

typedef struct _MIB_TCPROW_OWNER_MODULE * PMIB_TCPROW_OWNER_MODULE

◆ PMIB_TCPROW_OWNER_PID

typedef struct _MIB_TCPROW_OWNER_PID * PMIB_TCPROW_OWNER_PID

◆ PMIB_TCPSTATS

typedef struct _MIB_TCPSTATS * PMIB_TCPSTATS

◆ PMIB_TCPSTATS2

typedef struct _MIB_TCPSTATS2 * PMIB_TCPSTATS2

◆ PMIB_TCPTABLE

typedef struct _MIB_TCPTABLE * PMIB_TCPTABLE

◆ PMIB_TCPTABLE2

typedef struct _MIB_TCPTABLE2 * PMIB_TCPTABLE2

◆ PMIB_TCPTABLE_OWNER_MODULE

typedef struct _MIB_TCPTABLE_OWNER_MODULE * PMIB_TCPTABLE_OWNER_MODULE

◆ PMIB_TCPTABLE_OWNER_PID

typedef struct _MIB_TCPTABLE_OWNER_PID * PMIB_TCPTABLE_OWNER_PID

◆ PTCP_CONNECTION_OFFLOAD_STATE

typedef enum TCP_CONNECTION_OFFLOAD_STATE * PTCP_CONNECTION_OFFLOAD_STATE

◆ PTCP_RTO_ALGORITHM

typedef enum TCP_RTO_ALGORITHM * PTCP_RTO_ALGORITHM

Enumeration Type Documentation

◆ MIB_TCP_STATE

enum MIB_TCP_STATE

Enumerator
MIB_TCP_STATE_CLOSED
MIB_TCP_STATE_LISTEN
MIB_TCP_STATE_SYN_SENT
MIB_TCP_STATE_SYN_RCVD
MIB_TCP_STATE_ESTAB
MIB_TCP_STATE_FIN_WAIT1
MIB_TCP_STATE_FIN_WAIT2
MIB_TCP_STATE_CLOSE_WAIT
MIB_TCP_STATE_CLOSING
MIB_TCP_STATE_LAST_ACK
MIB_TCP_STATE_TIME_WAIT
MIB_TCP_STATE_DELETE_TCB
MIB_TCP_STATE_RESERVED
MIB_TCP_STATE_CLOSED
MIB_TCP_STATE_LISTEN
MIB_TCP_STATE_SYN_SENT
MIB_TCP_STATE_SYN_RCVD
MIB_TCP_STATE_ESTAB
MIB_TCP_STATE_FIN_WAIT1
MIB_TCP_STATE_FIN_WAIT2
MIB_TCP_STATE_CLOSE_WAIT
MIB_TCP_STATE_CLOSING
MIB_TCP_STATE_LAST_ACK
MIB_TCP_STATE_TIME_WAIT
MIB_TCP_STATE_DELETE_TCB

Definition at line 14 of file tcpmib.h.

             {
    MIB_TCP_STATE_CLOSED     = 1,
    MIB_TCP_STATE_LISTEN     = 2,
    MIB_TCP_STATE_SYN_SENT   = 3,
    MIB_TCP_STATE_SYN_RCVD   = 4,
    MIB_TCP_STATE_ESTAB      = 5,
    MIB_TCP_STATE_FIN_WAIT1  = 6,
    MIB_TCP_STATE_FIN_WAIT2  = 7,
    MIB_TCP_STATE_CLOSE_WAIT = 8,
    MIB_TCP_STATE_CLOSING    = 9,
    MIB_TCP_STATE_LAST_ACK   = 10,
    MIB_TCP_STATE_TIME_WAIT  = 11,
    MIB_TCP_STATE_DELETE_TCB = 12,

    MIB_TCP_STATE_RESERVED   = 100
} MIB_TCP_STATE;

◆ TCP_CONNECTION_OFFLOAD_STATE

enum TCP_CONNECTION_OFFLOAD_STATE

Enumerator
TcpConnectionOffloadStateInHost
TcpConnectionOffloadStateOffloading
TcpConnectionOffloadStateOffloaded
TcpConnectionOffloadStateUploading
TcpConnectionOffloadStateMax
TcpConnectionOffloadStateInHost
TcpConnectionOffloadStateOffloading
TcpConnectionOffloadStateOffloaded
TcpConnectionOffloadStateUploading
TcpConnectionOffloadStateMax

Definition at line 31 of file tcpmib.h.

             {
    TcpConnectionOffloadStateInHost,
    TcpConnectionOffloadStateOffloading,
    TcpConnectionOffloadStateOffloaded,
    TcpConnectionOffloadStateUploading,
    TcpConnectionOffloadStateMax,
} TCP_CONNECTION_OFFLOAD_STATE, *PTCP_CONNECTION_OFFLOAD_STATE;

◆ TCP_RTO_ALGORITHM

enum TCP_RTO_ALGORITHM

Enumerator
TcpRtoAlgorithmOther
TcpRtoAlgorithmConstant
TcpRtoAlgorithmRsre
TcpRtoAlgorithmVanj
MIB_TCP_RTO_OTHER
MIB_TCP_RTO_CONSTANT
MIB_TCP_RTO_RSRE
MIB_TCP_RTO_VANJ
TcpRtoAlgorithmOther
TcpRtoAlgorithmConstant
TcpRtoAlgorithmRsre
TcpRtoAlgorithmVanj
MIB_TCP_RTO_OTHER
MIB_TCP_RTO_CONSTANT
MIB_TCP_RTO_RSRE
MIB_TCP_RTO_VANJ

Definition at line 112 of file tcpmib.h.

             {
    TcpRtoAlgorithmOther    = 1,
    TcpRtoAlgorithmConstant = 2,
    TcpRtoAlgorithmRsre     = 3,
    TcpRtoAlgorithmVanj     = 4,

    MIB_TCP_RTO_OTHER       = 1,
    MIB_TCP_RTO_CONSTANT    = 2,
    MIB_TCP_RTO_RSRE        = 3,
    MIB_TCP_RTO_VANJ        = 4,
} TCP_RTO_ALGORITHM, *PTCP_RTO_ALGORITHM;
